Power Apps, Custom Connectors and API Management

Neil HaddleyAugust 2, 2021

Azure API Management Service

The API Management Service controls how api services are exposed to employees by applying authentication, authorization, and usage limits.

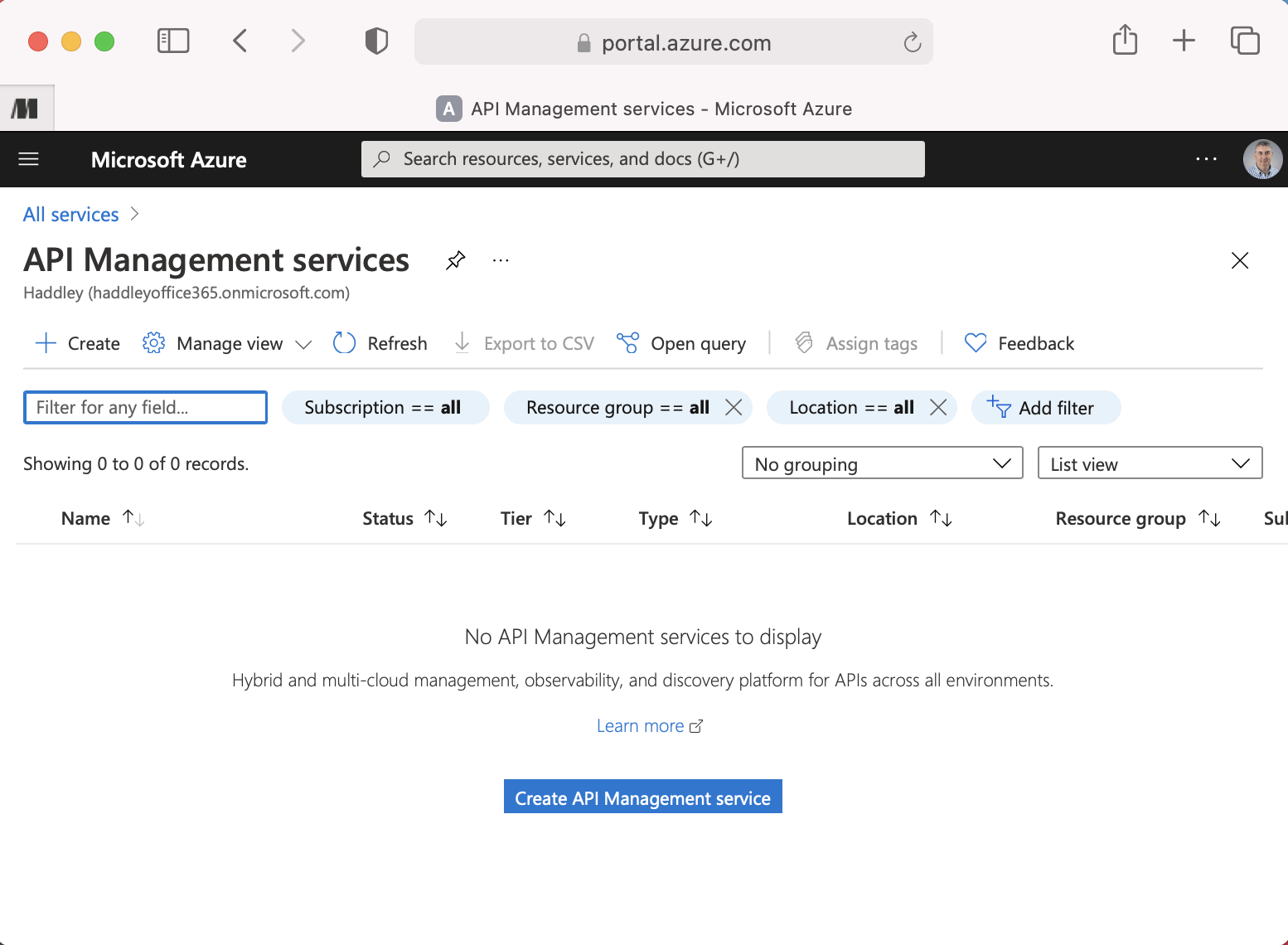

Navigate to Azure API Management services page

Navigate to Azure API Management services page

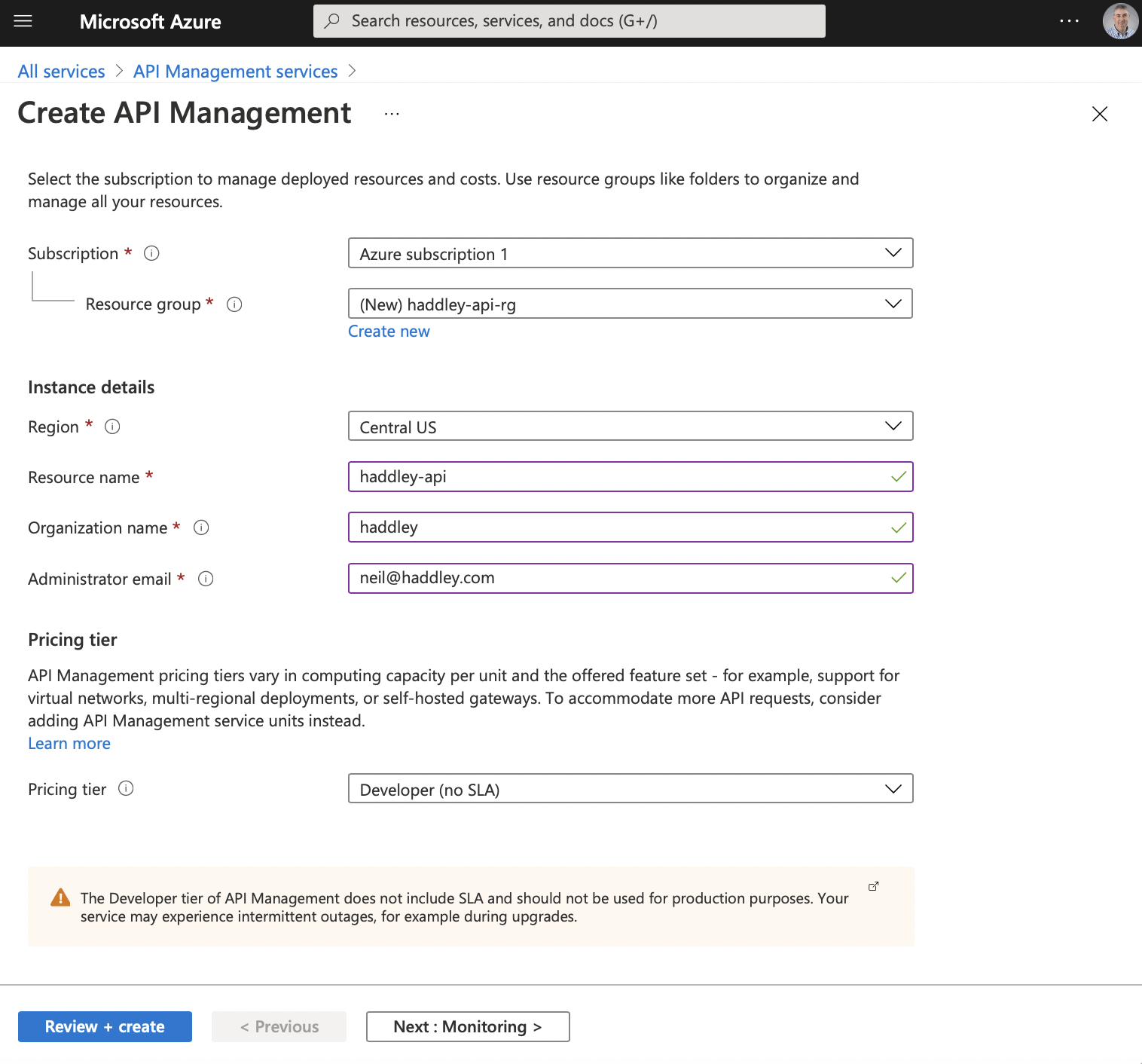

Create haddley-api

Create haddley-api

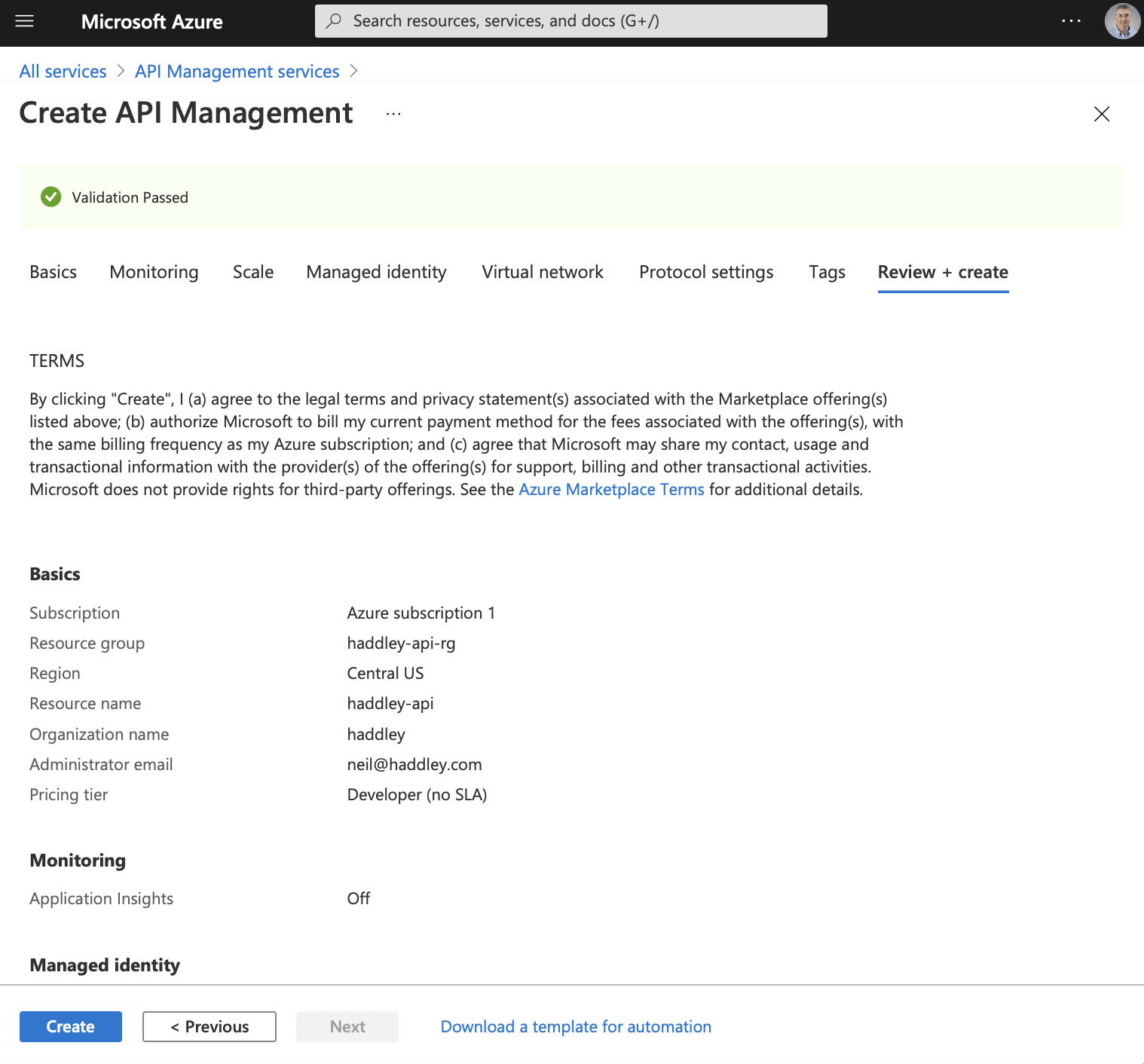

haddley-api will be created

haddley-api will be created

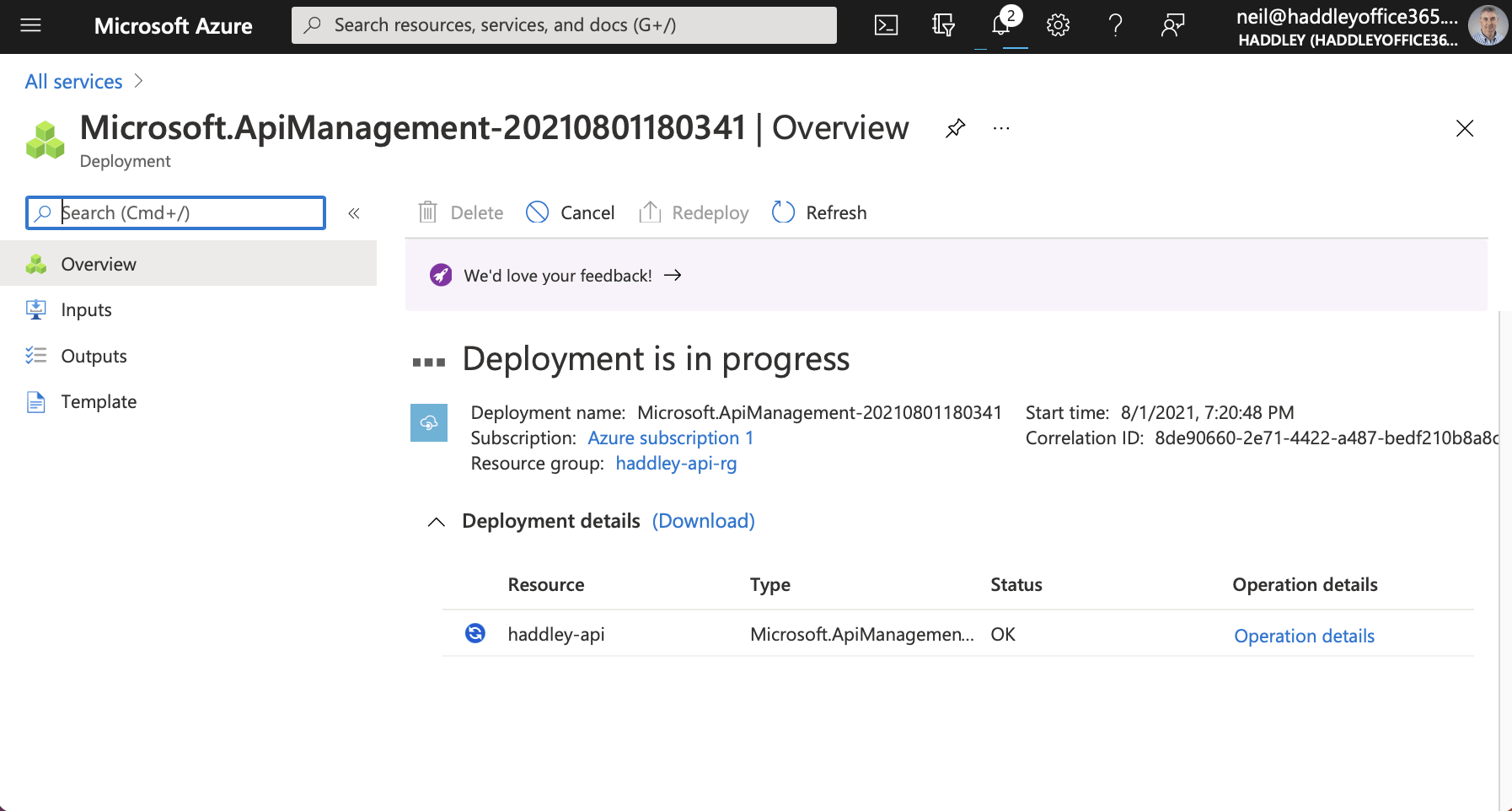

haddley-api deployment in progress

haddley-api deployment in progress

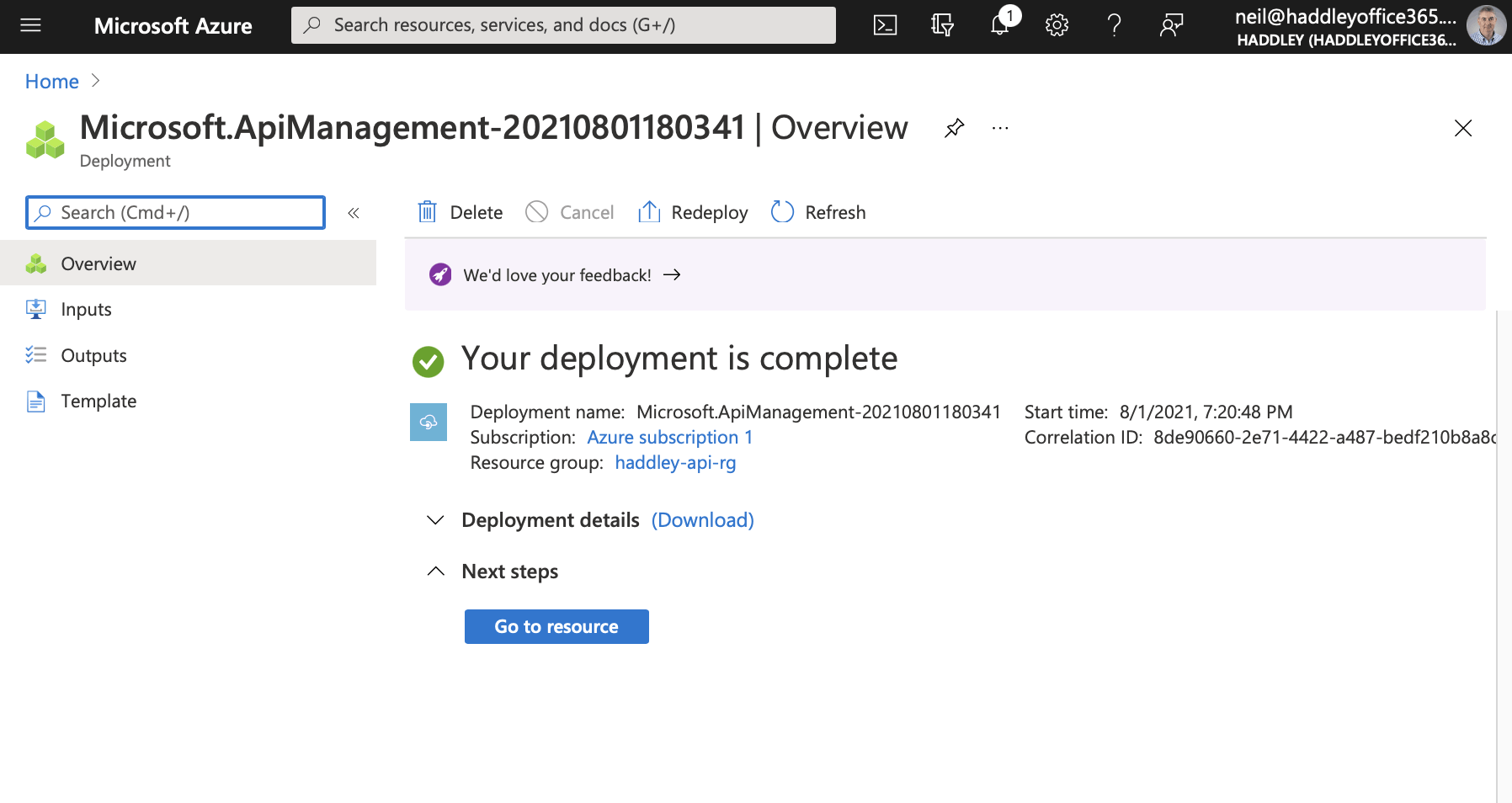

haddley-api deployment complete

haddley-api deployment complete

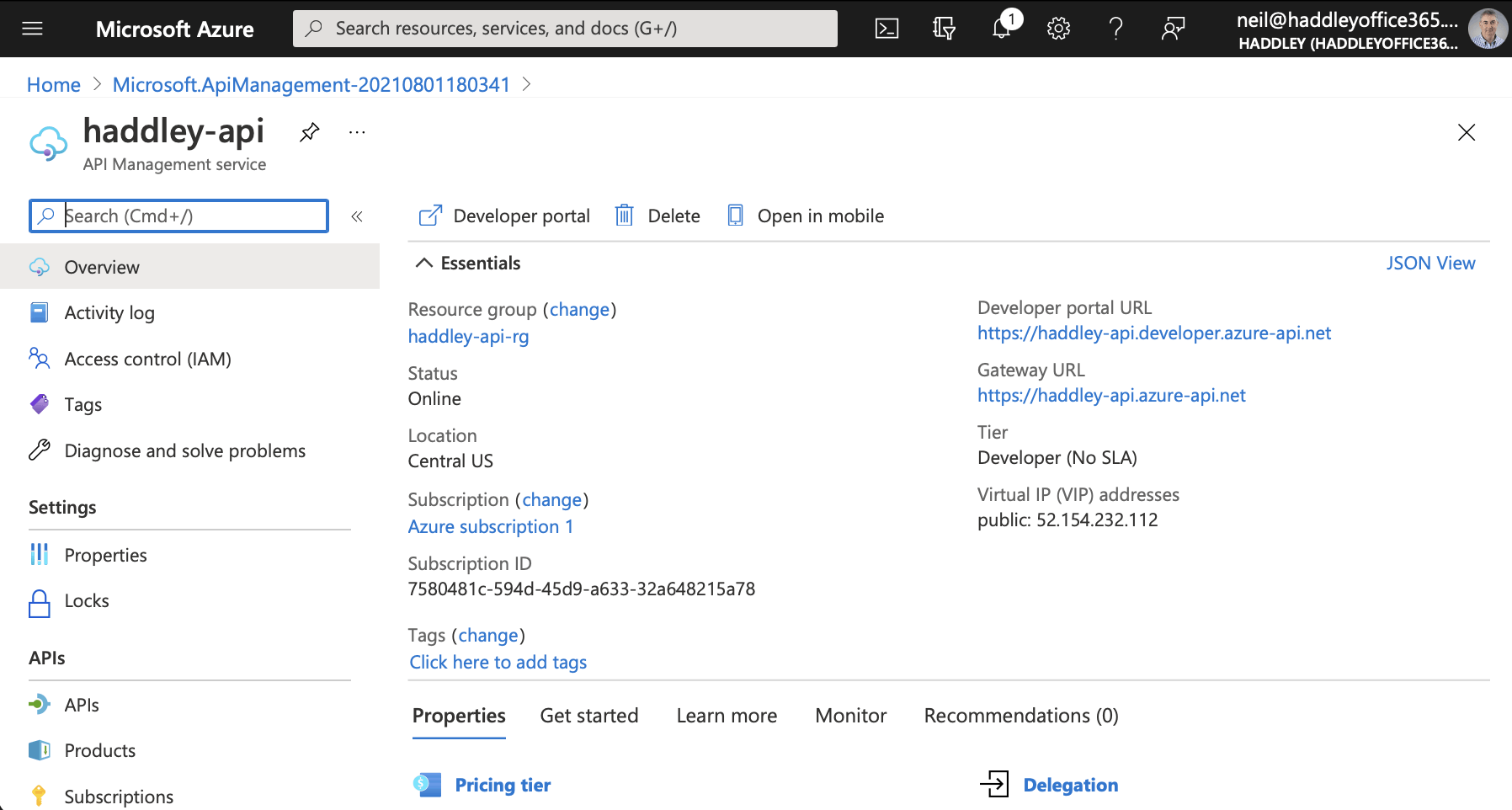

haddley-api overview

haddley-api overview

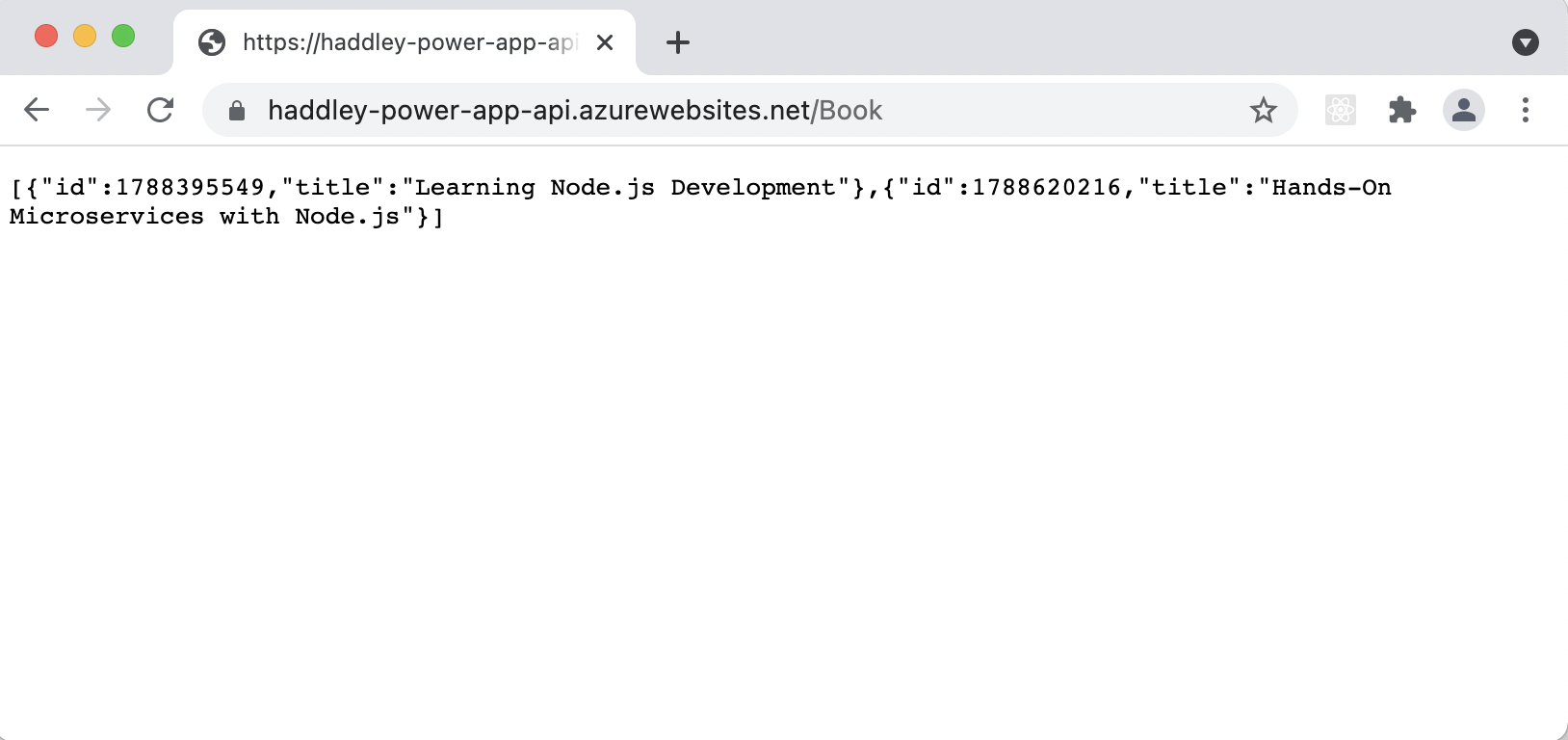

Existing Web Service API (no authentication)

Existing Web Service API (no authentication)

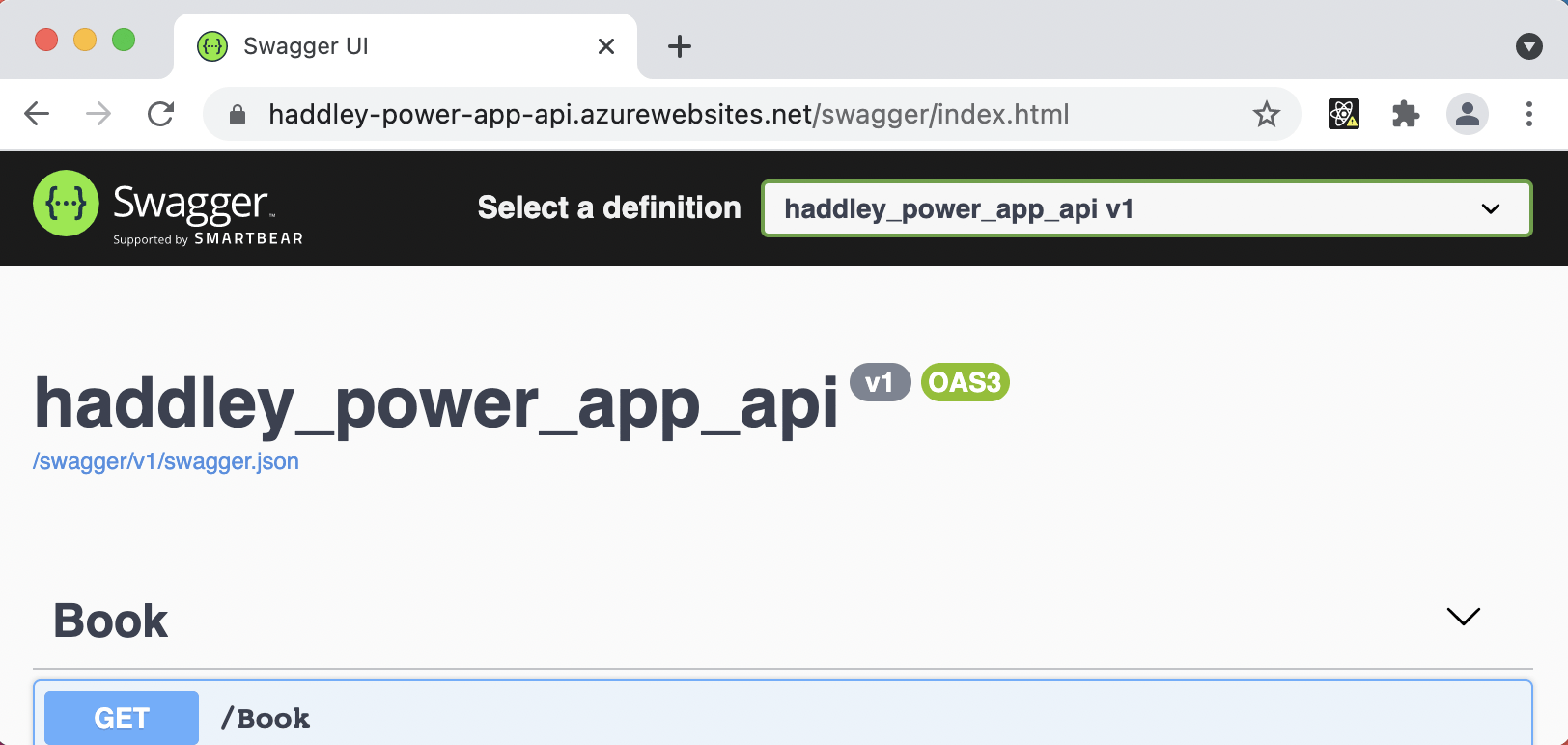

Existing API includes Swagger

Existing API includes Swagger

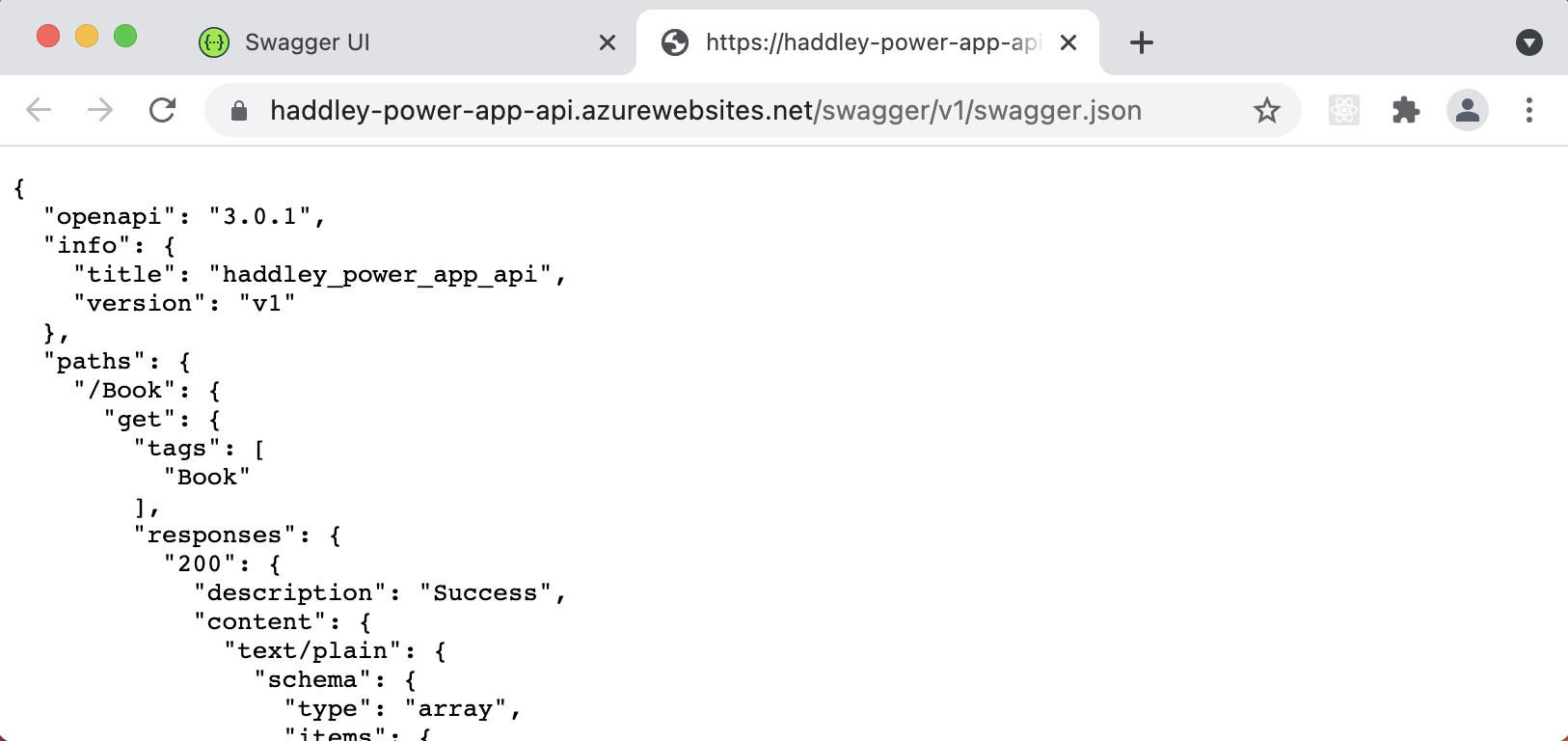

Url to swagger.json definition

Url to swagger.json definition

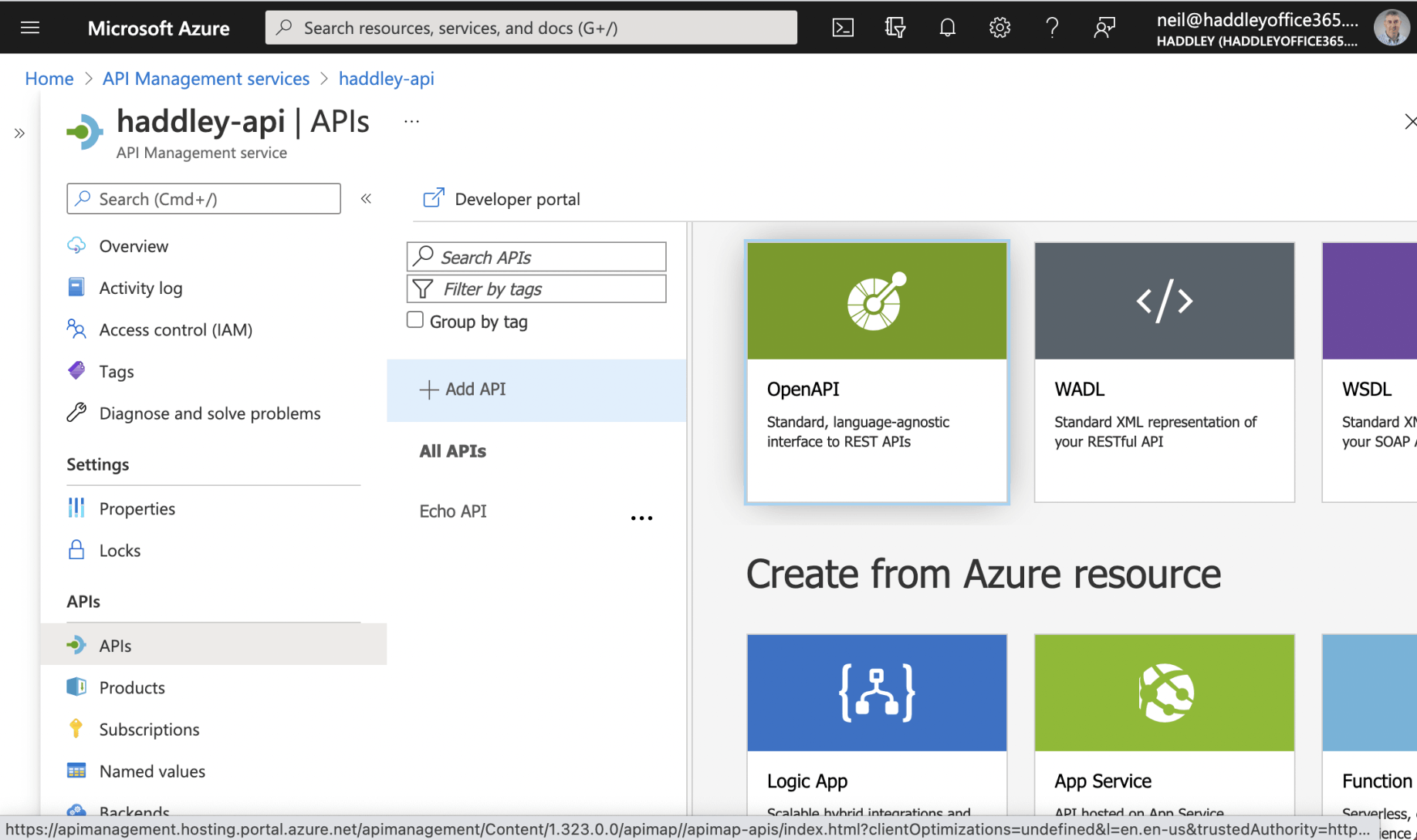

Add API to API Management

Add API to API Management

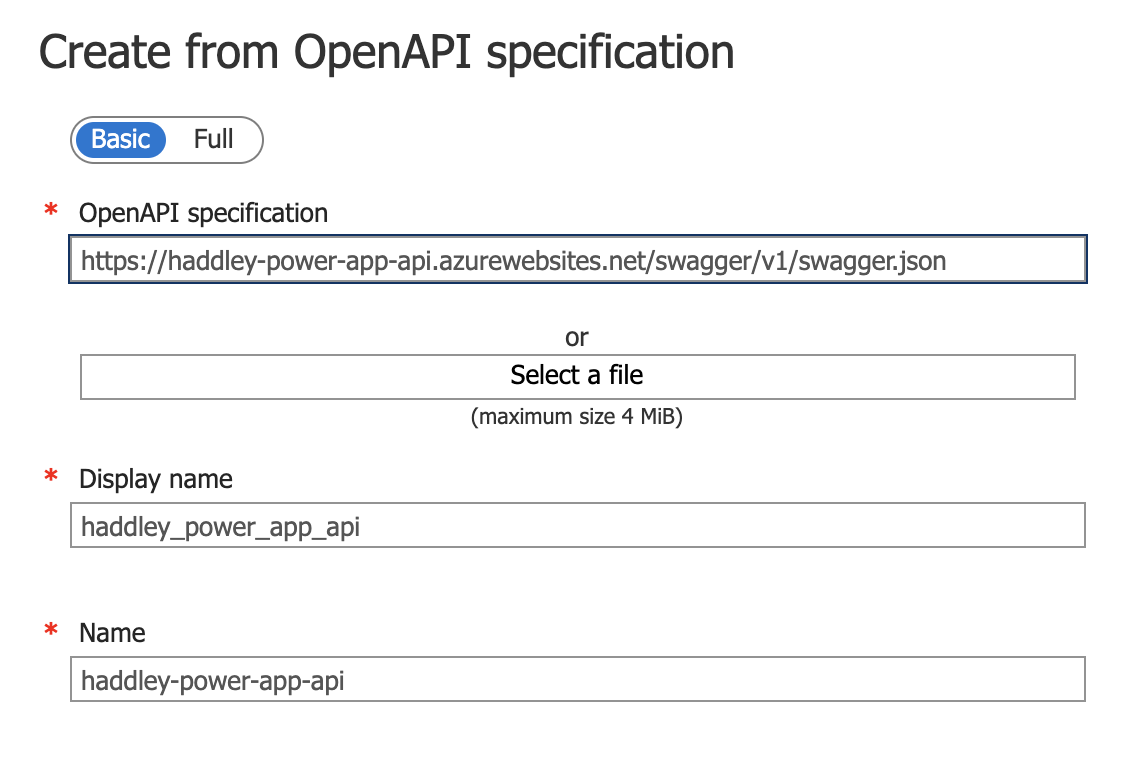

Provide url to swagger.json

Provide url to swagger.json

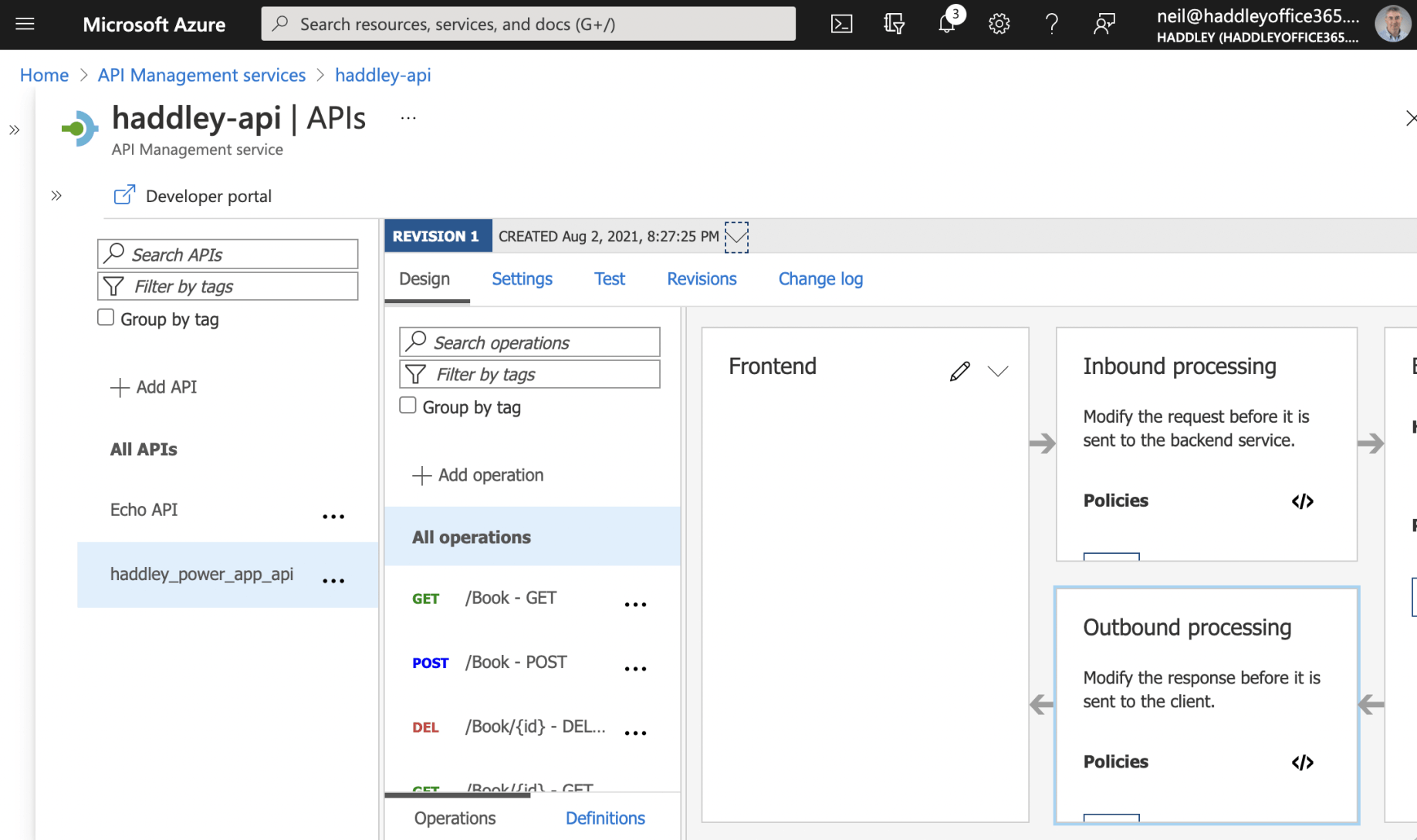

Review API details

Review API details

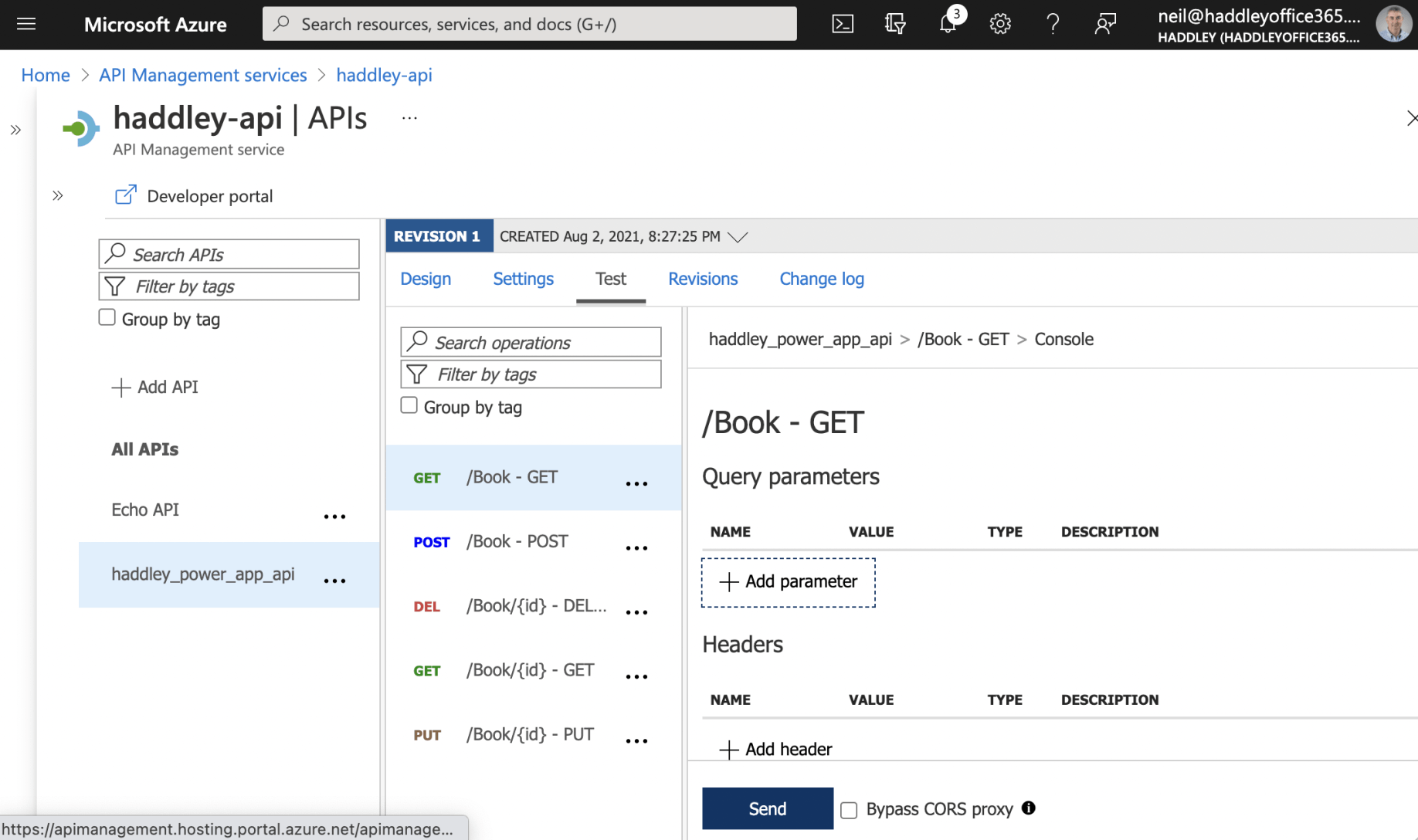

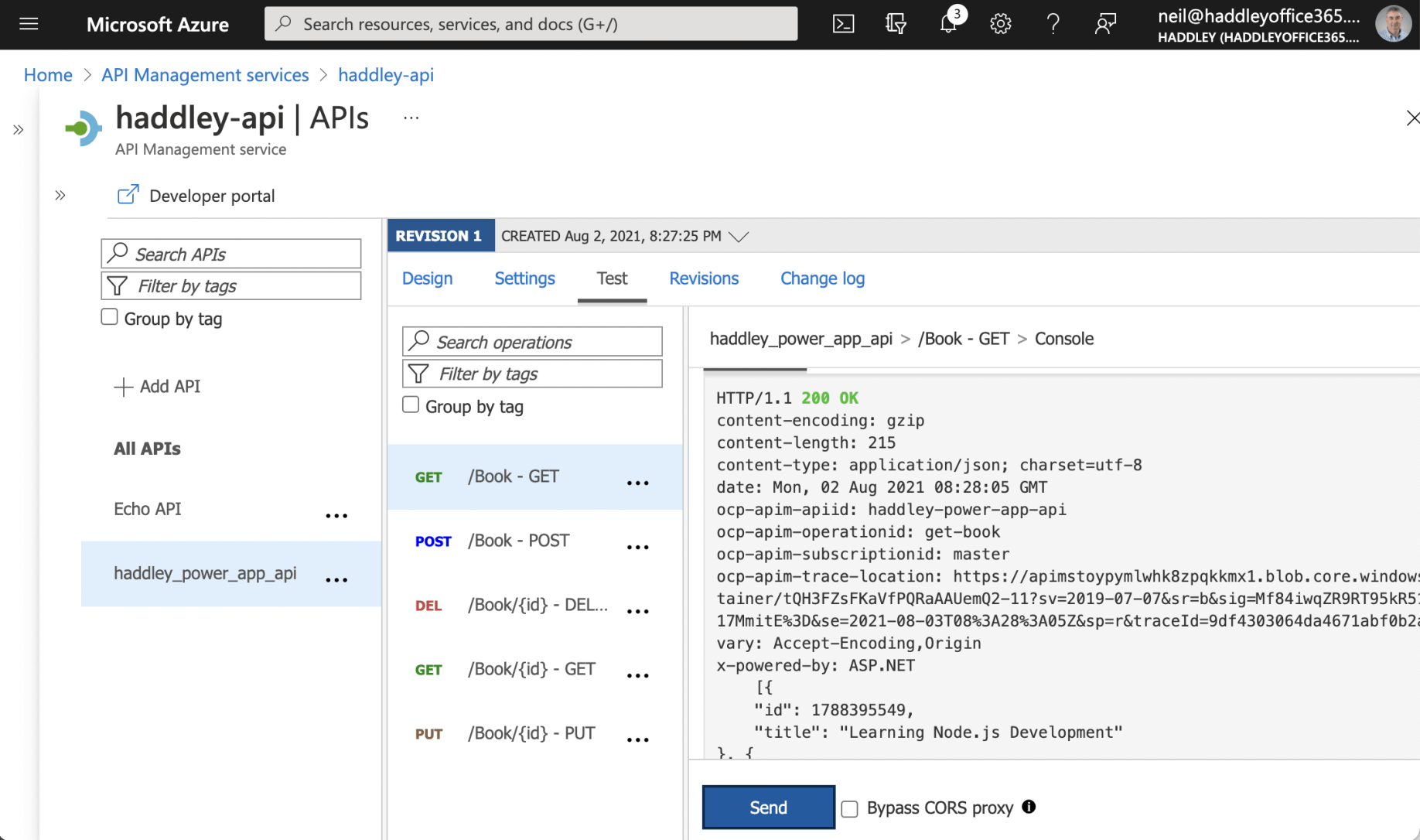

Test /Book GET

Test /Book GET

Test is successful

Test is successful

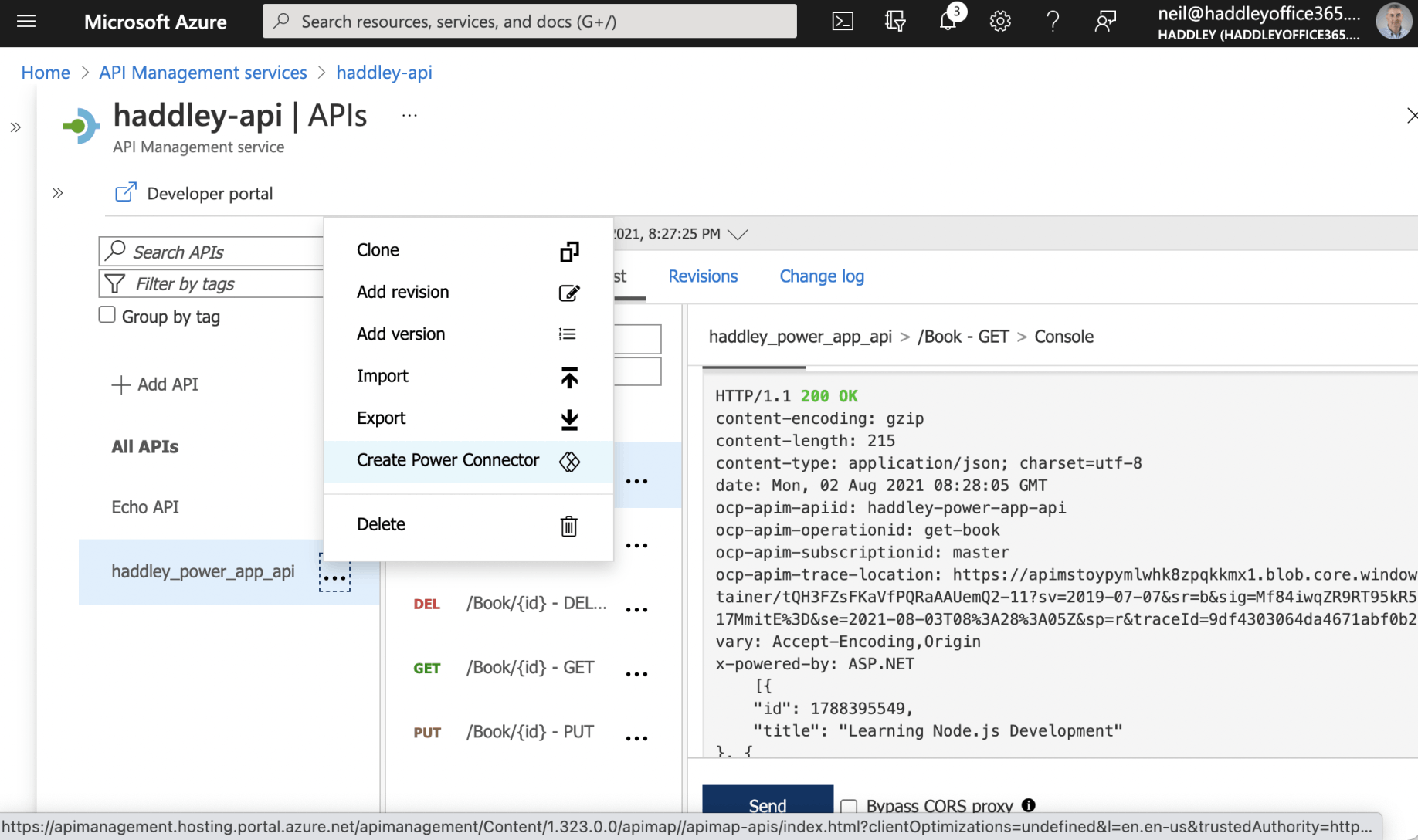

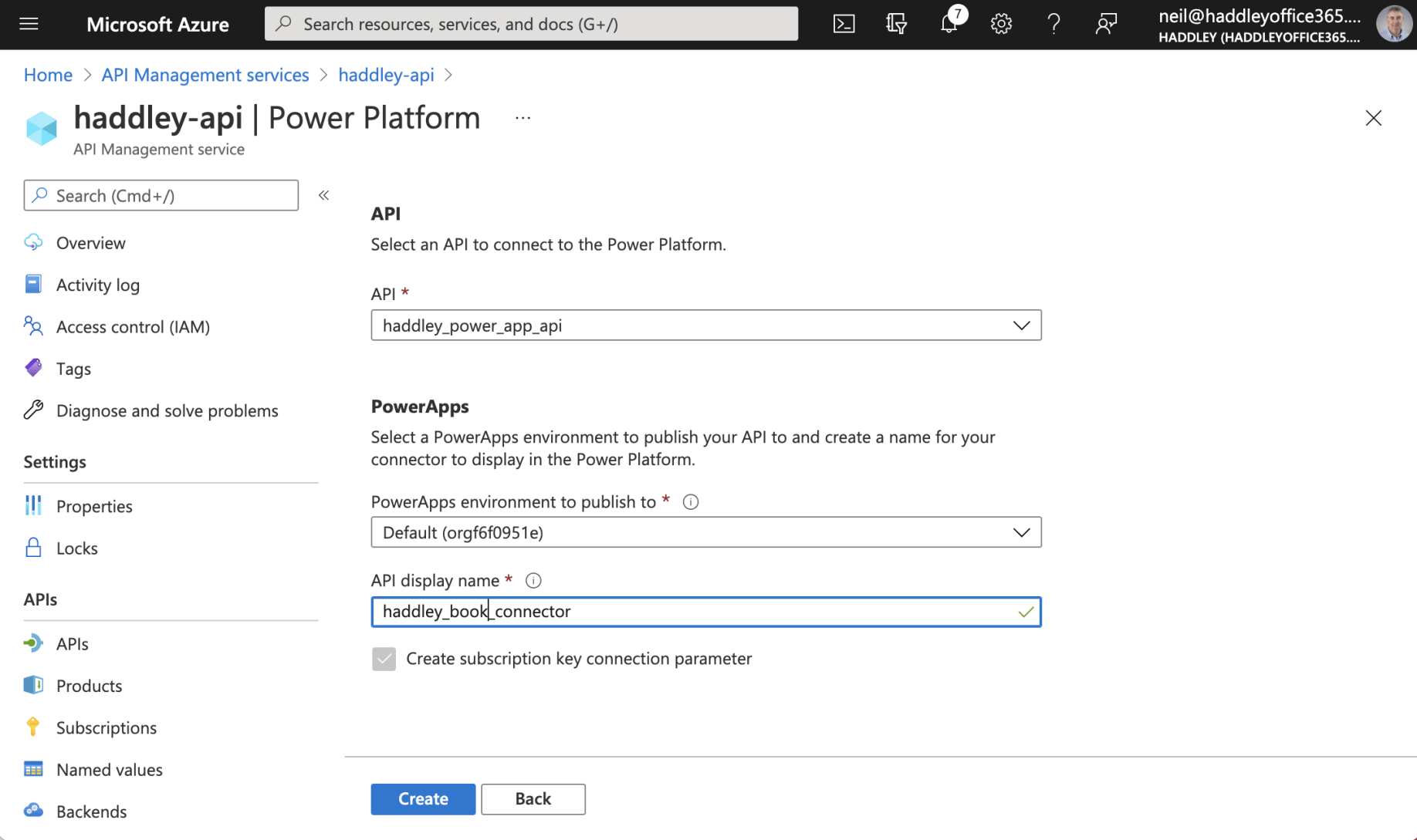

Create Power Connector (for Power Apps)

Create Power Connector (for Power Apps)

Provide connector name

Provide connector name

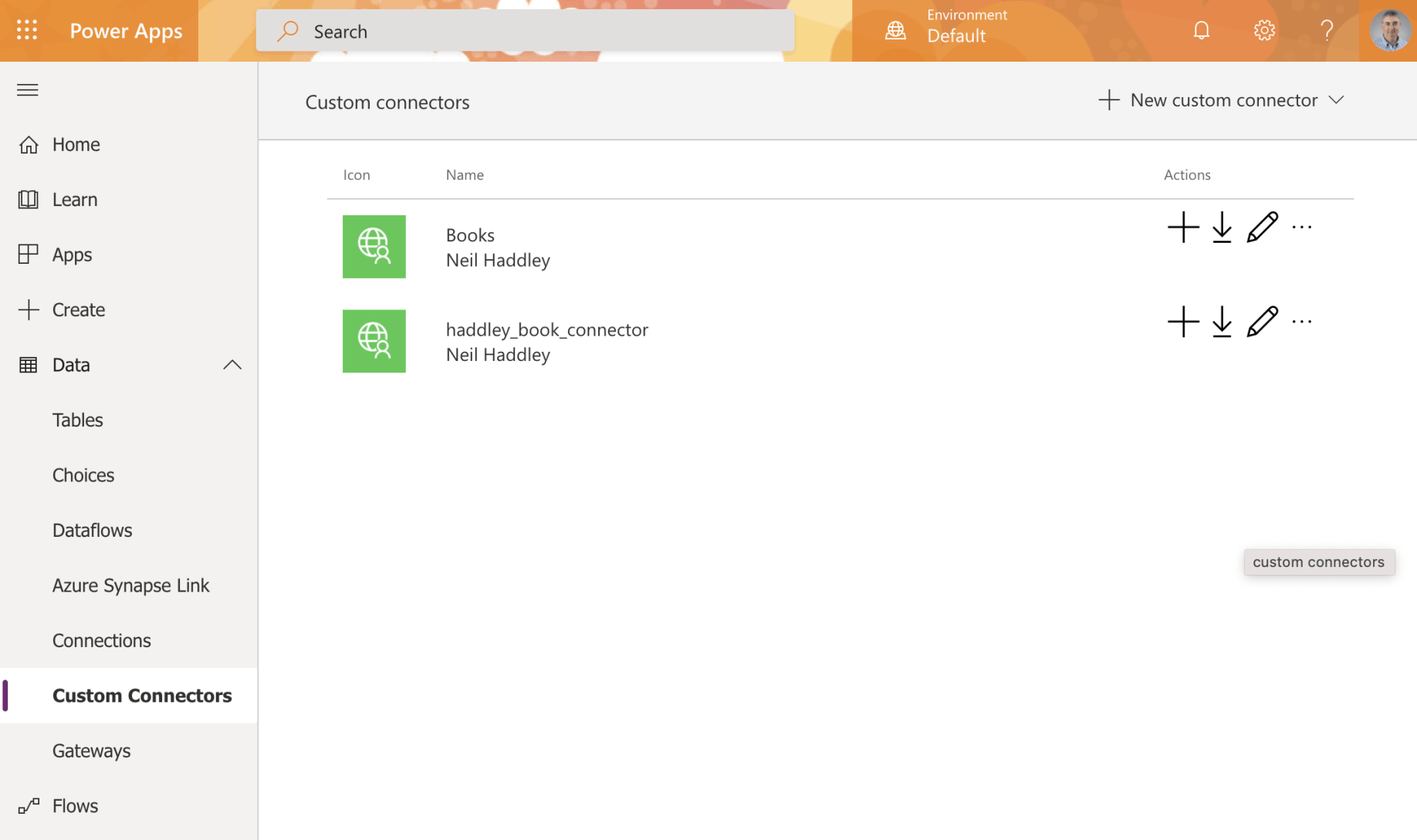

New custom connector has been added

New custom connector has been added

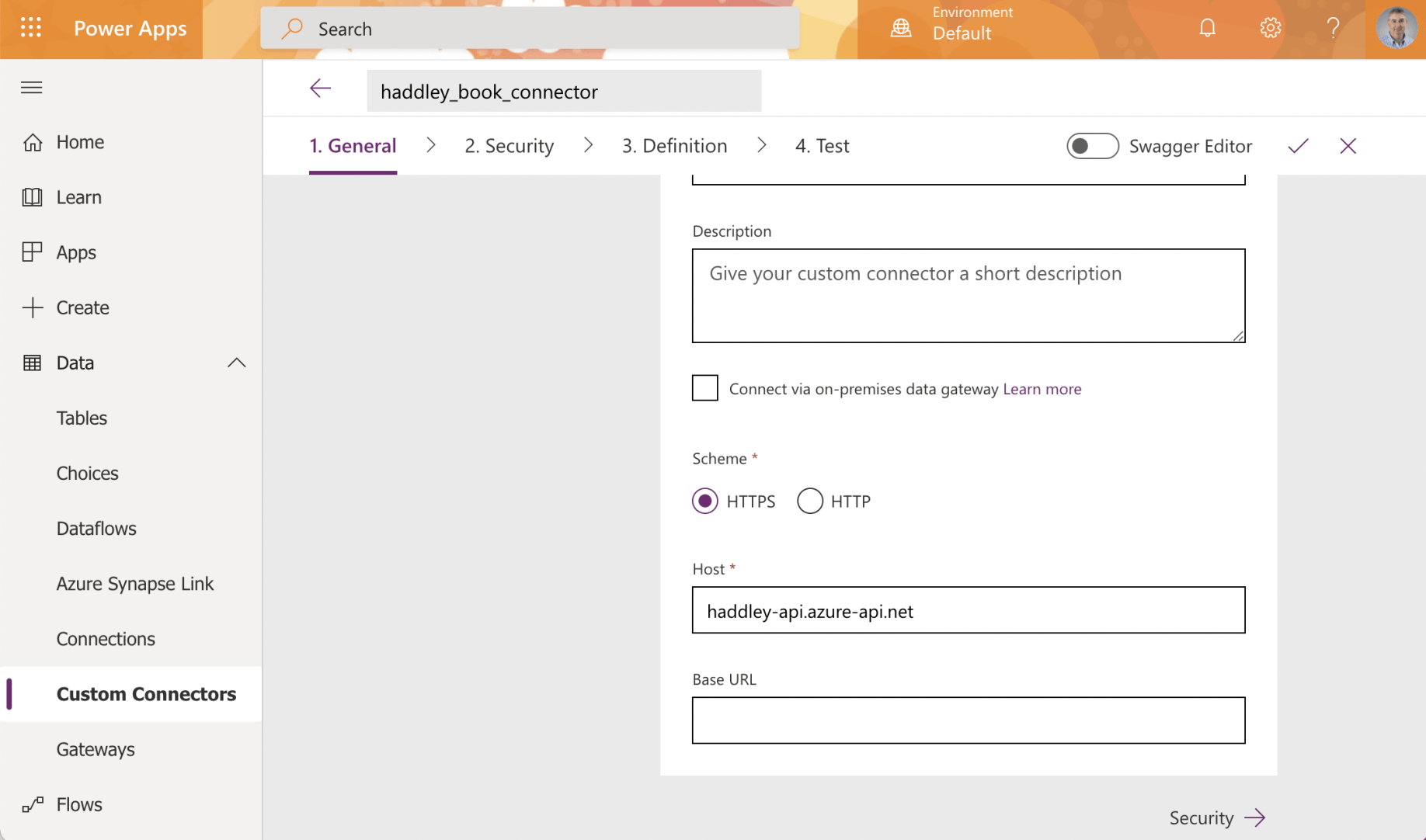

Edit the connector to review

Edit the connector to review

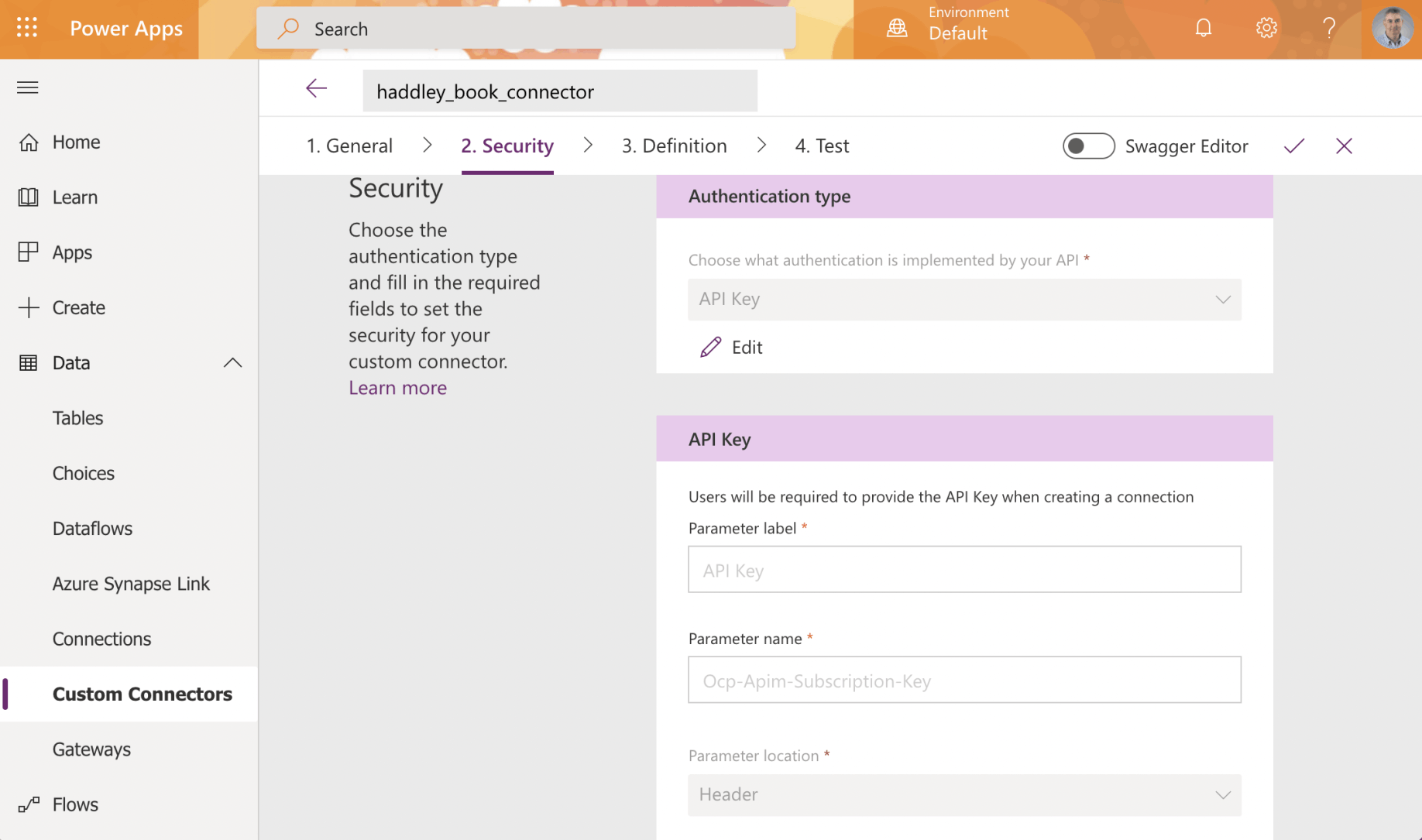

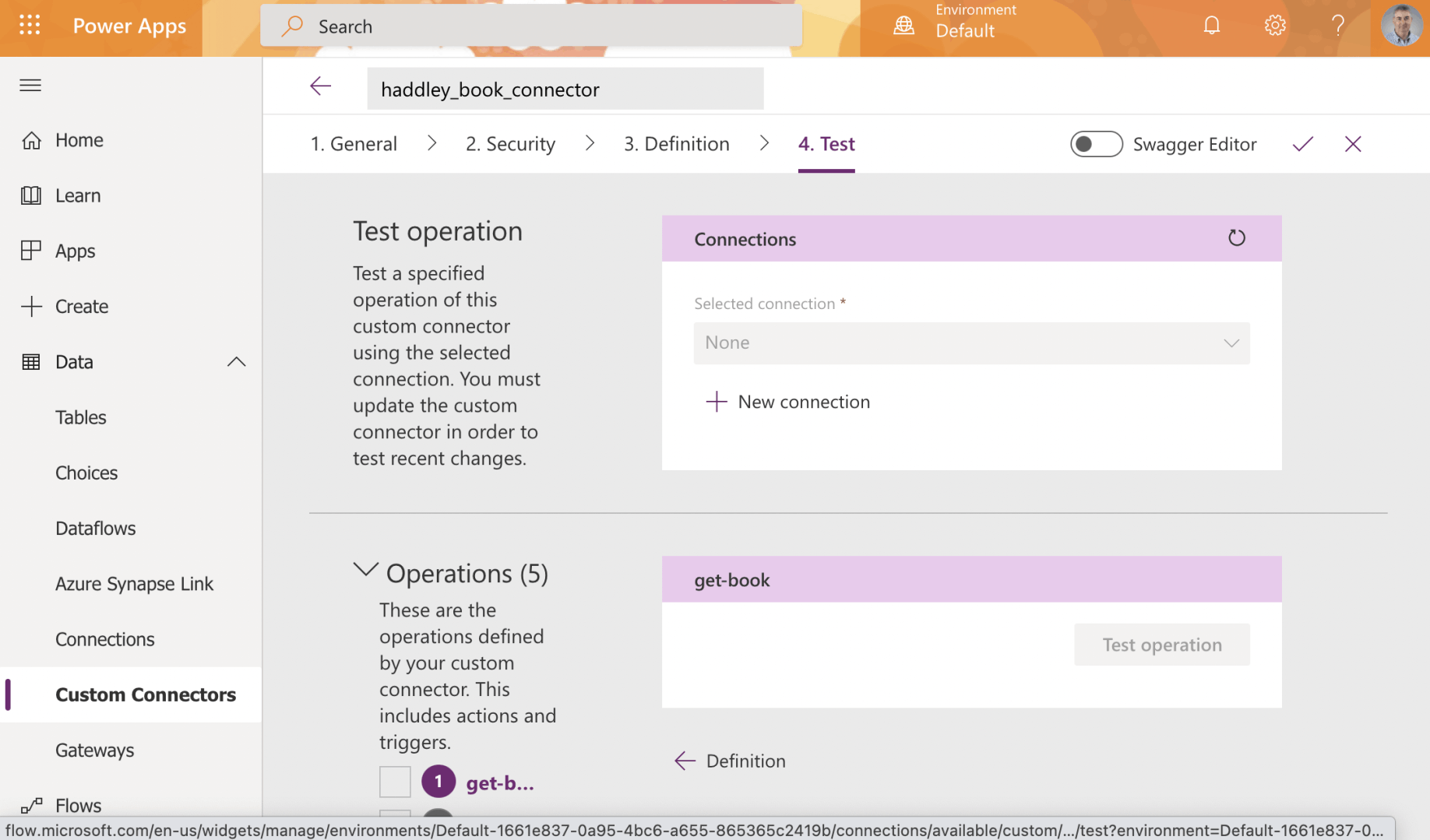

Notice that an API Key/Subscription is required

Notice that an API Key/Subscription is required

+ New connection (based on the Custom Connector)

+ New connection (based on the Custom Connector)

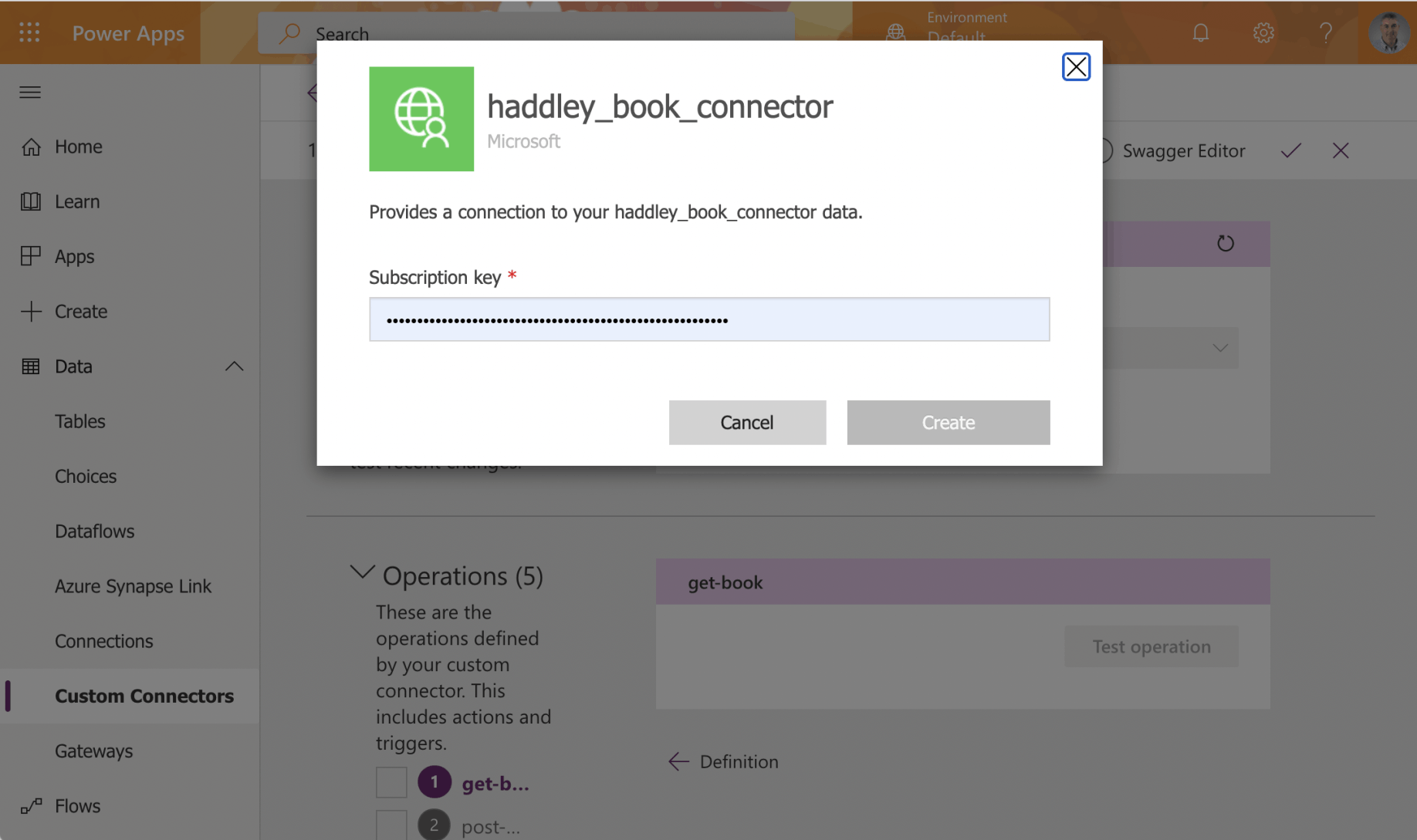

A Subscription key has to be provided

A Subscription key has to be provided

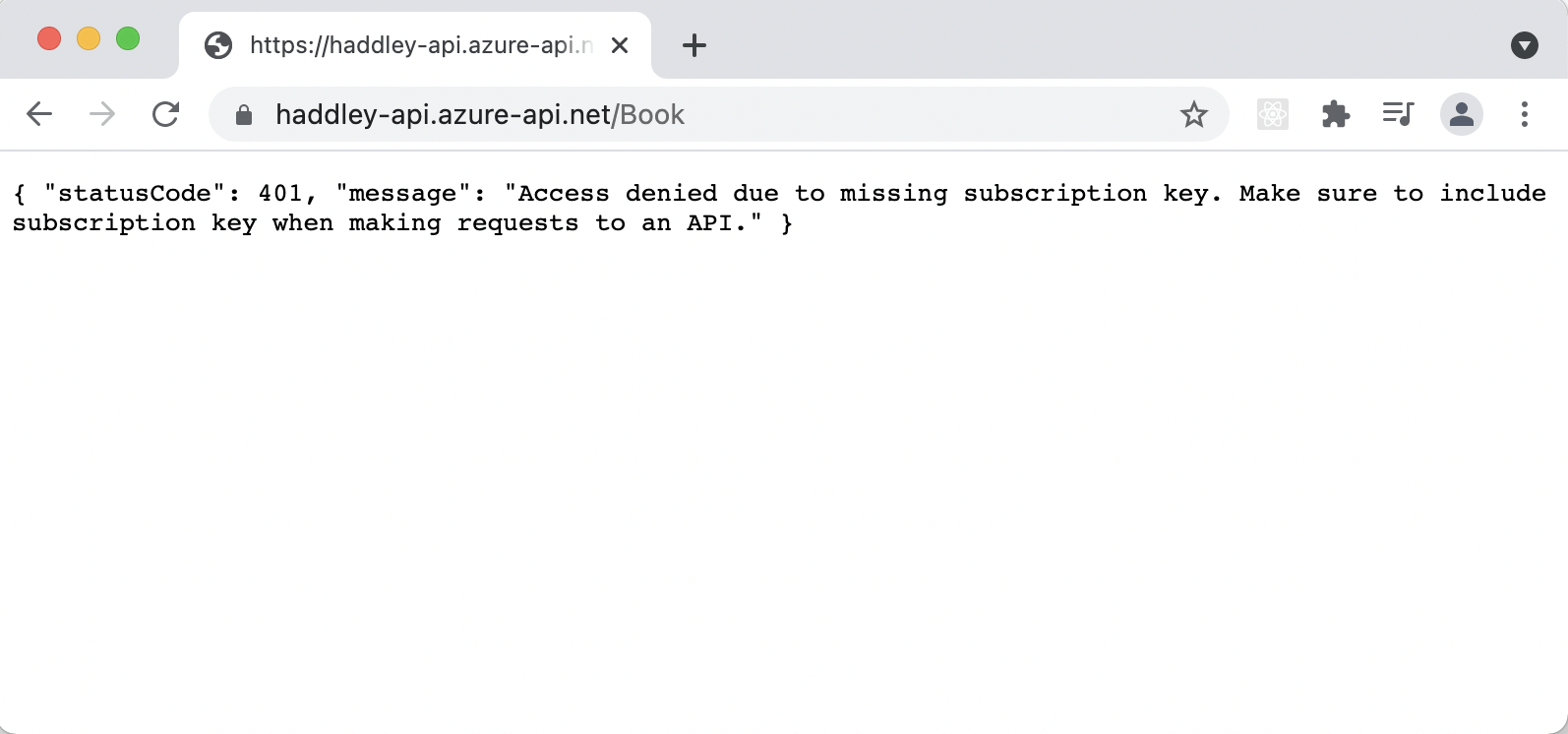

Using Chrome to call the API Management service without passing the Subscription key

Using Chrome to call the API Management service without passing the Subscription key

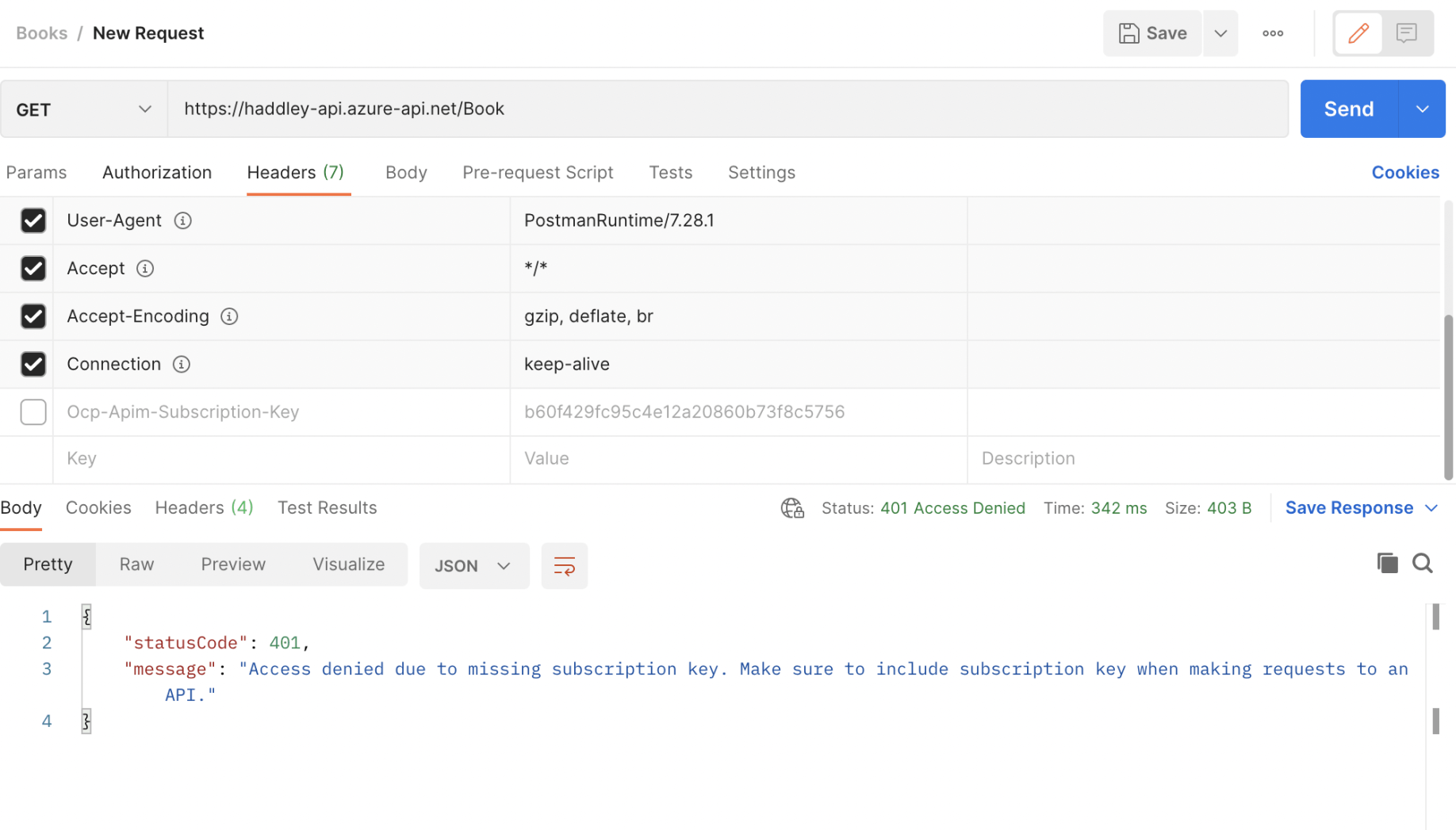

Using Postman to call the API Management service without passing the Subscription key

Using Postman to call the API Management service without passing the Subscription key

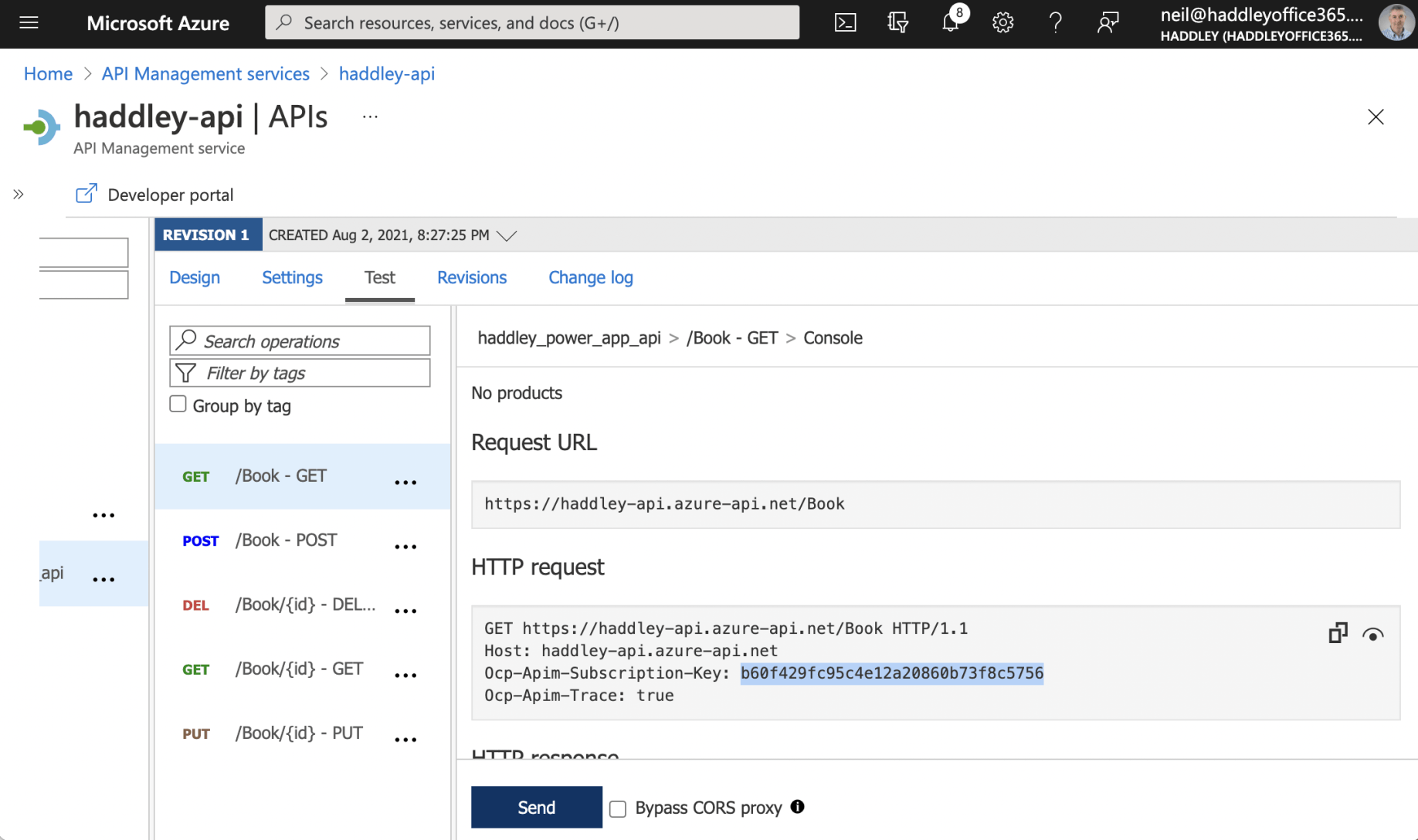

Notice that a Subscription key was provided in the API Management test page

Notice that a Subscription key was provided in the API Management test page

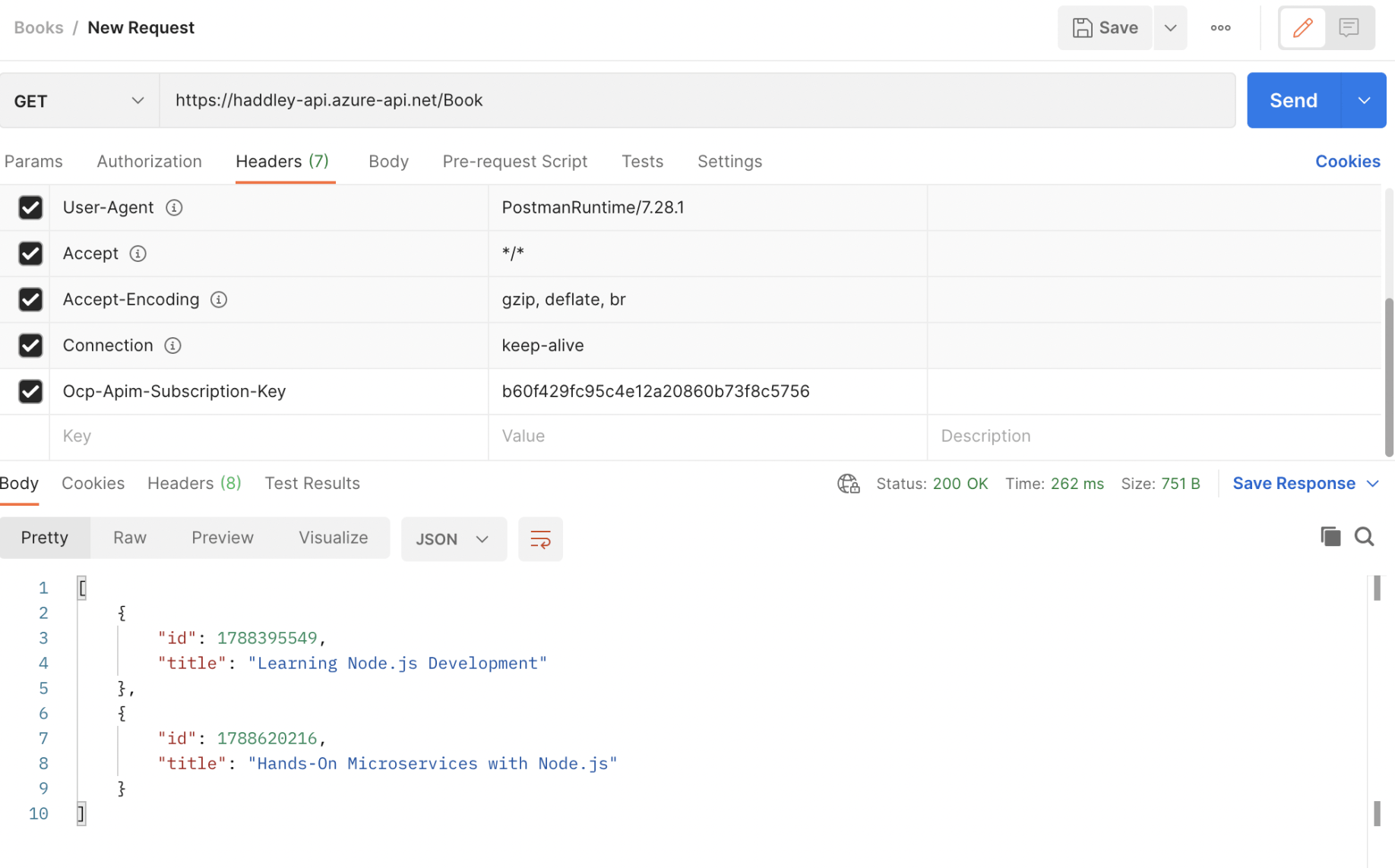

Using Postman to call the API Management service providing the Subscription key

Using Postman to call the API Management service providing the Subscription key

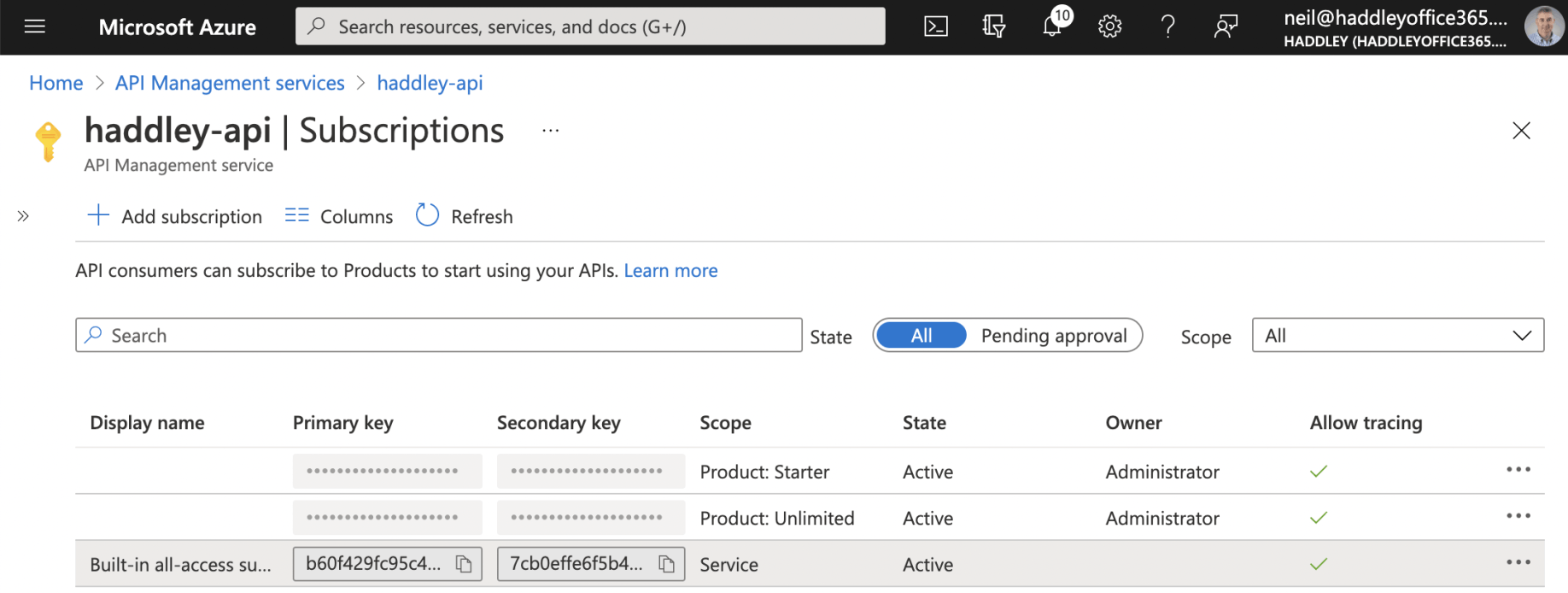

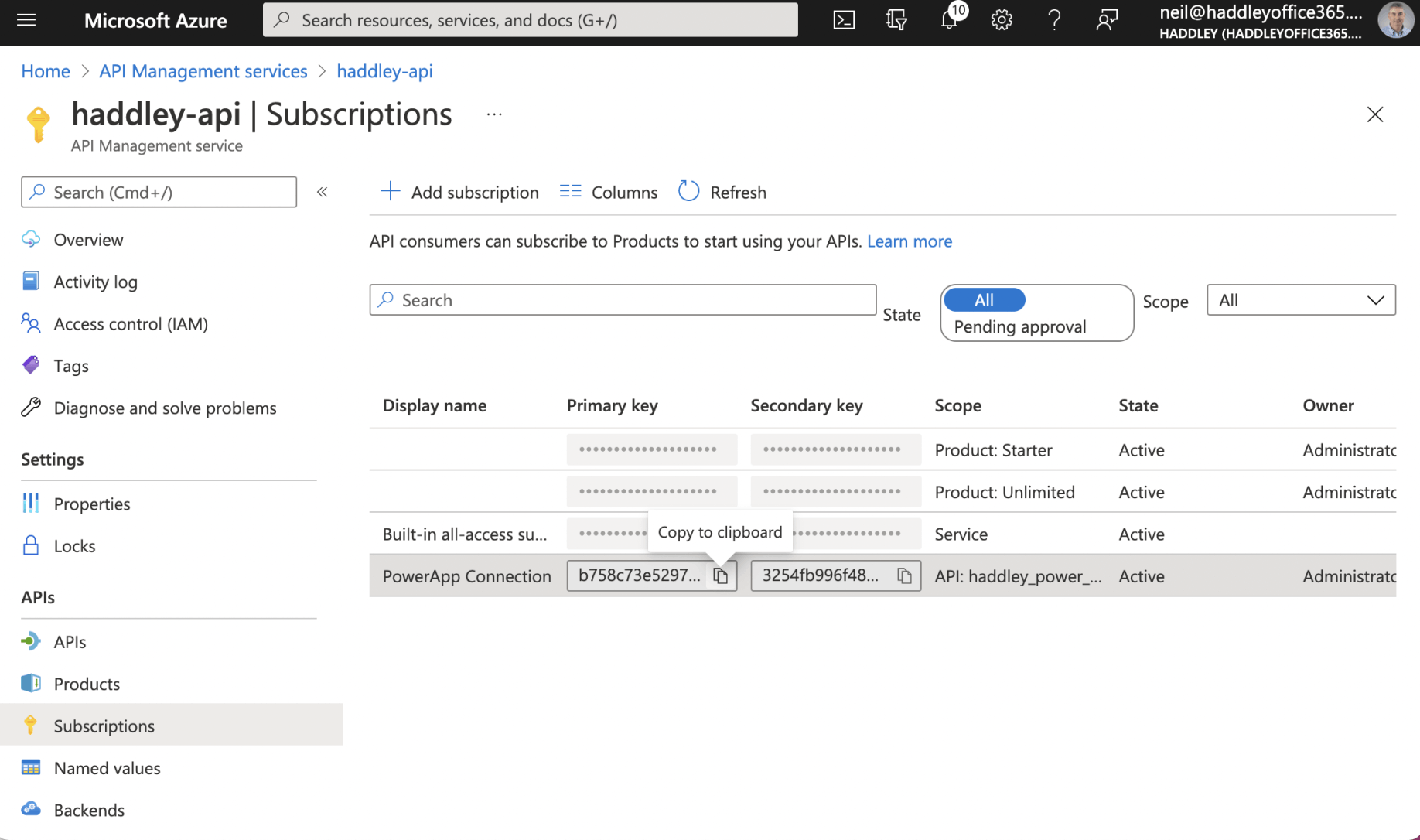

The same Subscription key value can be copied from the API Management Subscriptions page

The same Subscription key value can be copied from the API Management Subscriptions page

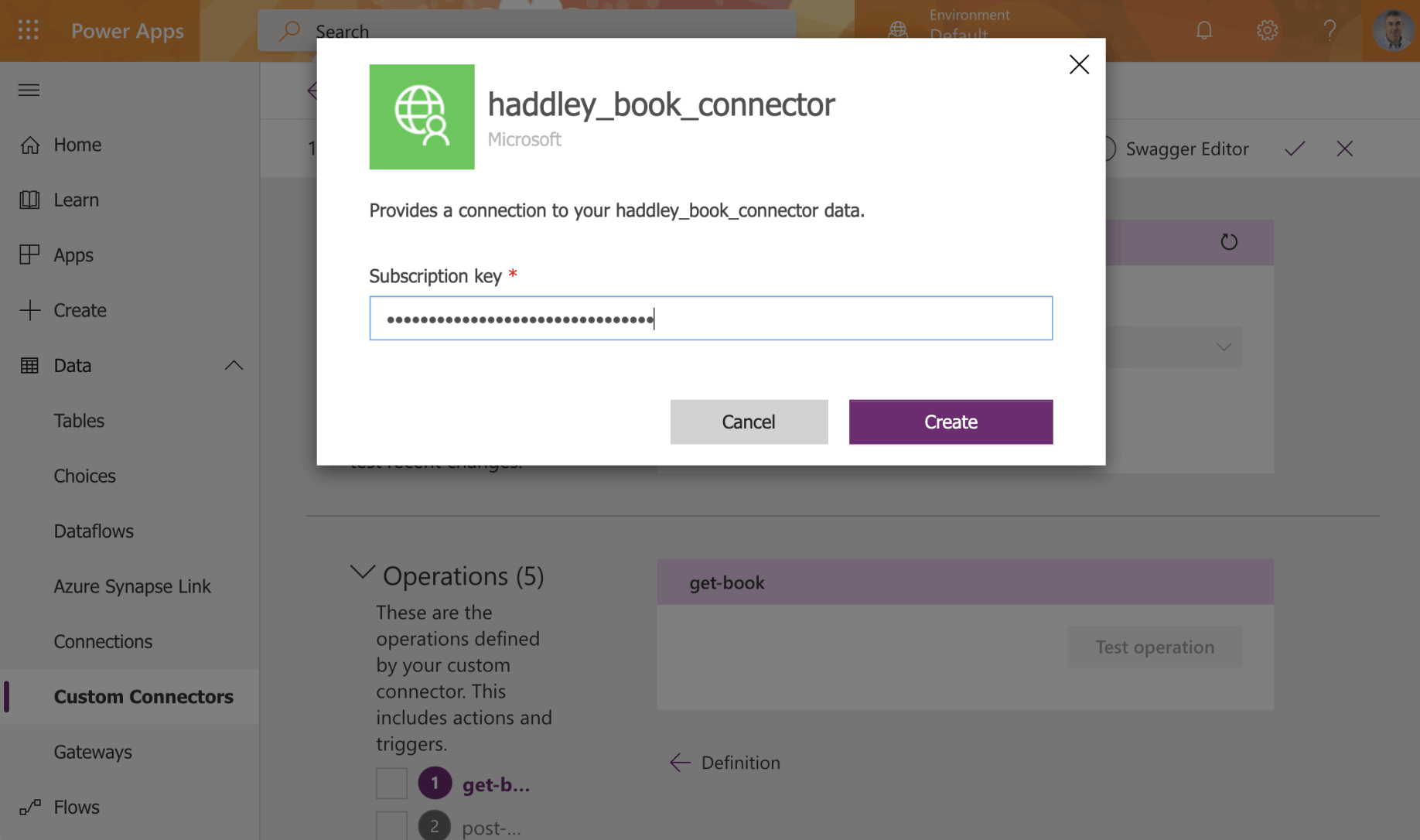

Enter the Subscription key

Enter the Subscription key

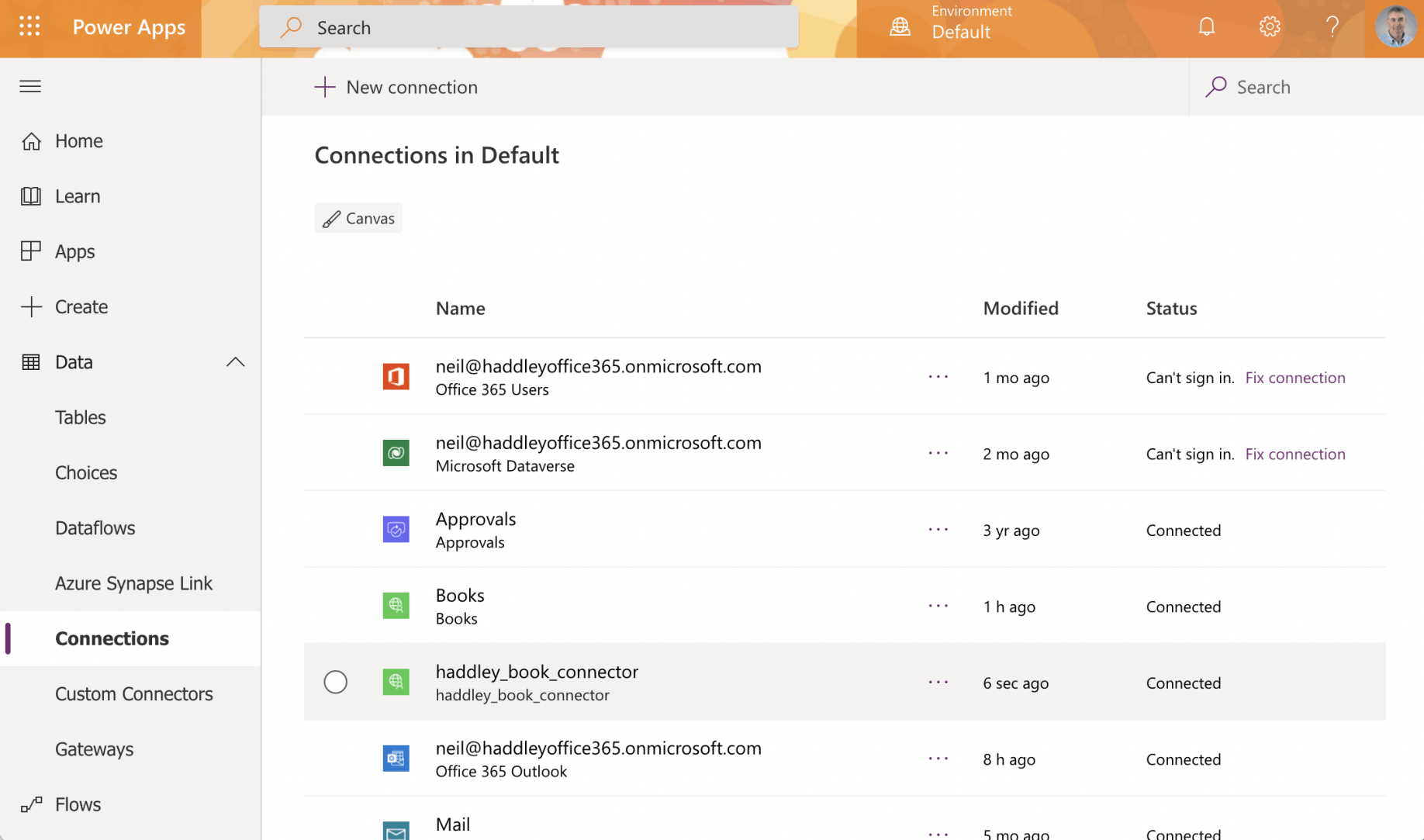

The new connection has been created

The new connection has been created

Create a test Power App

Create a test Power App

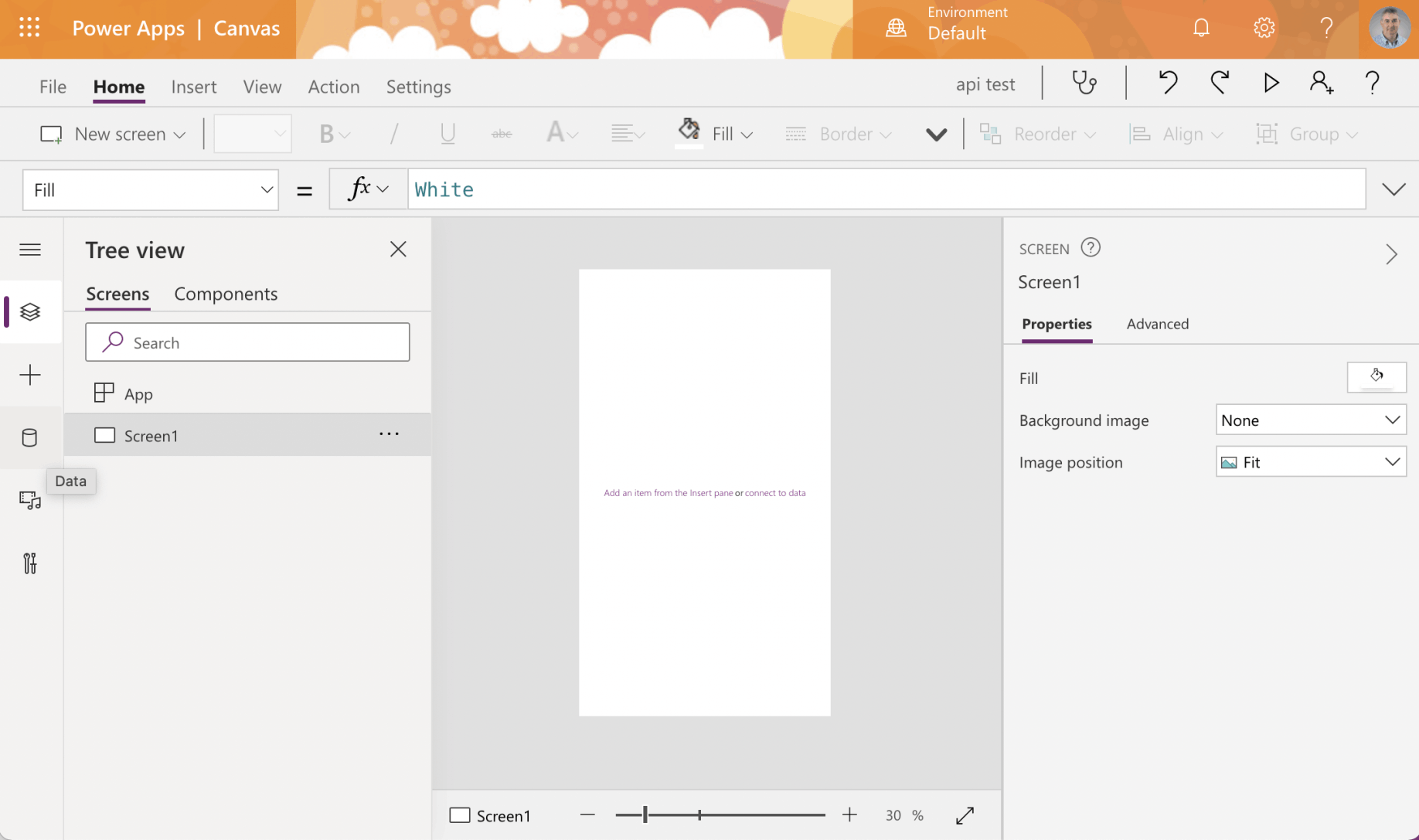

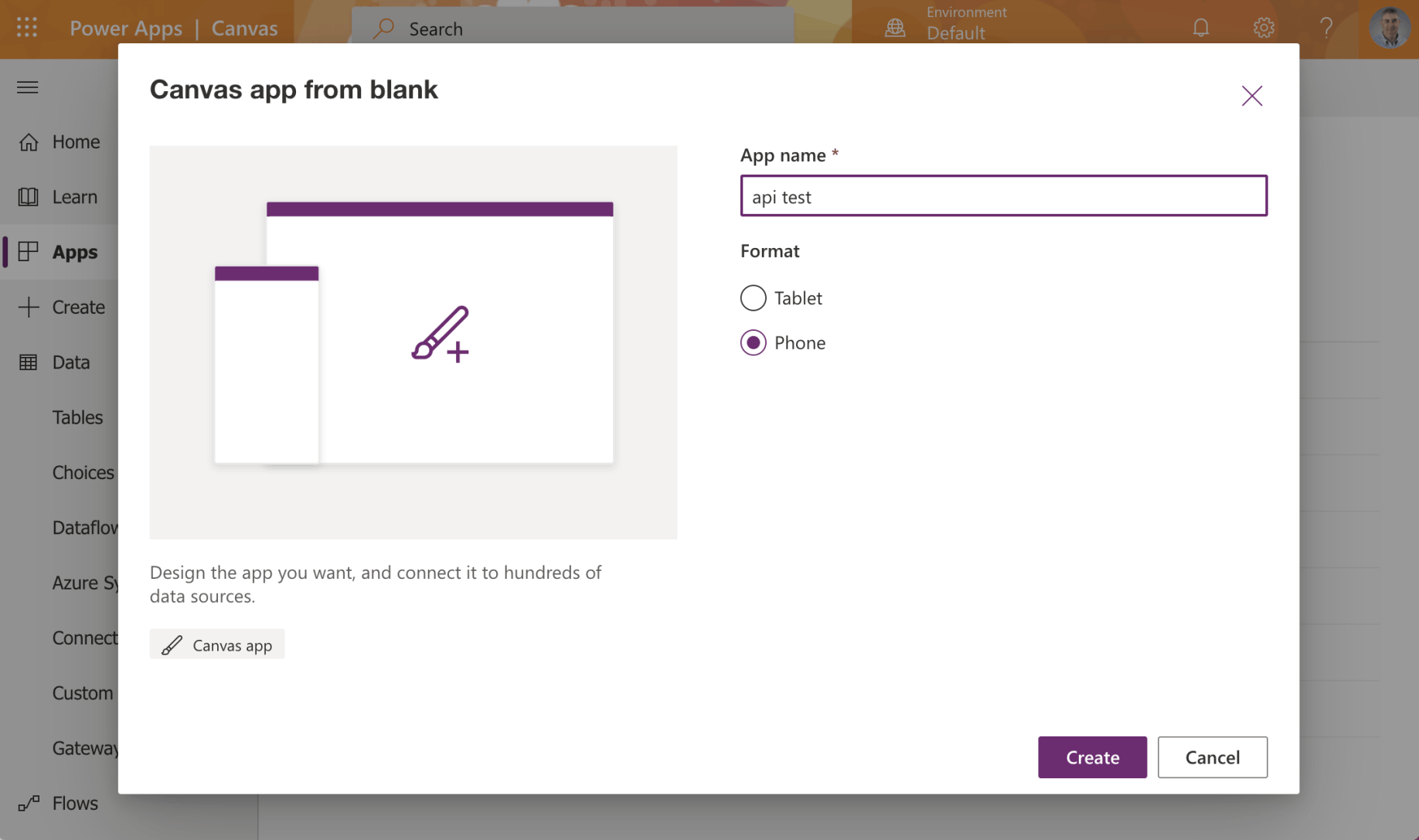

Blank Power App

Blank Power App

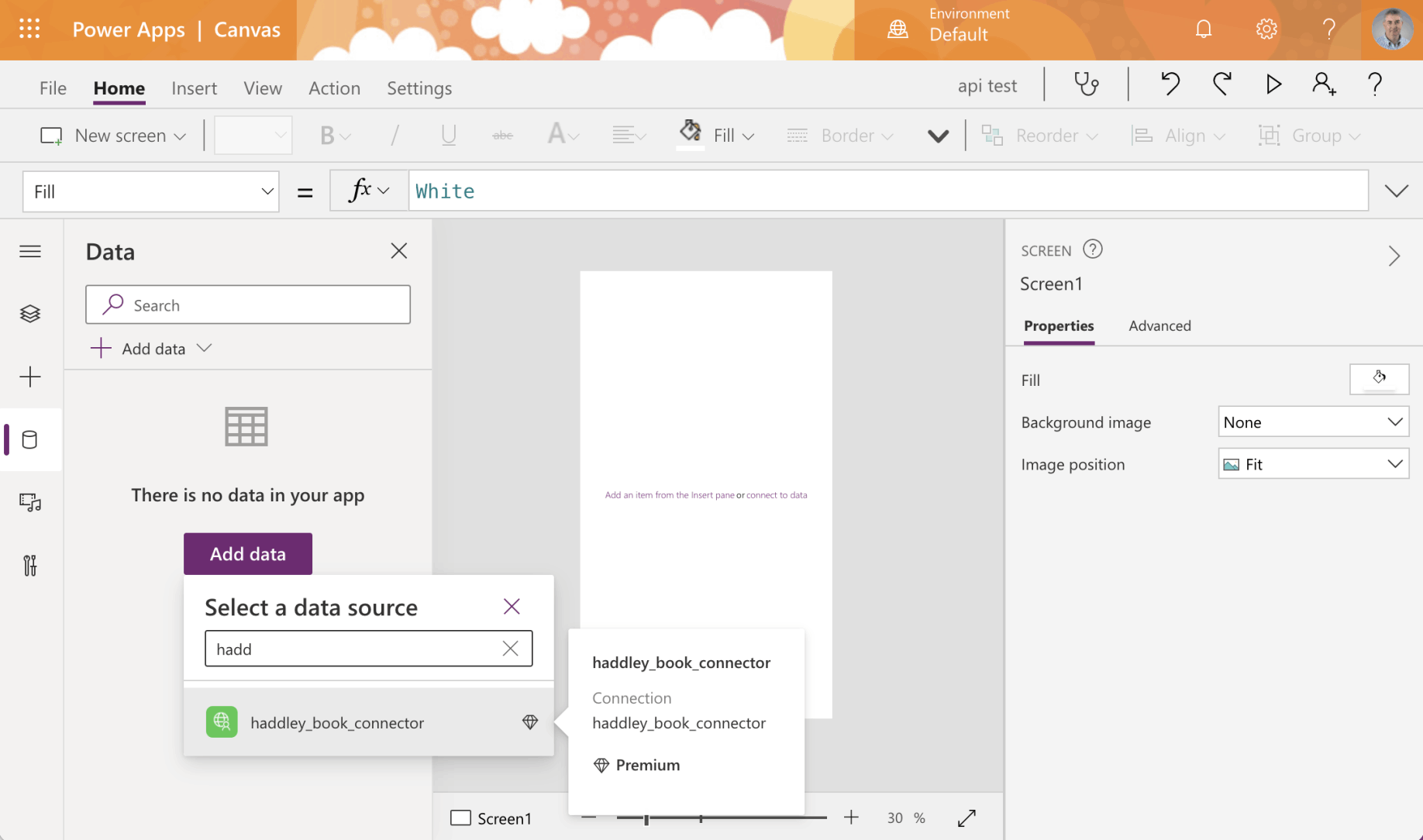

Add a data source

Add a data source

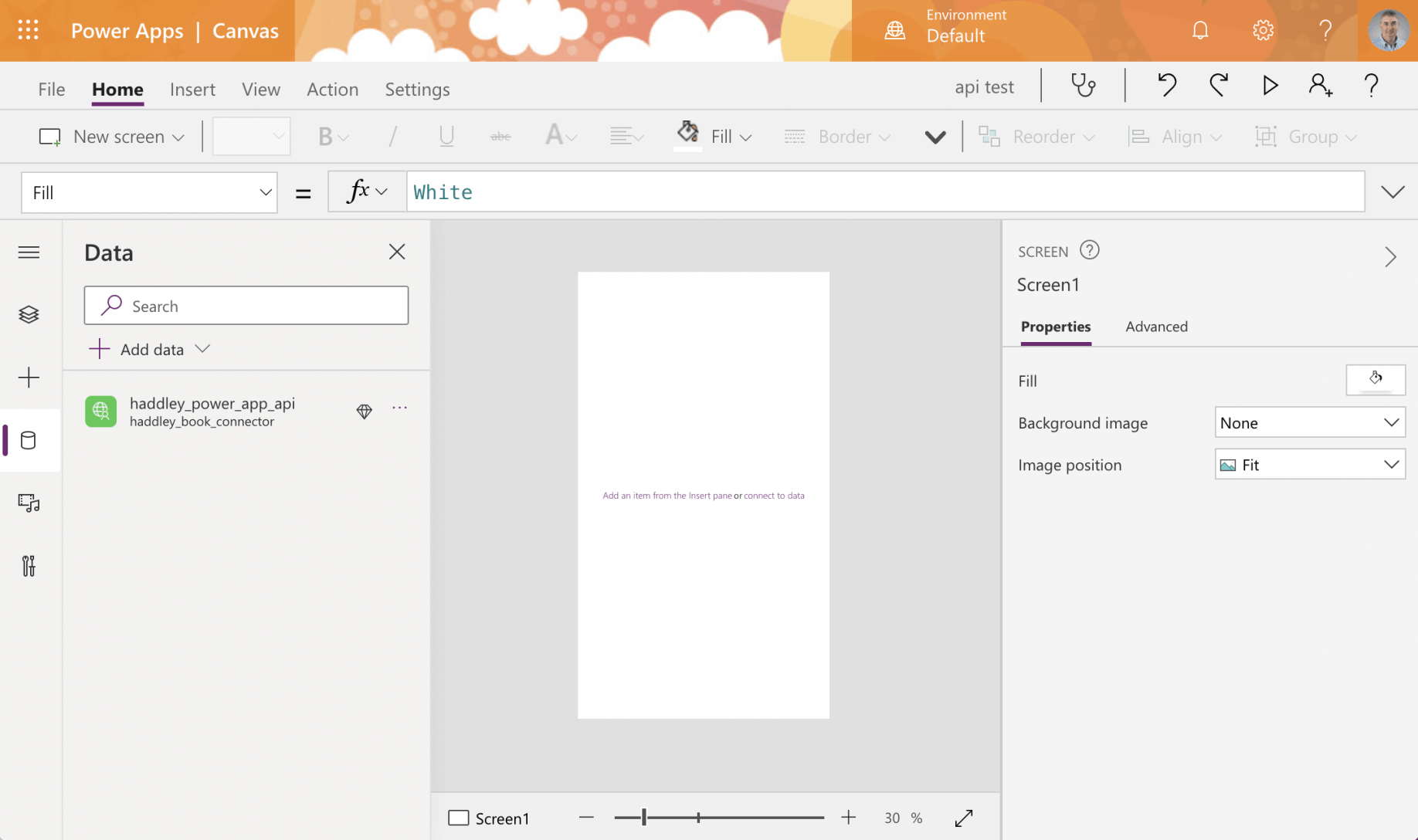

The connector has been added

The connector has been added

Add a button and configure the "OnSelect" handler

Add a button and configure the "OnSelect" handler

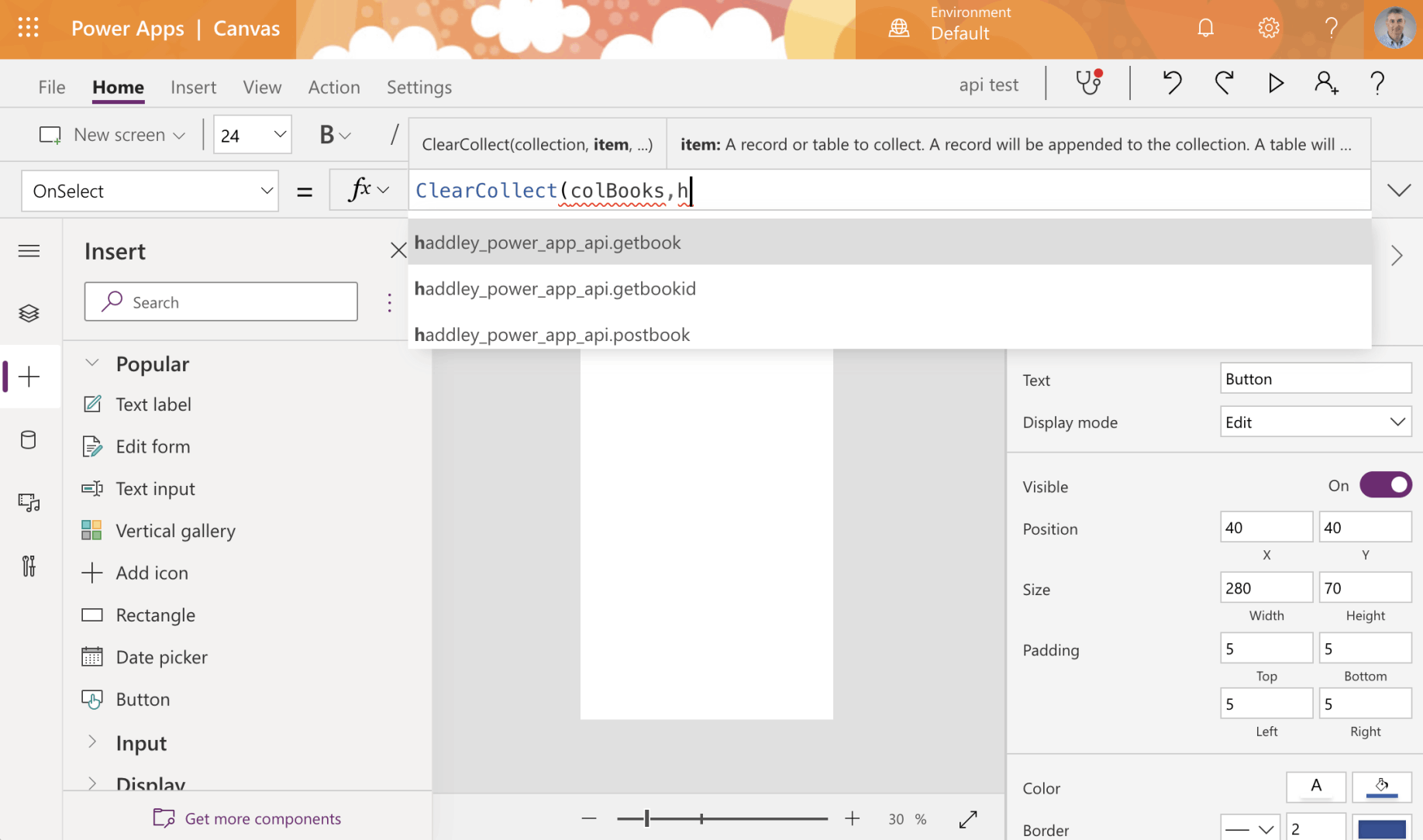

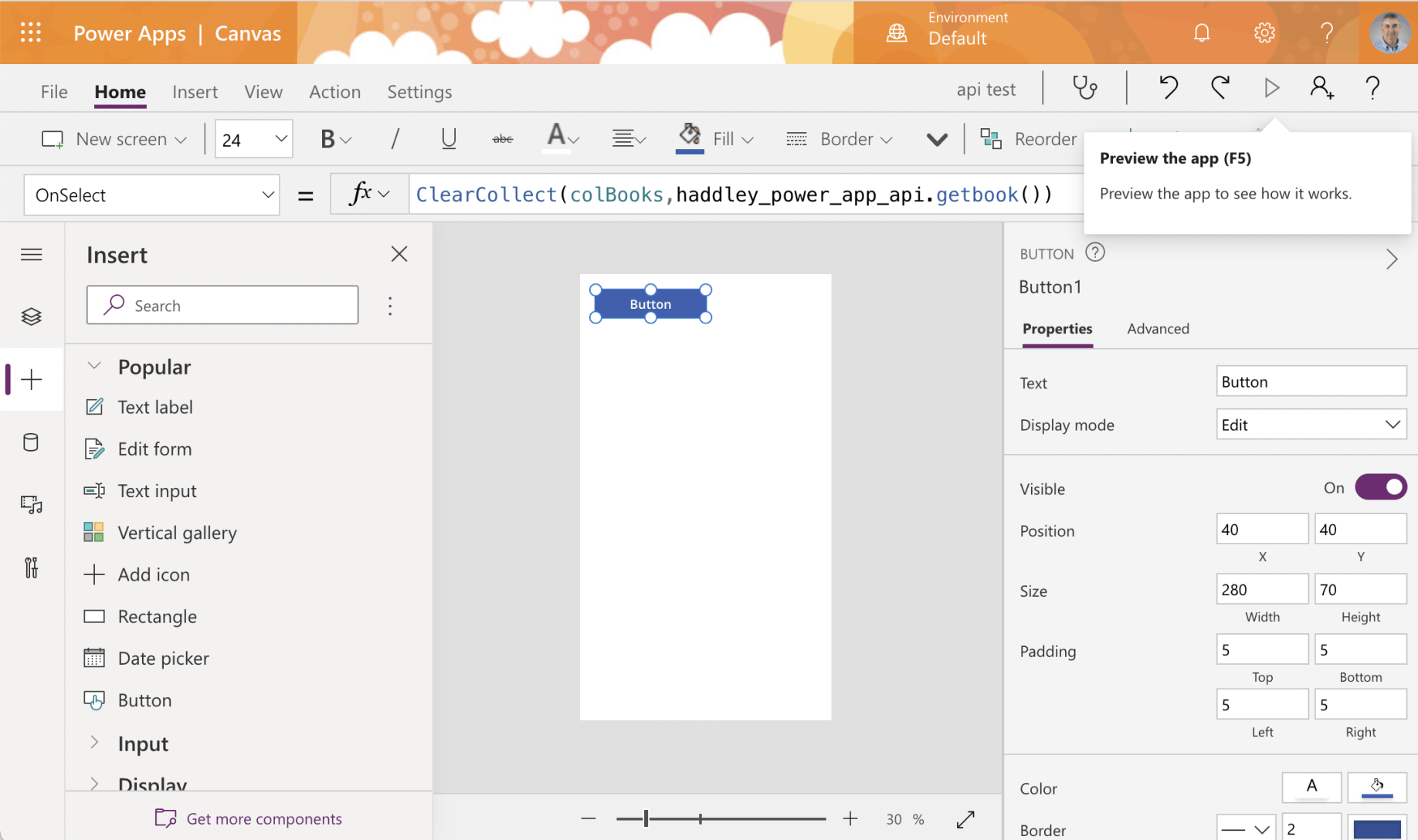

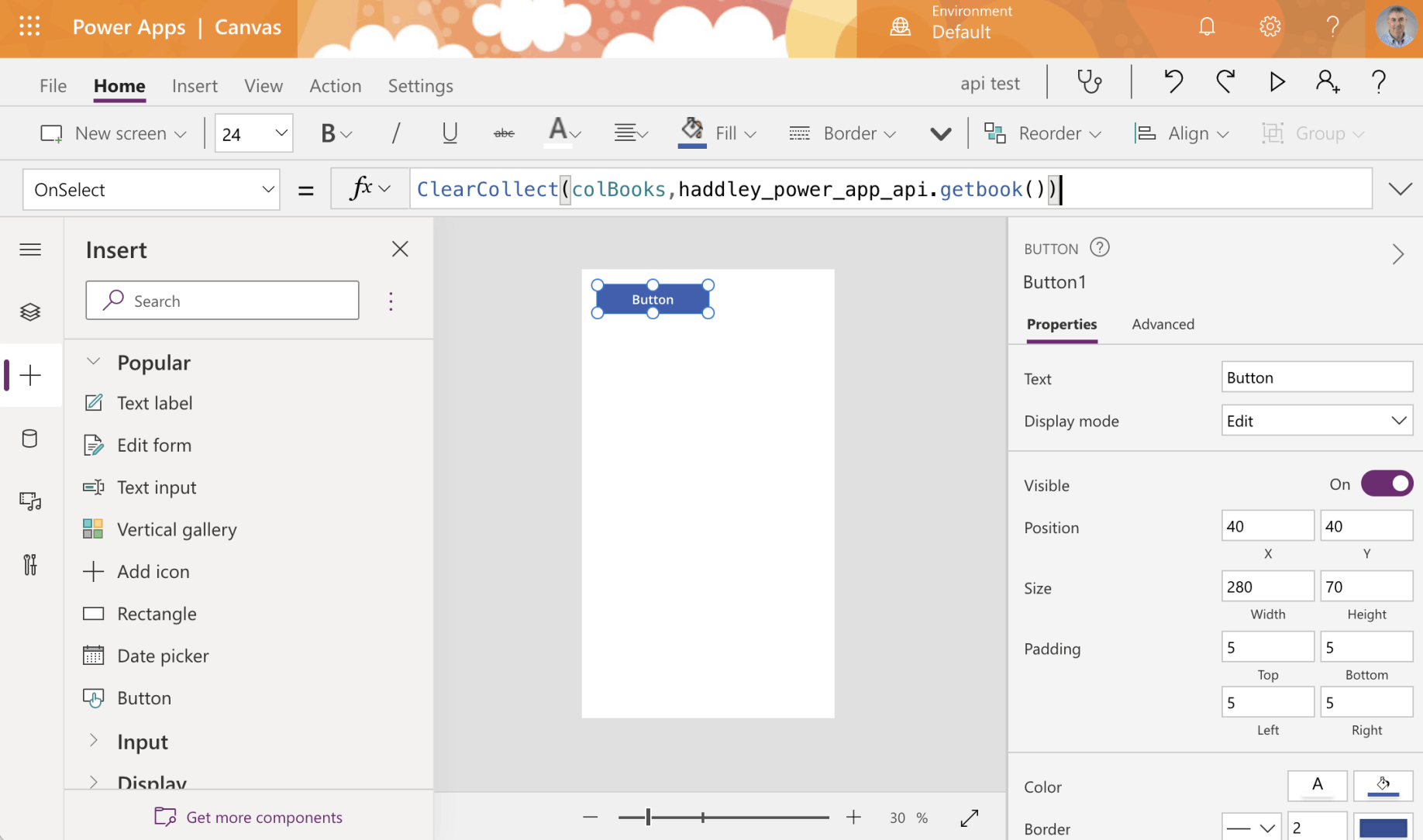

OnSelect books will be retrieved and stored in a "colBooks" collection

OnSelect books will be retrieved and stored in a "colBooks" collection

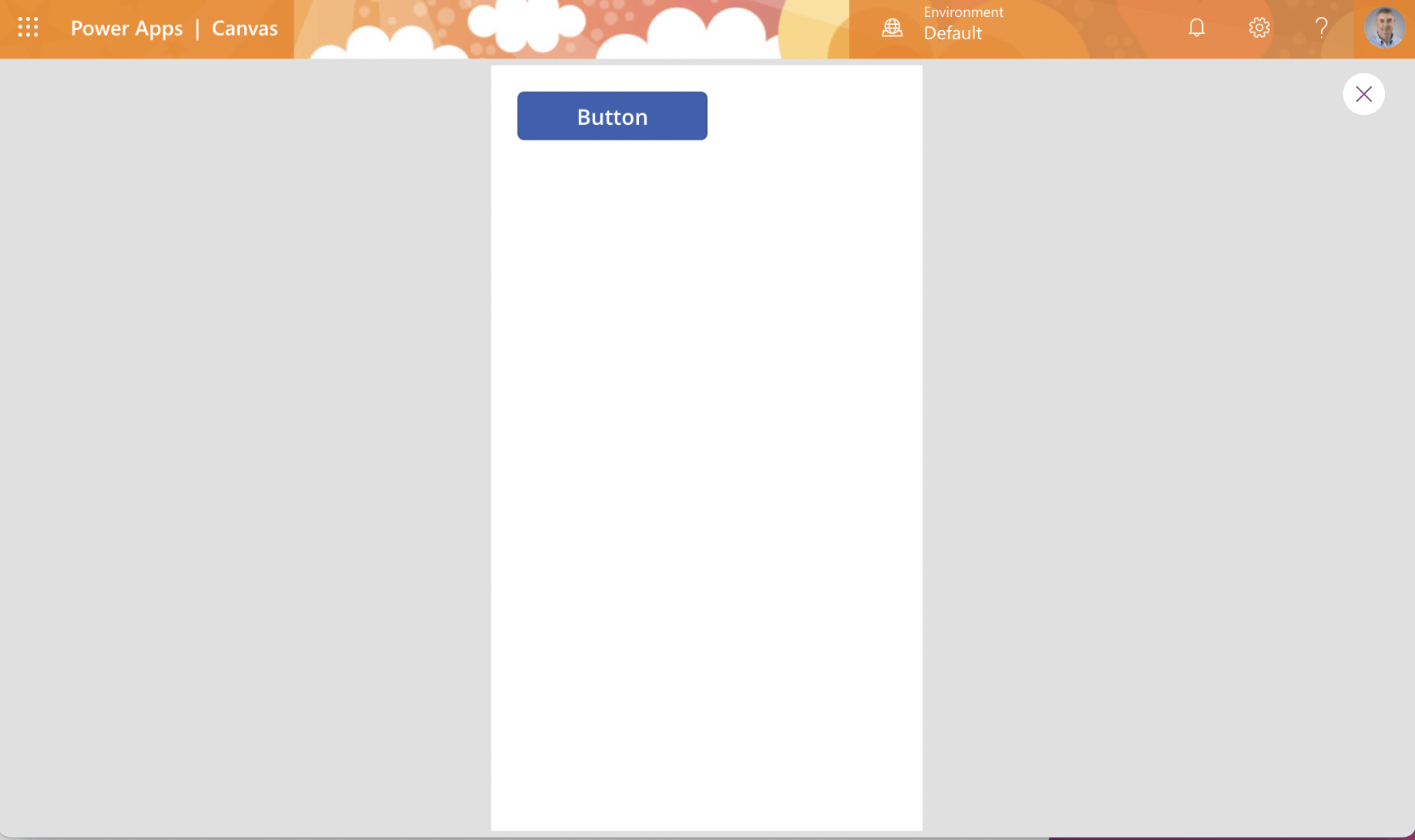

Preview the app

Preview the app

Press the Button

Press the Button

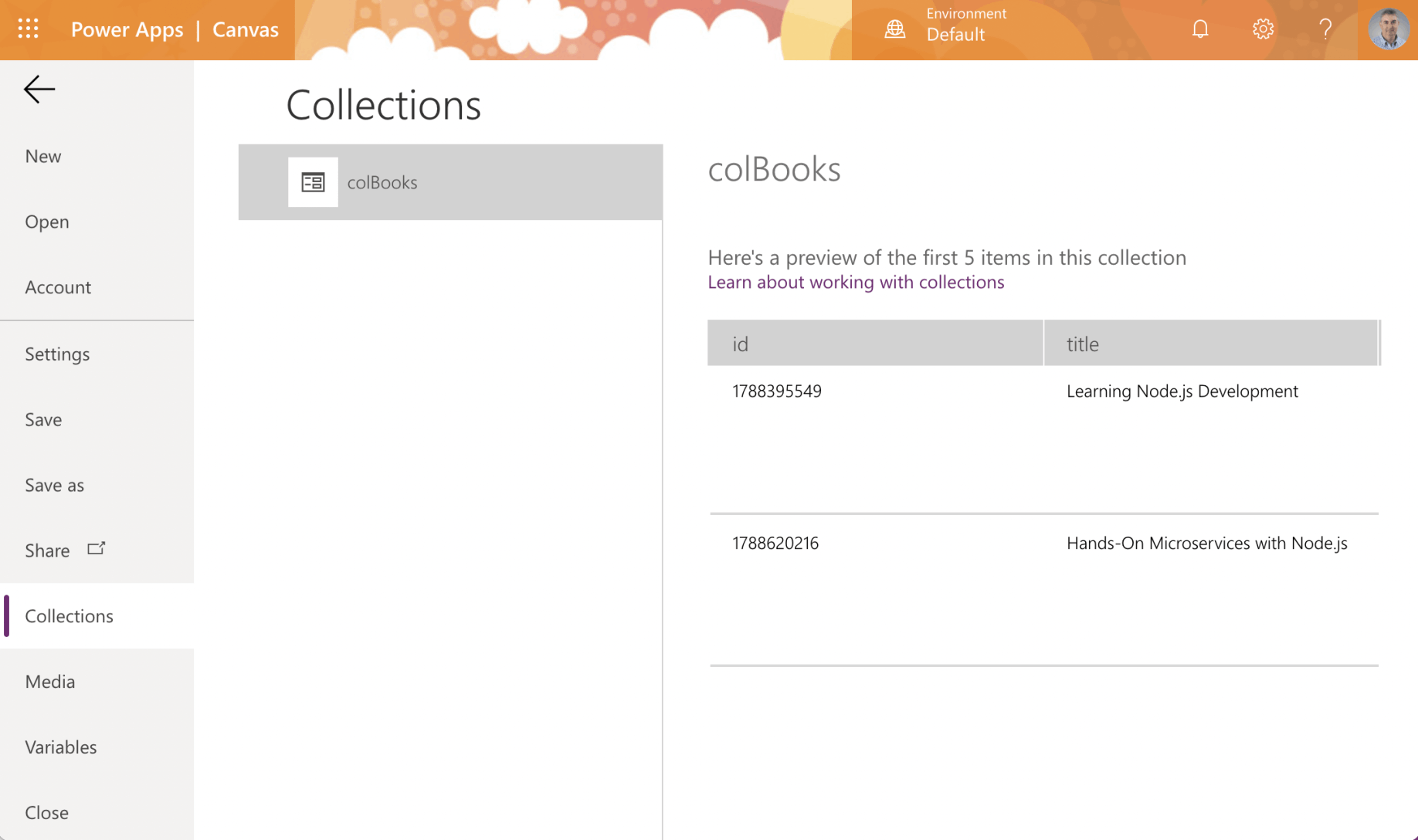

Navigate to Collections to review the result

Navigate to Collections to review the result

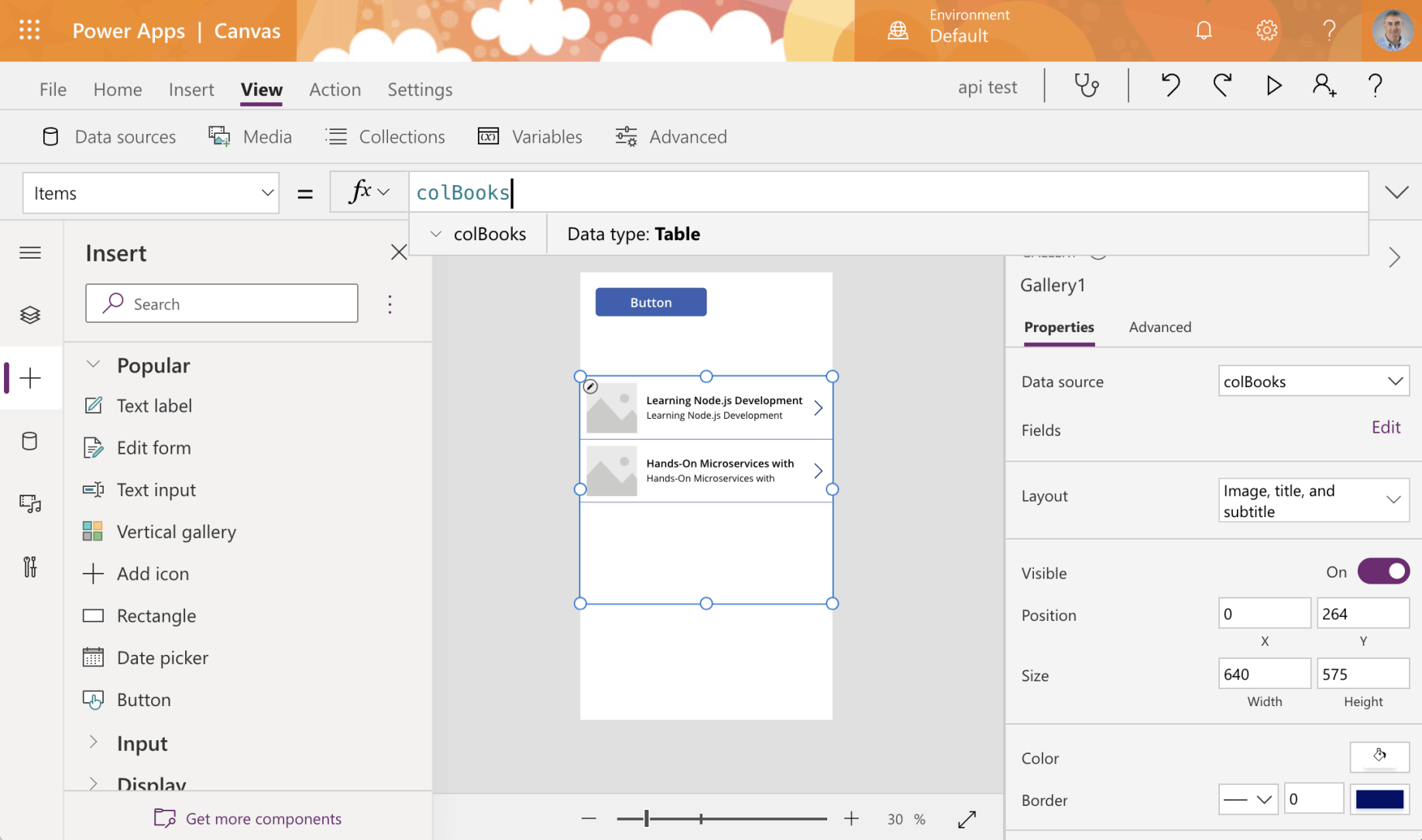

Add a gallery control and set items property to colBooks collection

Add a gallery control and set items property to colBooks collection

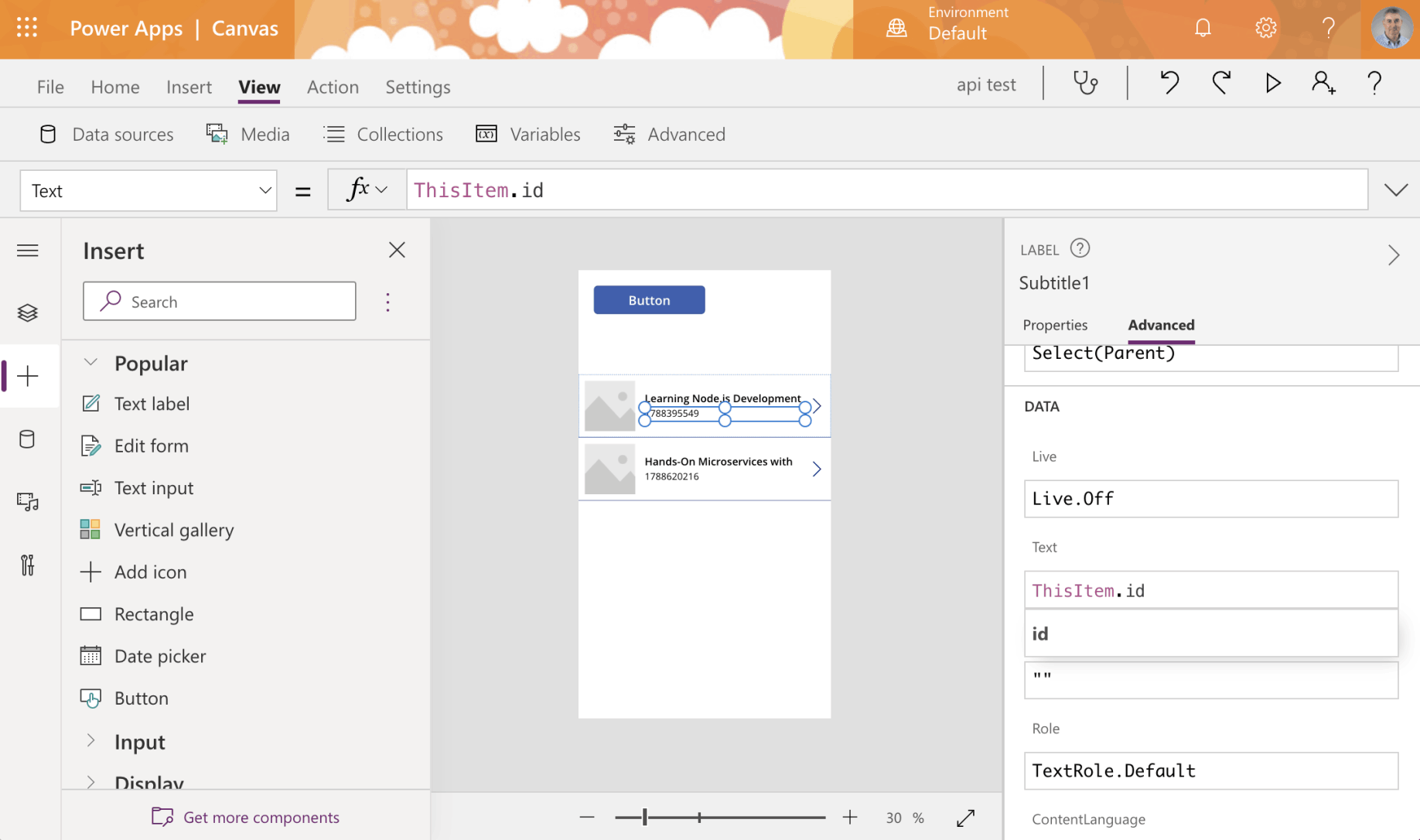

update the gallery control to display book titles and isbn (numbers)

update the gallery control to display book titles and isbn (numbers)

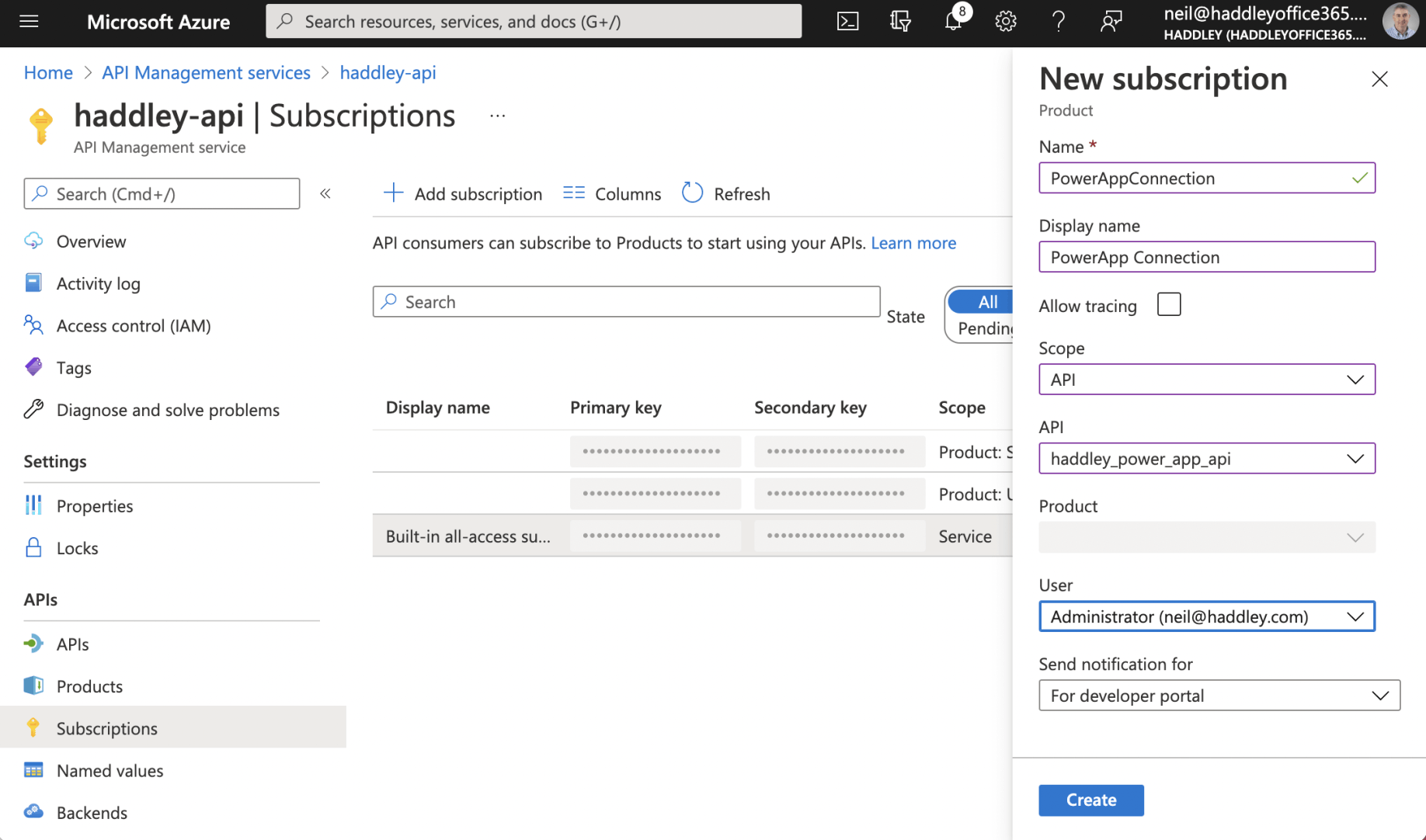

Add a new subscription

Add a new subscription

Copy the subscription key

Copy the subscription key

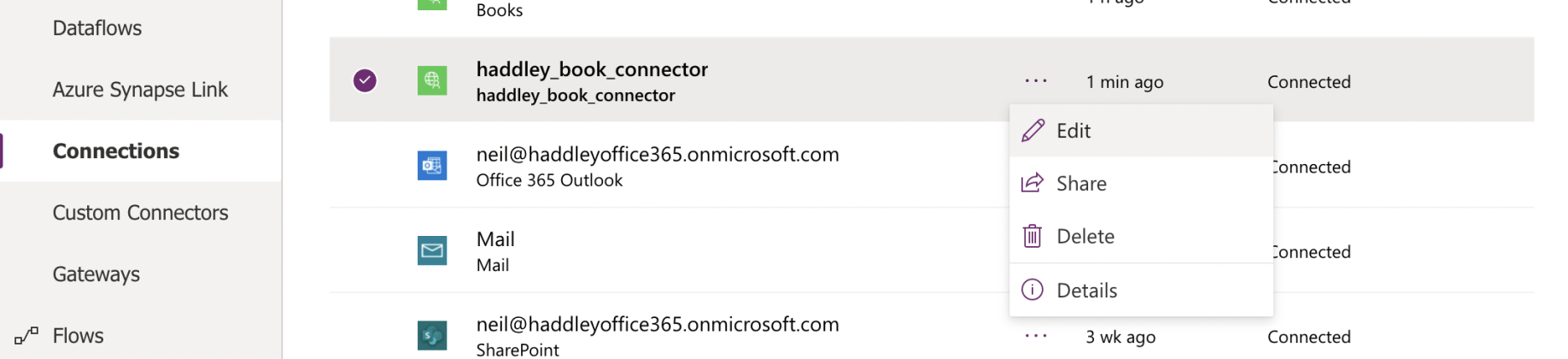

Edit the connection

Edit the connection

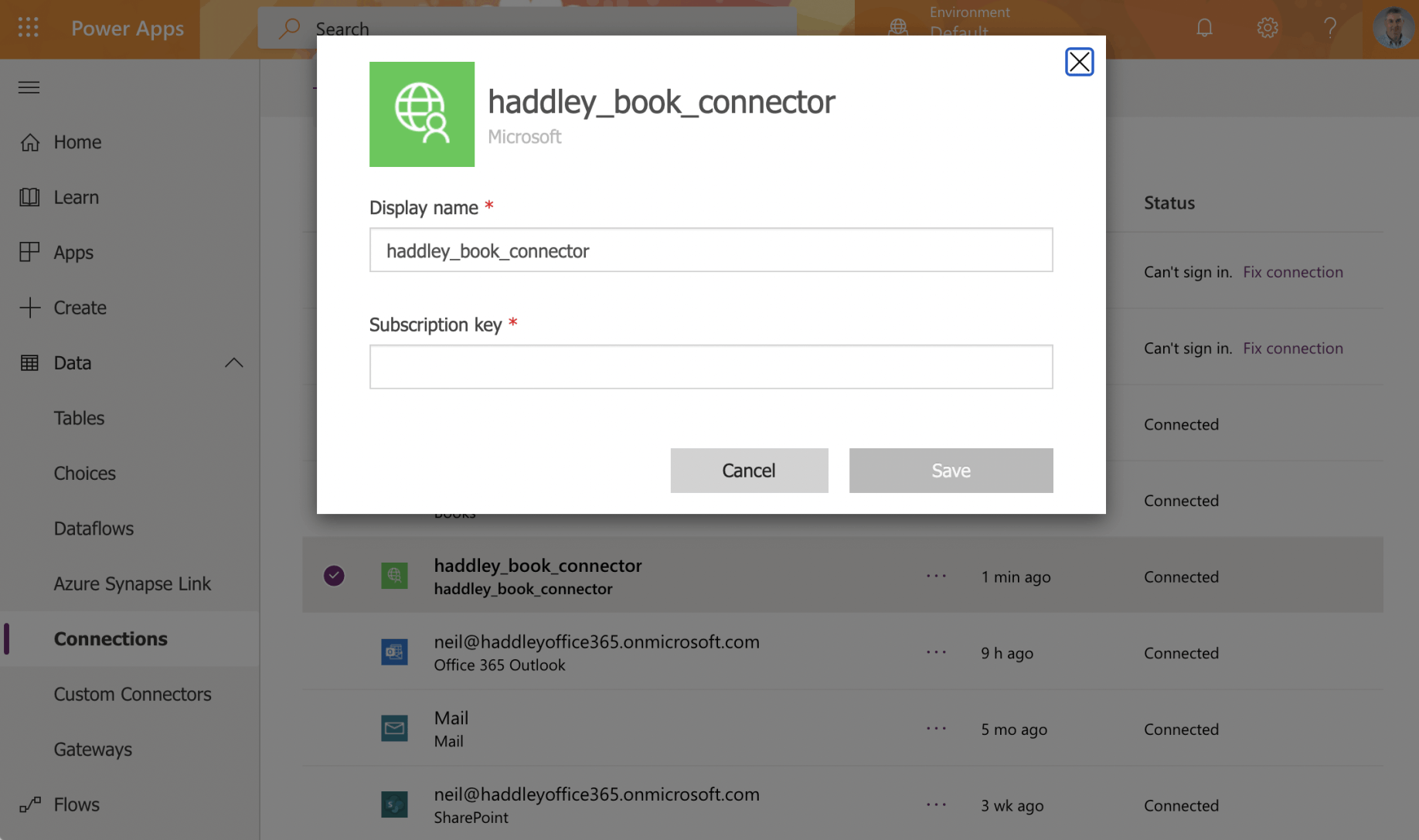

Update the subscription key

Update the subscription key
