A Teams App SharePoint Web Part for One Drive

Neil HaddleyMay 29, 2022

The SharePoint Framework (SPFx) can be used to create SharePoint Web Parts and Teams Applications

In this post I describe how I created a Teams application using the SharePoint Framework and the Microsoft Graph Toolkit

This post is based on PiaSys Tech Bites's Using Microsoft Graph Toolkit with React video, Microsoft 365 Community's Building Microsoft Graph Toolkit apps with SharePoint video, and Microsoft's Working with files in Microsoft Graph documentation.

SharePoint Apps

SharePoint Framework (SPFx) applications are deployed to Microsoft 365 when they are uploaded to the SharePoint online App catalog.

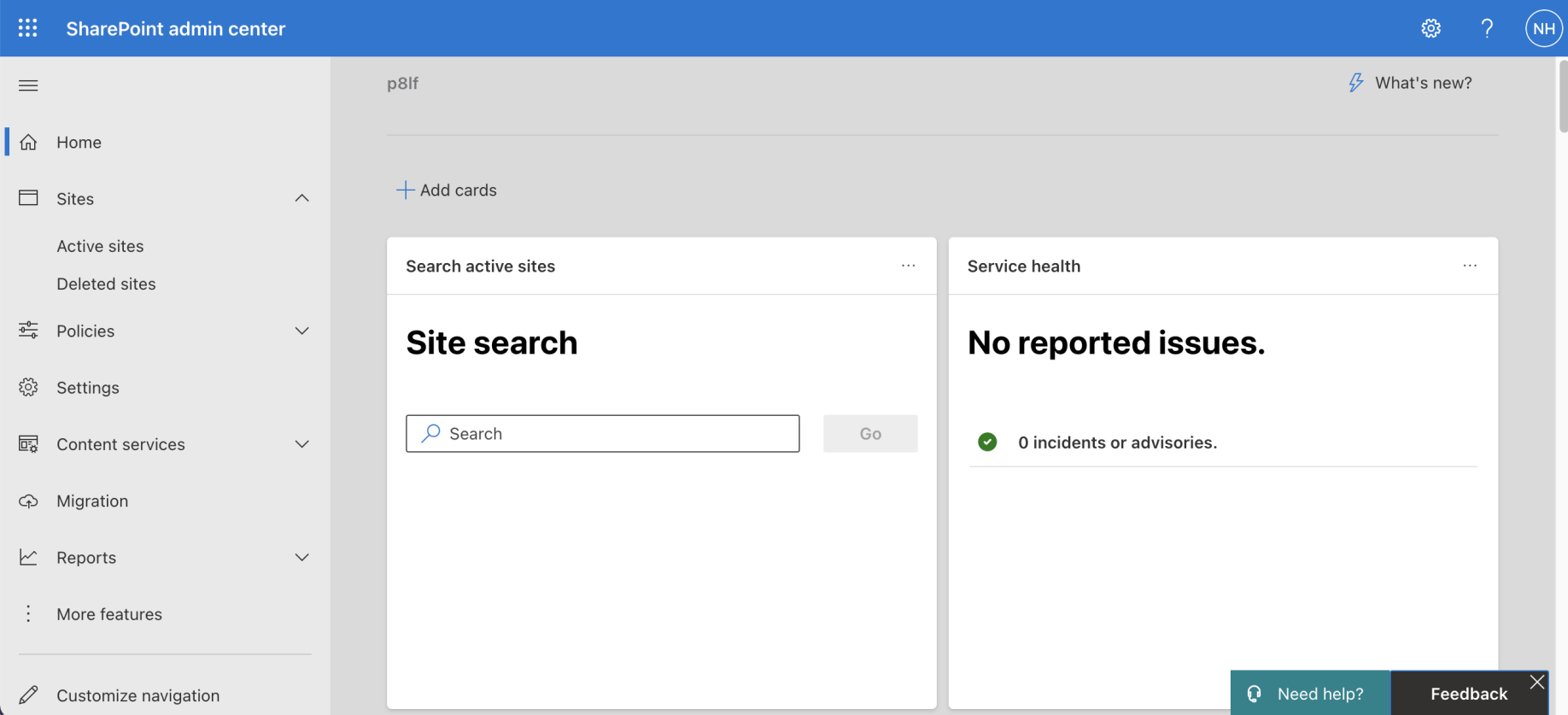

Navigate to the SharePoint admin center and click the "More features" link

Navigate to the SharePoint admin center and click the "More features" link

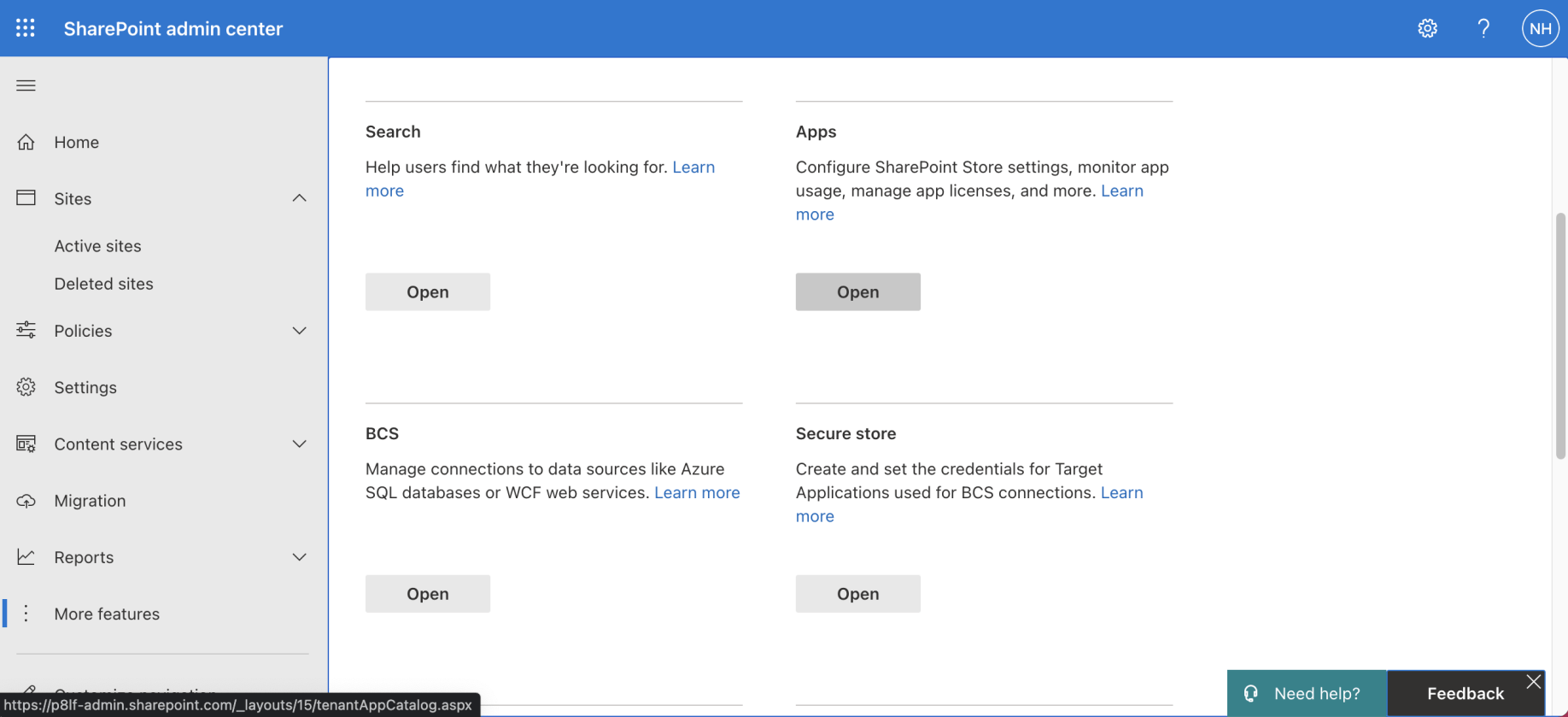

Scroll down to the "Apps" section and click the "Open" link

Scroll down to the "Apps" section and click the "Open" link

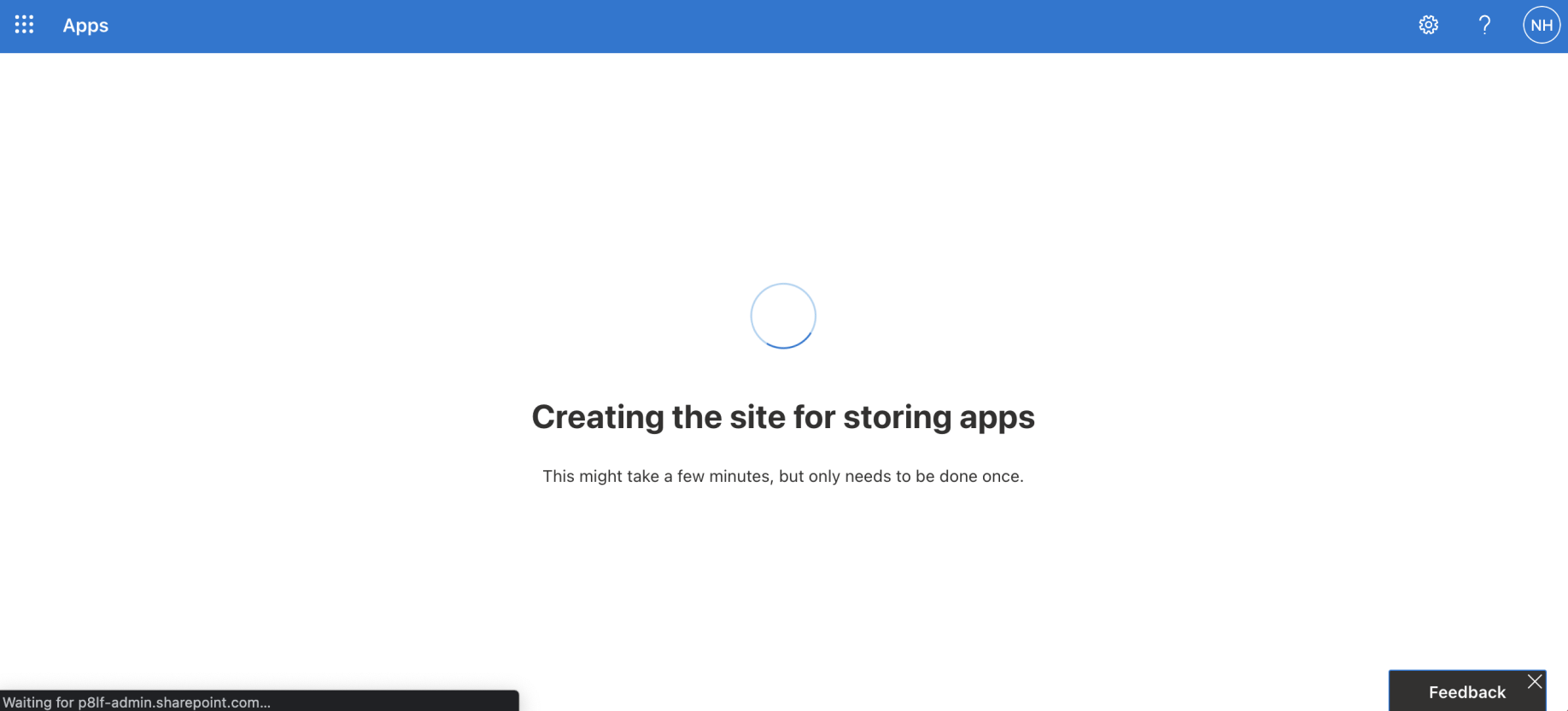

If the "App Catalog" Site (Site Collection) does not exist it is created

If the "App Catalog" Site (Site Collection) does not exist it is created

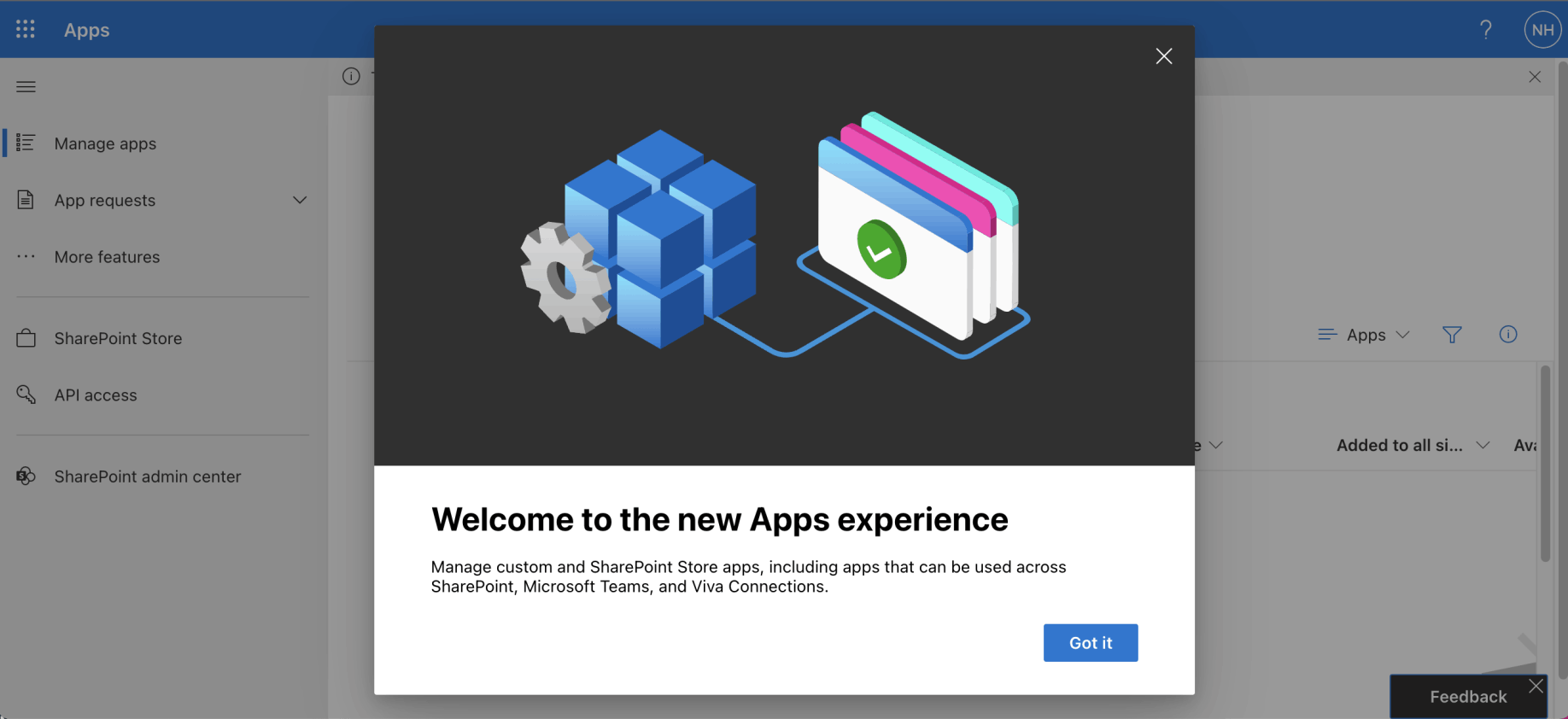

A welcome message may be displayed

A welcome message may be displayed

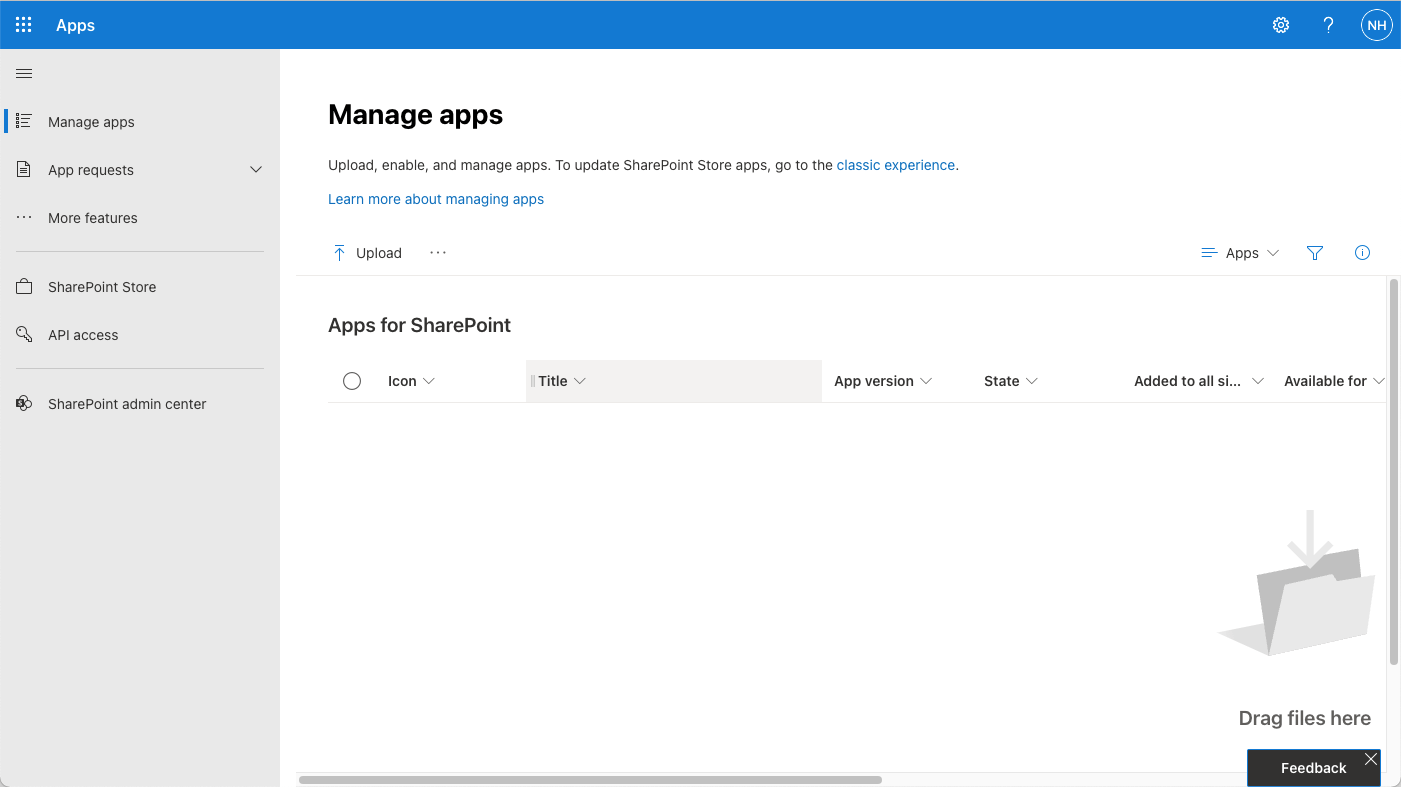

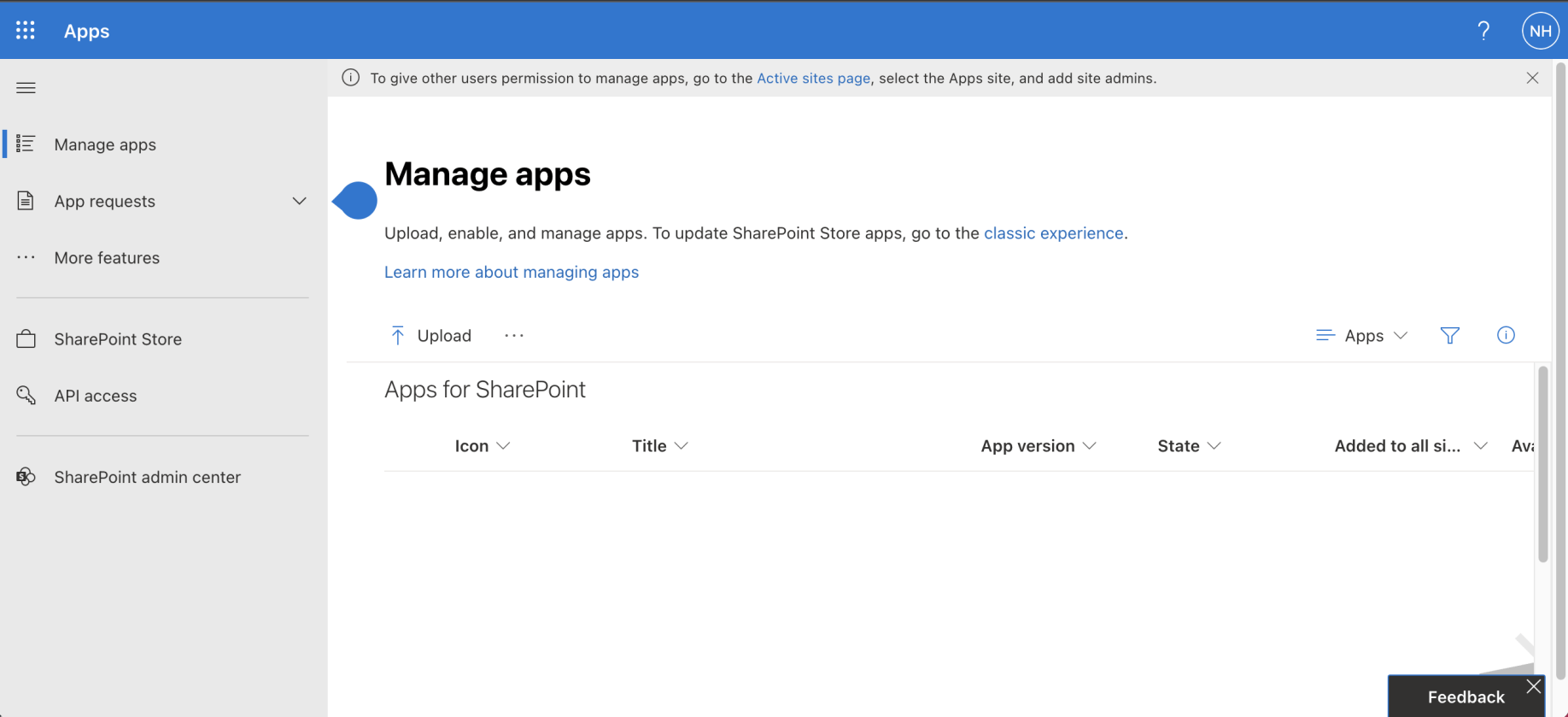

App Catalog's Manage apps page

App Catalog's Manage apps page

yo @microsoft/sharepoint

I used "yo @microsoft/sharepoint" to create a haddley-file-list project.

I used "npm i @microsoft/mgt-spfx@2.5.1" to add Microsoft Graph Toolkit to the project.

I used "npm i @microsoft/mgt-react@2.5.1" to add Microsoft Graph Toolkit's React components to the project.

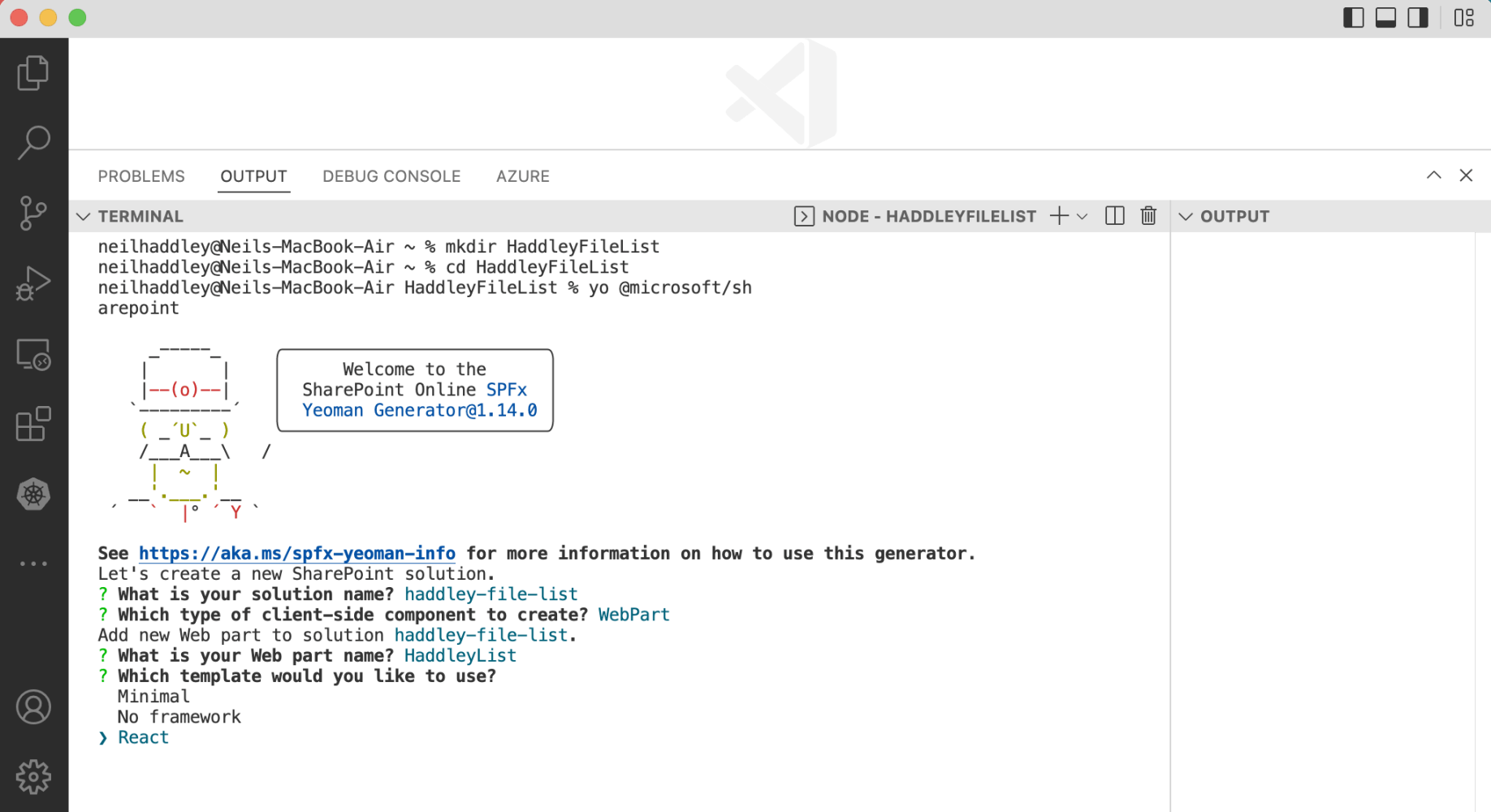

yo @microsoft/sharepoint

yo @microsoft/sharepoint

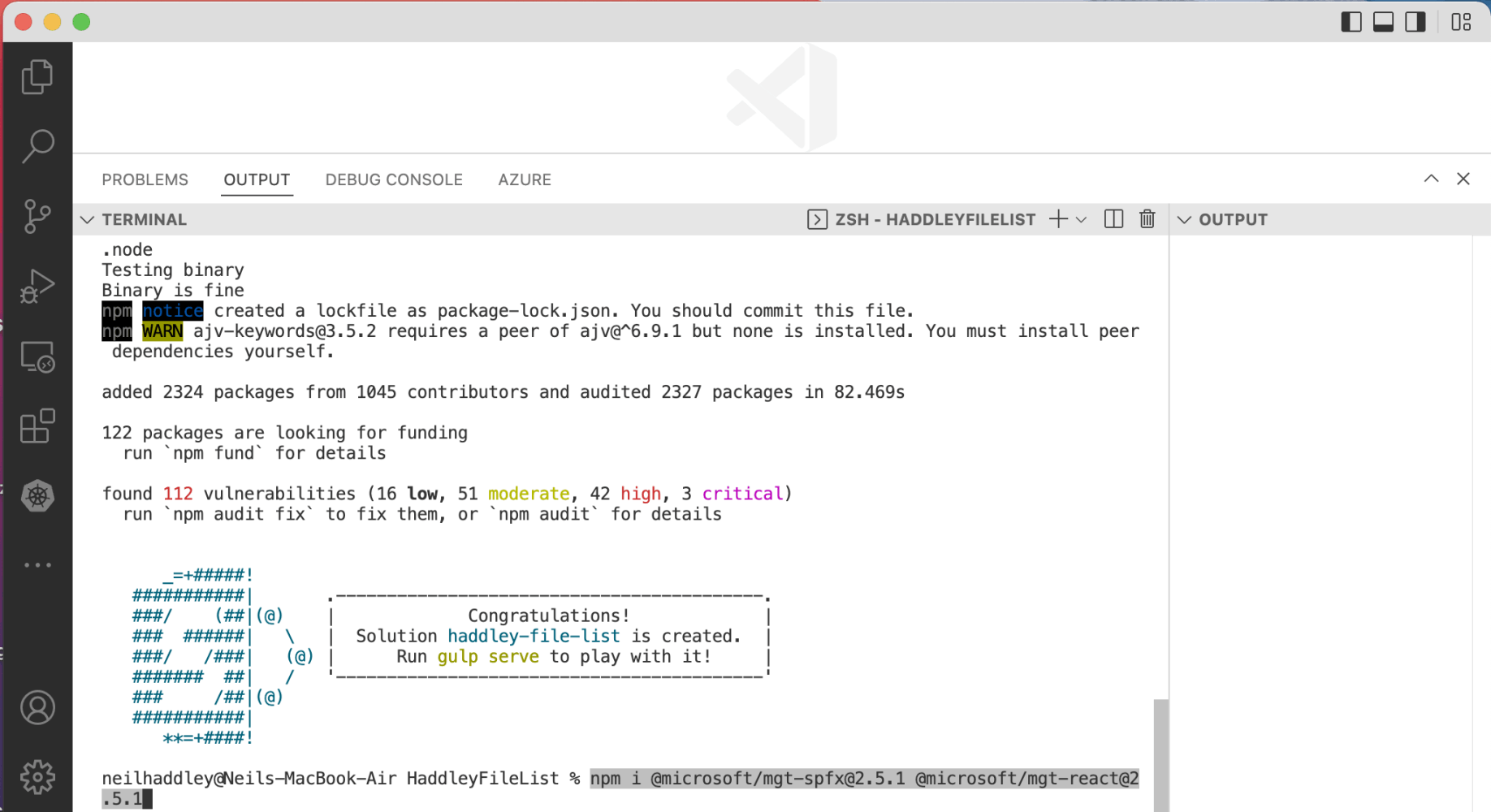

npm i @microsoft/mgt-spfx@2.5.1 @microsoft/mgt-react@2.5.1

npm i @microsoft/mgt-spfx@2.5.1 @microsoft/mgt-react@2.5.1

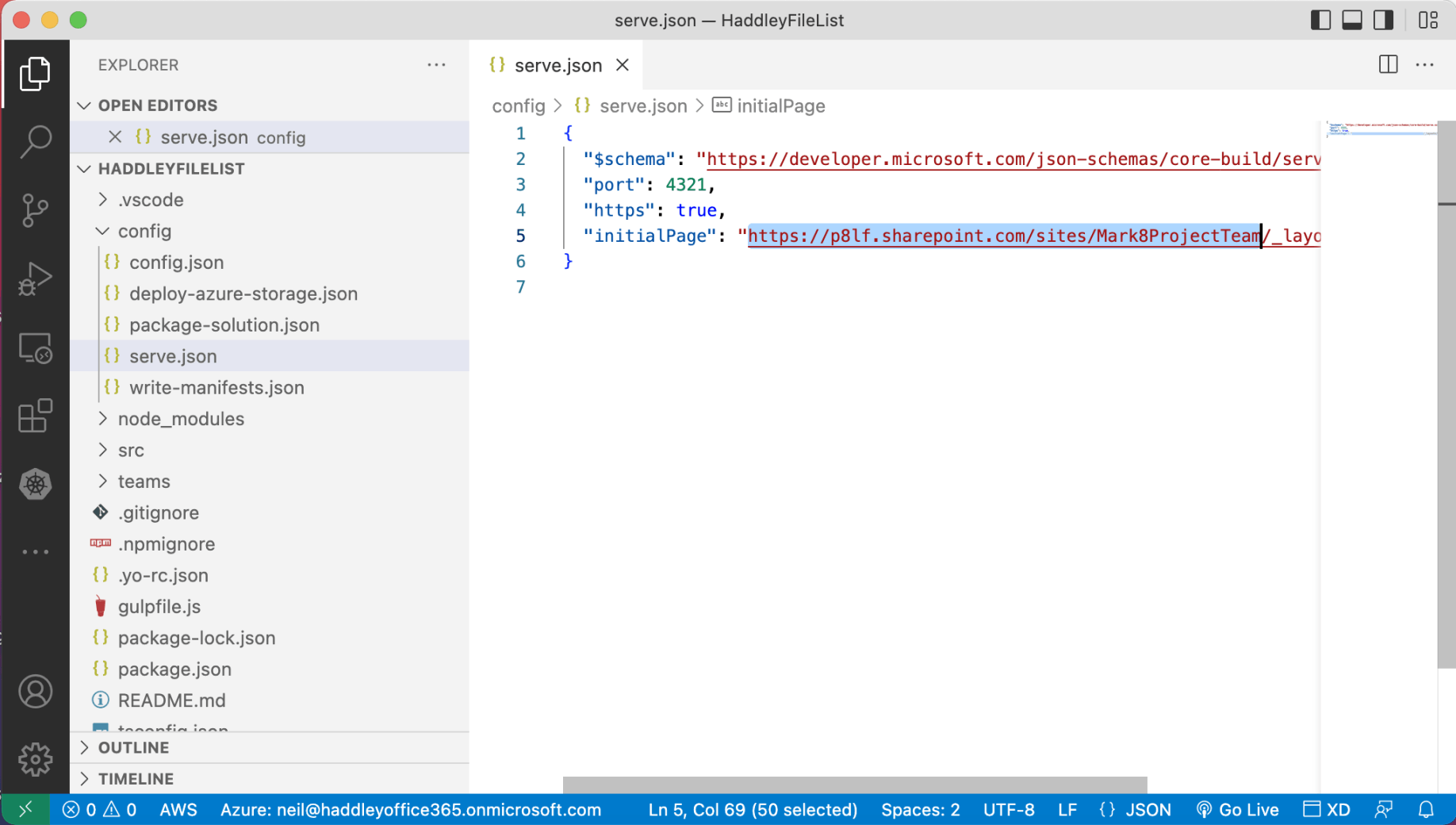

I updated serve.json to specify how the workbench would be loaded

I updated serve.json to specify how the workbench would be loaded

The workbench will be loaded in the context of the Mark8ProjectTeam Site

The workbench will be loaded in the context of the Mark8ProjectTeam Site

gulp

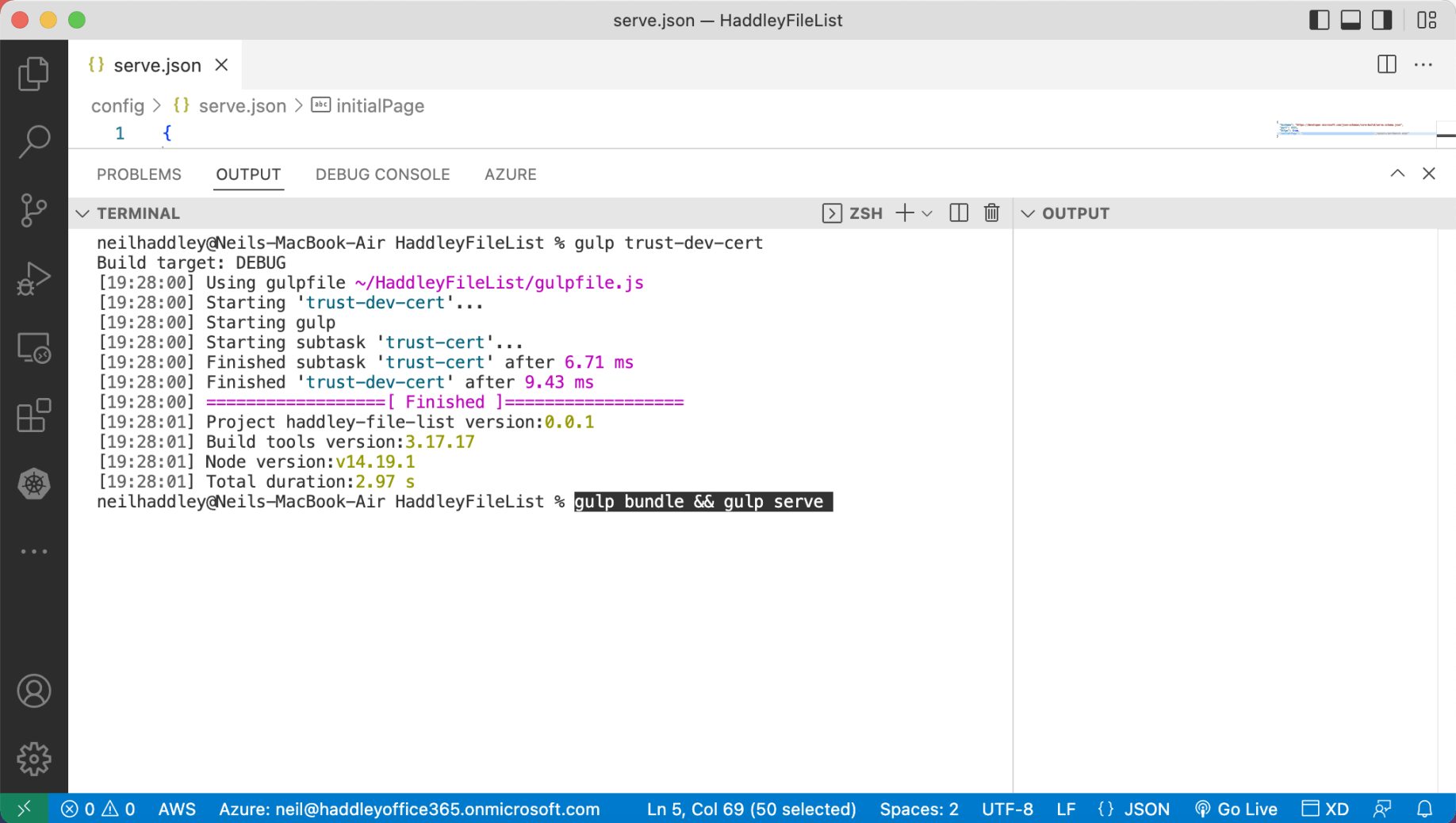

I used "gulp trust-dev-cert" to ensure that gulp would serve content using https

I used "gulp bundle && gulp serve" to preview the application in the workbench

gulp serve to preview

gulp serve to preview

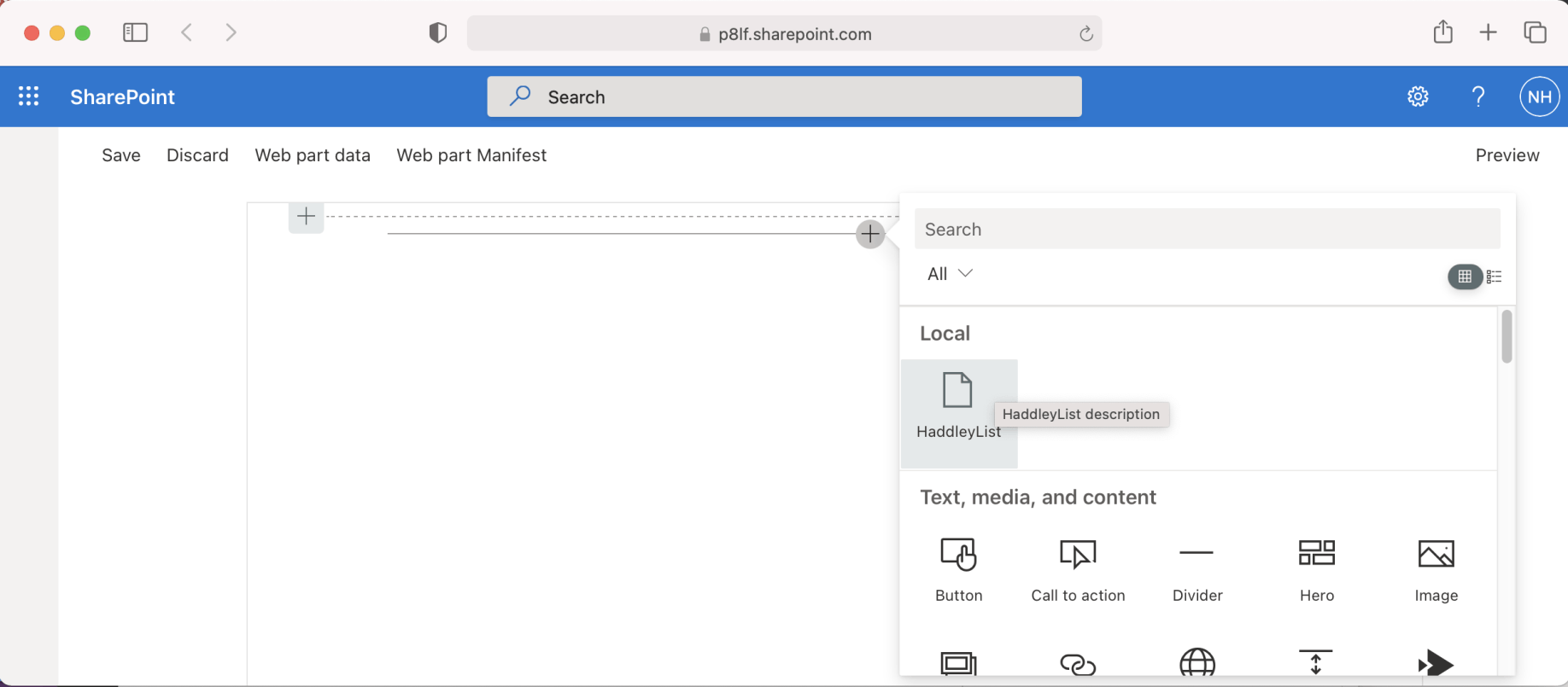

Previewing the web part in the workbench

Previewing the web part in the workbench

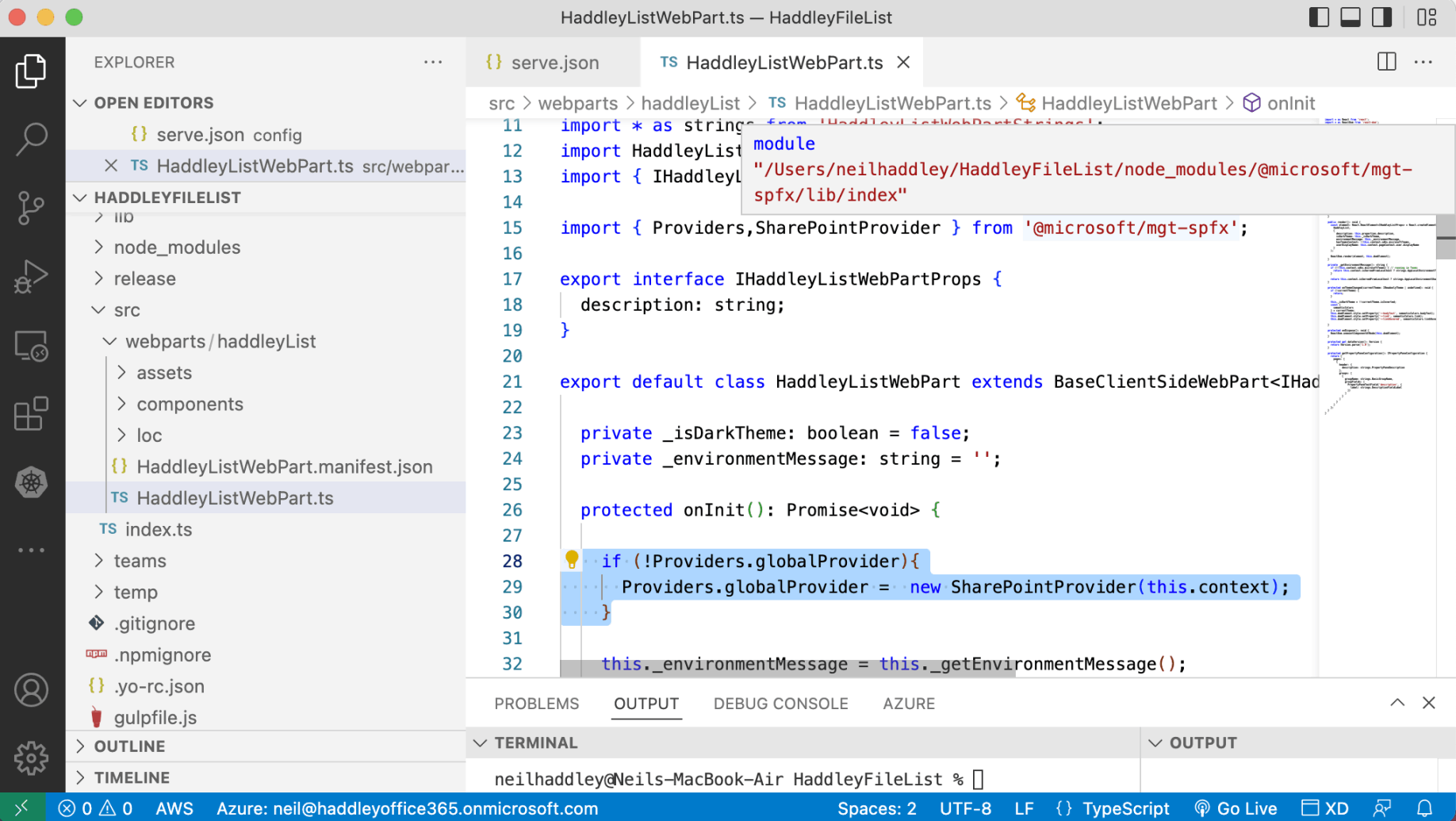

I updated the SPFx Web Part code to add a global provider (constructed using the Web Part's context object)

I updated the SPFx Web Part code to add a global provider (constructed using the Web Part's context object)

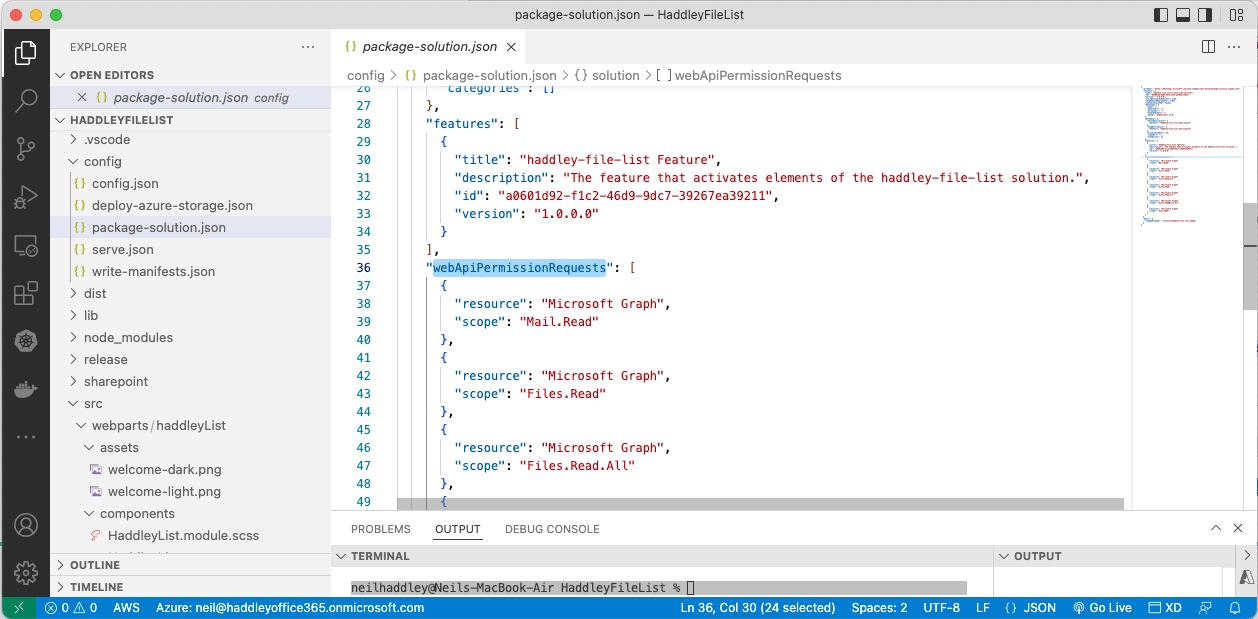

I added permission requests to package-solution.json

I added permission requests to package-solution.json

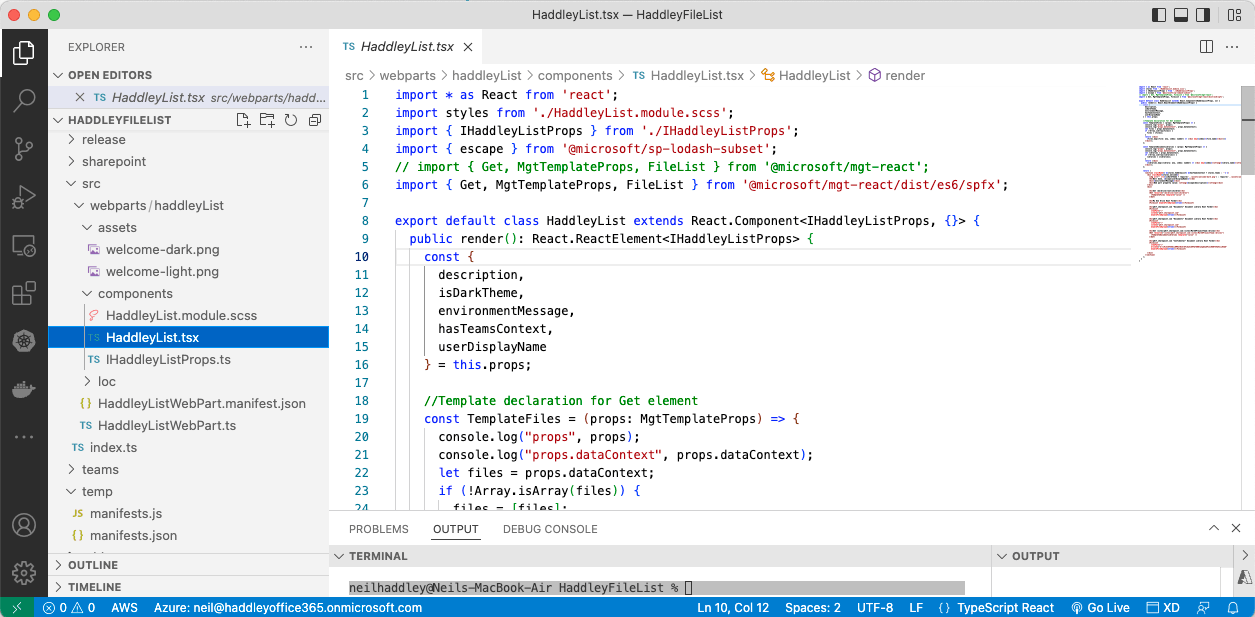

I updated the Web Part's React code

I updated the Web Part's React code

Deployment

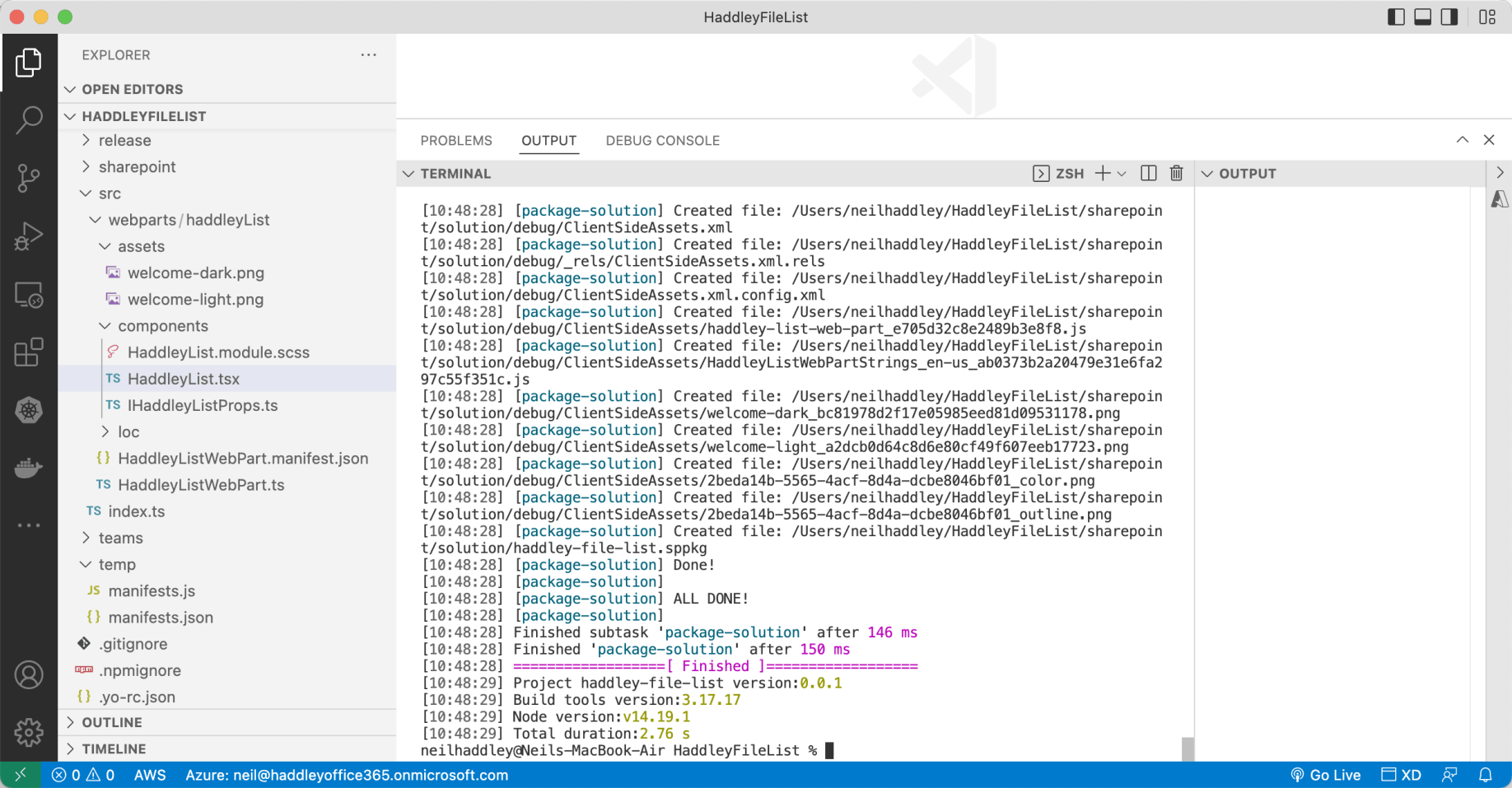

I used "gulp bundle --ship && gulp package-solution --ship" to create an .sppkg file (package).

gulp bundle --ship && gulp package-solution --ship

gulp bundle --ship && gulp package-solution --ship

I navigated to the App catalog manage apps page

I navigated to the App catalog manage apps page

mgt-spfx-252.sppkg

At runtime (at least in Teams) the web part depends on a shared SharePoint app "mgt-spfx-XXX.sppkg".

https://github.com/microsoftgraph/microsoft-graph-toolkit/releases

I added this shared application to the App Catalog.

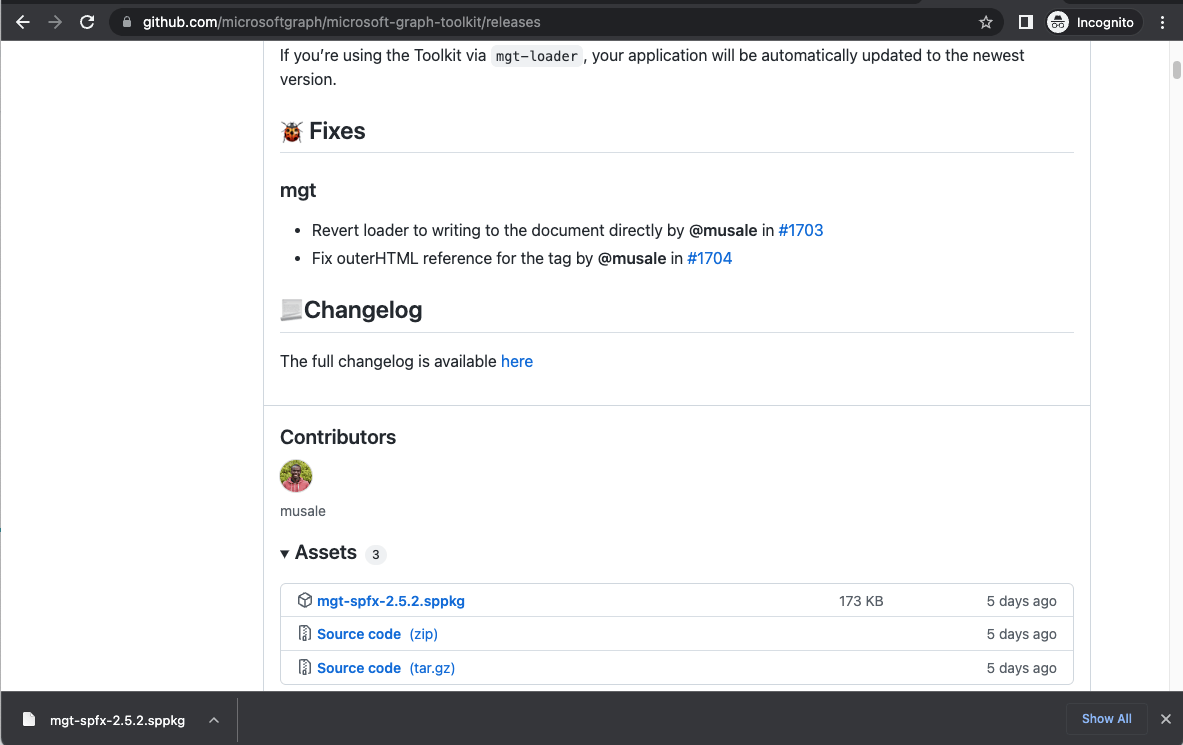

I downloaded the mgt-spfx-2.5.2.sppkg file (package) from https://github.com/microsoftgraph/microsoft-graph-toolkit/releases. I uploaded the mgt-spfx-2.5.2.sppkg file (package) to the App catalog.

I downloaded the mgt-spfx-2.5.2.sppkg file (package) from https://github.com/microsoftgraph/microsoft-graph-toolkit/releases. I uploaded the mgt-spfx-2.5.2.sppkg file (package) to the App catalog.

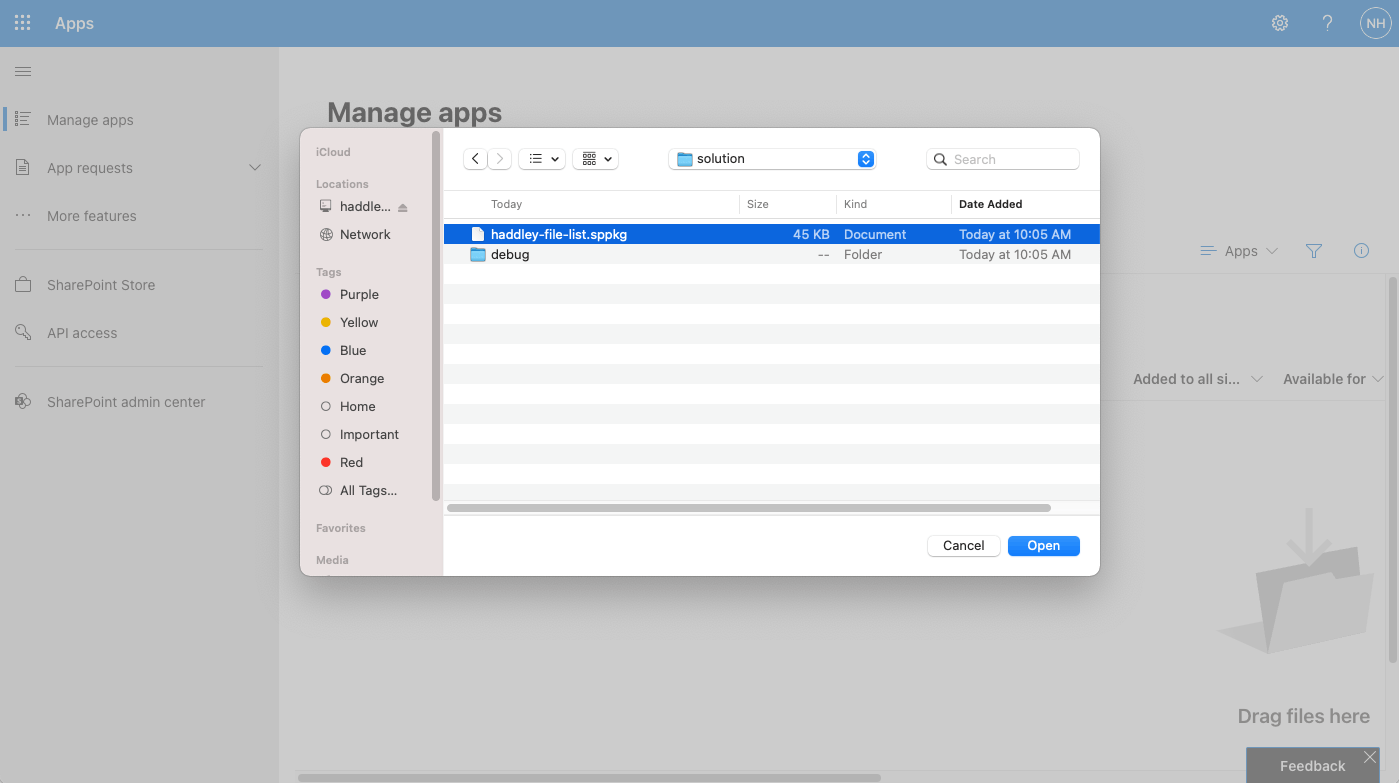

I upload the project's haddley-file-list.sppkg file (package) to the App catalog

I upload the project's haddley-file-list.sppkg file (package) to the App catalog

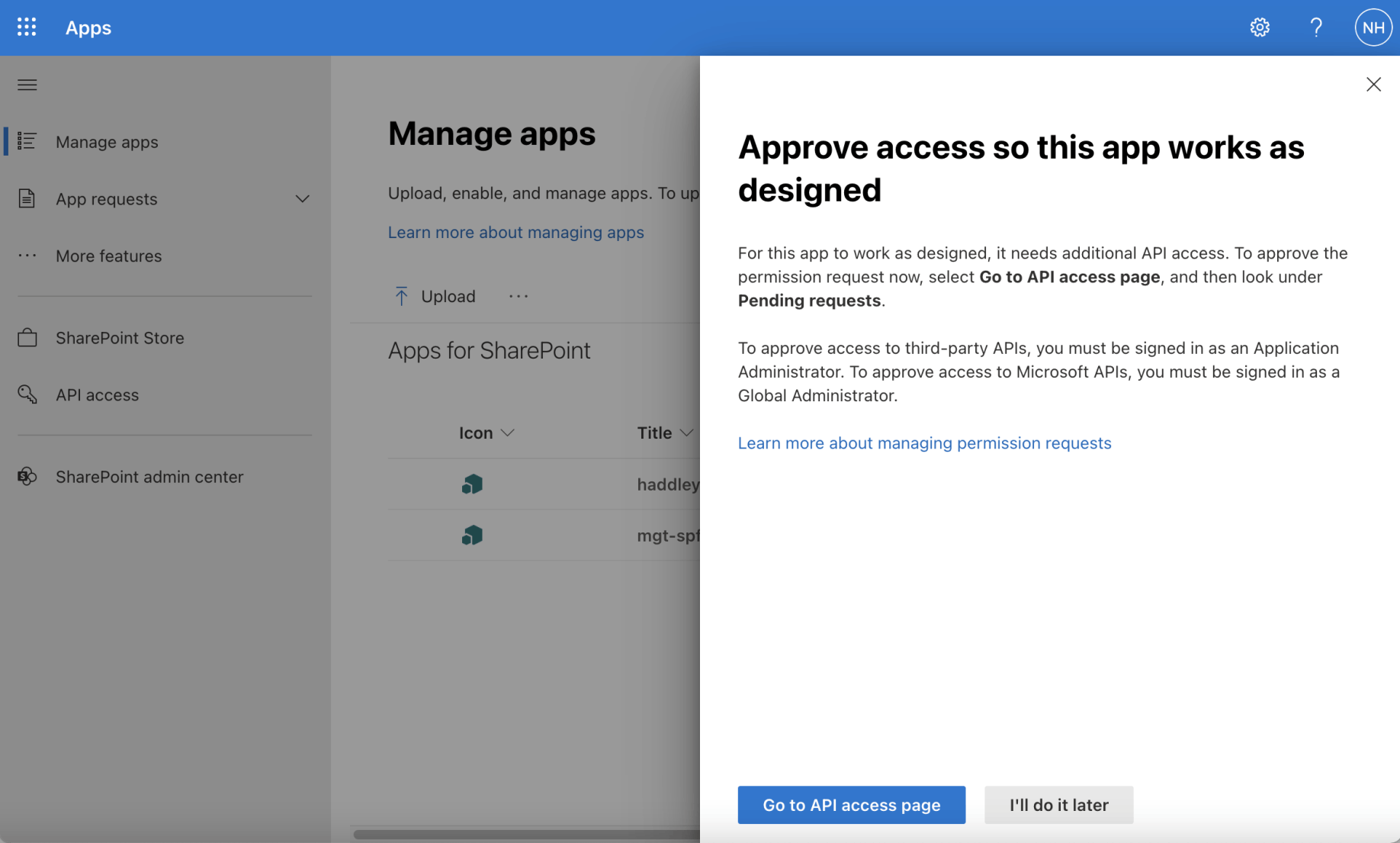

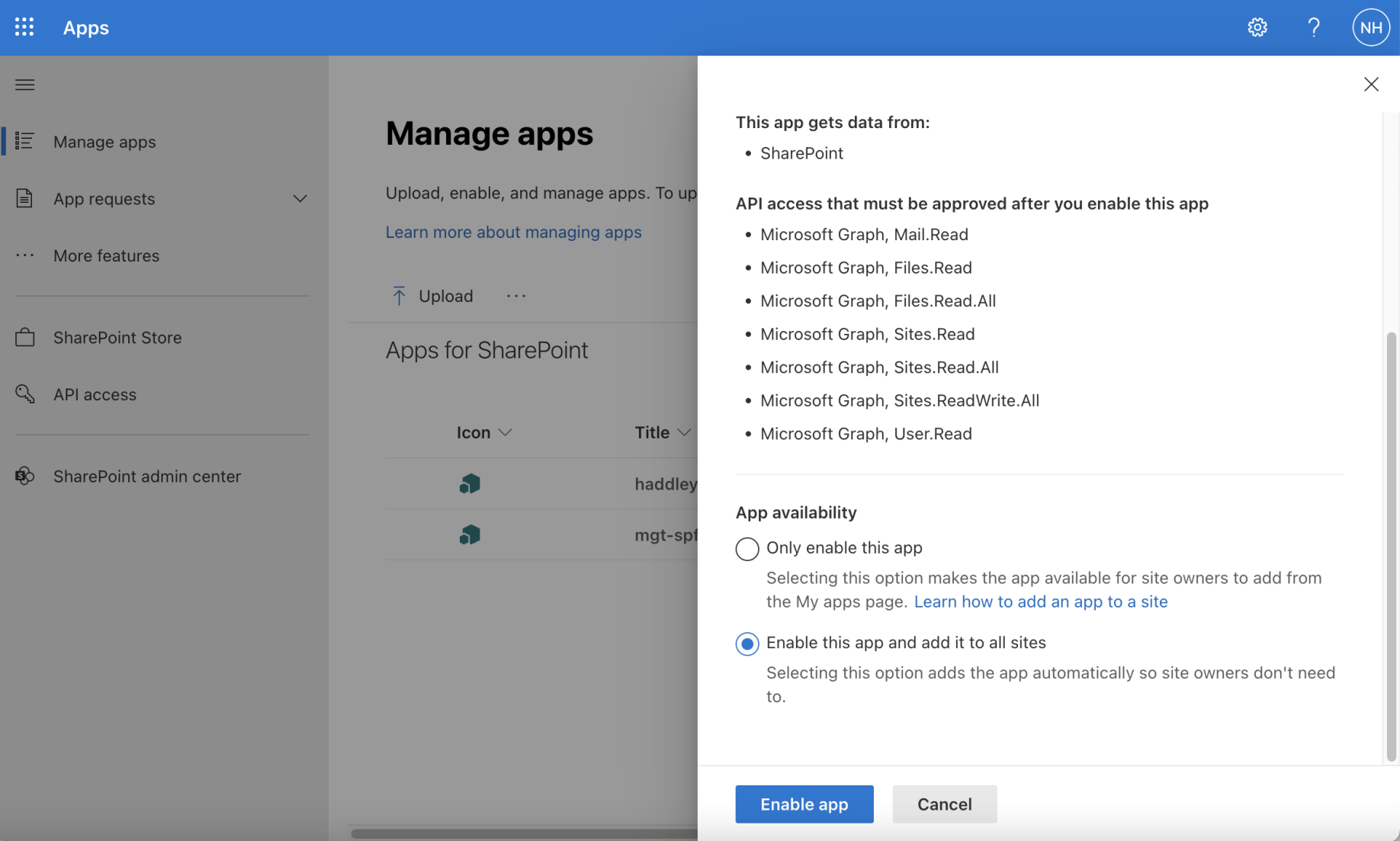

I enabled the app and selected the enable this app and add to all sites option

I enabled the app and selected the enable this app and add to all sites option

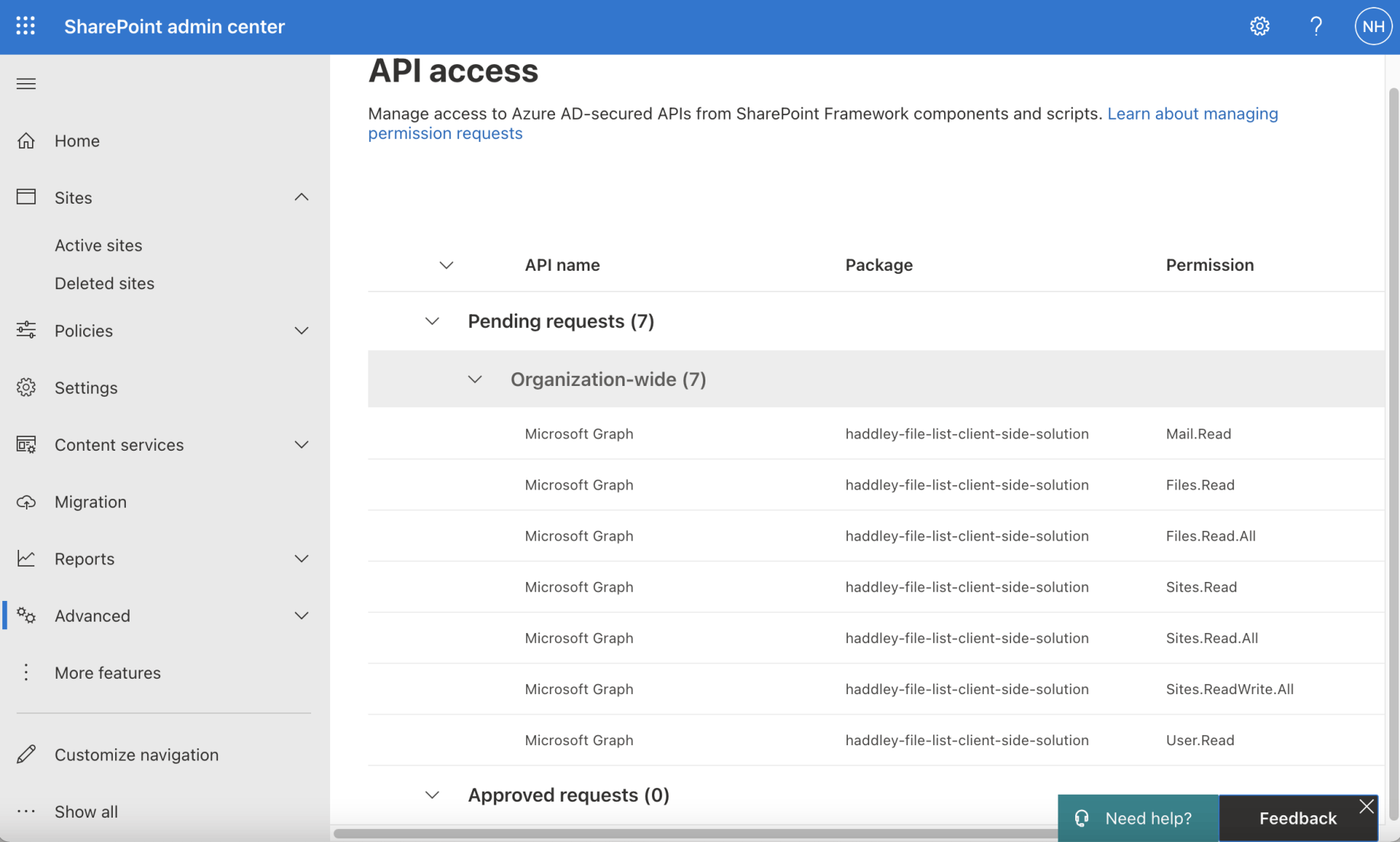

I navigated to the API access page

I navigated to the API access page

I approved the permission requests

I approved the permission requests

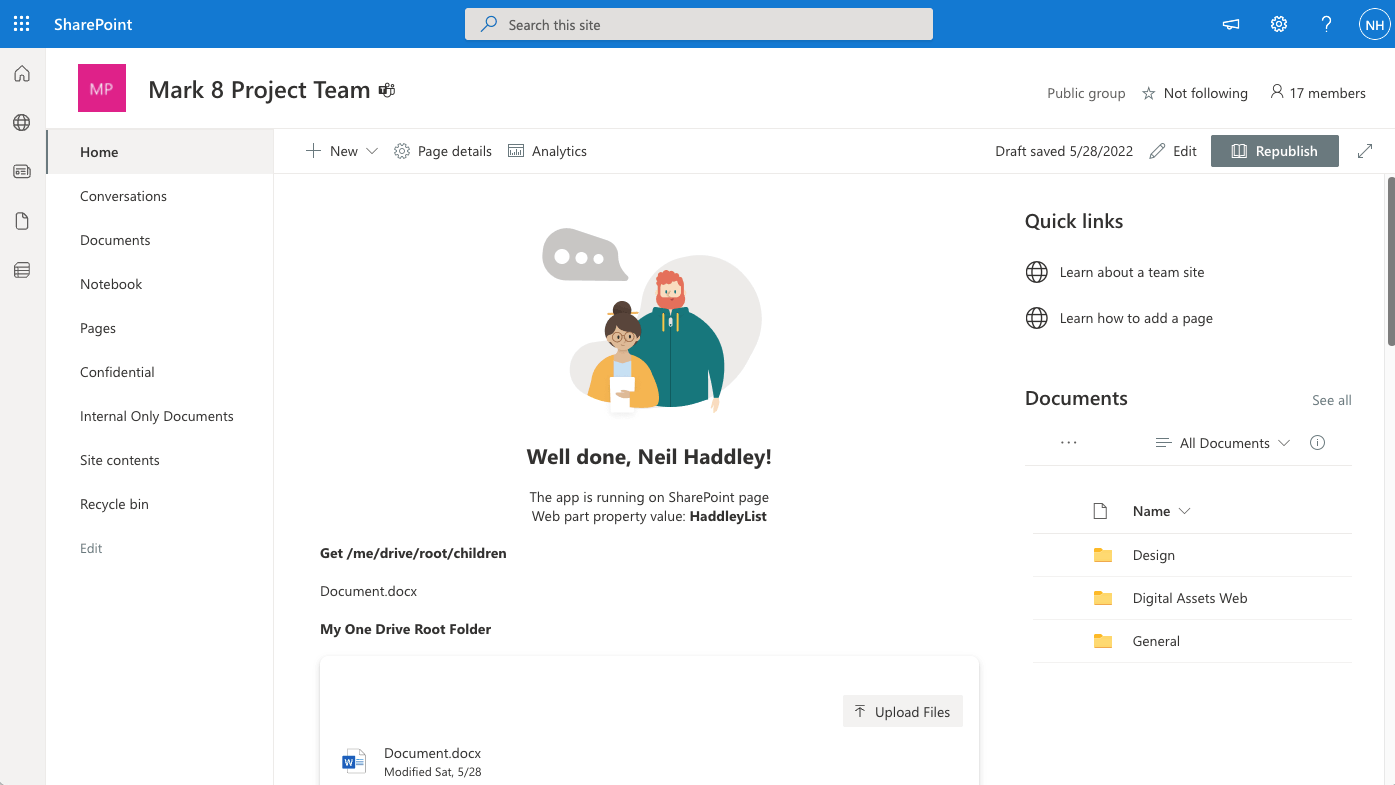

As a test I added the web part to a SharePoint page

As a test I added the web part to a SharePoint page

Adding to teams

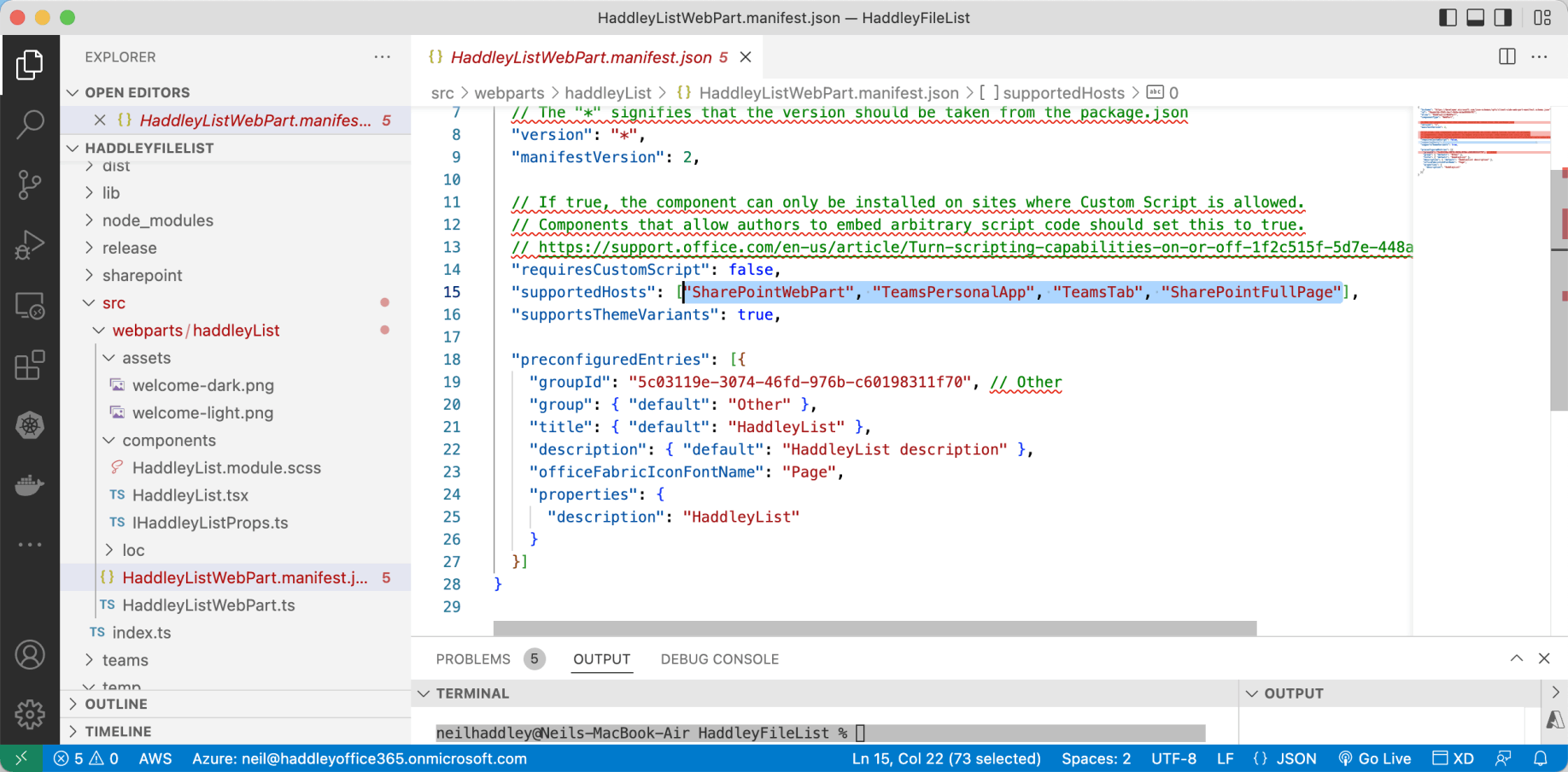

The HaddleyListWebPart manifest suggests that the web part will work as a Teams App.

I did not need to update this file

HaddleyListWebPart.manifest.json

HaddleyListWebPart.manifest.json

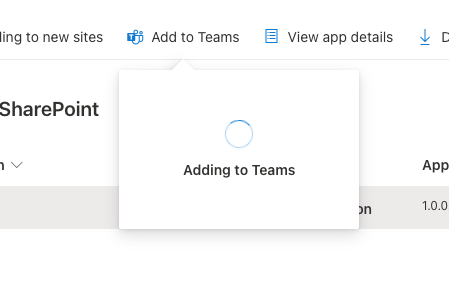

I used the "Add to Teams" button in the App catalog to add the Web Part to Teams

I used the "Add to Teams" button in the App catalog to add the Web Part to Teams

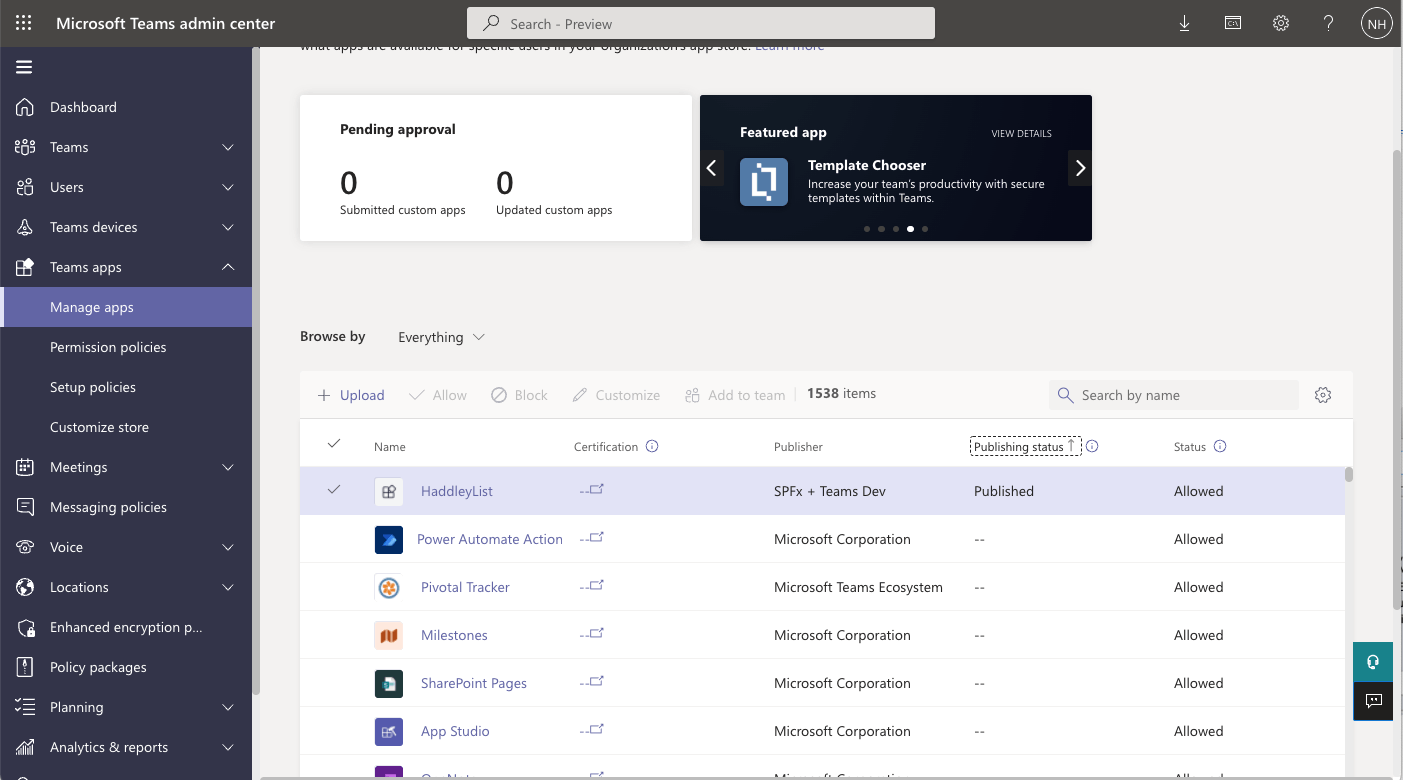

With no additional effort the web part was shown as a Published app in the Teams admin center

With no additional effort the web part was shown as a Published app in the Teams admin center

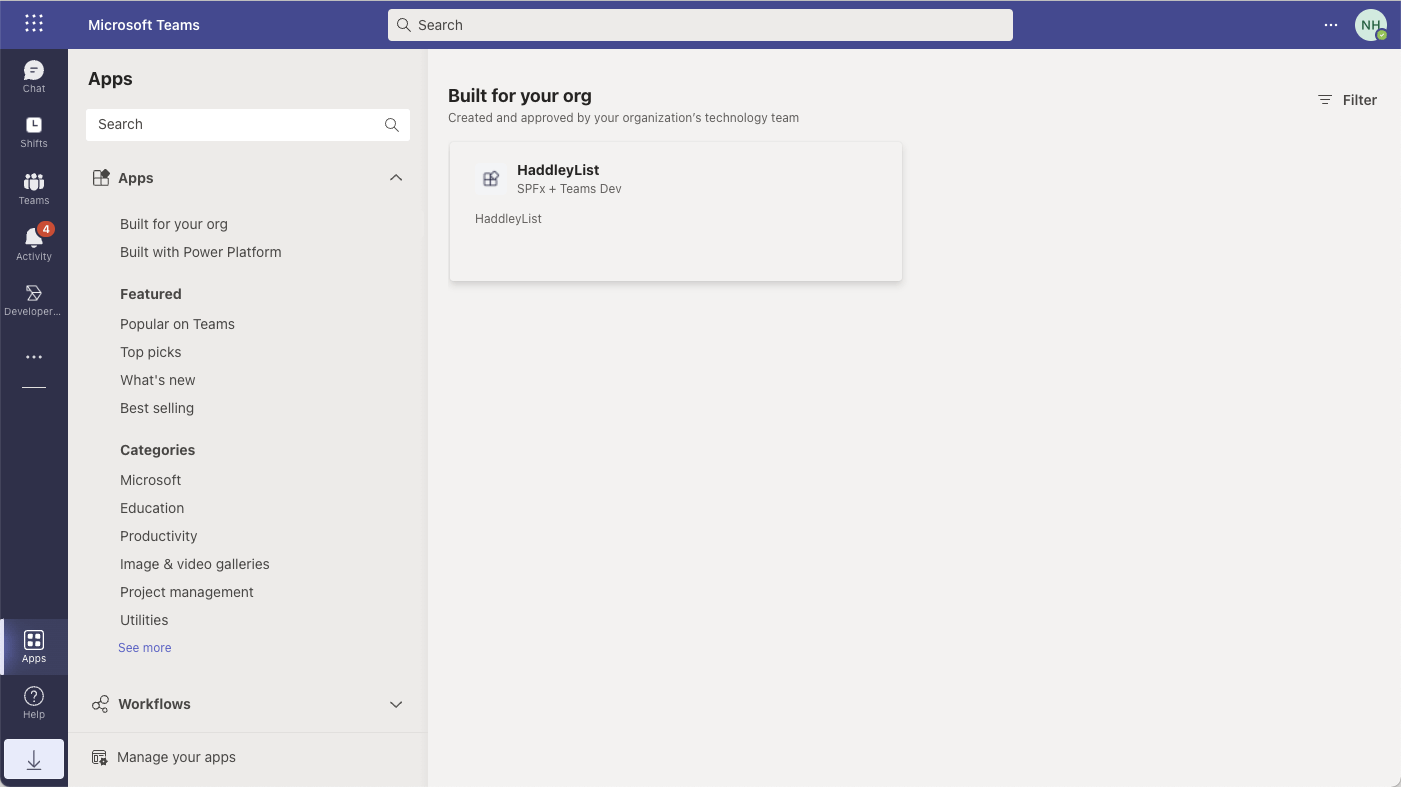

The web part was also shown in the Teams desktop application

The web part was also shown in the Teams desktop application

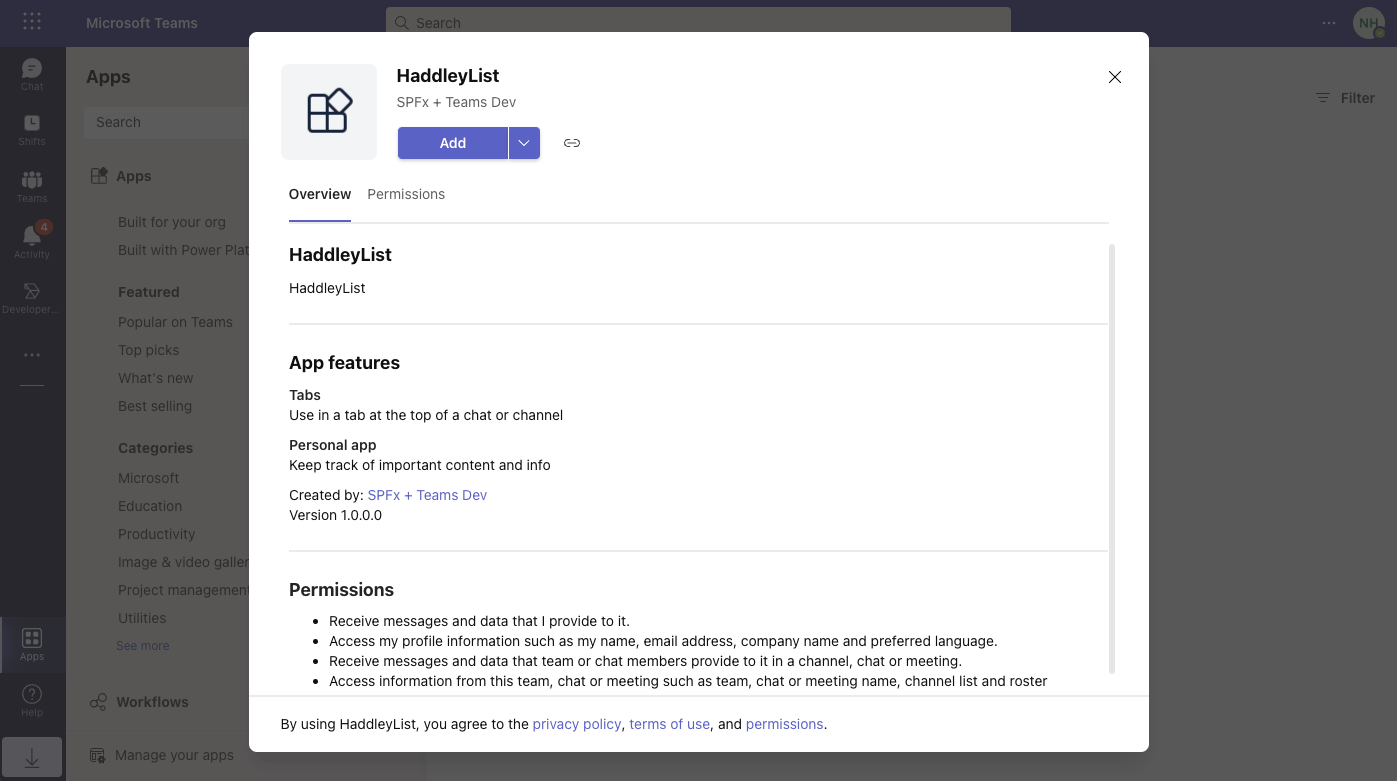

I used the Add button to add the web part to Teams

I used the Add button to add the web part to Teams

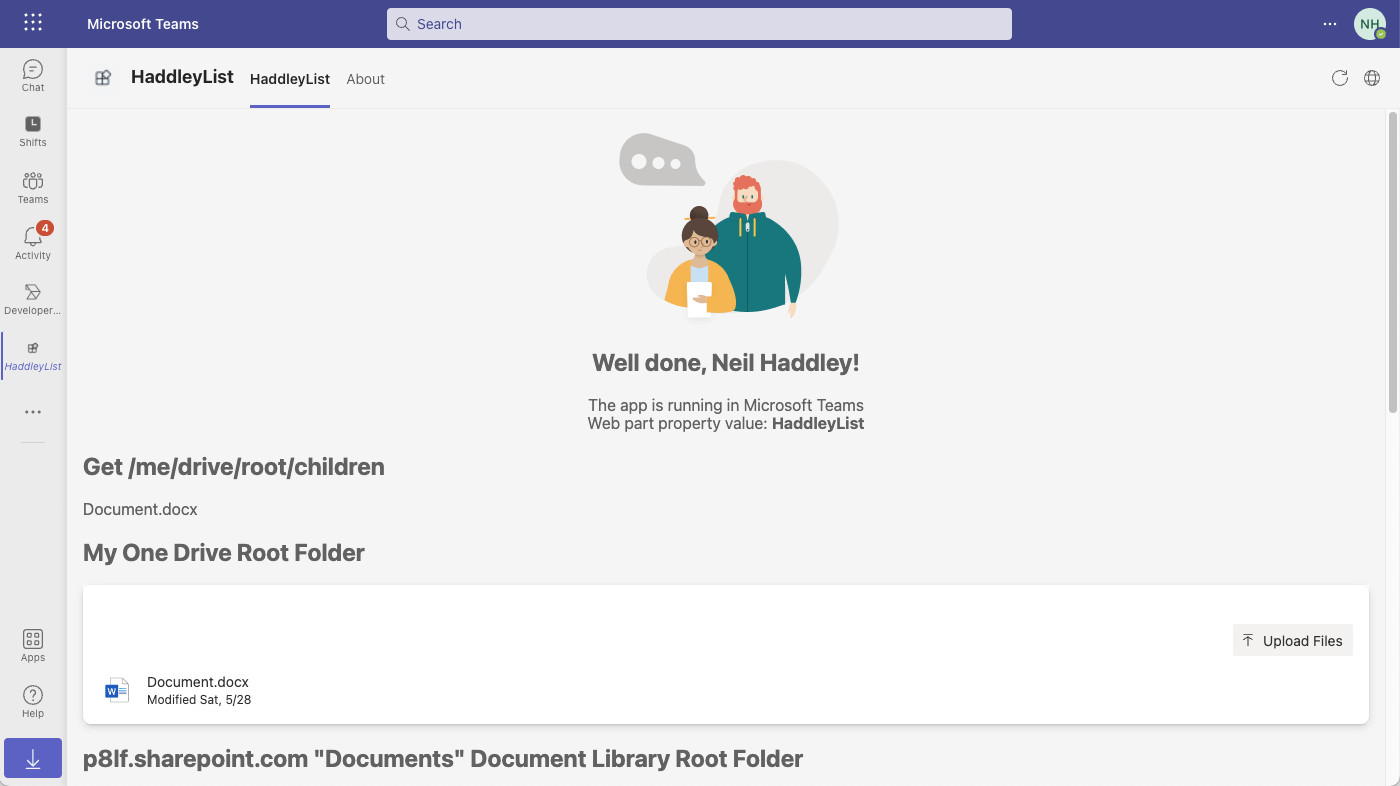

Here is the code running in Teams

Here is the code running in Teams

serve.json

TEXT
1{
2  "$schema": "https://developer.microsoft.com/json-schemas/core-build/serve.schema.json",
3  "port": 4321,
4  "https": true,
5  "initialPage": "https://p8lf.sharepoint.com/sites/Mark8ProjectTeam/_layouts/workbench.aspx"
6}

HaddleyListWebPart.ts

TEXT
1import * as React from 'react';
2import * as ReactDom from 'react-dom';
3import { Version } from '@microsoft/sp-core-library';
4import {
5  IPropertyPaneConfiguration,
6  PropertyPaneTextField
7} from '@microsoft/sp-property-pane';
8import { BaseClientSideWebPart } from '@microsoft/sp-webpart-base';
9import { IReadonlyTheme } from '@microsoft/sp-component-base';
10
11import * as strings from 'HaddleyListWebPartStrings';
12import HaddleyList from './components/HaddleyList';
13import { IHaddleyListProps } from './components/IHaddleyListProps';
14
15import { Providers,SharePointProvider } from '@microsoft/mgt-spfx';
16
17export interface IHaddleyListWebPartProps {
18  description: string;
19}
20
21export default class HaddleyListWebPart extends BaseClientSideWebPart<IHaddleyListWebPartProps> {
22
23  private _isDarkTheme: boolean = false;
24  private _environmentMessage: string = '';
25
26  protected onInit(): Promise<void> {
27
28    if (!Providers.globalProvider){
29      Providers.globalProvider =  new SharePointProvider(this.context);
30    }
31
32    this._environmentMessage = this._getEnvironmentMessage();
33
34    return super.onInit();
35  }
36
37  public render(): void {
38    const element: React.ReactElement<IHaddleyListProps> = React.createElement(
39      HaddleyList,
40      {
41        description: this.properties.description,
42        isDarkTheme: this._isDarkTheme,
43        environmentMessage: this._environmentMessage,
44        hasTeamsContext: !!this.context.sdks.microsoftTeams,
45        userDisplayName: this.context.pageContext.user.displayName
46      }
47    );
48
49    ReactDom.render(element, this.domElement);
50  }
51
52  private _getEnvironmentMessage(): string {
53    if (!!this.context.sdks.microsoftTeams) { // running in Teams
54      return this.context.isServedFromLocalhost ? strings.AppLocalEnvironmentTeams : strings.AppTeamsTabEnvironment;
55    }
56
57    return this.context.isServedFromLocalhost ? strings.AppLocalEnvironmentSharePoint : strings.AppSharePointEnvironment;
58  }
59
60  protected onThemeChanged(currentTheme: IReadonlyTheme | undefined): void {
61    if (!currentTheme) {
62      return;
63    }
64
65    this._isDarkTheme = !!currentTheme.isInverted;
66    const {
67      semanticColors
68    } = currentTheme;
69    this.domElement.style.setProperty('--bodyText', semanticColors.bodyText);
70    this.domElement.style.setProperty('--link', semanticColors.link);
71    this.domElement.style.setProperty('--linkHovered', semanticColors.linkHovered);
72
73  }
74
75  protected onDispose(): void {
76    ReactDom.unmountComponentAtNode(this.domElement);
77  }
78
79  protected get dataVersion(): Version {
80    return Version.parse('1.0');
81  }
82
83  protected getPropertyPaneConfiguration(): IPropertyPaneConfiguration {
84    return {
85      pages: [
86        {
87          header: {
88            description: strings.PropertyPaneDescription
89          },
90          groups: [
91            {
92              groupName: strings.BasicGroupName,
93              groupFields: [
94                PropertyPaneTextField('description', {
95                  label: strings.DescriptionFieldLabel
96                })
97              ]
98            }
99          ]
100        }
101      ]
102    };
103  }
104}

package-solution.json

TEXT
1{
2  "$schema": "https://developer.microsoft.com/json-schemas/spfx-build/package-solution.schema.json",
3  "solution": {
4    "name": "haddley-file-list-client-side-solution",
5    "id": "05e0e1db-dbd6-4913-a19e-a294d1c124ac",
6    "version": "1.0.0.0",
7    "includeClientSideAssets": true,
8    "skipFeatureDeployment": true,
9    "isDomainIsolated": false,
10    "developer": {
11      "name": "",
12      "websiteUrl": "",
13      "privacyUrl": "",
14      "termsOfUseUrl": "",
15      "mpnId": "Undefined-1.14.0"
16    },
17    "metadata": {
18      "shortDescription": {
19        "default": "haddley-file-list description"
20      },
21      "longDescription": {
22        "default": "haddley-file-list description"
23      },
24      "screenshotPaths": [],
25      "videoUrl": "",
26      "categories": []
27    },
28    "features": [
29      {
30        "title": "haddley-file-list Feature",
31        "description": "The feature that activates elements of the haddley-file-list solution.",
32        "id": "a0601d92-f1c2-46d9-9dc7-39267ea39211",
33        "version": "1.0.0.0"
34      }
35    ],
36    "webApiPermissionRequests": [
37      {
38        "resource": "Microsoft Graph",
39        "scope": "Mail.Read"
40      },
41      {
42        "resource": "Microsoft Graph",
43        "scope": "Files.Read"
44      },
45      {
46        "resource": "Microsoft Graph",
47        "scope": "Files.Read.All"
48      },
49      {
50        "resource": "Microsoft Graph",
51        "scope": "Sites.Read"
52      },
53      {
54        "resource": "Microsoft Graph",
55        "scope": "Sites.Read.All"
56      },
57      {
58        "resource": "Microsoft Graph",
59        "scope": "Sites.ReadWrite.All"
60      },
61      {
62        "resource": "Microsoft Graph",
63        "scope": "User.Read"
64      }
65    ]
66  },
67  "paths": {
68    "zippedPackage": "solution/haddley-file-list.sppkg"
69  }
70}

HaddleyList.tsx

TEXT
1import * as React from 'react';
2import styles from './HaddleyList.module.scss';
3import { IHaddleyListProps } from './IHaddleyListProps';
4import { escape } from '@microsoft/sp-lodash-subset';
5// import { Get, MgtTemplateProps, FileList } from '@microsoft/mgt-react';
6import { Get, MgtTemplateProps, FileList } from '@microsoft/mgt-react/dist/es6/spfx';
7
8export default class HaddleyList extends React.Component<IHaddleyListProps, {}> {
9  public render(): React.ReactElement<IHaddleyListProps> {
10    const {
11      description,
12      isDarkTheme,
13      environmentMessage,
14      hasTeamsContext,
15      userDisplayName
16    } = this.props;
17
18    //Template declaration for Get element
19    const TemplateFiles = (props: MgtTemplateProps) => {
20      console.log("props", props);
21      console.log("props.dataContext", props.dataContext);
22      let files = props.dataContext;
23      if (!Array.isArray(files)) {
24        files = [files];
25      }
26      return (<div>
27        {files.map((file: any, index: number) => (<div key={index}>{file.name}</div>))}
28      </div>);
29    };
30
31    const TemplateDocumentLibraries = (props: MgtTemplateProps) => {
32      console.log("props", props);
33      console.log("props.dataContext", props.dataContext);
34      let libraries = props.dataContext;
35      if (!Array.isArray(libraries)) {
36        libraries = [libraries];
37      }
38      return (<div>
39        {libraries.map((library: any, index: number) => (<div key={index}><strong>{library.name}</strong> {library.id}</div>))}
40      </div>);
41    };
42
43    return (
44      <section className={`${styles.haddleyList} ${hasTeamsContext ? styles.teams : ''}`}>
45        <div className={styles.welcome}>
46          <img alt="" src={isDarkTheme ? require('../assets/welcome-dark.png') : require('../assets/welcome-light.png')} className={styles.welcomeImage} />
47          <h2>Well done, {escape(userDisplayName)}!</h2>
48          <div>{environmentMessage}</div>
49          <div>Web part property value: <strong>{escape(description)}</strong></div>
50        </div>
51        <div>
52
53          <h1>Get /me/drive/root/children</h1>
54          <Get resource="/me/drive/root/children">
55            <TemplateFiles template="value" />
56          </Get>
57
58          <h1>My One Drive Root Folder</h1>
59          <FileList enableFileUpload={true}></FileList>
60
61          <h1>p8lf.sharepoint.com "Documents" Document Library Root Folder</h1>
62          <FileList
63            itemPath="/"
64            siteId="p8lf.sharepoint.com"
65            enableFileUpload={true}></FileList>
66
67          <h1>p8lf.sharepoint.com "Documents" Document Library Root Folder</h1>
68          <FileList
69            itemPath="/"
70            siteId="p8lf.sharepoint.com"
71            enableFileUpload={true}></FileList>
72
73          <h1>Get /sites/p8lf.sharepoint.com:/sites/Mark8ProjectTeam:/drives</h1>
74          <Get resource="/sites/p8lf.sharepoint.com:/sites/Mark8ProjectTeam:/drives">
75            <TemplateDocumentLibraries template="value" />
76          </Get>
77
78          <h1>p8lf.sharepoint.com "Confidental" Document Library Root Folder</h1>
79          <FileList
80            itemPath="/"
81            driveId="b!rx9ik2KF4EGsjBMRetNJSrUFL8a5s69FmTUNWtyhqQhyOPxIxRDNT5VmV2cjHkdO"
82            enableFileUpload={true}></FileList>
83
84        </div>
85      </section>
86    );
87  }
88}

Other useful code

TEXT
1const siteId = (location.host + "," + context.pageContext.site.id + "," + context.pageContext.web.id).replace(/[\{\}]/g, "")
2
3...
4
5<h1>Get /sites/{siteId}/drive/root/children</h1>
6<Get resource={`/sites/${siteId}/drive/root/children`}>
7    <TemplateFiles template="value" />
8</Get>
9
10<FileList
11    itemPath="/"
12    siteId={siteId}
13    enableFileUpload={true}>
14</FileList>

HaddleyListWebPart.manifest.json

TEXT
1{
2  "$schema": "https://developer.microsoft.com/json-schemas/spfx/client-side-web-part-manifest.schema.json",
3  "id": "2beda14b-5565-4acf-8d4a-dcbe8046bf01",
4  "alias": "HaddleyListWebPart",
5  "componentType": "WebPart",
6
7  // The "*" signifies that the version should be taken from the package.json
8  "version": "*",
9  "manifestVersion": 2,
10
11  // If true, the component can only be installed on sites where Custom Script is allowed.
12  // Components that allow authors to embed arbitrary script code should set this to true.
13  // https://support.office.com/en-us/article/Turn-scripting-capabilities-on-or-off-1f2c515f-5d7e-448a-9fd7-835da935584f
14  "requiresCustomScript": false,
15  "supportedHosts": ["SharePointWebPart", "TeamsPersonalApp", "TeamsTab", "SharePointFullPage"],
16  "supportsThemeVariants": true,
17
18  "preconfiguredEntries": [{
19    "groupId": "5c03119e-3074-46fd-976b-c60198311f70", // Other
20    "group": { "default": "Other" },
21    "title": { "default": "HaddleyList" },
22    "description": { "default": "HaddleyList description" },
23    "officeFabricIconFontName": "Page",
24    "properties": {
25      "description": "HaddleyList"
26    }
27  }]
28}
