Phaser

Neil HaddleyJanuary 23, 2022

2D game framework used for making HTML5 games

Getting Started

A getting started sample includes a config object, a preload function and a create function.

The preload function is used to load the Phaser assets.

The create function is used to add assets to the scene/game.

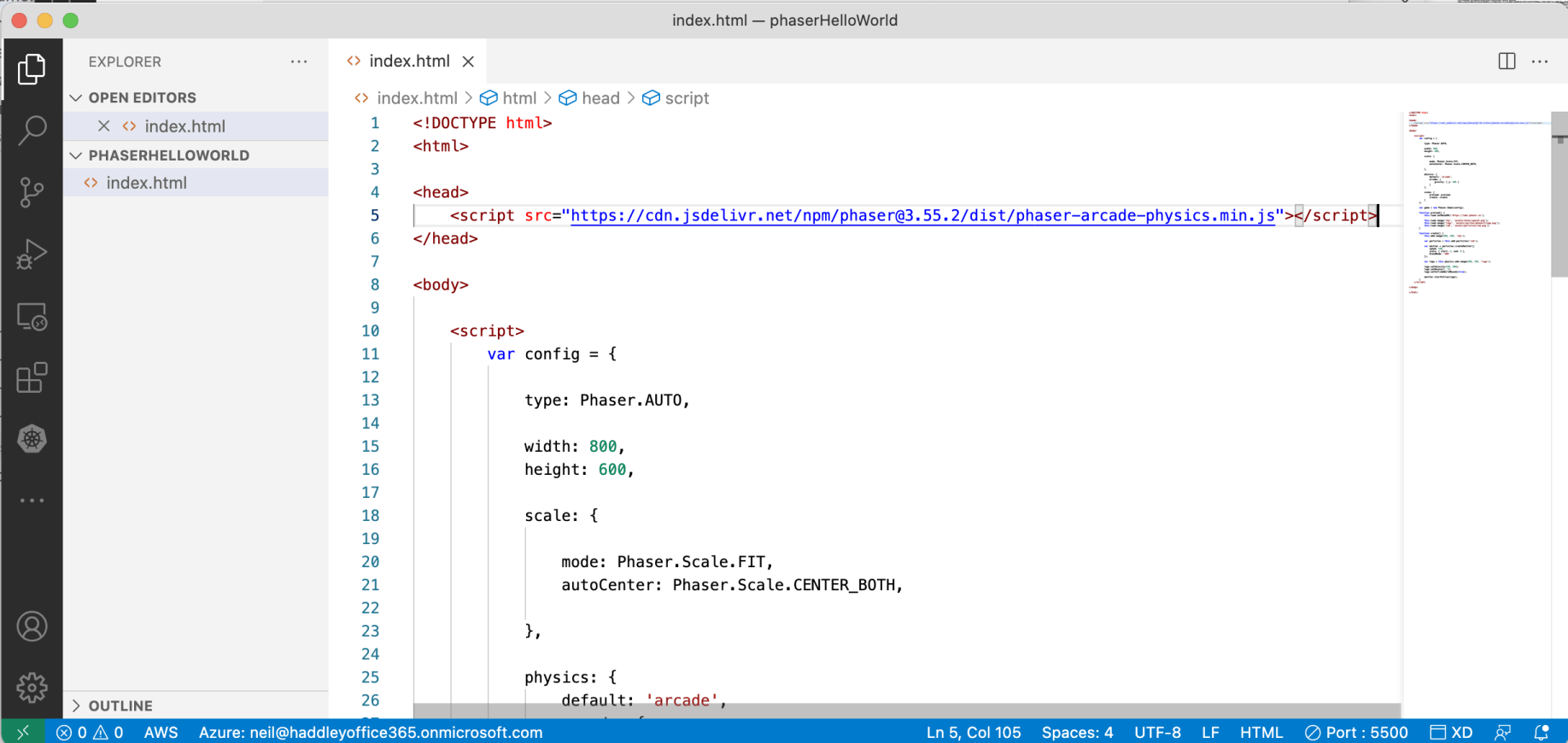

Getting Started - index.htm

Getting Started - index.htm

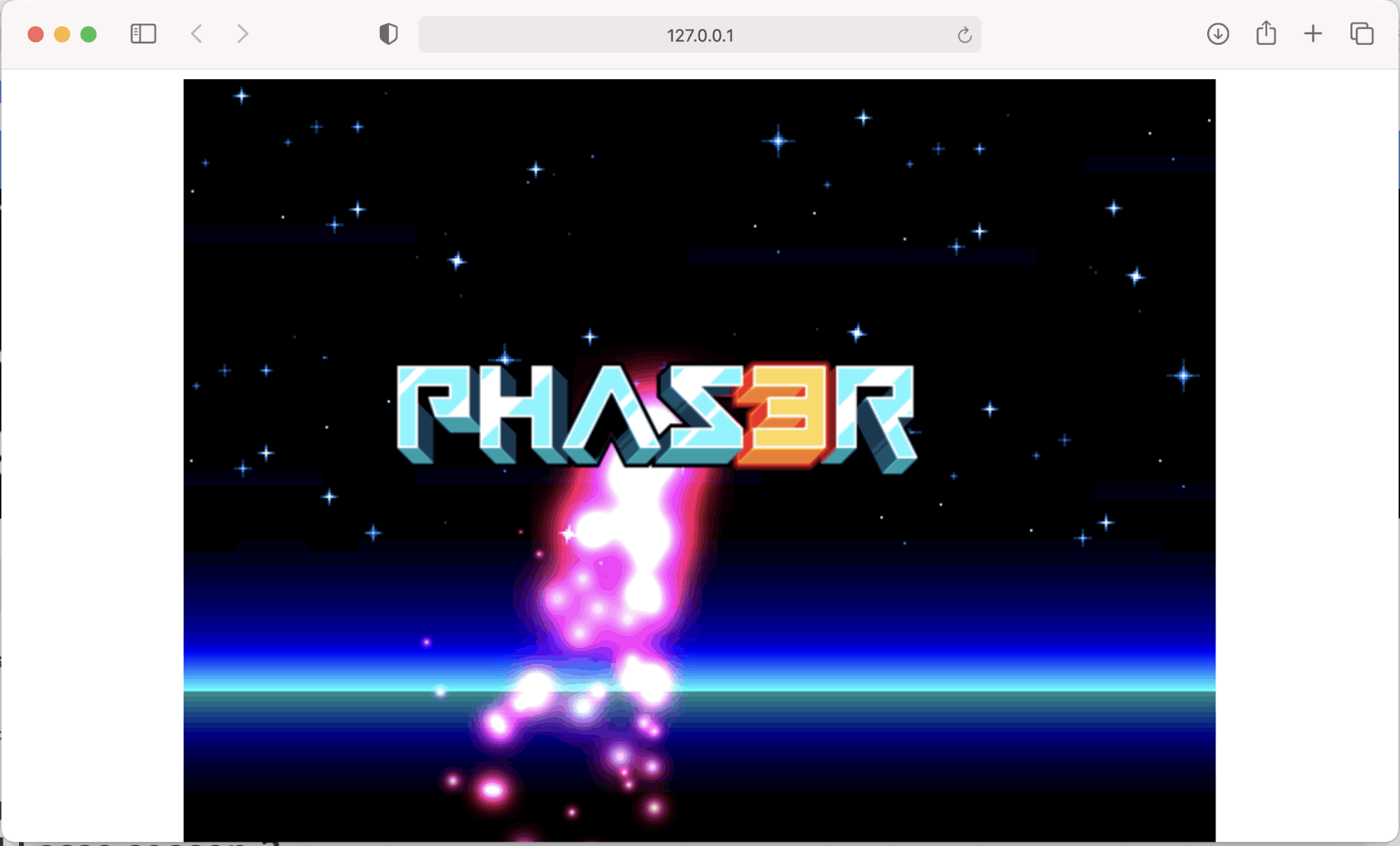

Getting Started - running

Getting Started - running

Aquarium

I created an animated Aquarium based on https://github.com/lrusso/Aquarium.

The Aquarium code includes a config object, a preload function, a create function and an update function.

Again the preload function is used to load the Phaser assets.

Again the create function is used to add assets to the scene/game.

Here the update function is called (over and over again) as the main/game loop runs.

The update function animates the scene (moving the fish and the bubbles).

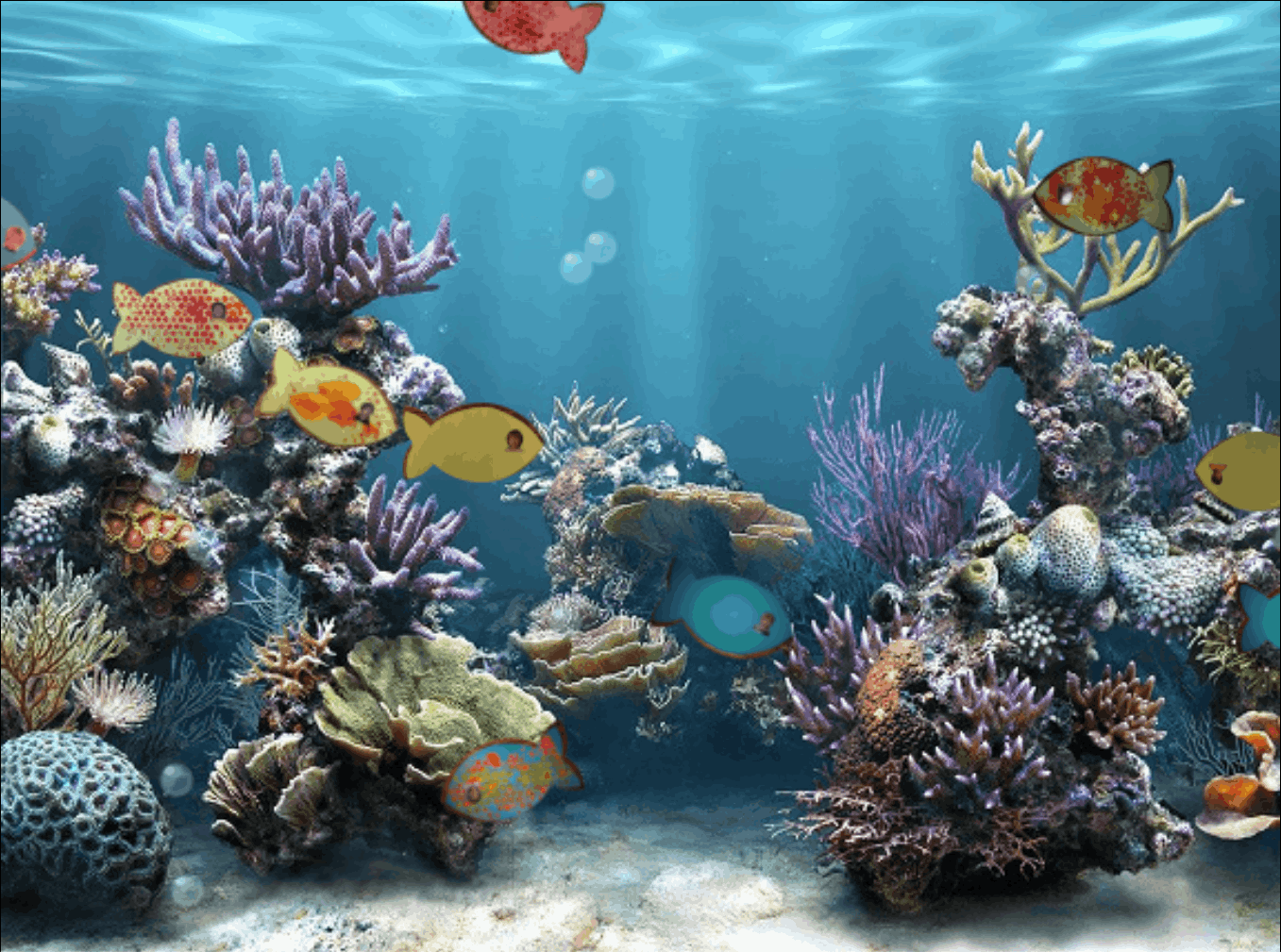

Aquarium with artwork

Aquarium with artwork

index.htm

TEXT
1<!DOCTYPE html>
2<html>
3
4<head>
5    <script src="https://cdn.jsdelivr.net/npm/phaser@3.55.2/dist/phaser-arcade-physics.min.js"></script>
6</head>
7
8<body>
9
10    <script>
11        var config = {
12
13            type: Phaser.AUTO,
14
15            width: 800,
16            height: 600,
17
18            scale: {
19
20                mode: Phaser.Scale.FIT,
21                autoCenter: Phaser.Scale.CENTER_BOTH,
22
23            },
24
25            physics: {
26                default: 'arcade',
27                arcade: {
28                    gravity: { y: 200 }
29                }
30            },
31
32            scene: {
33                preload: preload,
34                create: create
35            }
36        };
37
38        var game = new Phaser.Game(config);
39
40        function preload() {
41            this.load.setBaseURL('https://labs.phaser.io');
42
43            this.load.image('sky', 'assets/skies/space3.png');
44            this.load.image('logo', 'assets/sprites/phaser3-logo.png');
45            this.load.image('red', 'assets/particles/red.png');
46        }
47
48        function create() {
49            this.add.image(400, 300, 'sky');
50
51            var particles = this.add.particles('red');
52
53            var emitter = particles.createEmitter({
54                speed: 100,
55                scale: { start: 1, end: 0 },
56                blendMode: 'ADD'
57            });
58
59            var logo = this.physics.add.image(400, 100, 'logo');
60
61            logo.setVelocity(100, 200);
62            logo.setBounce(1, 1);
63            logo.setCollideWorldBounds(true);
64
65            emitter.startFollow(logo);
66        }
67    </script>
68
69</body>
70
71</html>

Index.html

TEXT
1<!DOCTYPE html>
2<html>
3
4<head>
5    <script src="https://cdn.jsdelivr.net/npm/phaser@3.55.2/dist/phaser-arcade-physics.min.js"></script>
6</head>
7
8<body style="background-color: black;">
9
10    <script>
11
12        function getRandomBubbleX(columnIndex) {
13            if (columnIndex == 1) {
14                return this.getRandomInteger(70, 90);
15            }
16            else if (columnIndex == 2) {
17                return this.getRandomInteger(250, 275);
18            }
19            else if (columnIndex == 3) {
20                return this.getRandomInteger(450, 470);
21            }
22        }
23
24        function getRandomBubbleY() {
25            return this.getRandomInteger(450, 800);
26        }
27
28        function getRandomAngle() {
29            var randomValue = this.getRandomInteger(1, 100);
30
31            if (randomValue < 33) {
32                // RETURNING A LOOKING FORWARD FISH ANGLE ORIENTATION
33                return 0;
34            }
35            else if (randomValue < 66) {
36                // RETURNING A LOOKING DOWN FISH ANGLE ORIENTATION
37                return 20;
38            }
39            else {
40                // RETURNING A LOOKING UP FISH ANGLE ORIENTATION
41                return -20;
42            }
43        }
44
45        function getRandomX() {
46            // GETTING A RANDOM NUMBER BETWEEN 60 AND 500 (THE GAME WIDTH WITH A MARGIN)
47            return this.getRandomInteger(60, 500);
48        }
49
50        function getRandomY() {
51            // GETTING A RANDOM NUMBER BETWEEN 60 AND 300 (THE GAME HEIGHT WITH A MARGIN)
52            return this.getRandomInteger(60, 300);
53        }
54
55        function getRandomInteger(min, max) {
56            return Math.floor(Math.random() * (max - min + 1)) + min;
57        }
58
59        var config = {
60
61            type: Phaser.AUTO,
62
63            width: 576, height: 432,
64
65            scale: {
66
67                mode: Phaser.Scale.FIT,
68                autoCenter: Phaser.Scale.CENTER_BOTH,
69
70            },
71
72            scene: {
73                preload: preload,
74                create: create,
75                update: update
76            }
77        };
78
79        bubbles = []
80        fishCount = 16
81
82        var game = new Phaser.Game(config)
83
84        function preload() {
85
86            // LOAD THE IMAGES
87            this.load.image("imageBackground", 'imageBackground.jpeg');
88            this.load.image("imageBubbles", 'imageBubbles.png');
89
90            for (let i = 0; i < fishCount; i++) {
91                this.load.image("imageFish" + (i + 1), "fish" + (i + 1) + "_64.png");
92            }
93
94            // LOAD THE AUDIO
95            this.load.audio('audioBubbles', 'audioBubbles.mp3');
96
97        }
98
99        function create() {
100
101            // ADD THE AUDIO
102            this.bubbles = this.sound.add('audioBubbles', { volume: 0.1, loop: true });
103            this.bubbles.play();
104
105            // ADD THE BACKGROUND IMAGE
106            this.add.sprite(576 / 2, 432 / 2, "imageBackground");
107
108            fishes = []
109
110            // ADD THE FISH
111            for (let i = 0; i < fishCount; i++) {
112                const fish = this.add.sprite(getRandomX(), getRandomY(), "imageFish" + (i + 1));
113                fish.fishSpeed = 1;
114                fish.angle = getRandomAngle();
115                fish.inputEnabled = true;
116                fishes.push(fish);
117            }
118
119            // ADD BUBBLES
120            for (var column = 0; column < 3; column++) {
121                for (var i = 0; i < 9; i++) {
122                    var tempBubble = this.add.sprite(getRandomBubbleX(column + 1), getRandomBubbleY(), "imageBubbles");
123                    tempBubble.columnIndex = column + 1;
124                    tempBubble.alpha = 0.7;
125                    tempBubble.setScale(.5);
126                    bubbles.push(tempBubble);
127                }
128            }
129
130
131        }
132
133        function update() {
134
135            if (game.sound.context.state === 'suspended') {
136                game.sound.context.resume();
137            }
138
139            // LOOP FOR EVERY FISH
140            for (var i = 0; i < fishes.length; i++) {
141
142                // GET A FISH
143                var fish = fishes[i];
144
145                // CHECK THE FISH ORIENTATION
146                if (fish.scale == 1) {
147                    // MOVING THE FISH TO THE RIGHT
148                    fish.x = fish.x + fish.fishSpeed;
149                }
150                else {
151                    // MOVING THE FISH TO THE LEFT
152                    fish.x = fish.x - fish.fishSpeed;
153                }
154
155                // CHECK IF THE FISH IS NOT VISIBLE (RIGHT SIDE)
156                if (fish.x > 650) {
157                    // RESTORING THE ORIGINAL FISH SPEED
158                    fish.fishSpeed = 1;
159
160                    // CHANGING THE FISH ORIENTATION
161                    fish.scale = -1;
162
163                    // CHANGING THE FISH Y POSITION TO A RANDOM VALUE
164                    fish.y = getRandomY();
165
166                    // CHANGING THE FISH ANGLE TO A RANDOM VALUE
167                    fish.angle = getRandomAngle();
168                }
169
170                // CHECK IF THE FISH IS NOT VISIBLE (LEFT SIDE)
171                else if (fish.x < -70) {
172                    // RESTORING THE ORIGINAL FISH SPEED
173                    fish.fishSpeed = 1;
174
175                    // CHANGING THE FISH ORIENTATION
176                    fish.scale = 1;
177
178                    // CHANGING THE FISH Y POSITION TO A RANDOM VALUE
179                    fish.y = getRandomY();
180
181                    // CHANGING THE FISH ANGLE TO A RANDOM VALUE
182                    fish.angle = getRandomAngle();
183                }
184
185                // CHECK IF THE FISH IS NOT VISIBLE (TOP SIDE)
186                if (fish.y < -70) {
187                    // MOVING THE FISH TO THE LEFT SIDE
188                    fish.x = -70;
189
190                    // CHANGING THE FISH Y POSITION TO A RANDOM VALUE
191                    fish.y = getRandomY();
192
193                    // RESTORING THE FISH ANGLE
194                    fish.angle = 0;
195                }
196
197                // CHECK IF THE FISH IS NOT VISIBLE (BOTTOM SIDE)
198                else if (fish.y > 650) {
199                    // MOVING THE FISH TO THE RIGHT SIDE
200                    fish.x = 650;
201
202                    // CHANGING THE FISH Y POSITION TO A RANDOM VALUE
203                    fish.y = getRandomY();
204
205                    // RESTORING THE FISH ANGLE
206                    fish.angle = 0;
207                }
208
209                // CHECK THE FISH SCALE AND ANGLE AND MOVING UP OR DOWN ACCORDINGLY
210                if ((fish.scale == 1 && fish.angle == 20) || (fish.scale == -1 && fish.angle == -20)) {
211                    fish.y = fish.y + fish.fishSpeed / 2;
212                }
213                else if ((fish.scale == 1 && fish.angle == -20) || (fish.scale == -1 && fish.angle == 20)) {
214                    fish.y = fish.y - fish.fishSpeed / 2;
215                }
216            }
217
218            // LOOP FOR EVERY BUBBLE
219            for (var i = 0; i < bubbles.length; i++) {
220                // GET A BUBBLE
221                var bubble = bubbles[i];
222
223                // MOVE THE BUBBLE
224                bubble.y = bubble.y - 1;
225
226                // CHECK IF THE BUBBLE IS NOT VISIBLE
227                if (bubble.y < -150) {
228                    // MOVE THE BUBBLE DOWN
229                    bubble.x = getRandomBubbleX(bubble.columnIndex);
230                    bubble.y = getRandomBubbleY();
231                }
232            }
233        }
234
235    </script>
236
237</body>
238
239</html>
