A Power Apps Application

Neil HaddleyJuly 13, 2021

Power Apps Application.

New app

Navigate to https://make.powerapps.com/

Select the "Apps" menu item and select the "Apps" tab.

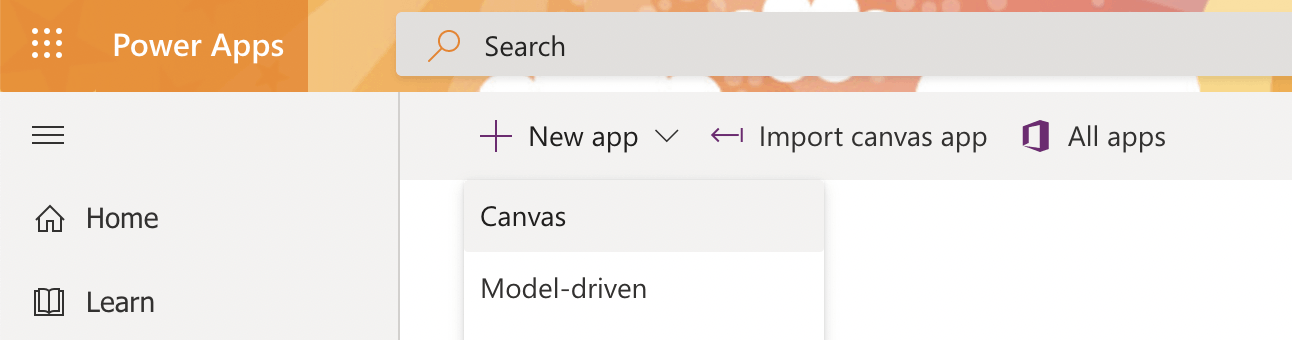

+ New app | Canvas

+ New app | Canvas

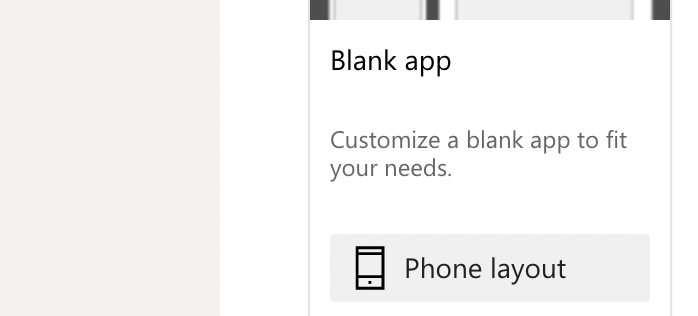

Blank app | Phone layout

Blank app | Phone layout

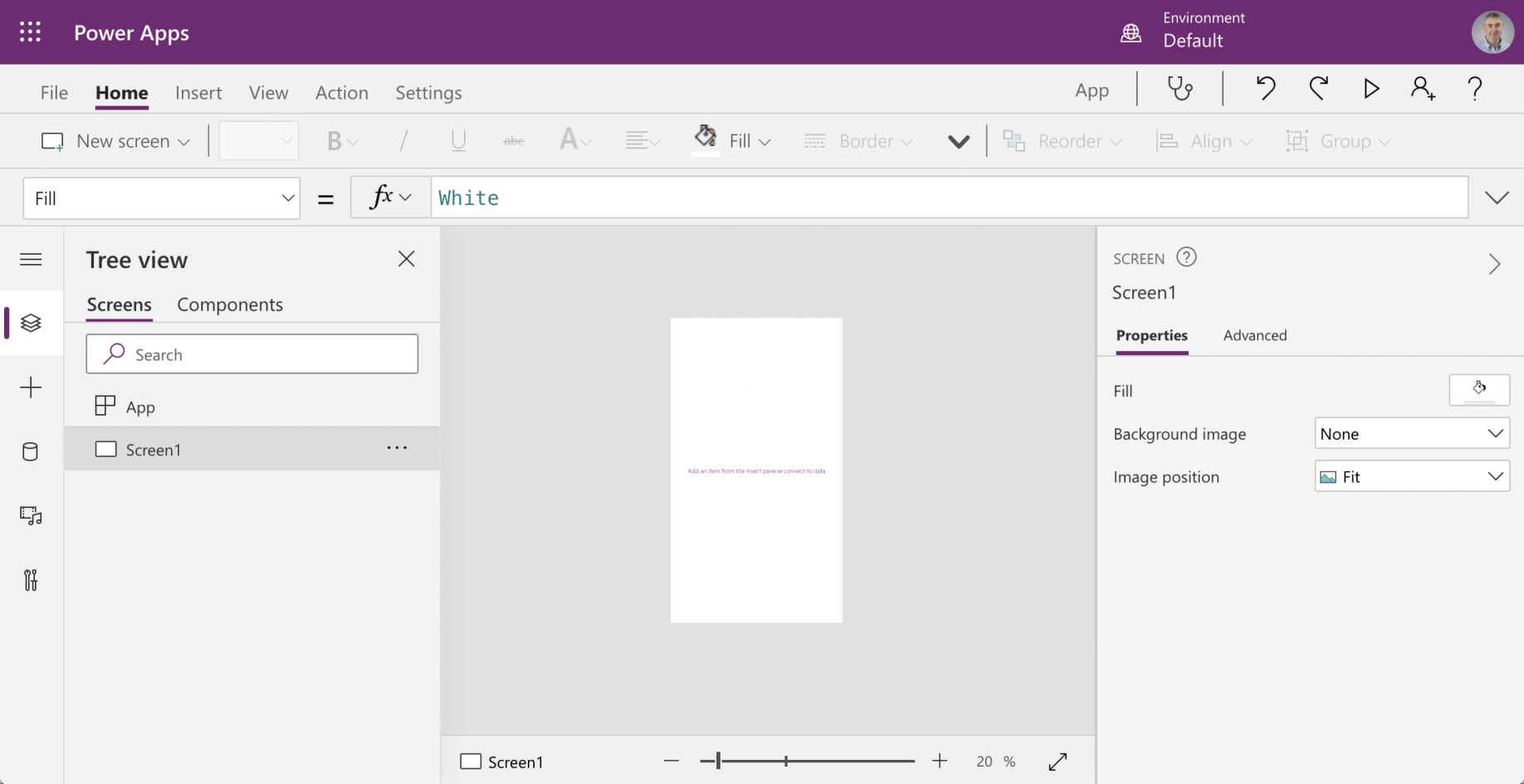

Blank app App with Screen "Screen1"

Blank app App with Screen "Screen1"

Screens

Add three extra Blank screens and rename the four screens {BrowseScreen, DetailScreen, EditScreen and NewScreen}

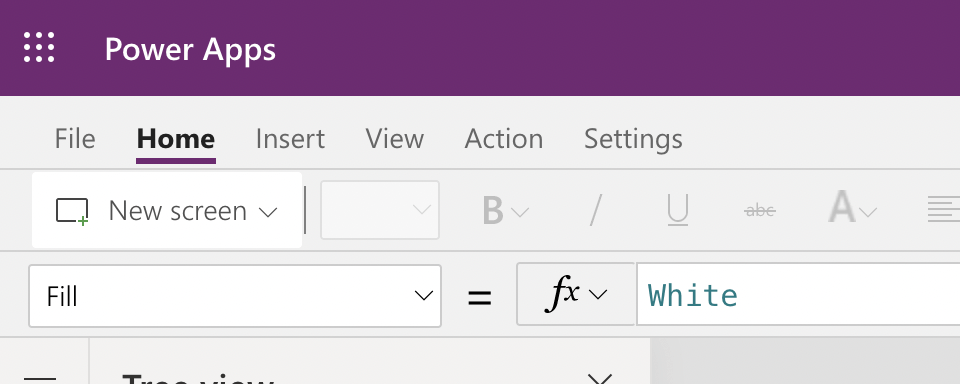

New Screen

New Screen

Three additional screens added

Three additional screens added

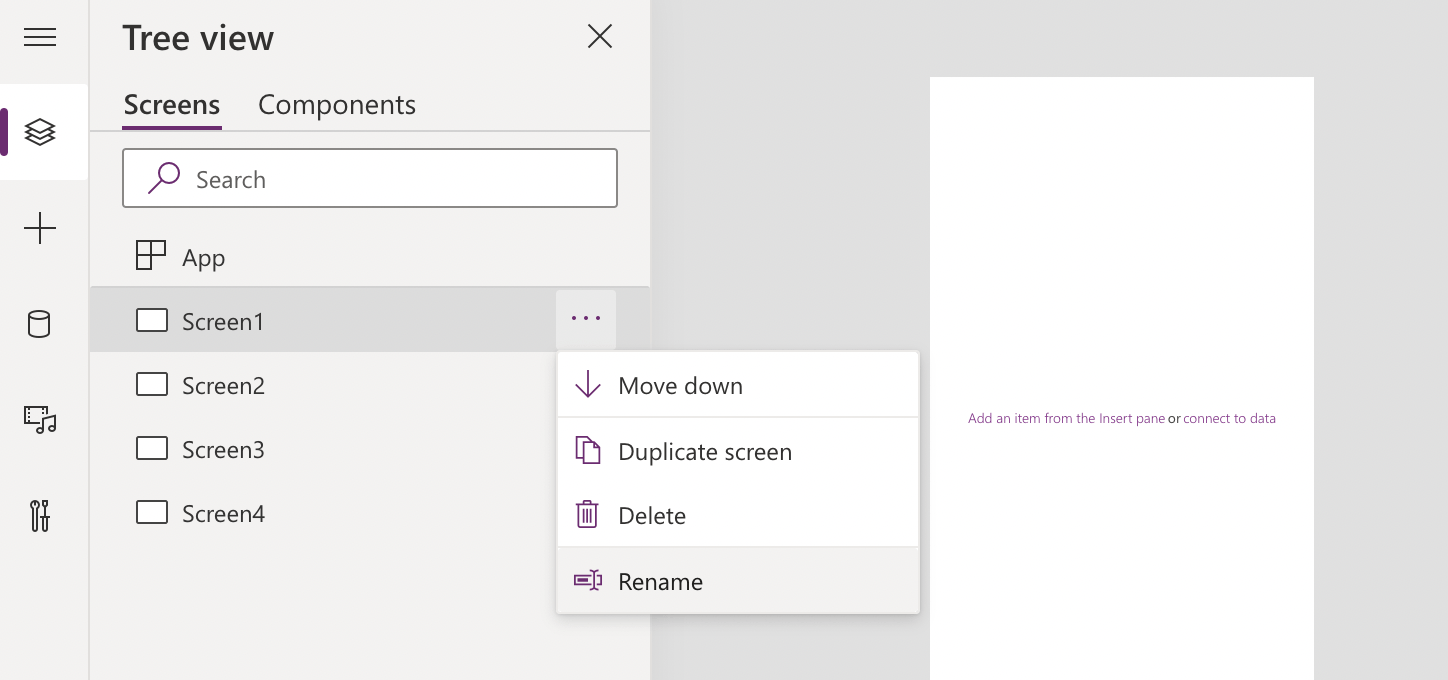

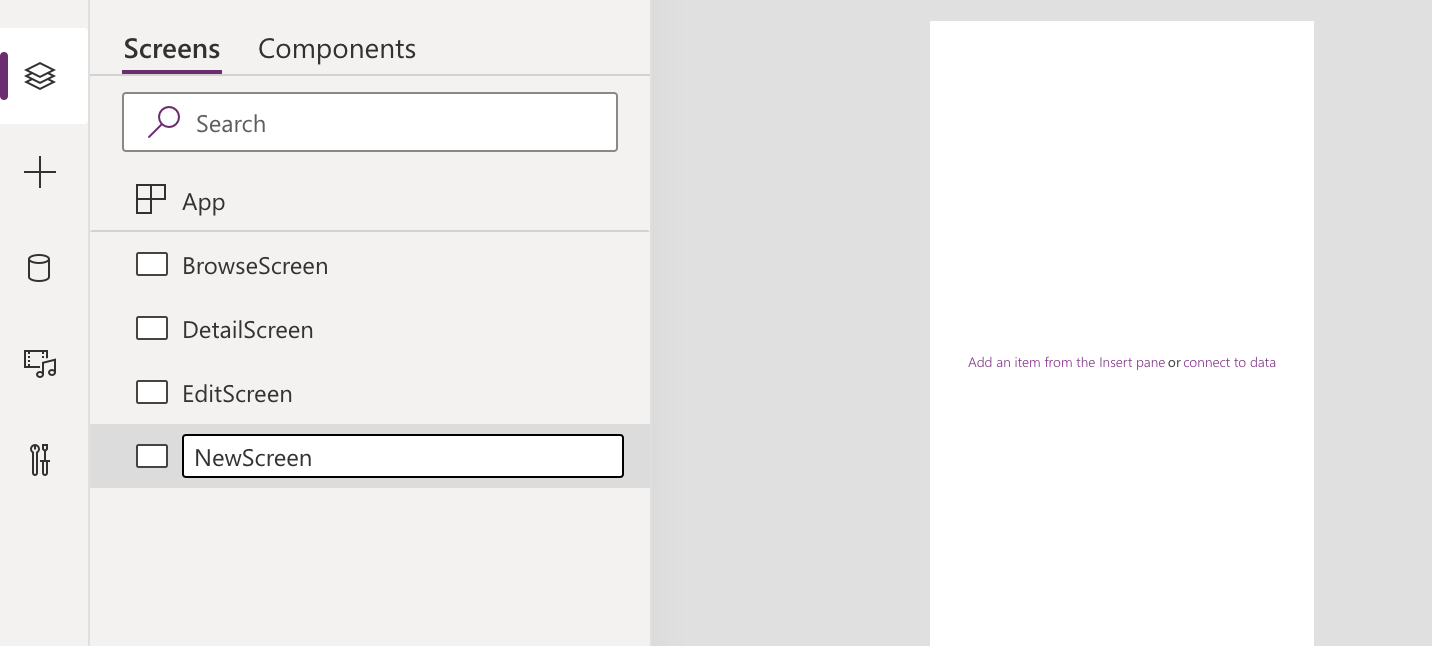

All four screens renamed

All four screens renamed

Import Component Library

Select the + menu item and click the "Get more components" button

Get more components

Get more components

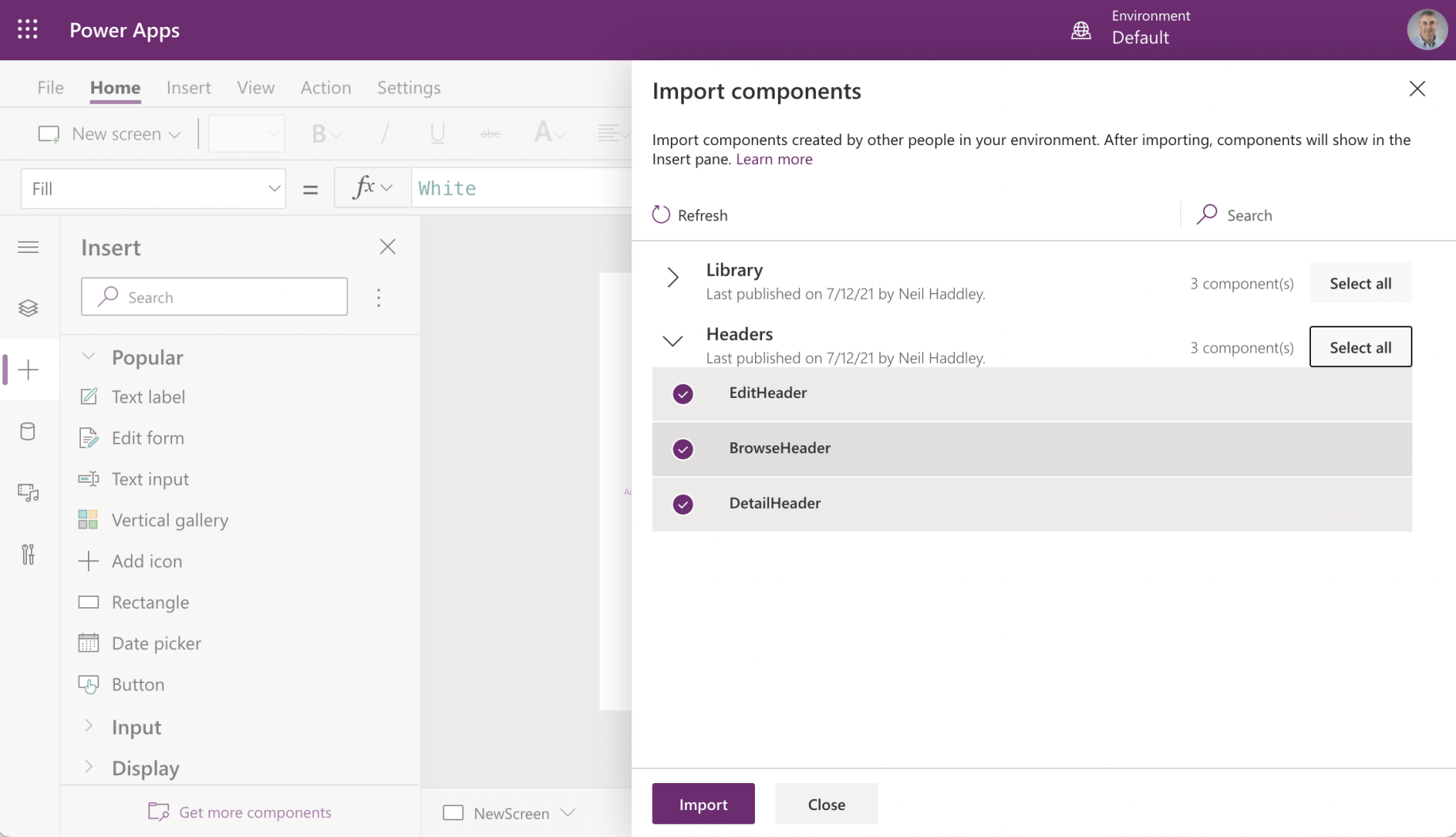

Import custom components from the Headers component library

Import custom components from the Headers component library

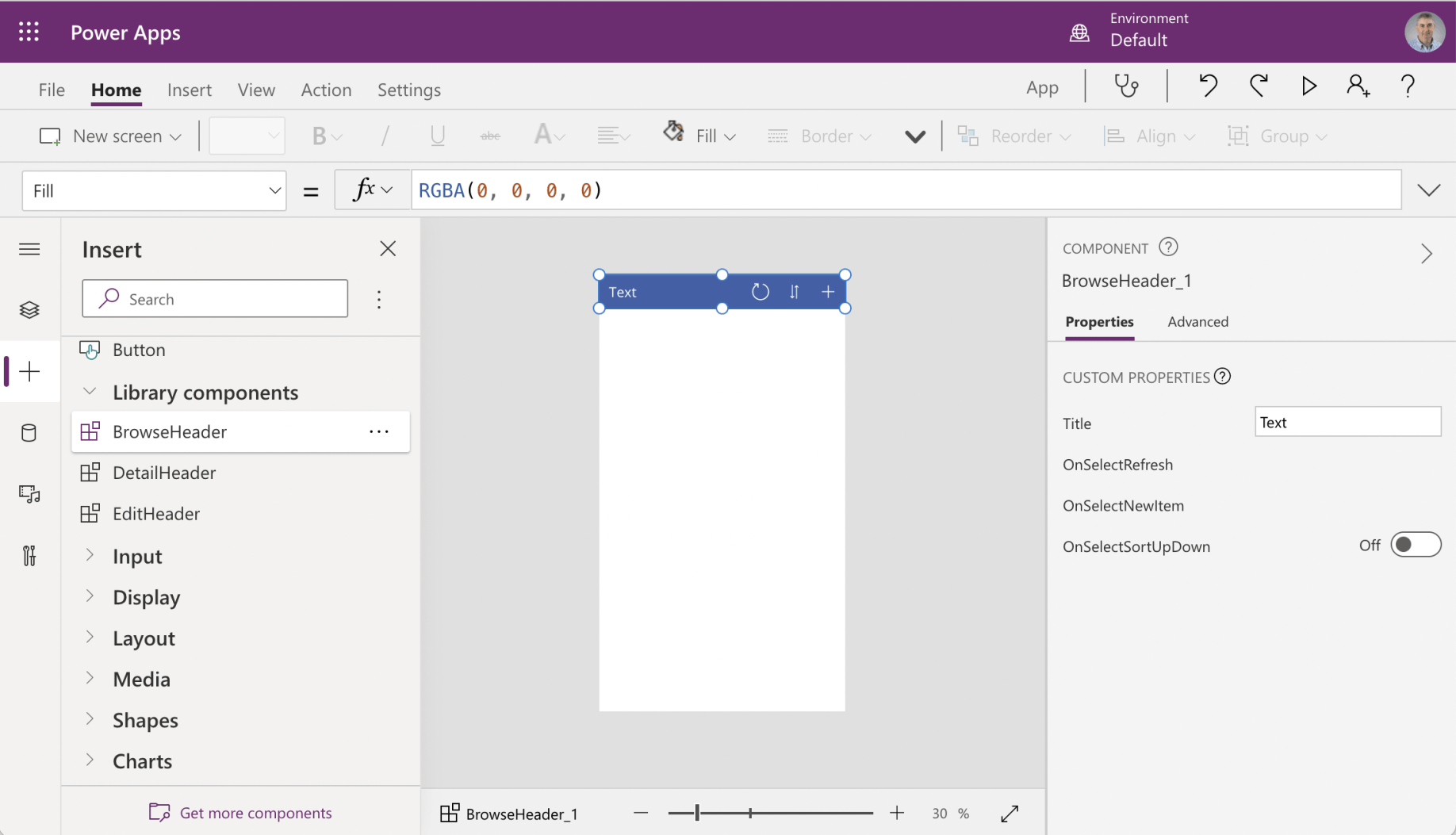

Add a BrowseHeader component to the BrowseScreen

Add a BrowseHeader component to the BrowseScreen

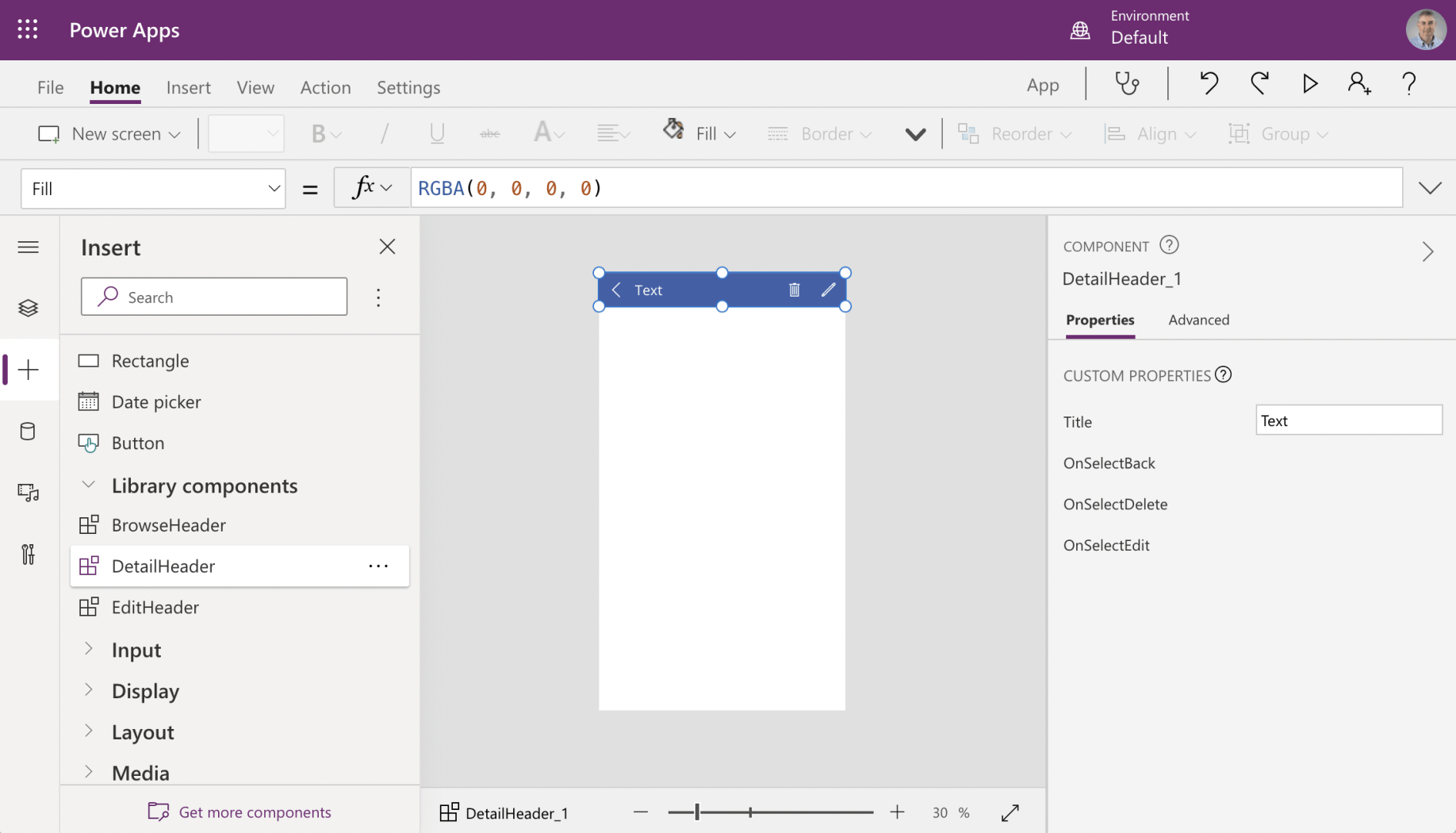

Add a DetailHeader component to the DetailScreen

Add a DetailHeader component to the DetailScreen

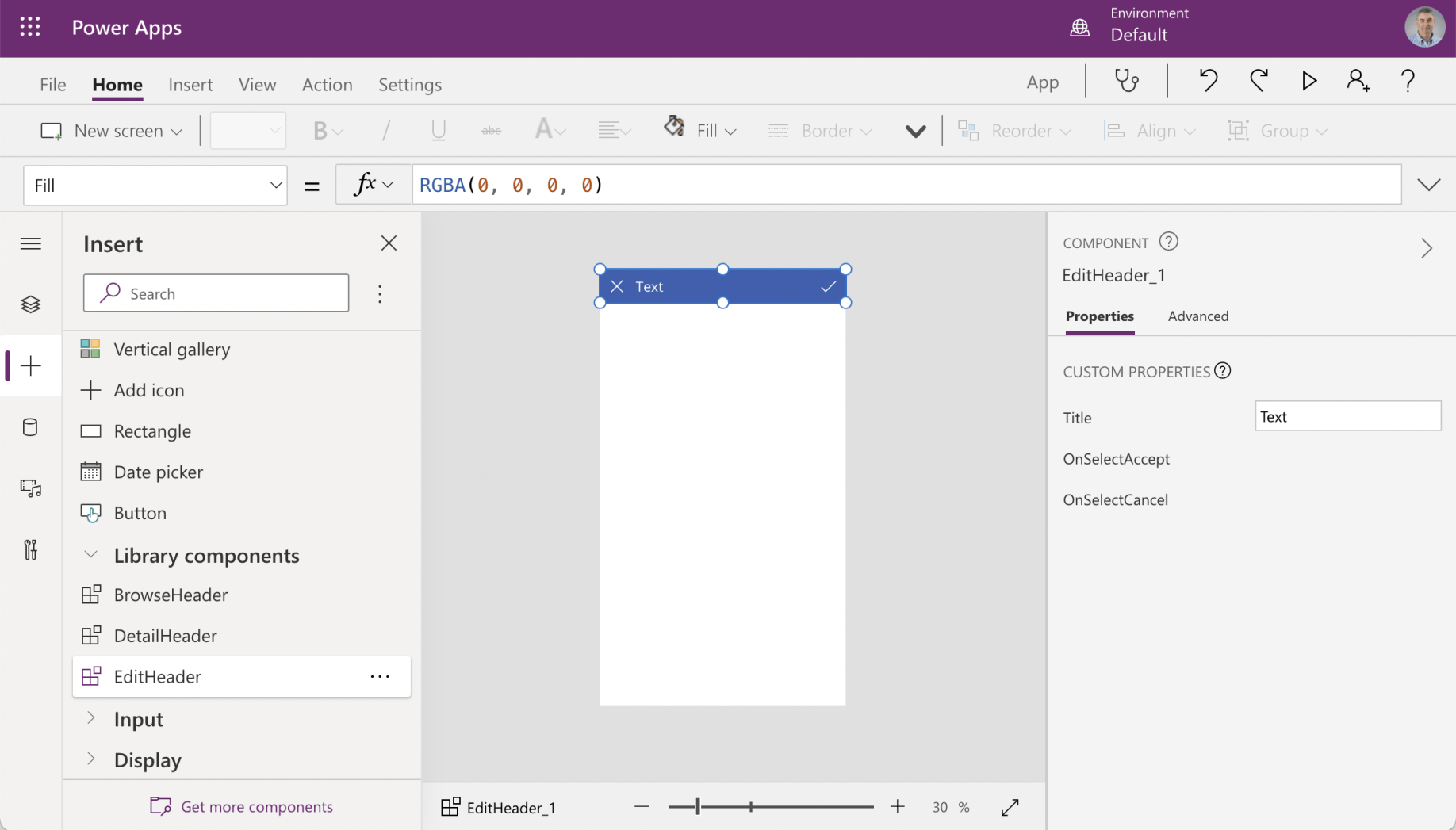

Add a EditHeader component to the EditScreen

Add a EditHeader component to the EditScreen

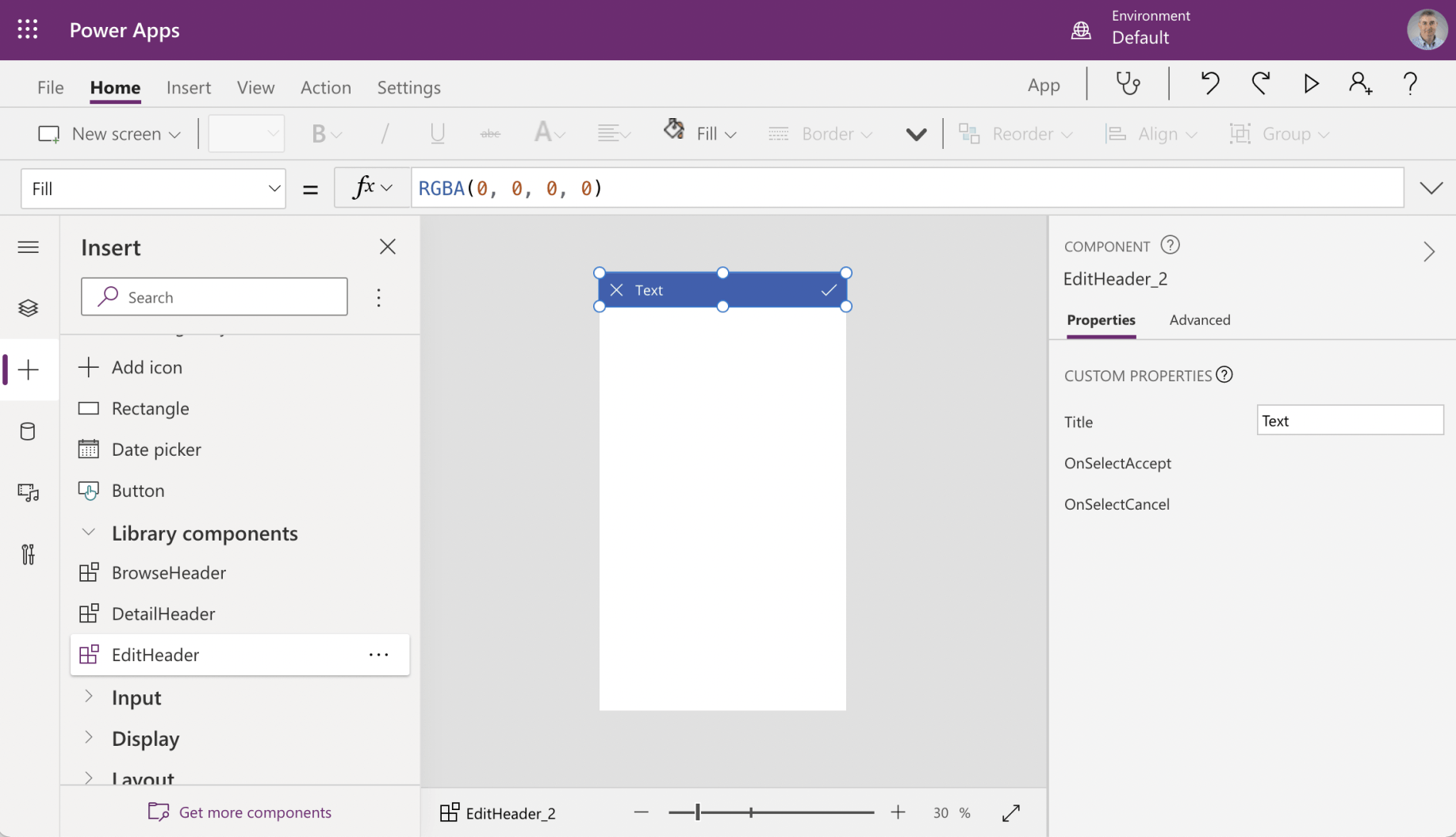

Add a EditHeader component to the NewScreen

Add a EditHeader component to the NewScreen

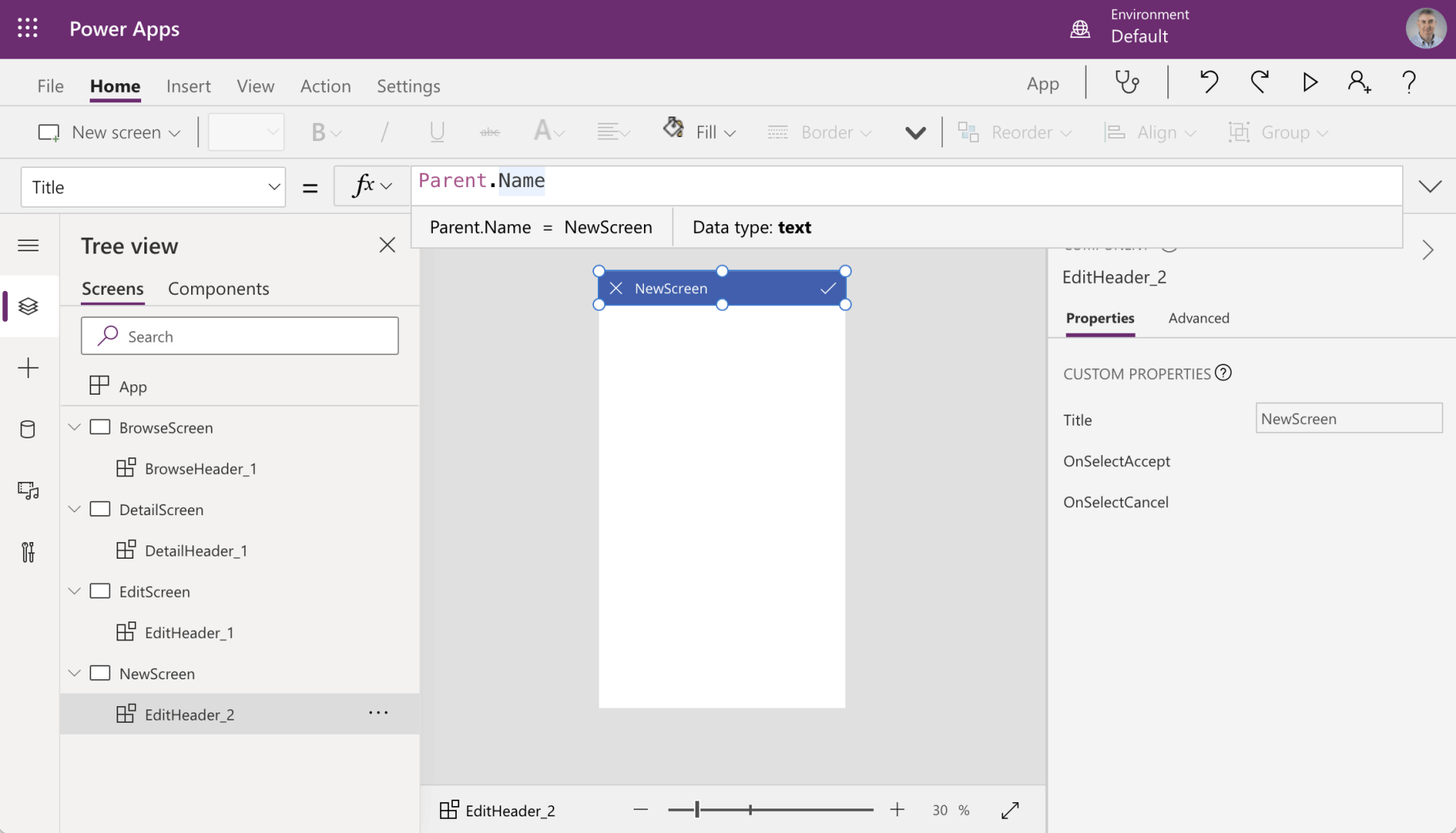

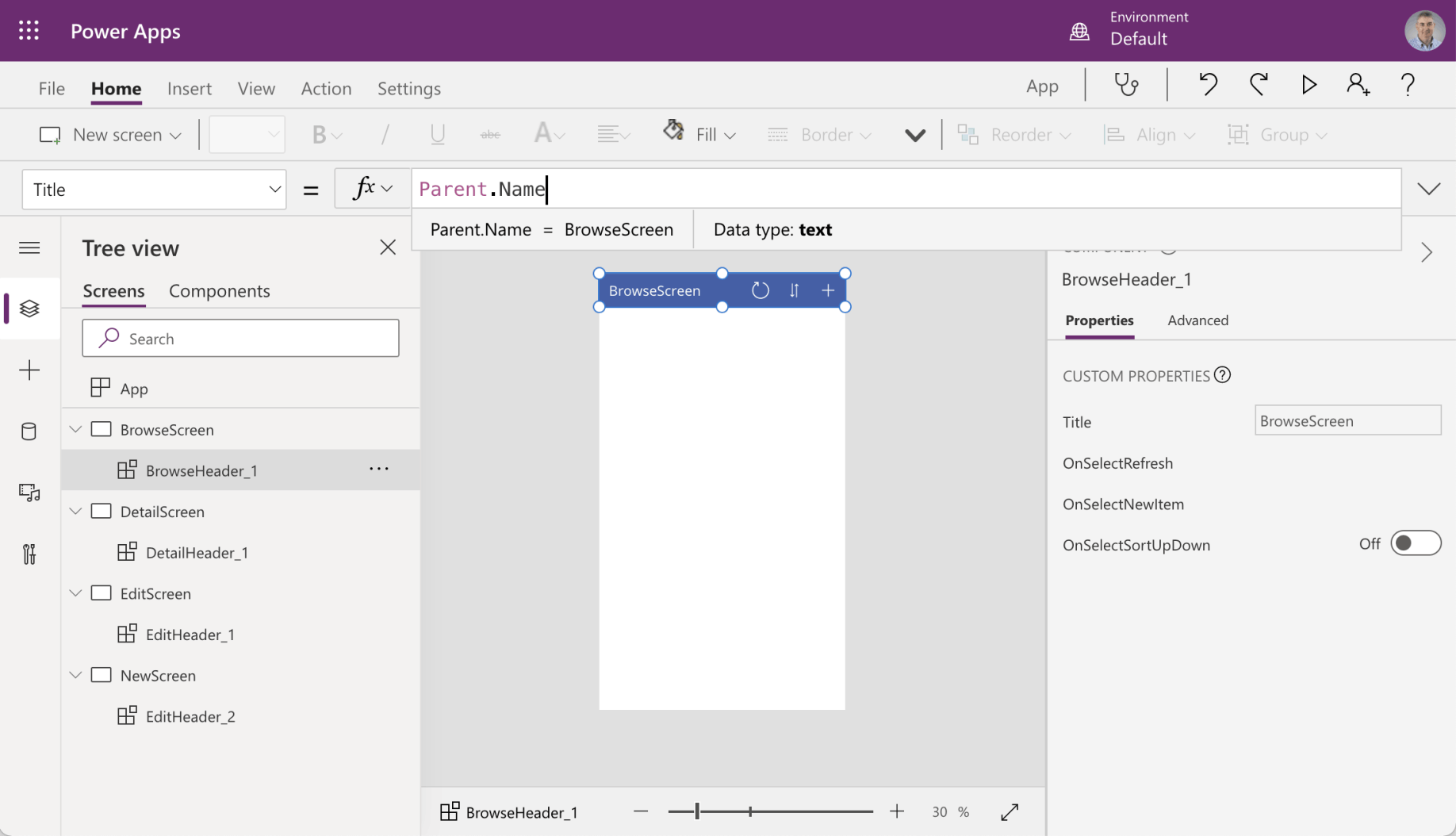

Set the "Title" property the Header component in each Screen to "Parent.Name"

Set the "Title" property the Header component in each Screen to "Parent.Name"

Every Header component is now displaying the name of the screen it is on.

Every Header component is now displaying the name of the screen it is on.

Handle the custom OnSelect events

Update all of the custom OnSelect events so that a user can navigate between the Screens

BrowseScreen | BrowseHeader_1

OnSelectRefresh =

OnSelectNewItem = Navigate(NewScreen)

OnSelectSortUpDown = Set(varSortDescending,!varSortDescending)

DetailScreen | DetailHeader_1

OnSelectBack = Navigate(BrowseScreen)

OnSelectDelete = Navigate(BrowseScreen)

OnSelectEdit = Navigate(EditScreen)

EditScreen | EditHeader_1

OnSelectAccept = Navigate(BrowseScreen)

OnSelectCancel = Navigate(BrowseScreen)

NewScreen| EditHeader_2

OnSelectAccept = Navigate(BrowseScreen)

OnSelectCancel = Navigate(BrowseScreen)

esp8266

esp8266

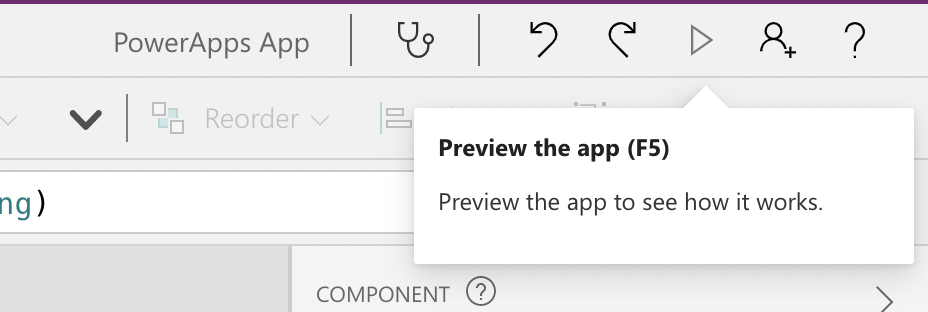

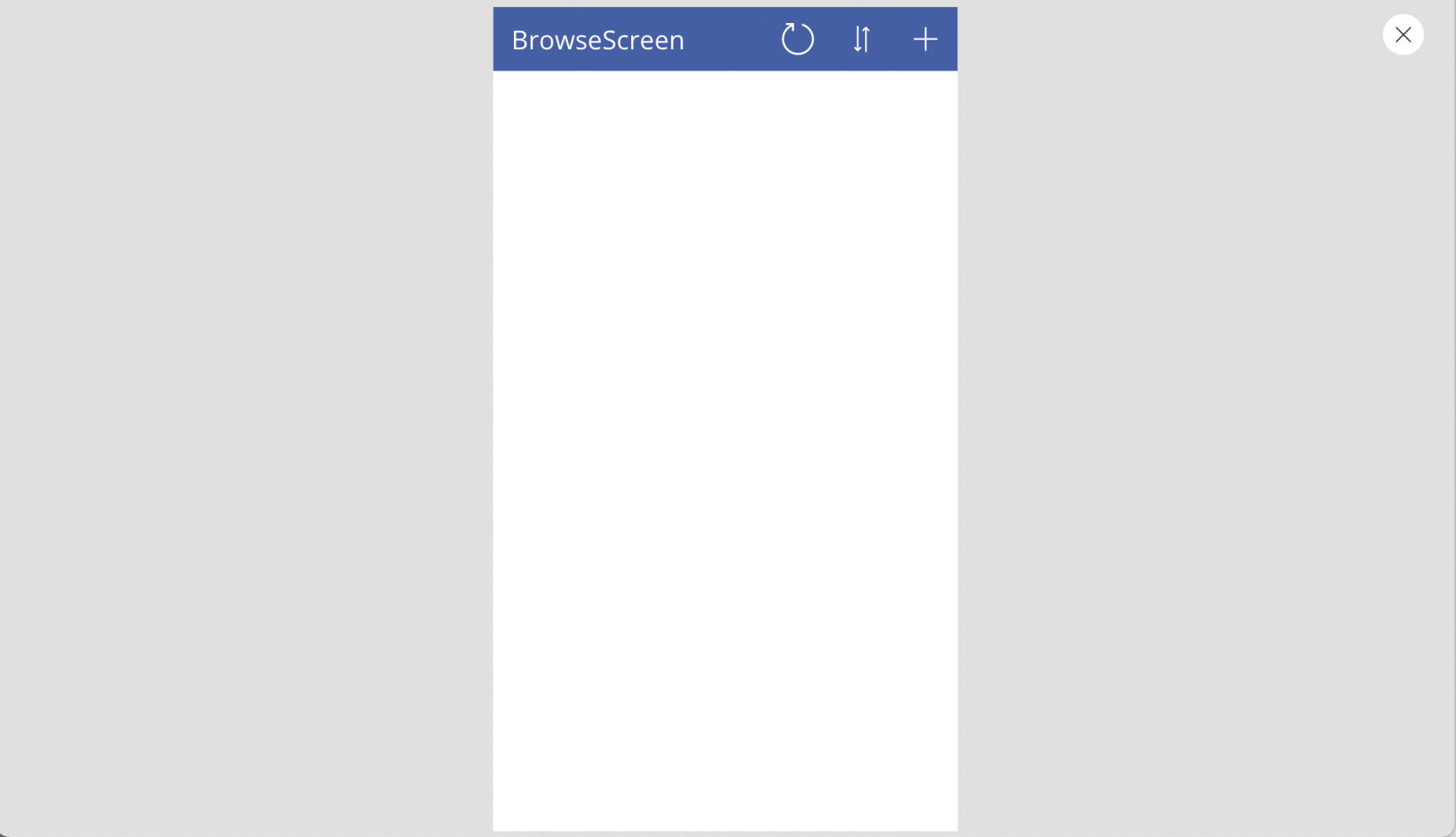

Preview the app

Preview the app

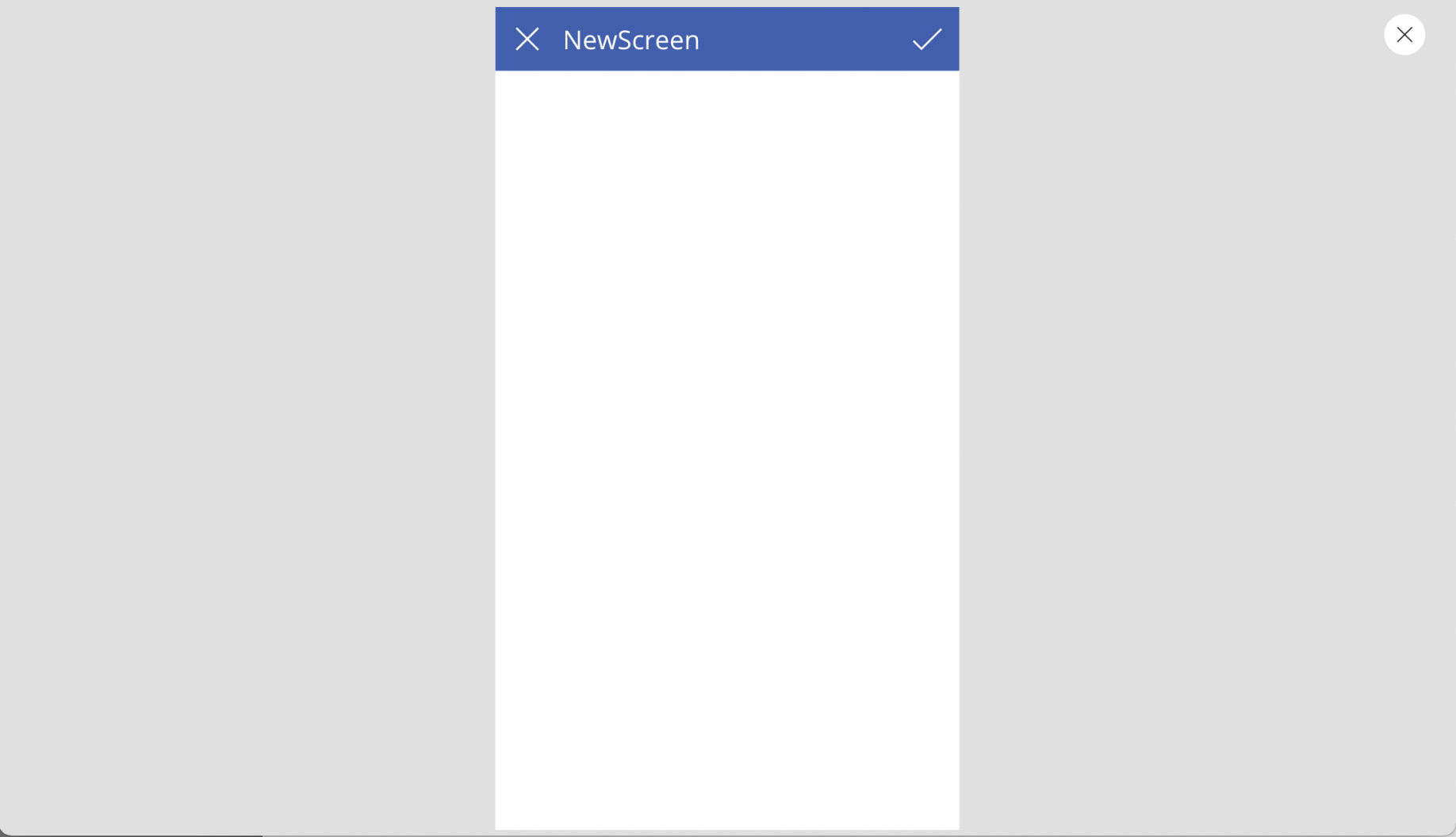

Click on the + icon

Click on the + icon

Click on the X or the tick to return to the BrowseScreen

Click on the X or the tick to return to the BrowseScreen

Adding connection to API

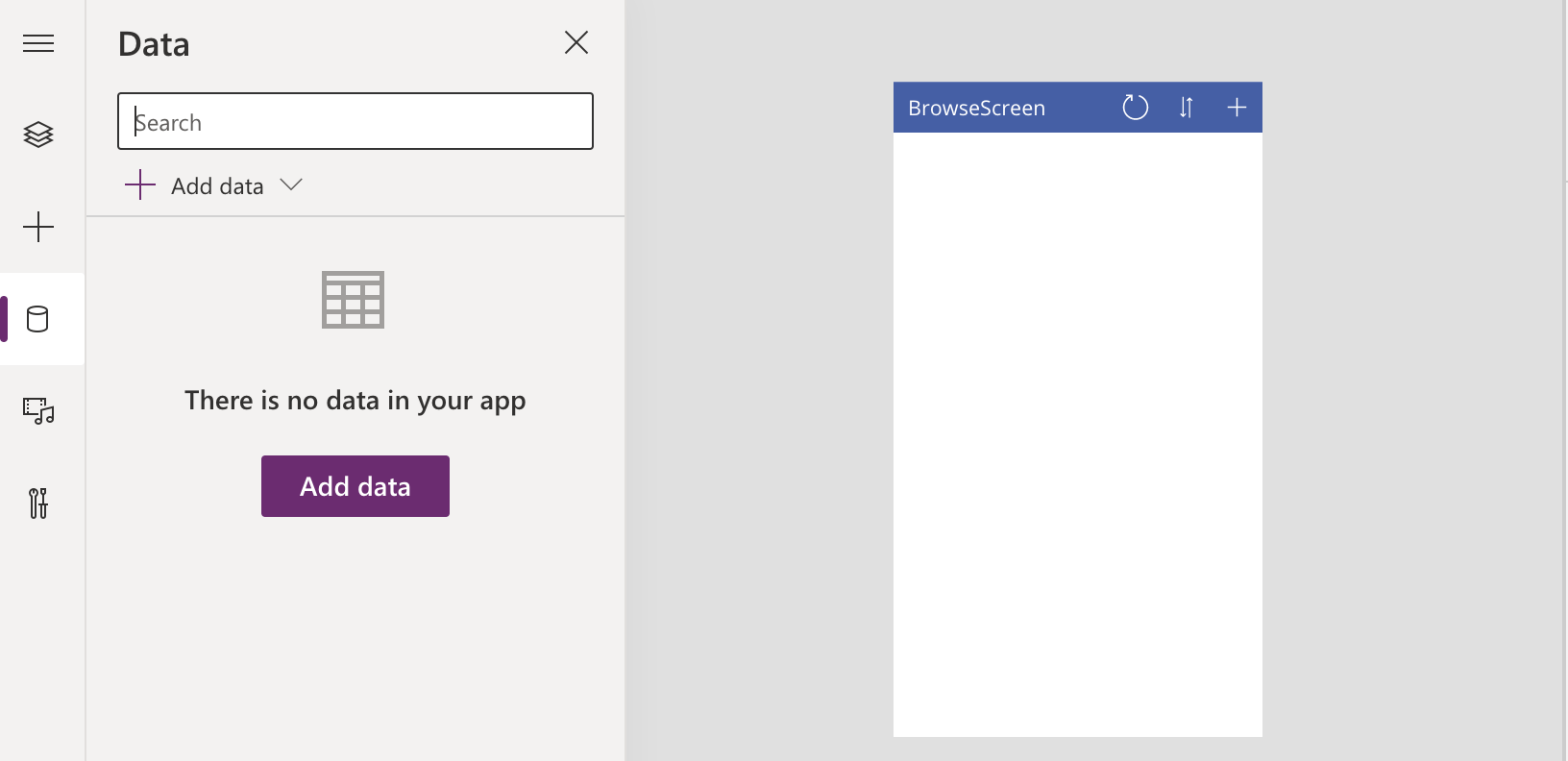

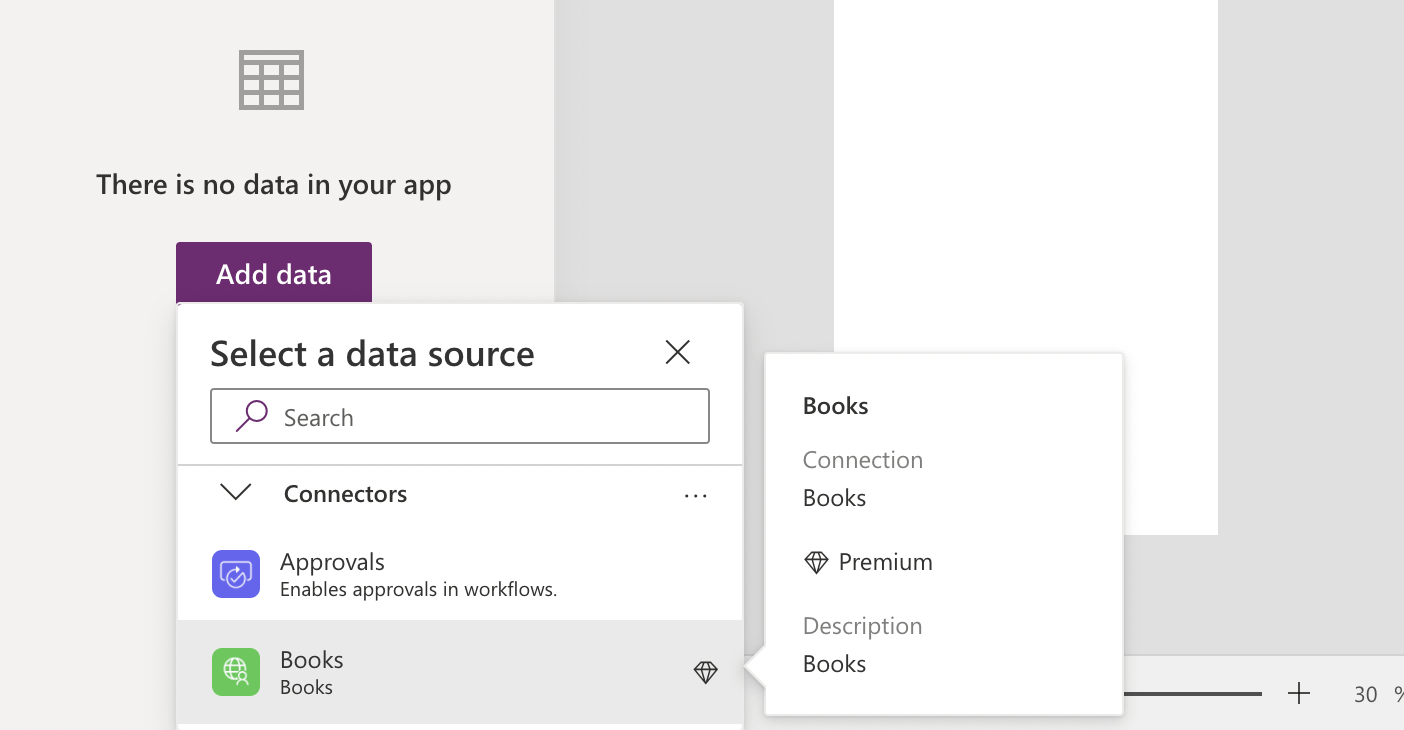

Select the database menu item and click the "Add data" button

Add data

Add data

Select the Books Custom Connector

Select the Books Custom Connector

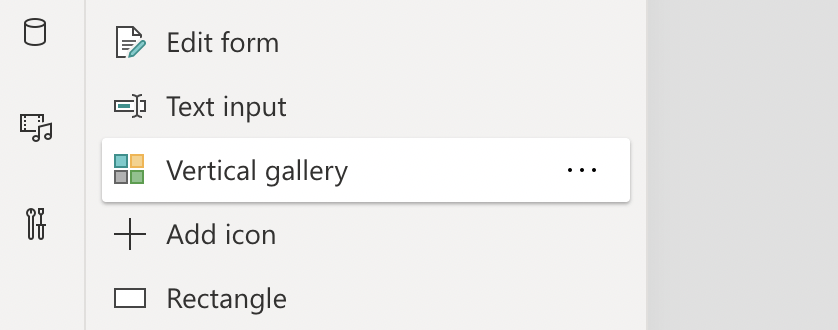

Add a Vertical gallery control to the BrowseScreen

Add a Vertical gallery control to the BrowseScreen

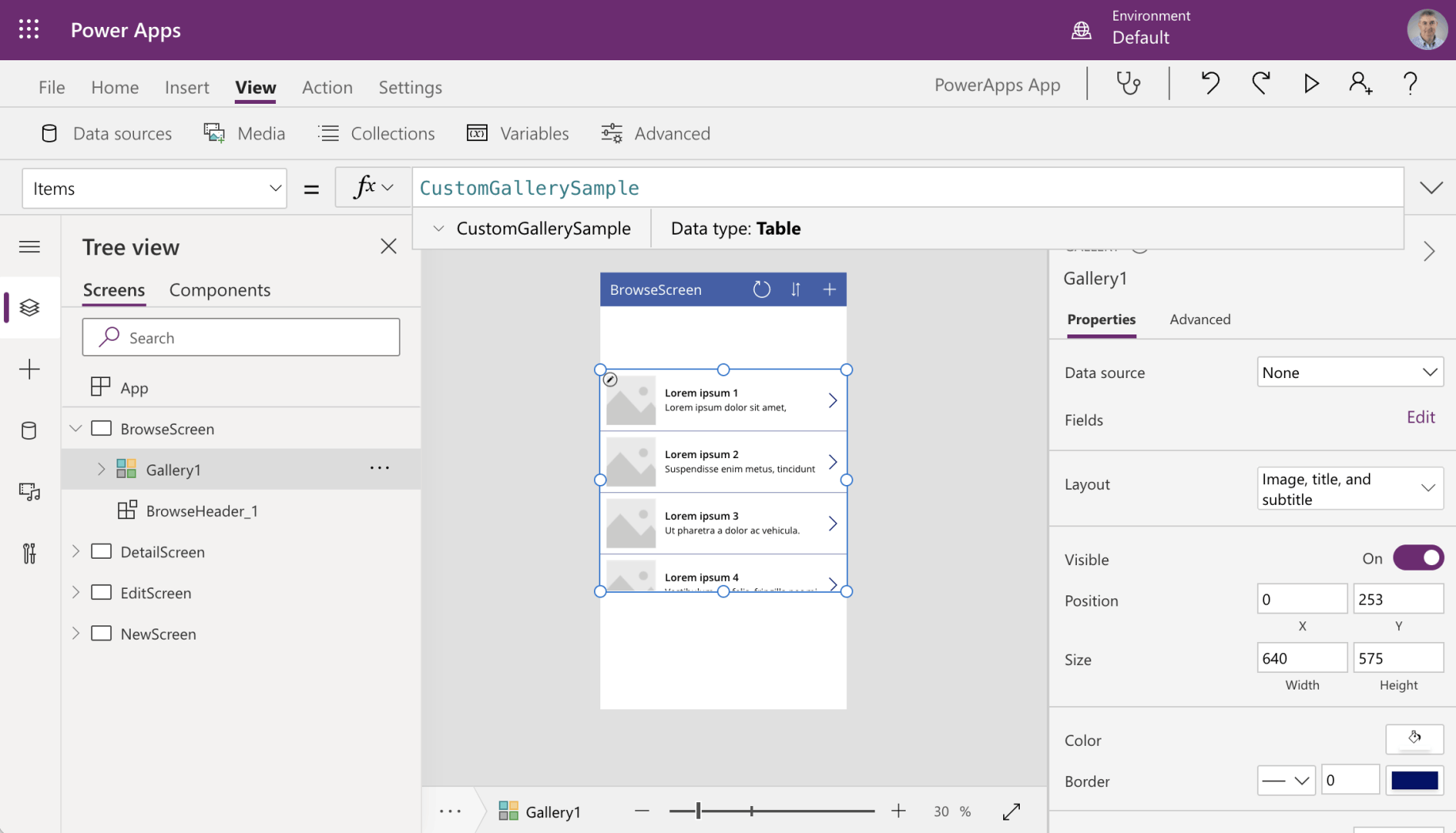

At this point the Gallery has no Data source. The Items property is set to "CustomGallerySample"

At this point the Gallery has no Data source. The Items property is set to "CustomGallerySample"

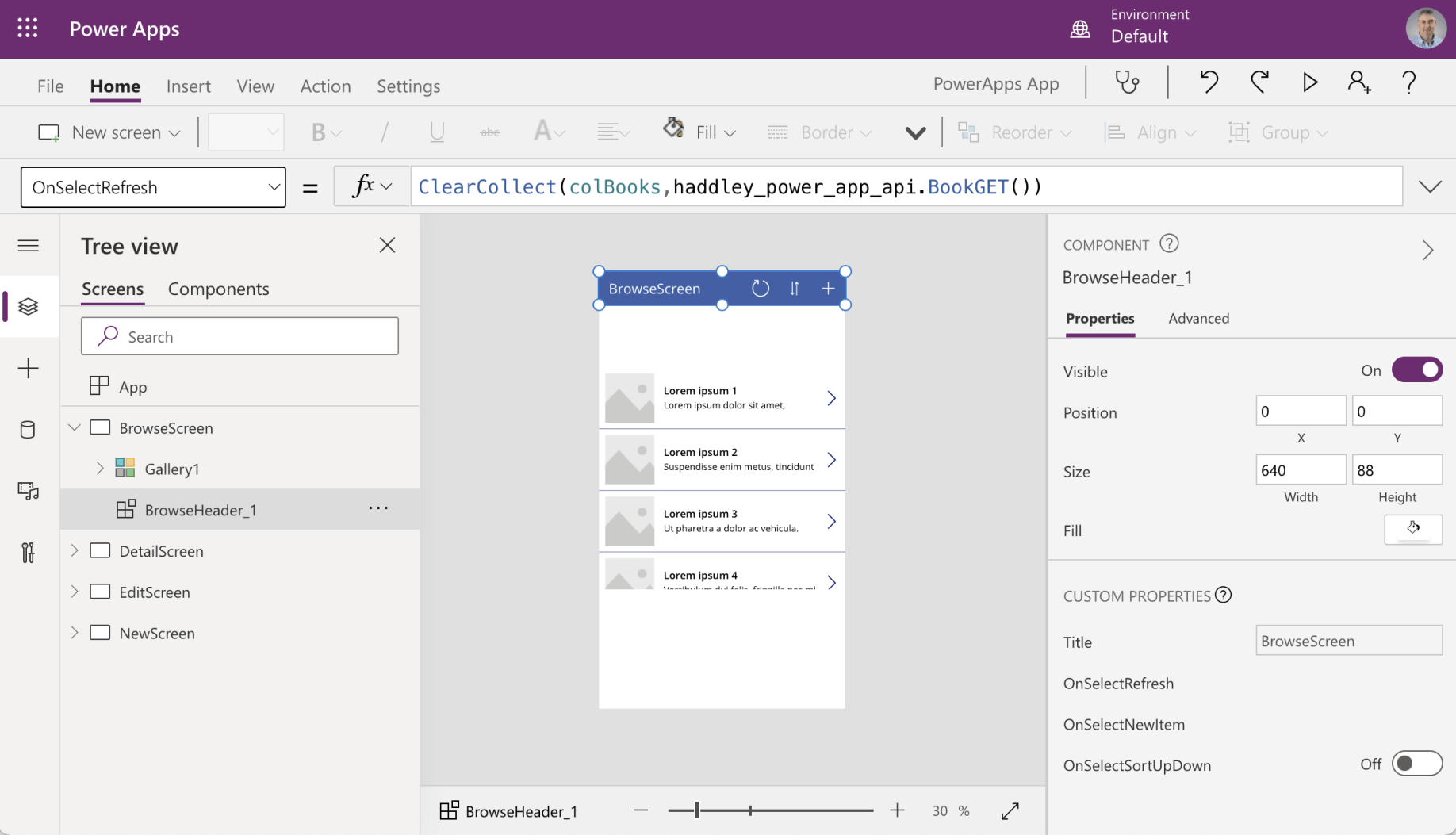

BrowseHeader_1 | OnSelectRefresh = ClearCollect(colBooks,haddley_power_app_api.BookGET())

BrowseHeader_1 | OnSelectRefresh = ClearCollect(colBooks,haddley_power_app_api.BookGET())

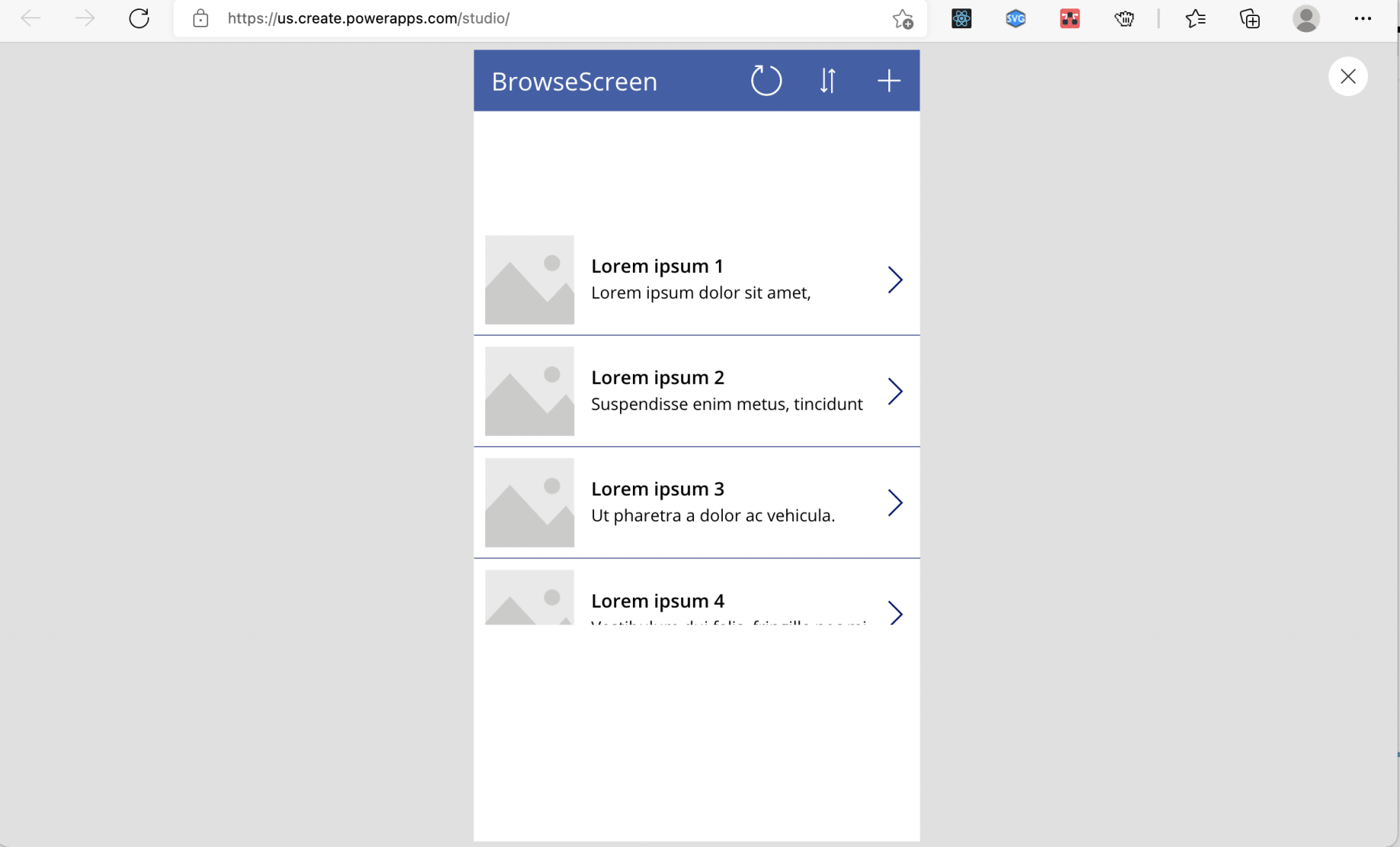

Sample data is displayed in the gallery. Click the refresh button to update the colBooks collection

Sample data is displayed in the gallery. Click the refresh button to update the colBooks collection

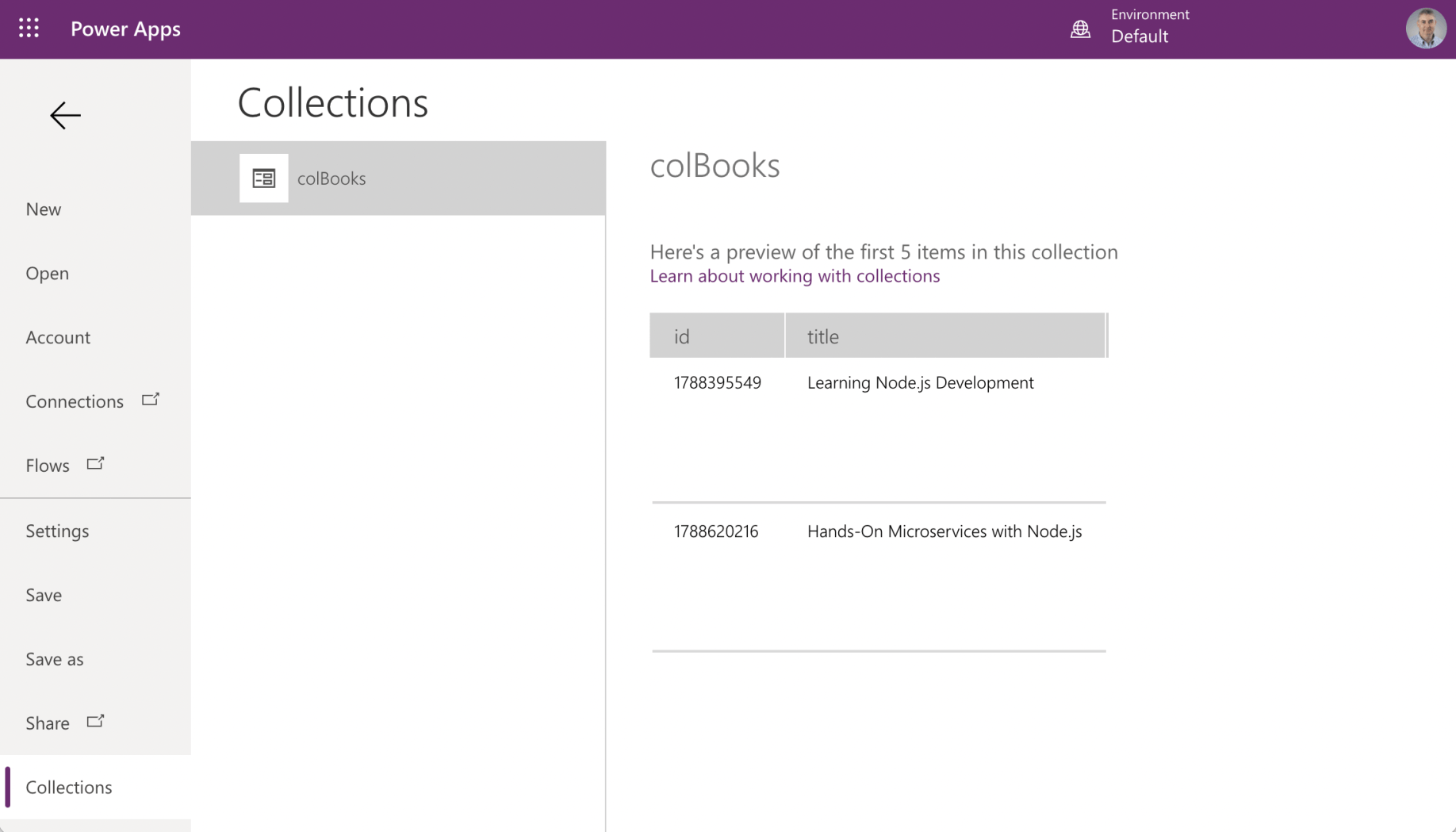

Select the Collections menu item to view the colBooks collection

Select the Collections menu item to view the colBooks collection

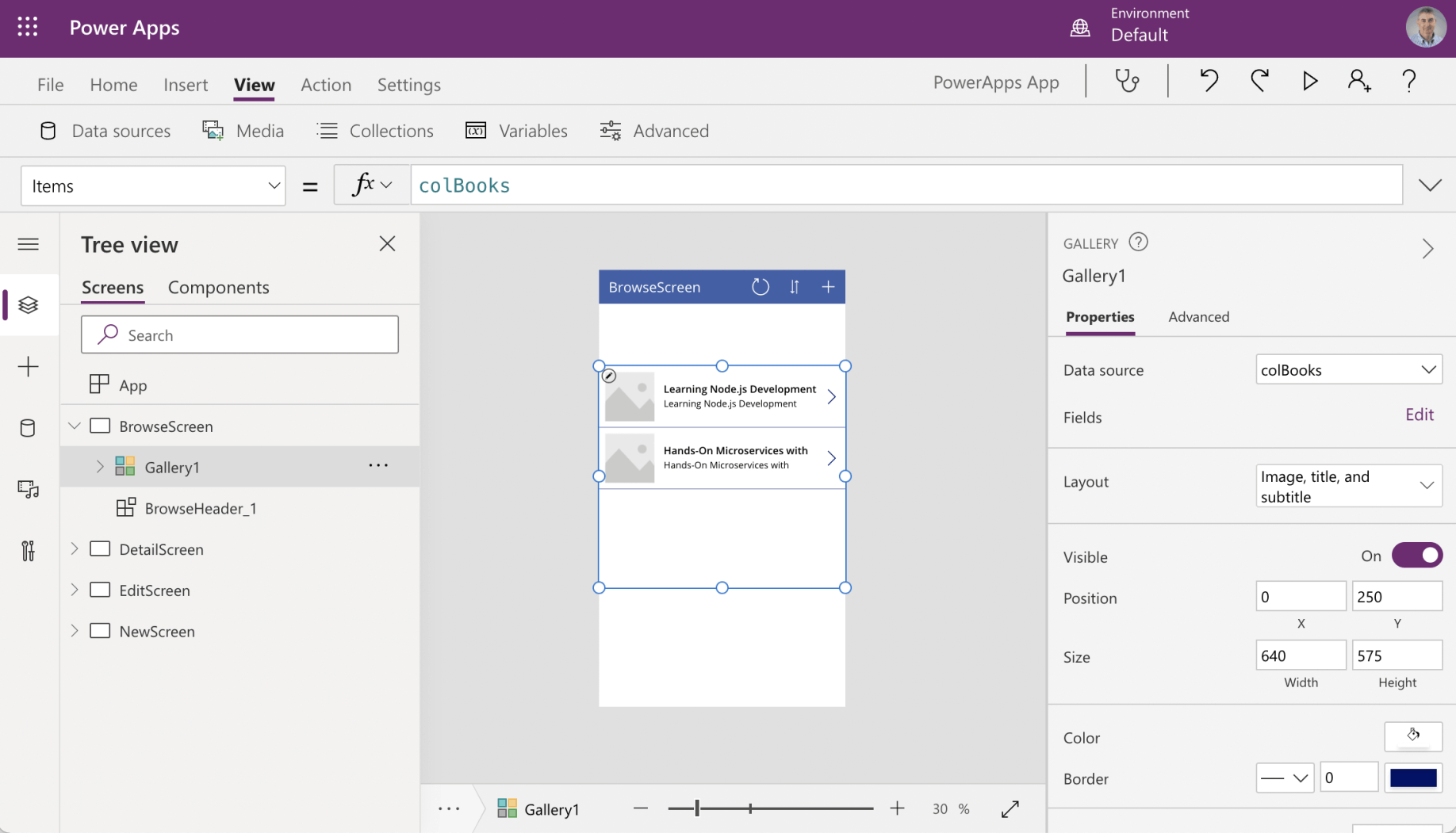

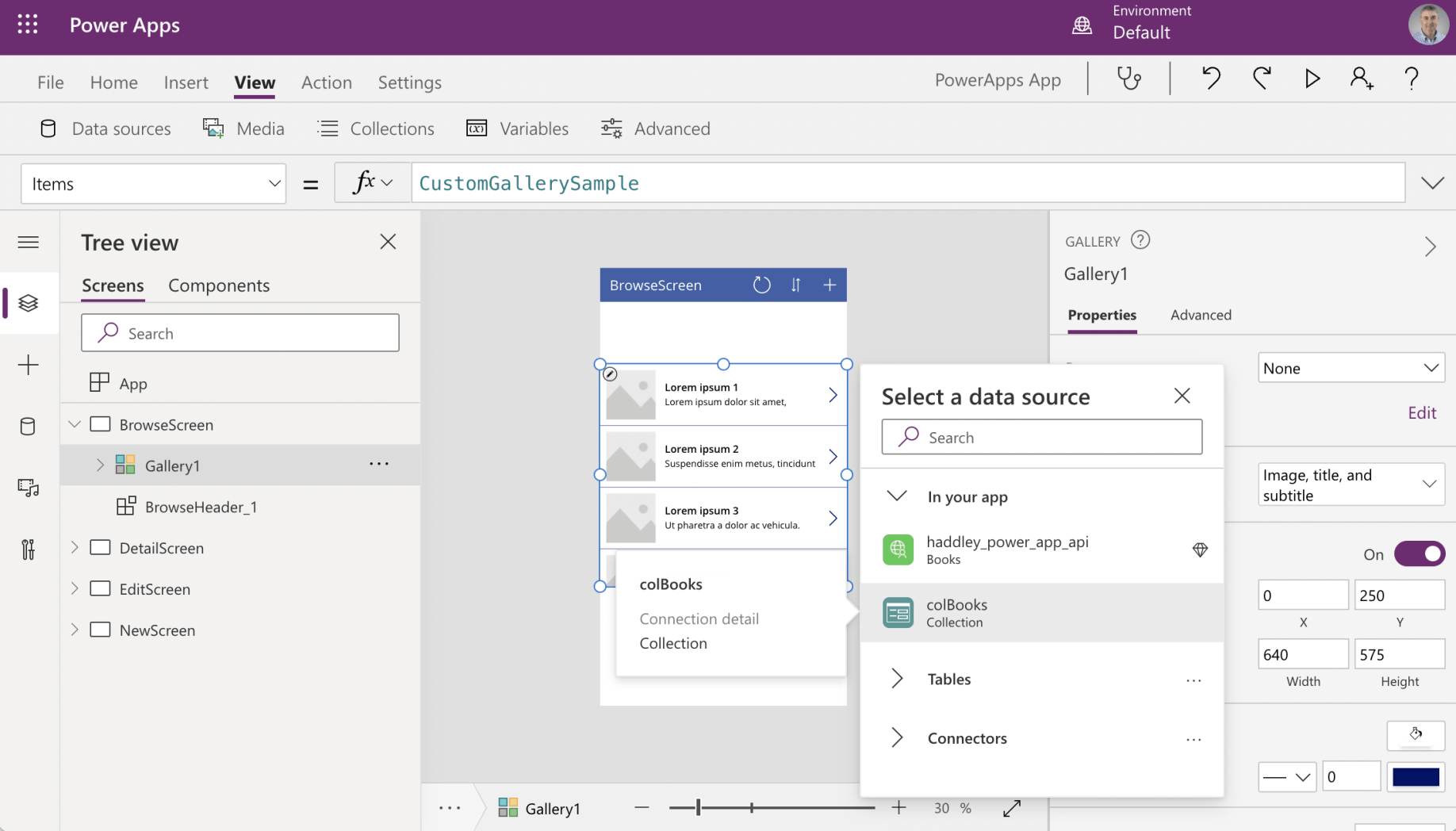

Update the gallery's datasource to colBooks

Update the gallery's datasource to colBooks

colBooks items are displayed

colBooks items are displayed

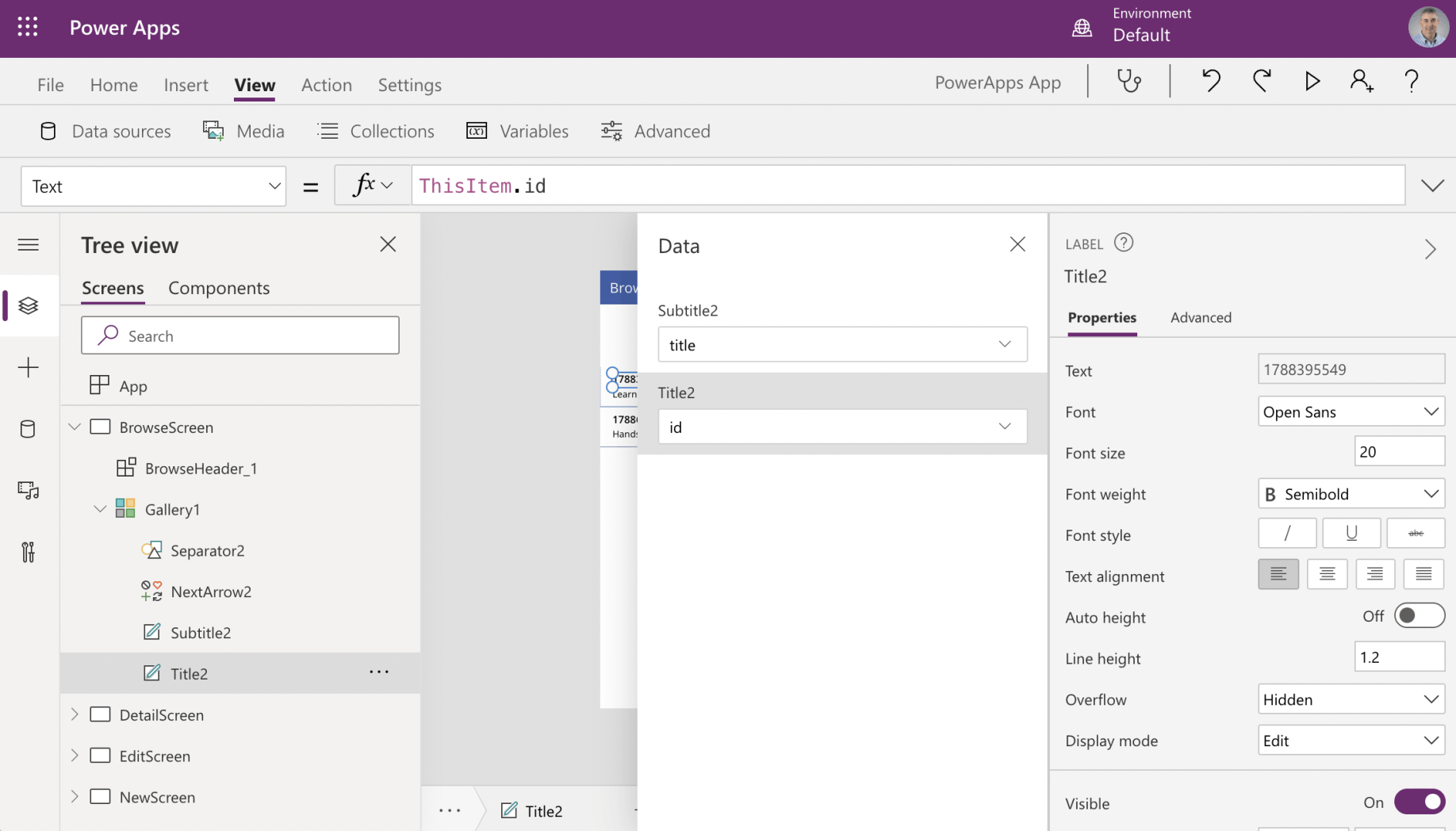

Update the layout

Update the layout

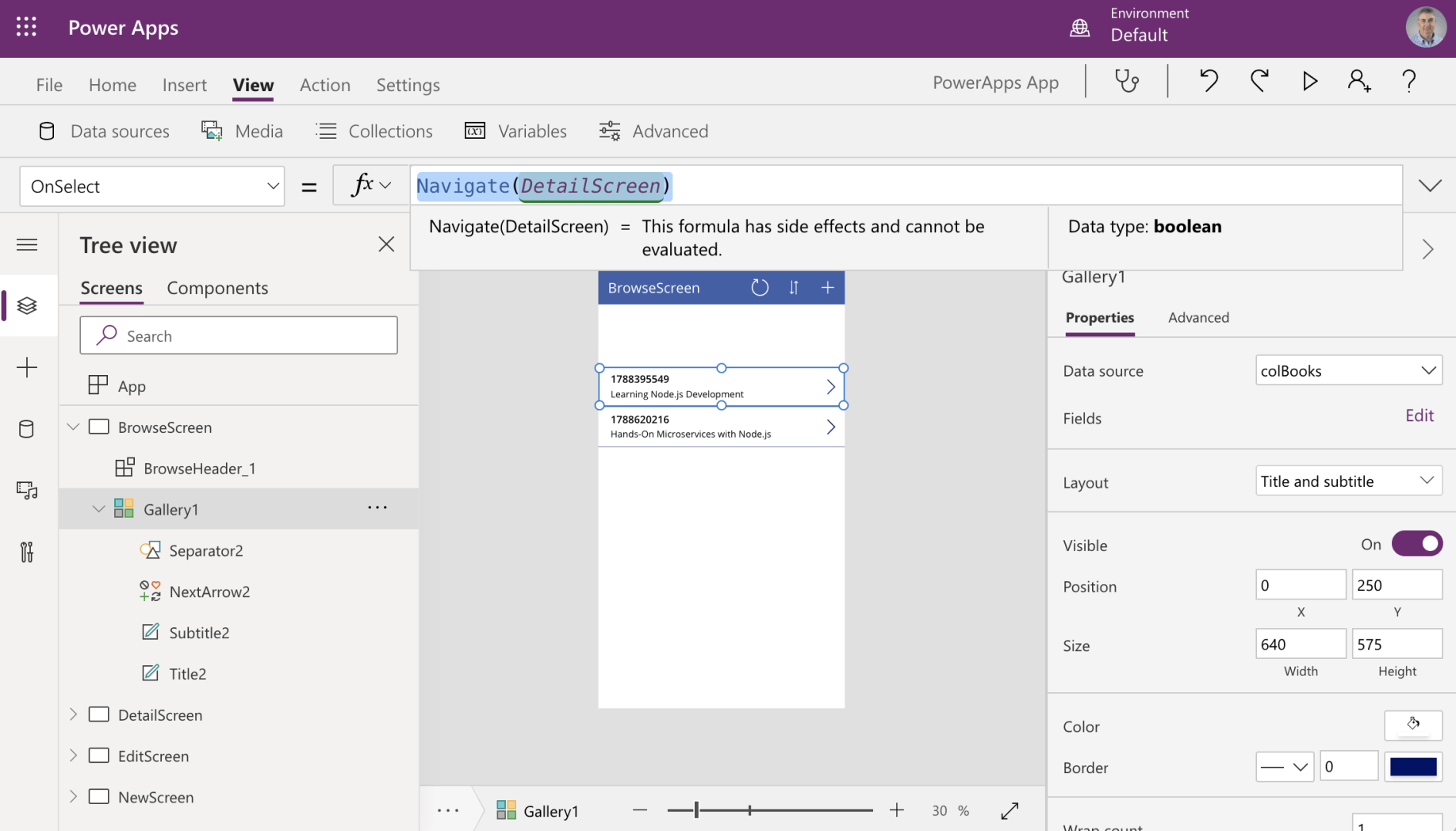

Gallery1 | OnSelect = Navigate(DetailScreen)

Gallery1 | OnSelect = Navigate(DetailScreen)

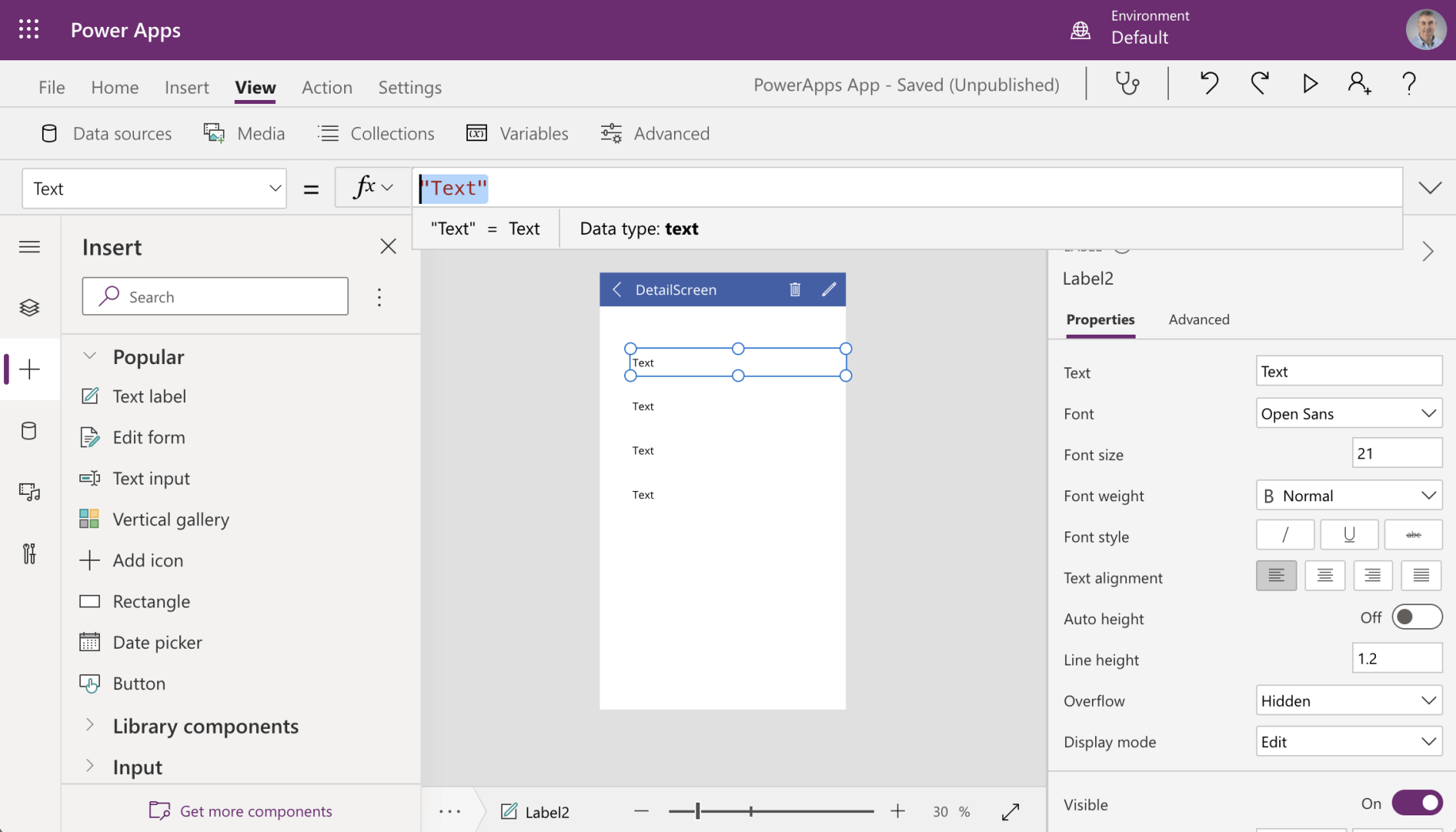

Add four Text labels to the DetailsScreen

Add four Text labels to the DetailsScreen

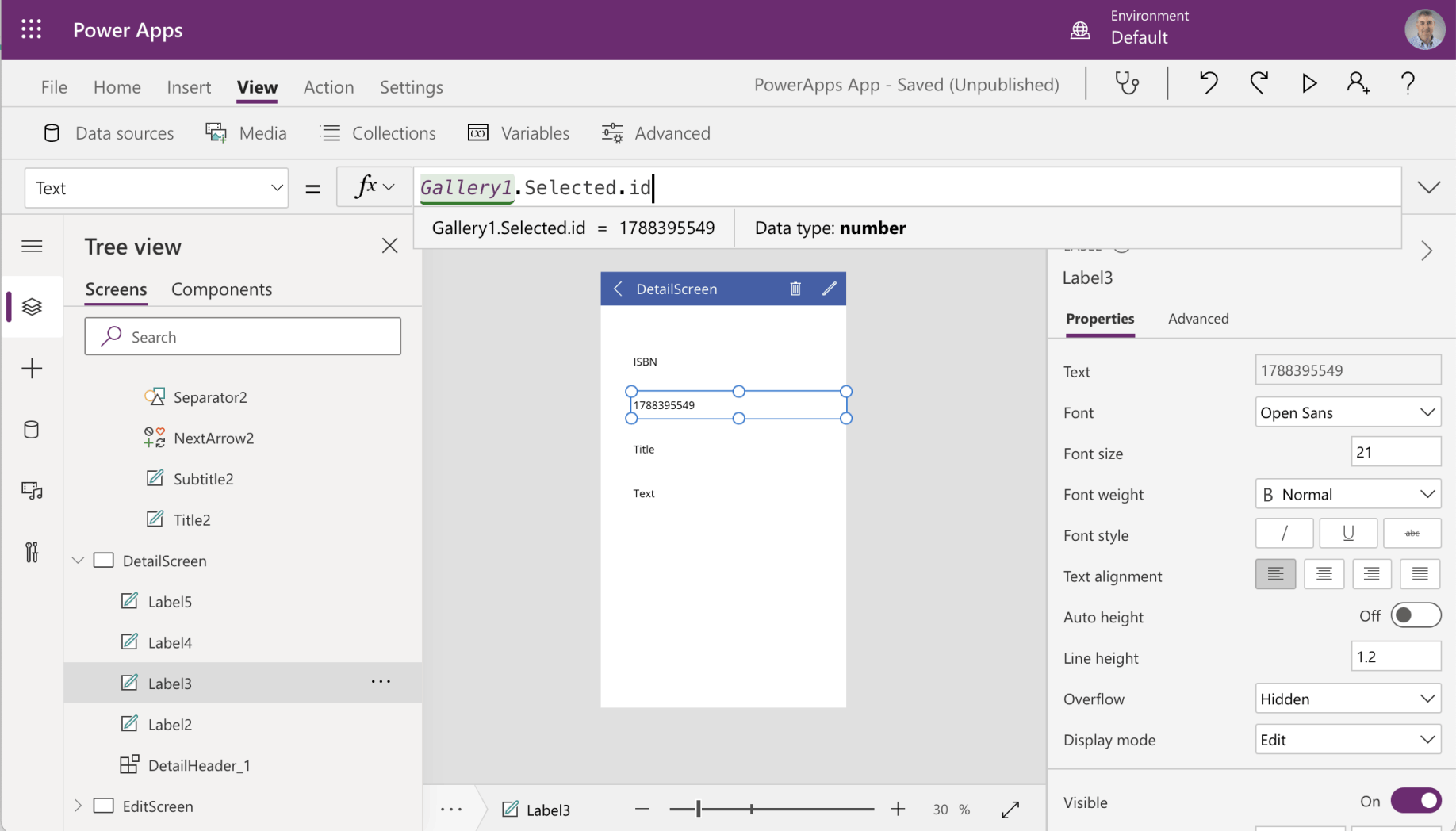

Gallery1.Selected.id

Gallery1.Selected.id

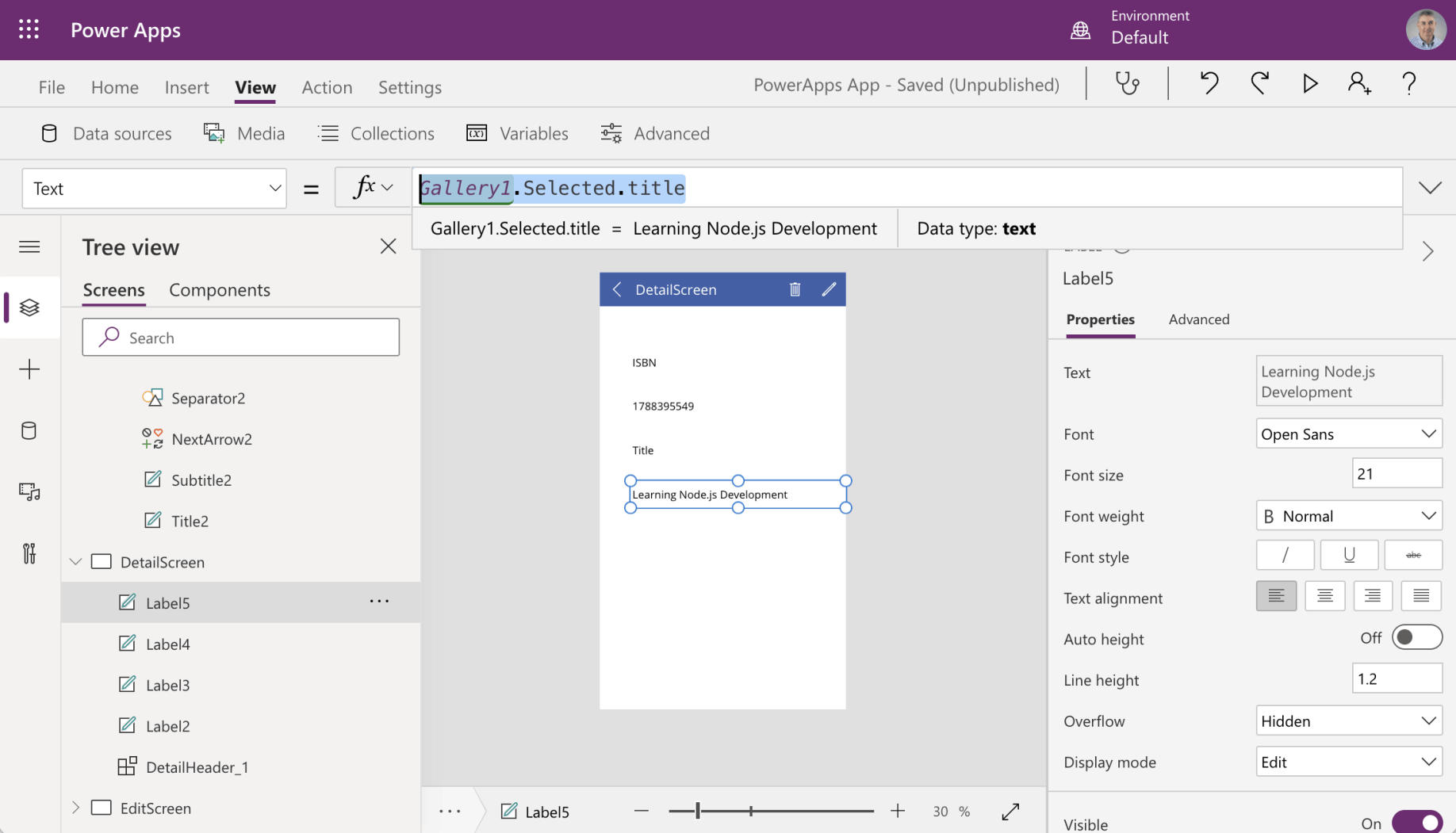

Gallery1.Selected.title

Gallery1.Selected.title

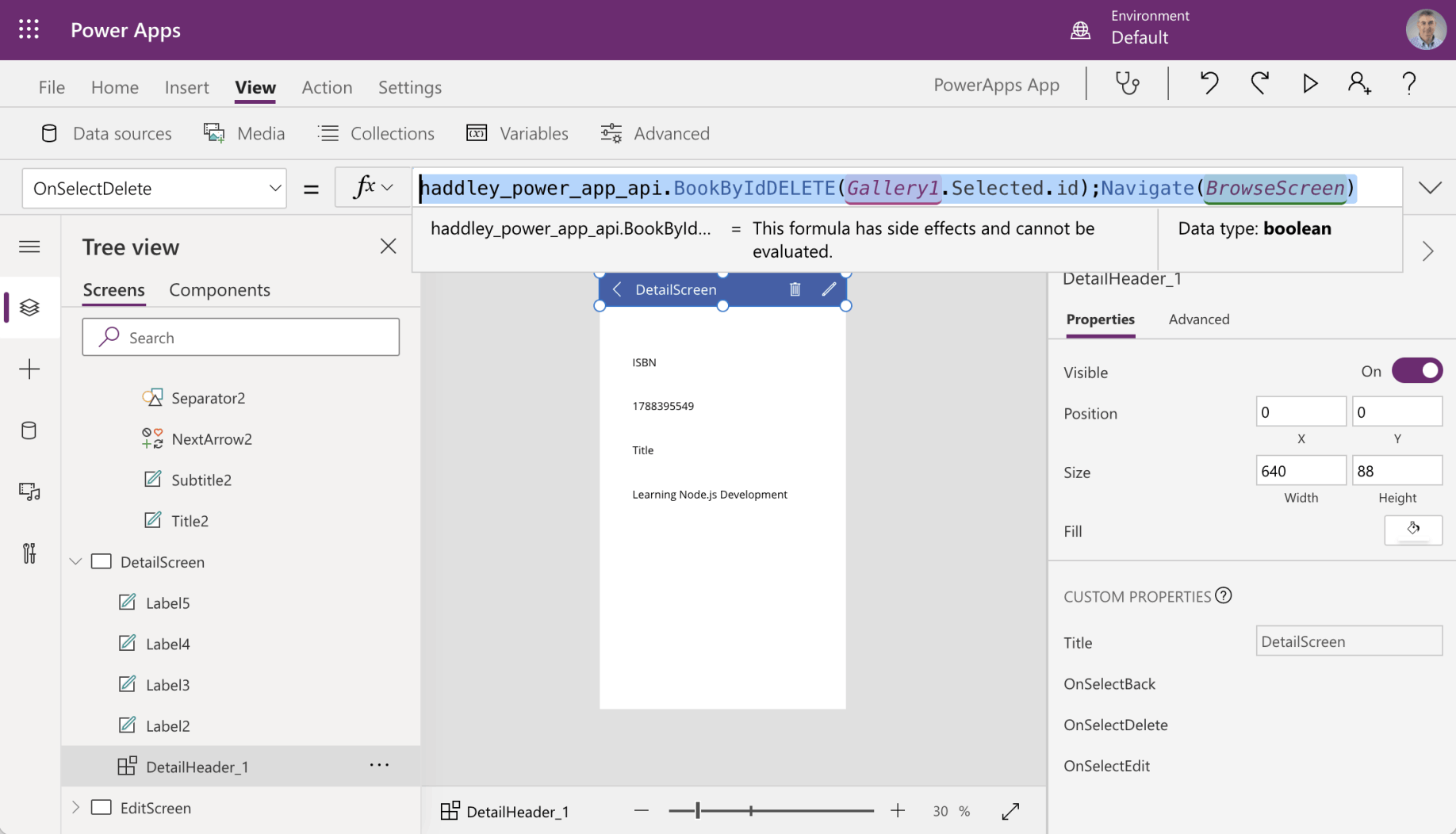

haddley_power_app_api.BookByIdDELETE(Gallery1.Selected.id);Navigate(BrowseScreen)

haddley_power_app_api.BookByIdDELETE(Gallery1.Selected.id);Navigate(BrowseScreen)

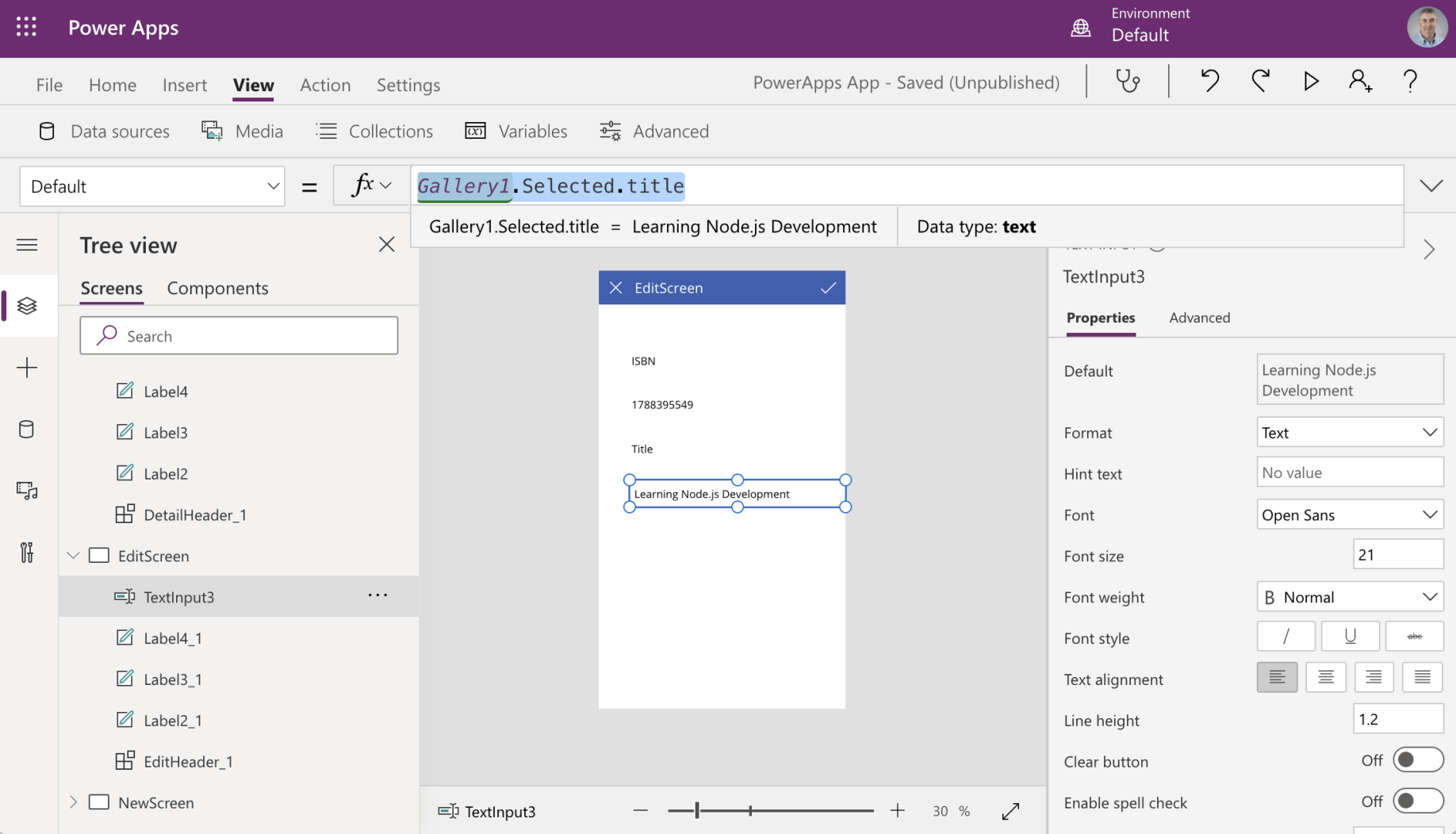

TextInput3 | Default = Gallery1.Selected.title

TextInput3 | Default = Gallery1.Selected.title

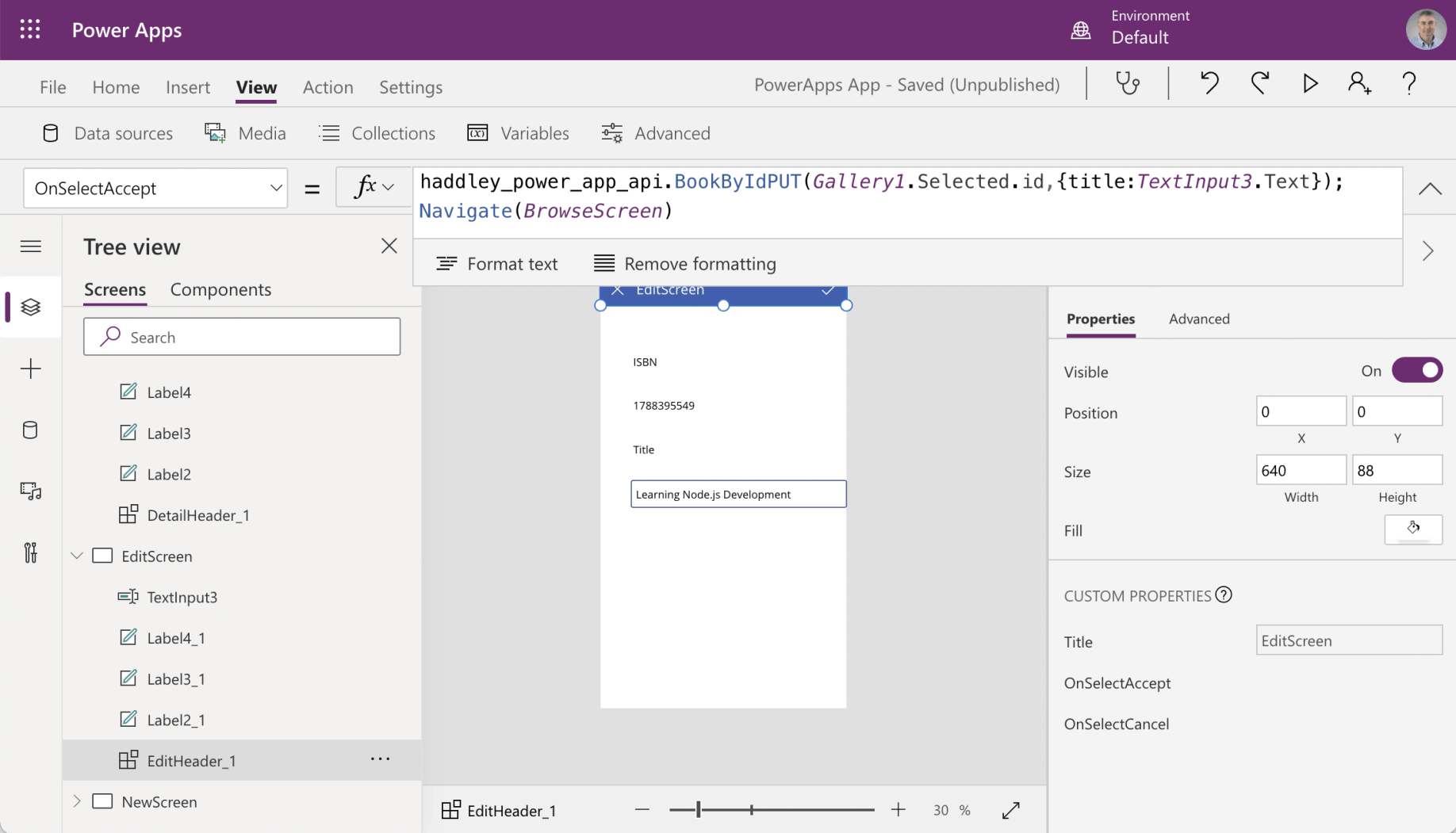

EditHeader_1 | OnSelectAccept = haddley_power_app_api.BookByIdPUT(Gallery1.Selected.id,{title:TextInput3.Text});Navigate(BrowseScreen)

EditHeader_1 | OnSelectAccept = haddley_power_app_api.BookByIdPUT(Gallery1.Selected.id,{title:TextInput3.Text});Navigate(BrowseScreen)

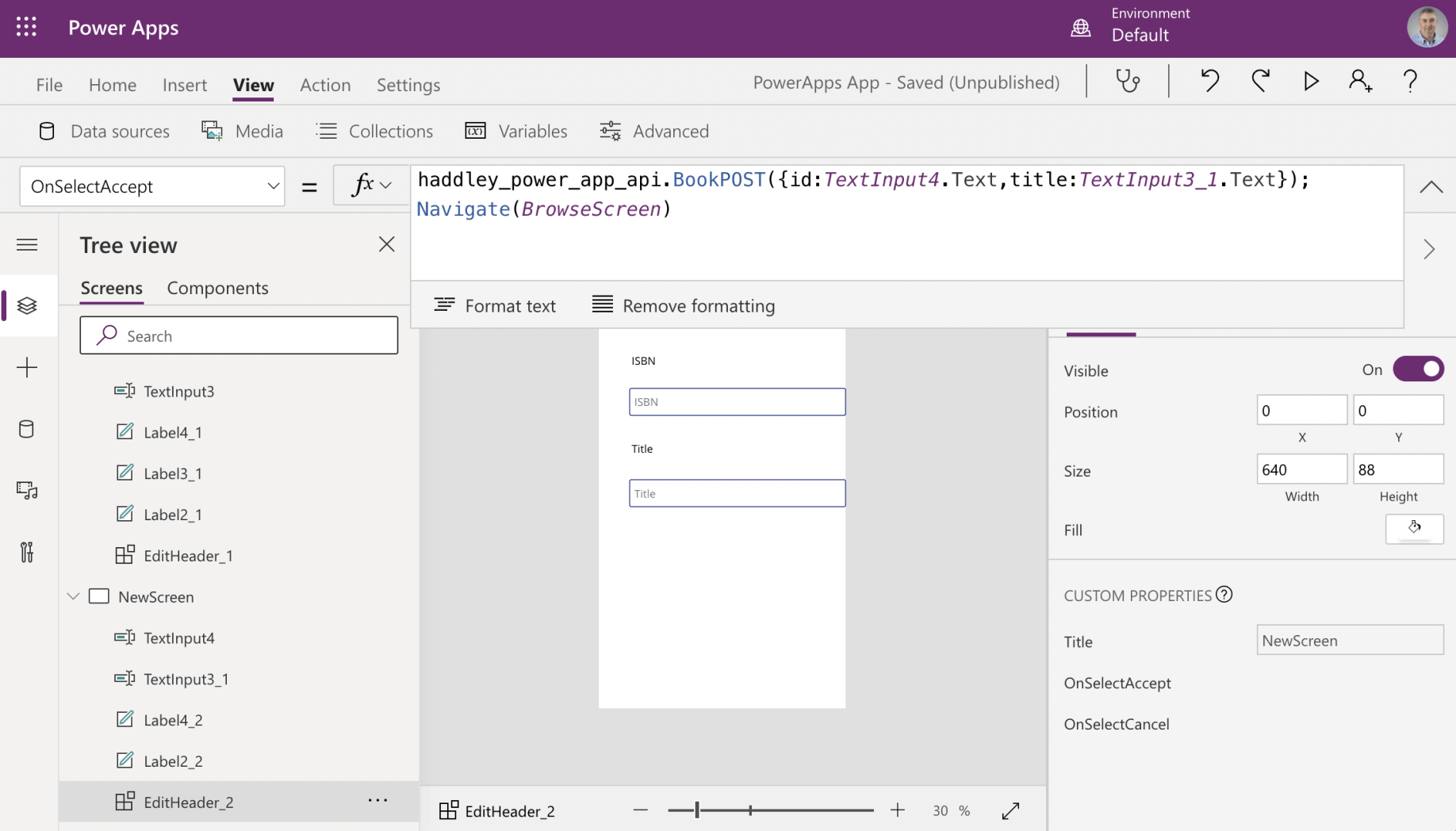

EditHeader_2 | OnSelectAccept = haddley_power_app_api.BookPOST({id:TextInput4.Text,title:TextInput3_1.Text});Navigate(BrowseScreen)

EditHeader_2 | OnSelectAccept = haddley_power_app_api.BookPOST({id:TextInput4.Text,title:TextInput3_1.Text});Navigate(BrowseScreen)

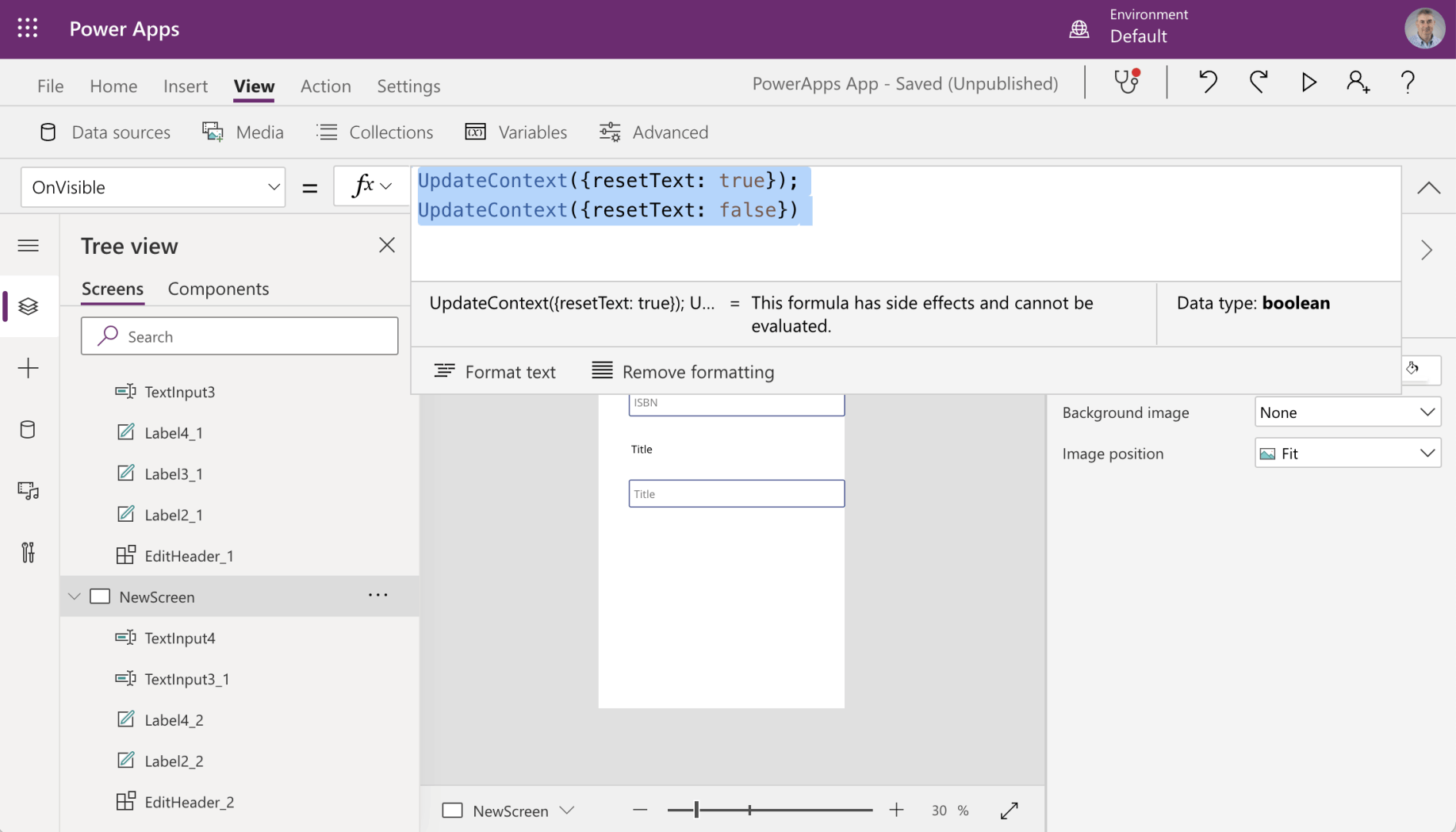

NewScreen | OnVisible = UpdateContext({resetText: true});UpdateContext({resetText: false})

NewScreen | OnVisible = UpdateContext({resetText: true});UpdateContext({resetText: false})

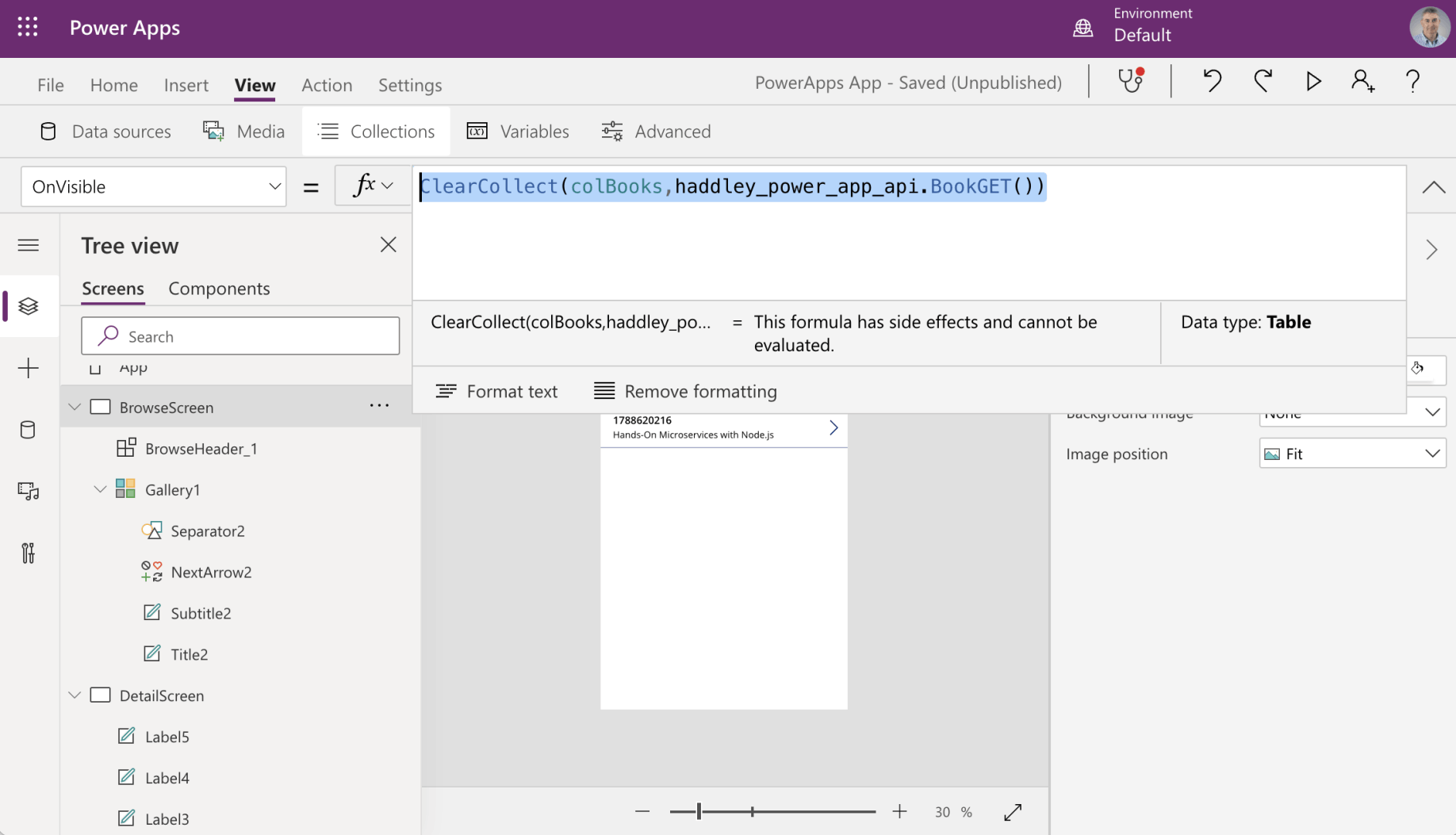

BrowseScreen | OnVisible = ClearCollect(colBooks,haddley_power_app_api.BookGET())

BrowseScreen | OnVisible = ClearCollect(colBooks,haddley_power_app_api.BookGET())

Summary

Here is a summary of the application screen and control settings

BrowseScreen | OnVisible = ClearCollect(colBooks,haddley_power_app_api.BookGET())

BrowseScreen | Gallery1 | Items = Sort(colBooks,title,If(varSortDescending,Descending,Ascending))

BrowseScreen | BrowseHeader_1

OnSelectRefresh = ClearCollect(colBooks,haddley_power_app_api.BookGET())

OnSelectNewItem = Navigate(NewScreen)

OnSelectSortUpDown = Set(varSortDescending,!varSortDescending)

DetailScreen | label5 | Text = Gallery1.Selected.title

DetailScreen | label3 | Text = Gallery1.Selected.id

DetailScreen | DetailHeader_1

OnSelectBack = Navigate(BrowseScreen)

OnSelectDelete = haddley_power_app_api.BookByIdDELETE(Gallery1.Selected.id);Navigate(BrowseScreen)

OnSelectEdit = Navigate(EditScreen)

EditScreen | TextInput3 | Default = Gallery1.Selected.title

EditScreen | EditHeader_1

OnSelectAccept = haddley_power_app_api.BookByIdPUT(Gallery1.Selected.id,{title:TextInput3.Text});Navigate(BrowseScreen)

OnSelectCancel = Navigate(BrowseScreen);

NewScreen | OnVisible = Reset(TextInput4);Reset(TextInput3_1);

UpdateContext({resetText: true});UpdateContext({resetText: false})

New Screen | OnVisible = UpdateContext({resettext: !resettext});UpdateContext({resettext: !resettext})

New Screen | TextInput4 | Default = ""

New Screen | TextInput4 | Reset = resettext

New Screen | TextInput3_1 | Default = ""

New Screen | TextInput3_1 | Reset = resettext

NewScreen | EditHeader_2

OnSelectAccept = haddley_power_app_api.BookPOST({id:TextInput4.Text,title:TextInput3_1.Text});Navigate(BrowseScreen)

OnSelectCancel = Navigate(BrowseScreen);

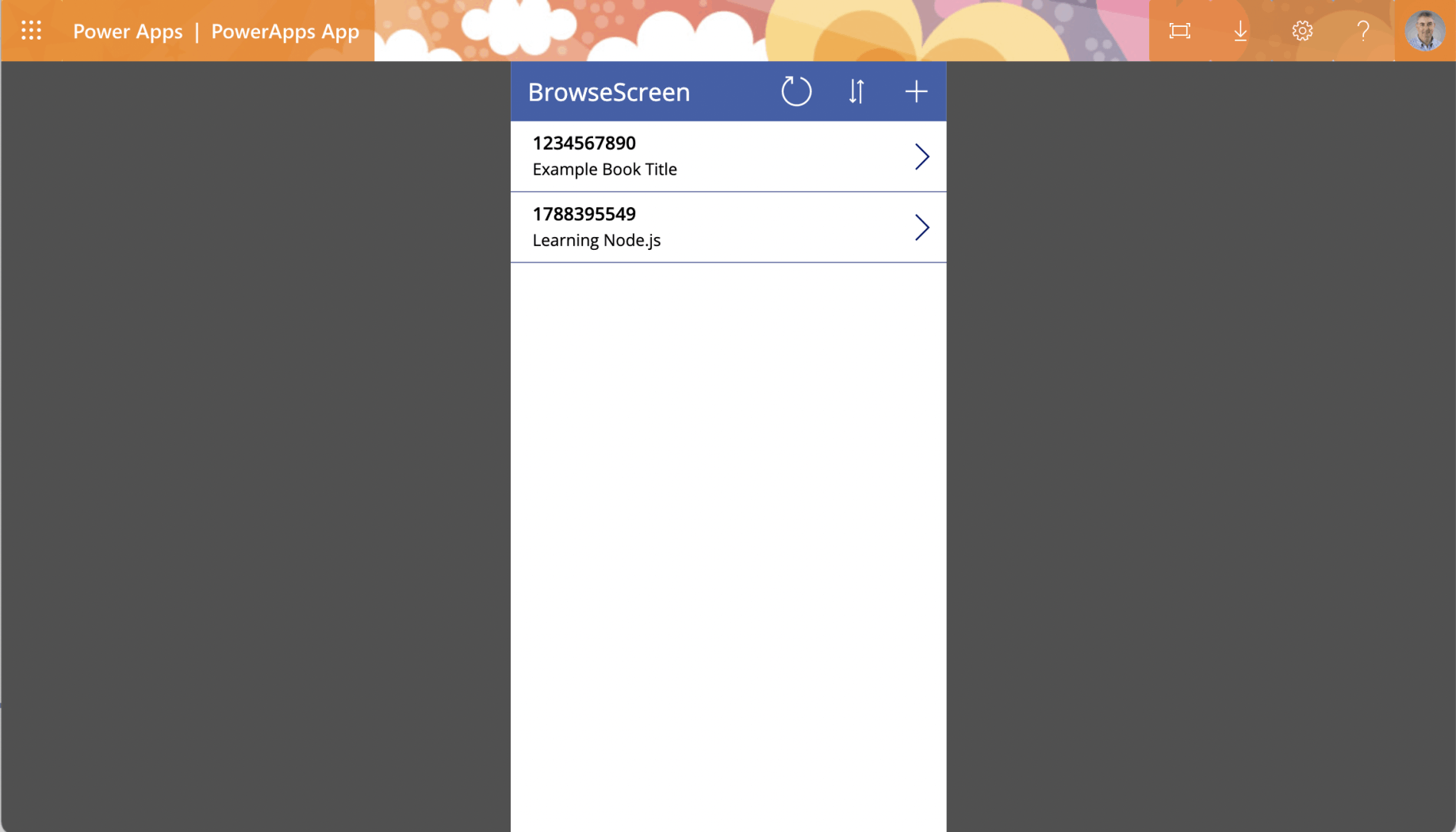

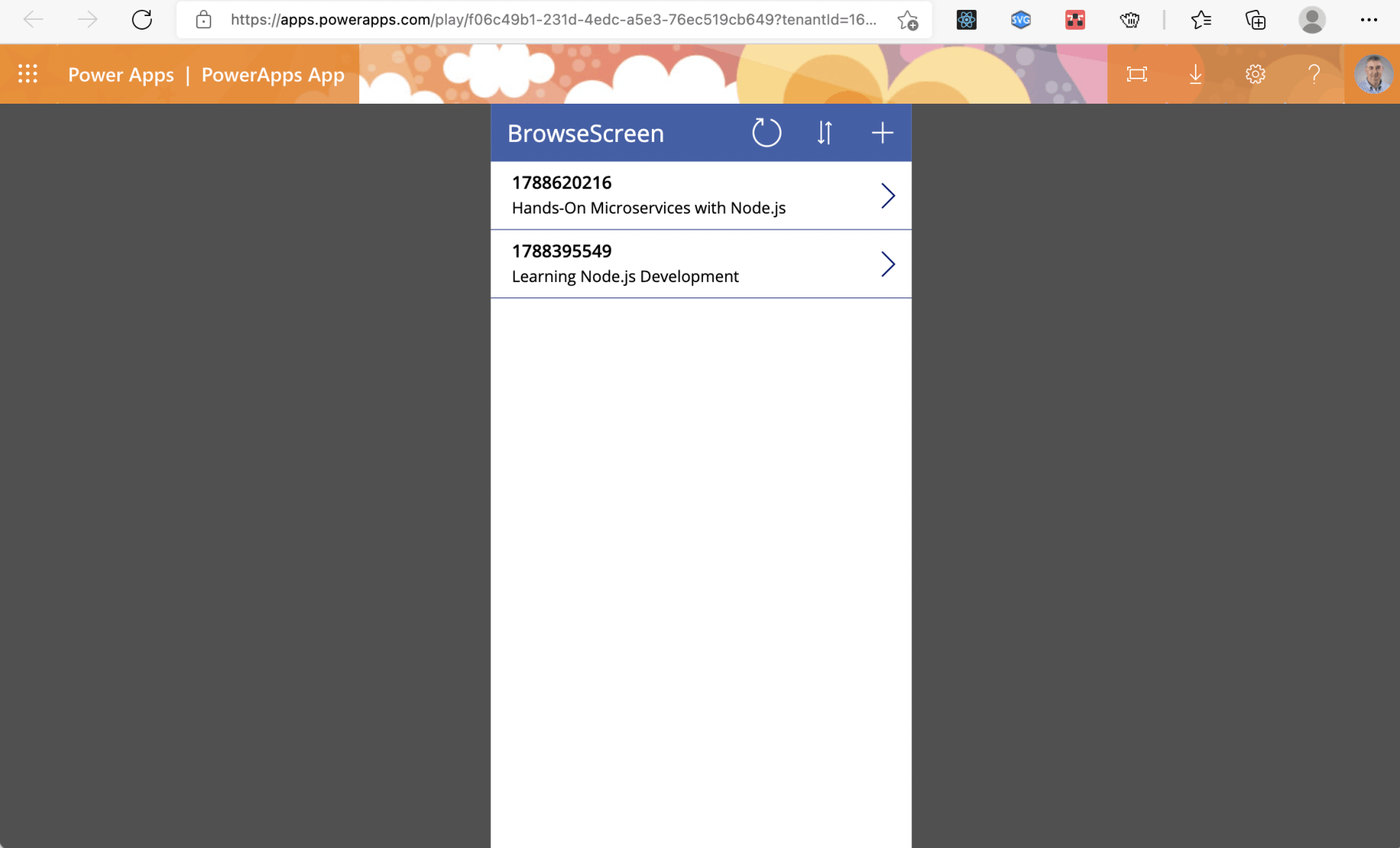

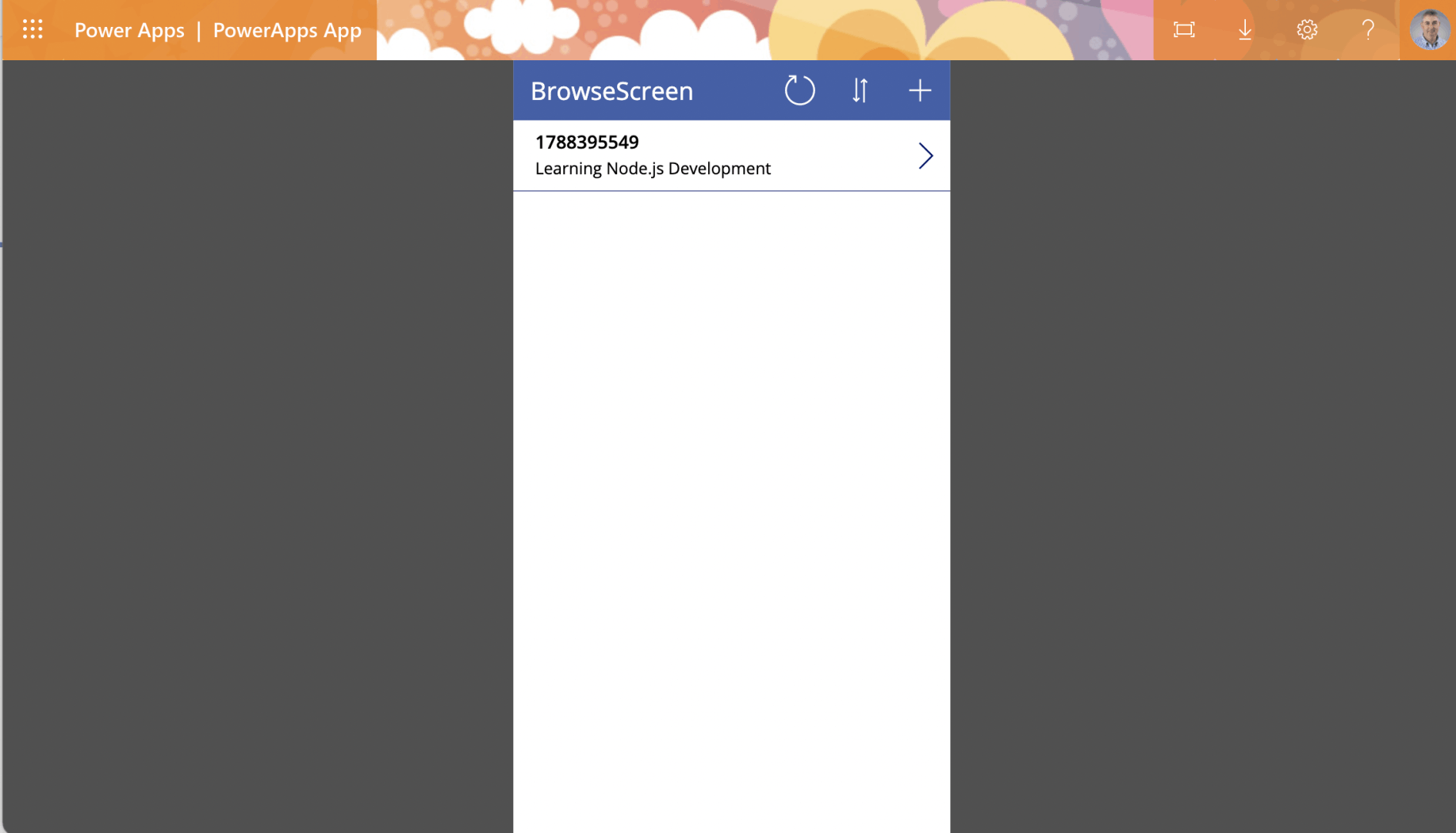

Two items returned by API

Two items returned by API

Details of first item. Delete button clicked.

Details of first item. Delete button clicked.

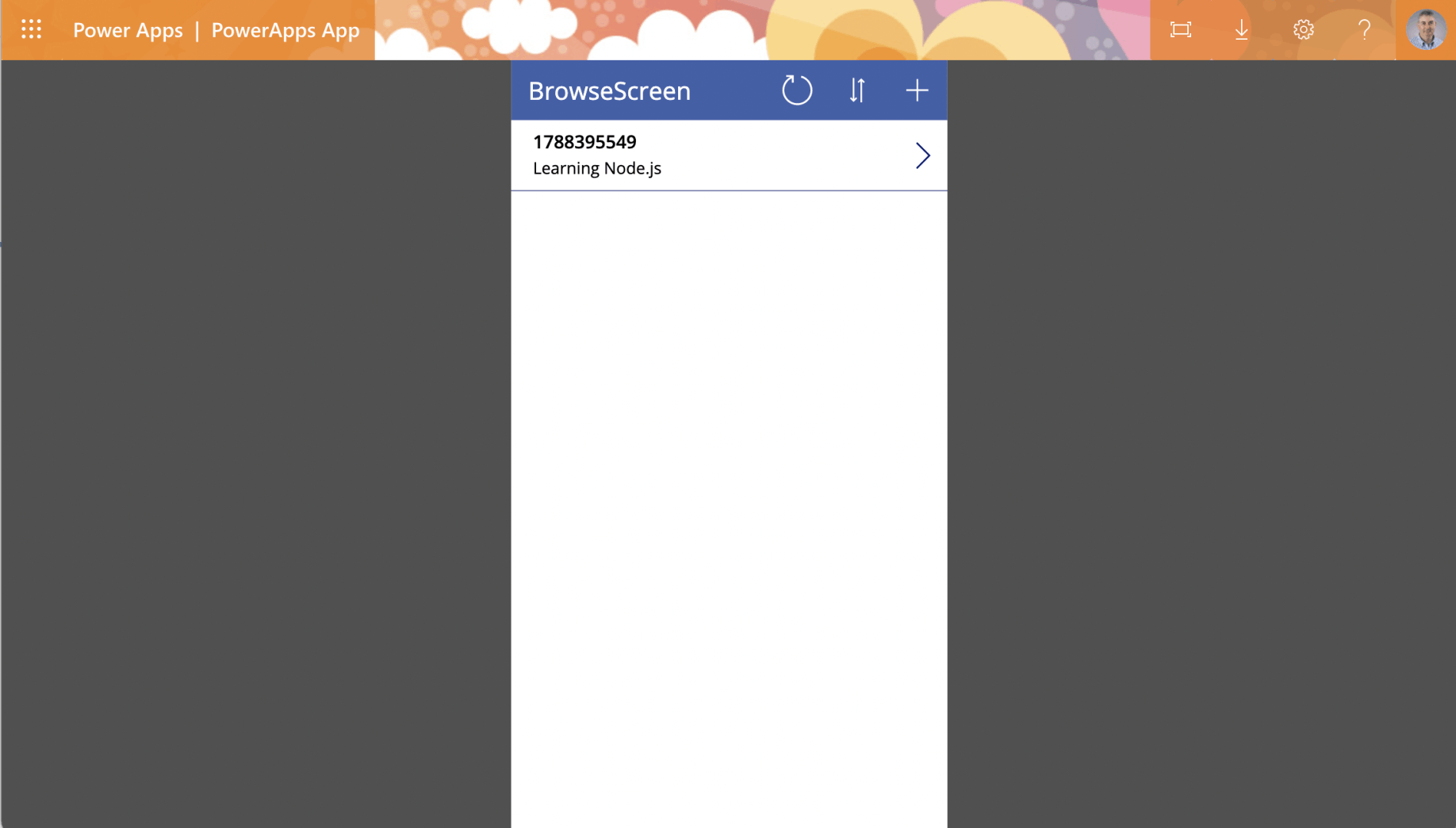

Only second item remains

Only second item remains

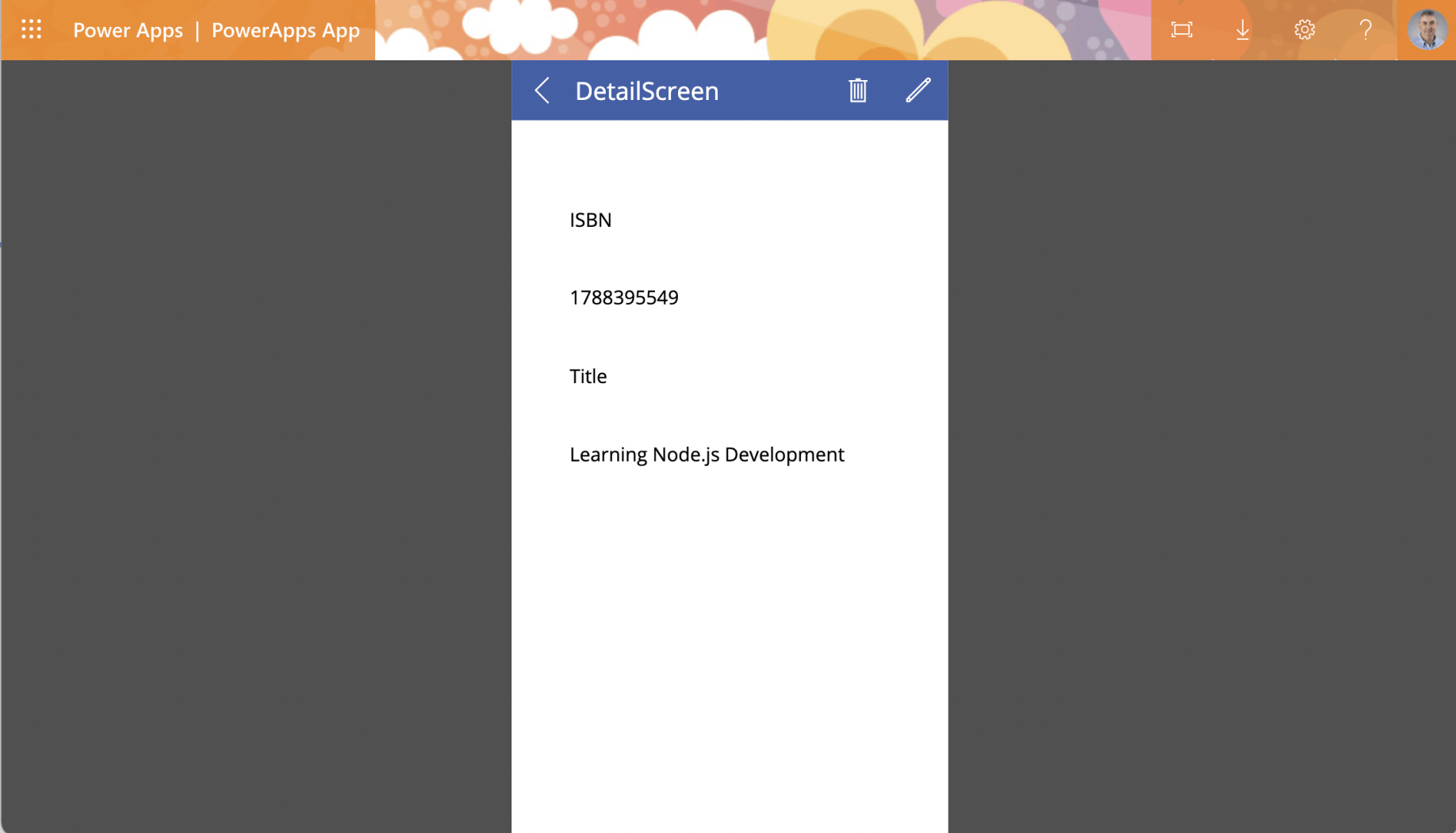

Details of second item

Details of second item

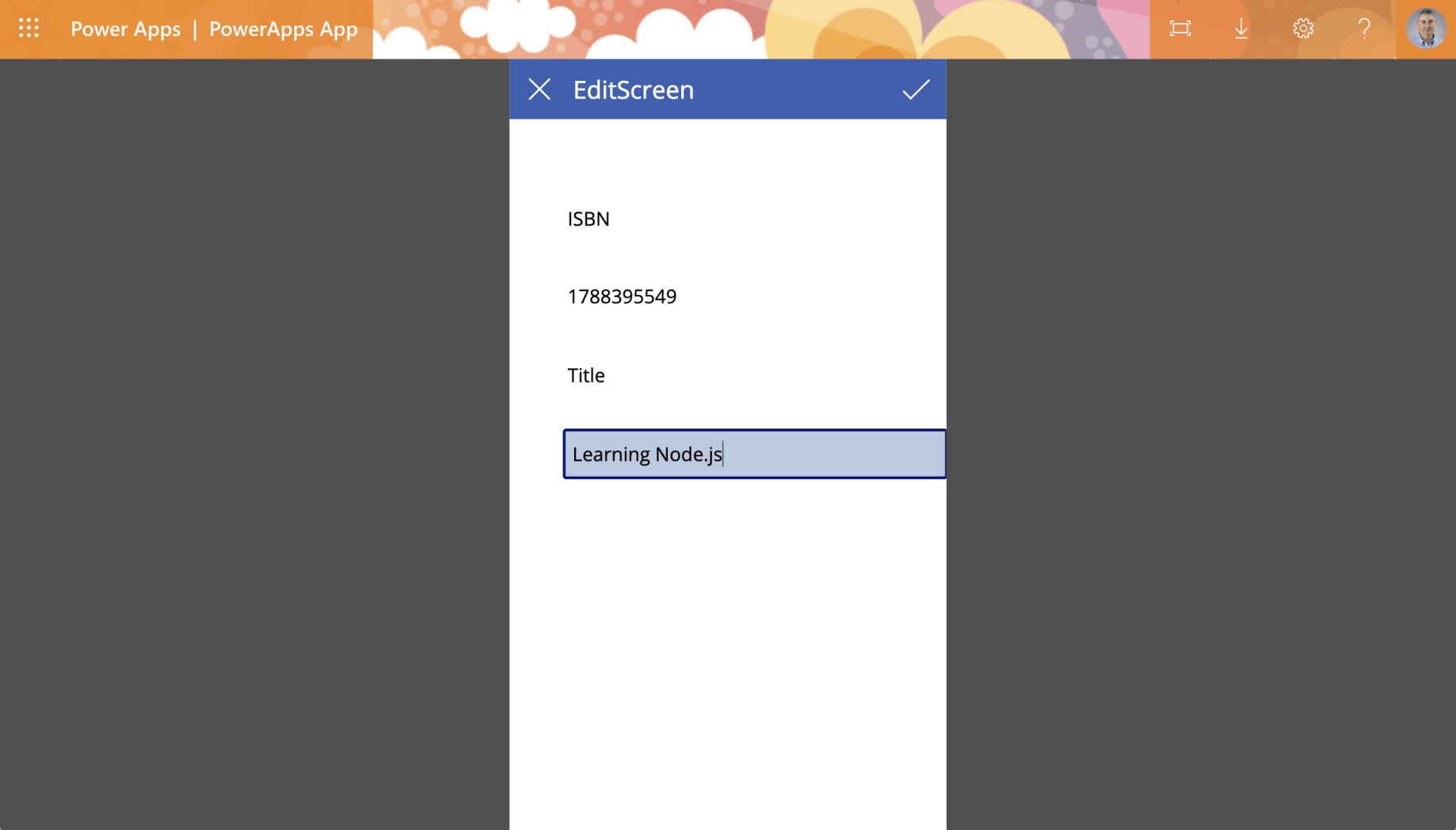

Editing second item's title

Editing second item's title

Second item's title has been updated

Second item's title has been updated

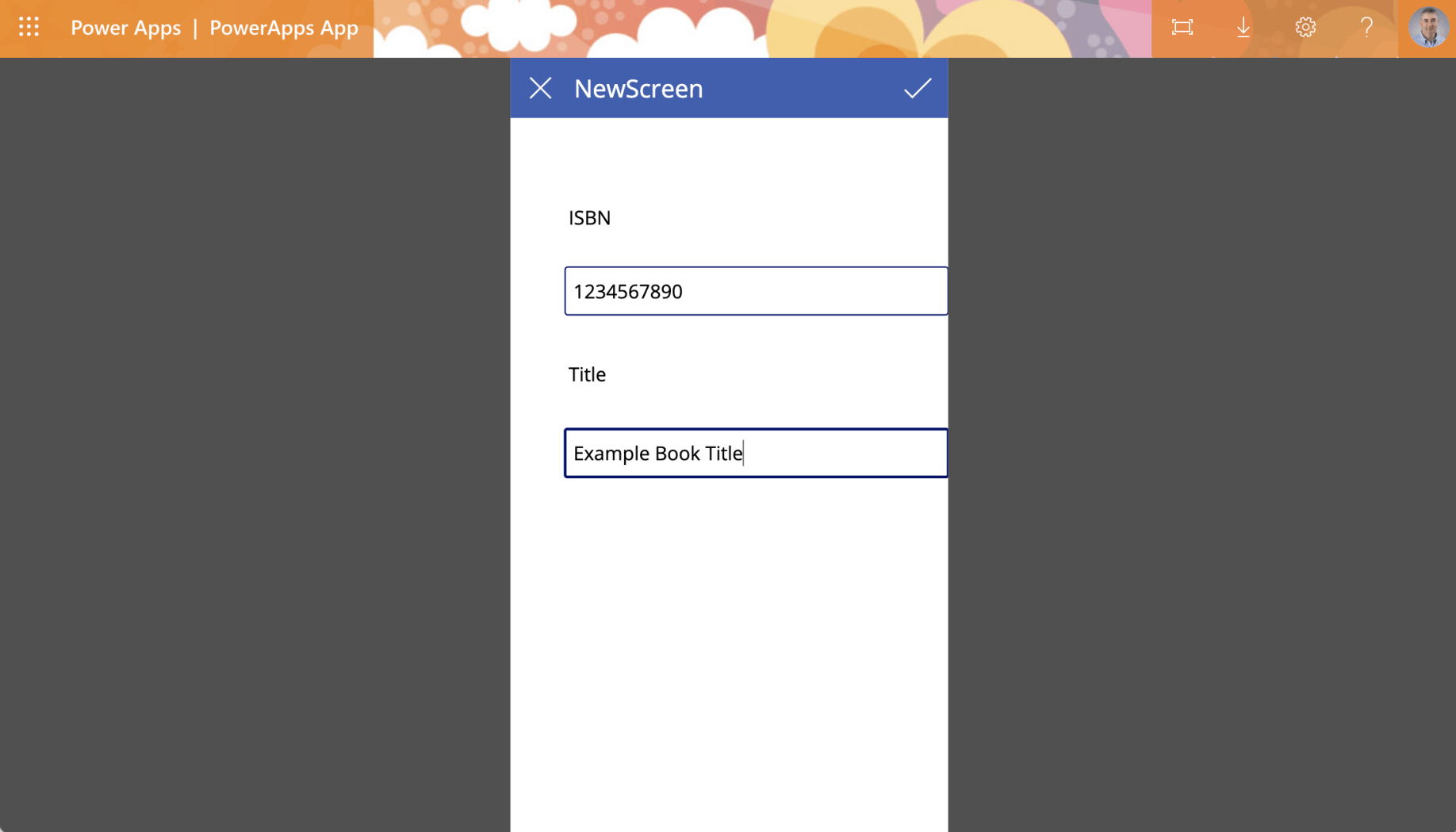

Adding a new item

Adding a new item

New item added

New item added

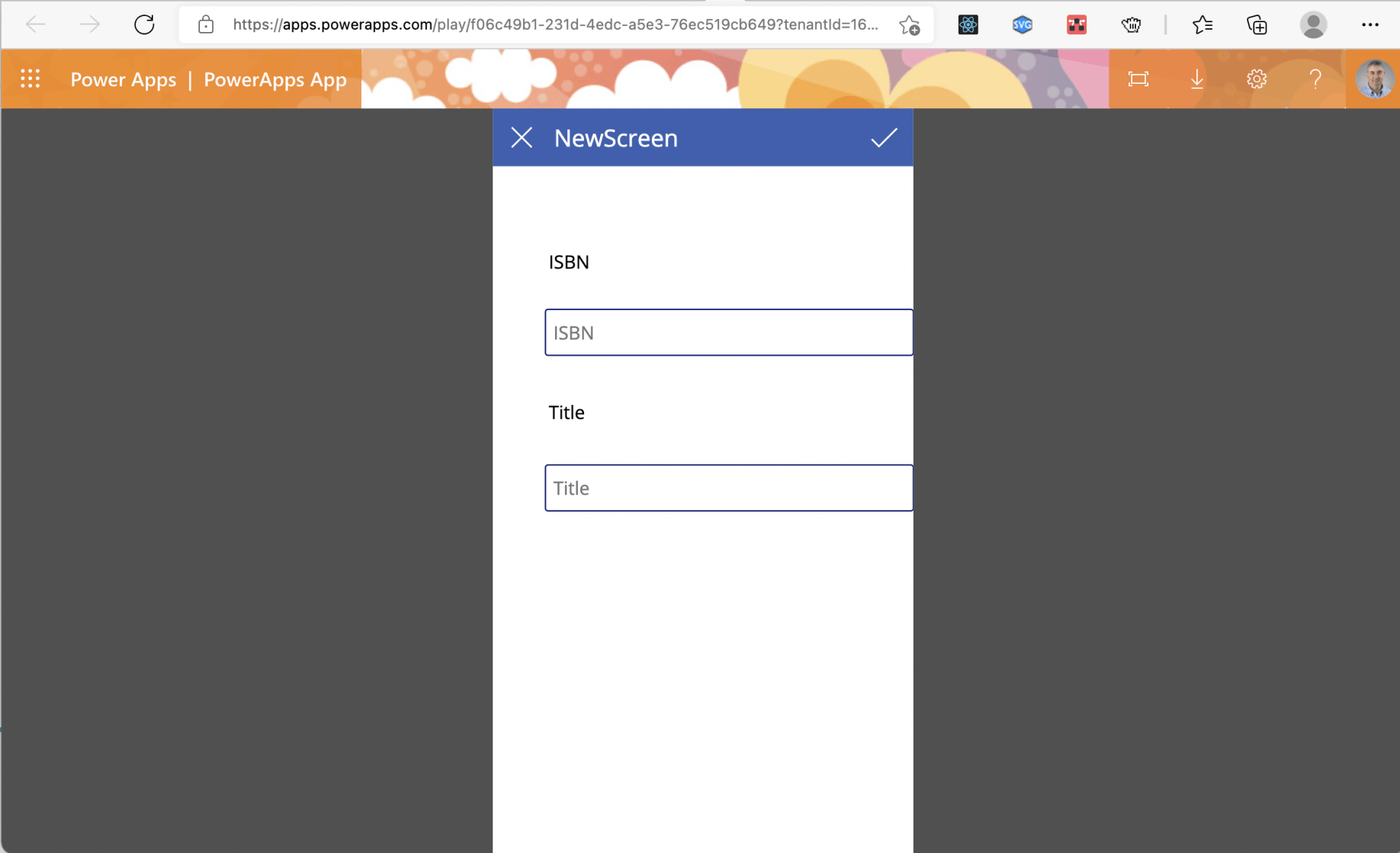

Text values reset

Text values reset
