A Power Apps Custom Connector

Neil HaddleyJune 27, 2021

Create a GitHub Repository

Create a GitHub Repository for the REST API code.

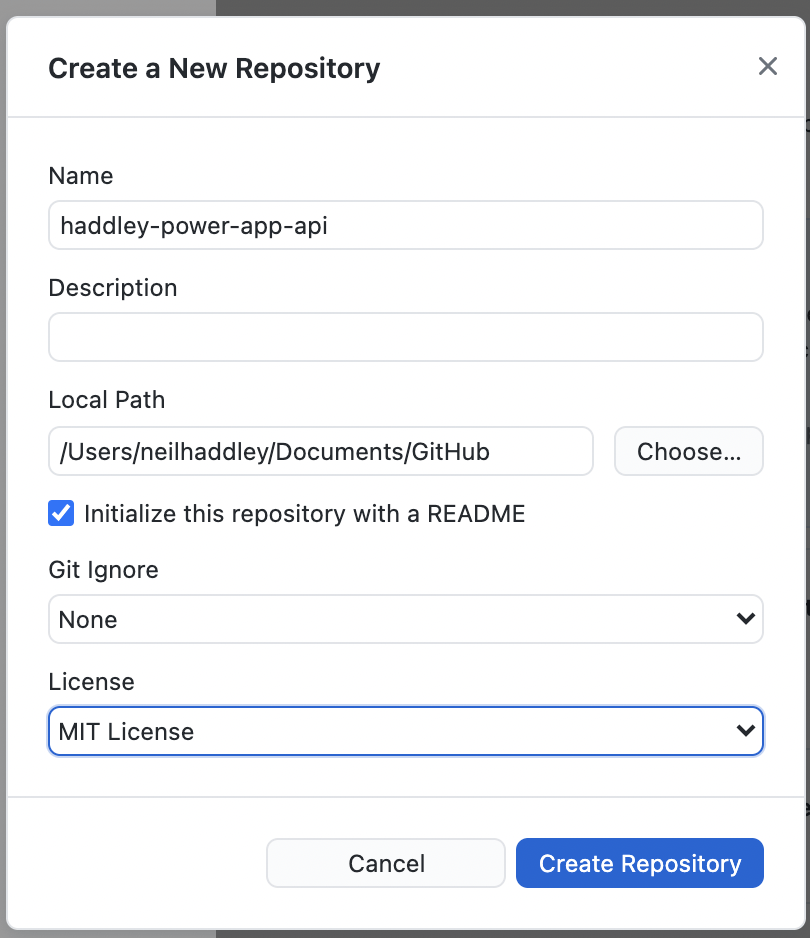

Create Repository

Create Repository

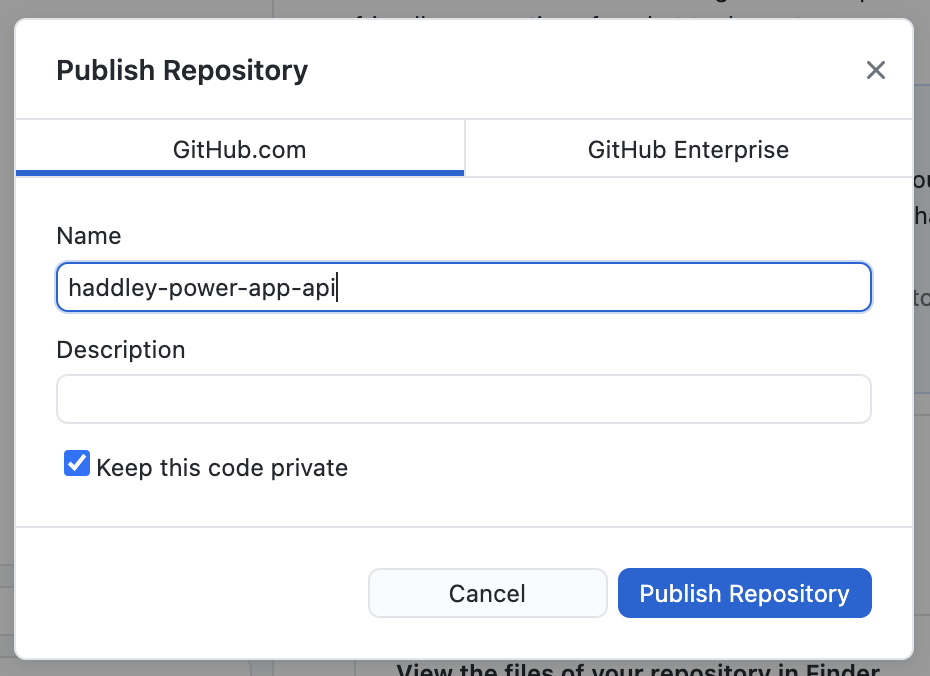

Publish Repository

Publish Repository

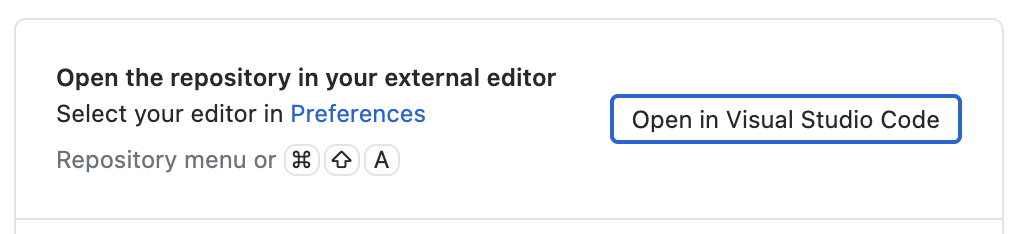

open in Visual Studio Code

open in Visual Studio Code

Download example project code

Open a Visual Studio Code terminal and use the command:

BASH
1% dotnet new api

to download example ASP.NET Core Web API code.

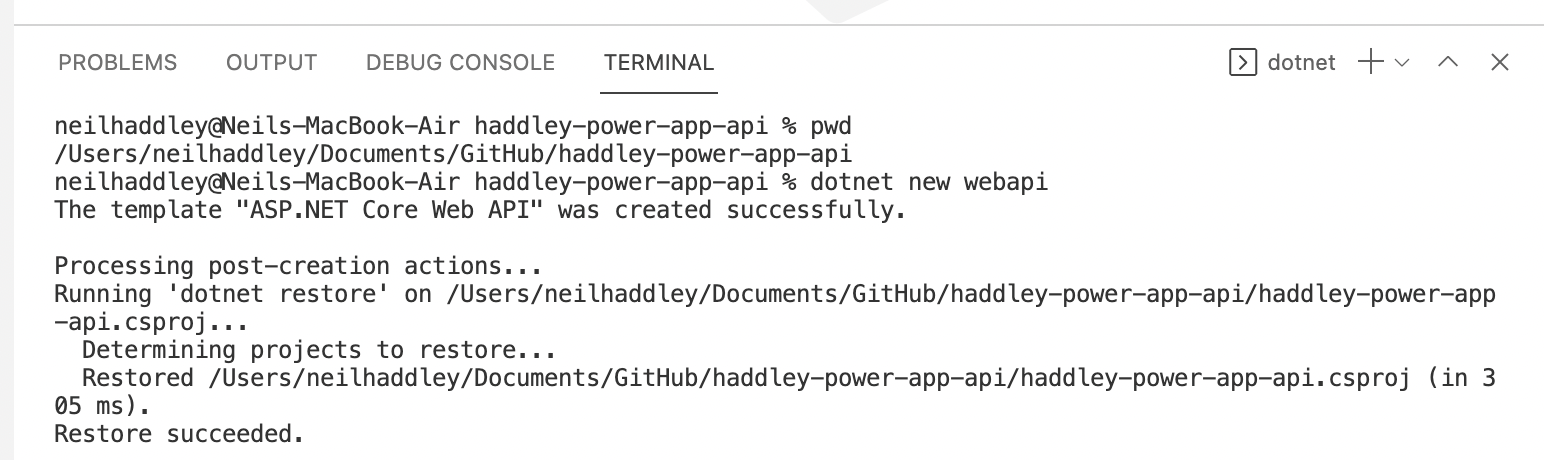

dotnet new webapi

dotnet new webapi

Test the example project code

Create a dotnet project gitignore file:

BASH
1% dotnet new gitignore

Start the project:

BASH
1% dotnet run

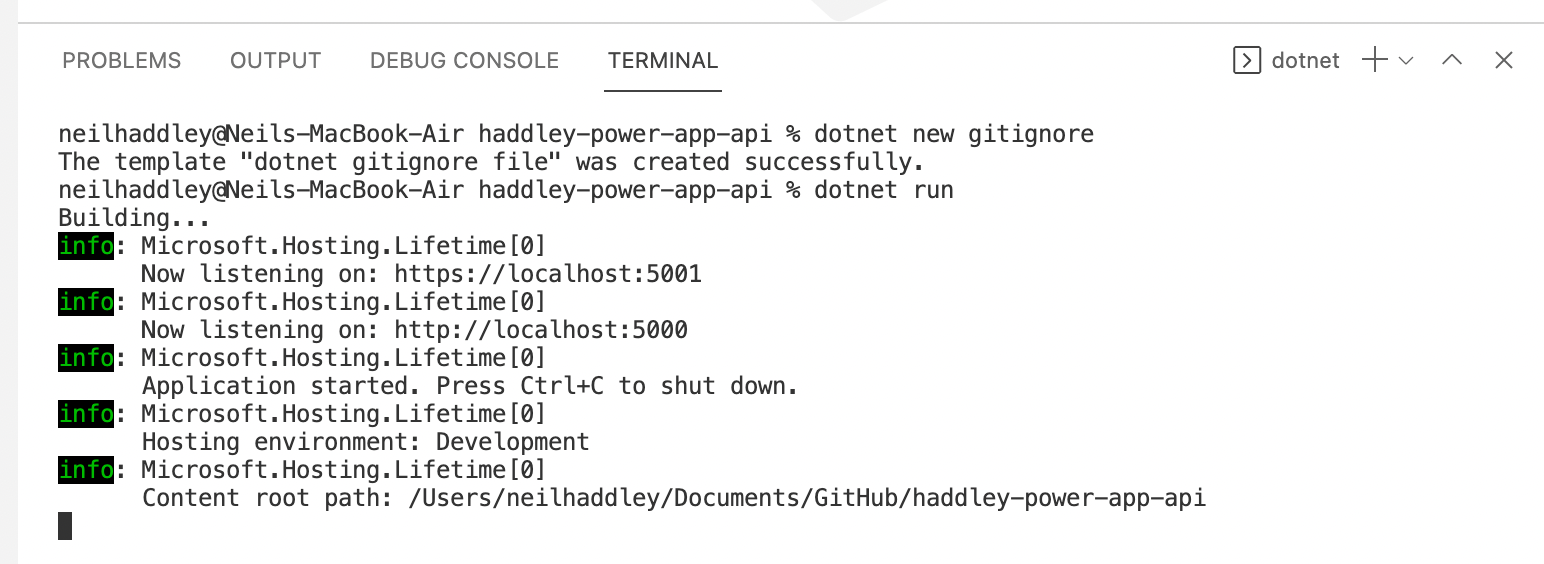

dotnet new gitignore and dotnet run

dotnet new gitignore and dotnet run

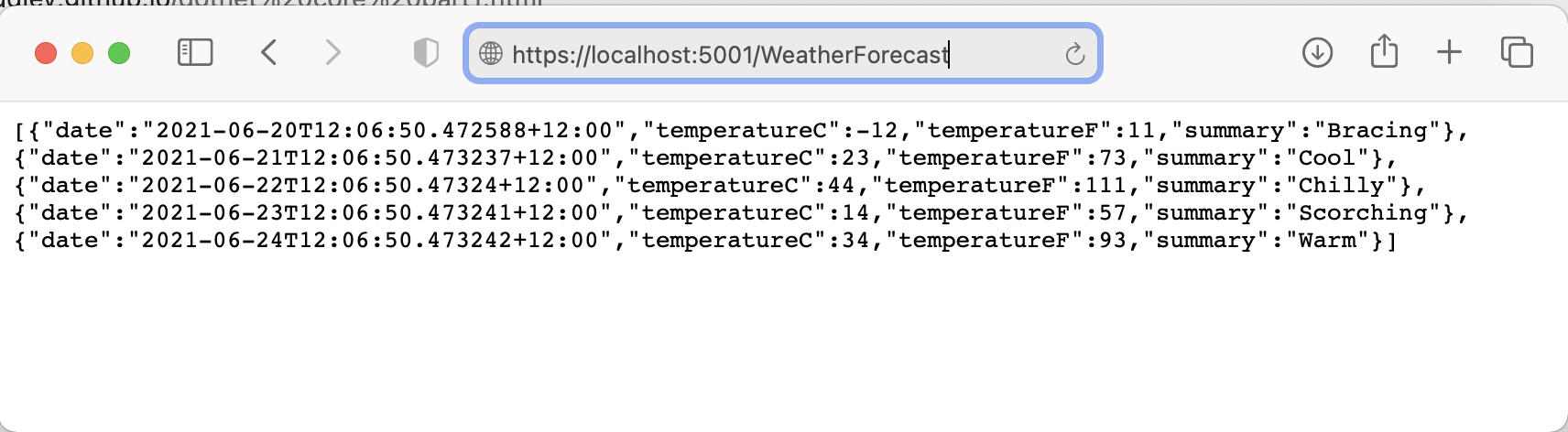

navigate to https://localhost:5001/WeatherForecast

navigate to https://localhost:5001/WeatherForecast

Book class

The Book class include id and title properties

BookController class

The BookController class is able to handle GET, POST, PUT and DELETE actions

Enable Swagger in production

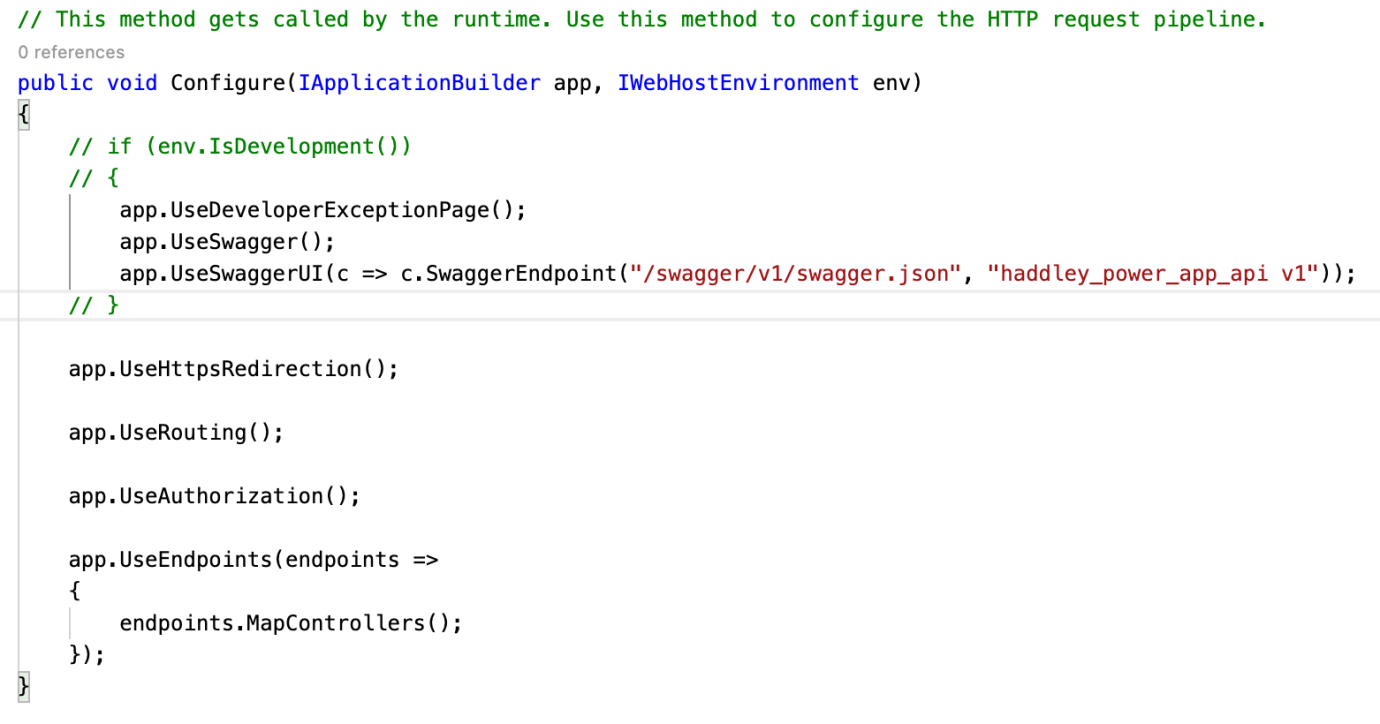

Comment out the if (env.IsDevelopment()) condition to enable Swagger in production (Azure)

comment out the "if (env.IsDevelopement())" code

comment out the "if (env.IsDevelopement())" code

Deploy the updated project code to Azure

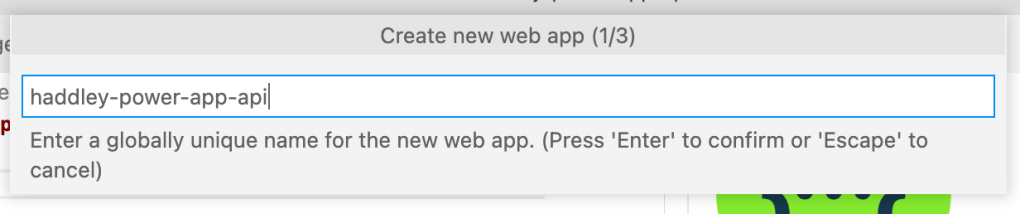

Create new web app.

haddley-power-app-api

haddley-power-app-api

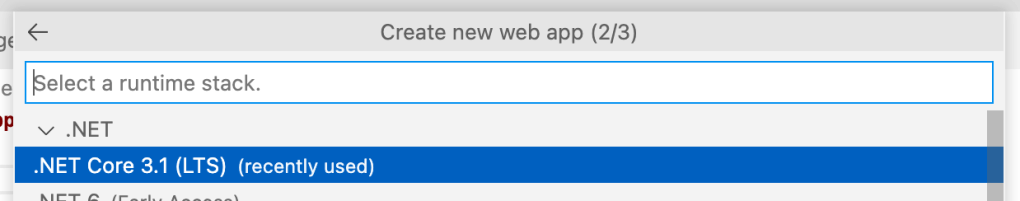

.NET Core 3.1 runtime

.NET Core 3.1 runtime

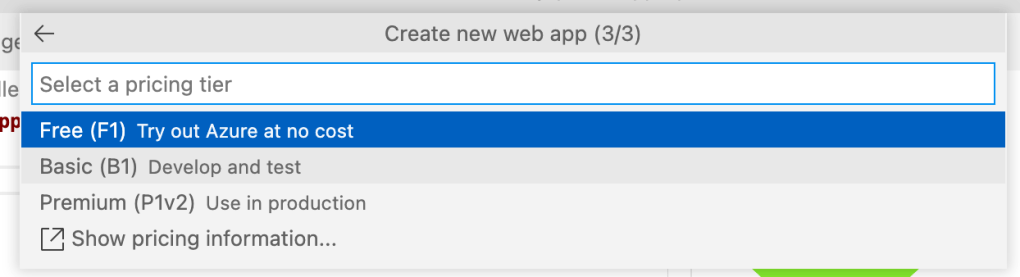

Select pricing tier

Select pricing tier

Deploy the code to the new web app

Deploy the code to the new web app

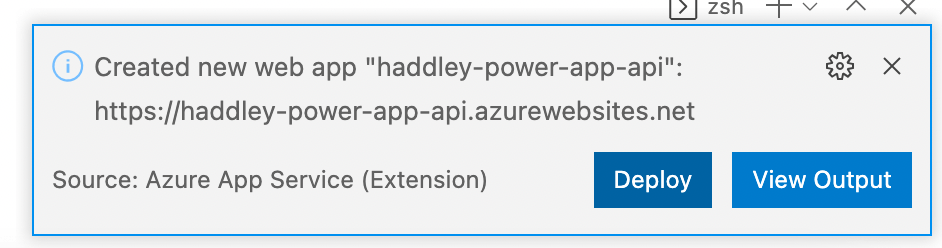

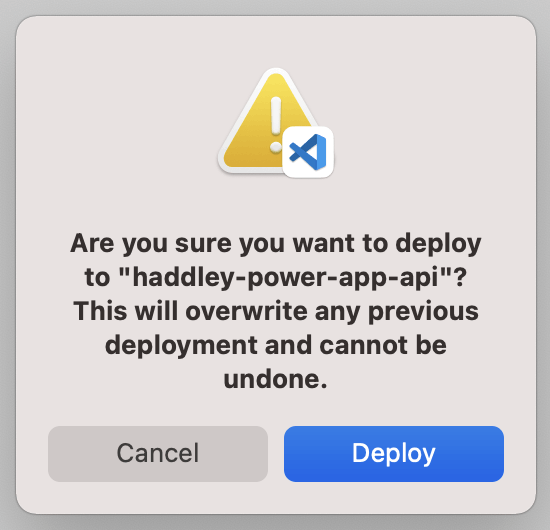

confirm deployment of the code

confirm deployment of the code

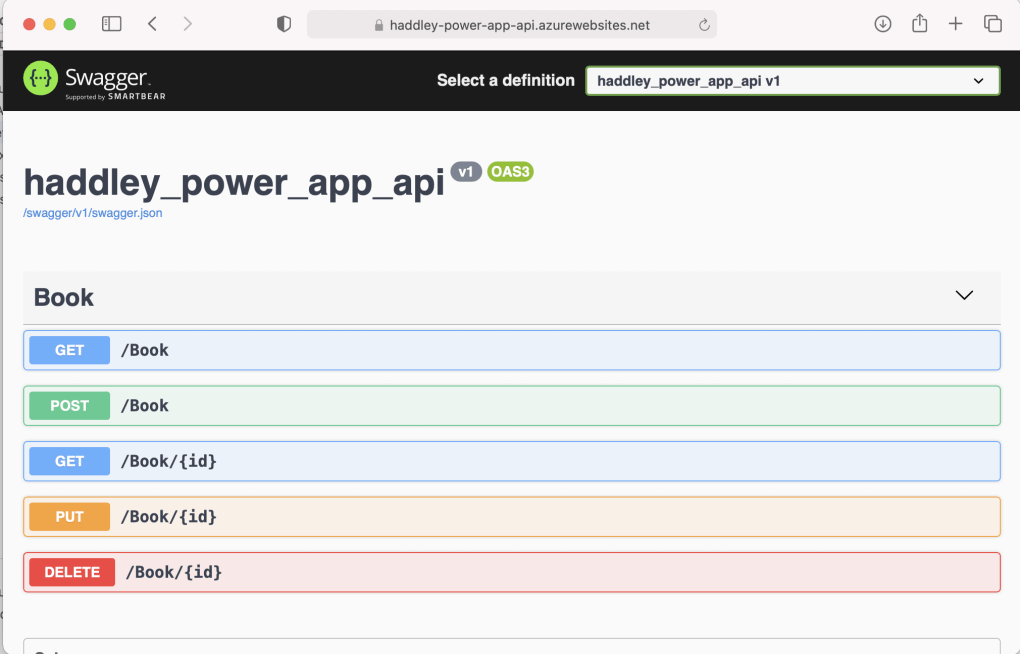

navigate to http://haddley-power-app-api.azurewebsites.net/swagger to see a list of the GET, POST, PUT and DELETE actions

navigate to http://haddley-power-app-api.azurewebsites.net/swagger to see a list of the GET, POST, PUT and DELETE actions

Use the Swagger user interface to test the API

In three steps:

Get the books

Add a book

Get the books (list should now include the *new* book)

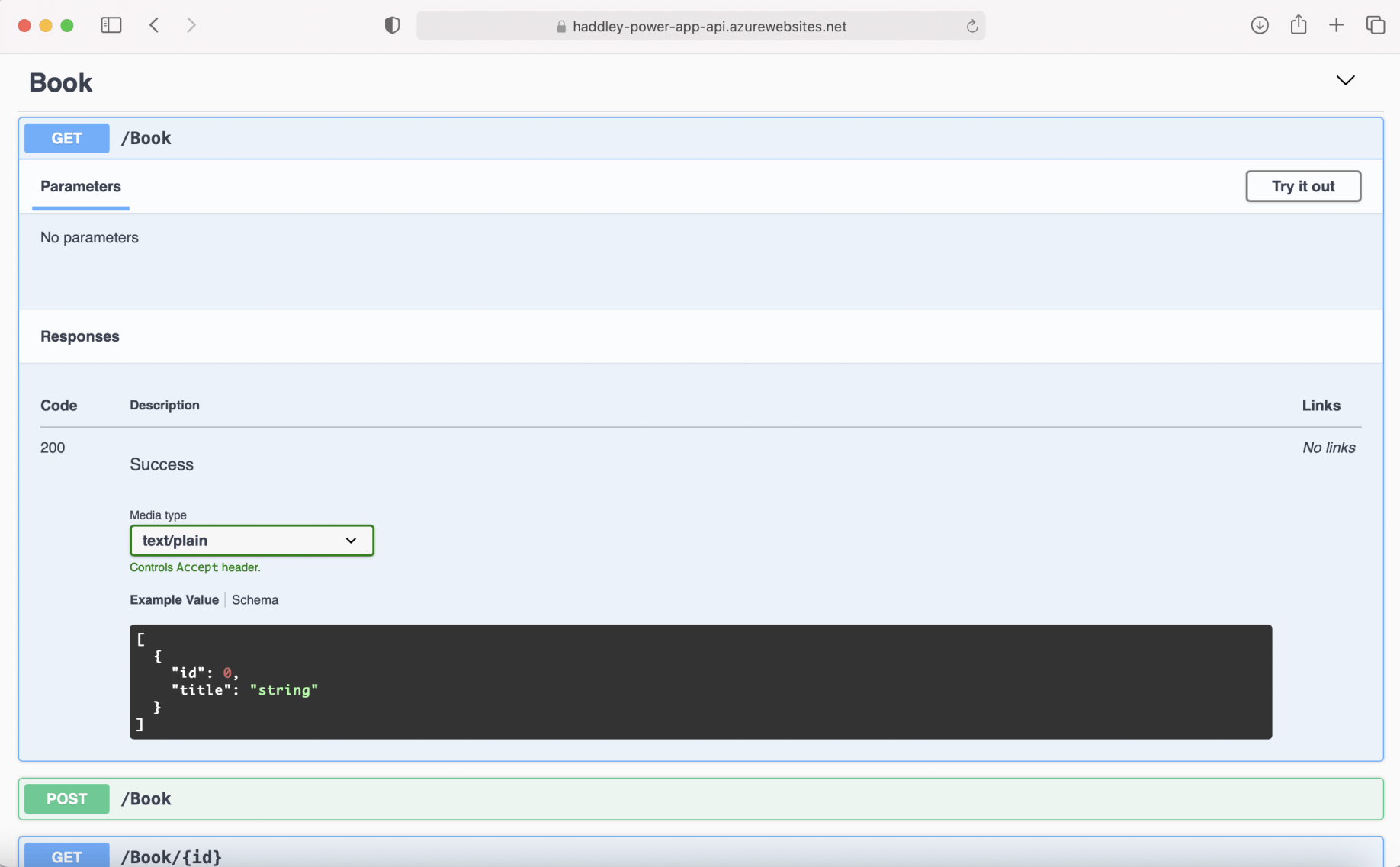

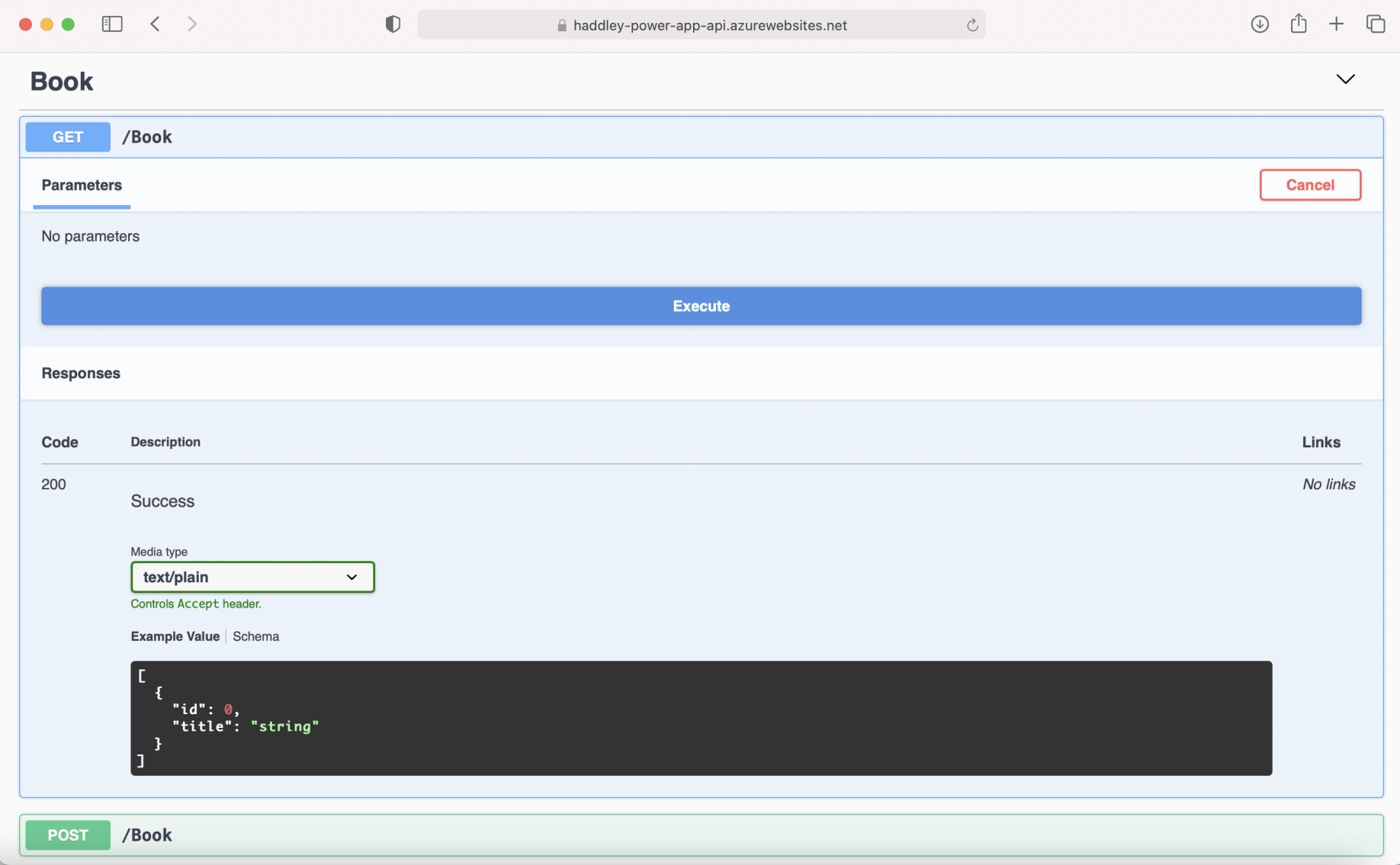

Expand the GET /Book action

Expand the GET /Book action

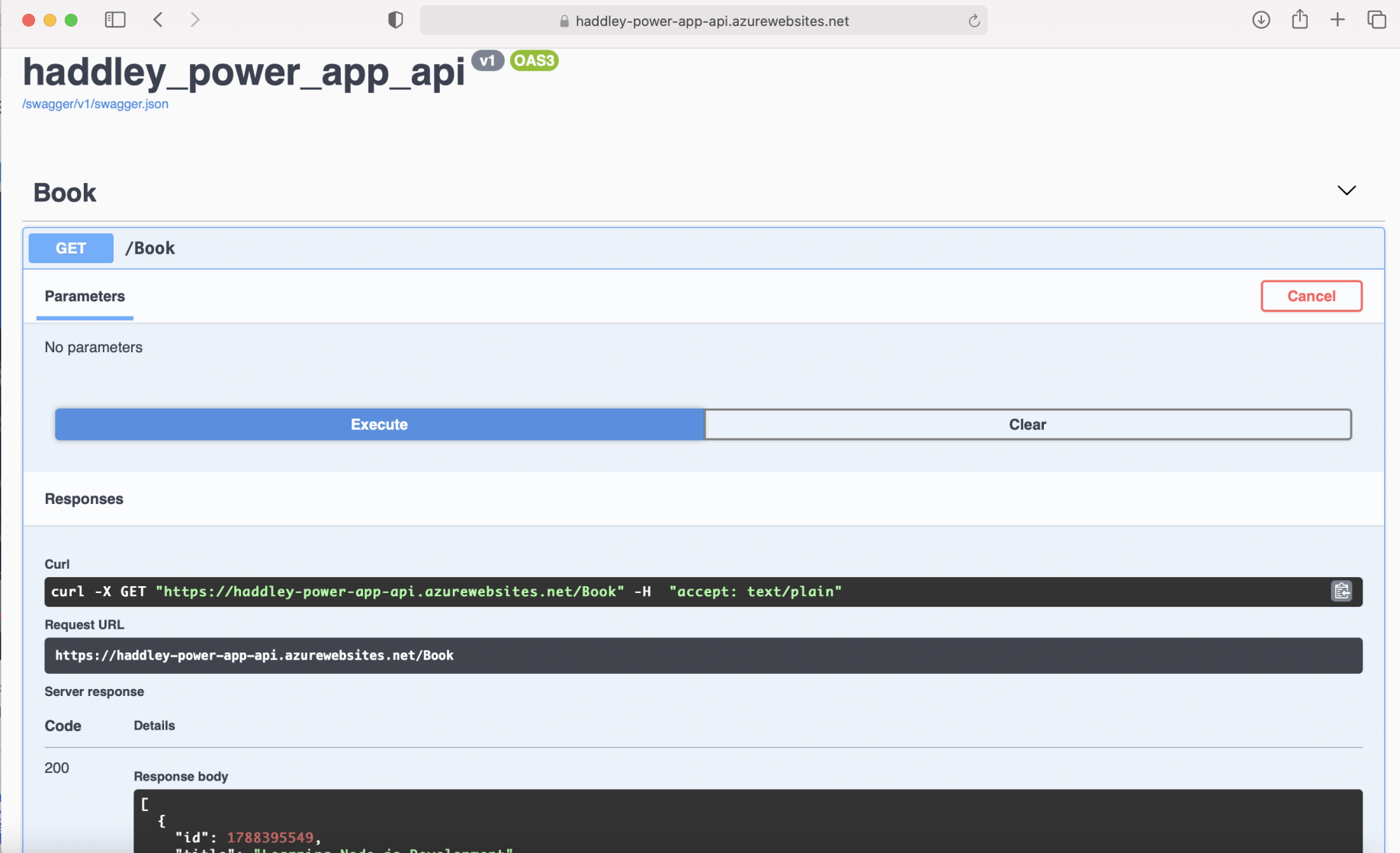

execute the GET /Book action

execute the GET /Book action

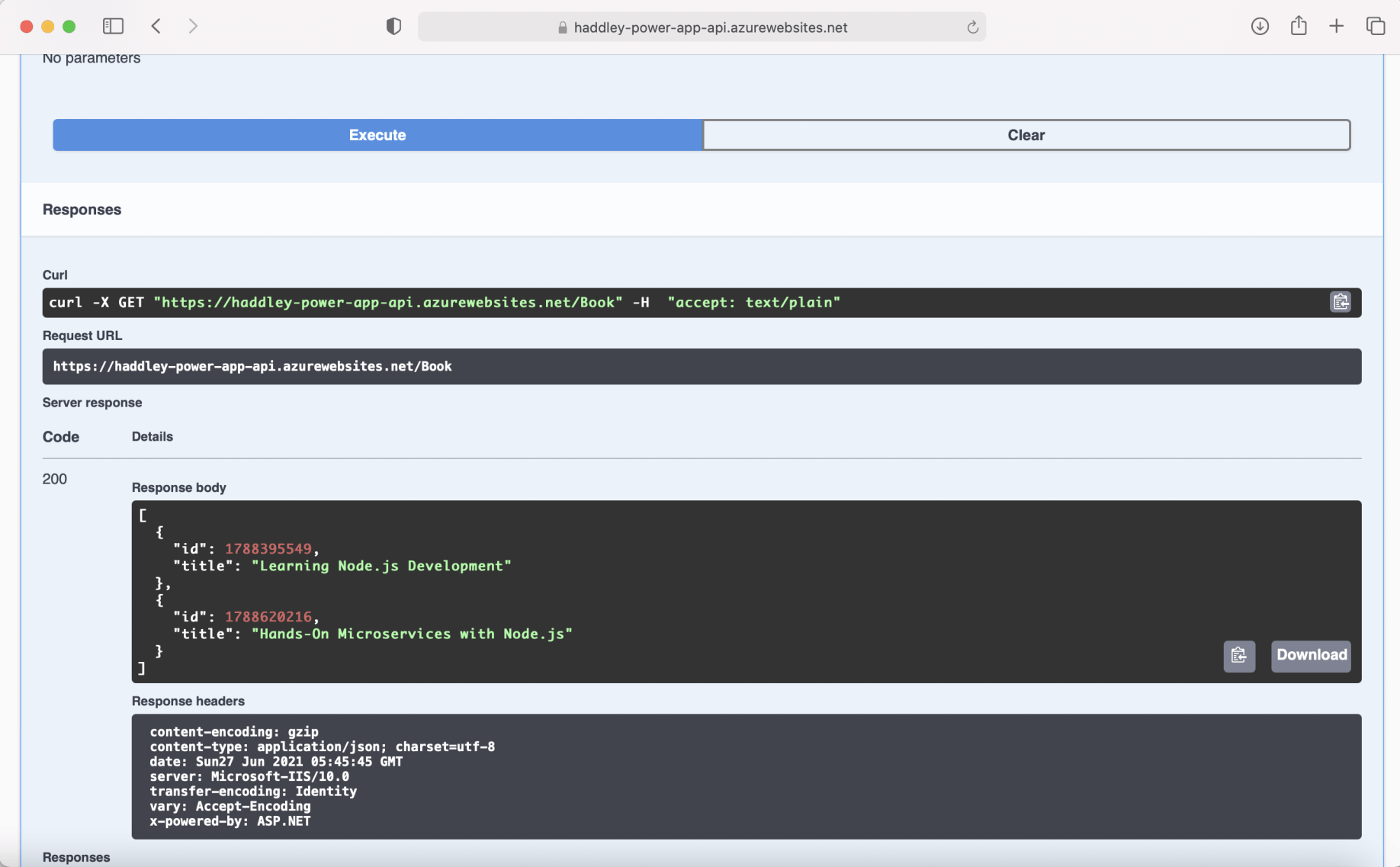

Review the server response

Review the server response

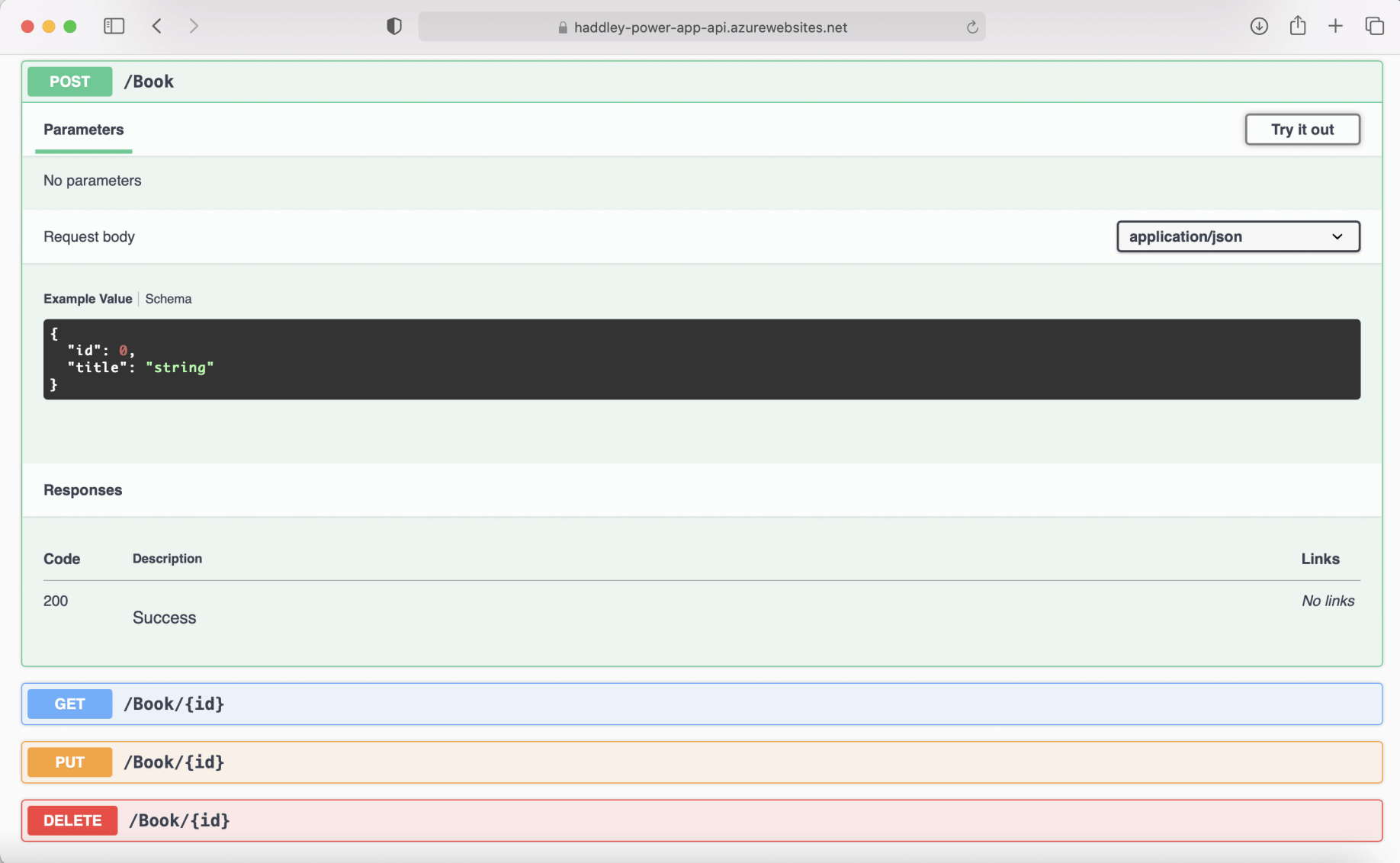

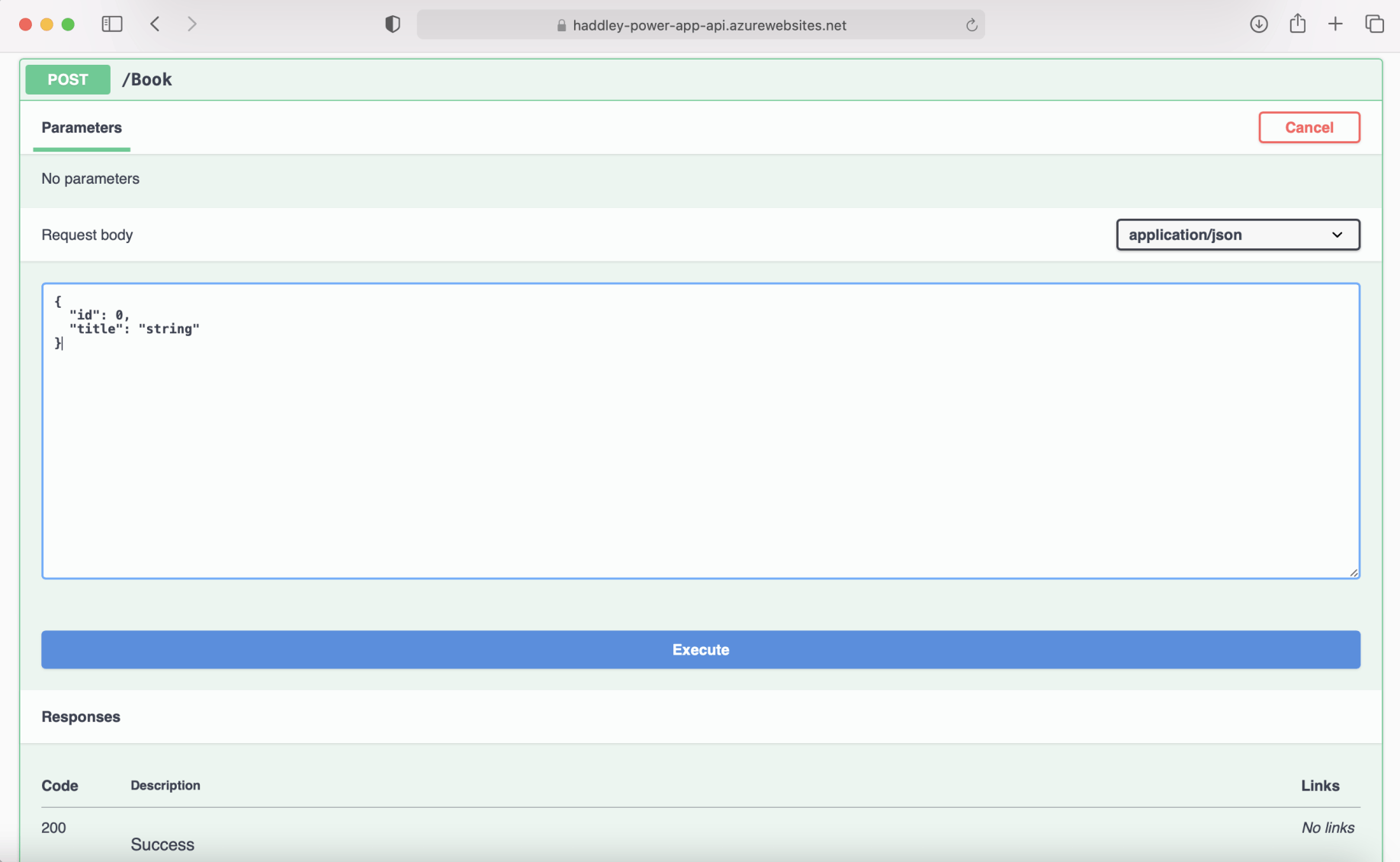

Expand the POST /Book action

Expand the POST /Book action

Update the request body

Update the request body

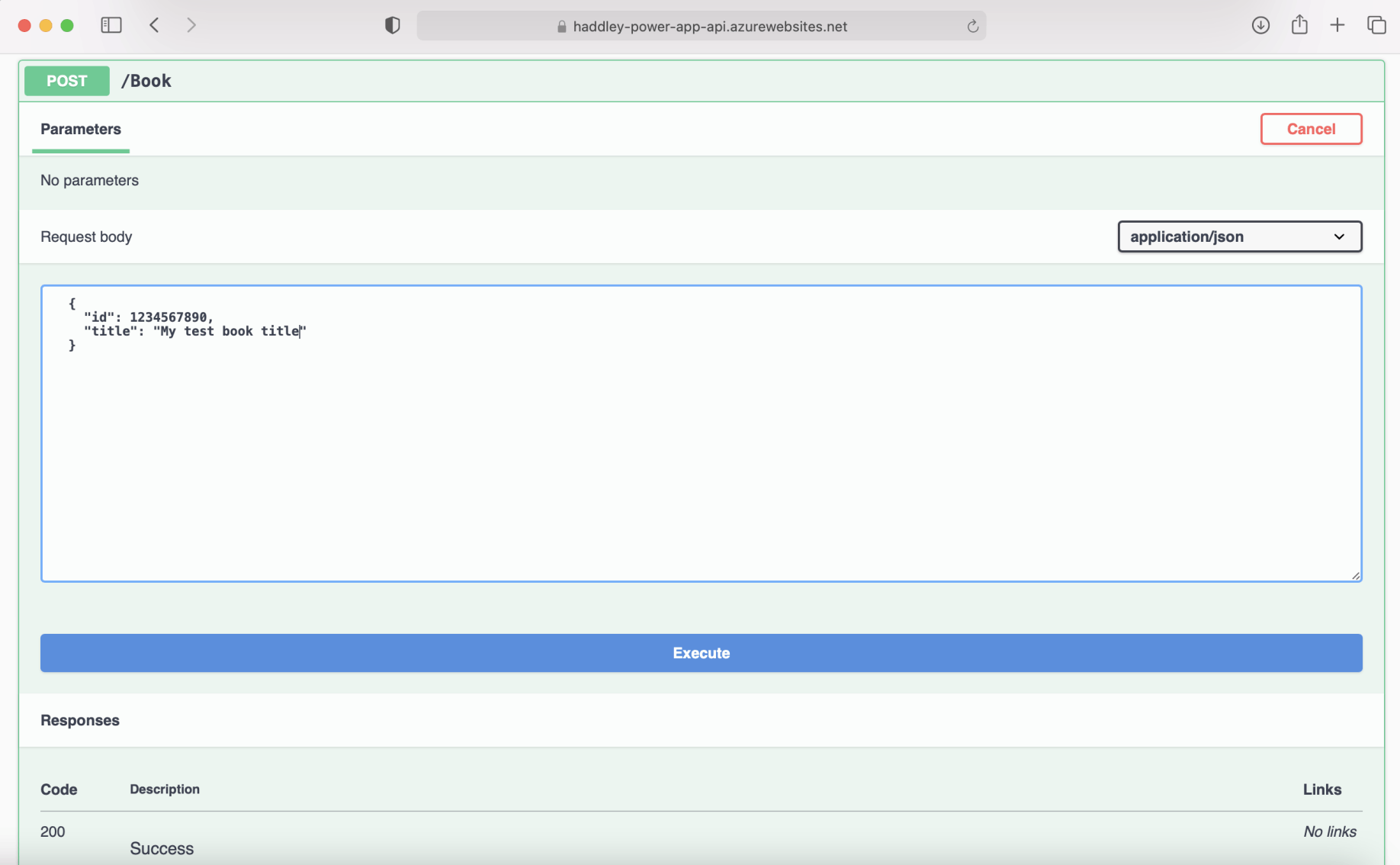

Execute the POST /Book action using the Request body

Execute the POST /Book action using the Request body

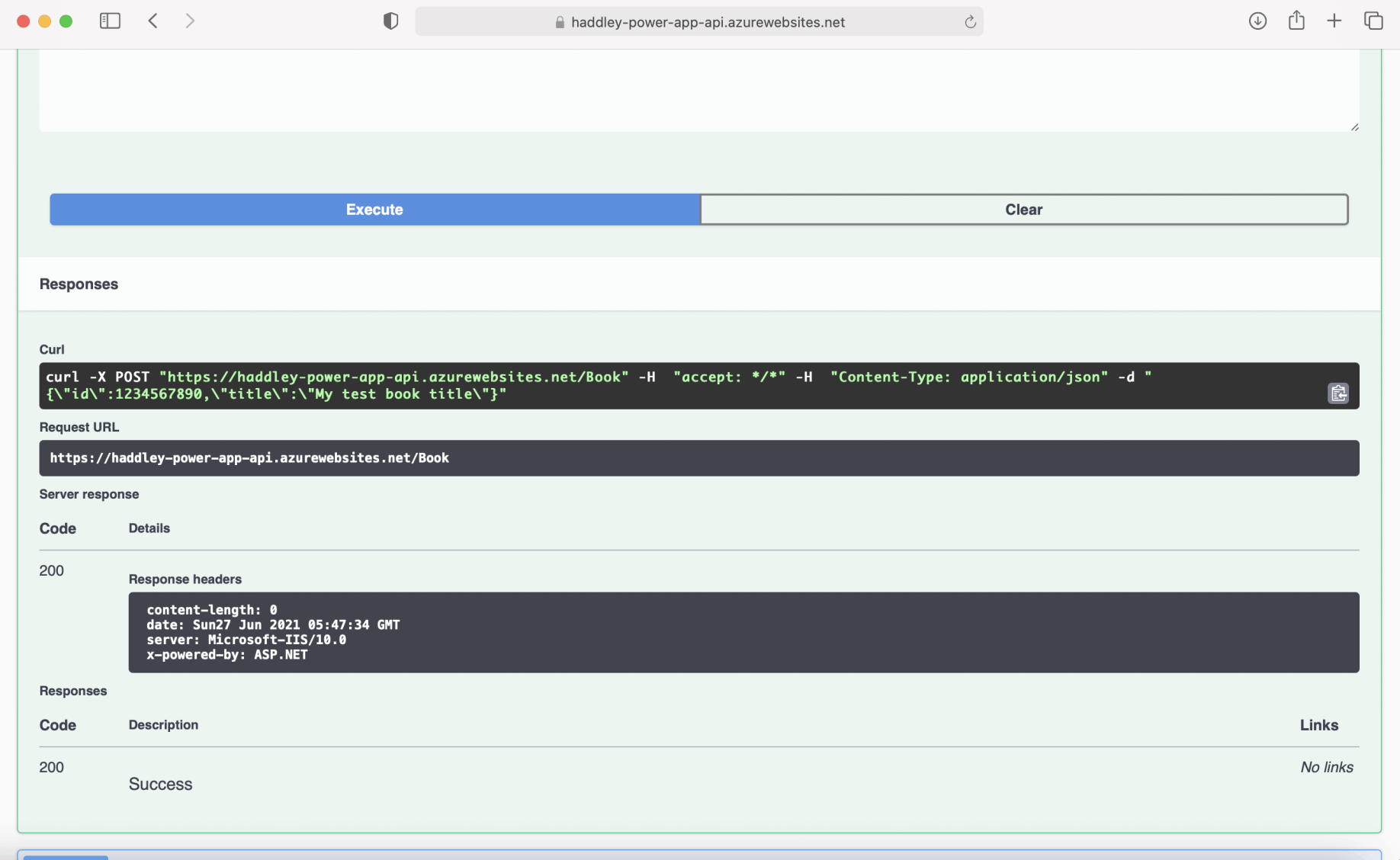

Review the Server response

Review the Server response

Execute the GET /Book action

Execute the GET /Book action

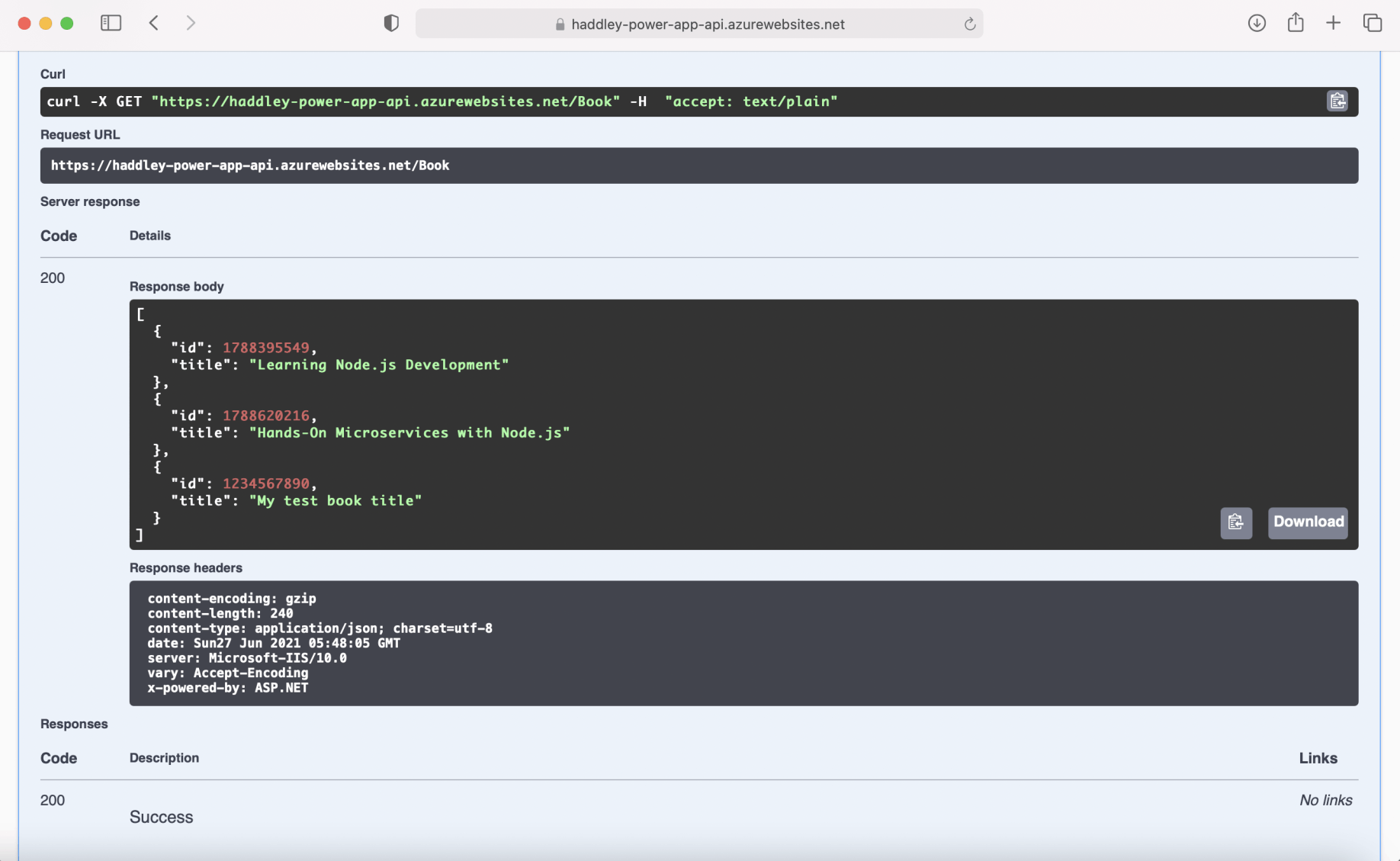

Review the Server response

Review the Server response

API description

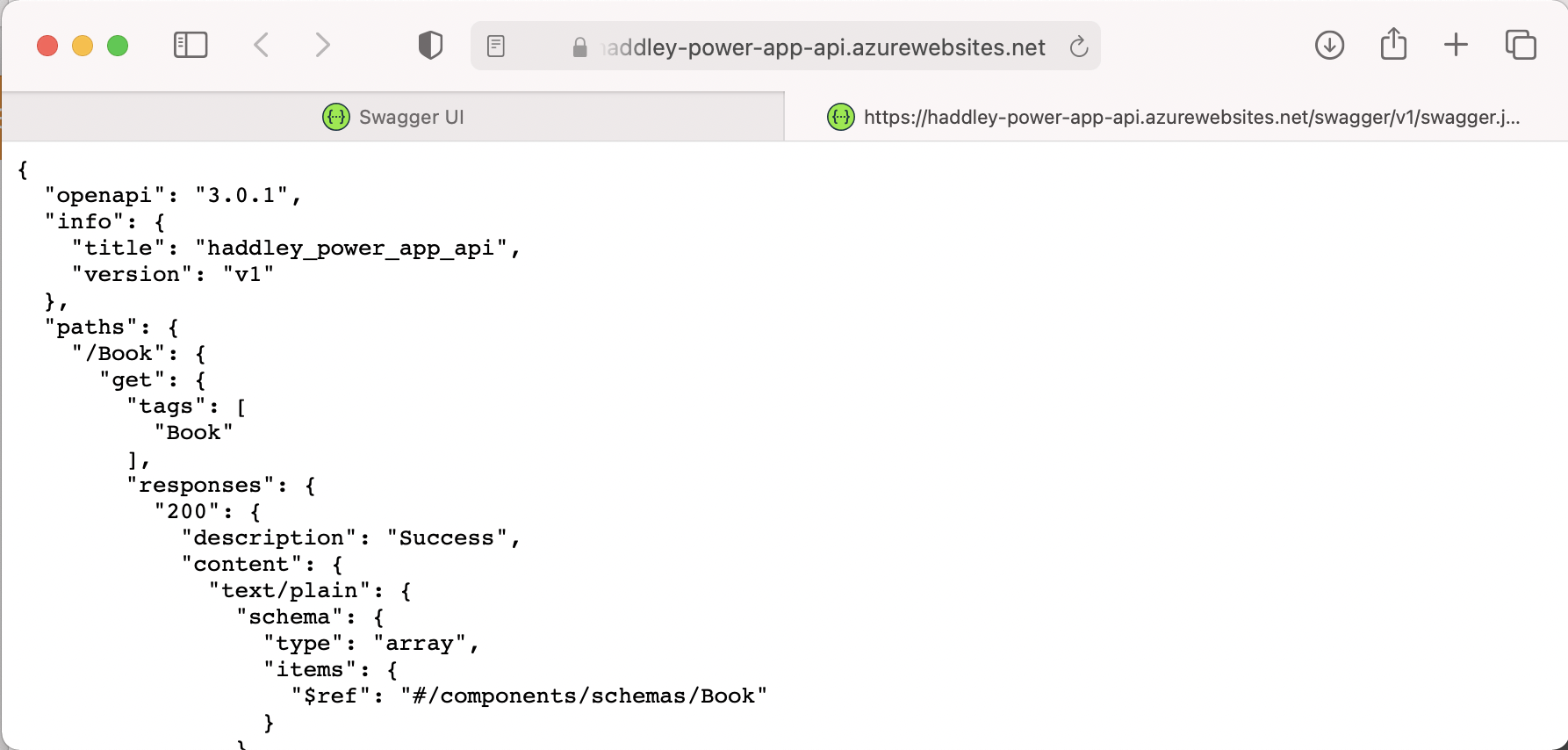

Click the "/swagger/v1/swagger.json" link to review a description of the API.

Export/Save the API description (openapi version 3 format)

Export/Save the API description (openapi version 3 format)

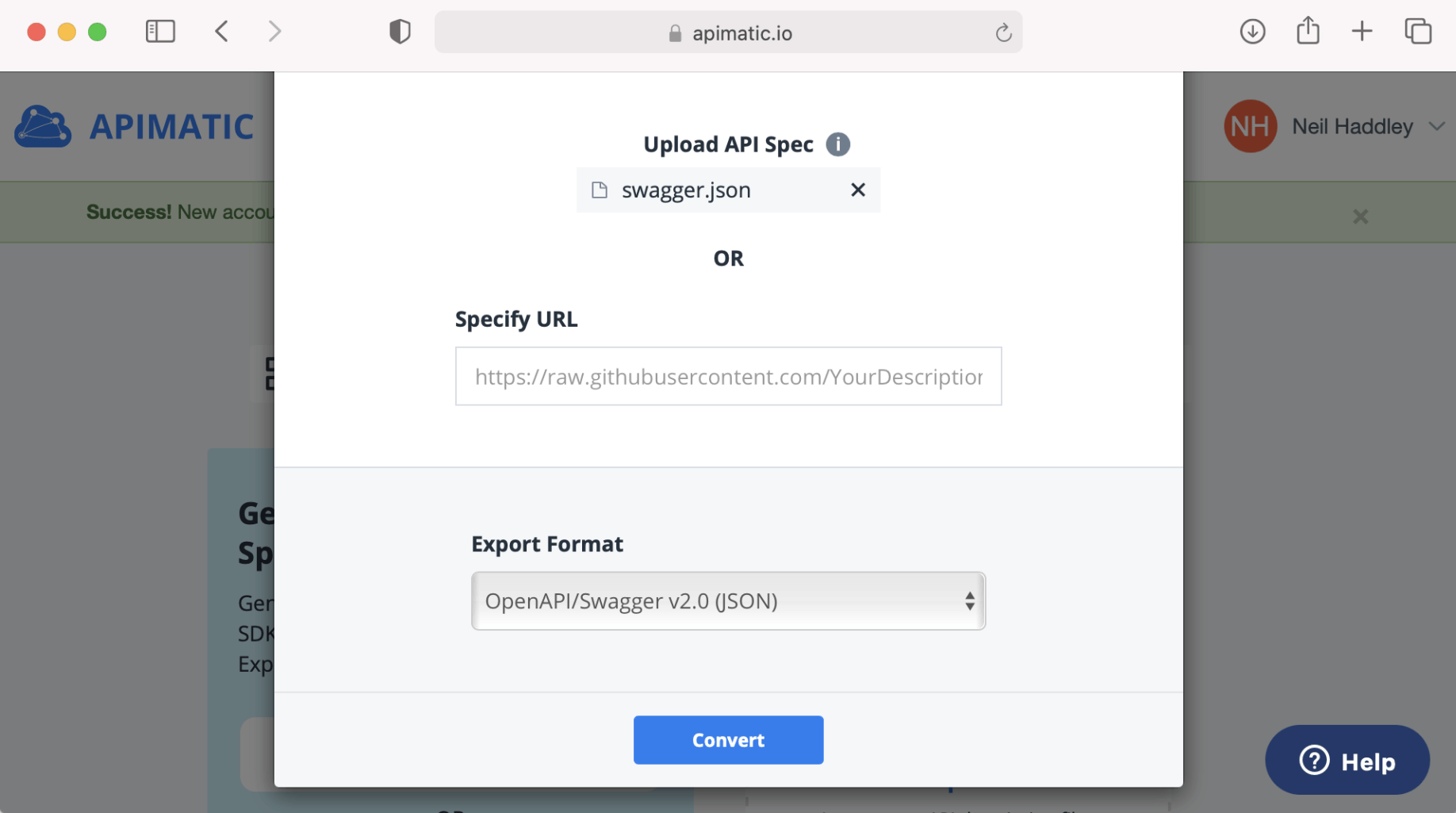

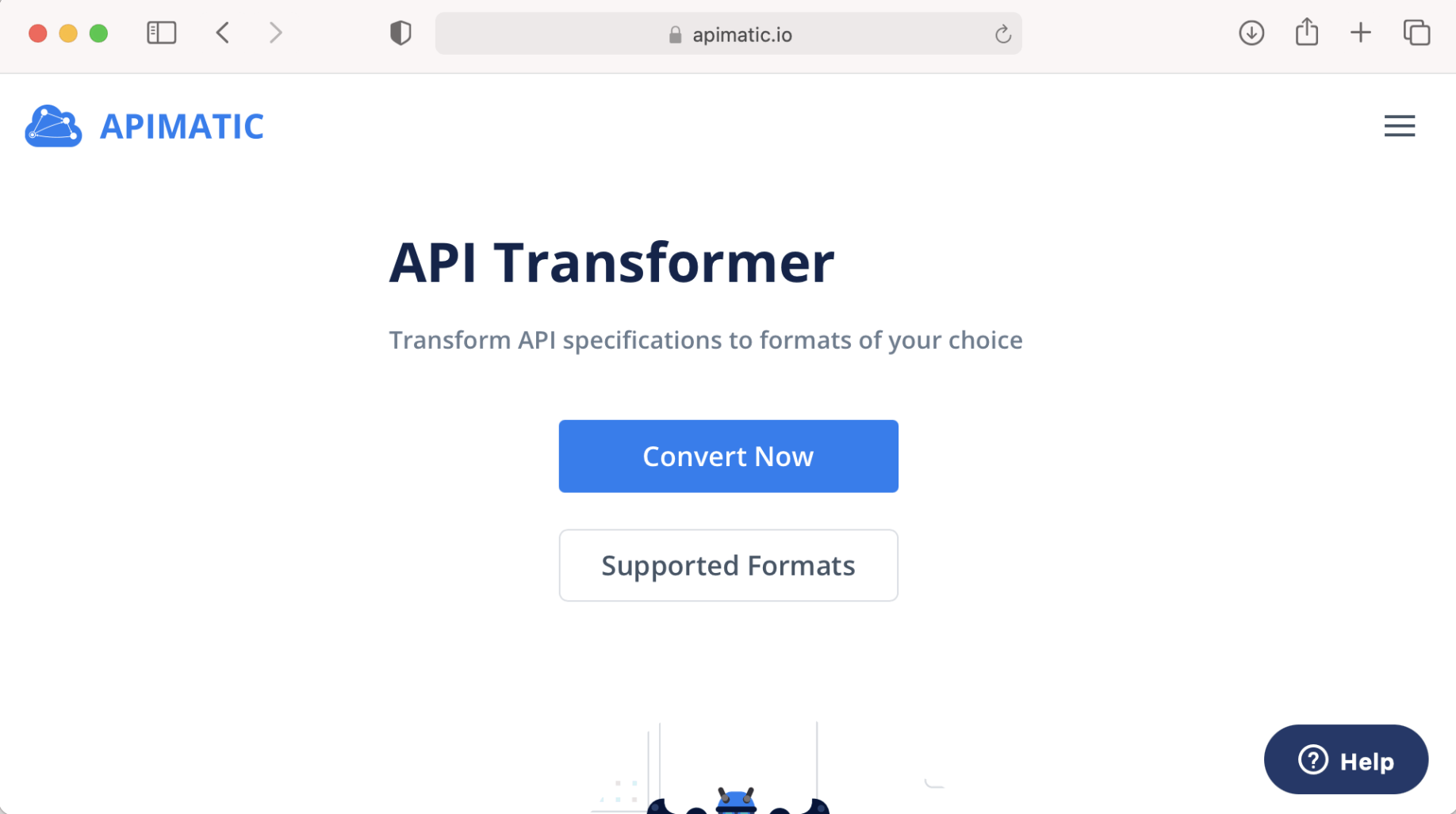

Upload the API description to API Transformer

Upload the API description to API Transformer

Download the API description (openapi version 2 format)

Download the API description (openapi version 2 format)

New custom connector

Navigate to make.powerapps.com and select the "Custom Connectors" menu item.

Click the "+ New custom connector" button.

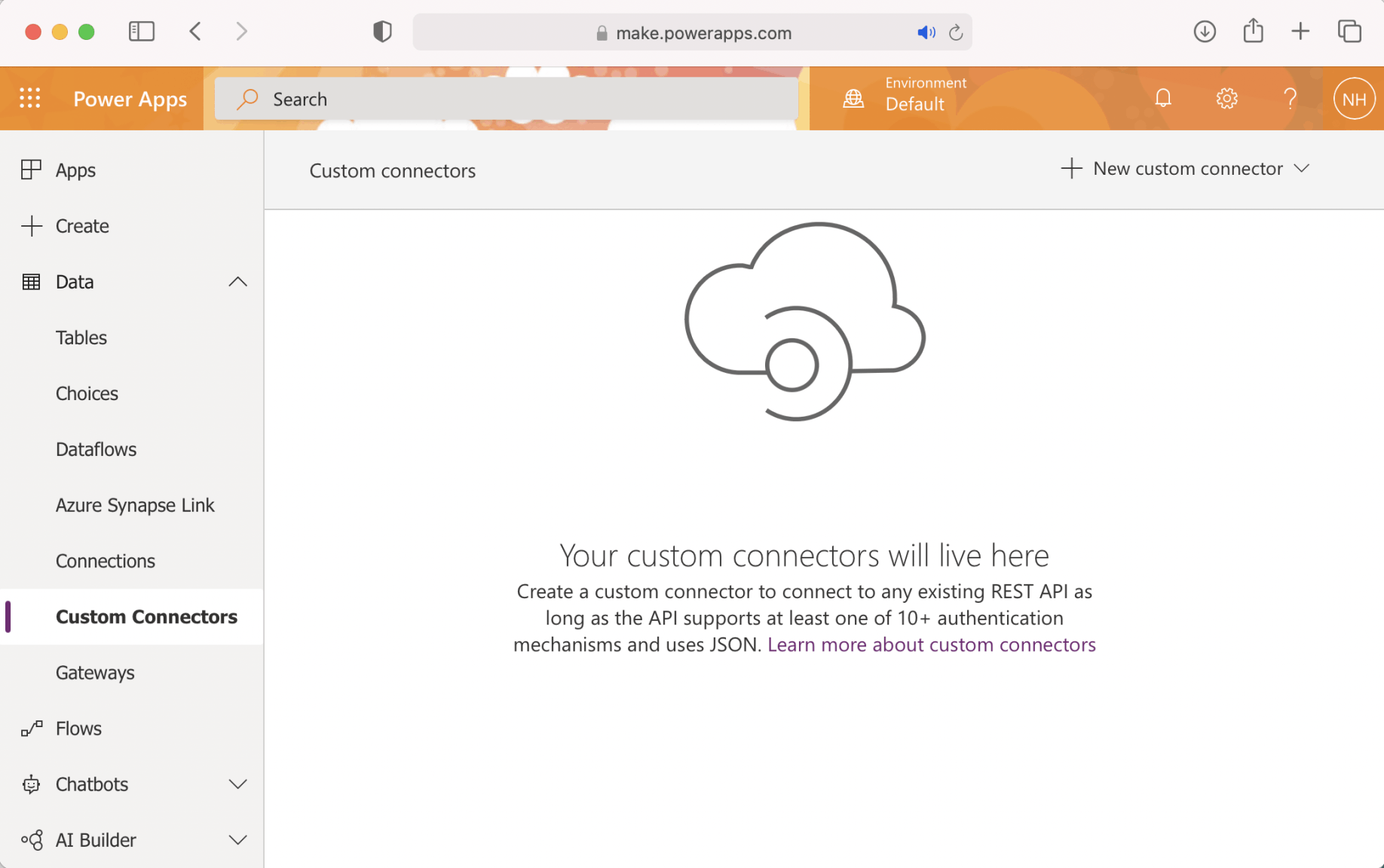

Custom Connectors

Custom Connectors

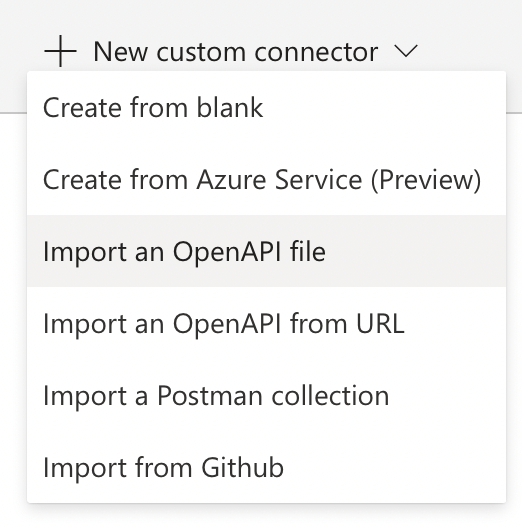

Select the Import an OpenAPI file option

Select the Import an OpenAPI file option

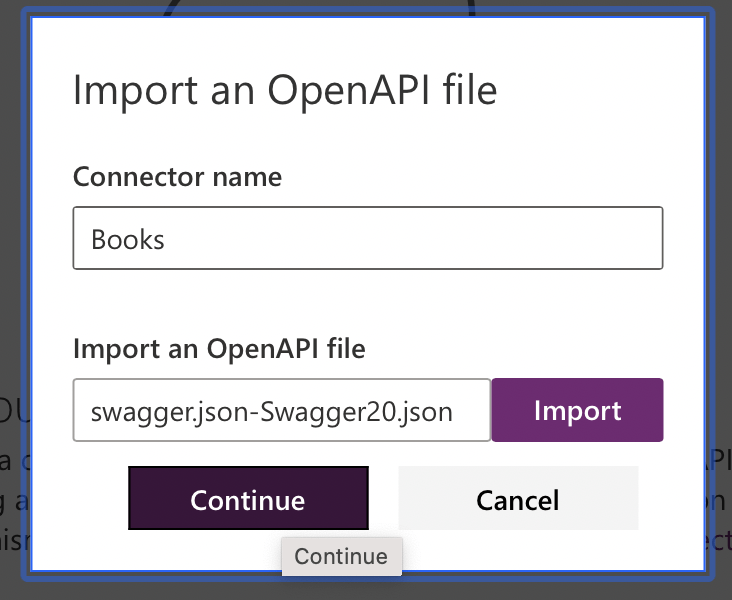

Import the API description (openapi version 2)

Import the API description (openapi version 2)

Books

Books

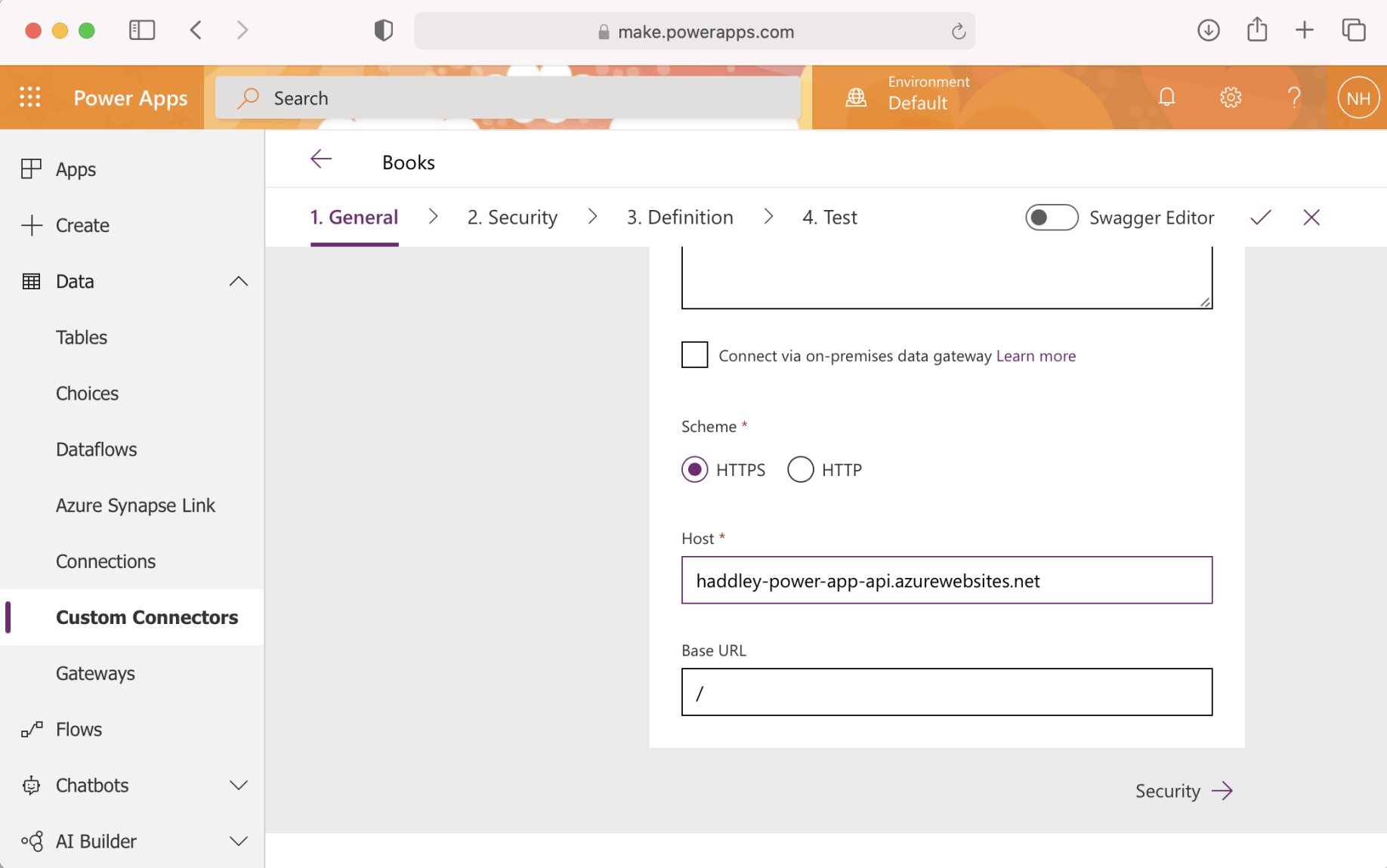

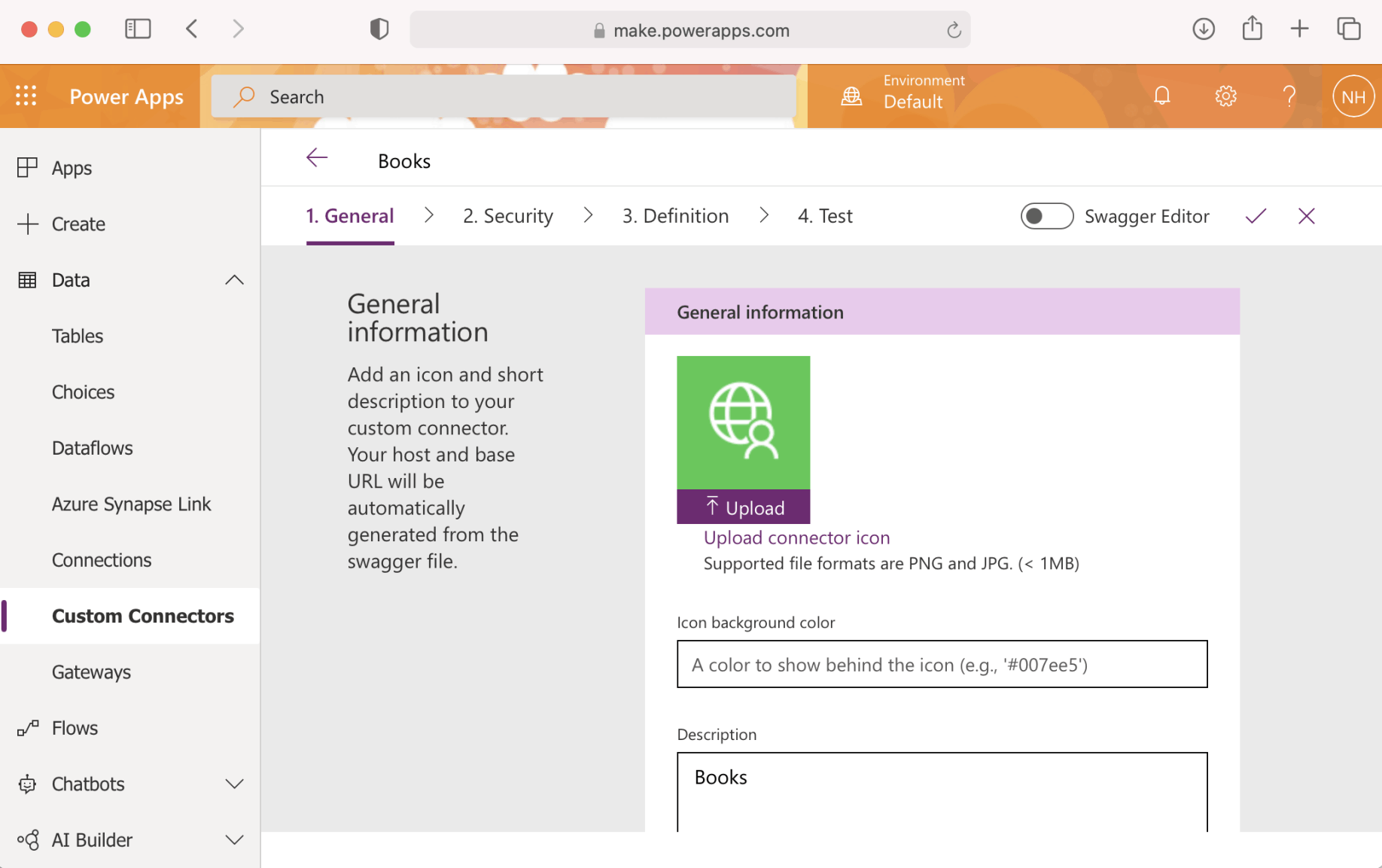

Review the General settings

Review the General settings

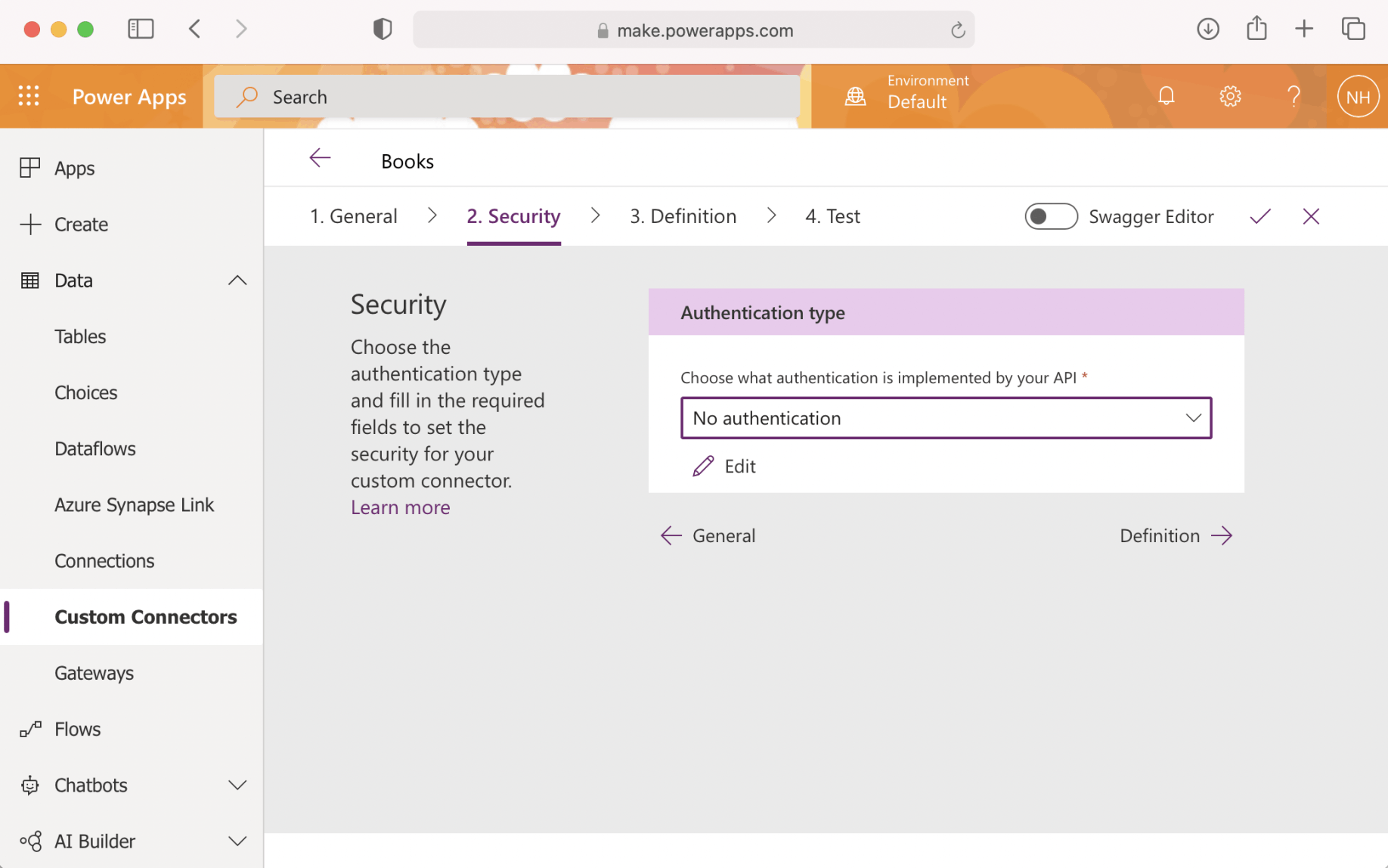

Select "No Authentication" (for now)

Select "No Authentication" (for now)

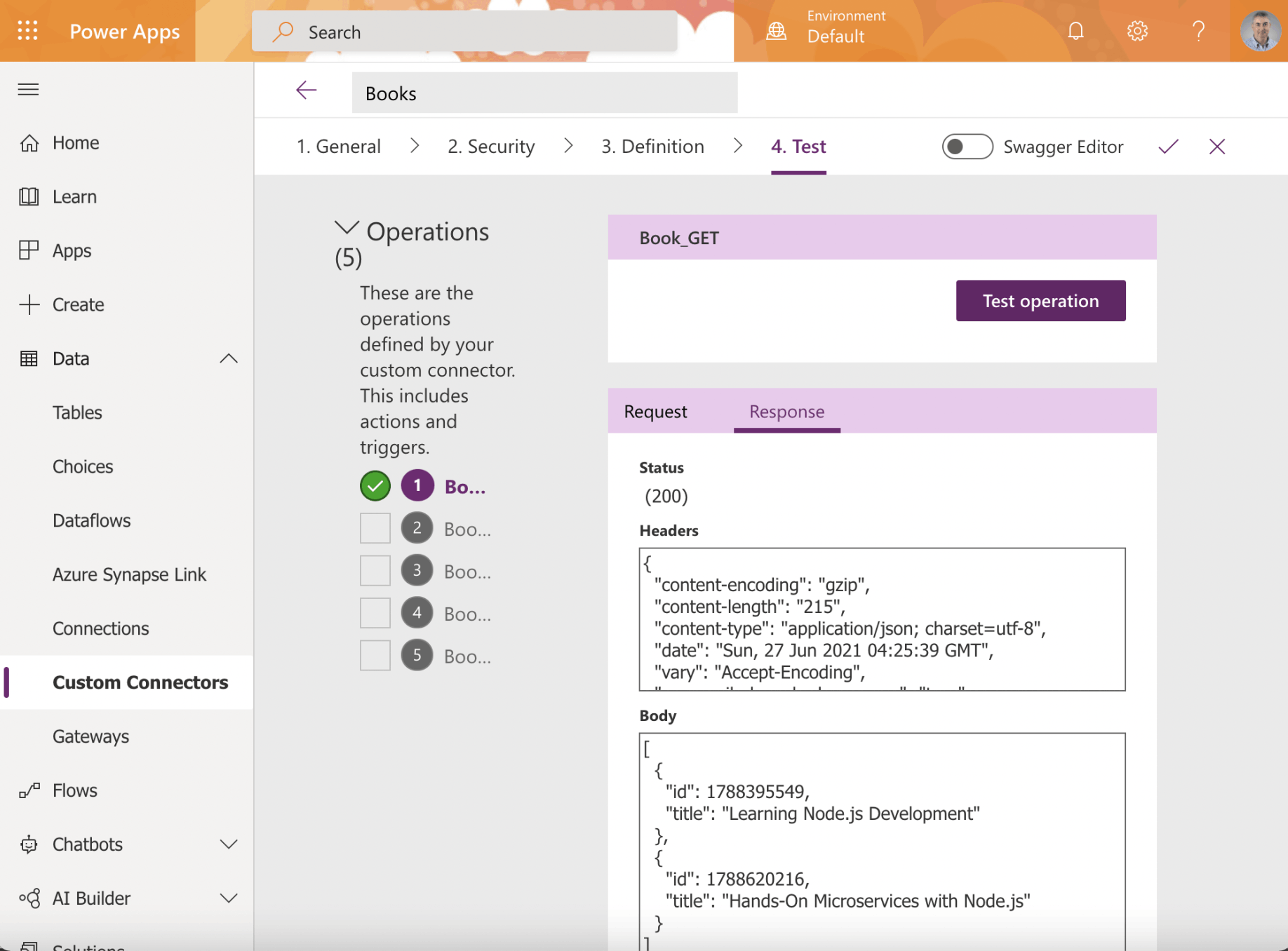

Test the Book related actions

Test the Book related actions

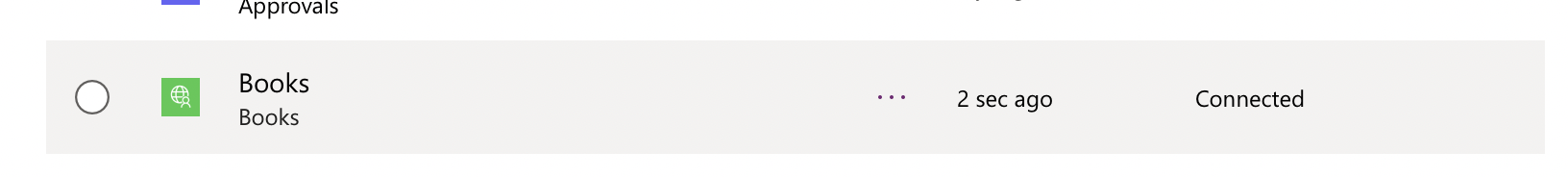

Books Custom Connector

Books Custom Connector

swagger.json-Swagger20.json

JSON
1{
2  "swagger": "2.0",
3  "info": {
4    "version": "v1",
5    "title": "haddley_power_app_api",
6    "contact": {}
7  },
8  "host": "www.example.com",
9  "basePath": "/",
10  "schemes": [
11    "https"
12  ],
13  "consumes": [
14    "application/json"
15  ],
16  "produces": [
17    "application/json"
18  ],
19  "paths": {
20    "/Book": {
21      "get": {
22        "description": "",
23        "summary": "Book_GET",
24        "tags": [
25          "Book"
26        ],
27        "operationId": "Book_GET",
28        "deprecated": false,
29        "produces": [
30          "text/plain",
31          "application/json",
32          "text/json"
33        ],
34        "parameters": [],
35        "responses": {
36          "200": {
37            "description": "Success",
38            "schema": {
39              "type": "array",
40              "items": {
41                "$ref": "#/definitions/Book"
42              }
43            },
44            "headers": {}
45          }
46        }
47      },
48      "post": {
49        "description": "",
50        "summary": "Book_POST",
51        "tags": [
52          "Book"
53        ],
54        "operationId": "Book_POST",
55        "deprecated": false,
56        "produces": [
57          "application/json"
58        ],
59        "consumes": [
60          "application/json"
61        ],
62        "parameters": [
63          {
64            "name": "body",
65            "in": "body",
66            "required": false,
67            "description": "",
68            "schema": {
69              "$ref": "#/definitions/Book"
70            }
71          }
72        ],
73        "responses": {
74          "200": {
75            "description": "Success",
76            "headers": {}
77          }
78        }
79      }
80    },
81    "/Book/{id}": {
82      "get": {
83        "description": "",
84        "summary": "BookById_GET",
85        "tags": [
86          "Book"
87        ],
88        "operationId": "BookById_GET",
89        "deprecated": false,
90        "produces": [
91          "text/plain",
92          "application/json",
93          "text/json"
94        ],
95        "parameters": [
96          {
97            "name": "id",
98            "in": "path",
99            "required": true,
100            "type": "integer",
101            "format": "int64",
102            "description": ""
103          }
104        ],
105        "responses": {
106          "200": {
107            "description": "Success",
108            "schema": {
109              "$ref": "#/definitions/Book"
110            },
111            "headers": {}
112          }
113        }
114      },
115      "put": {
116        "description": "",
117        "summary": "BookById_PUT",
118        "tags": [
119          "Book"
120        ],
121        "operationId": "BookById_PUT",
122        "deprecated": false,
123        "produces": [
124          "application/json"
125        ],
126        "consumes": [
127          "application/json"
128        ],
129        "parameters": [
130          {
131            "name": "id",
132            "in": "path",
133            "required": true,
134            "type": "integer",
135            "format": "int64",
136            "description": ""
137          },
138          {
139            "name": "body",
140            "in": "body",
141            "required": false,
142            "description": "",
143            "schema": {
144              "$ref": "#/definitions/Book"
145            }
146          }
147        ],
148        "responses": {
149          "200": {
150            "description": "Success",
151            "headers": {}
152          }
153        }
154      },
155      "delete": {
156        "description": "",
157        "summary": "BookById_DELETE",
158        "tags": [
159          "Book"
160        ],
161        "operationId": "BookById_DELETE",
162        "deprecated": false,
163        "produces": [
164          "application/json"
165        ],
166        "parameters": [
167          {
168            "name": "id",
169            "in": "path",
170            "required": true,
171            "type": "integer",
172            "format": "int64",
173            "description": ""
174          }
175        ],
176        "responses": {
177          "200": {
178            "description": "Success",
179            "headers": {}
180          }
181        }
182      }
183    }
184  },
185  "definitions": {
186    "Book": {
187      "title": "Book",
188      "type": "object",
189      "properties": {
190        "id": {
191          "type": "integer",
192          "format": "int64"
193        },
194        "title": {
195          "type": "string"
196        }
197      }
198    }
199  },
200  "tags": [
201    {
202      "name": "Book",
203      "description": ""
204    }
205  ]
206}
