Microsoft Power Automate Reports

Neil HaddleyJuly 19, 2024

A Flow that emails a Report

Creating a Flow that emails a Report as a PDF file

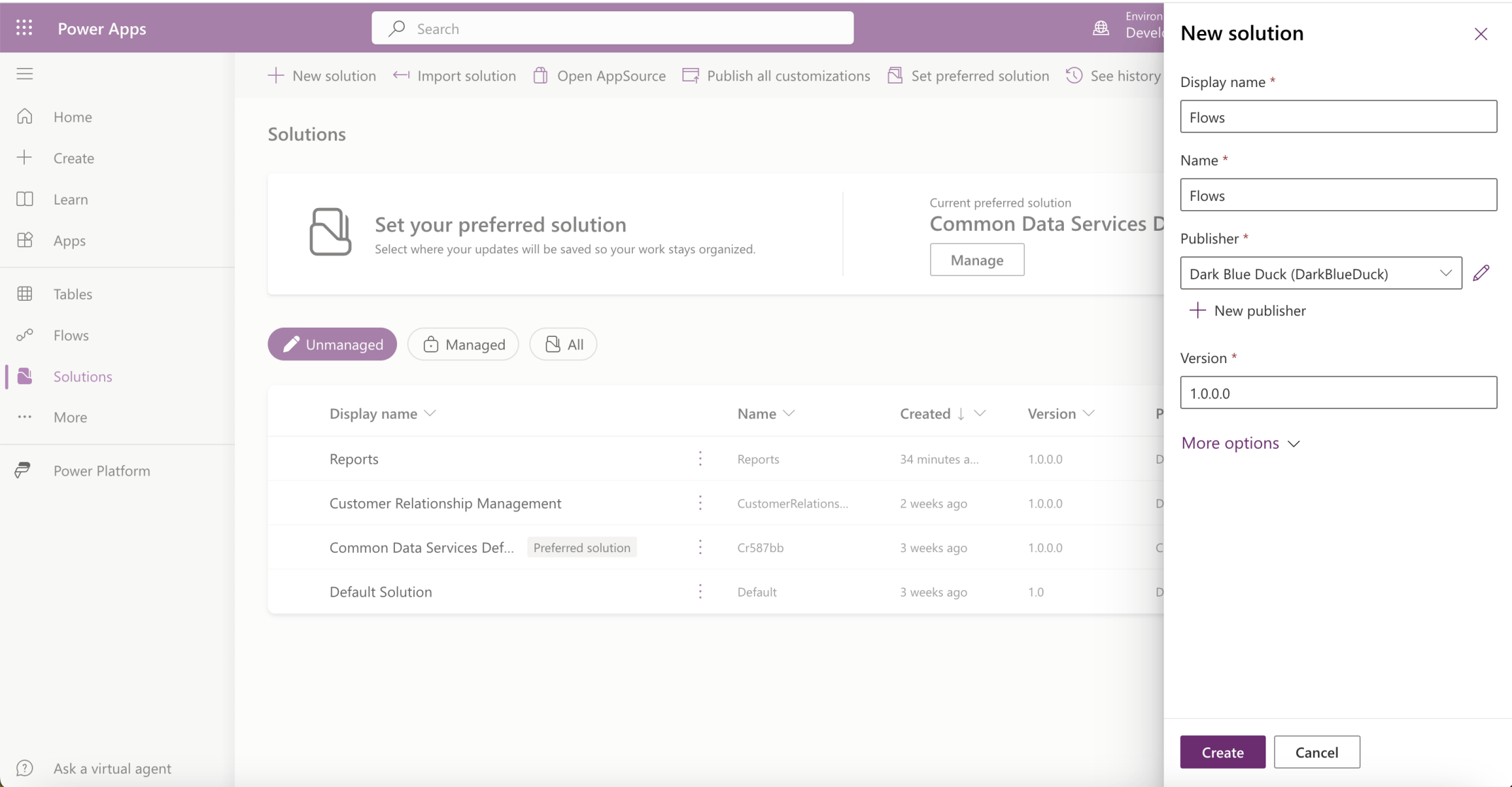

I created a Flows solution

I created a Flows solution

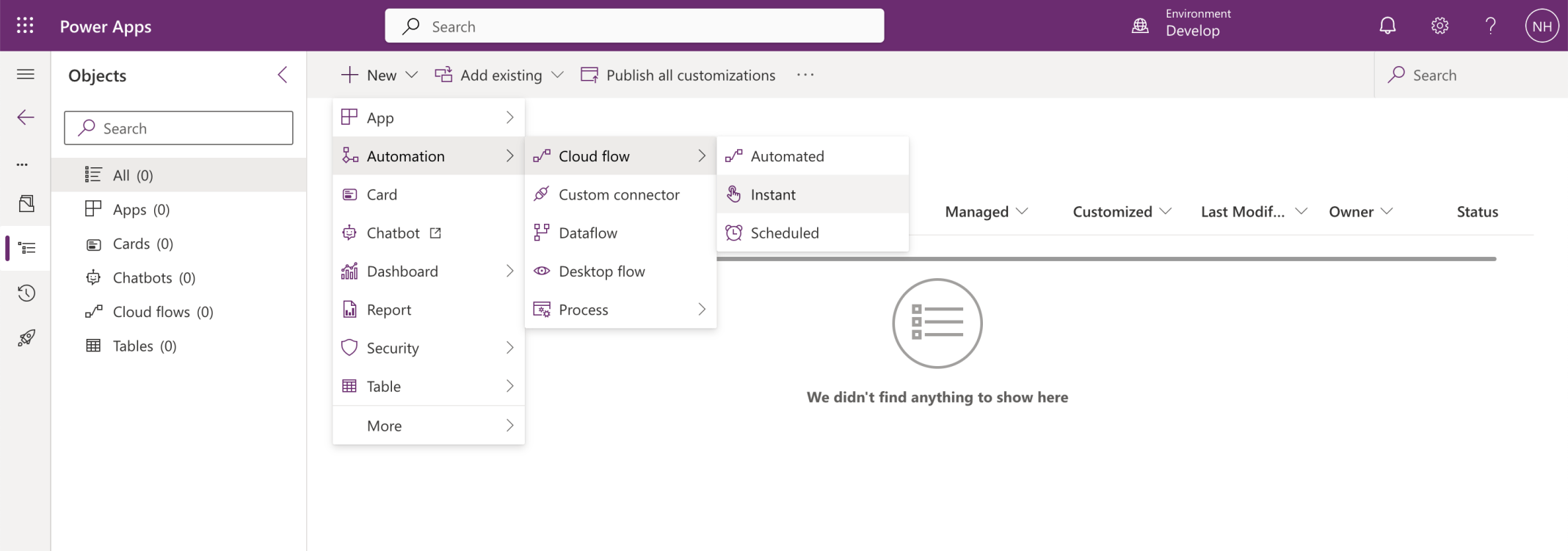

I added a new Cloud flow

I added a new Cloud flow

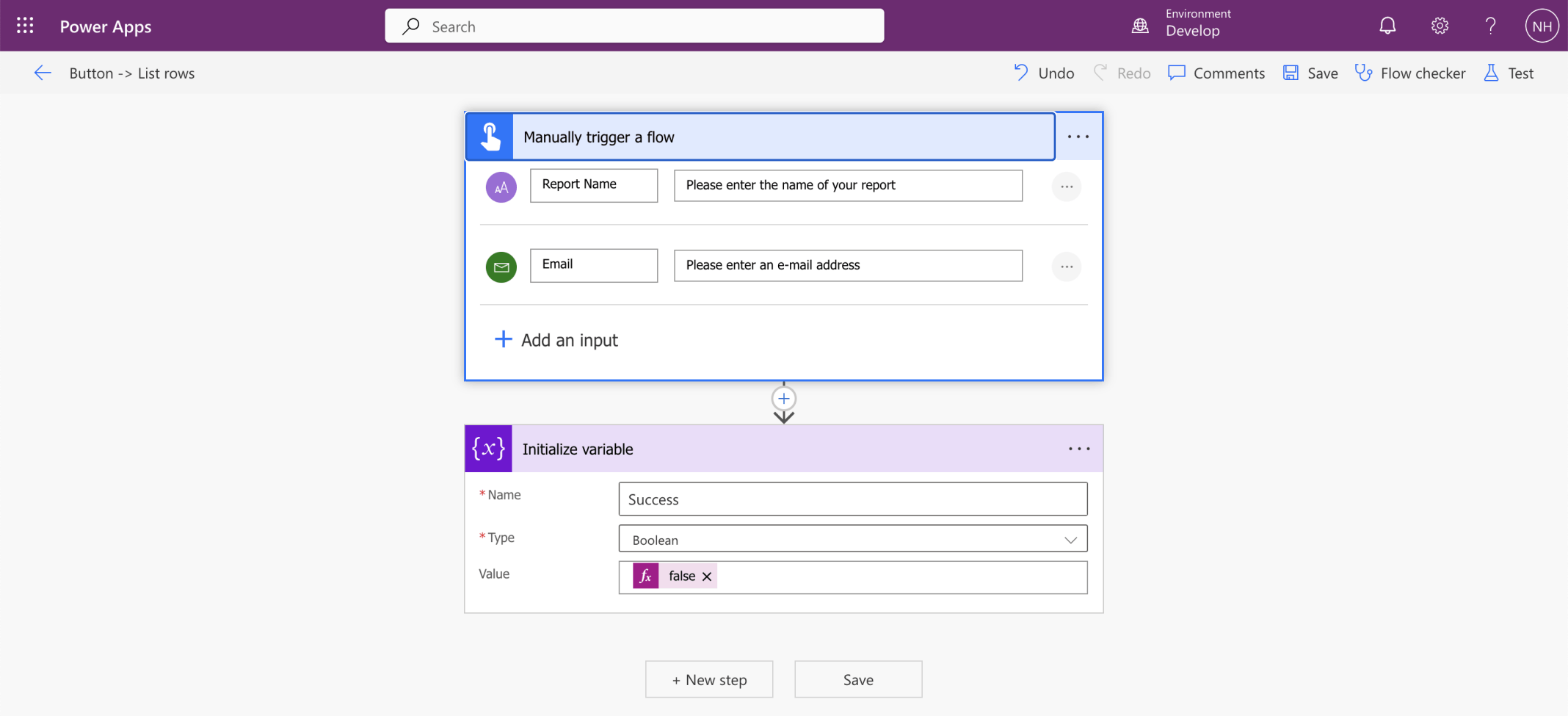

The user will be asked to provide a Report Name and an Email address. The Success variable is set to false.

The user will be asked to provide a Report Name and an Email address. The Success variable is set to false.

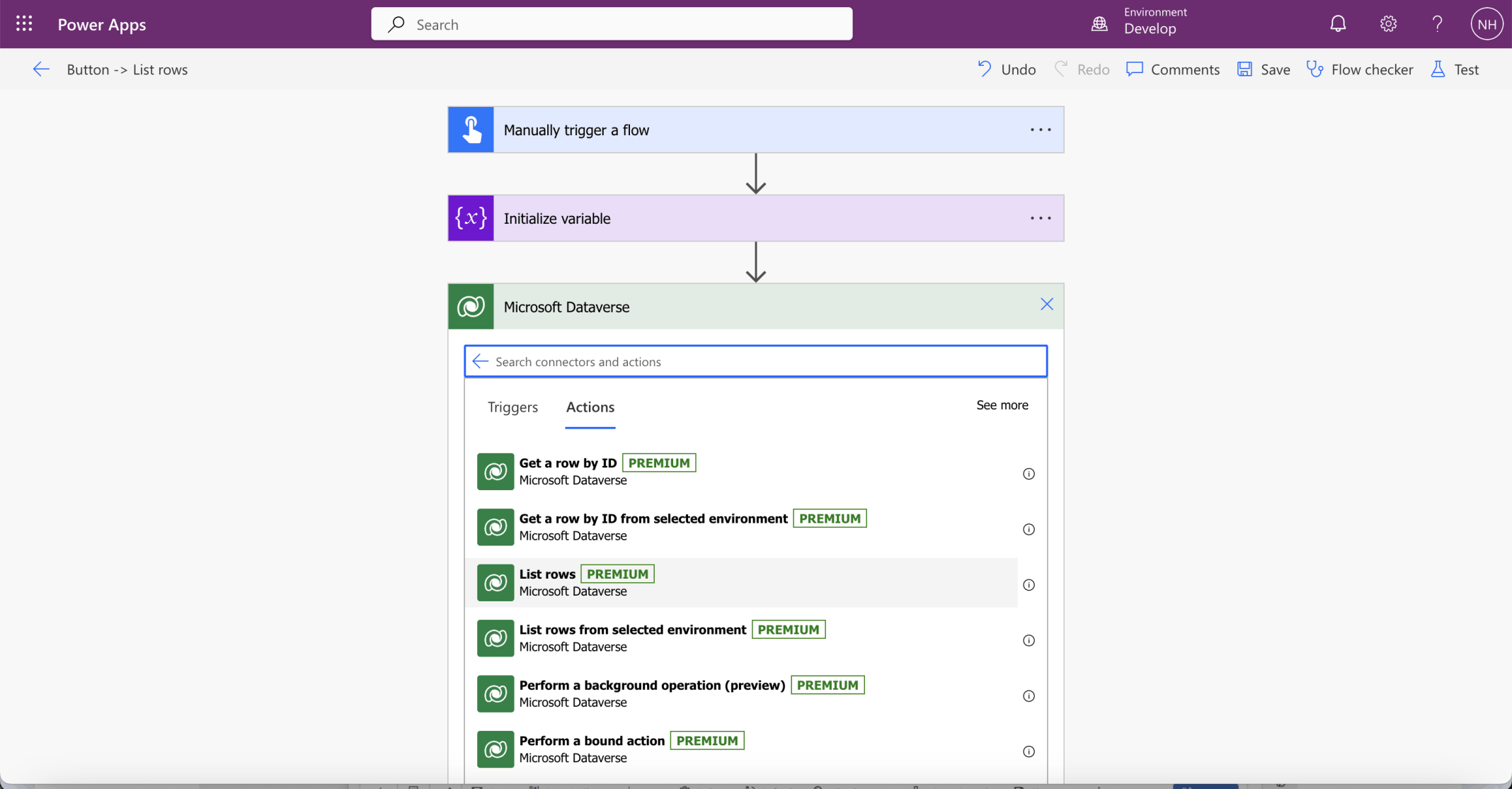

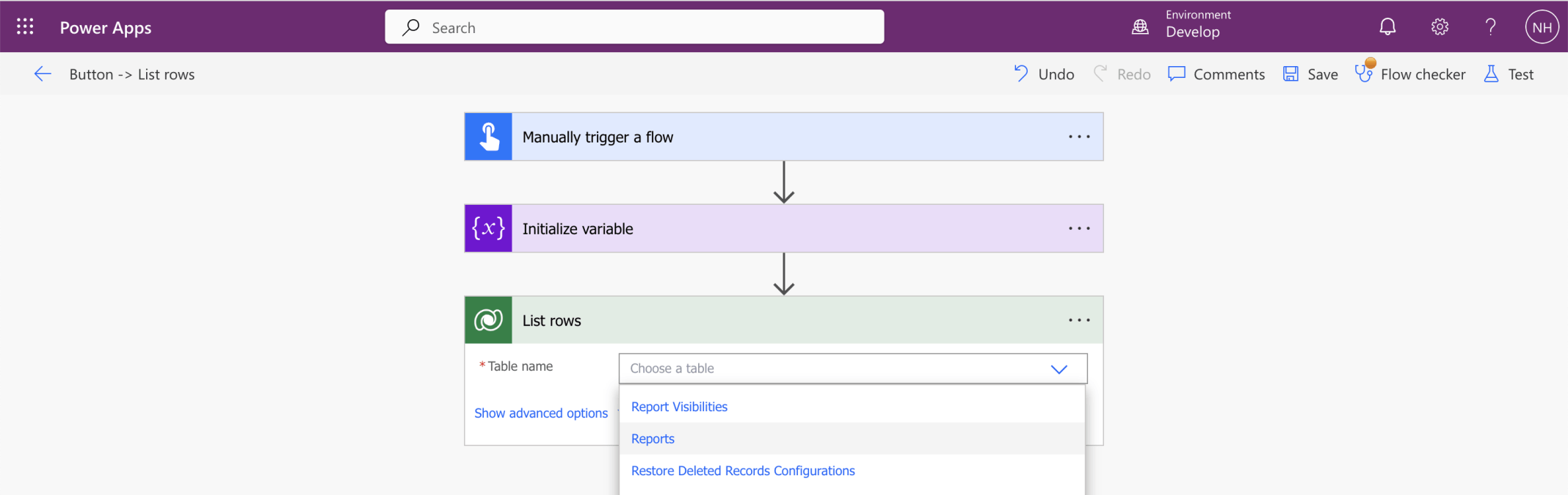

I used the List rows action...

I used the List rows action...

... to fetch a row from the Reports table

... to fetch a row from the Reports table

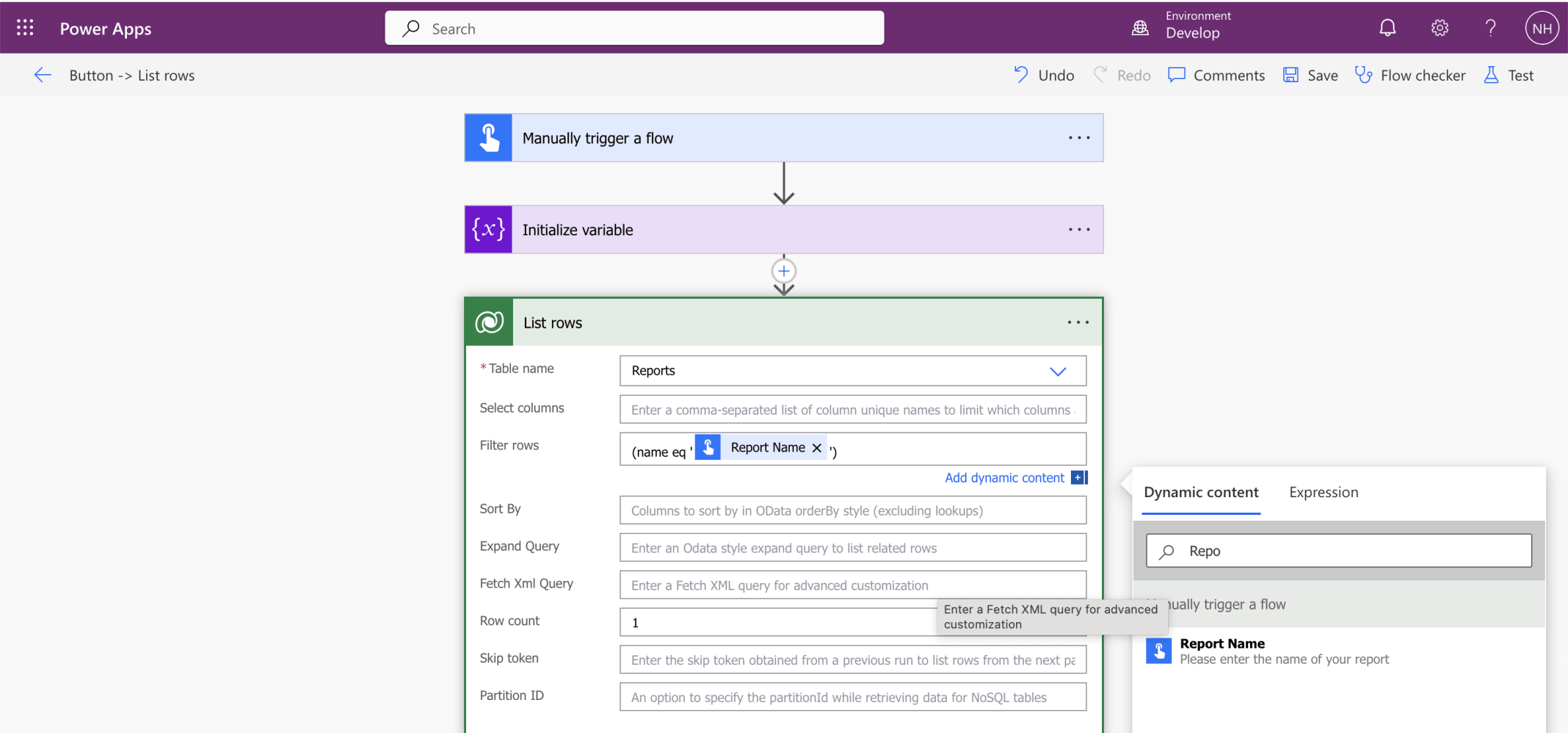

I filtered the results to the Report with the user provided name

I filtered the results to the Report with the user provided name

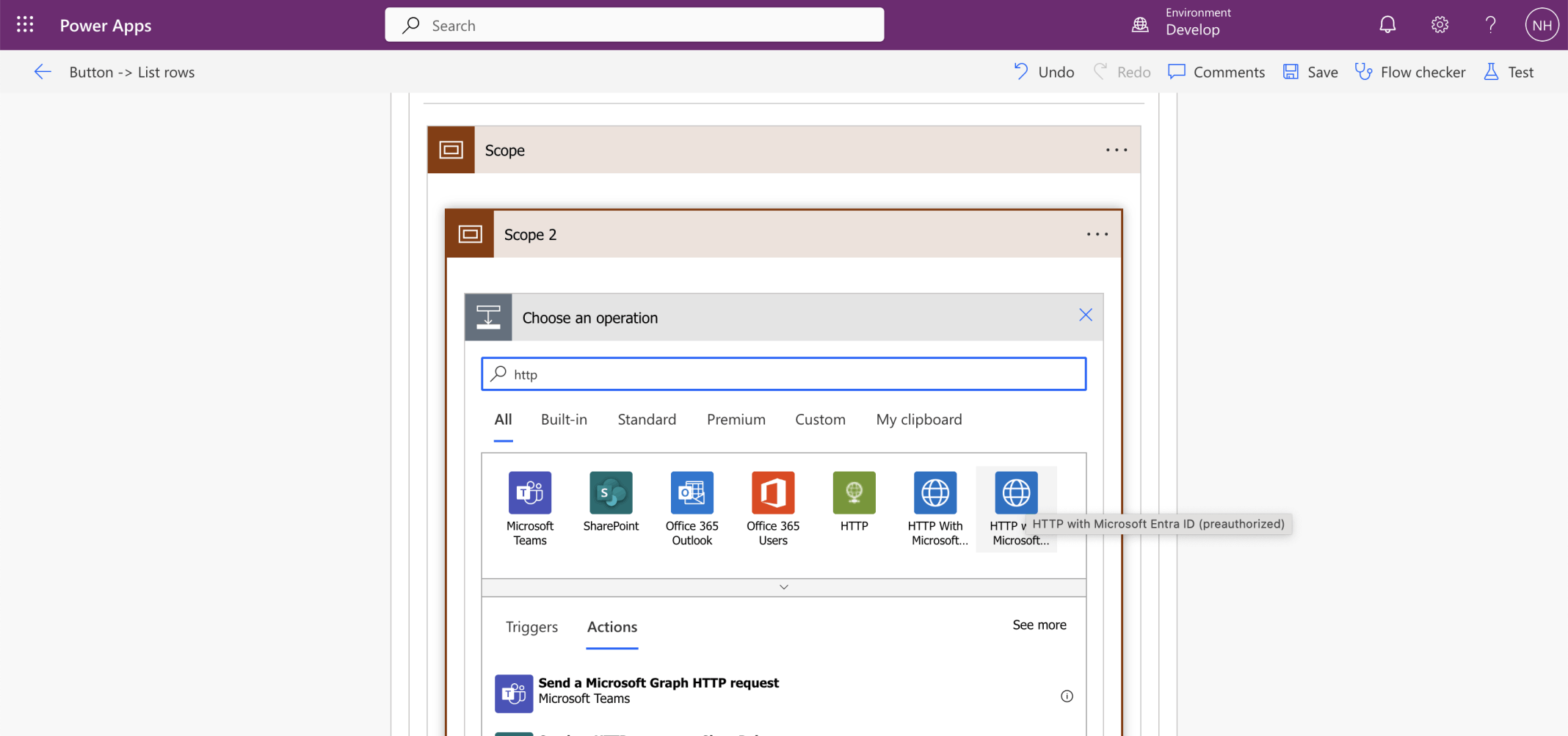

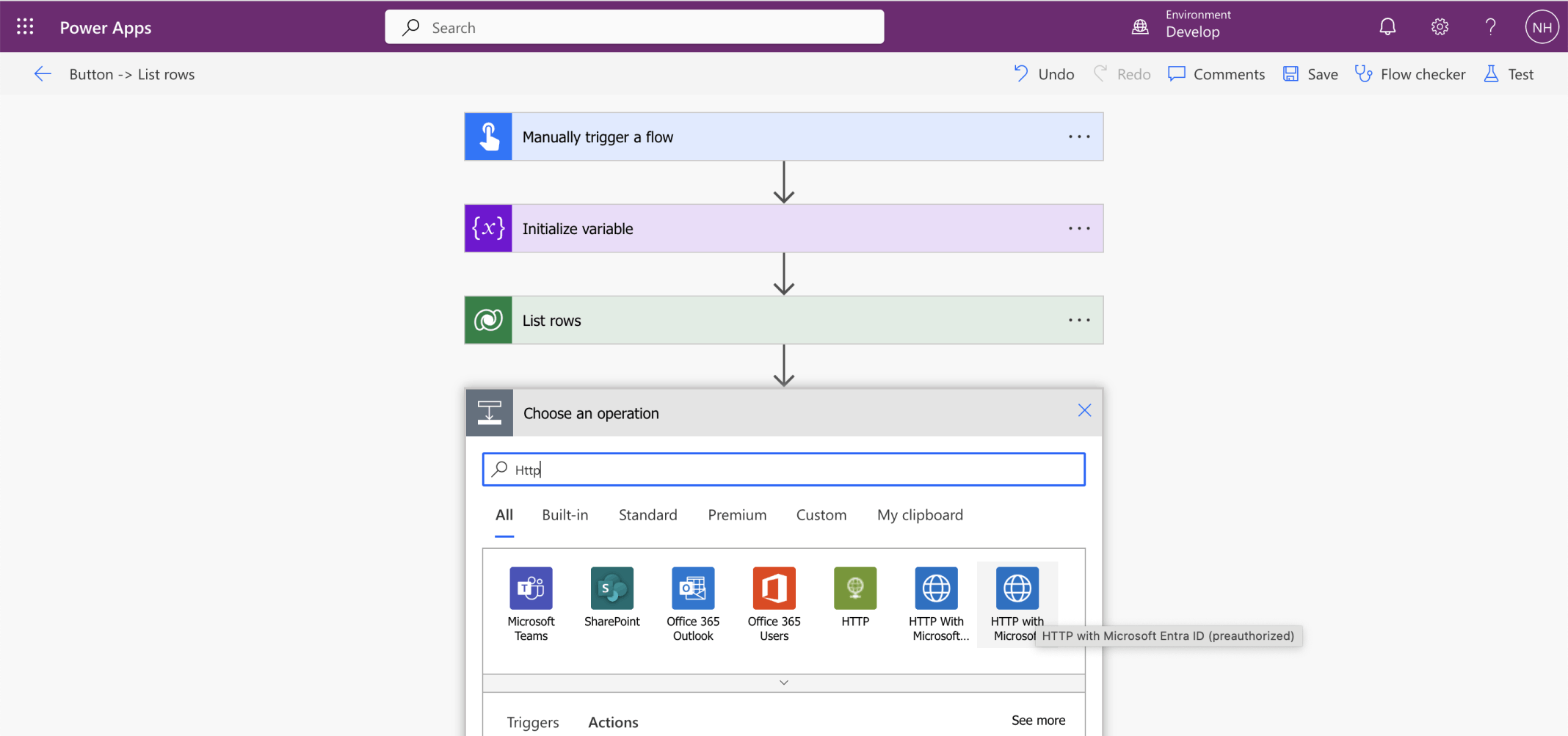

I added an HTTP action

I added an HTTP action

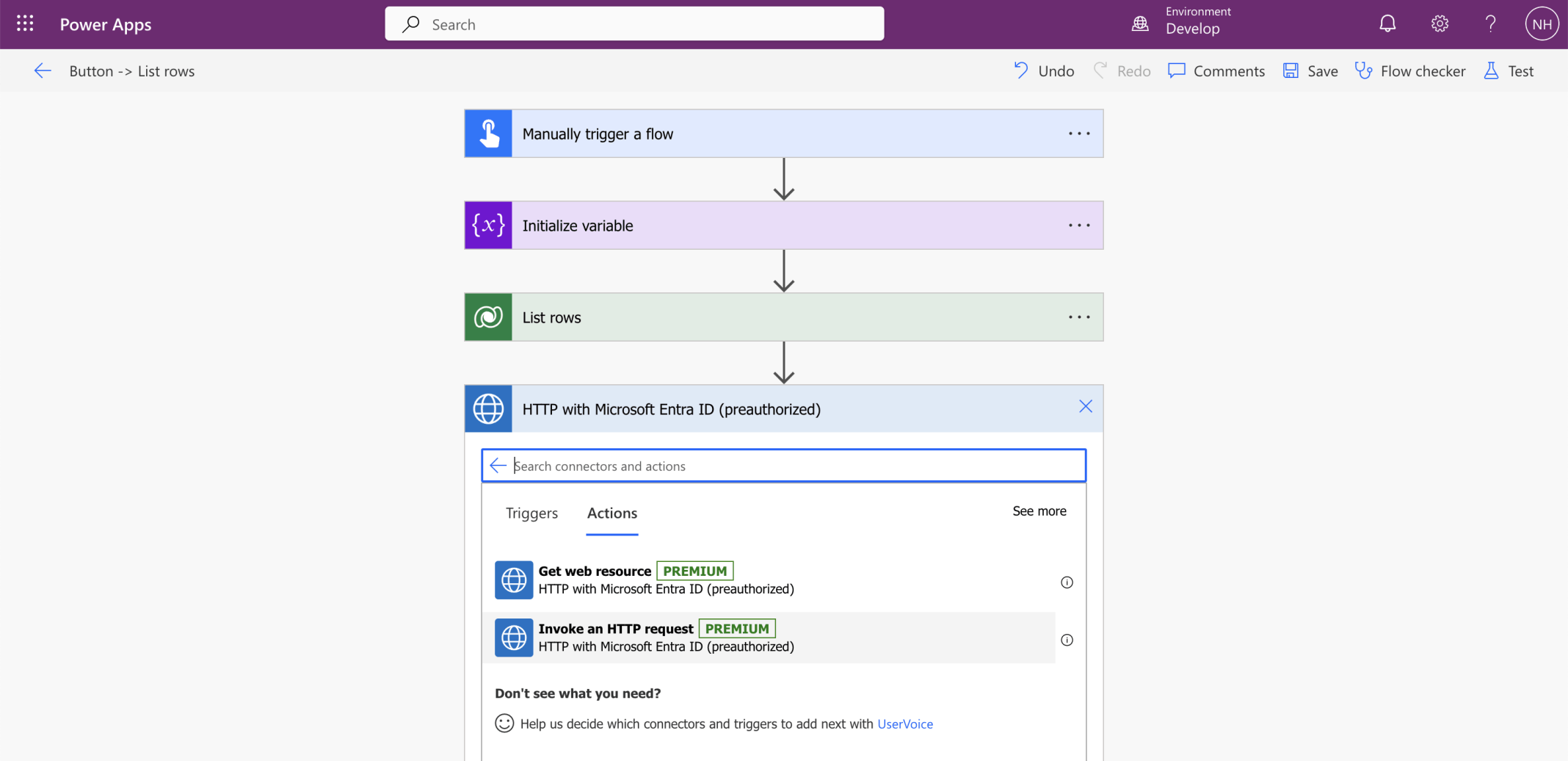

I selected the Invoke an HTTP request action

I selected the Invoke an HTTP request action

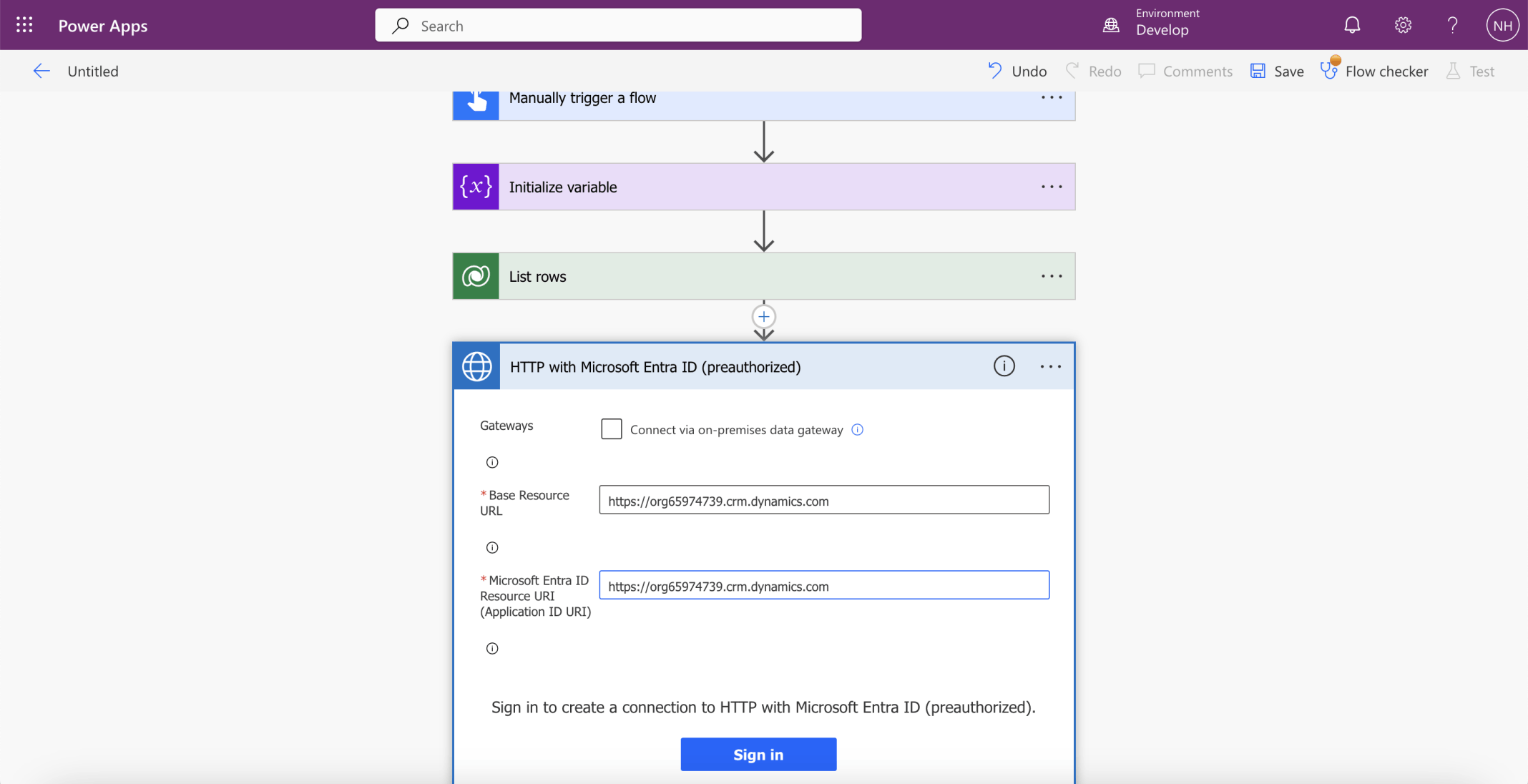

I entered the report's base resource url twice (my unique https://XXX.crm.dynamics.com url)

I entered the report's base resource url twice (my unique https://XXX.crm.dynamics.com url)

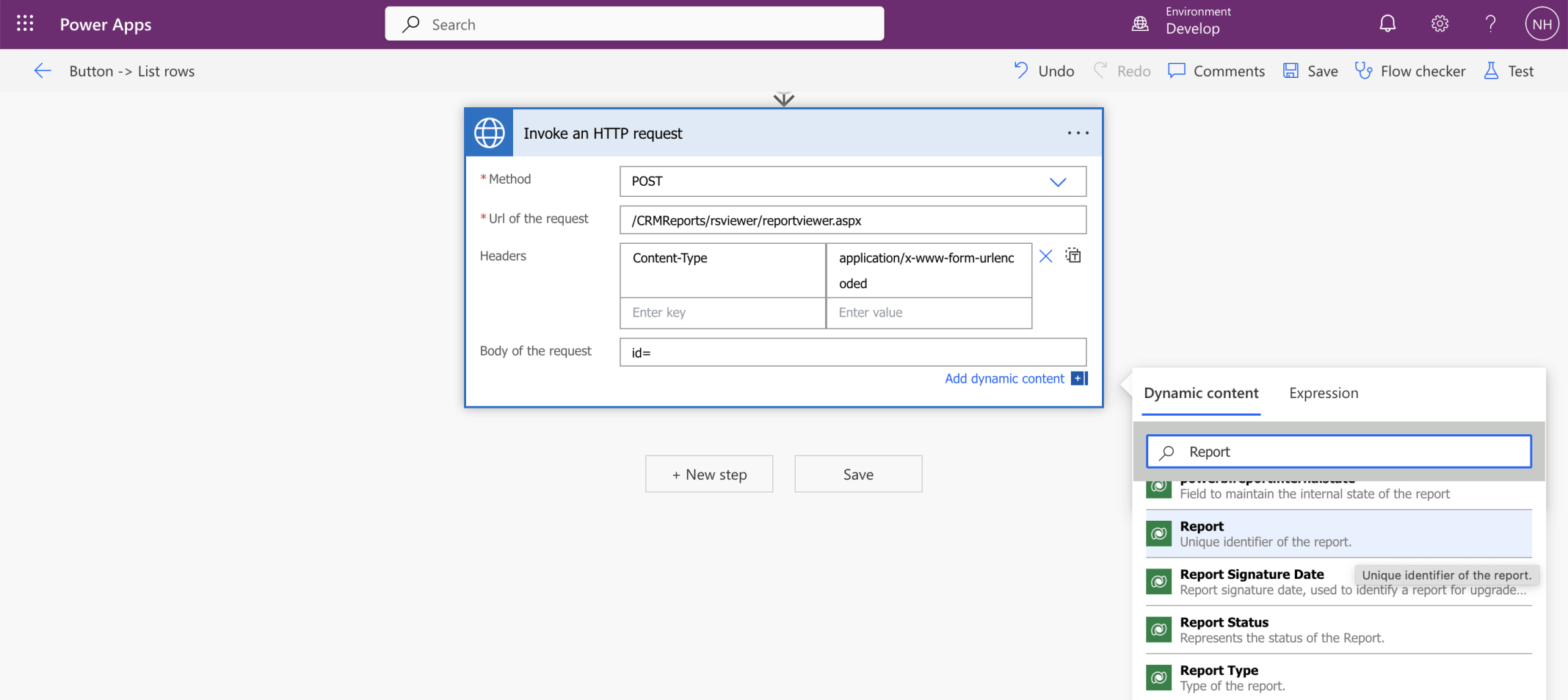

A connection was created and I entered the HTTP reuqest details/CRMReports/rsviewer/reportviewer.aspxContent-Type: application/x-www-form-urlencodedid={report id}

A connection was created and I entered the HTTP reuqest details/CRMReports/rsviewer/reportviewer.aspxContent-Type: application/x-www-form-urlencodedid={report id}

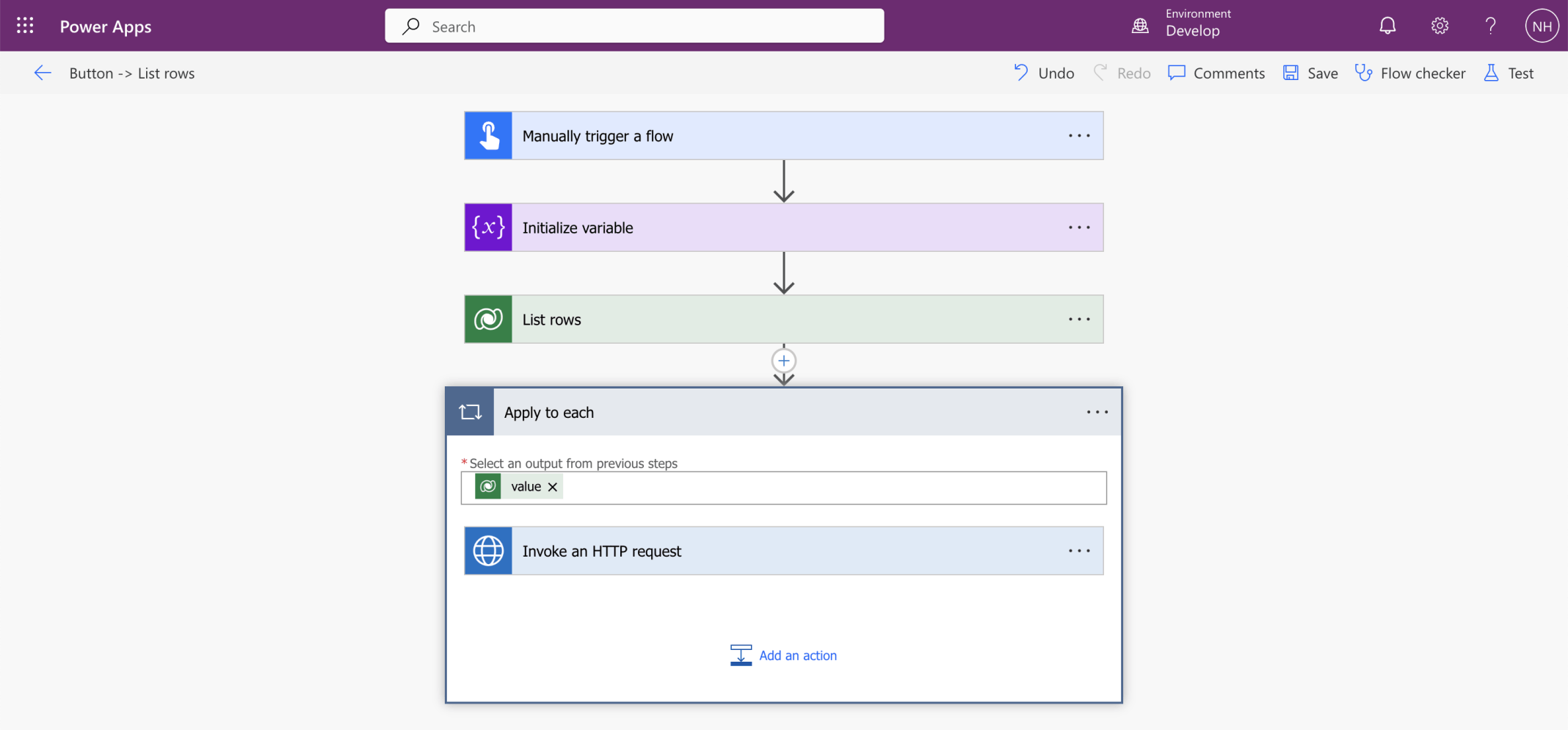

The flow designer automagically added the Apply to each action

The flow designer automagically added the Apply to each action

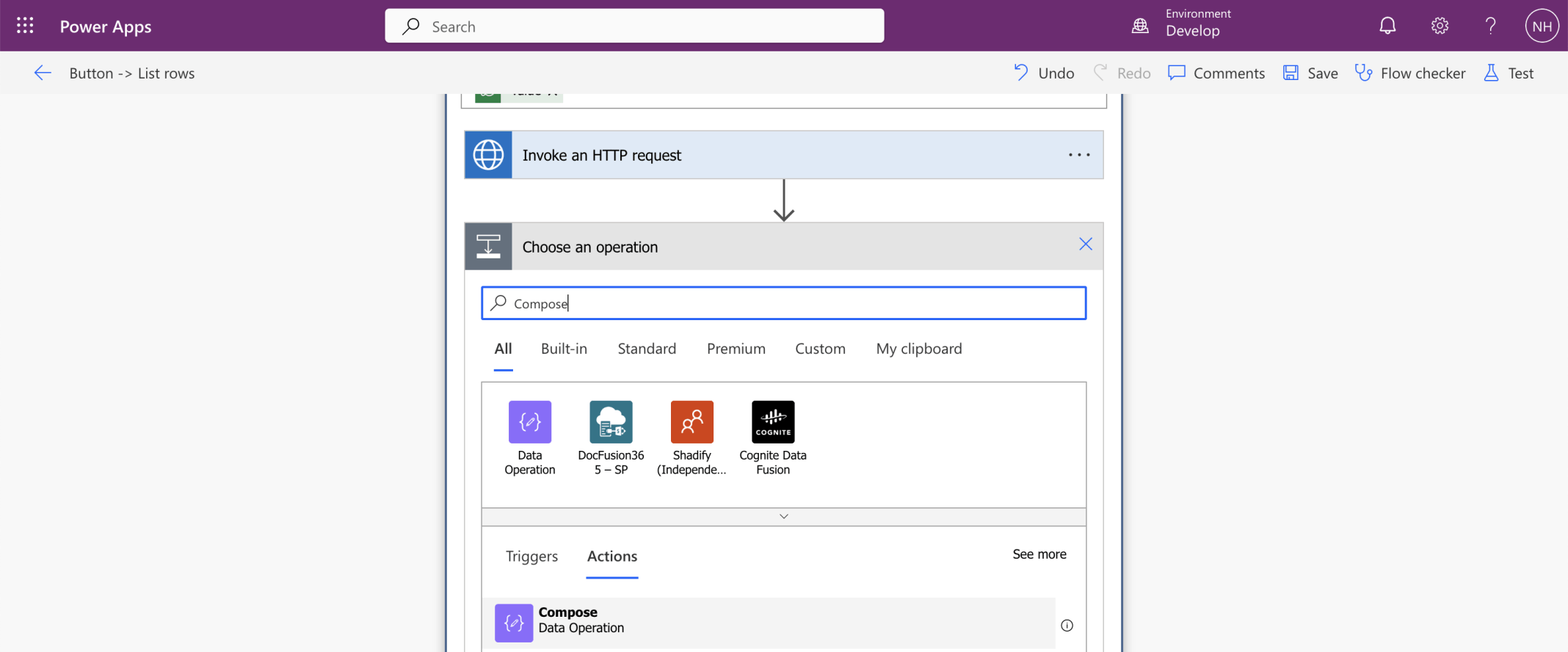

I added three Compose actions

I added three Compose actions

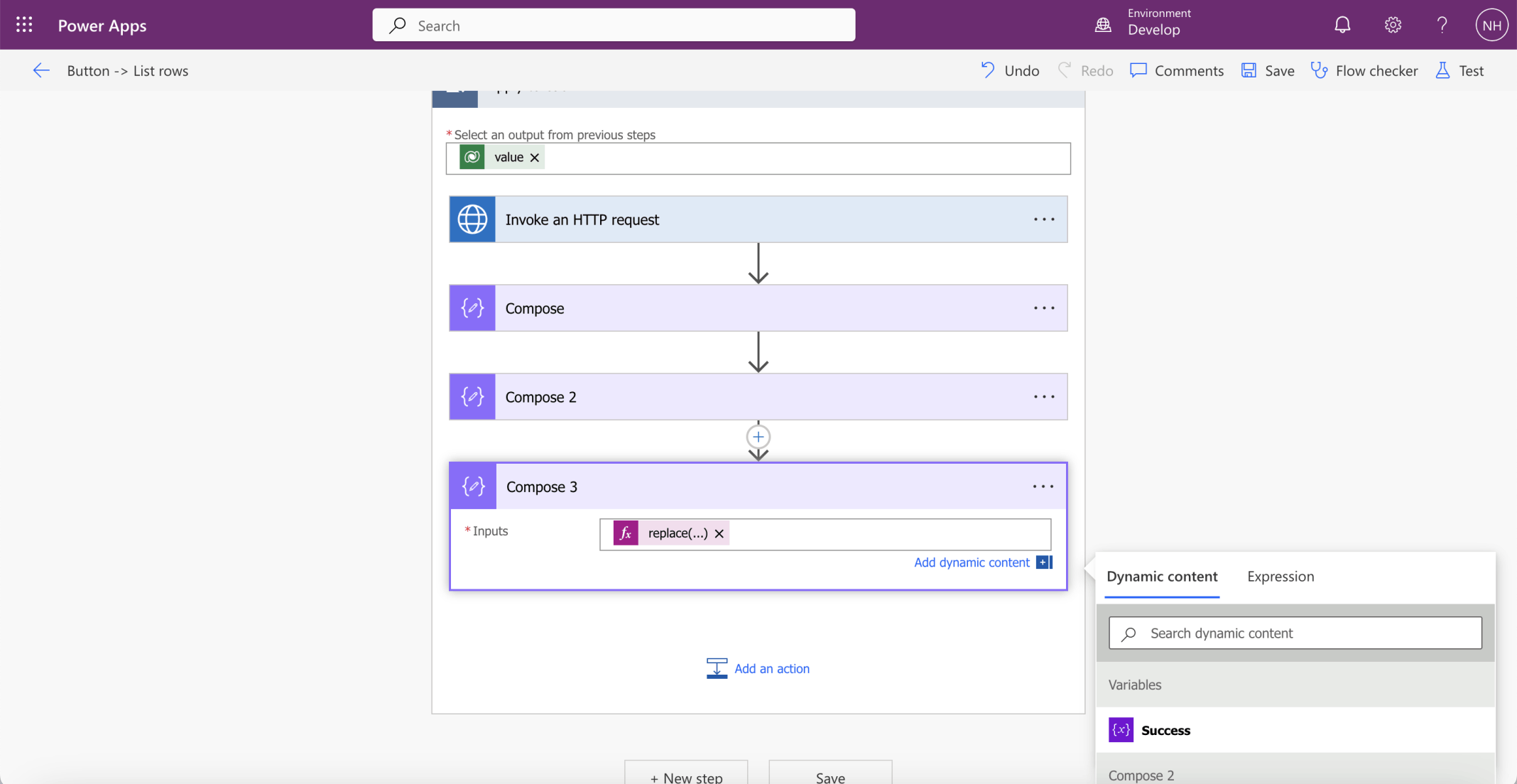

Together the three Compose actions establish the pdf download urladd(indexOf(outputs('Invoke_an_HTTP_request')?['body'],'"PdfDownloadUrl":"'), 18)sub(indexOf(outputs('Invoke_an_HTTP_request')?['body'],'","PdfPreviewUrl"'),outputs('Compose'))replace(substring(outputs('Invoke_an_HTTP_request')?['body'],outputs('Compose'),outputs('Compose_2')),'\u0026','&')

Together the three Compose actions establish the pdf download urladd(indexOf(outputs('Invoke_an_HTTP_request')?['body'],'"PdfDownloadUrl":"'), 18)sub(indexOf(outputs('Invoke_an_HTTP_request')?['body'],'","PdfPreviewUrl"'),outputs('Compose'))replace(substring(outputs('Invoke_an_HTTP_request')?['body'],outputs('Compose'),outputs('Compose_2')),'\u0026','&')

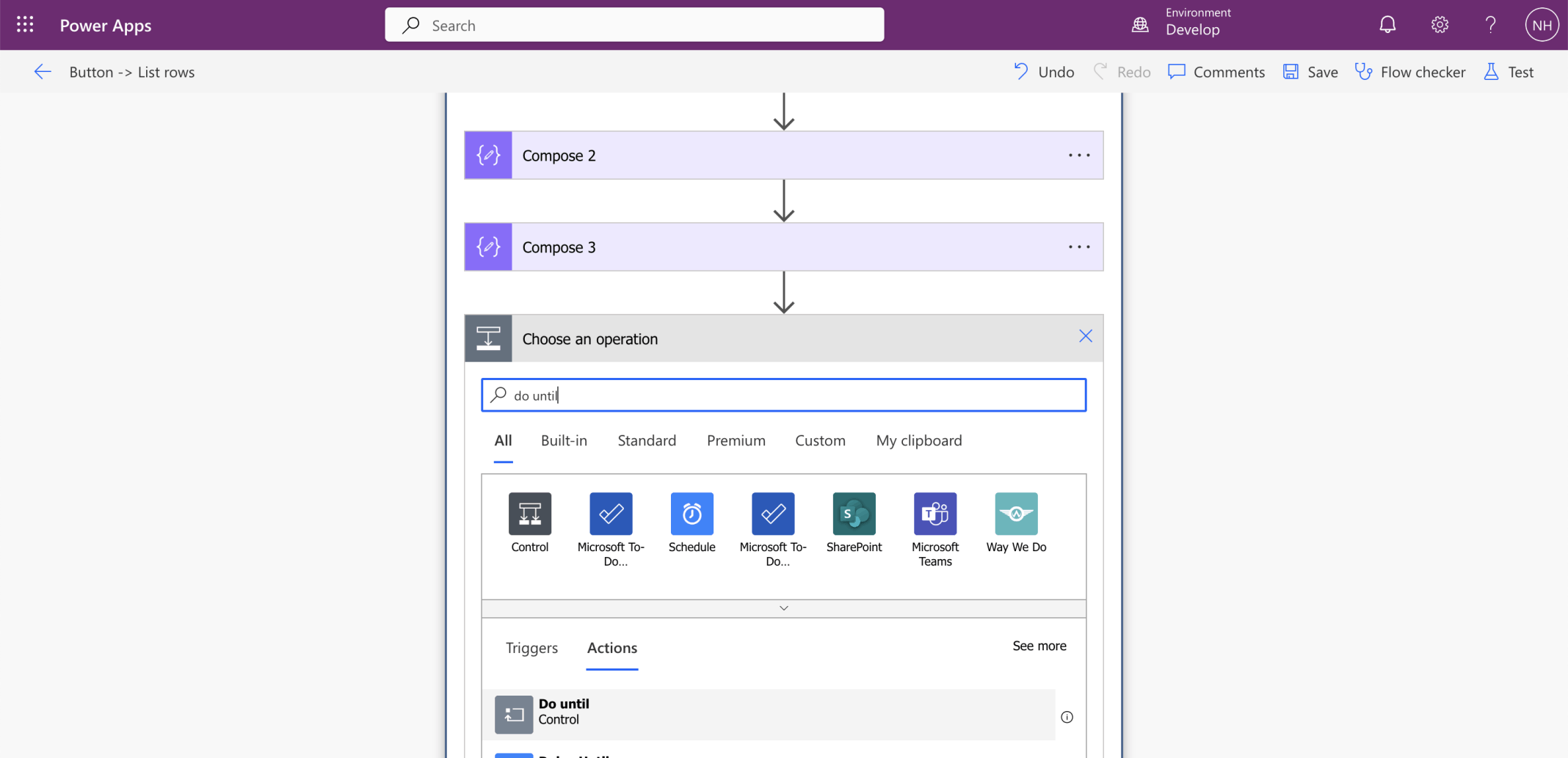

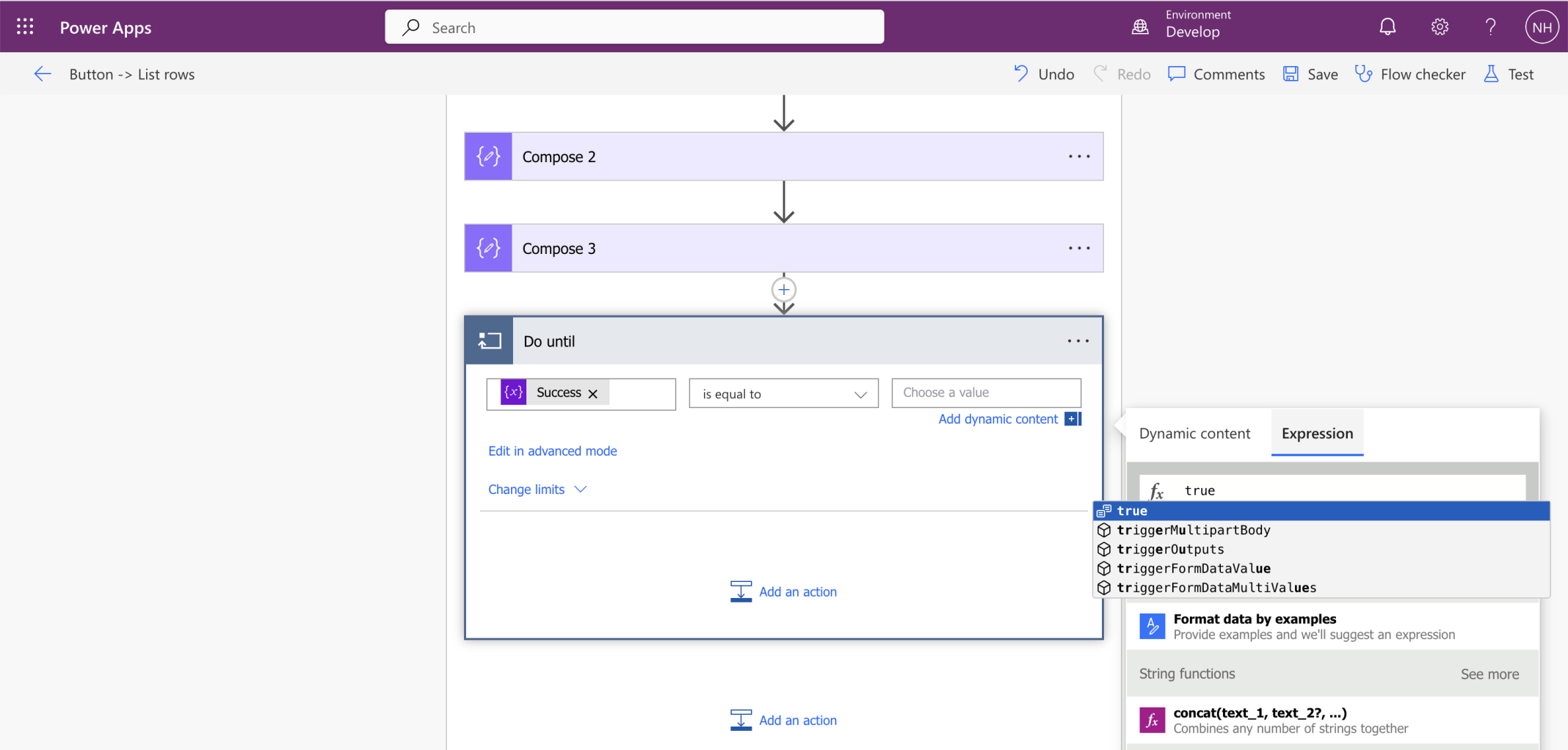

I added a Do until action

I added a Do until action

I added a Do until action to ensure that the flow would retry the HTTP GET and Email actions until the Success variable was set to true

I added a Do until action to ensure that the flow would retry the HTTP GET and Email actions until the Success variable was set to true

I added three scope actions

I added three scope actions

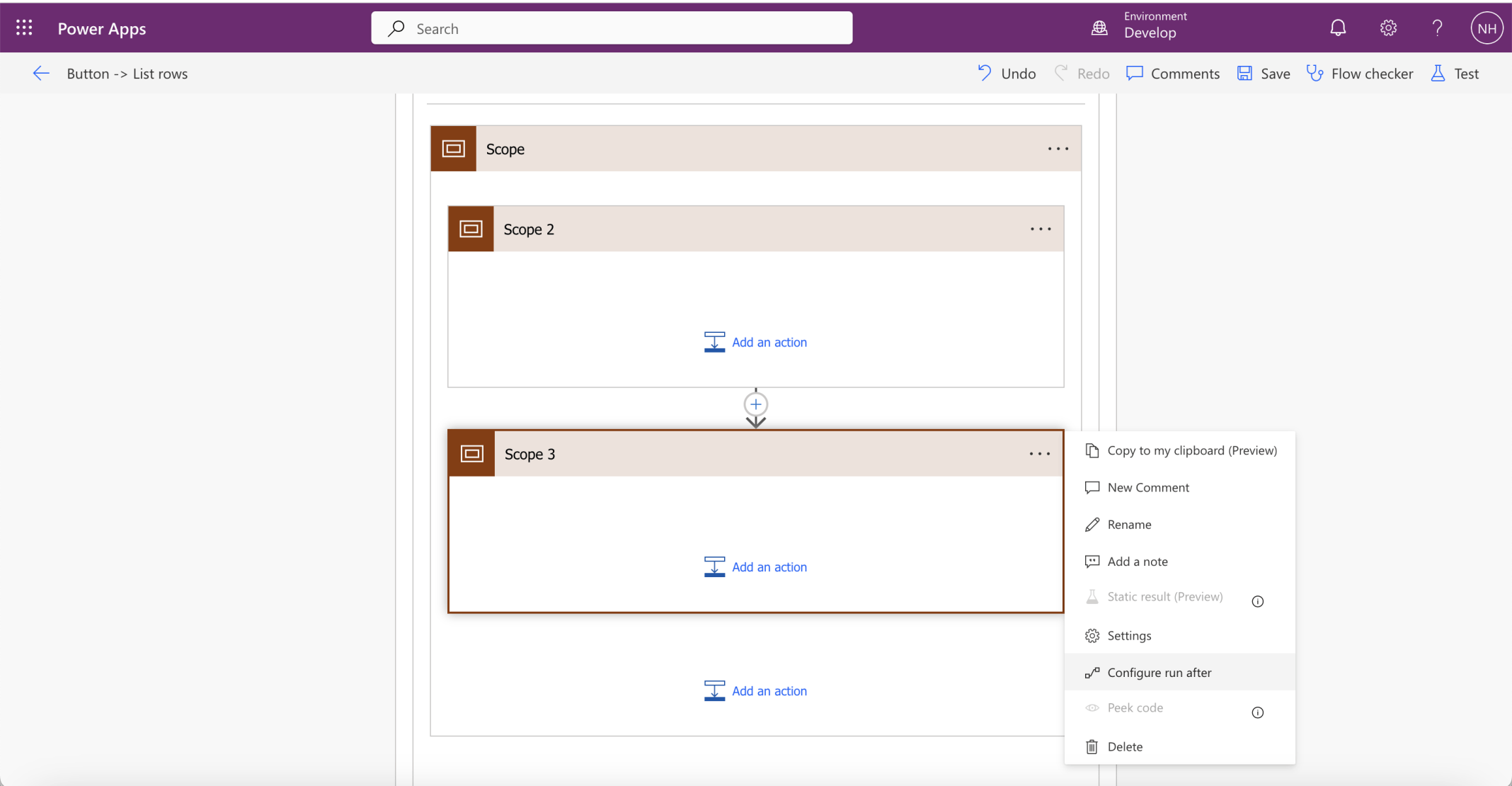

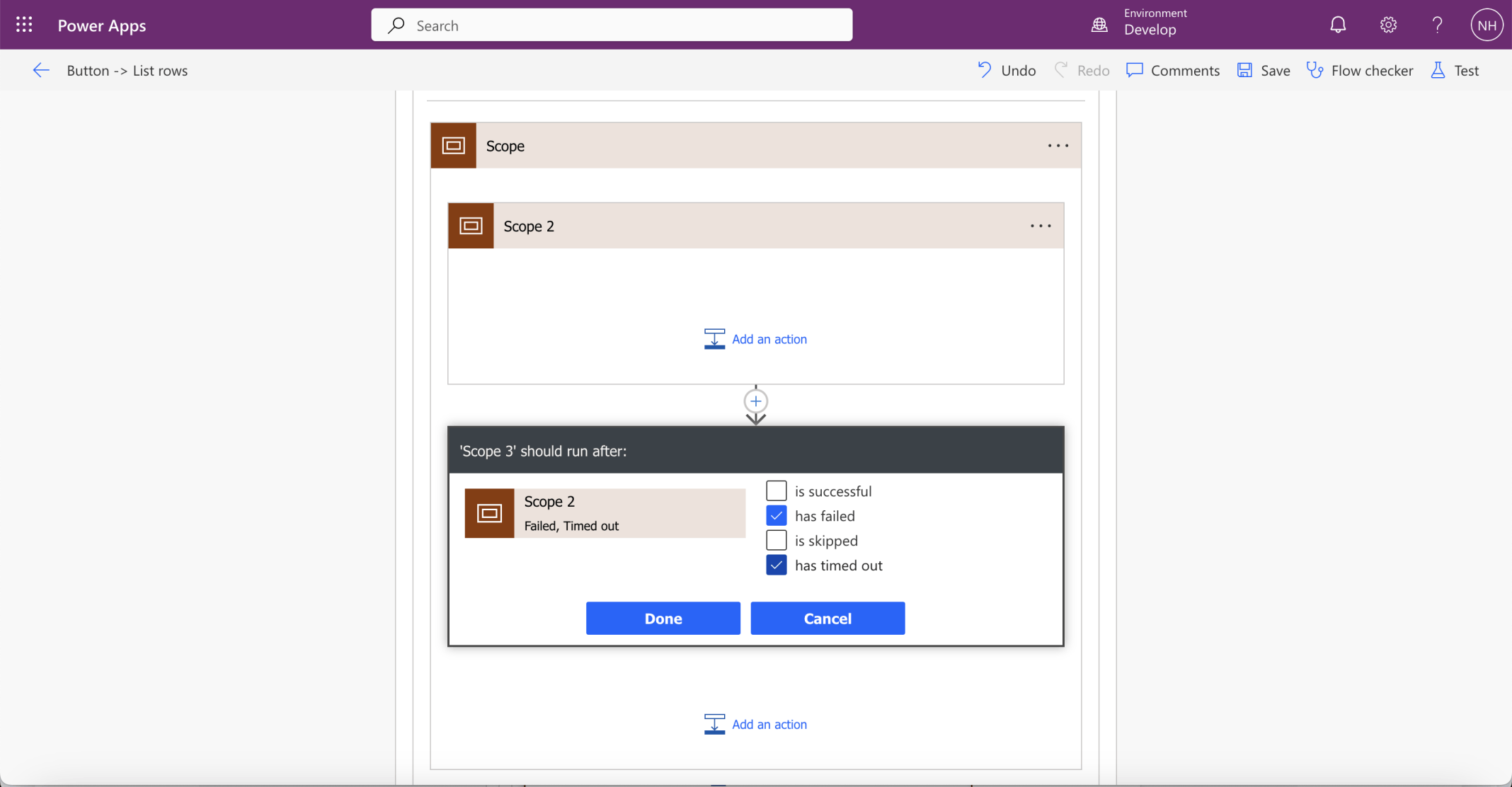

The third scope action was configured to catch errors.

The third scope action was configured to catch errors.

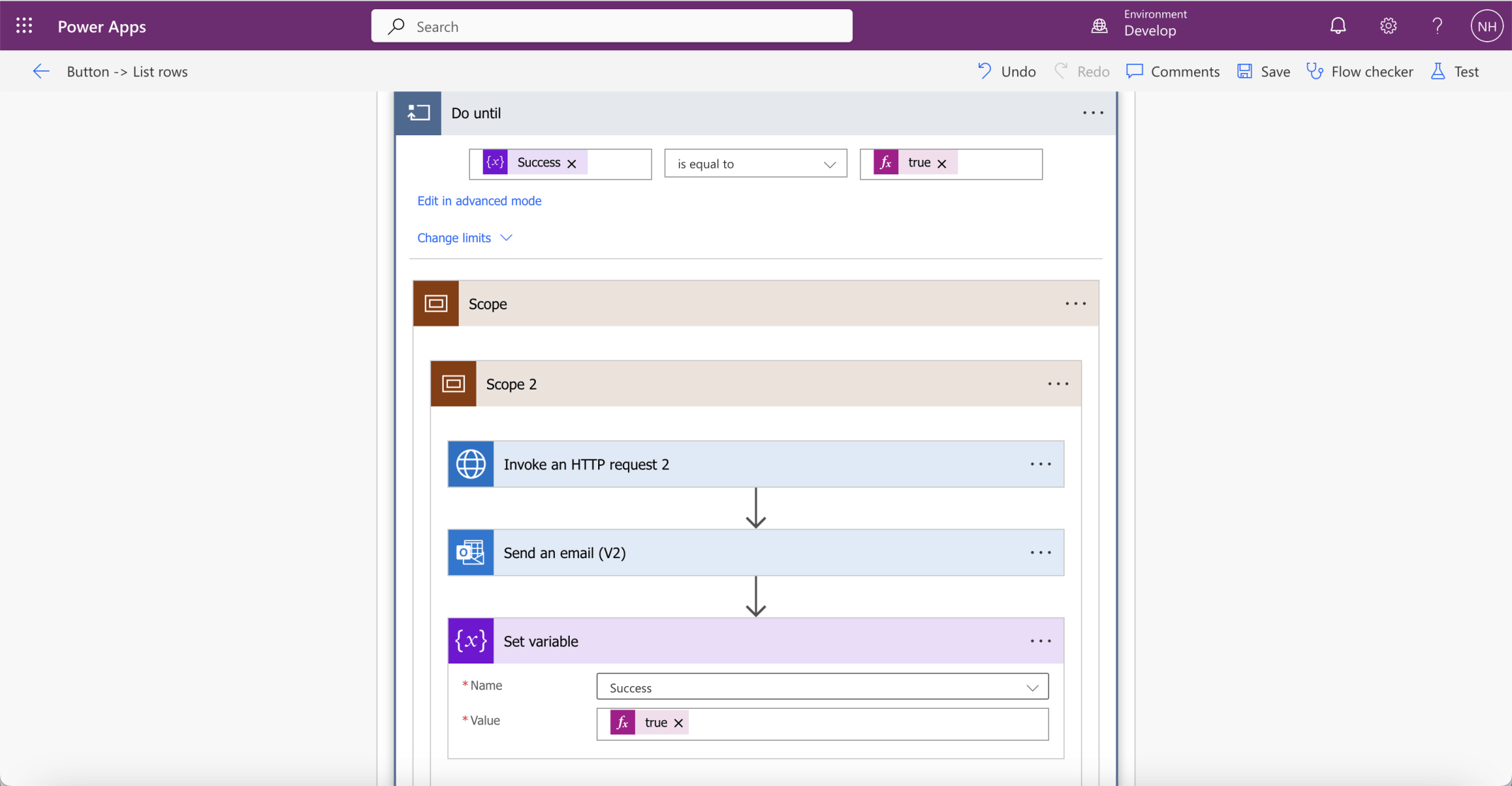

I added the happy path logic to the second scope

I added the happy path logic to the second scope

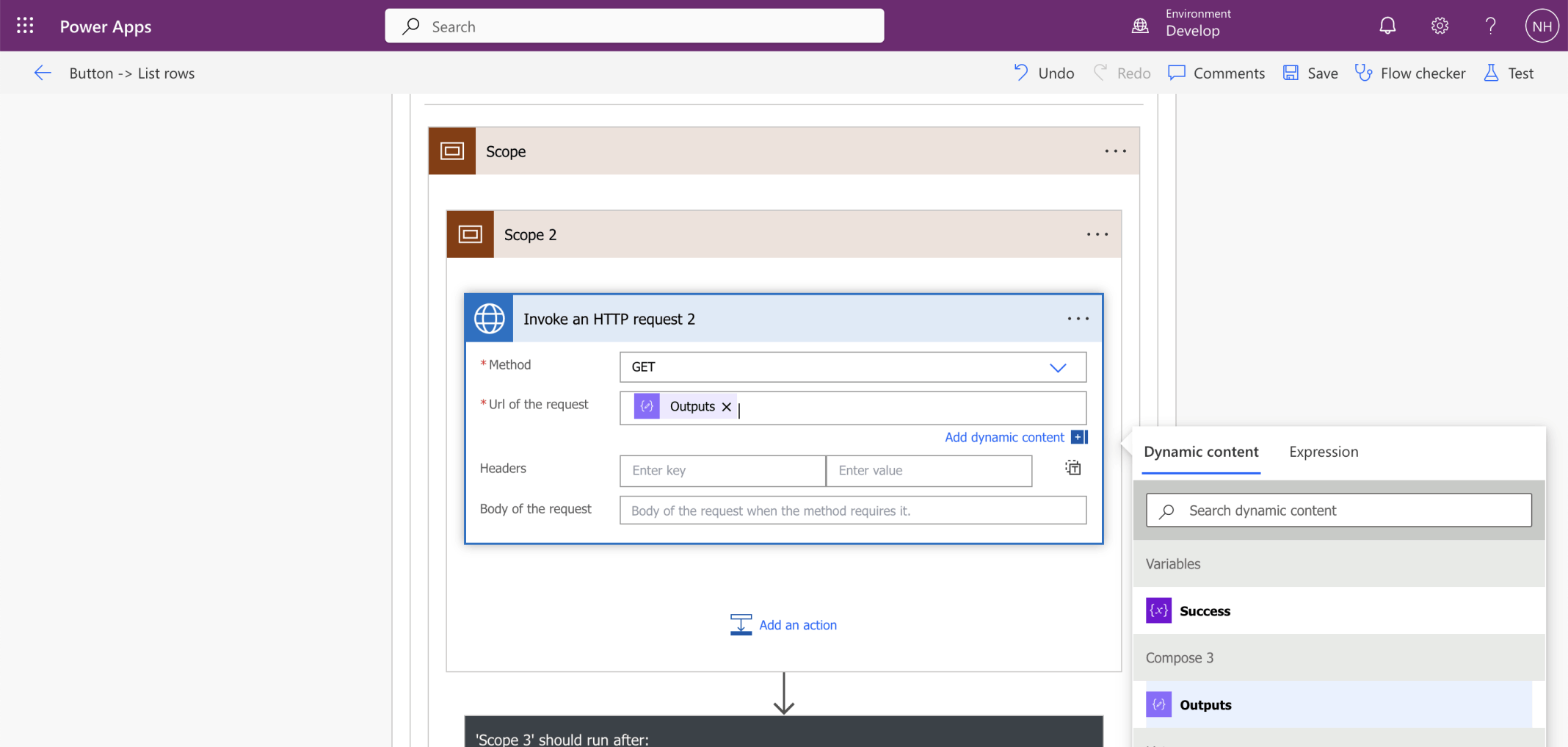

I attempt to fetch the report as a PDF file

I attempt to fetch the report as a PDF file

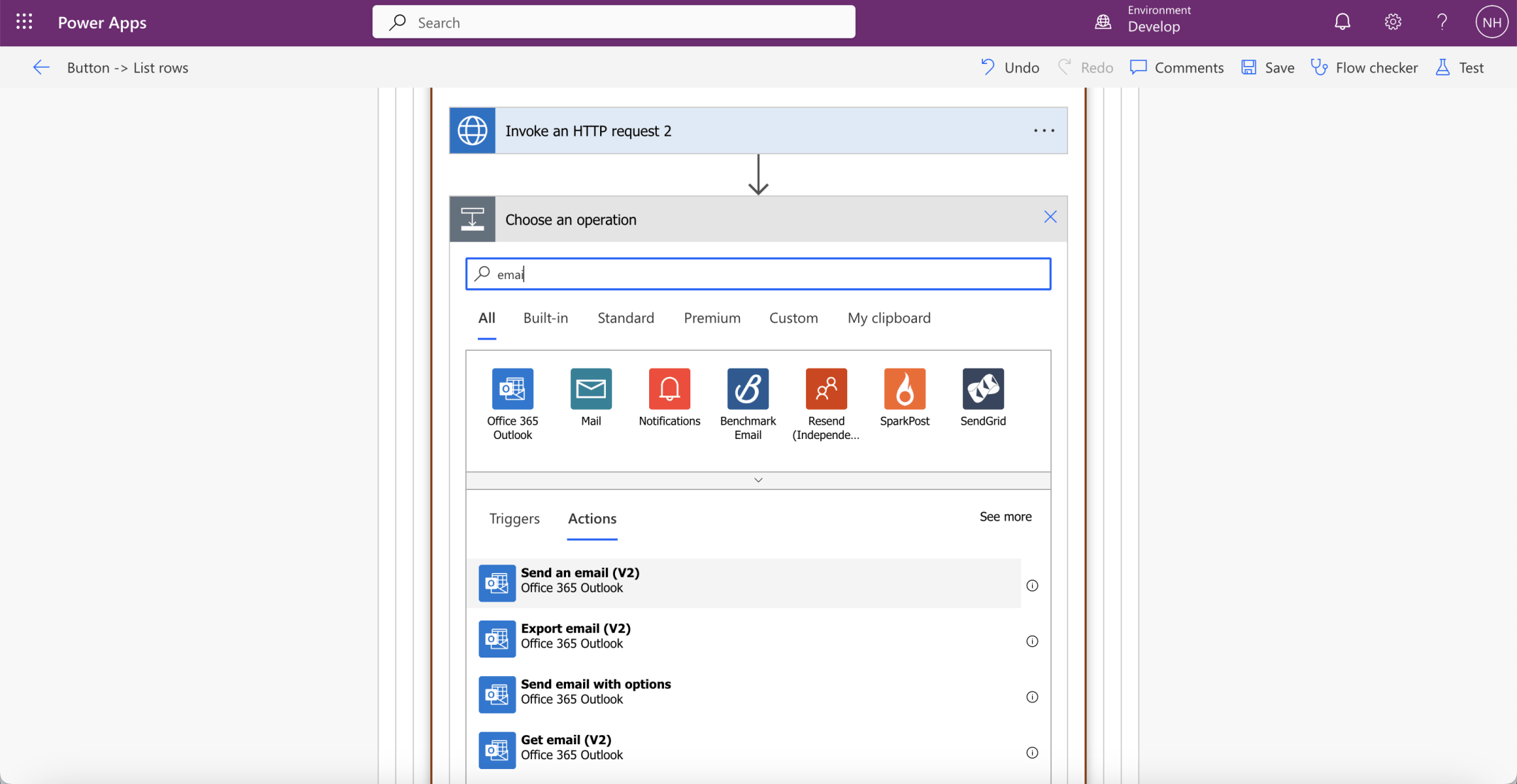

I attempt to send the pdf file as an email attachment

I attempt to send the pdf file as an email attachment

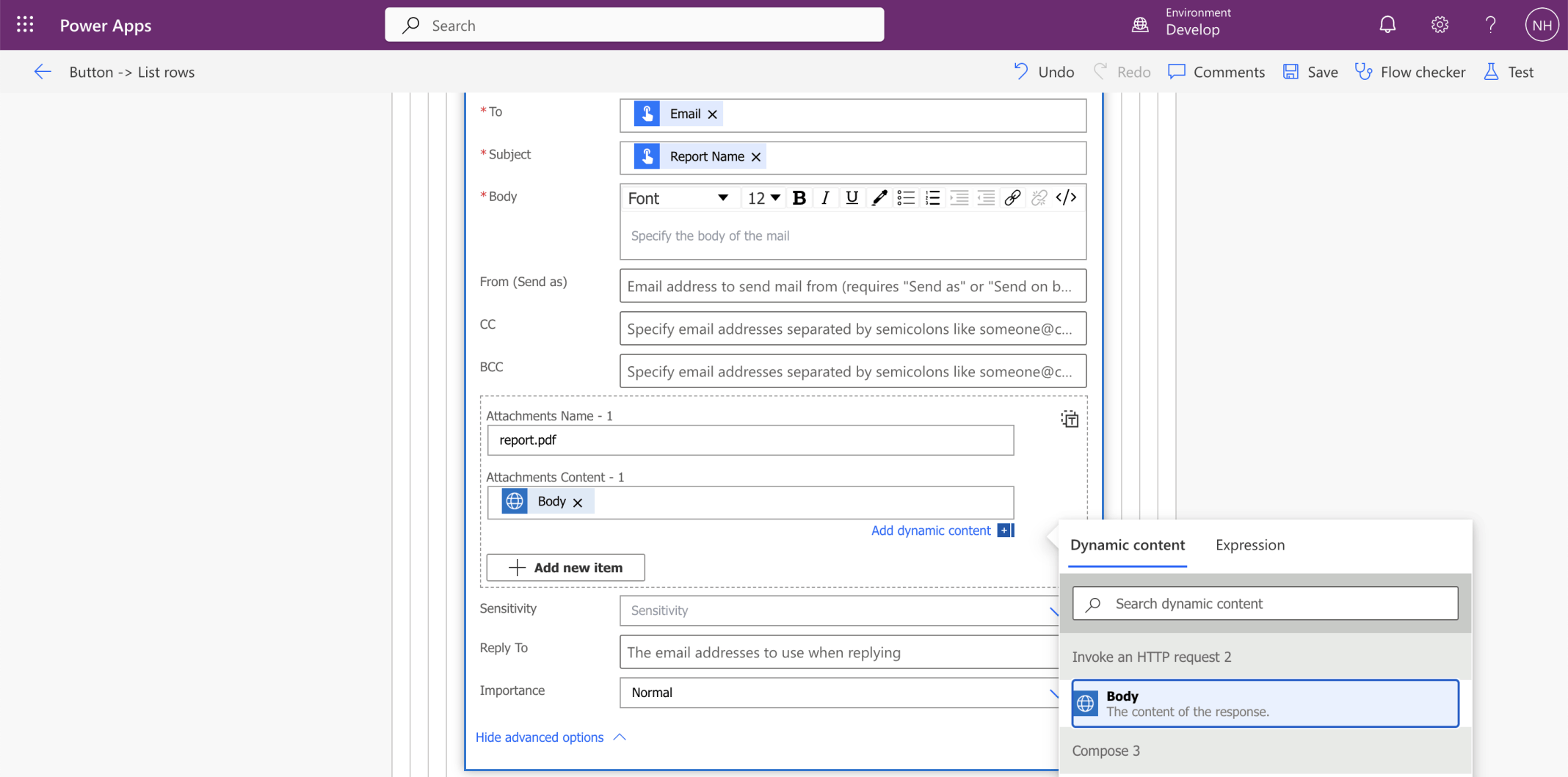

I set the body of the email, the body of the email attachment, the email to and the email subject.

I set the body of the email, the body of the email attachment, the email to and the email subject.

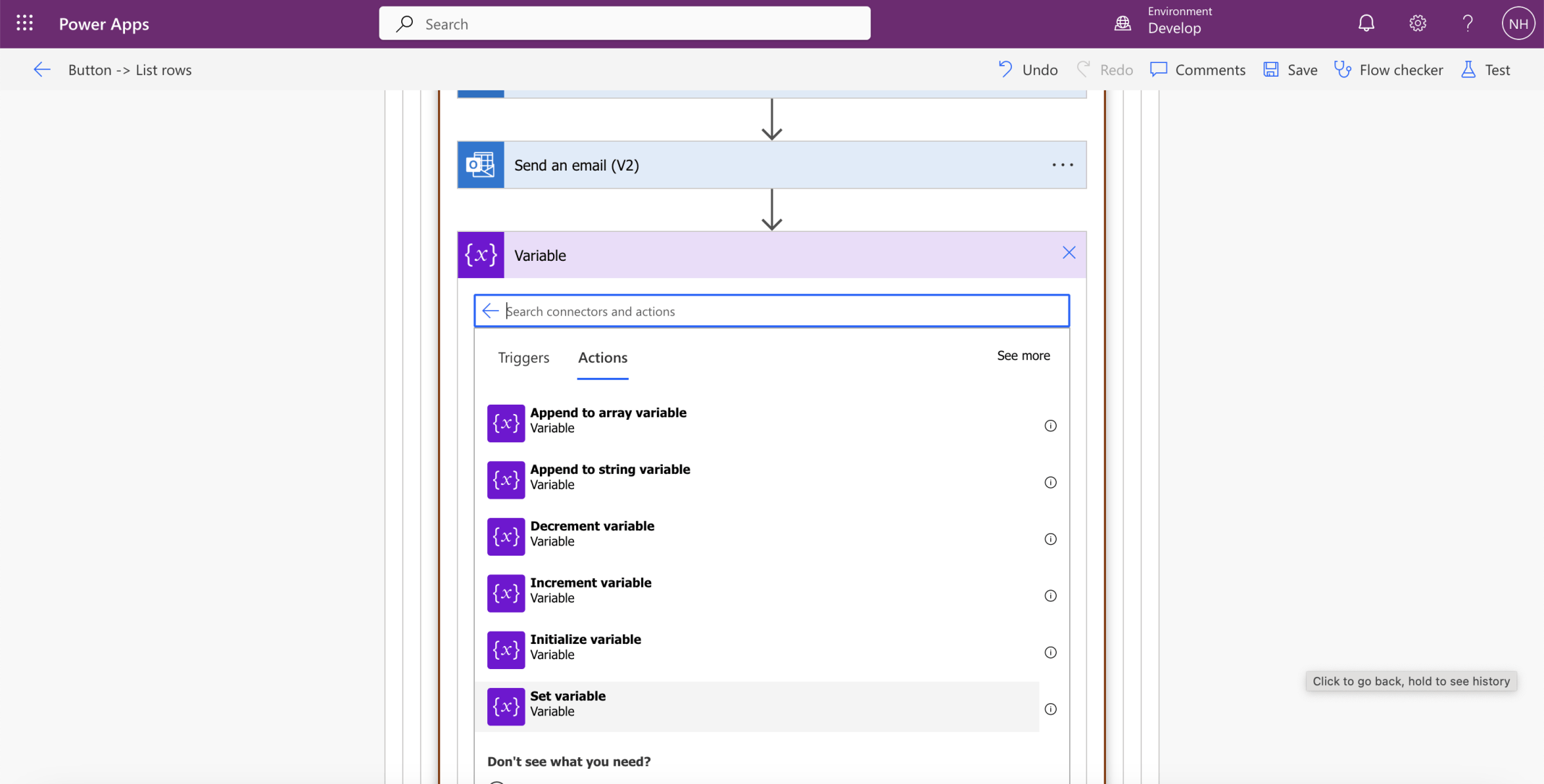

If no errors are generated I set the value of the Success variable

If no errors are generated I set the value of the Success variable

If no errors are generated I set the value of the Success variable to true

If no errors are generated I set the value of the Success variable to true

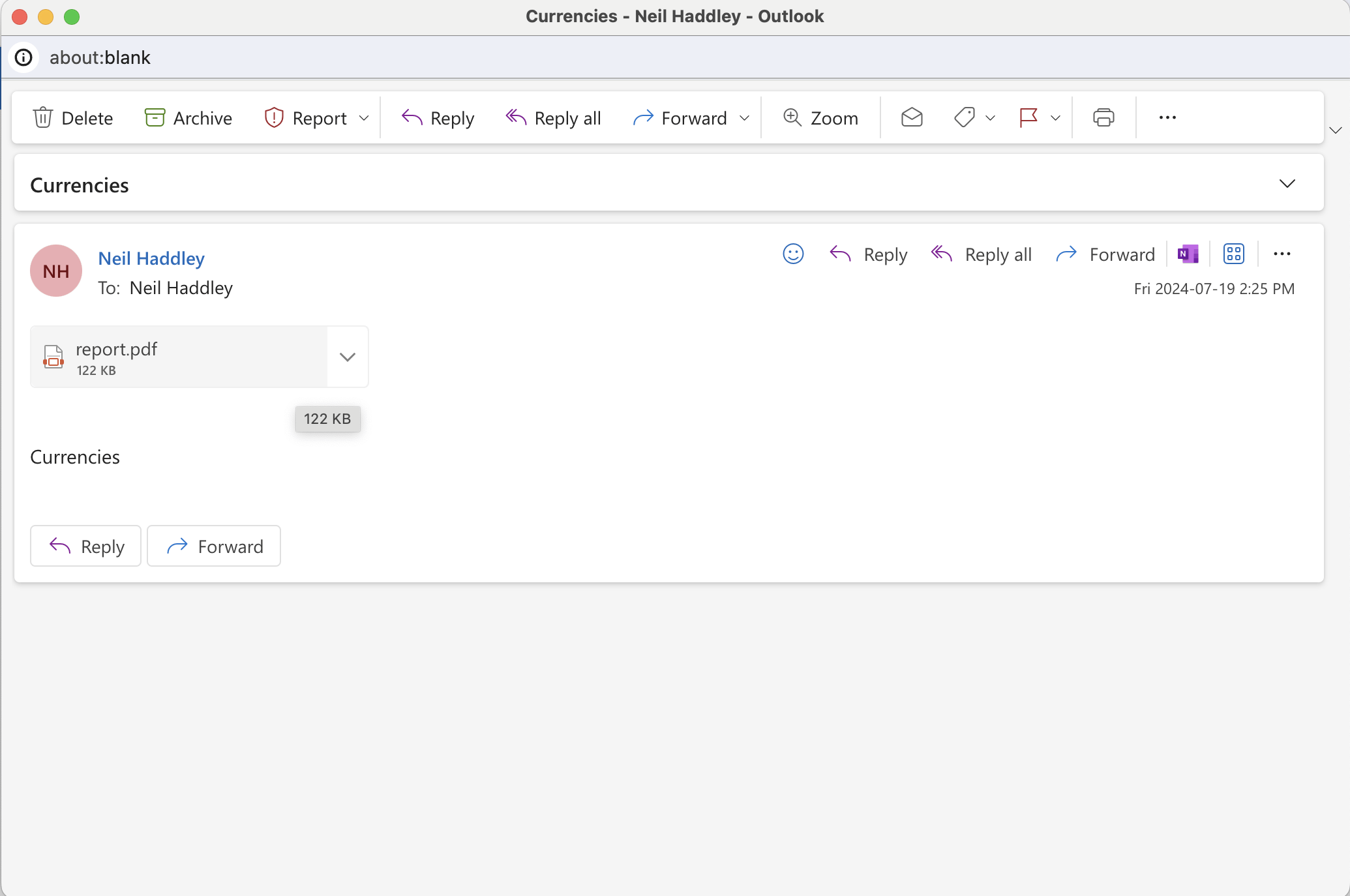

When I run the flow this email is received

When I run the flow this email is received

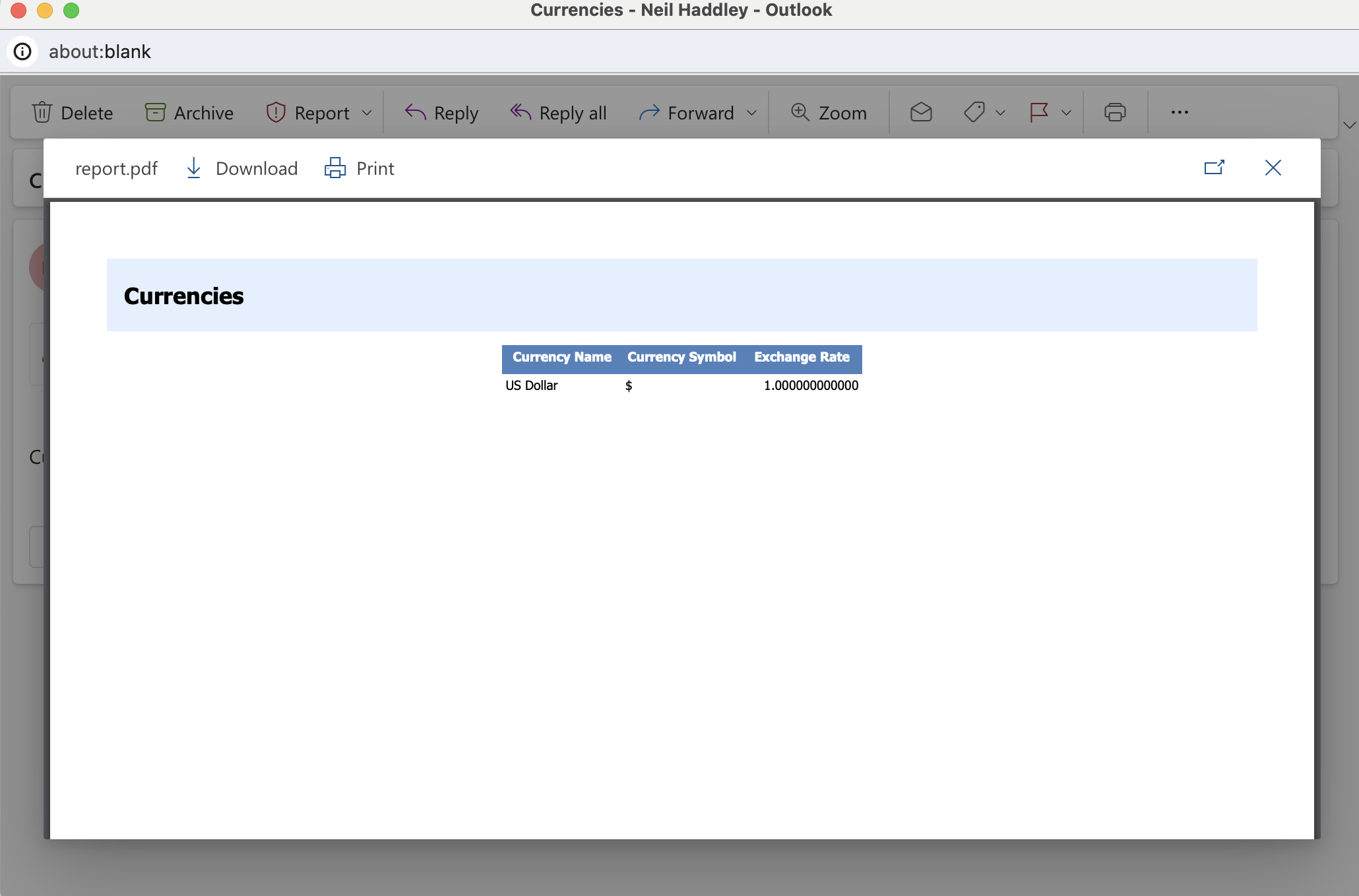

The email has this PDF file attachment

The email has this PDF file attachment
