Prompt Flow (Part 1)

Neil HaddleyJune 11, 2024

Setup

Prompt flow is a development tool designed to streamline the development of AI applications powered by Large Language Models (LLMs).

Prompt flow applications can be developed using Azure or locally on a laptop.

Prompt flow application can be deployed using Azure App Service, Docker or Kubernetes.

Here I demonstrate how I used Prompt flow for Visual Studio Code to create and run a couple of sample AI applications.

The result is not very different from AI applications I have developed in the past using langchain.

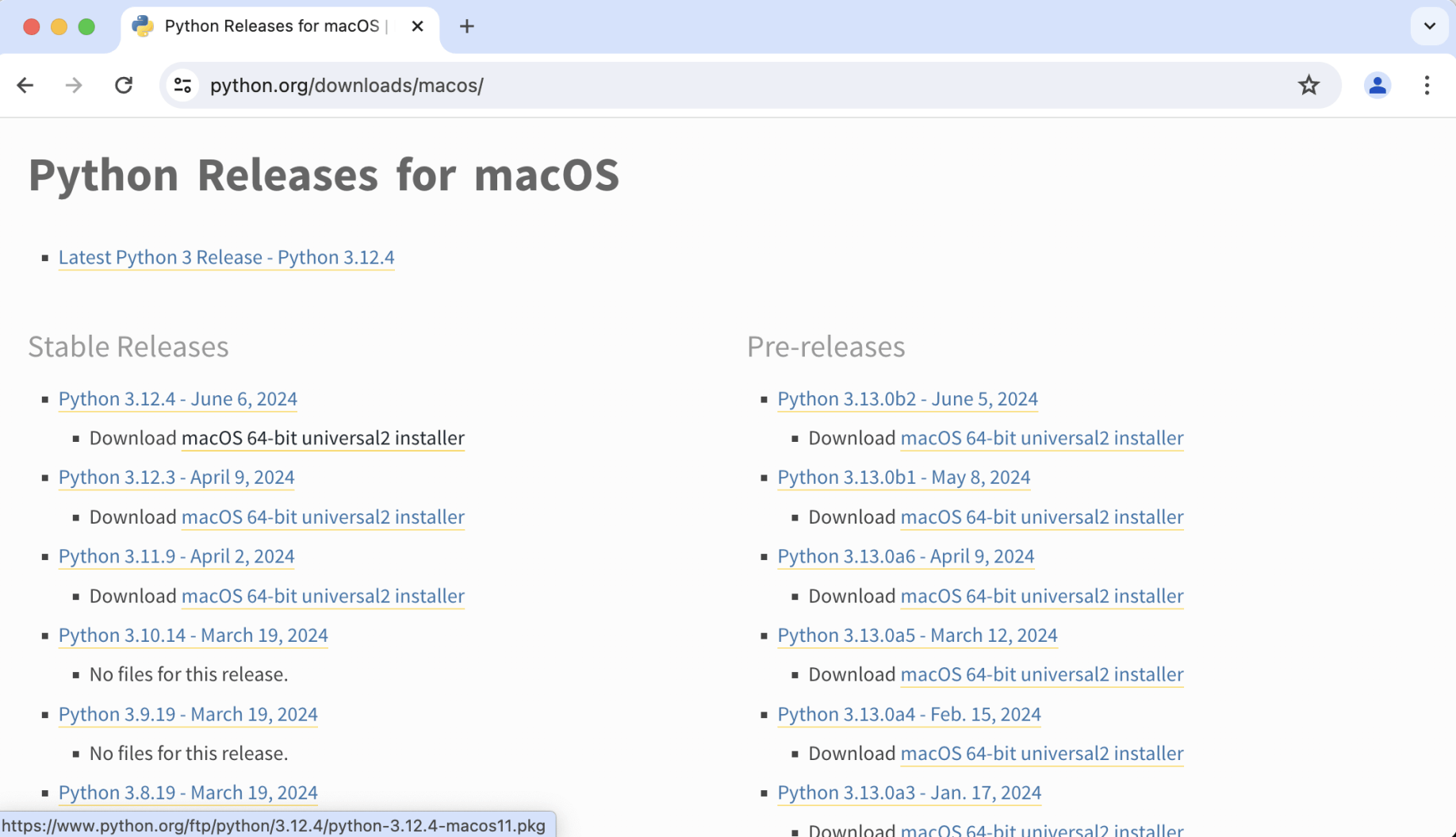

I downloaded Python from the python.org web site

I downloaded Python from the python.org web site

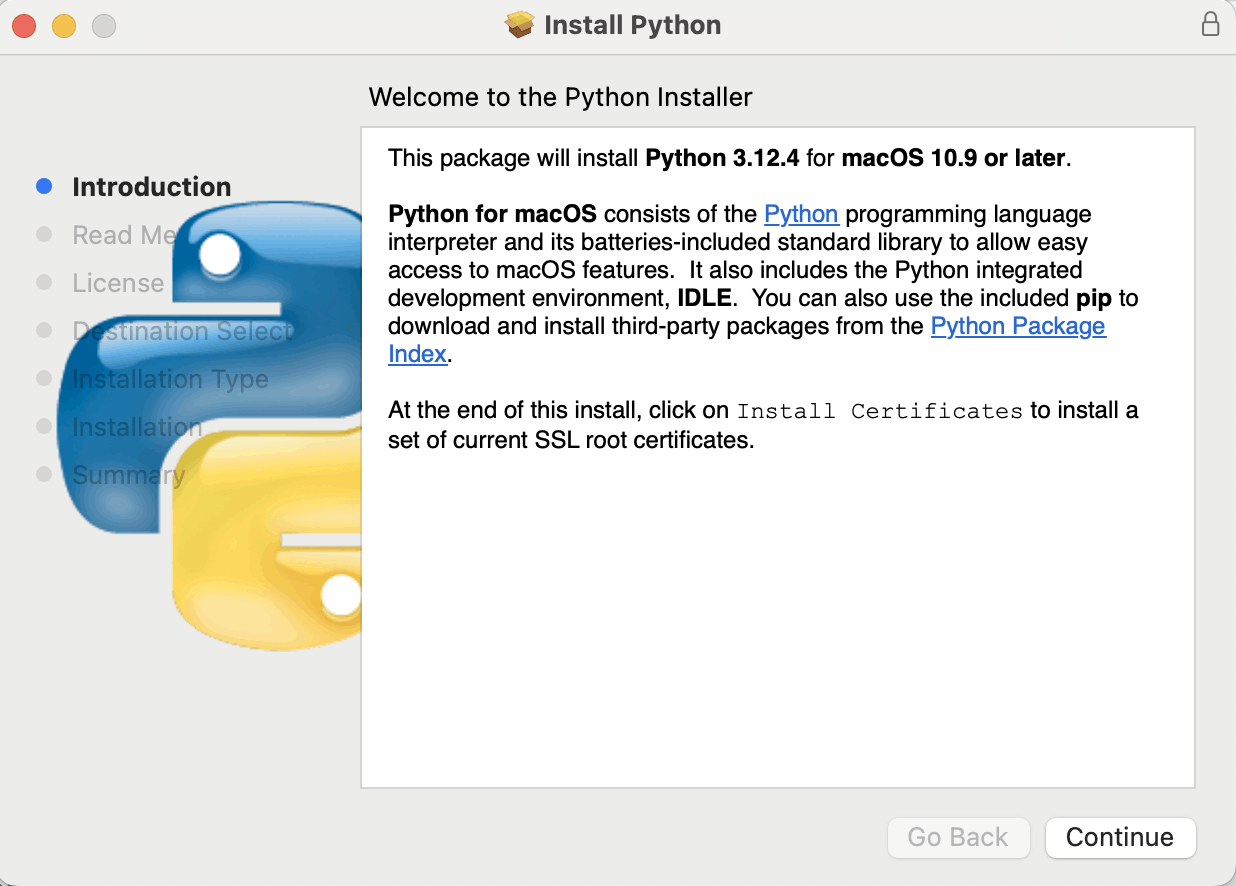

I installed Python 3.12.4 for macOS

I installed Python 3.12.4 for macOS

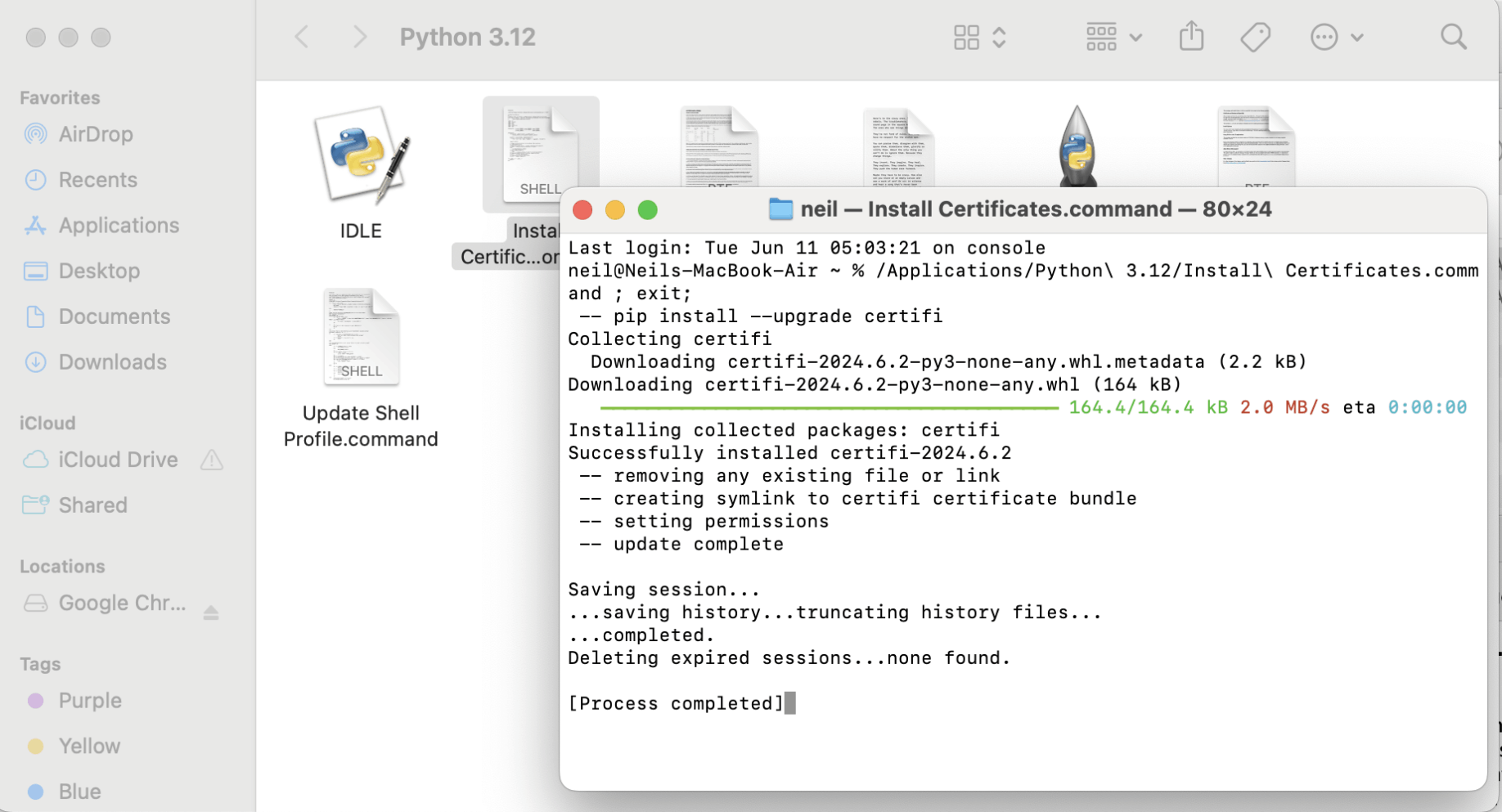

I ran the Install Certificates script

I ran the Install Certificates script

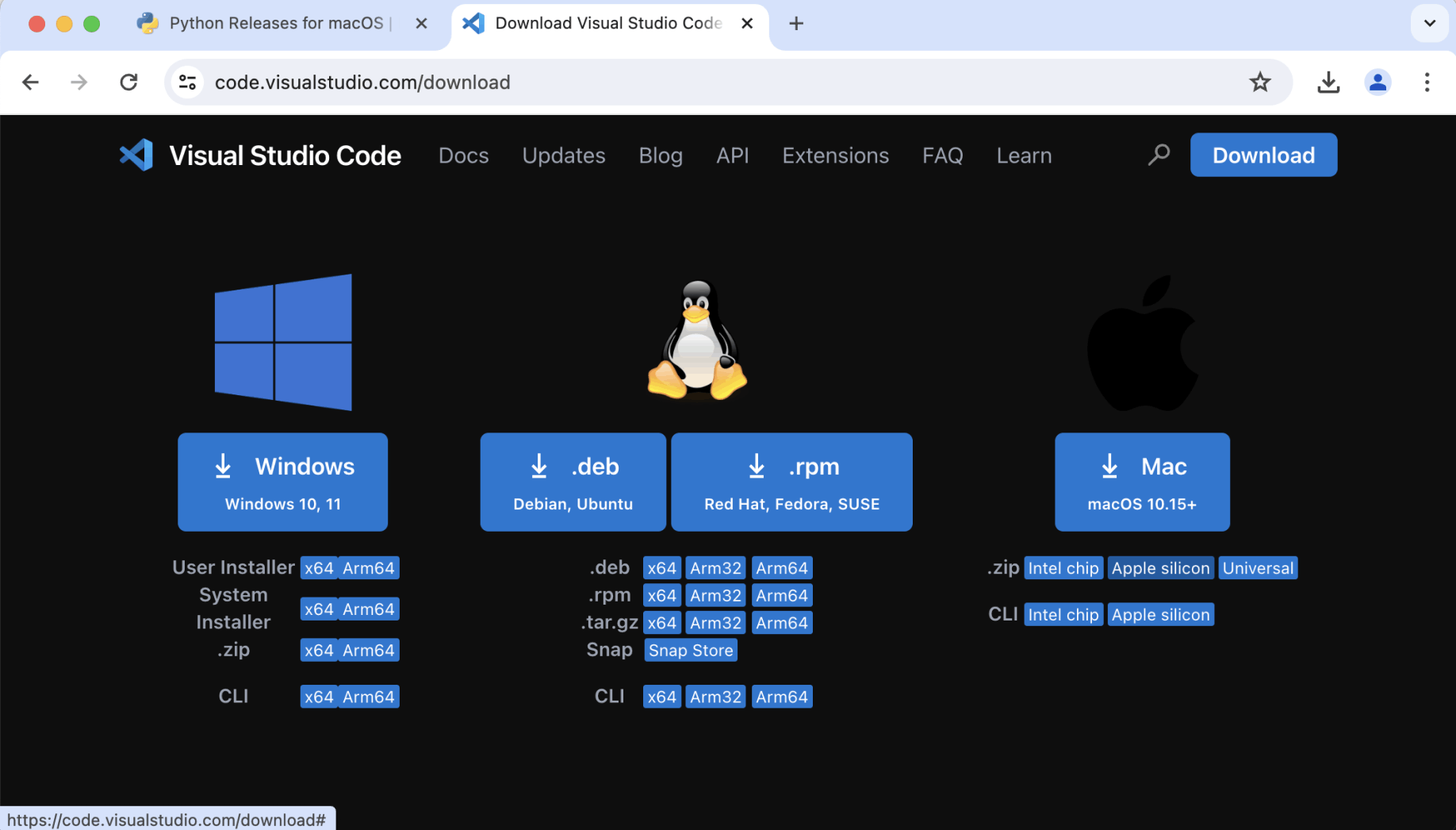

I downloaded Visual Studio Code (the Apple silicon build)

I downloaded Visual Studio Code (the Apple silicon build)

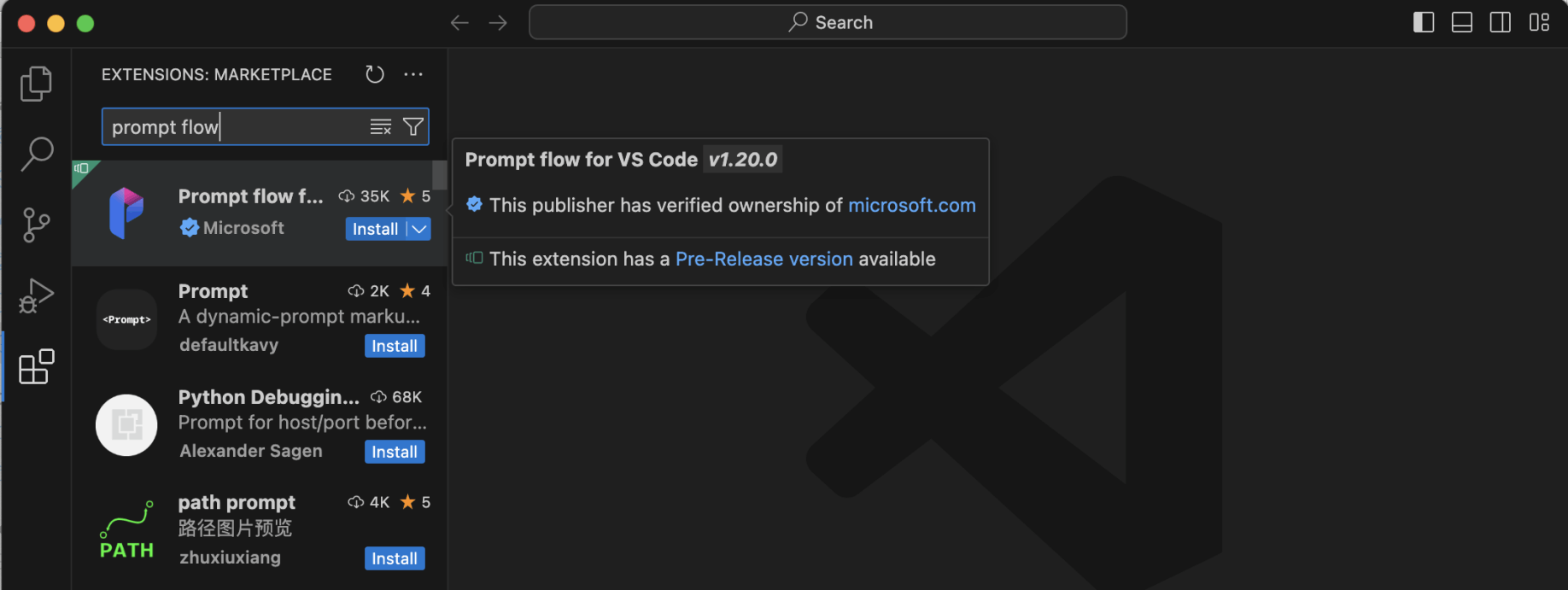

I installed the Prompt flow VS Code extension

I installed the Prompt flow VS Code extension

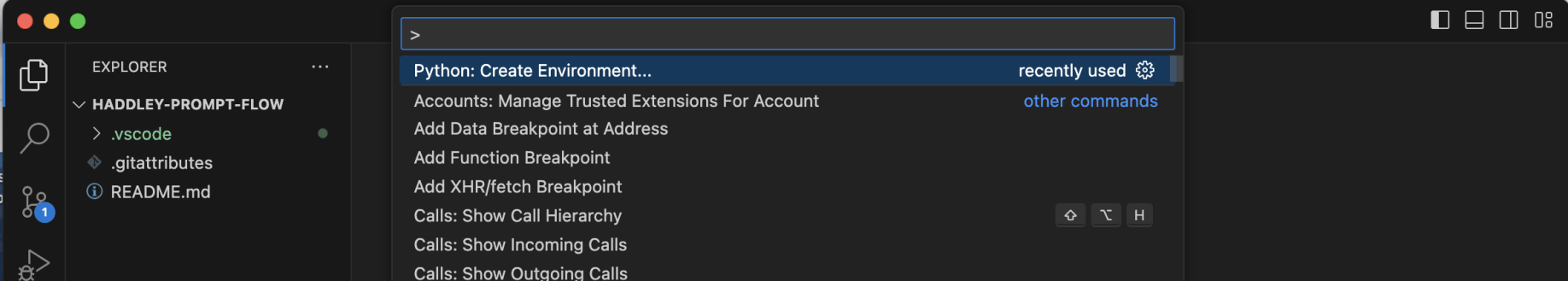

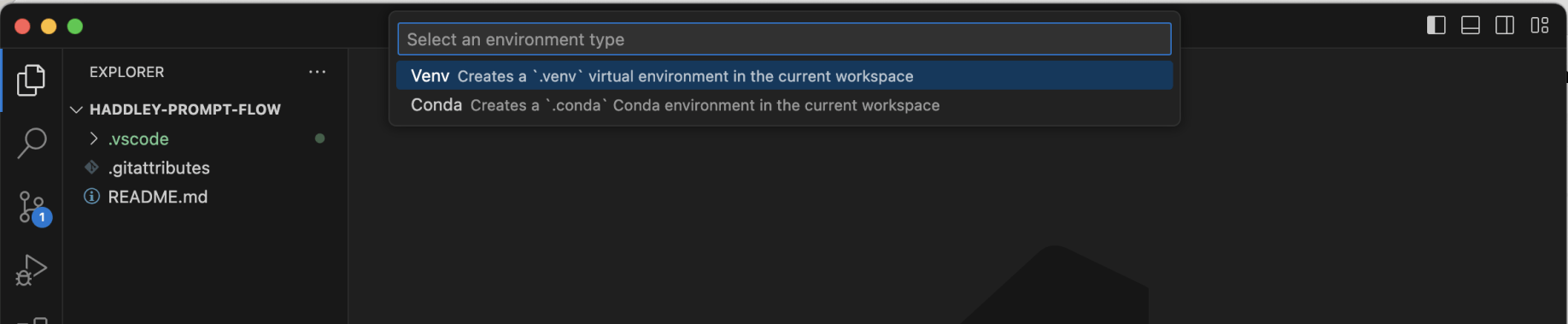

I opened a folder and ran the Python: Create Environment command.

I opened a folder and ran the Python: Create Environment command.

I created a .venv environment in the project's folder

I created a .venv environment in the project's folder

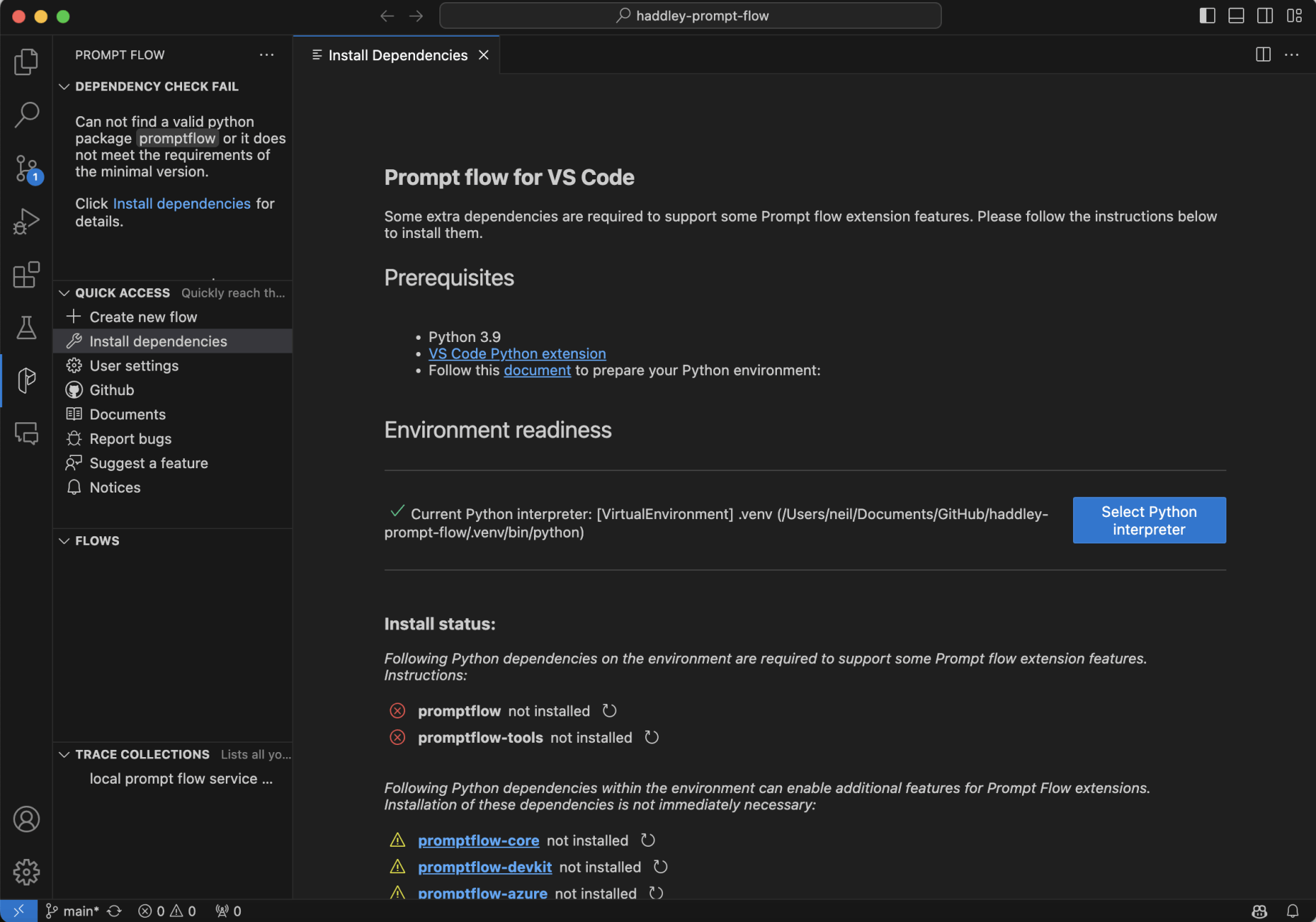

I selected the Prompt flow extension (the "P" logo) and clicked the QUICK ACCESS | Install dependencies menu item

I selected the Prompt flow extension (the "P" logo) and clicked the QUICK ACCESS | Install dependencies menu item

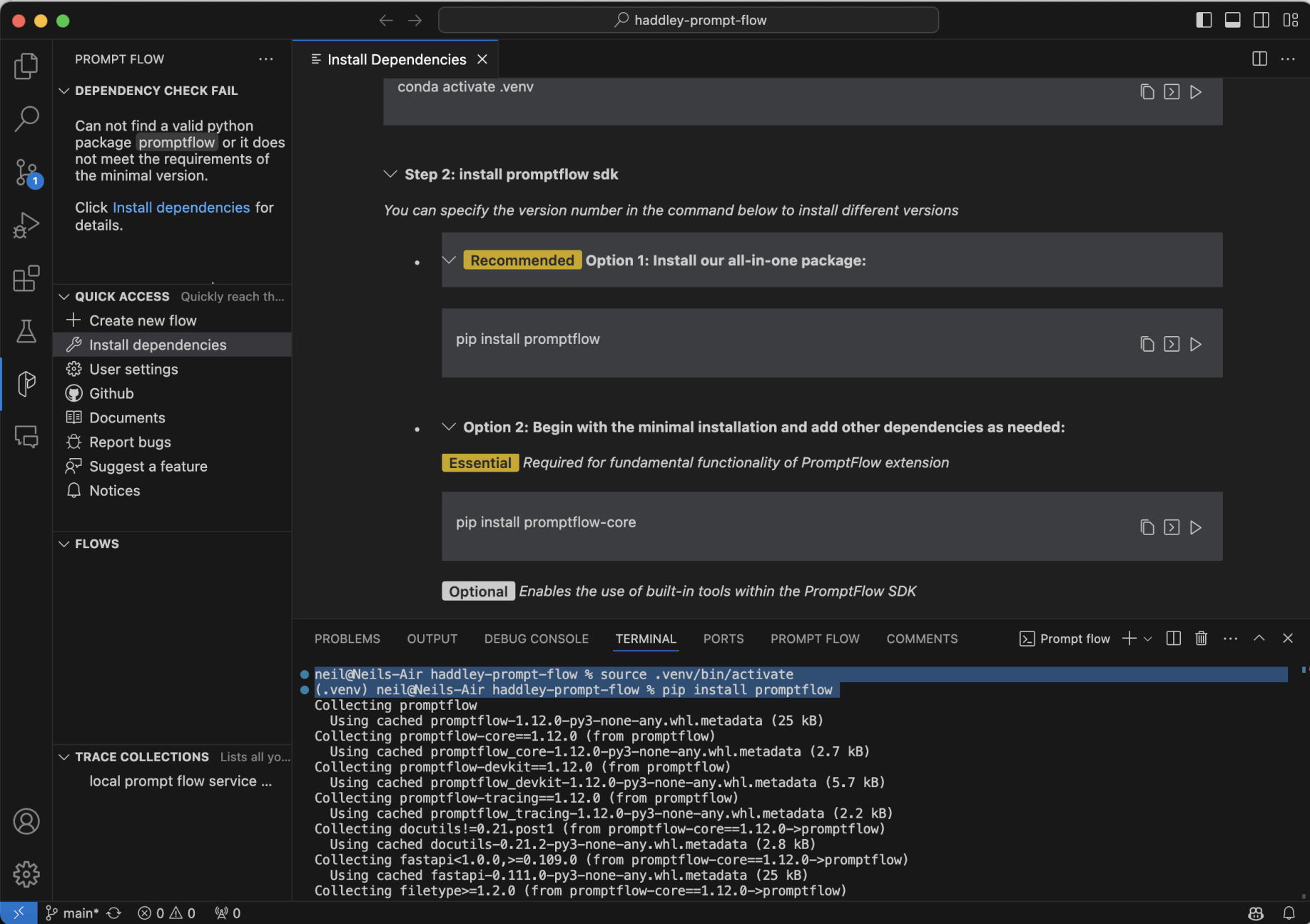

I used source .venv/bin/activate to activate the environmentI used pip install promptflow to add the promptflow dependencies

I used source .venv/bin/activate to activate the environmentI used pip install promptflow to add the promptflow dependencies

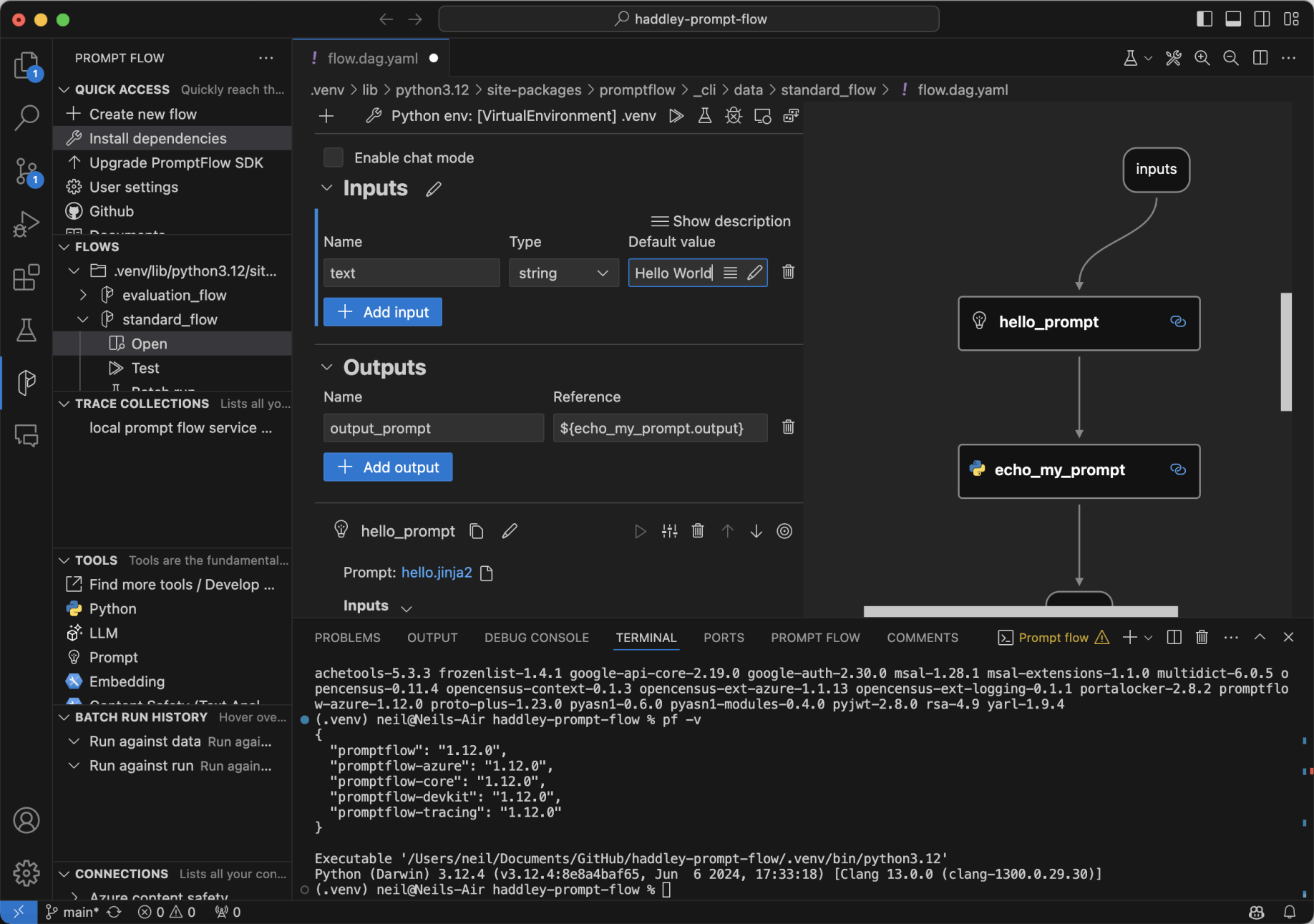

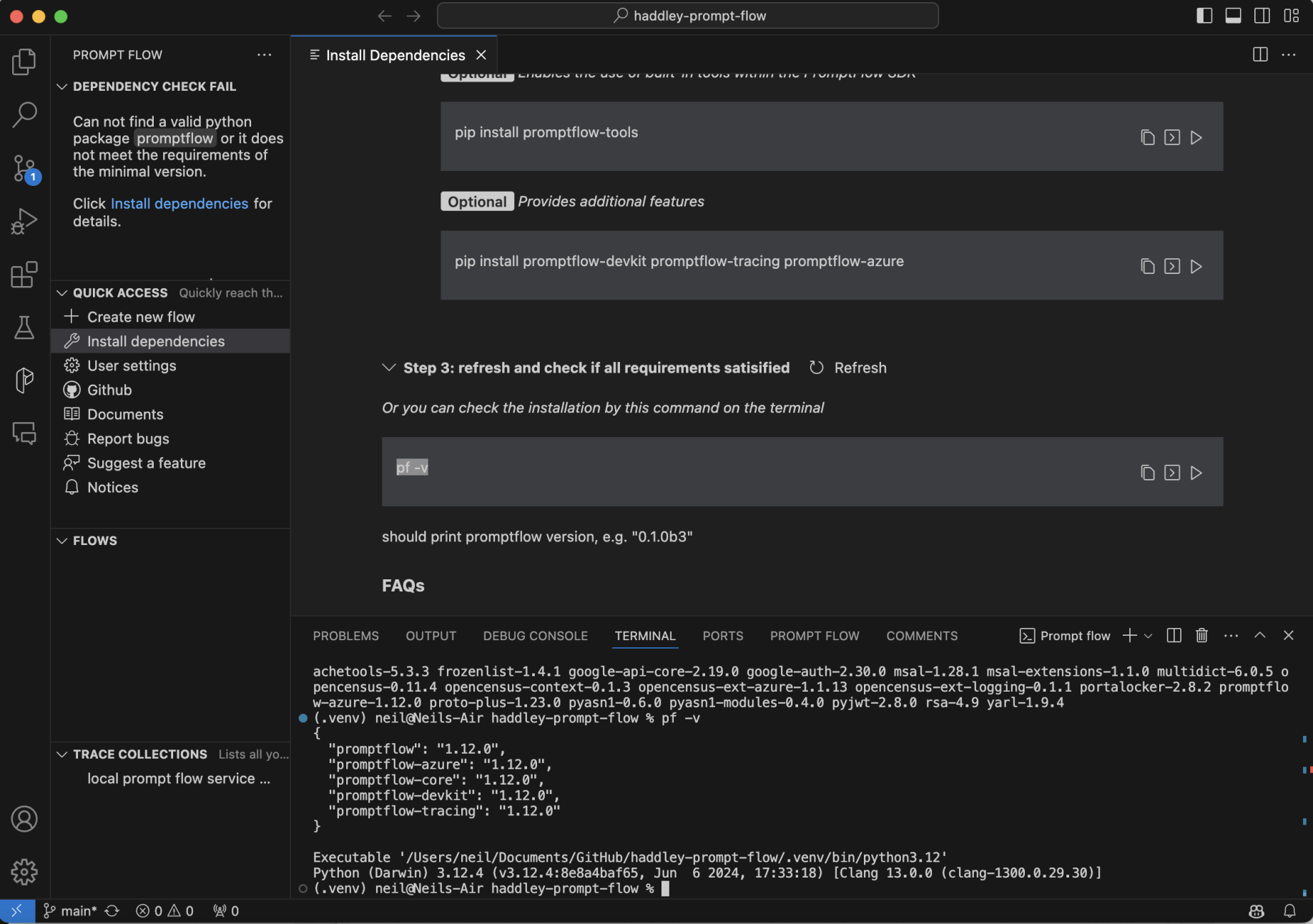

I ran pf -v to see what version of Prompt flow was installed

I ran pf -v to see what version of Prompt flow was installed

I clicked on FLOWS and navigated to the included standard_flowI ensured that the .venv virtual environment was selected and entered a text default value "Hello World"

I clicked on FLOWS and navigated to the included standard_flowI ensured that the .venv virtual environment was selected and entered a text default value "Hello World"

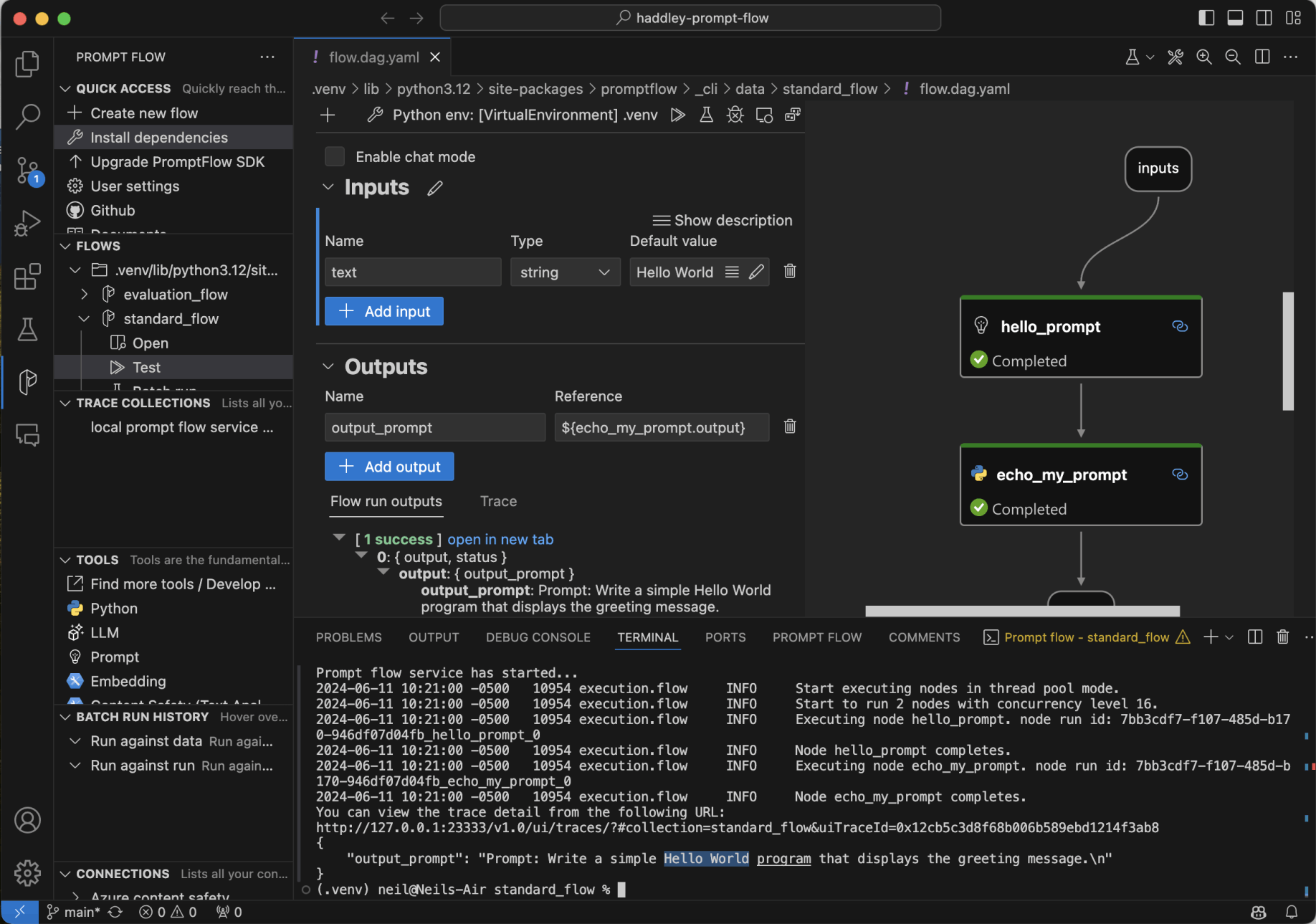

I clicked the Test menu item to run the standard_flowThe default text value was added to the "Prompt:" and "Write a simple {{text}} program that displays the greeting message." text

I clicked the Test menu item to run the standard_flowThe default text value was added to the "Prompt:" and "Write a simple {{text}} program that displays the greeting message." text

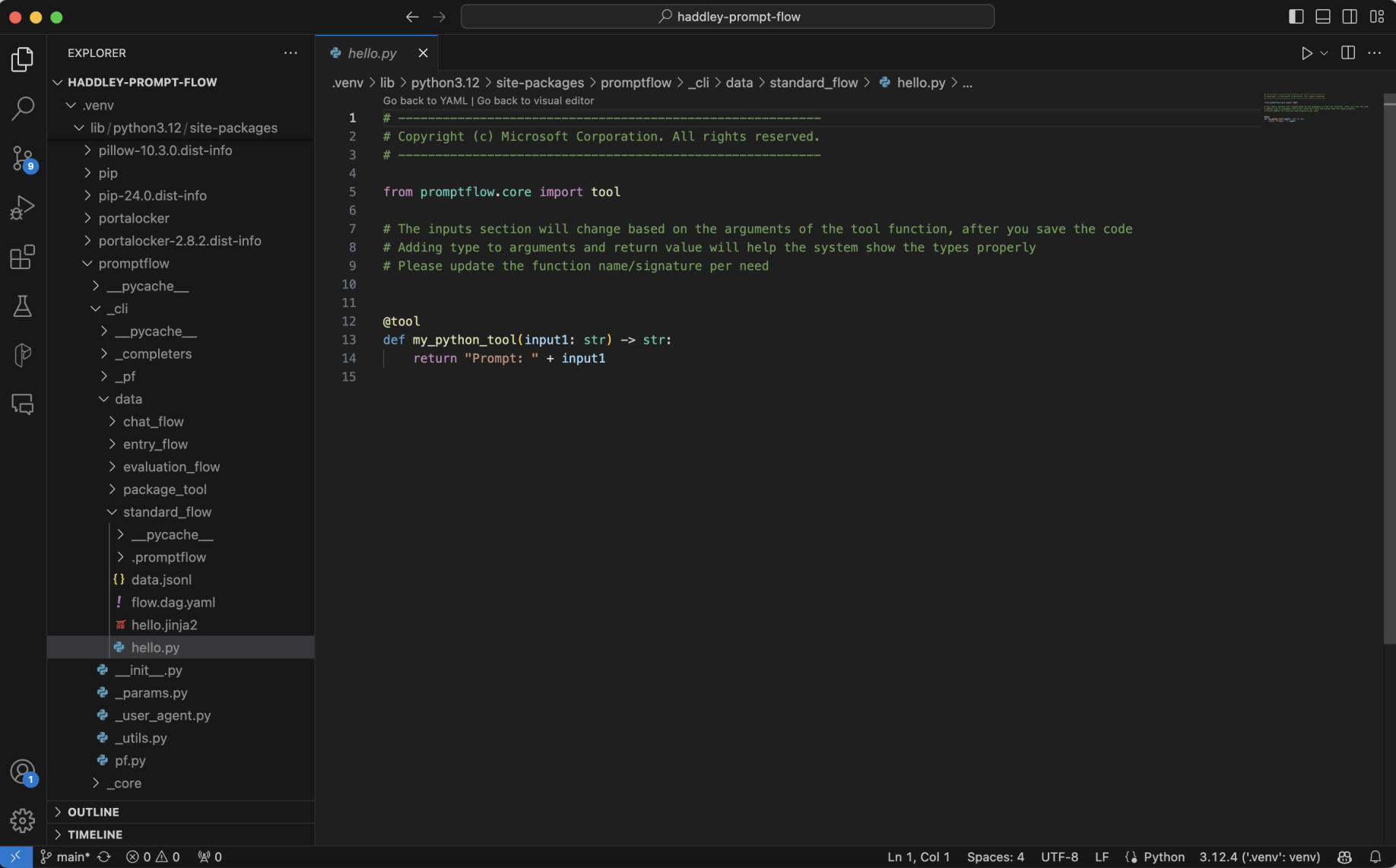

The "Prompt: " text is included in the hello.py source code

The "Prompt: " text is included in the hello.py source code

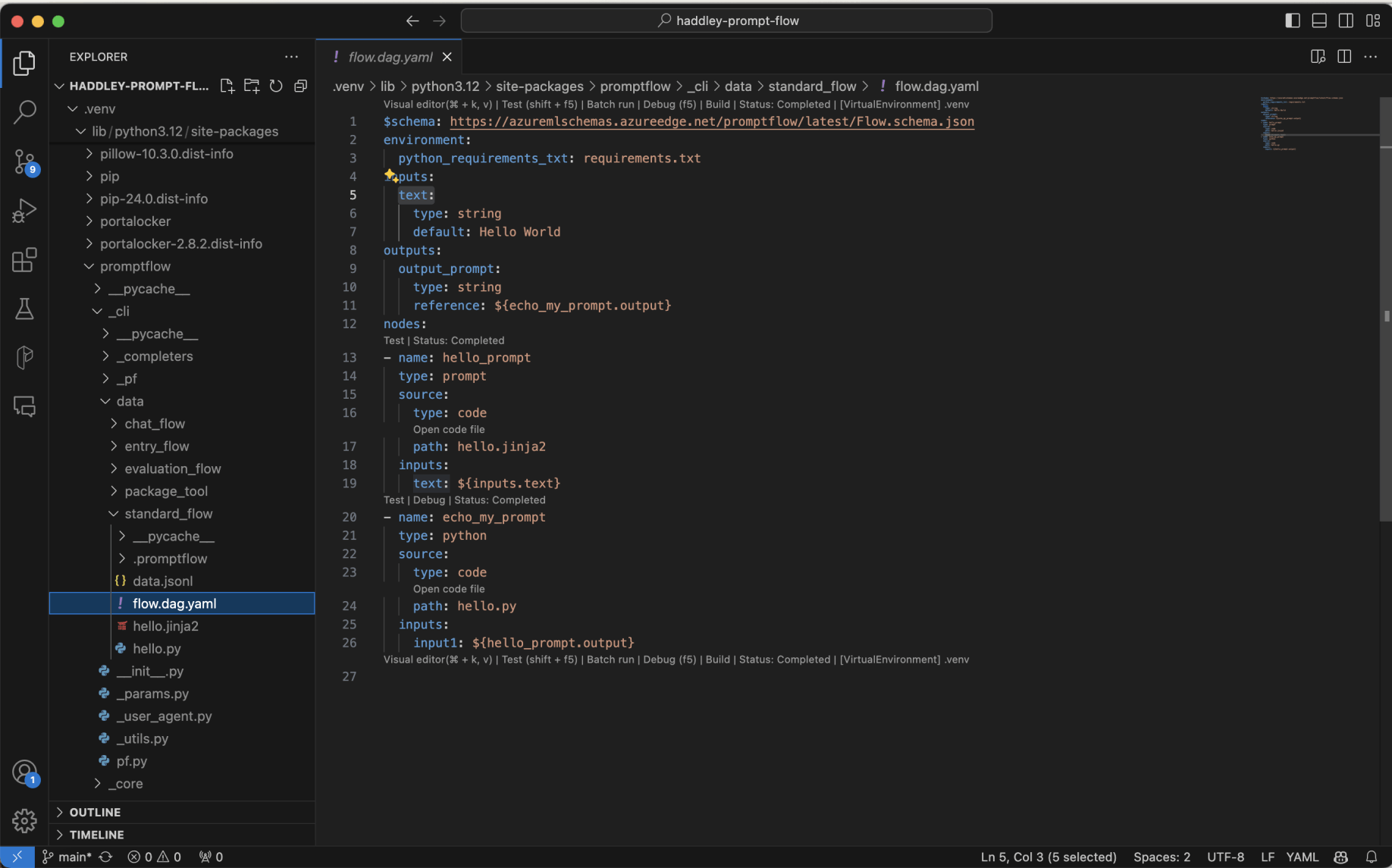

The flow.dag.yaml file describes the flow

The flow.dag.yaml file describes the flow

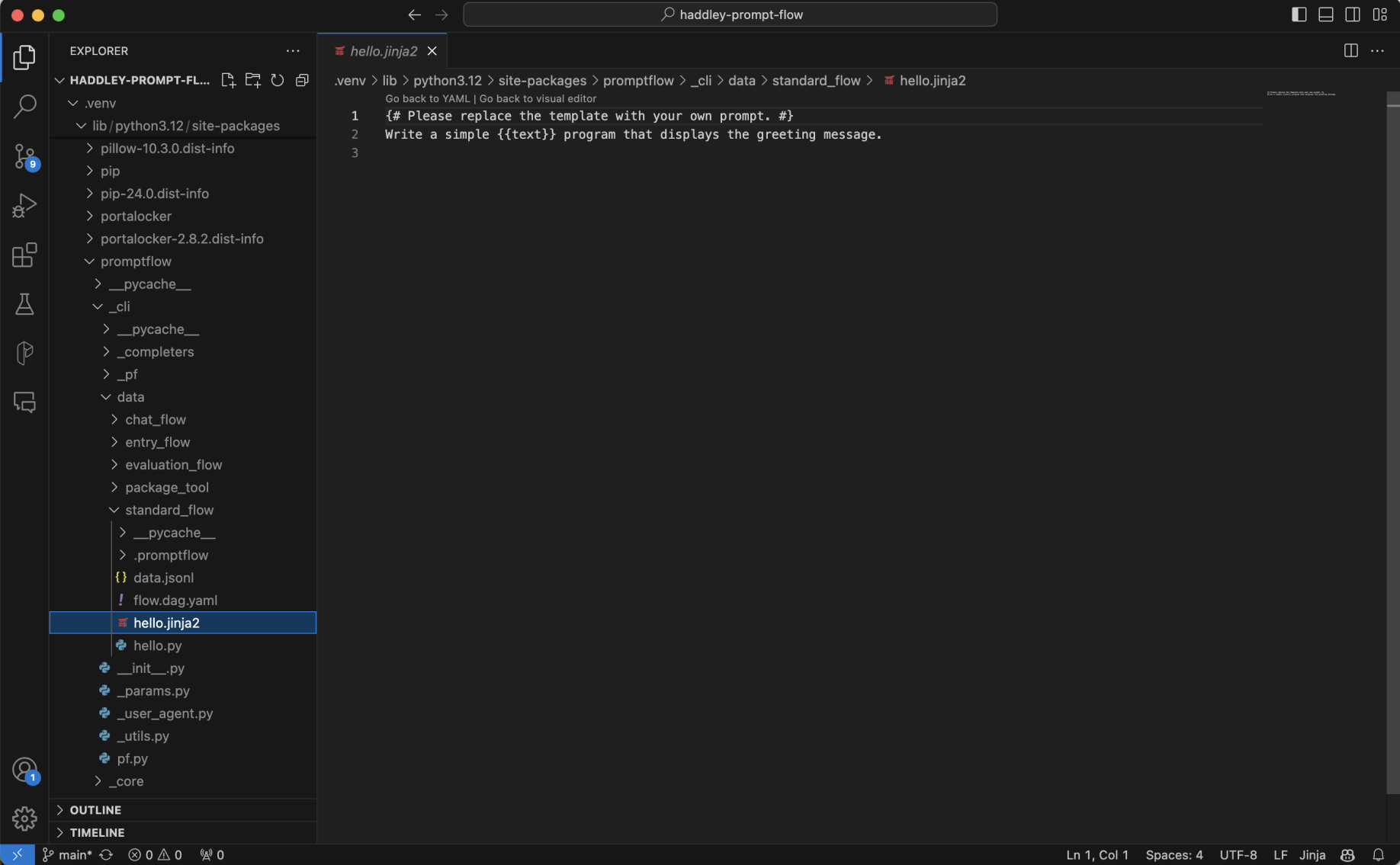

The hello.jinja2 template contains the "Write a simple {{text}}..." text

The hello.jinja2 template contains the "Write a simple {{text}}..." text

Creating a new flow

I used the +Create new flow menu item to create a new flow.

I used the Open menu item to view the flow.

I used the Test menu item to run the flow.

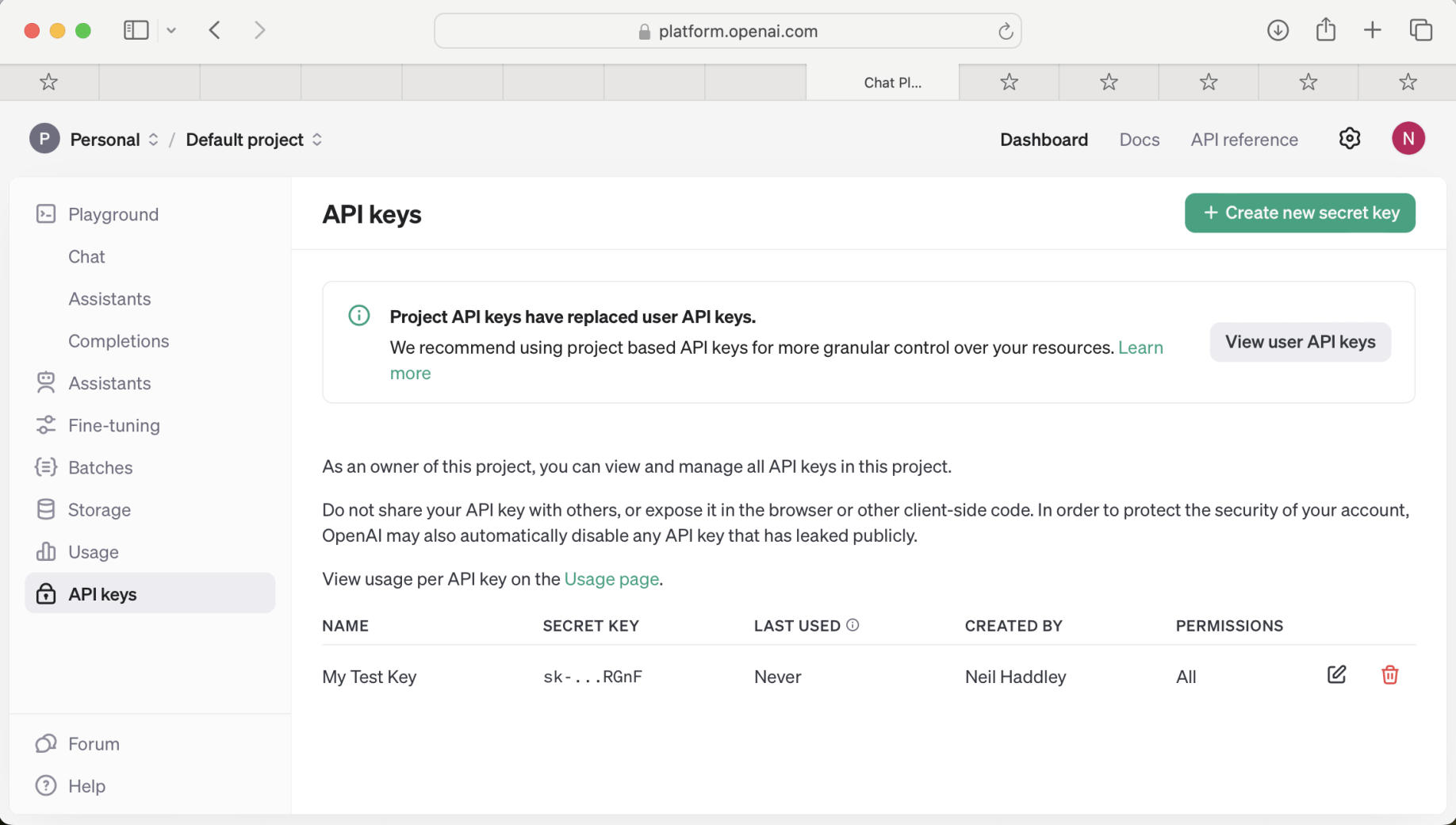

I generated a new Open AI key and used it to create a Prompt flow connection

I generated a new Open AI key and used it to create a Prompt flow connection

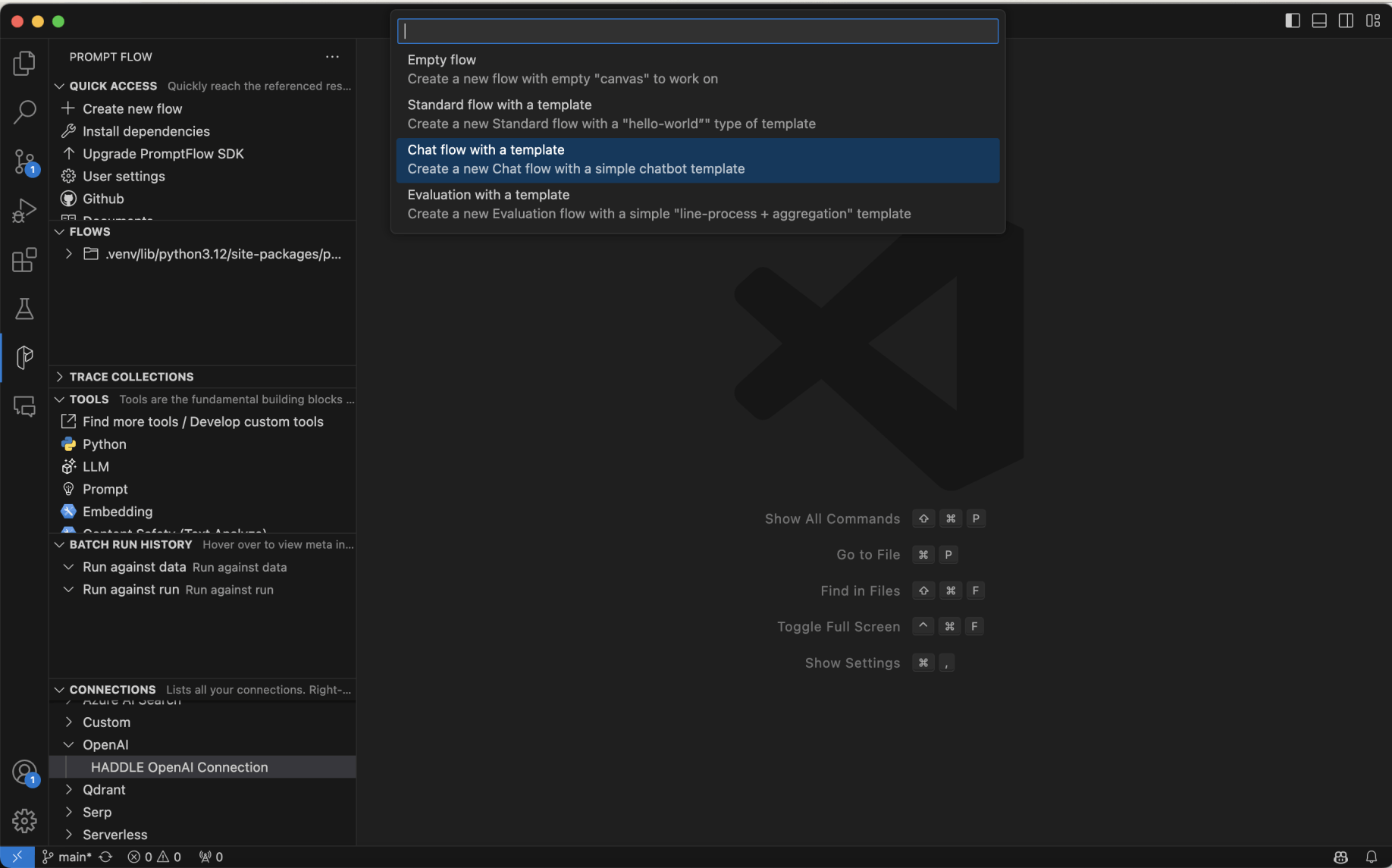

I created a chat flow

I created a chat flow

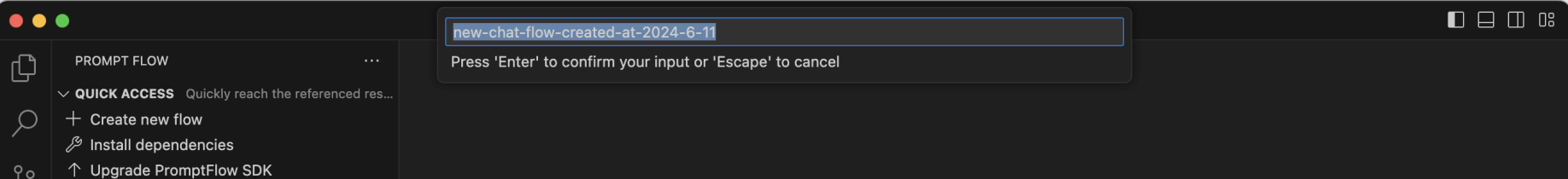

I accepted the default flow name

I accepted the default flow name

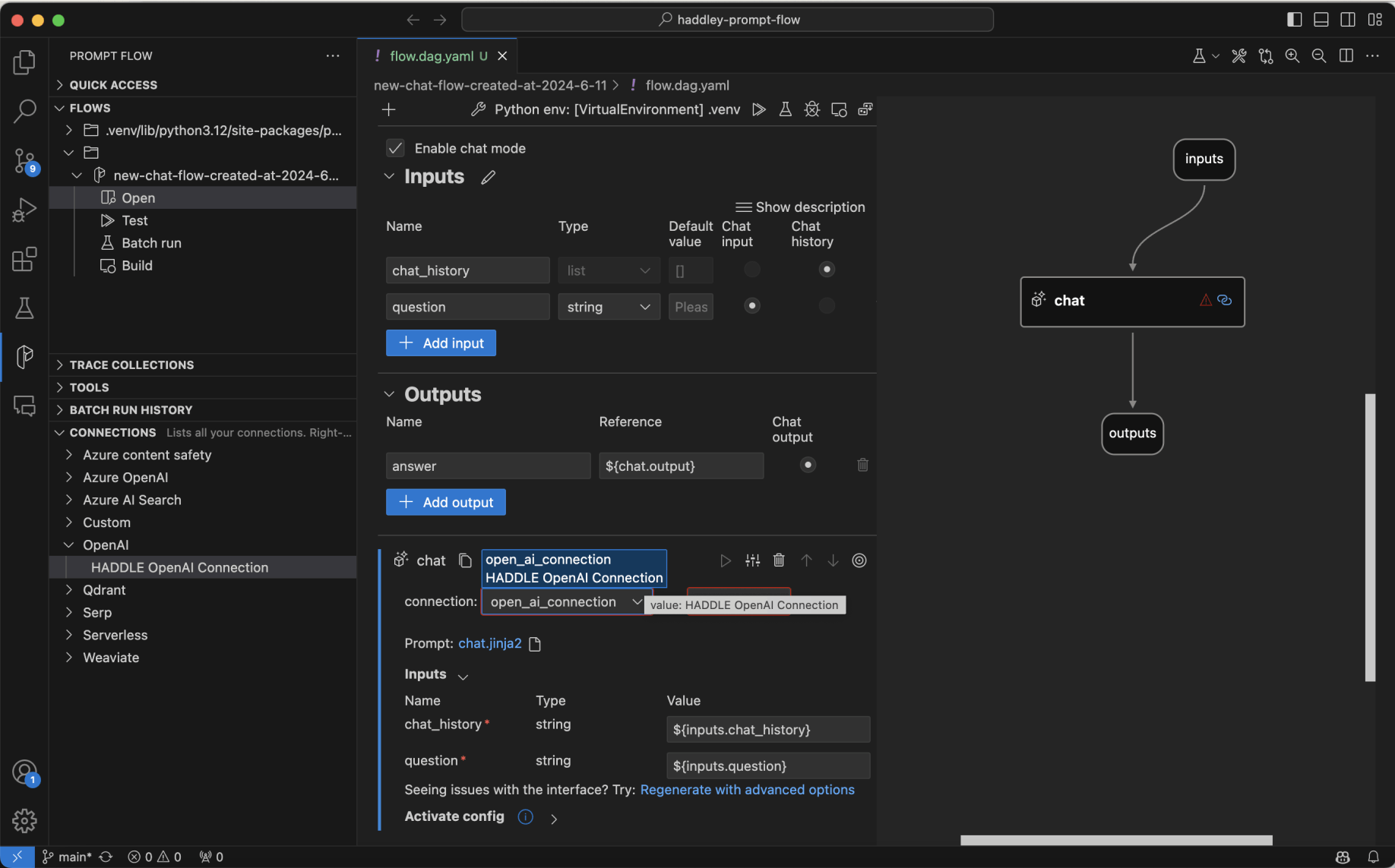

I updated the flow to make use of the OpenAI (large language model) connection

I updated the flow to make use of the OpenAI (large language model) connection

I updated the default question text

I updated the default question text

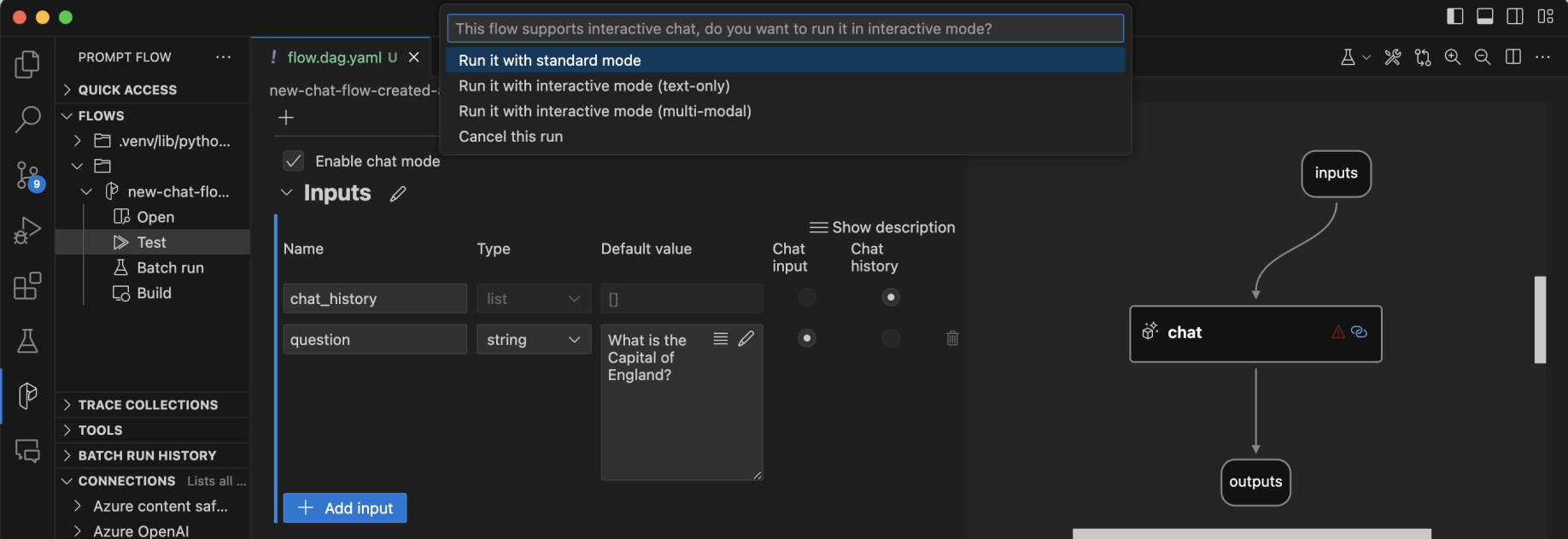

I used the Test menu item to run the flow with standard mode

I used the Test menu item to run the flow with standard mode

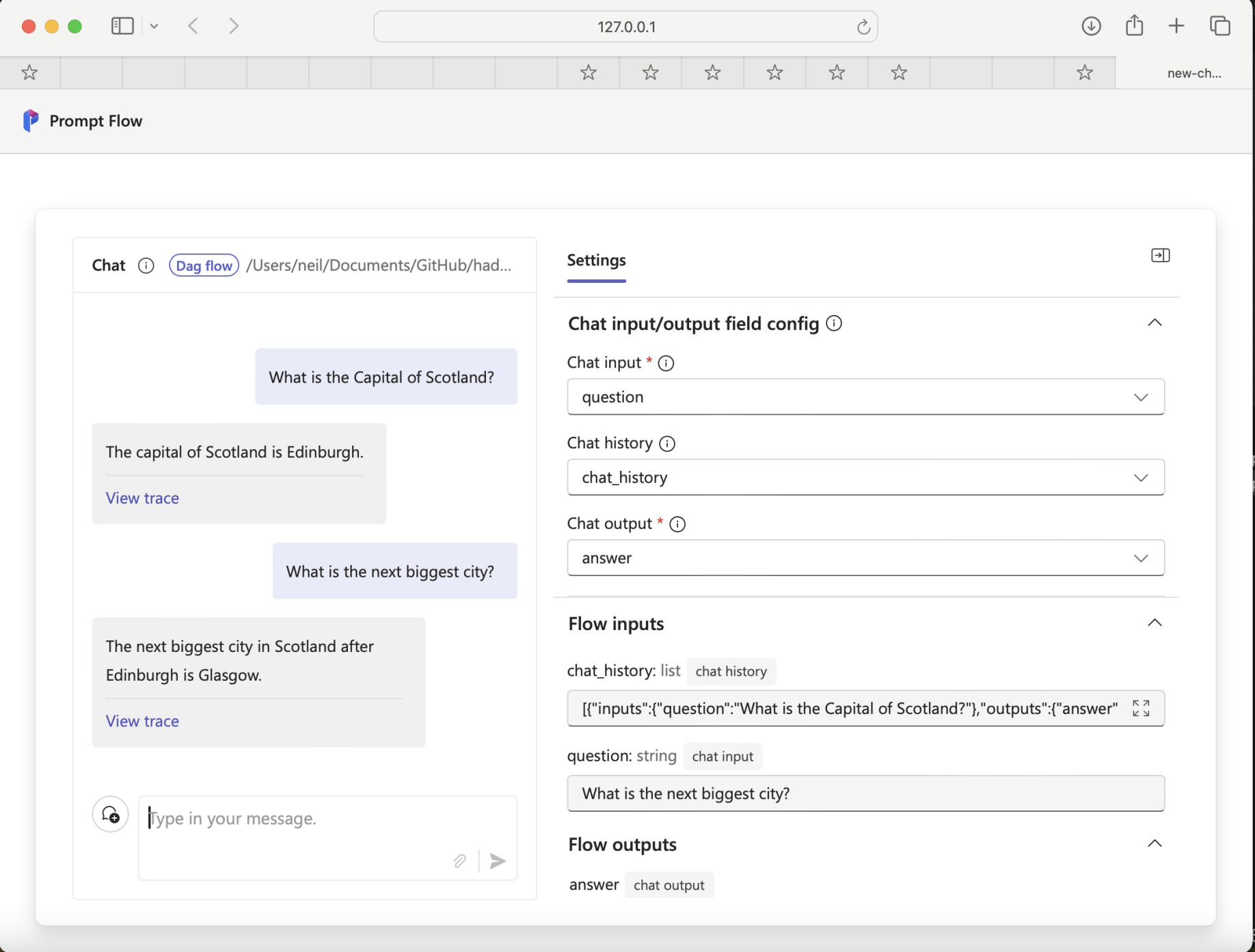

I ran the Prompt flow with interactive mode (multi-modal)

I ran the Prompt flow with interactive mode (multi-modal)

The new chat flow included a single llm tool (named "chat")

The new chat flow included a single llm tool (named "chat")

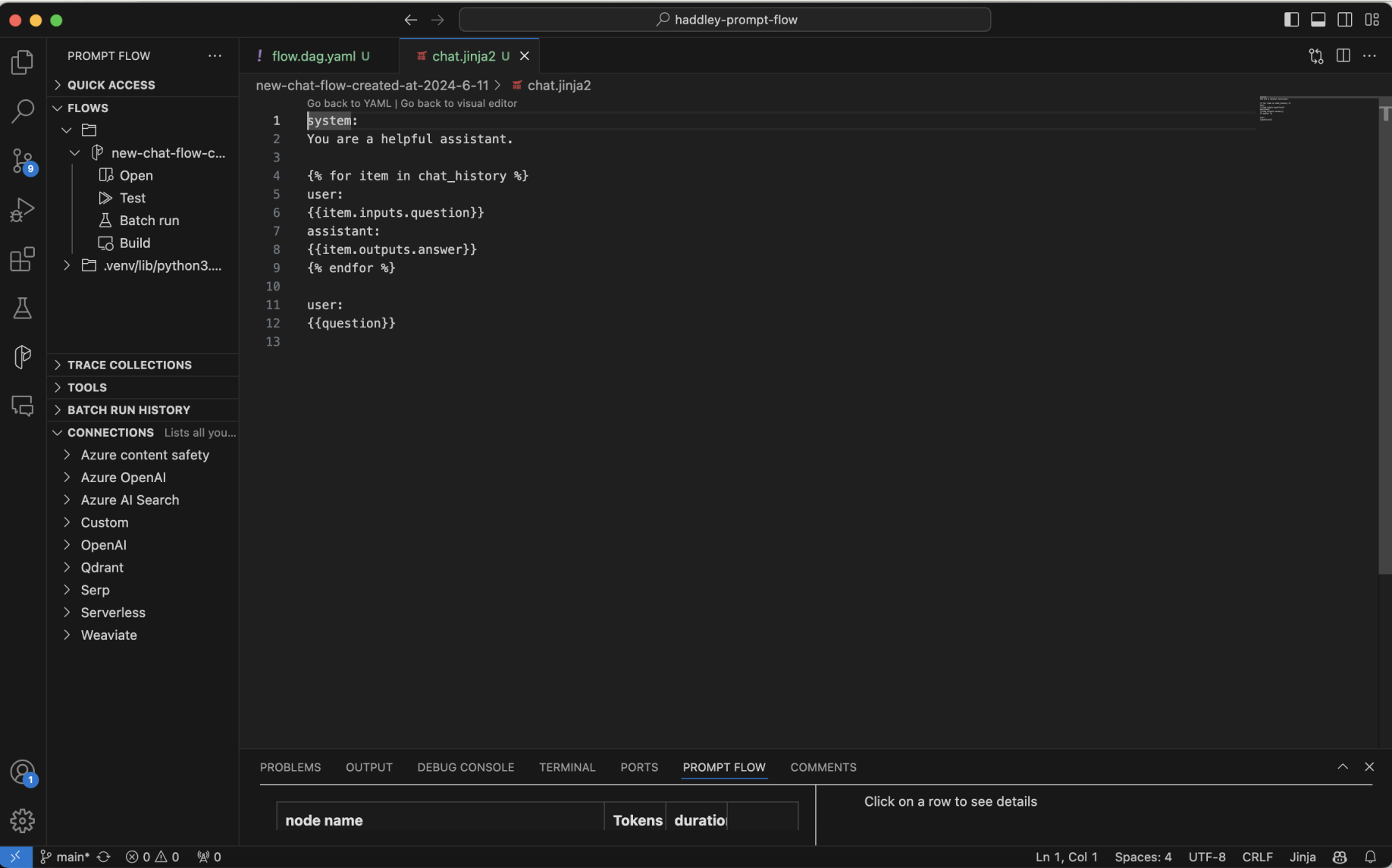

The chat.jinja2 file is used to compose the large language model prompt (with the chat history included)

The chat.jinja2 file is used to compose the large language model prompt (with the chat history included)

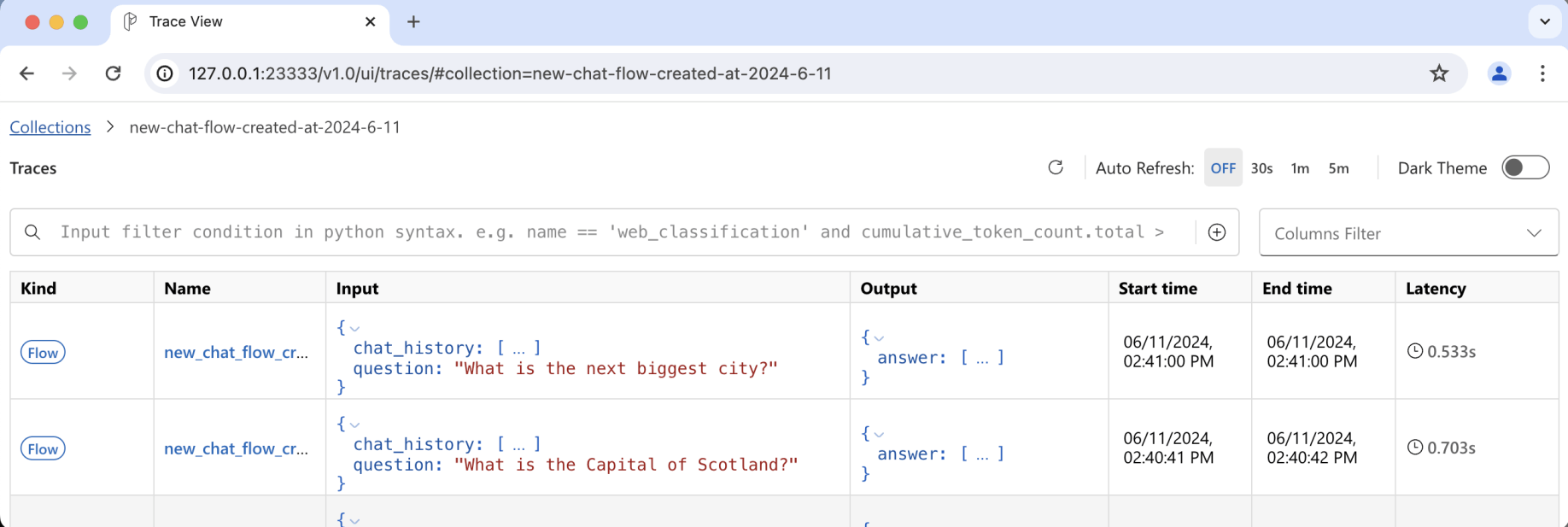

Prompt flow traces

Prompt flow traces

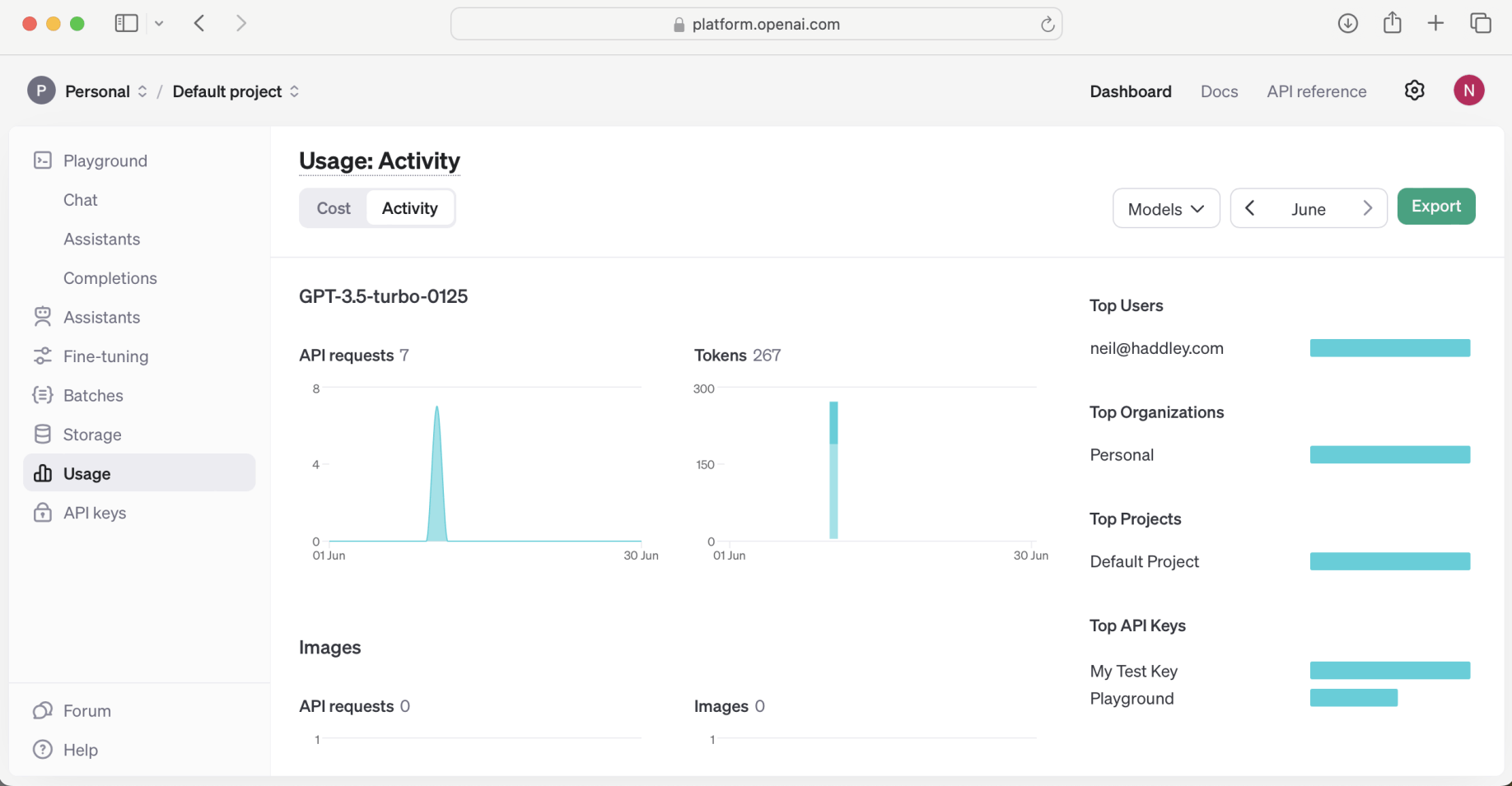

Open AI activity

Open AI activity

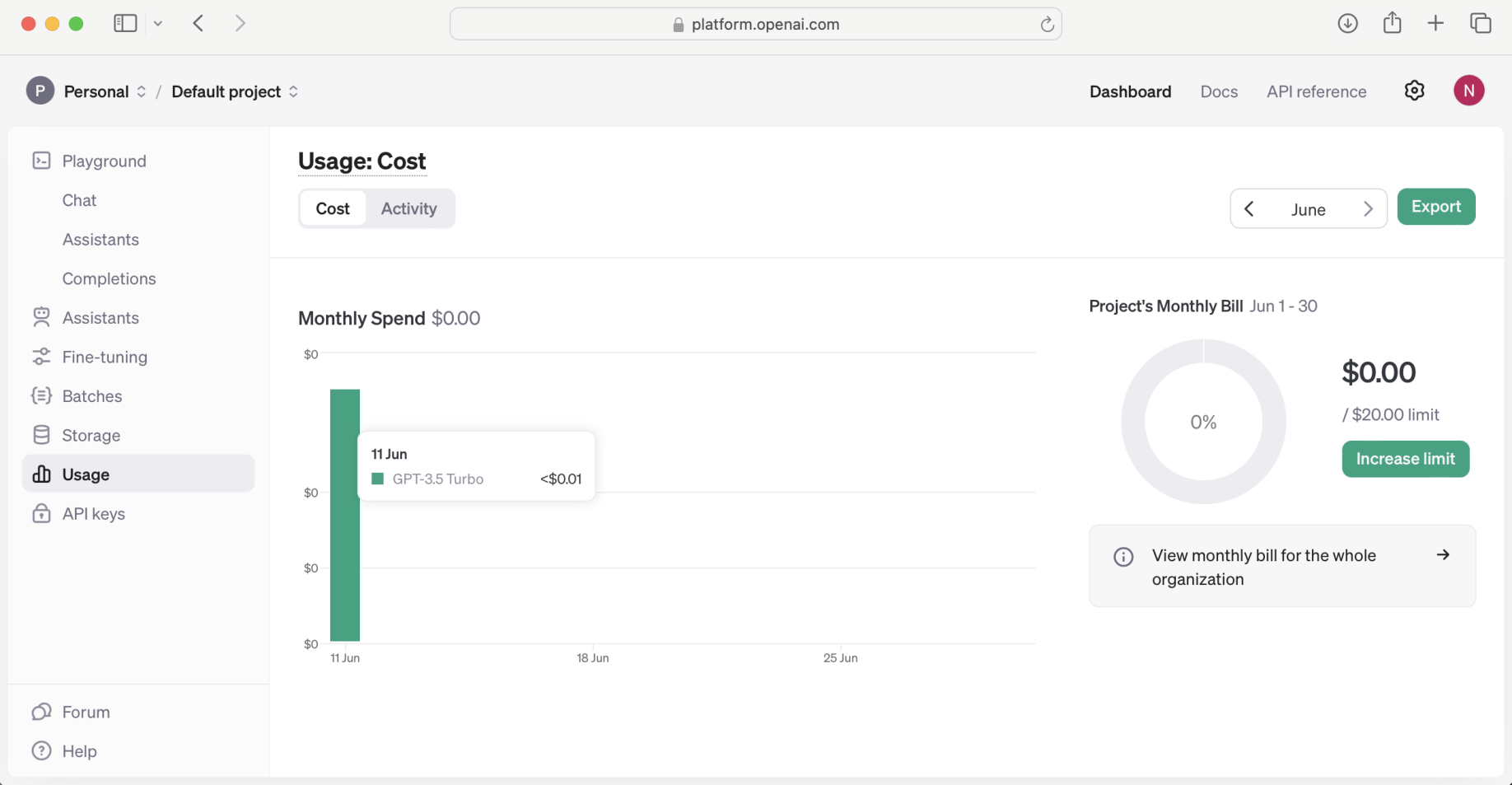

Open AI cost $

Open AI cost $
