SharePoint site designs and site scripts

Neil HaddleyFebruary 15, 2021

SharePoint users and administrators have long appreciated the opportunity to reuse SharePoint Site Templates.

Site scripts

Microsoft site scripts allow users and administrators to automate the provisioning of "similar" SharePoint sites.

Site scripts are JSON formatted files.

Site scripts include "actions" that will modify a SharePoint site.

Site script actions include:

Add Nav Link

Apply ThemeCreate Content TypeCreate Site ColumnCreate SharePoint ListInstall SolutionJoin Hub SiteRemove Nav LinkSet Regional SettingsSet Site BrandingSet Site LogoSet Site External Sharing CapabilityTrigger Flow

The full schema can be downloaded from here

Add-SPOSiteScript

Site scripts are added to a SharePoint tenant using the Add-SPOSiteScript command

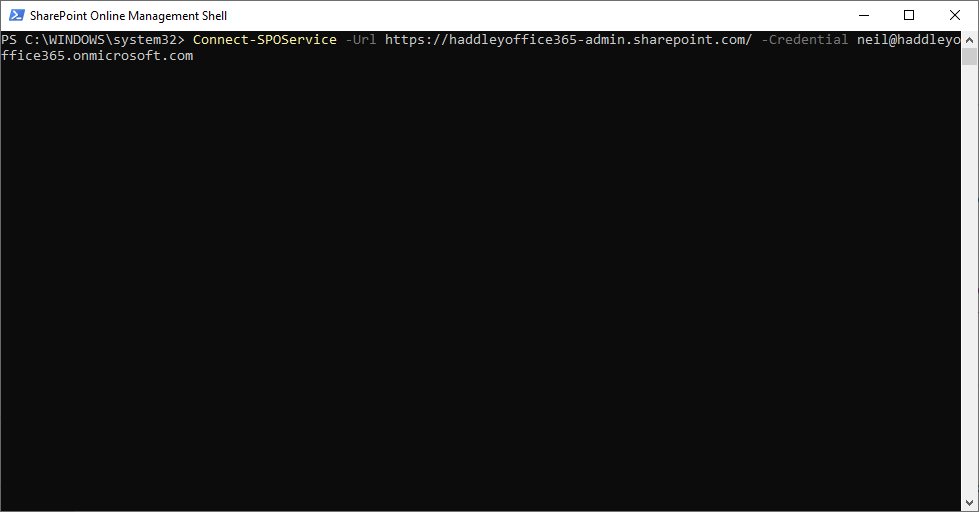

Connect to the SharePoint administration site

Connect to the SharePoint administration site

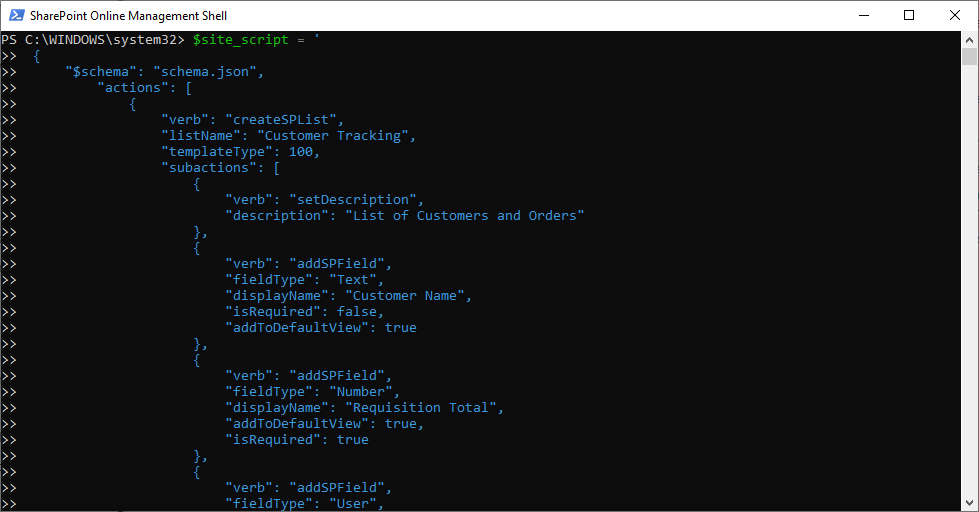

Load the JSON text into a variable

Load the JSON text into a variable

Add-SPOSiteDesign

Site designs can extend the SharePoint modern team site template(64) or the SharePoint modern communication site template (68).

Site designs are added to a SharePoint tenant using the ADD-SPOSiteDesign command (specifying one or more Site Script ids)

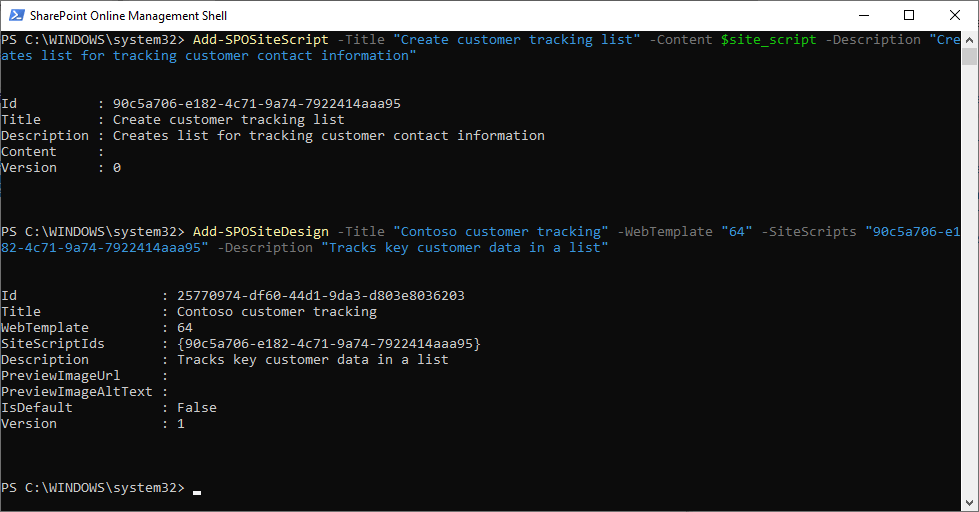

Add the Site Script and add the Site Design

Add the Site Script and add the Site Design

SharePoint Create a Site

Once the Site design has been created the out of the box "Create a Site" user experience will be updated

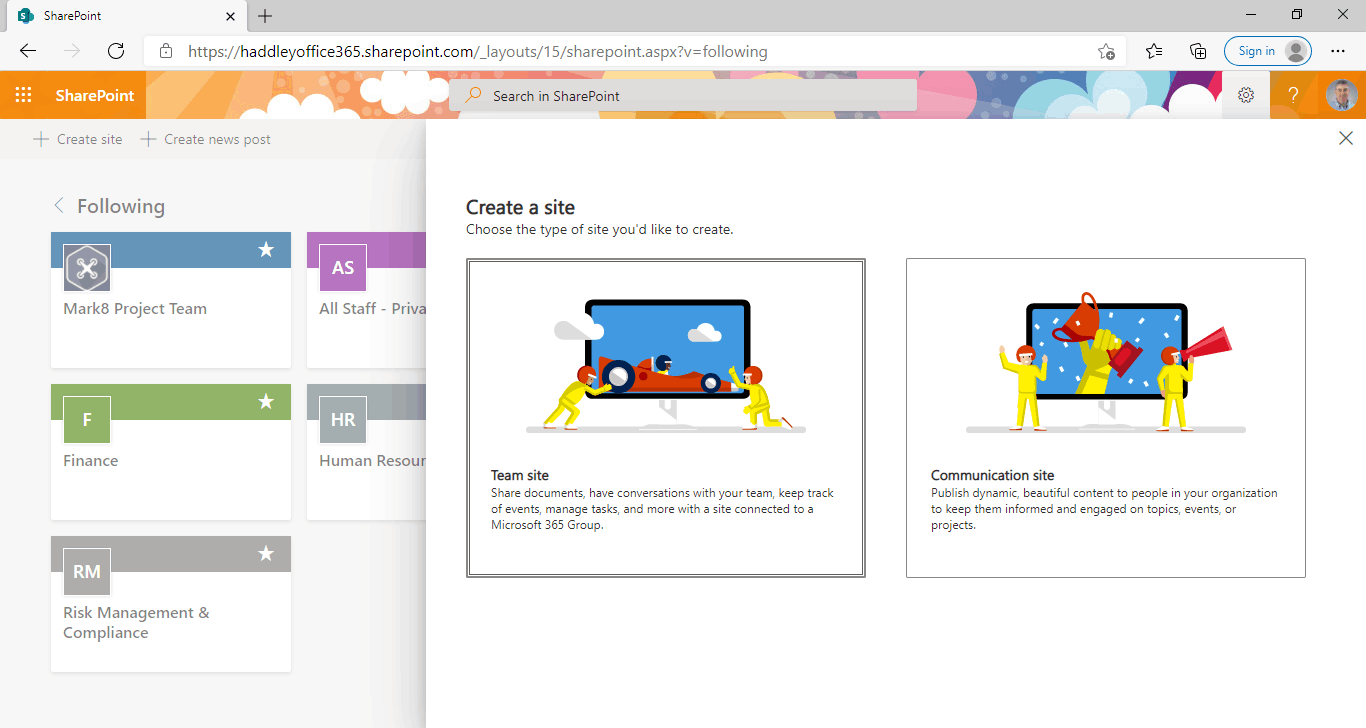

Select "Team Site" because the new Site Design is based on the team site template(64)

Select "Team Site" because the new Site Design is based on the team site template(64)

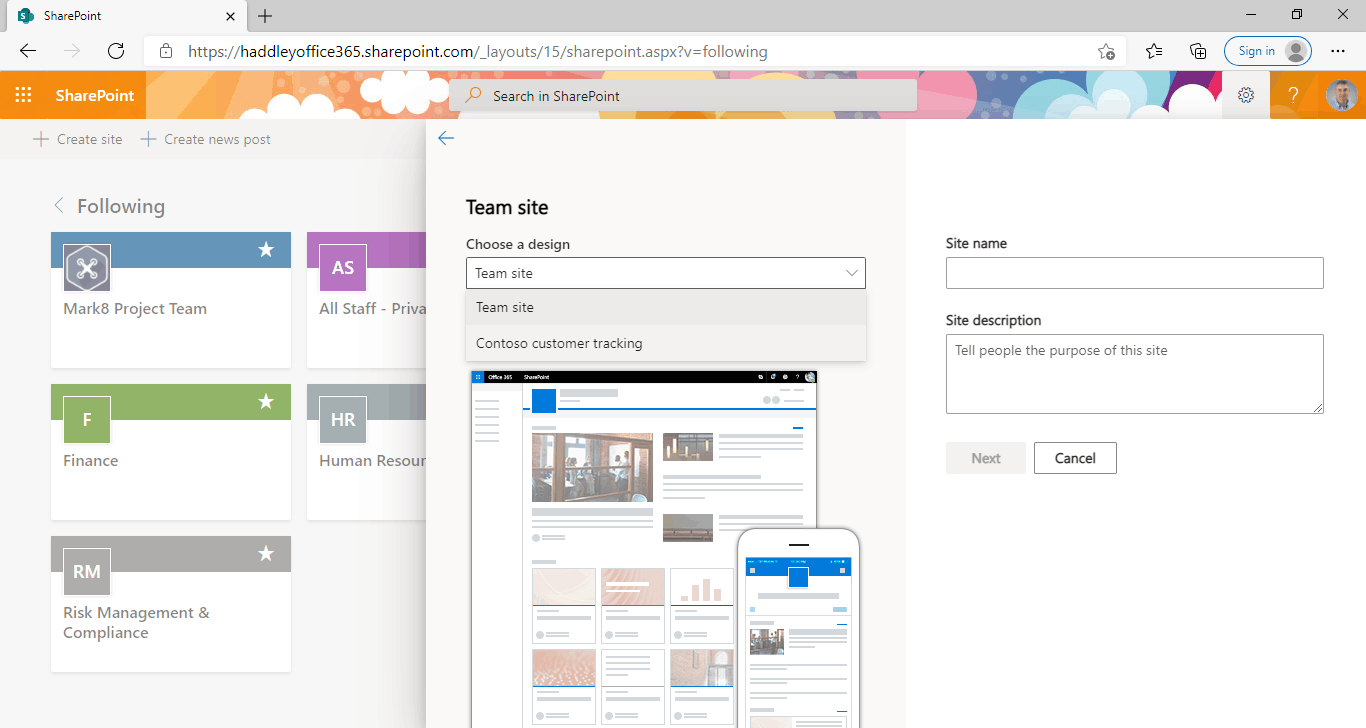

The "Contoso customer tracking" Site Design is available in the "Choose a design" drop down list.

The "Contoso customer tracking" Site Design is available in the "Choose a design" drop down list.

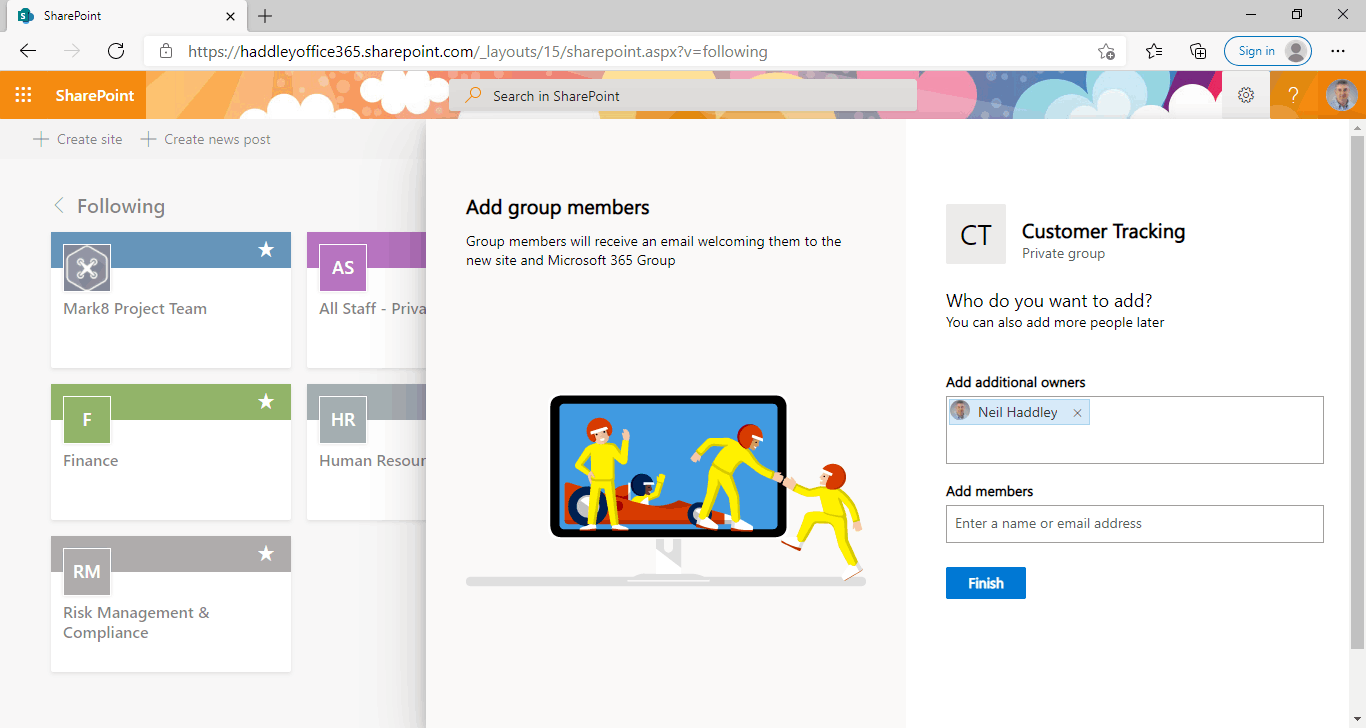

Click the Finish button to create the new Site and to run the Site Scripts

Click the Finish button to create the new Site and to run the Site Scripts

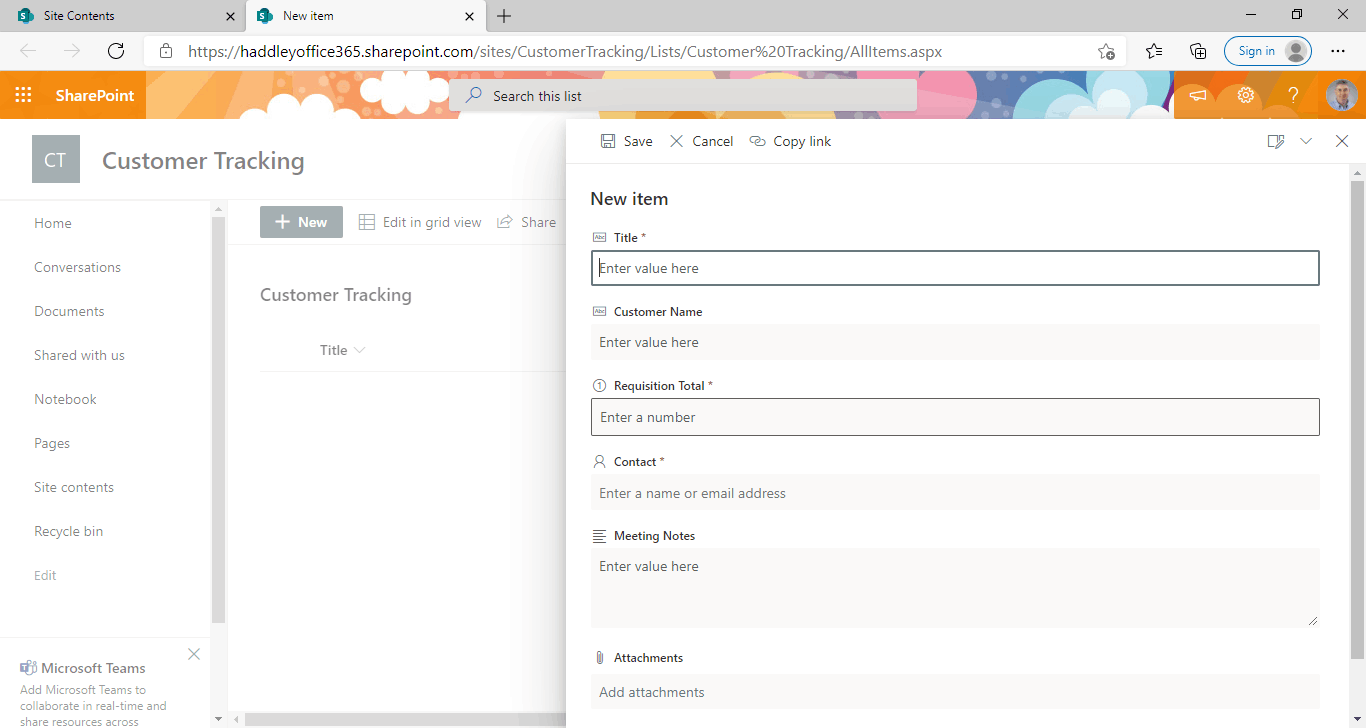

The newly created site includes the "Customer Tracking" list

The newly created site includes the "Customer Tracking" list

Applying a site design to an existing site

The Get-SPOSiteDesign command can be used to list the installed Site designs (and the ids assigned).

Site designs can be applied to an existing SharePoint site using the Invoke-SPOSiteDesign command.

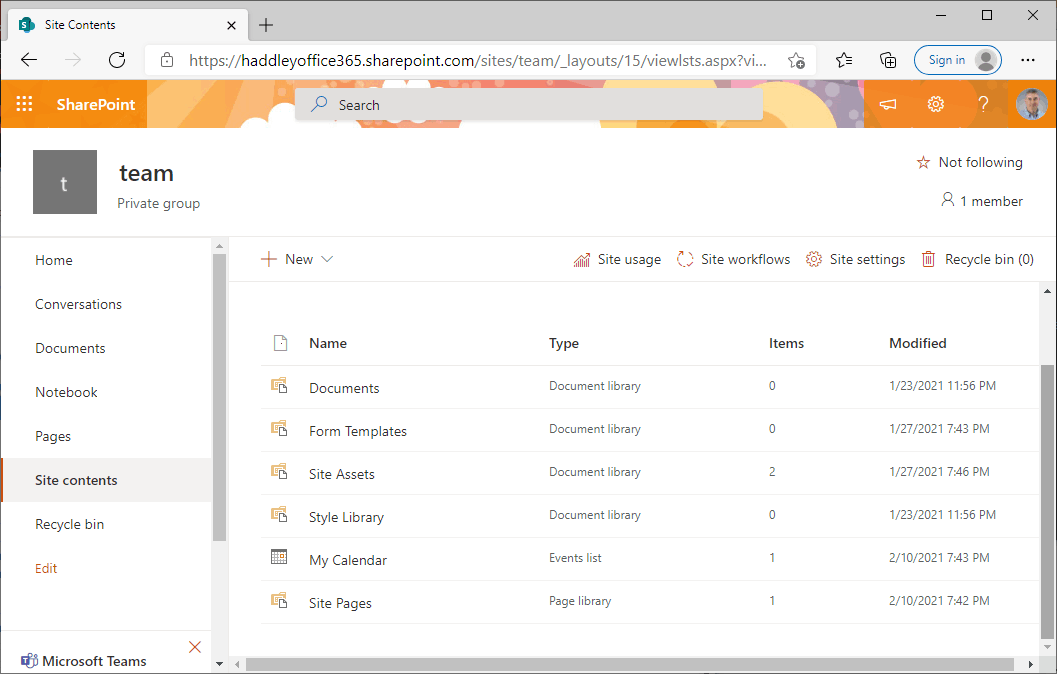

Site contents before invoking site design

Site contents before invoking site design

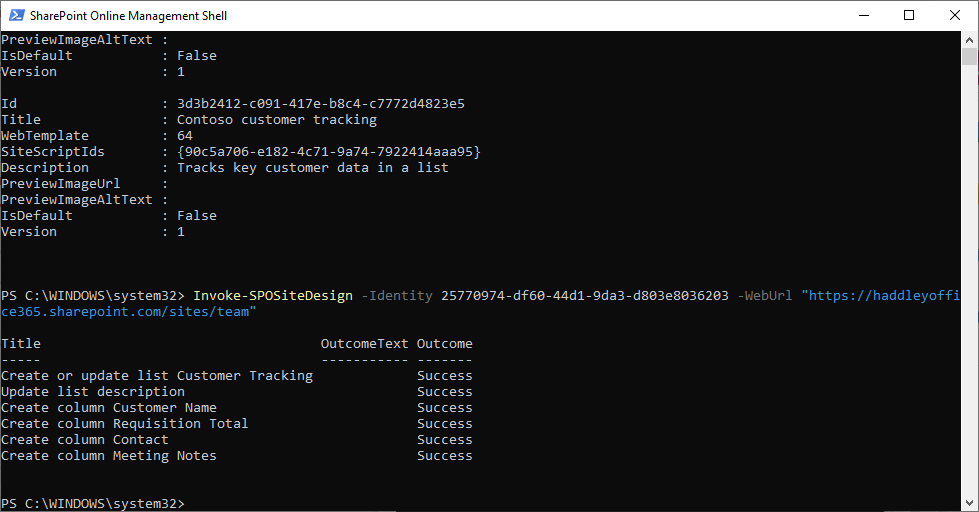

Invoke-SPOSiteDesign

Invoke-SPOSiteDesign

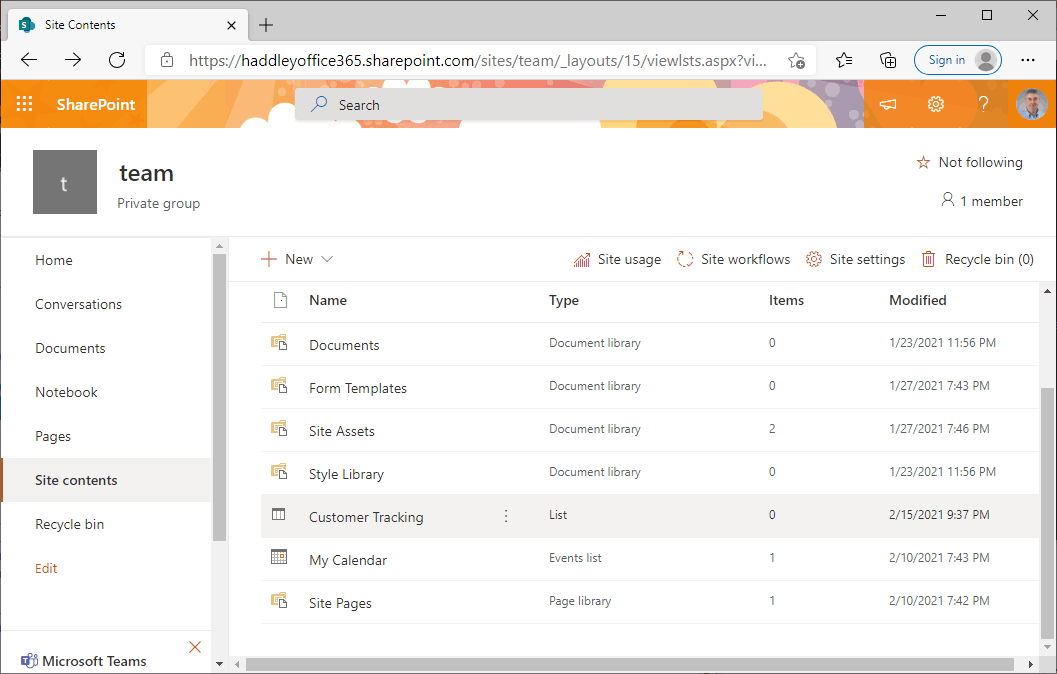

Site contents after invoking site design

Site contents after invoking site design

Get-SPOSiteScriptFromWeb

The Get-SPOSiteScriptFromWeb command extracts Site Script from an existing SharePoint site.

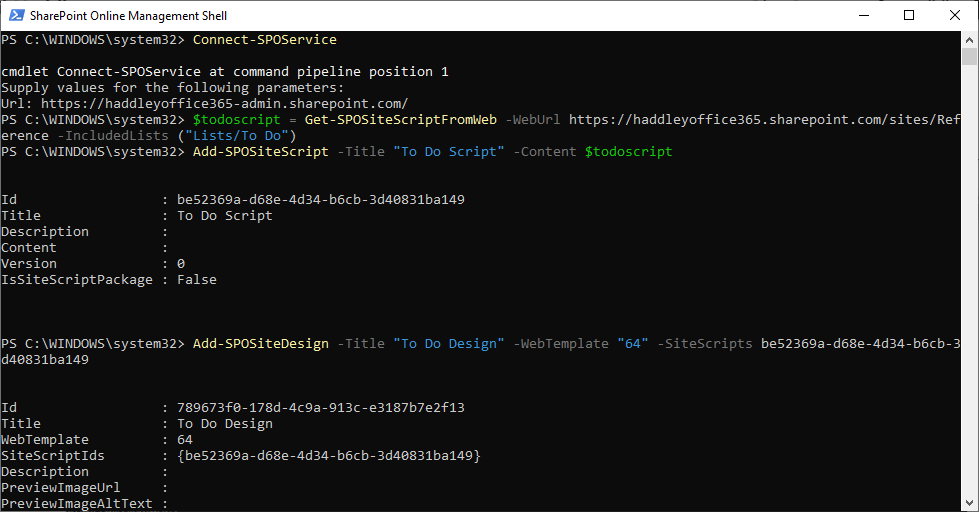

Running the Get-SPOSiteScriptFromWeb command

Running the Get-SPOSiteScriptFromWeb command

Example site script

JAVASCRIPT
1{
2     "$schema": "schema.json",
3         "actions": [
4             {
5                 "verb": "createSPList",
6                 "listName": "Customer Tracking",
7                 "templateType": 100,
8                 "subactions": [
9                     {
10                         "verb": "setDescription",
11                         "description": "List of Customers and Orders"
12                     },
13                     {
14                         "verb": "addSPField",
15                         "fieldType": "Text",
16                         "displayName": "Customer Name",
17                         "isRequired": false,
18                         "addToDefaultView": true
19                     },
20                     {
21                         "verb": "addSPField",
22                         "fieldType": "Number",
23                         "displayName": "Requisition Total",
24                         "addToDefaultView": true,
25                         "isRequired": true
26                     },
27                     {
28                         "verb": "addSPField",
29                         "fieldType": "User",
30                         "displayName": "Contact",
31                         "addToDefaultView": true,
32                         "isRequired": true
33                     },
34                     {
35                         "verb": "addSPField",
36                         "fieldType": "Note",
37                         "displayName": "Meeting Notes",
38                         "isRequired": false
39                     }
40                 ]
41             }
42         ],
43             "bindata": { },
44     "version": 1
45}

Get-SPOSiteScriptFromWeb results

JAVASCRIPT
1{
2  "$schema": "https://developer.microsoft.com/json-schemas/sp/site-design-script-actions.schema.json",
3  "actions": [
4    {
5      "verb": "createSiteColumnXml",
6      "schemaXml": "<Field ID=\"{c15b34c3-ce7d-490a-b133-3f4de8801b76}\" Name=\"TaskStatus\" Group=\"Core Task and Issue Columns\" Type=\"Choice\" DisplayName=\"Task Status\" SourceID=\"http://schemas.microsoft.com/sharepoint/v3/fields\" StaticName=\"TaskStatus\" DelayActivateTemplateBinding=\"GROUP,SPSPERS,SITEPAGEPUBLISHING\" Customization=\"\" AllowDeletion=\"TRUE\"><CHOICES><CHOICE>Not Started</CHOICE><CHOICE>In Progress</CHOICE><CHOICE>Completed</CHOICE><CHOICE>Deferred</CHOICE><CHOICE>Waiting on someone else</CHOICE></CHOICES><MAPPINGS><MAPPING Value=\"1\">Not Started</MAPPING><MAPPING Value=\"2\">In Progress</MAPPING><MAPPING Value=\"3\">Completed</MAPPING><MAPPING Value=\"4\">Deferred</MAPPING><MAPPING Value=\"5\">Waiting on someone else</MAPPING></MAPPINGS><Default>Not Started</Default></Field>",
7      "pushChanges": true
8    },
9    {
10      "verb": "createContentType",
11      "name": "To Do Item",
12      "id": "0x0100AC72E73DED8B1947B3AD265DD7CFCB4A",
13      "description": "",
14      "parentId": "0x01",
15      "hidden": false,
16      "group": "Custom Content Types",
17      "subactions": [
18        {
19          "verb": "addSiteColumn",
20          "internalName": "TaskStatus"
21        }
22      ]
23    },
24    {
25      "verb": "createSPList",
26      "listName": "To Do",
27      "templateType": 100,
28      "color": "2",
29      "icon": "11",
30      "subactions": [
31        {
32          "verb": "setDescription",
33          "description": "To Do List"
34        },
35        {
36          "verb": "addContentType",
37          "name": "To Do Item"
38        },
39        {
40          "verb": "addSPFieldXml",
41          "schemaXml": "<Field ID=\"{fa564e0f-0c70-4ab9-b863-0177e6ddd247}\" Type=\"Text\" Name=\"Title\" DisplayName=\"Title\" Required=\"TRUE\" SourceID=\"http://schemas.microsoft.com/sharepoint/v3\" StaticName=\"Title\" FromBaseType=\"TRUE\" MaxLength=\"255\" />"
42        },
43        {
44          "verb": "addSPFieldXml",
45          "schemaXml": "<Field ID=\"{82642ec8-ef9b-478f-acf9-31f7d45fbc31}\" DisplayName=\"Title\" Description=\"\" Name=\"LinkTitle\" SourceID=\"http://schemas.microsoft.com/sharepoint/v3\" StaticName=\"LinkTitle\" Type=\"Computed\" ReadOnly=\"TRUE\" FromBaseType=\"TRUE\" Width=\"150\" DisplayNameSrcField=\"Title\" Sealed=\"FALSE\"><FieldRefs><FieldRef Name=\"Title\" /><FieldRef Name=\"LinkTitleNoMenu\" /><FieldRef Name=\"_EditMenuTableStart2\" /><FieldRef Name=\"_EditMenuTableEnd\" /></FieldRefs><DisplayPattern><FieldSwitch><Expr><GetVar Name=\"FreeForm\" /></Expr><Case Value=\"TRUE\"><Field Name=\"LinkTitleNoMenu\" /></Case><Default><HTML><![CDATA[<div class=\"ms-vb itx\" onmouseover=\"OnItem(this)\" CTXName=\"ctx]]></HTML><Field Name=\"_EditMenuTableStart2\" /><HTML><![CDATA[\">]]></HTML><Field Name=\"LinkTitleNoMenu\" /><HTML><![CDATA[</div>]]></HTML><HTML><![CDATA[<div class=\"s4-ctx\" onmouseover=\"OnChildItem(this.parentNode); return false;\">]]></HTML><HTML><![CDATA[<span>&nbsp;</span>]]></HTML><HTML><![CDATA[<a onfocus=\"OnChildItem(this.parentNode.parentNode); return false;\" onclick=\"PopMenuFromChevron(event); return false;\" href=\"javascript:;\" title=\"Open Menu\"></a>]]></HTML><HTML><![CDATA[<span>&nbsp;</span>]]></HTML><HTML><![CDATA[</div>]]></HTML></Default></FieldSwitch></DisplayPattern></Field>"
46        },
47        {
48          "verb": "addSPView",
49          "name": "All Items",
50          "viewFields": [
51            "LinkTitle",
52            "TaskStatus"
53          ],
54          "query": "",
55          "rowLimit": 30,
56          "isPaged": true,
57          "makeDefault": true,
58          "replaceViewFields": true
59        }
60      ]
61    }
62  ]
63}
