Teams Toolkit with SPFx

Neil HaddleyMay 30, 2021

Get started with Microsoft Teams app development using SPFx.

Visual Studio Extension

Teams Toolkit makes creating Teams Tabs/Azure applications easier.

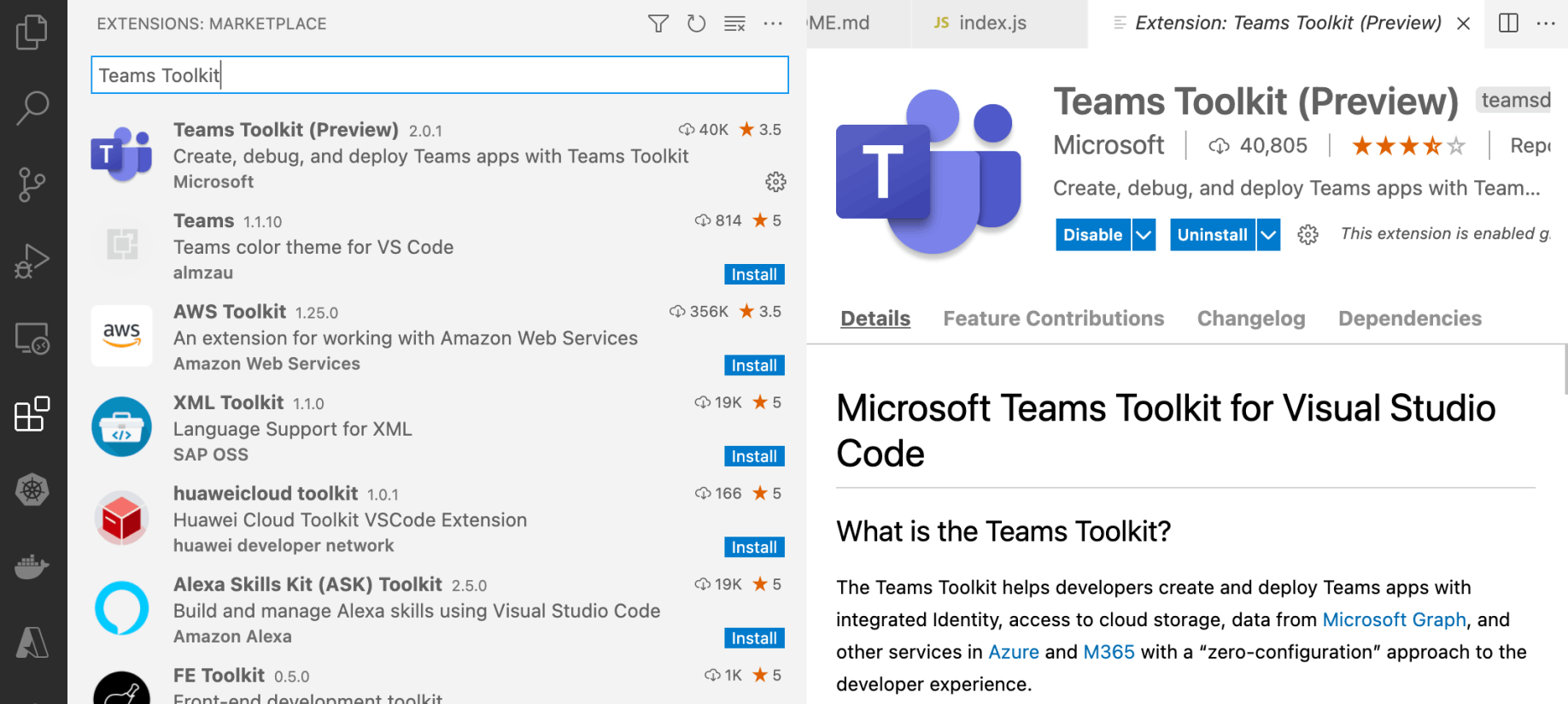

Add Teams Toolkit Extension to Visual Studio Code

Add Teams Toolkit Extension to Visual Studio Code

Click the Teams Toolkit to open Wizard

Click the Teams Toolkit to open Wizard

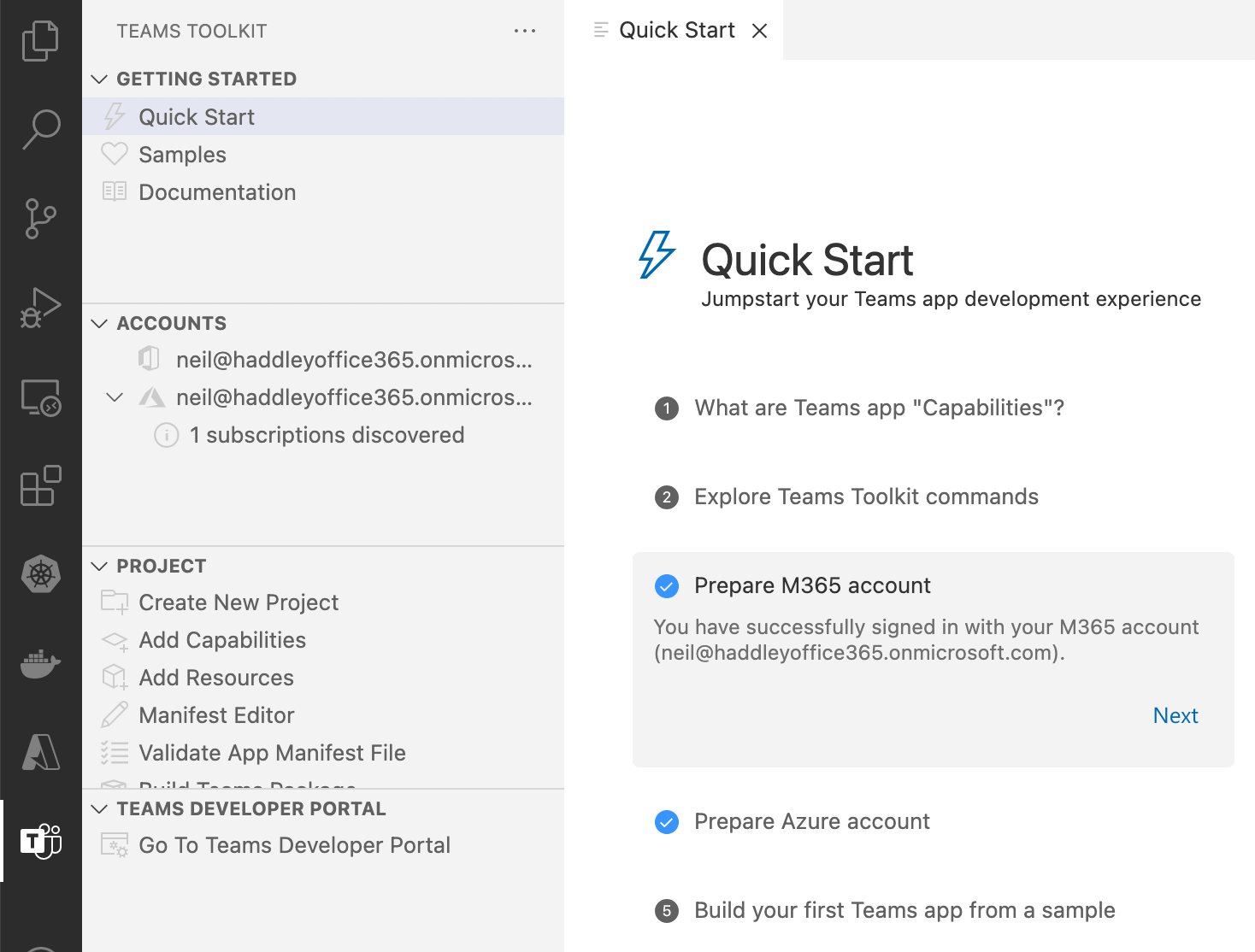

Configure Quick Start items

Configure Quick Start items

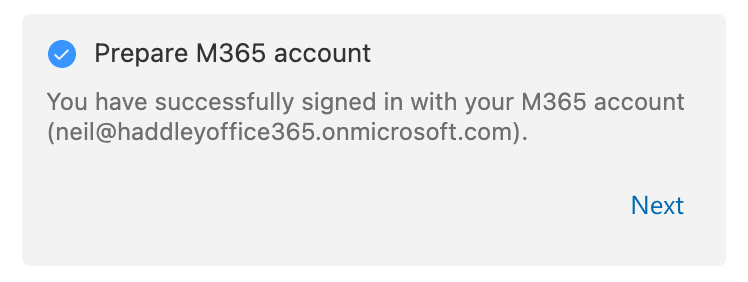

Sign-in to M365 account

Sign-in to M365 account

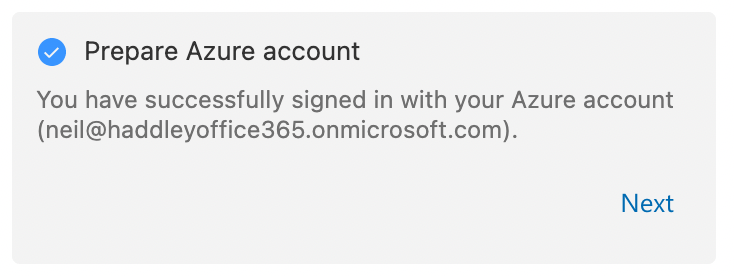

Sign-in to Azure

Sign-in to Azure

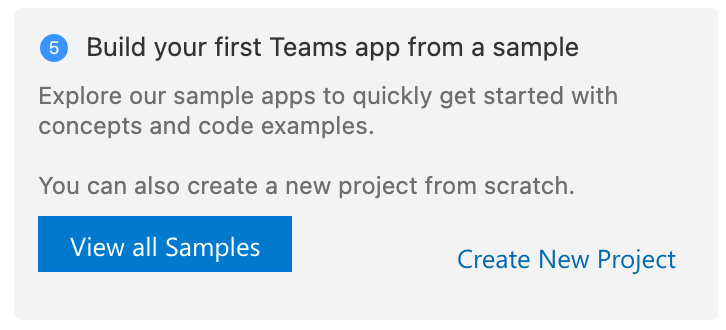

Click Create New Project link

Click Create New Project link

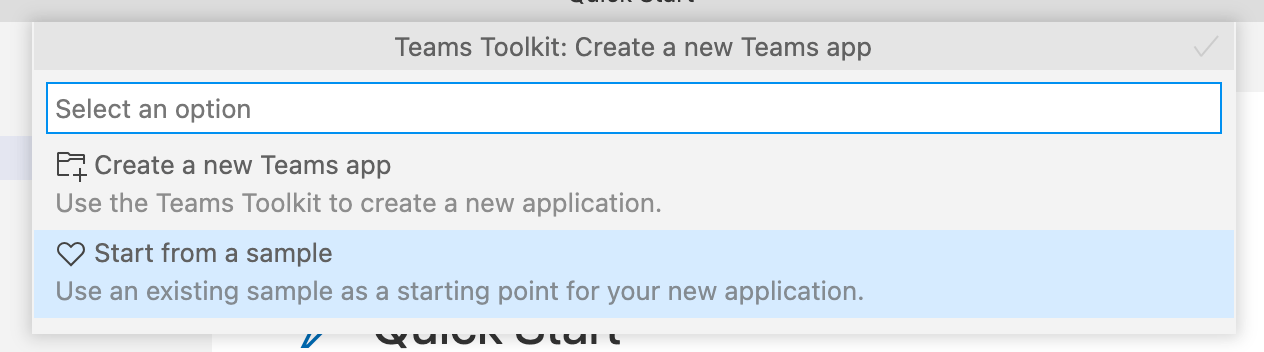

Start from a sample

Start from a sample

Select the Todo List with SPFx sample

Select the Todo List with SPFx sample

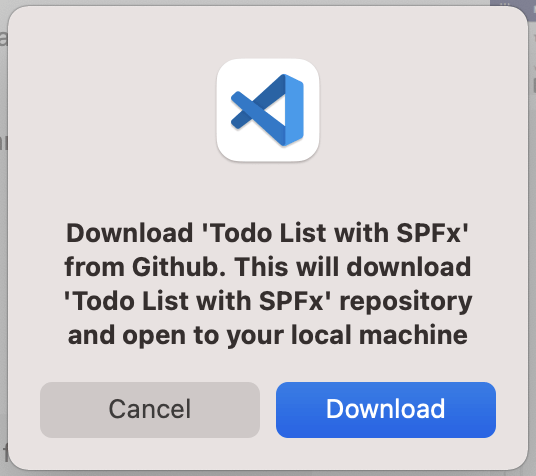

Download the sample code from Github

Download the sample code from Github

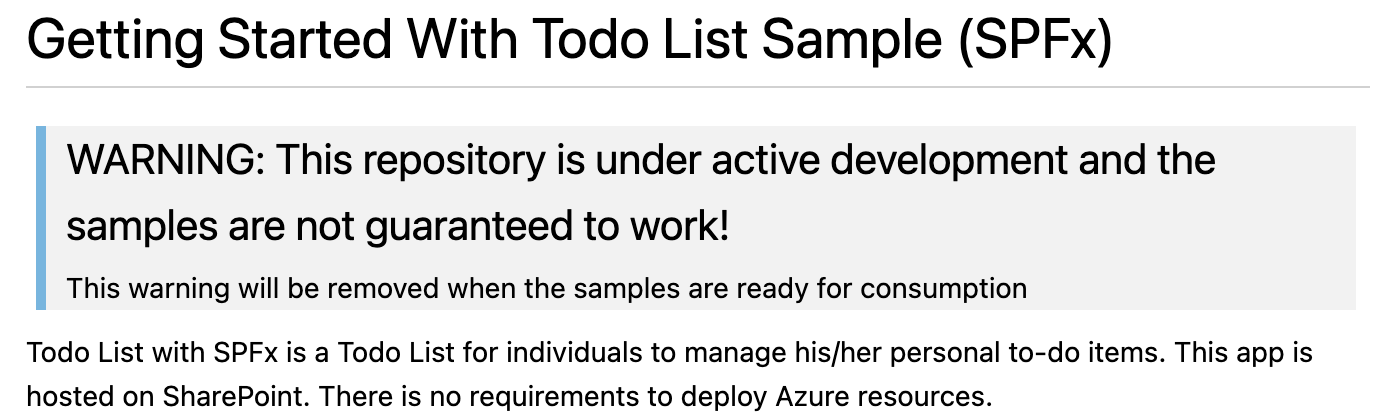

Notice that the sample code is a work in progress

Notice that the sample code is a work in progress

Navigate to {tenant).sharepoint.com

Navigate to {tenant).sharepoint.com

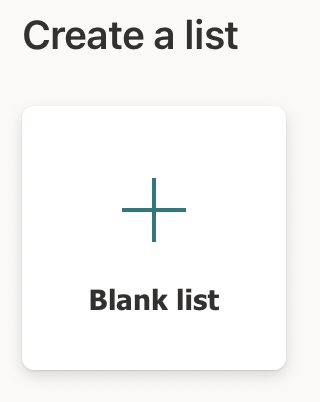

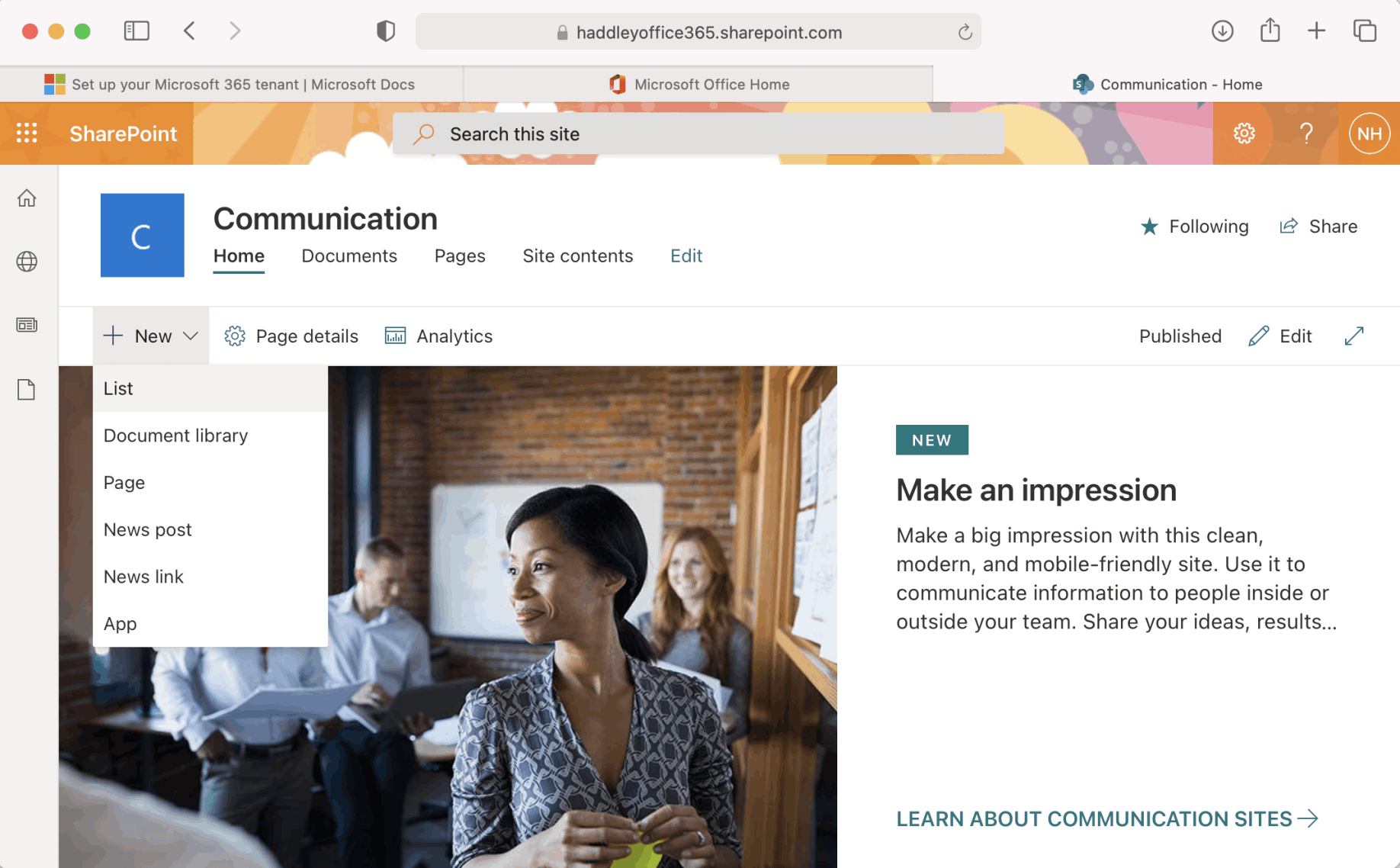

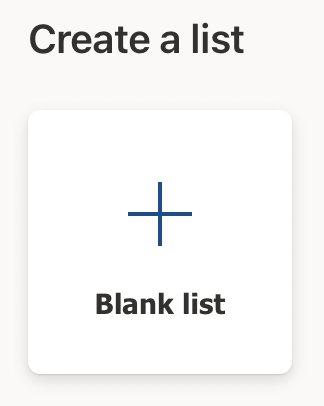

Create a blank list

Create a blank list

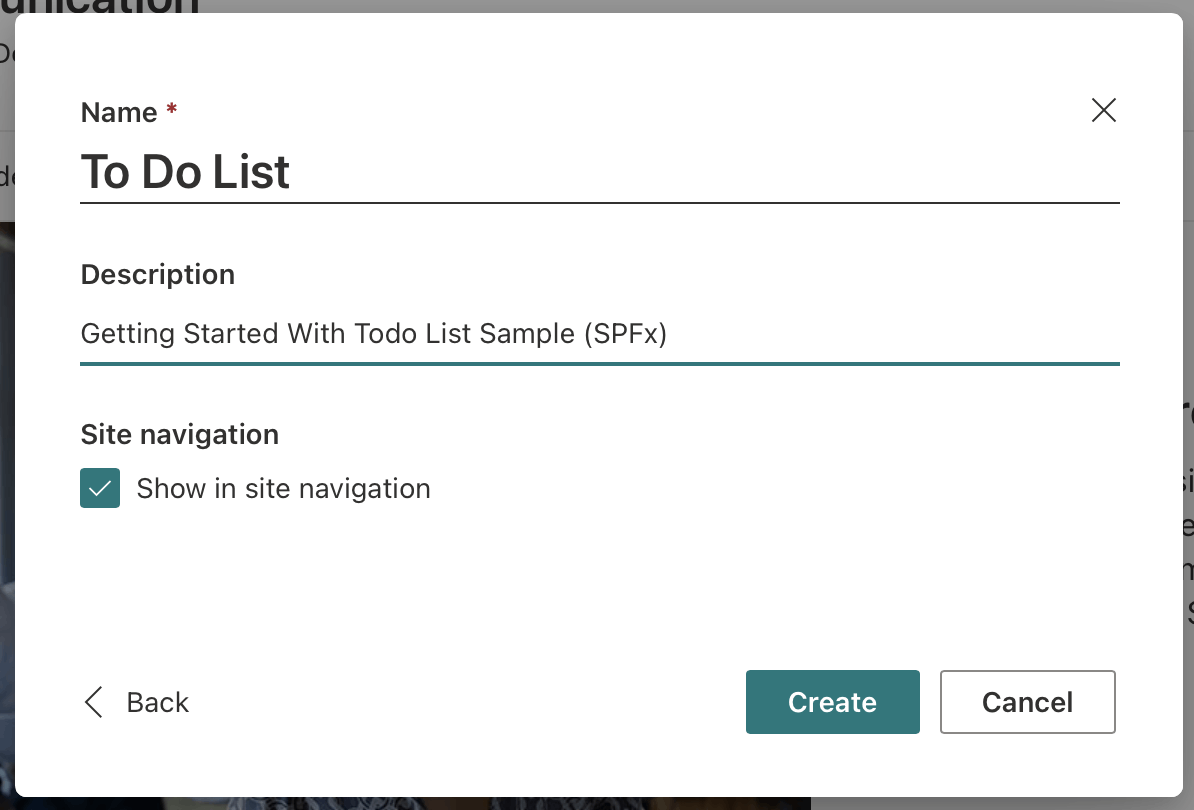

Name list "To Do List"

Name list "To Do List"

esp8266

esp8266

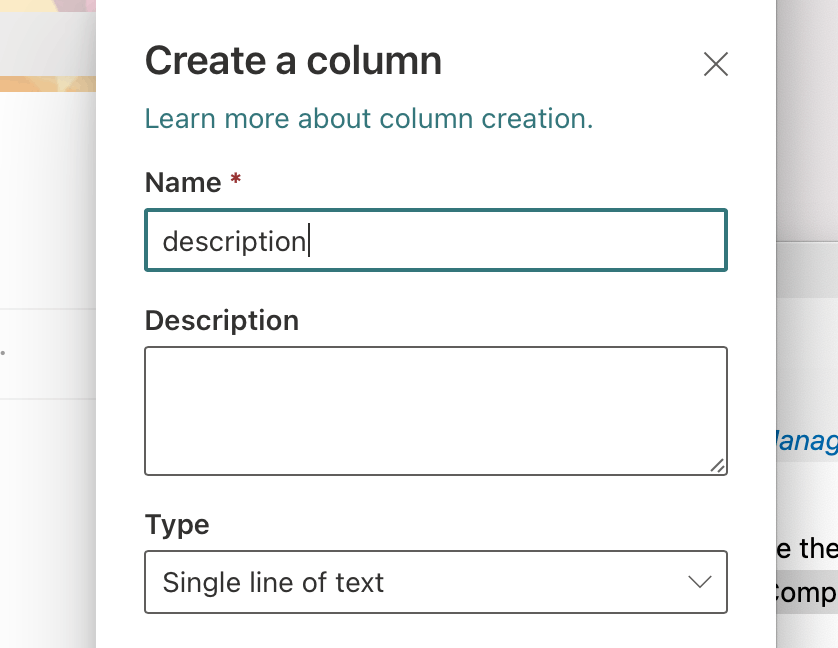

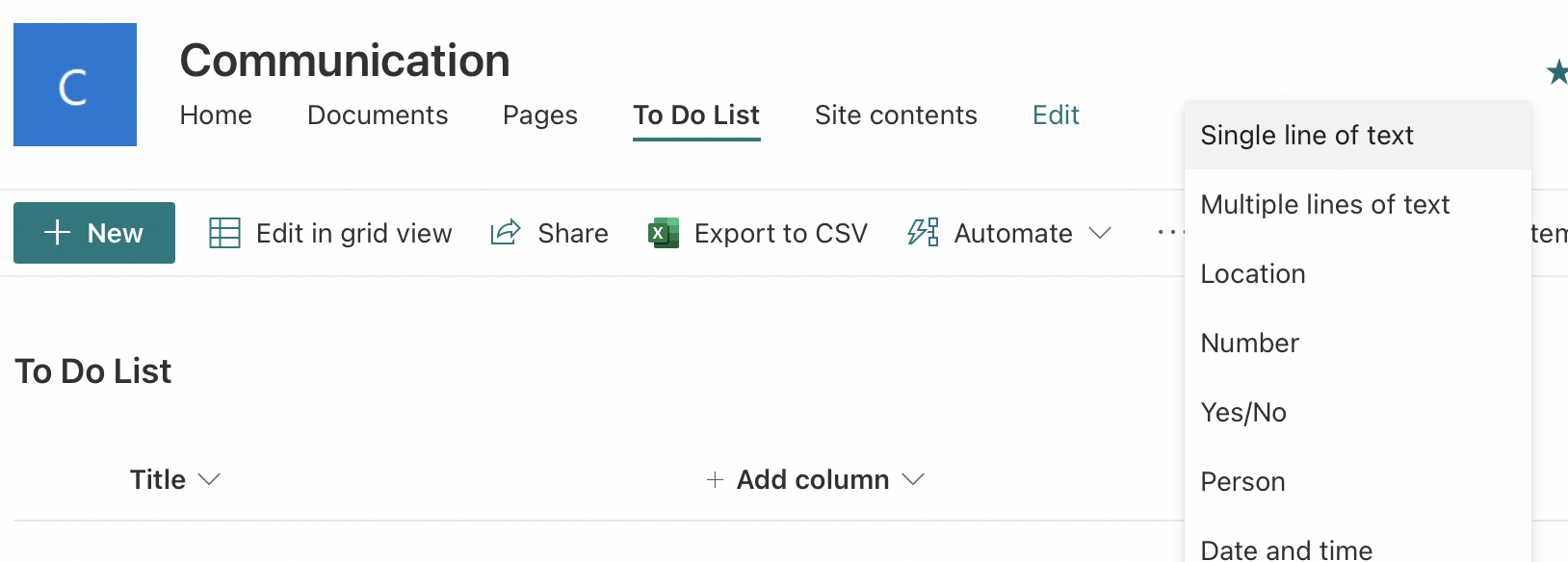

Add description column

Add description column

esp8266

esp8266

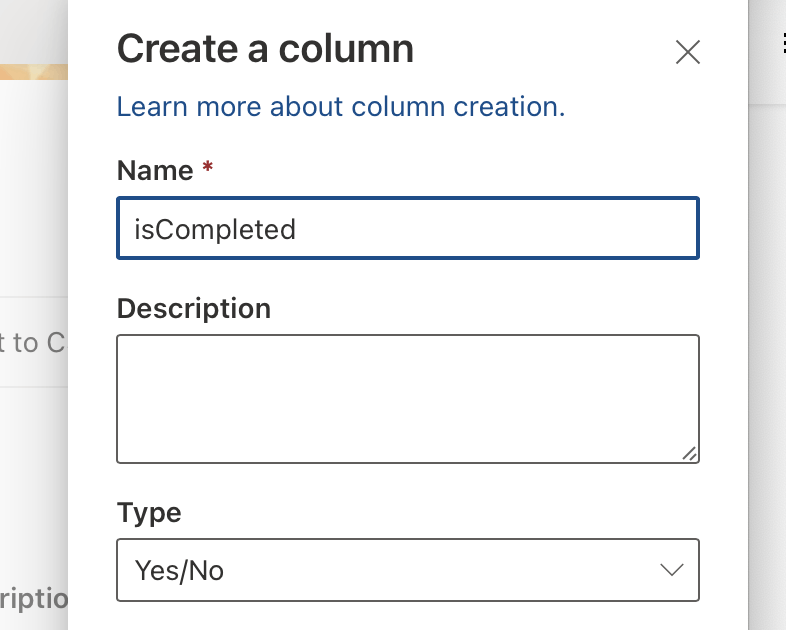

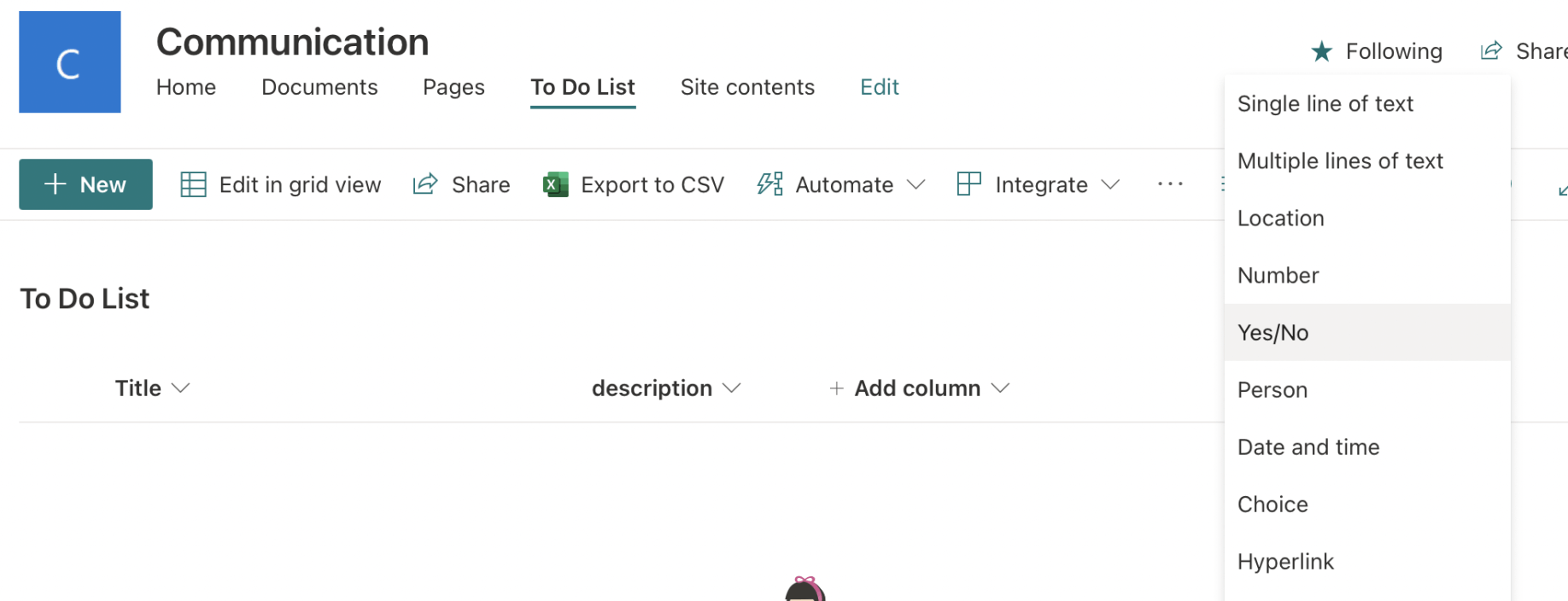

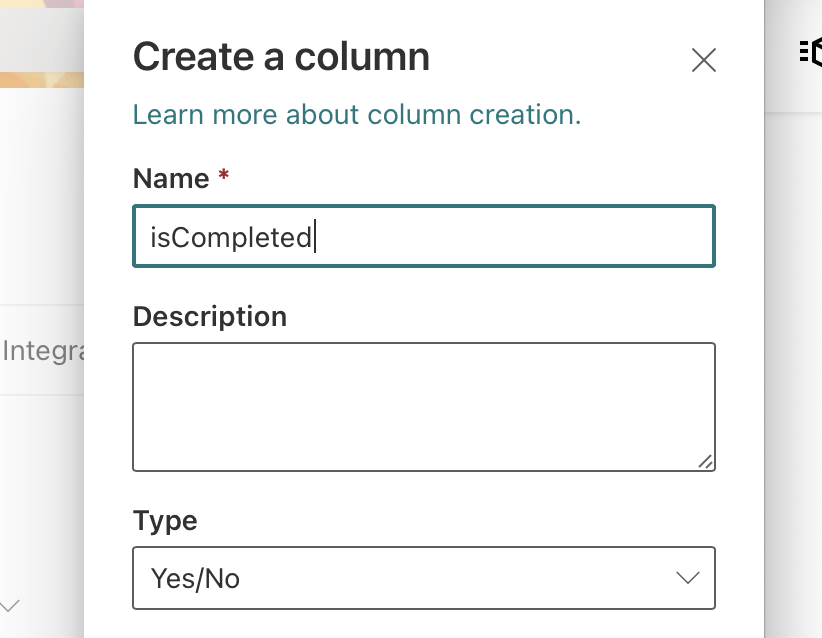

Add isCompleted column

Add isCompleted column

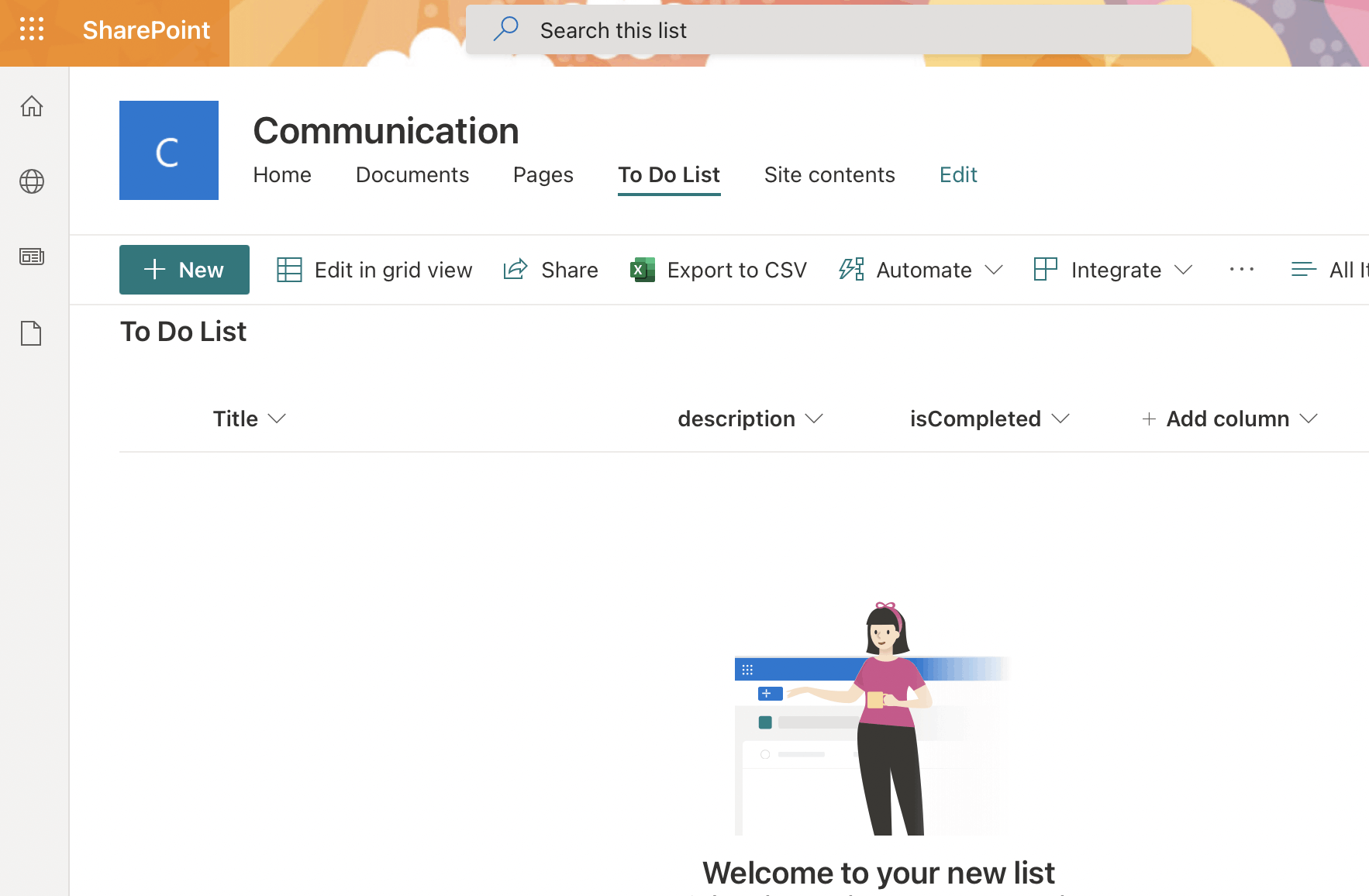

To Do List

To Do List

esp8266

esp8266

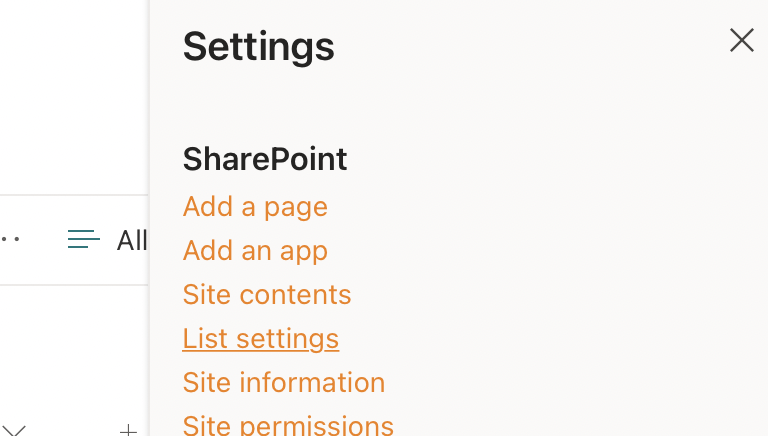

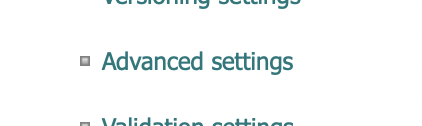

Update list settings

Update list settings

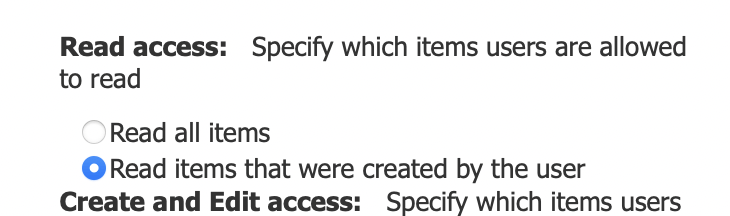

Users can only see list items created by them

Users can only see list items created by them

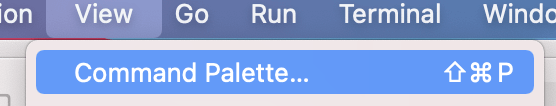

Open Visual Studio Code command palette

Open Visual Studio Code command palette

esp8266

esp8266

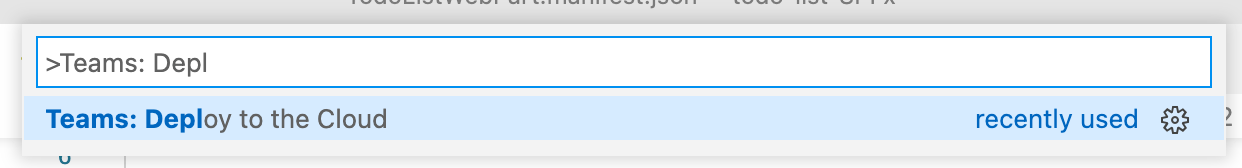

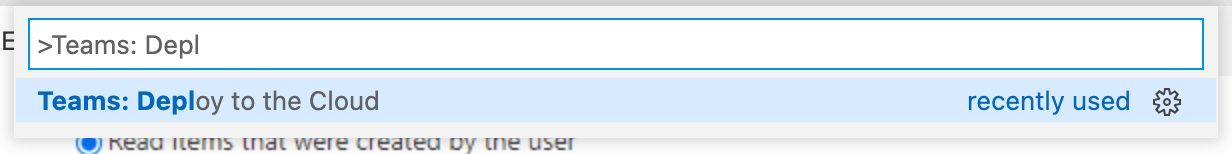

Run "Teams: Deploy to the Cloud" command

Run "Teams: Deploy to the Cloud" command

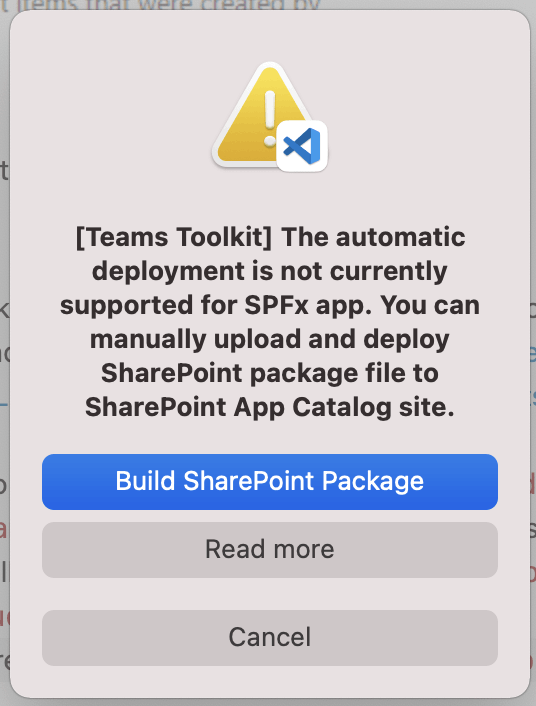

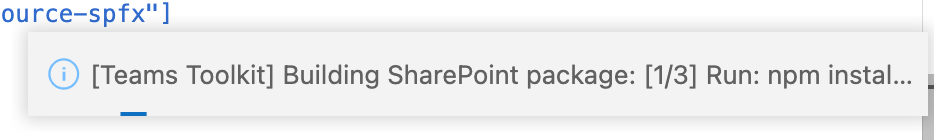

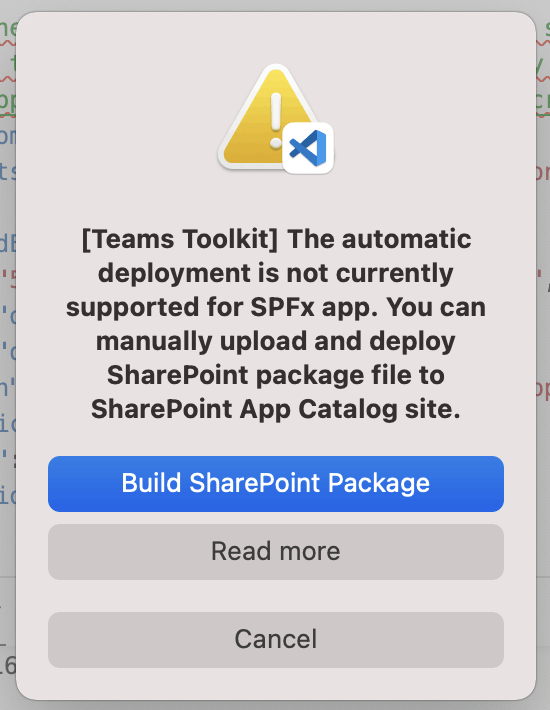

Building SharePoint package

Building SharePoint package

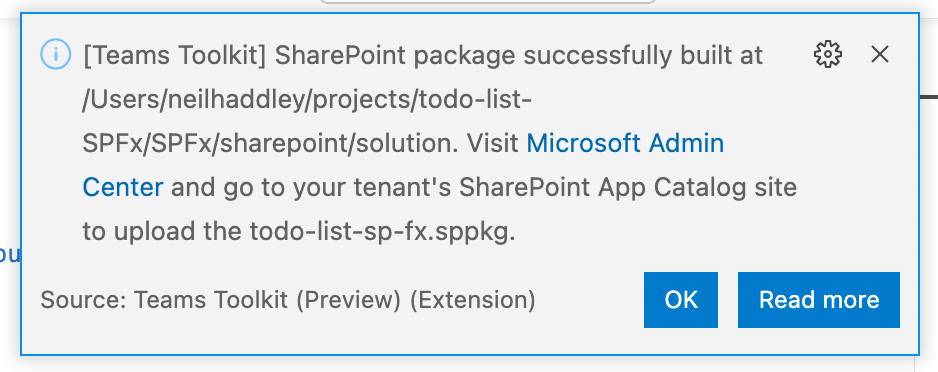

todo-list-sp-fx.sppkg file created

todo-list-sp-fx.sppkg file created

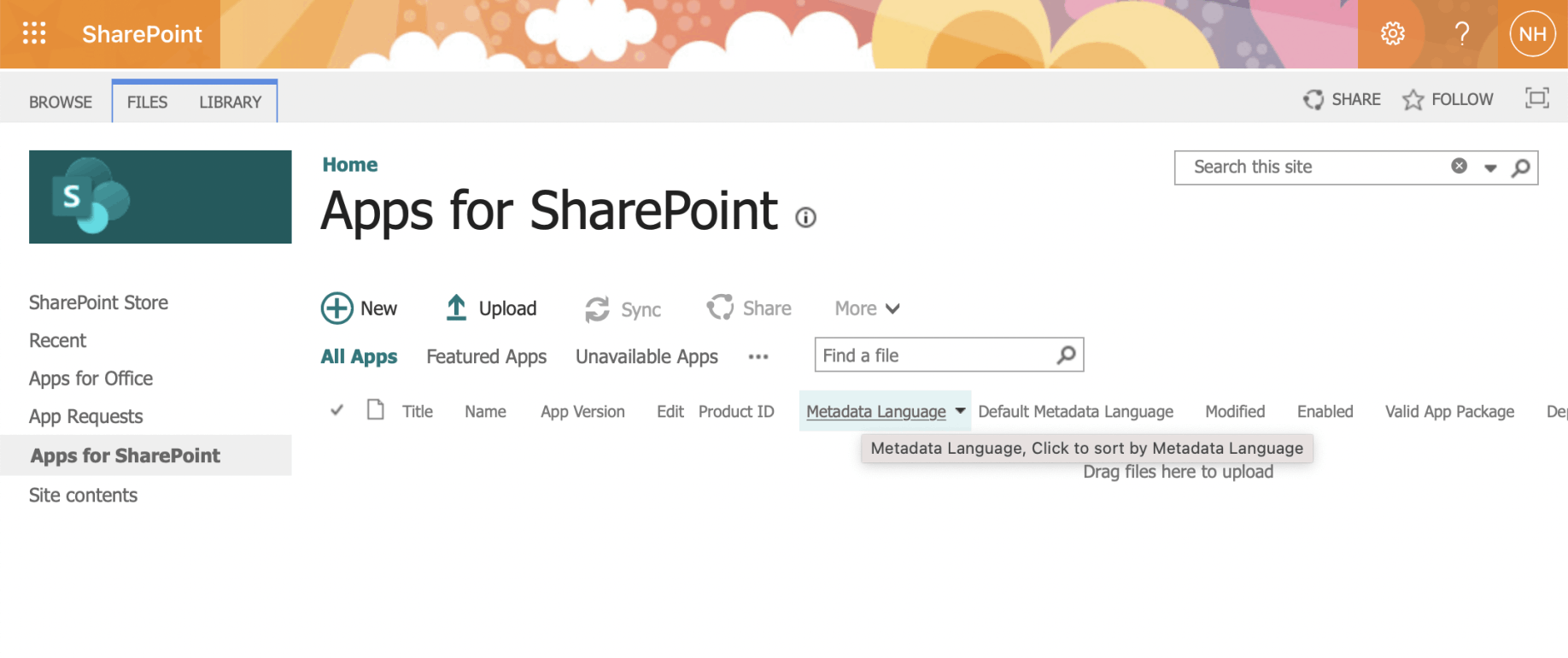

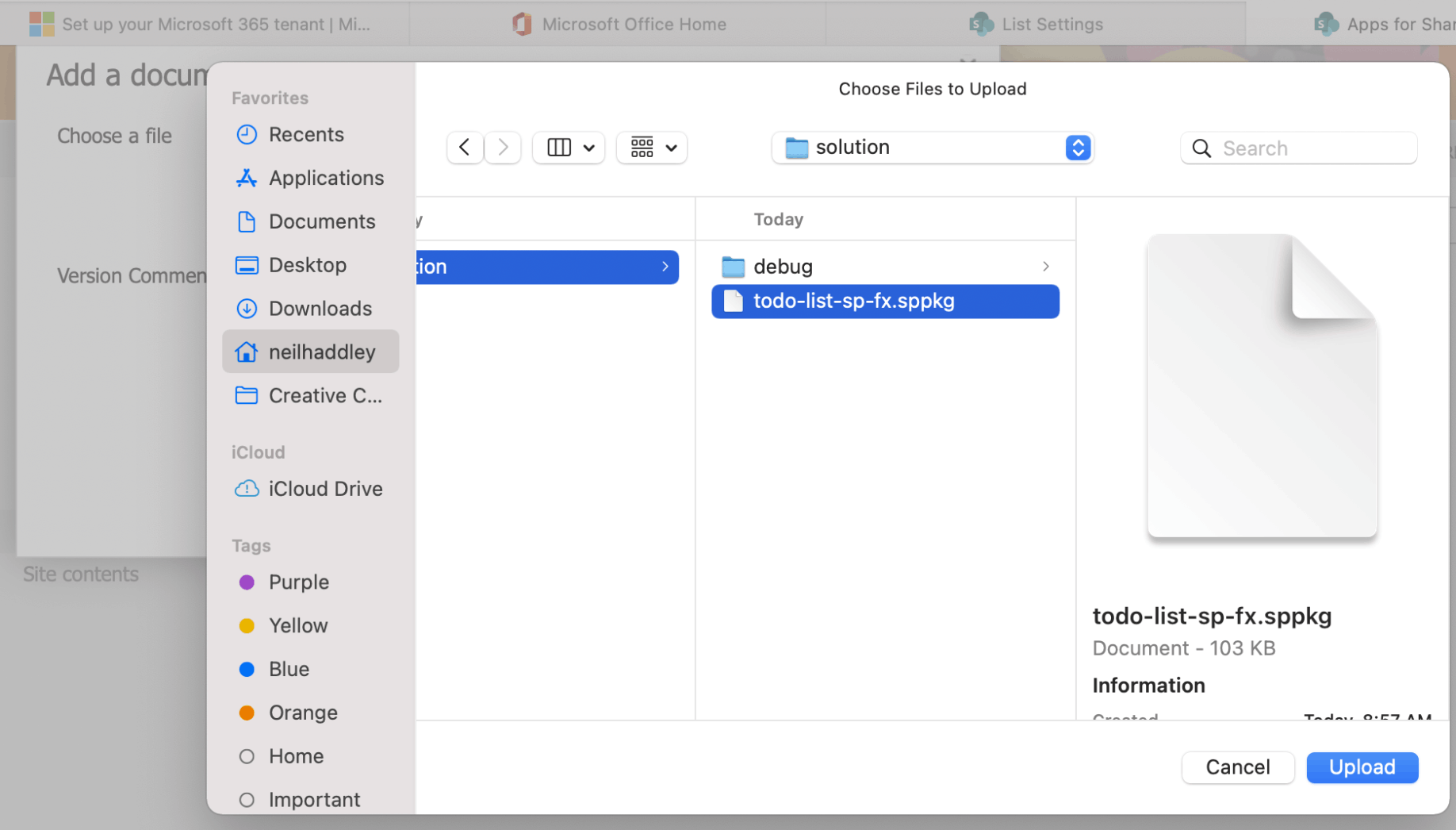

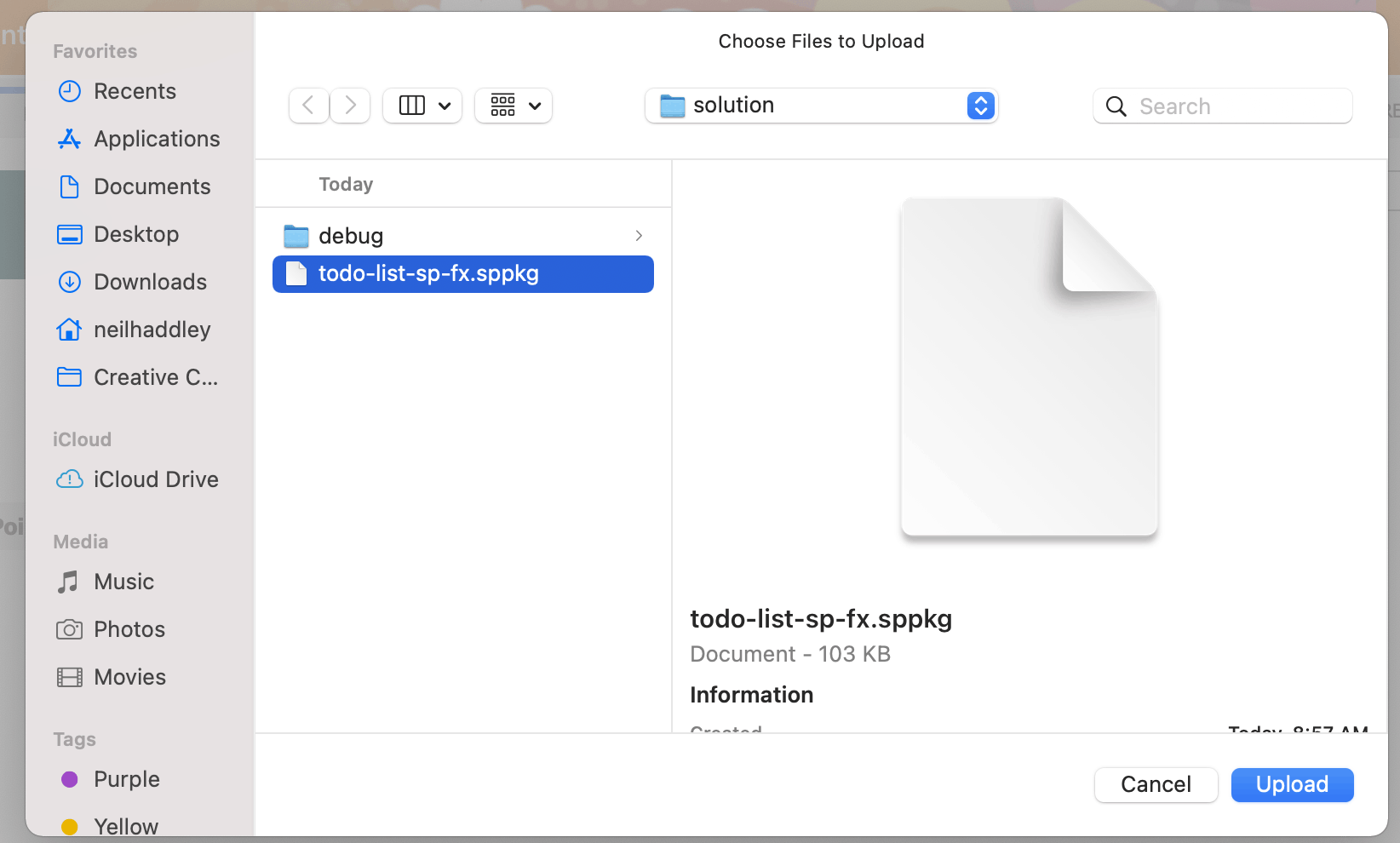

Upload todo-list-sp-fx.sppkg file to SharePoint App Catalog

Upload todo-list-sp-fx.sppkg file to SharePoint App Catalog

Upload

Upload

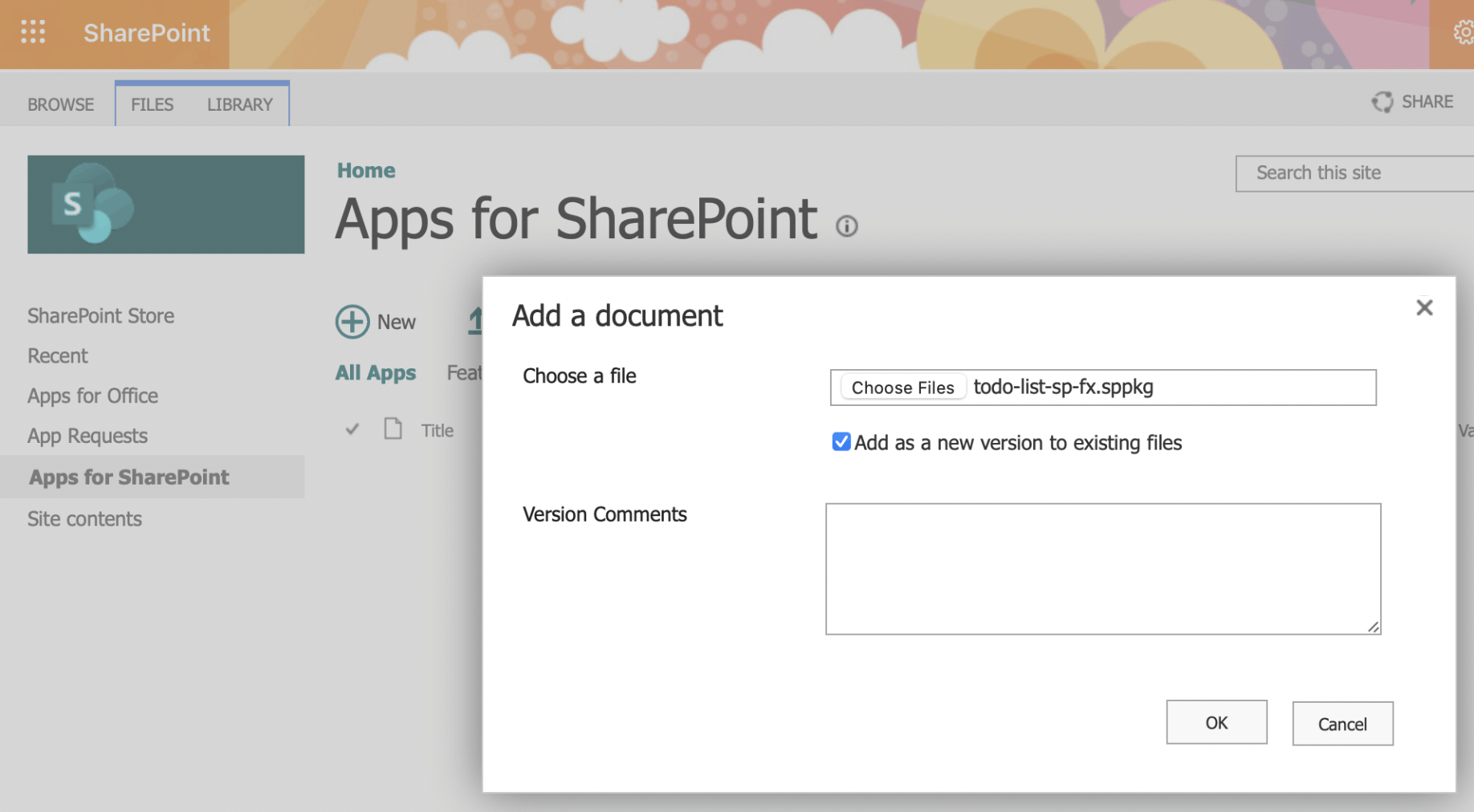

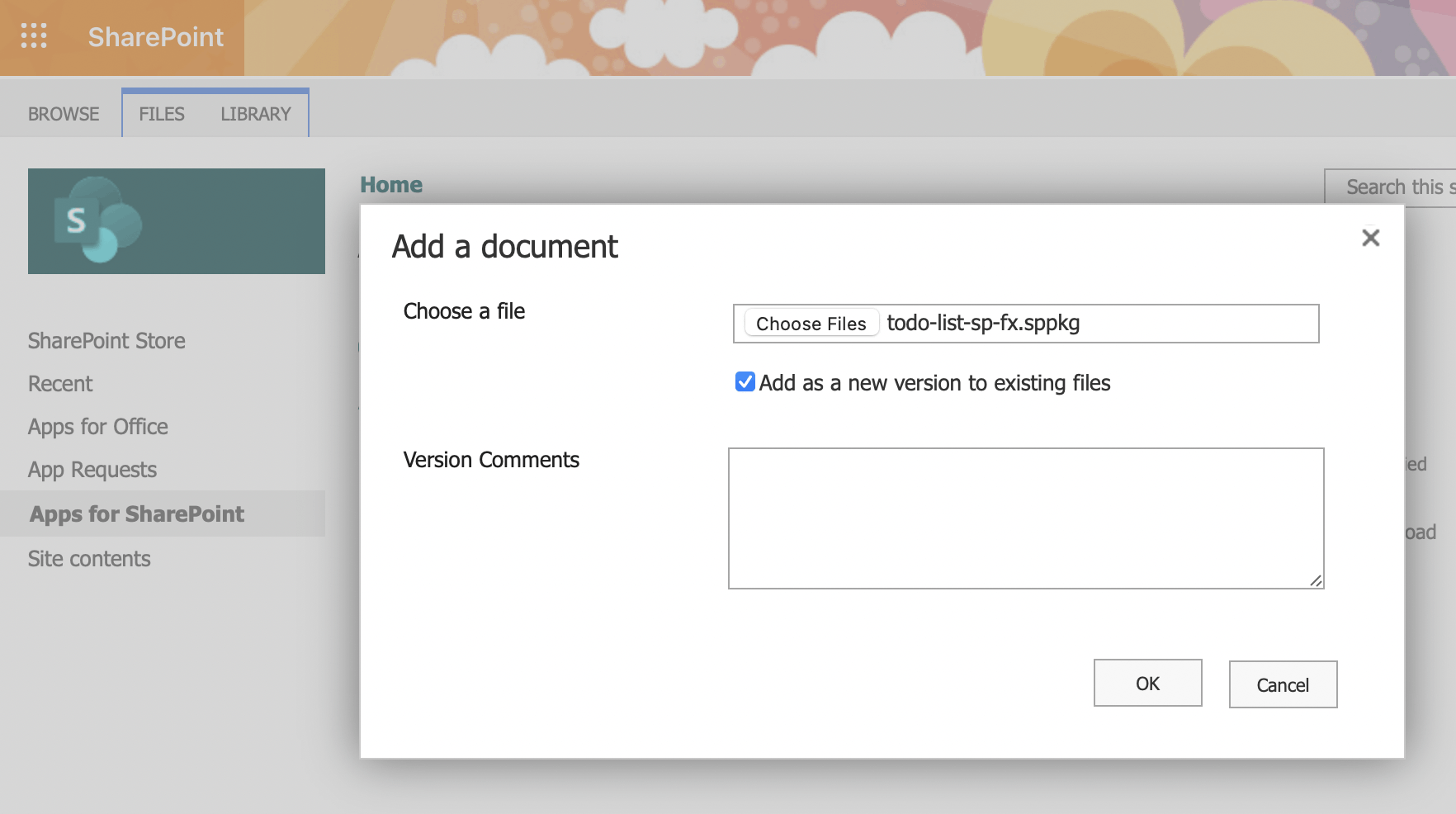

Add a document

Add a document

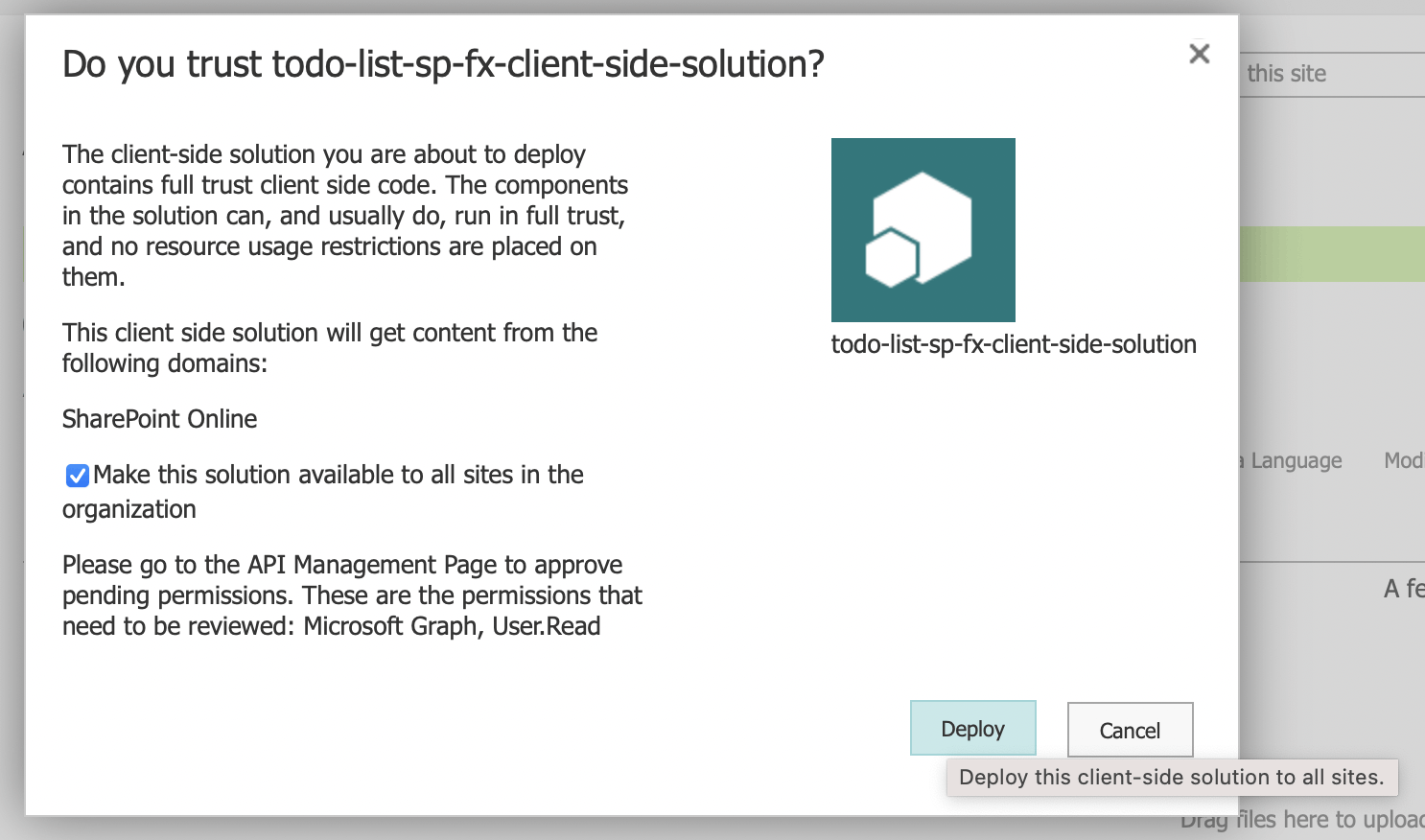

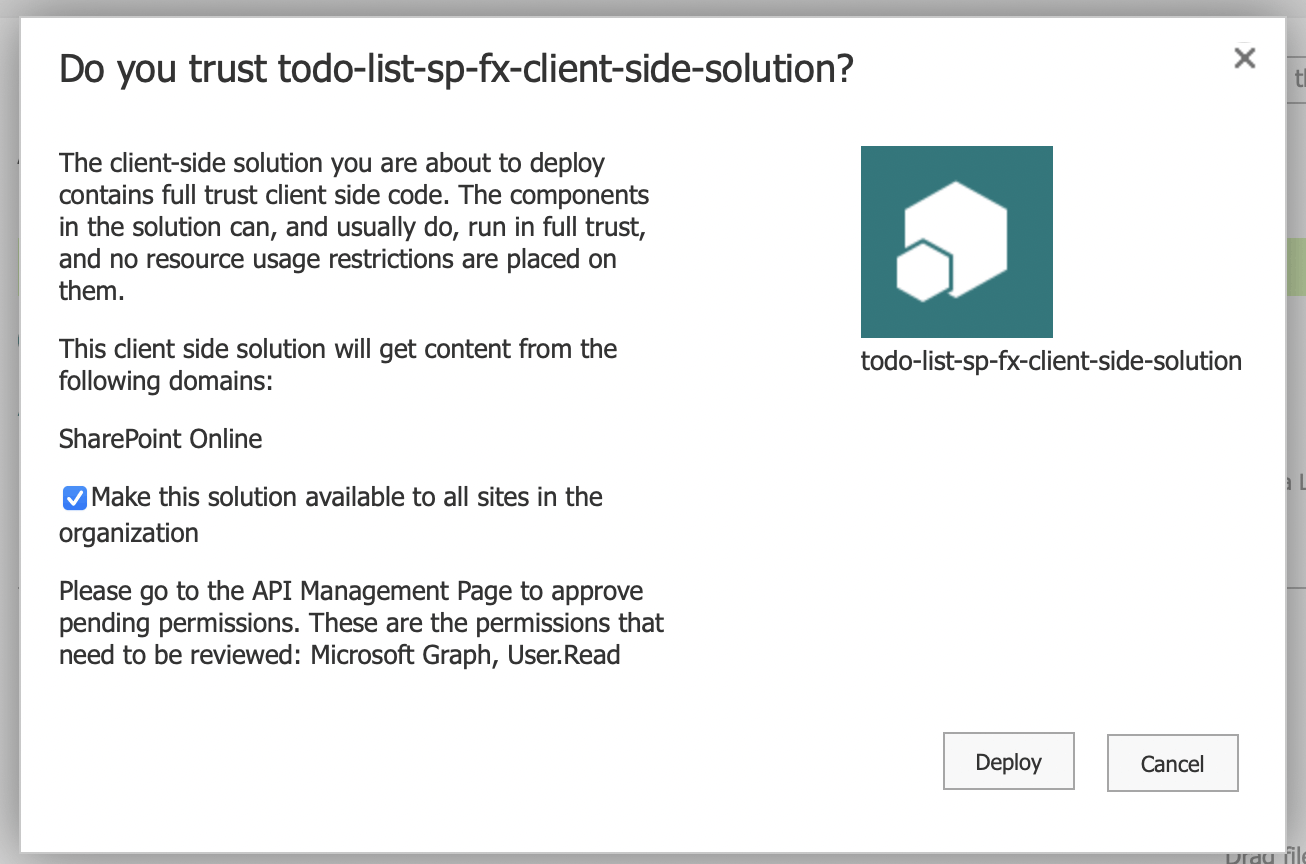

Ensure that "Make this solution available to all sites" is checked and Deploy

Ensure that "Make this solution available to all sites" is checked and Deploy

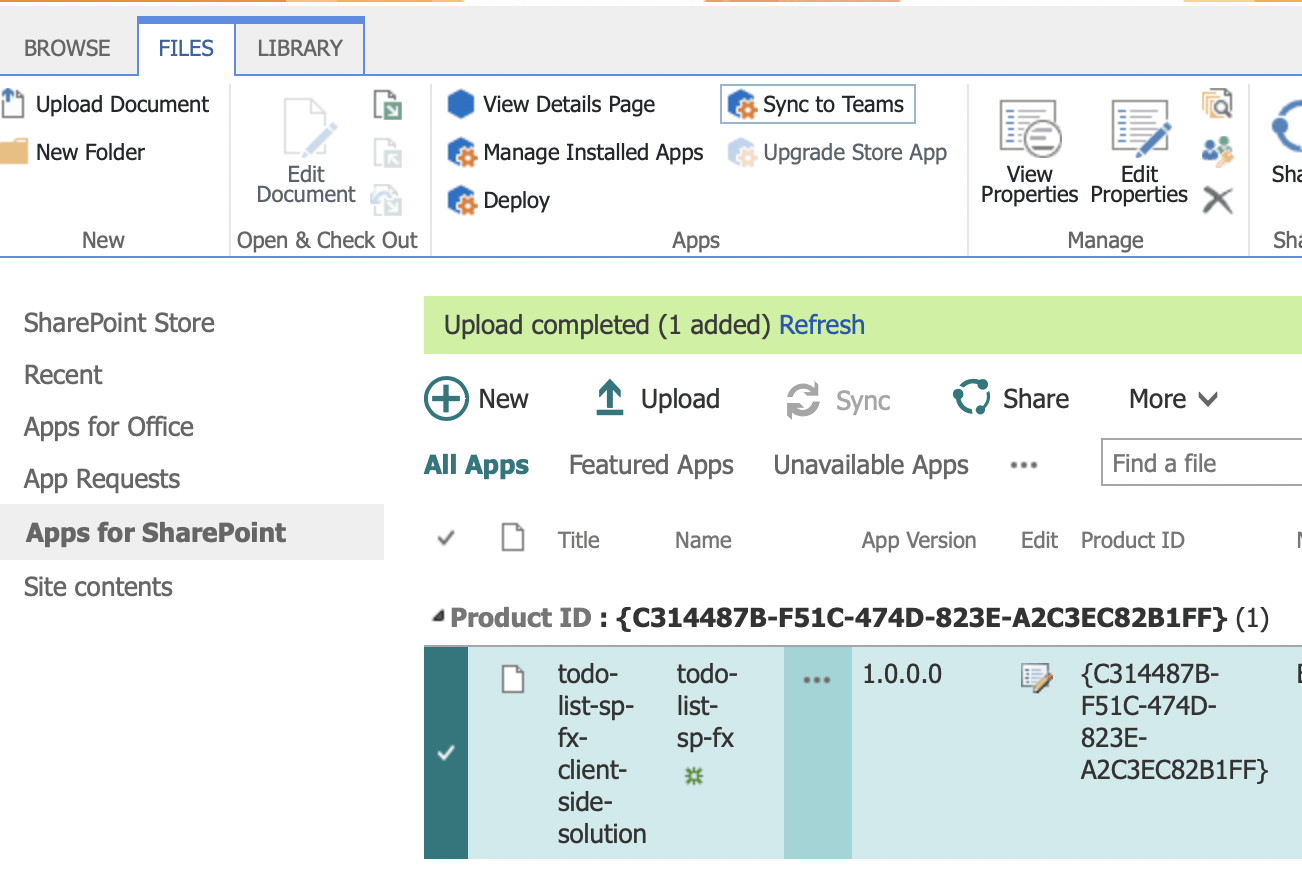

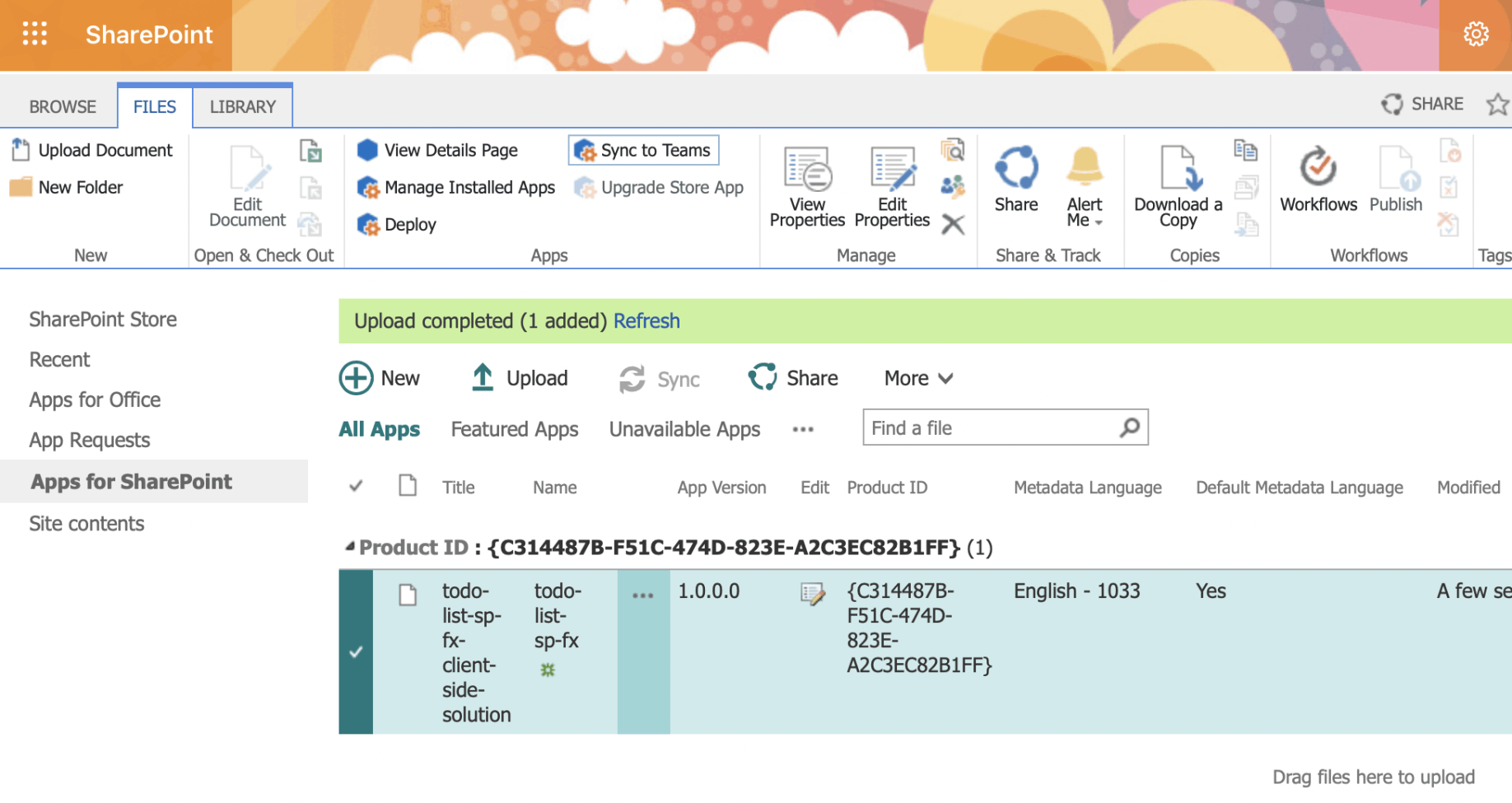

Select the app and click the "Sync to Teams" button in the SharePoint ribbon

Select the app and click the "Sync to Teams" button in the SharePoint ribbon

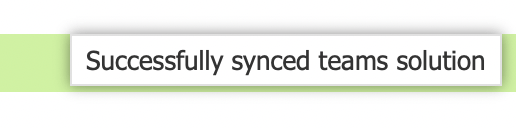

App will be added to Teams

App will be added to Teams

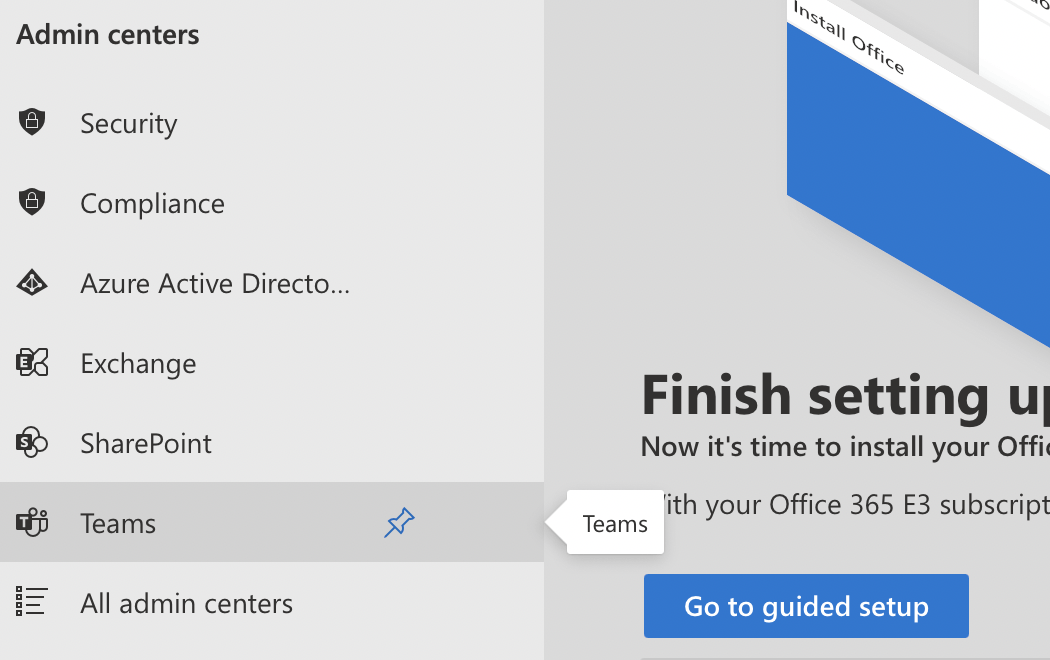

Navigate to Teams Admin pages

Navigate to Teams Admin pages

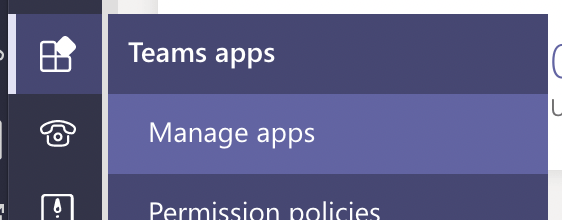

Select "Manage apps" (using a supported browser)

Select "Manage apps" (using a supported browser)

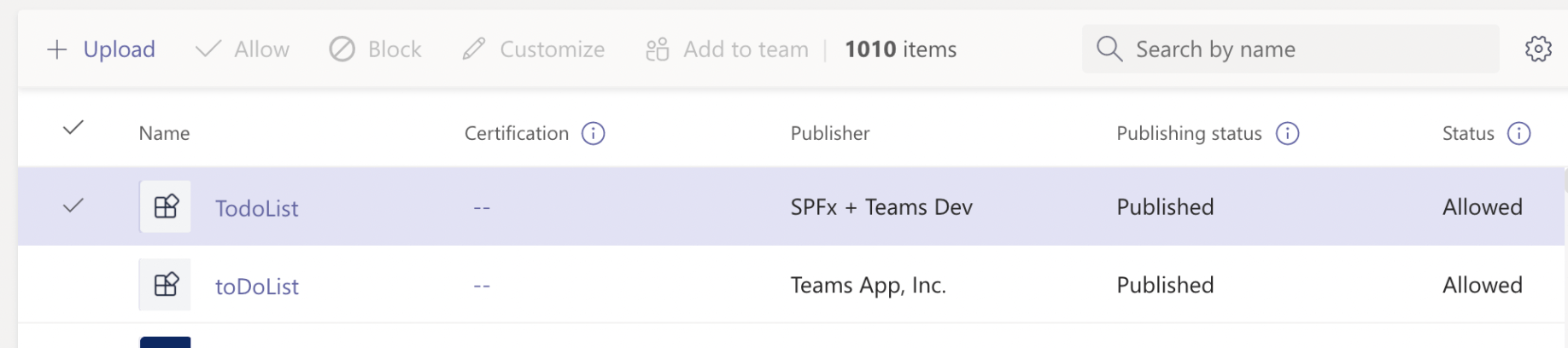

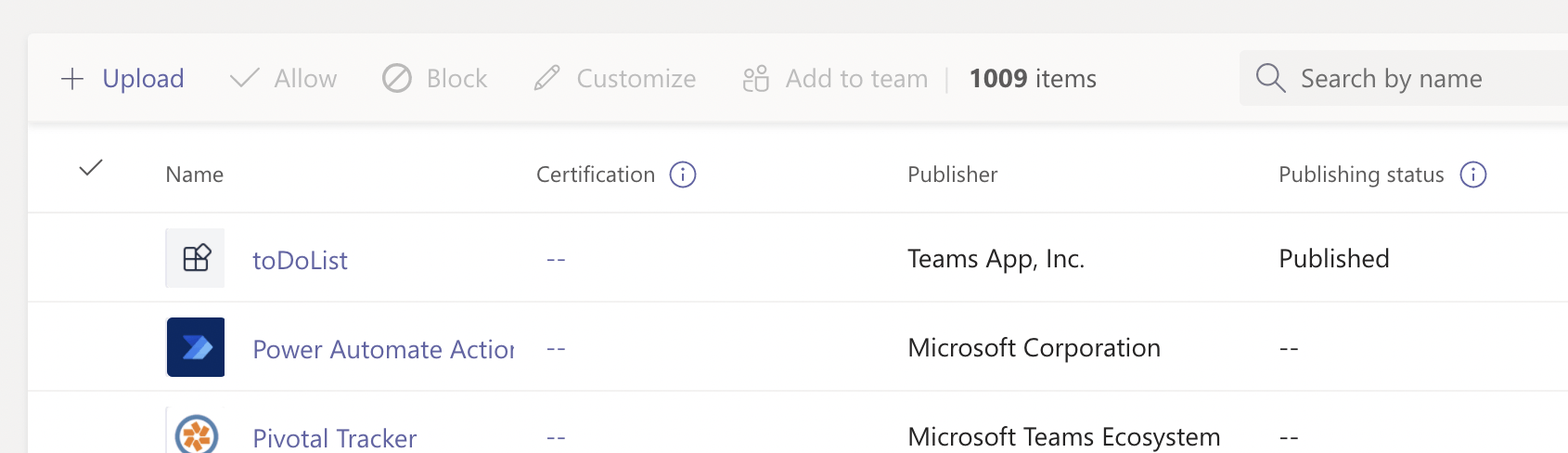

The TodoList SPFX app has been published.

The TodoList SPFX app has been published.

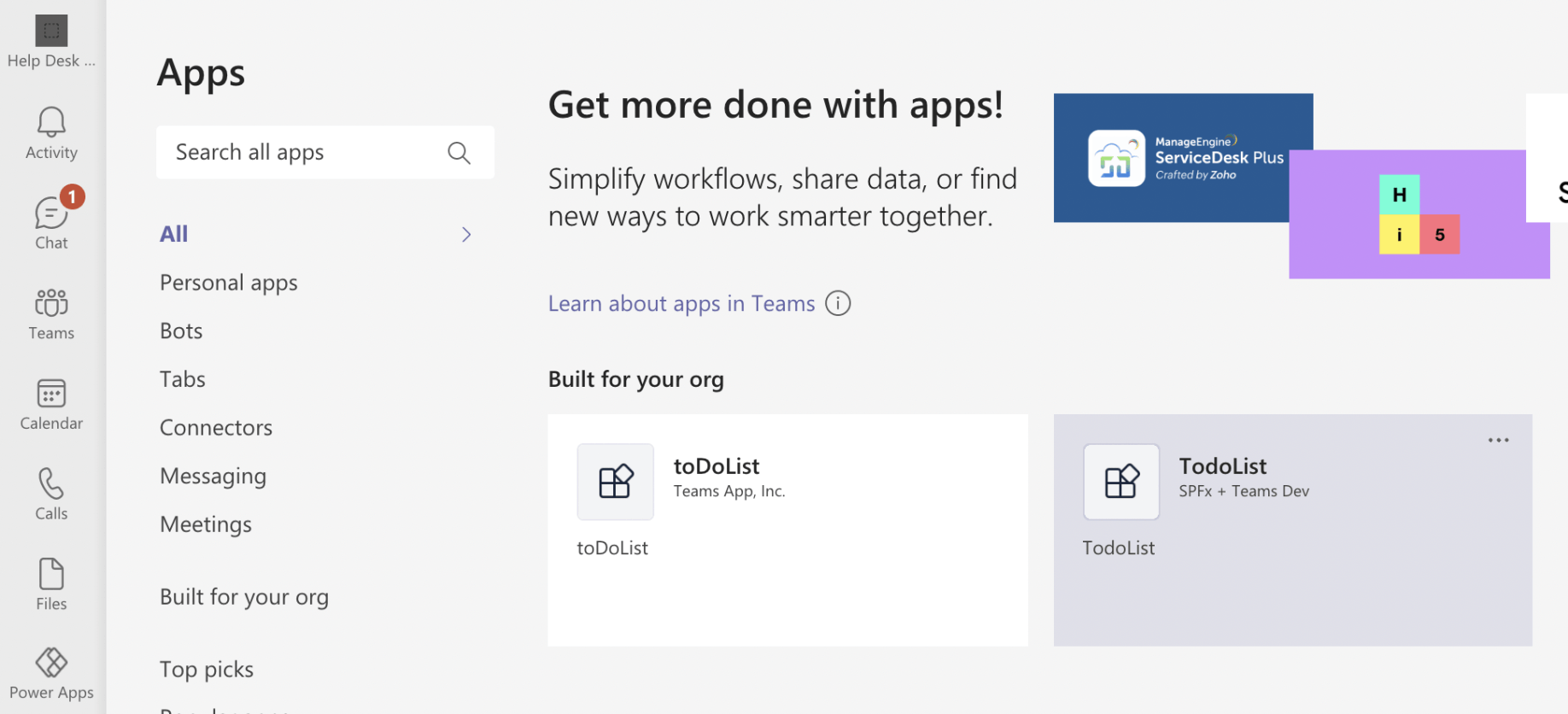

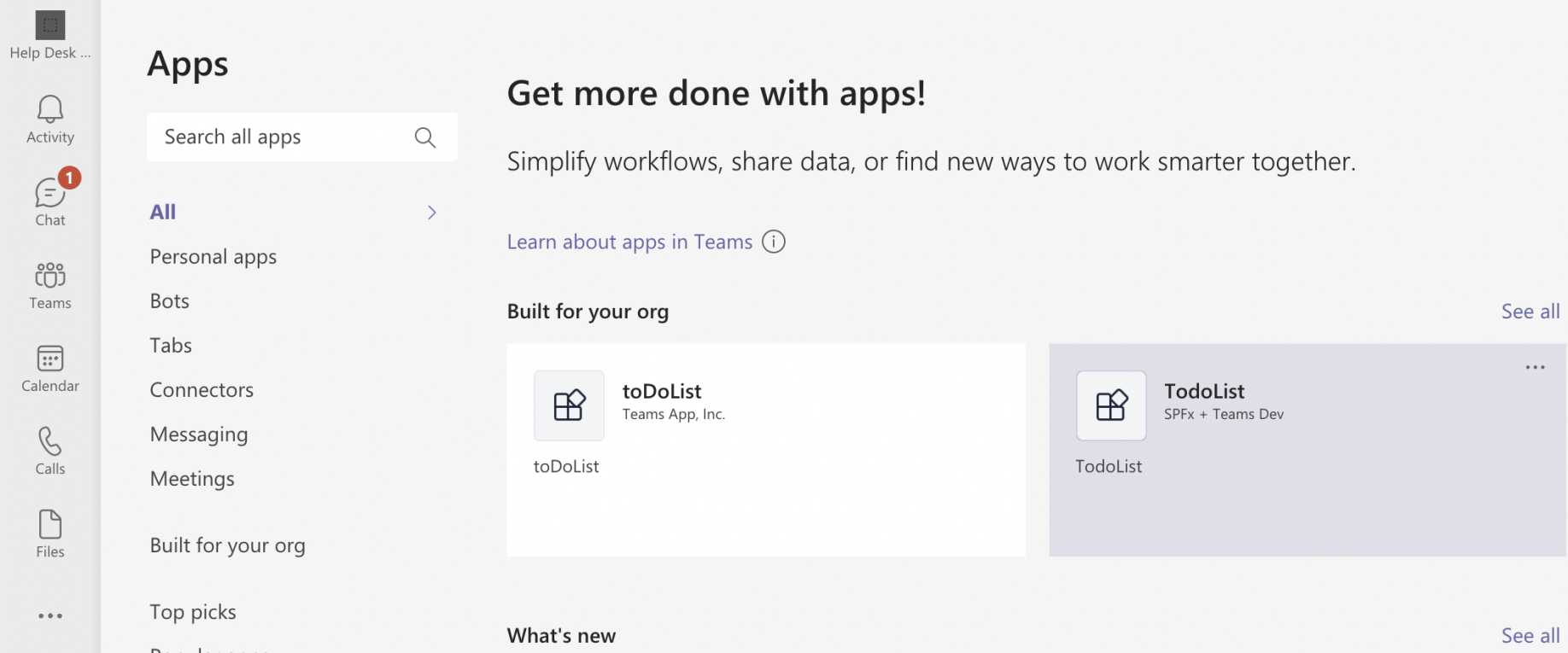

Open Teams and select the Apps item from left hand menu

Open Teams and select the Apps item from left hand menu

esp8266

esp8266

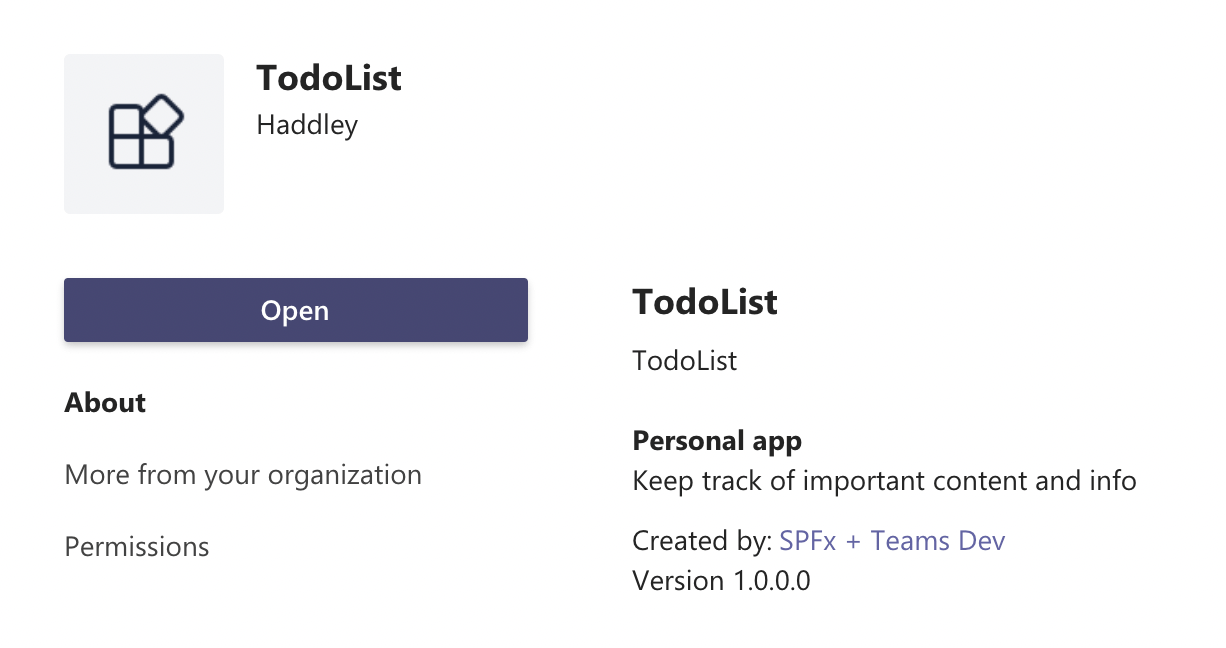

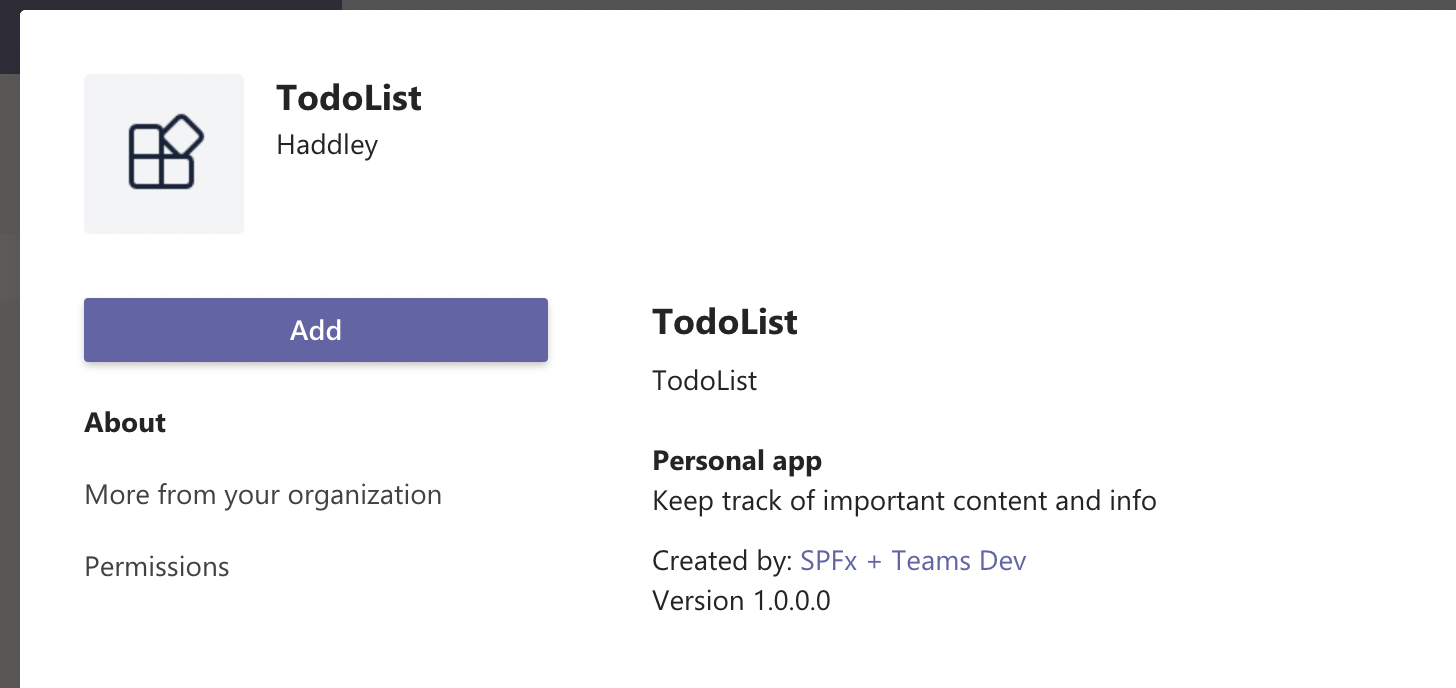

App is a "Personal app" (and not a Tabs app)

App is a "Personal app" (and not a Tabs app)

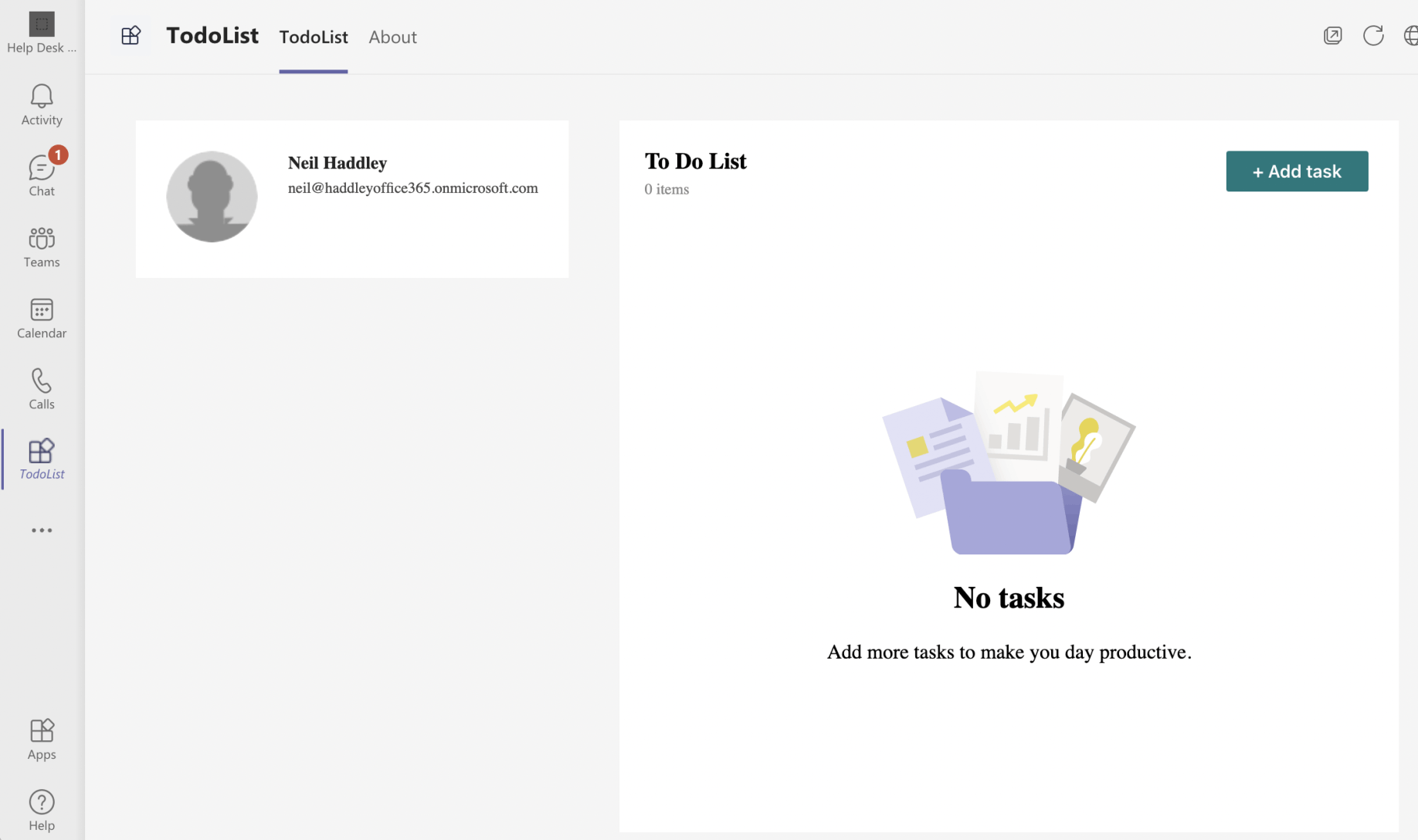

Use Open button to open Personal App

Use Open button to open Personal App

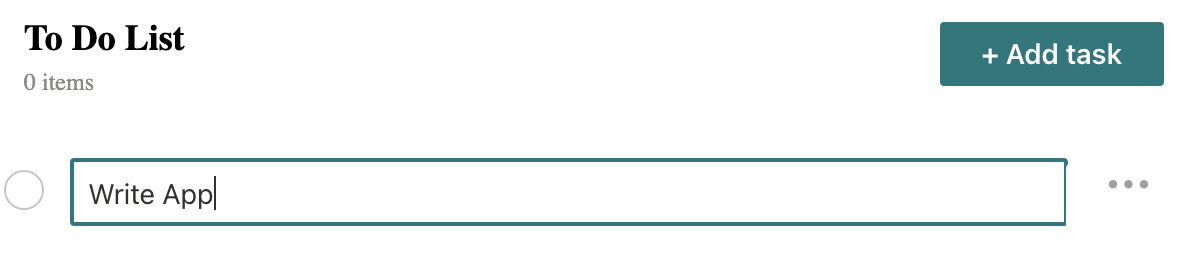

Add a To Do List item

Add a To Do List item

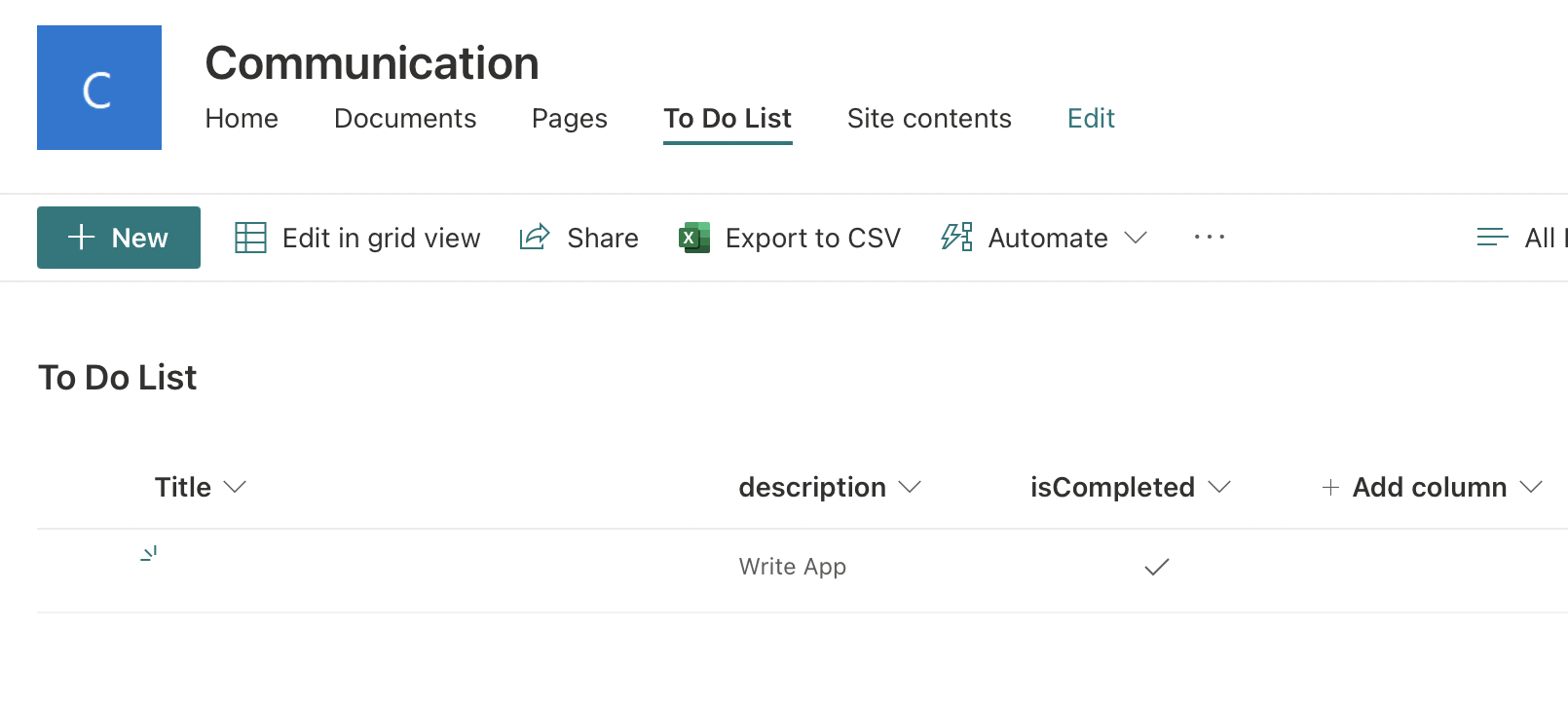

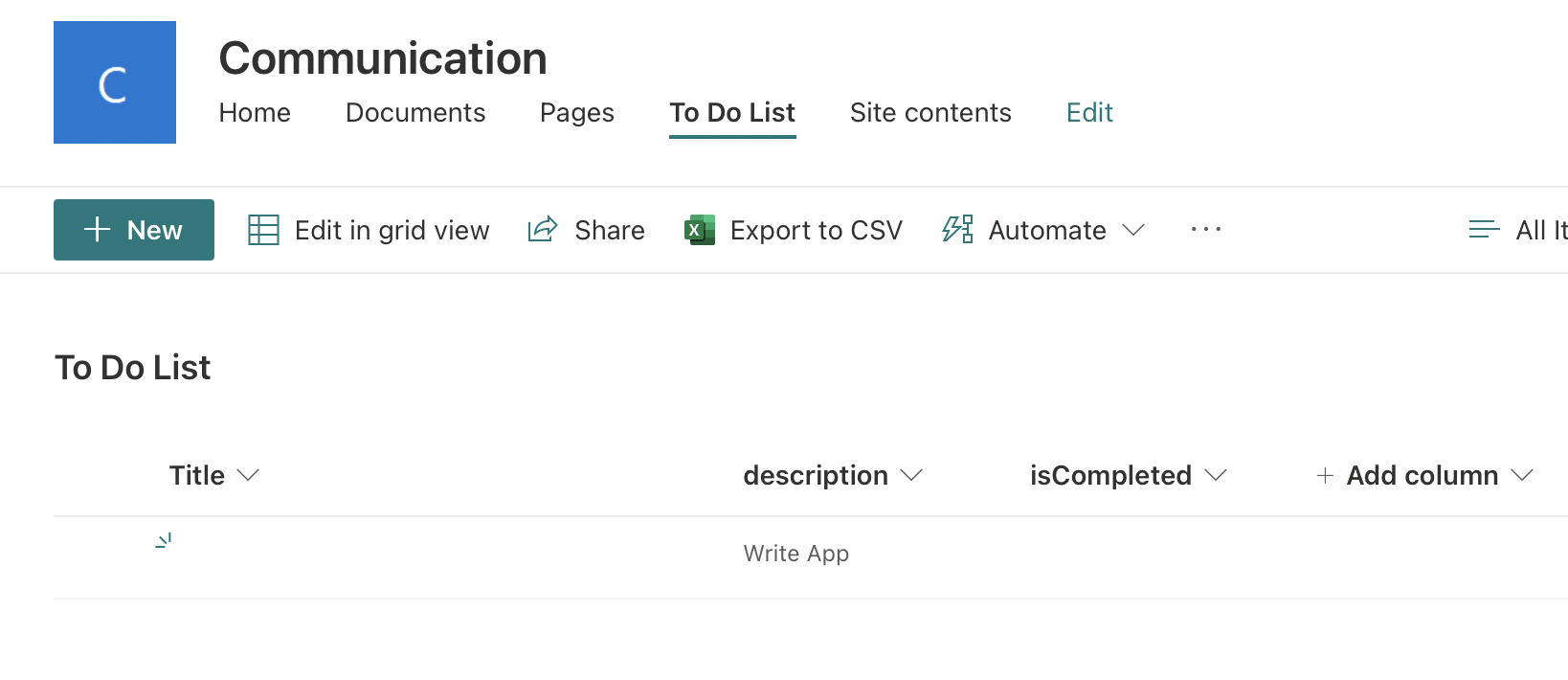

Item is added to SharePoint list

Item is added to SharePoint list

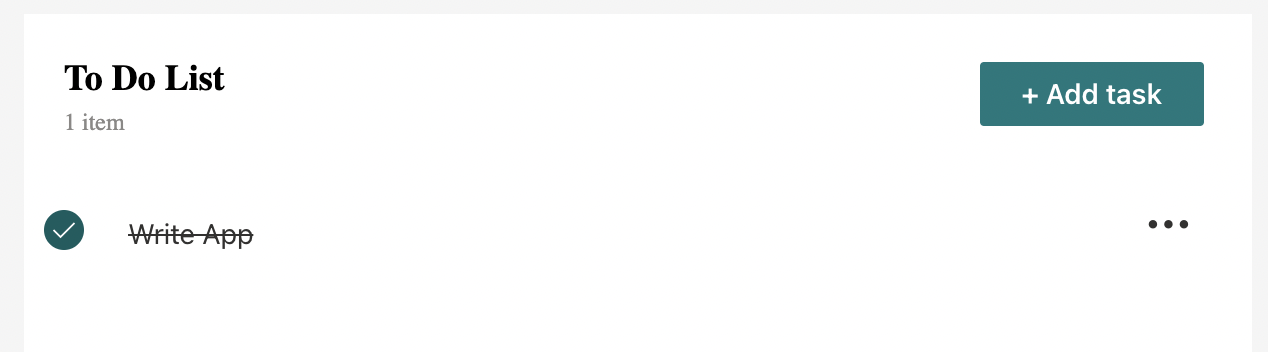

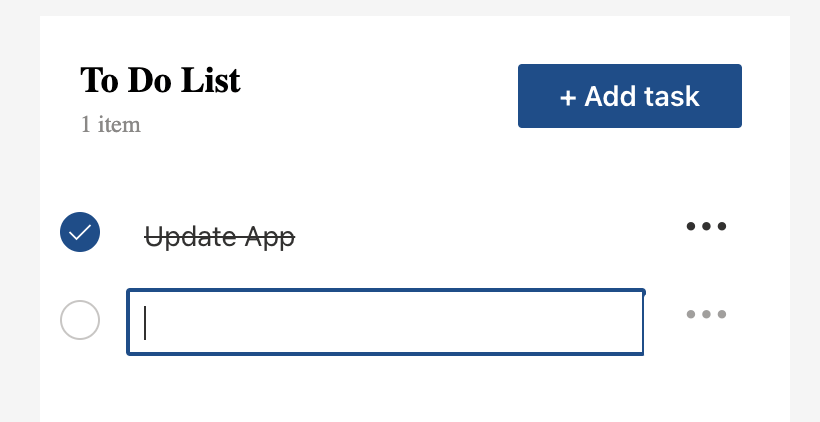

Update "isCompleted" status

Update "isCompleted" status

The isCompleted status updated in SharePoint List item

The isCompleted status updated in SharePoint List item

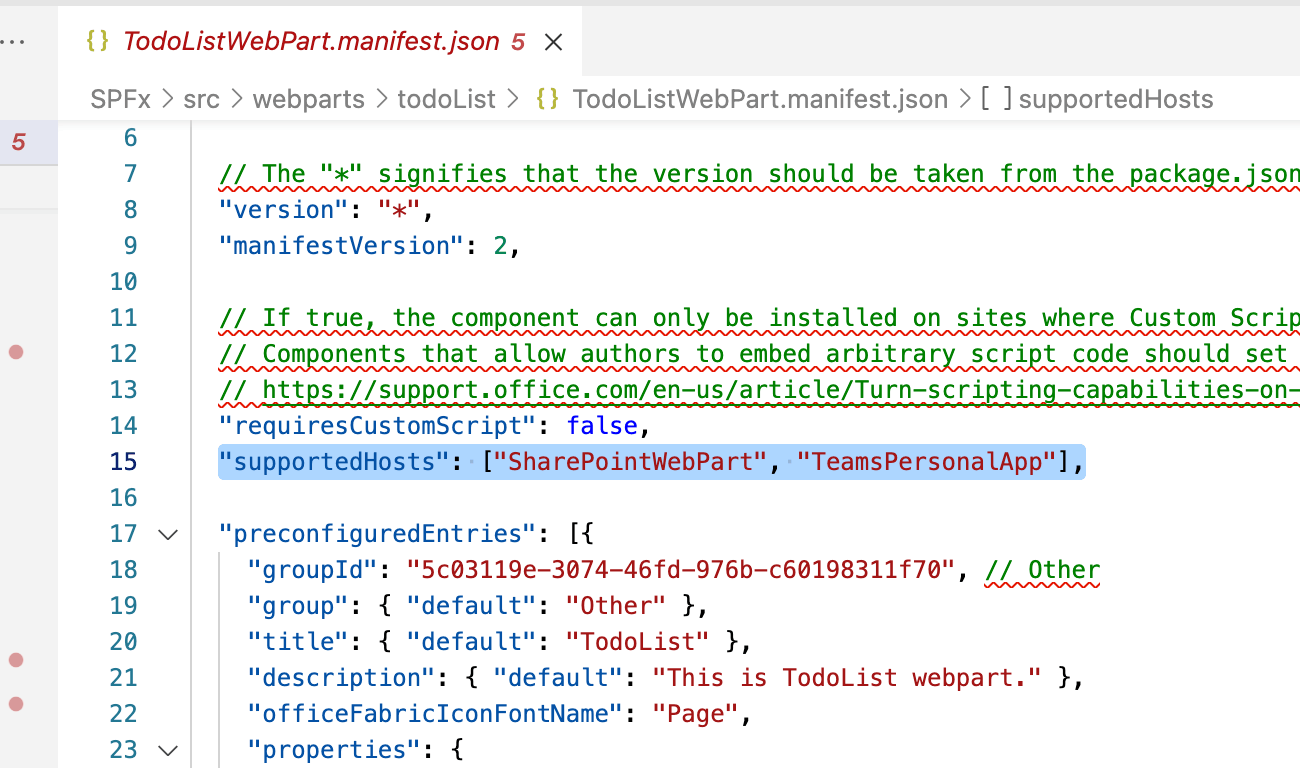

Review TodoListWebPart.manifest.jsson

Review TodoListWebPart.manifest.jsson

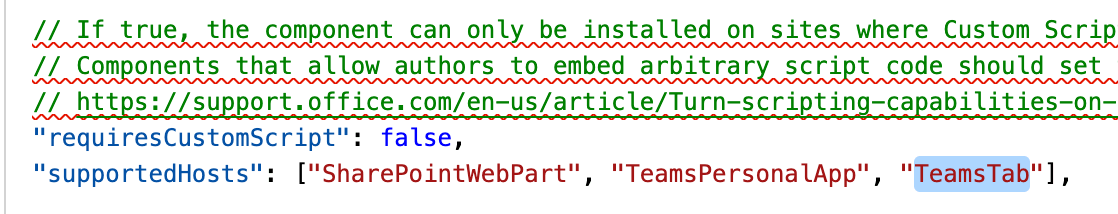

Add "TeamsTab" option

Add "TeamsTab" option

Use Teams: Deploy to the Cloud (to rebuild the sppkg file)

Use Teams: Deploy to the Cloud (to rebuild the sppkg file)

Build the SharePoint Package

Build the SharePoint Package

Delete the SPFx App from Teams

Delete the SPFx App from Teams

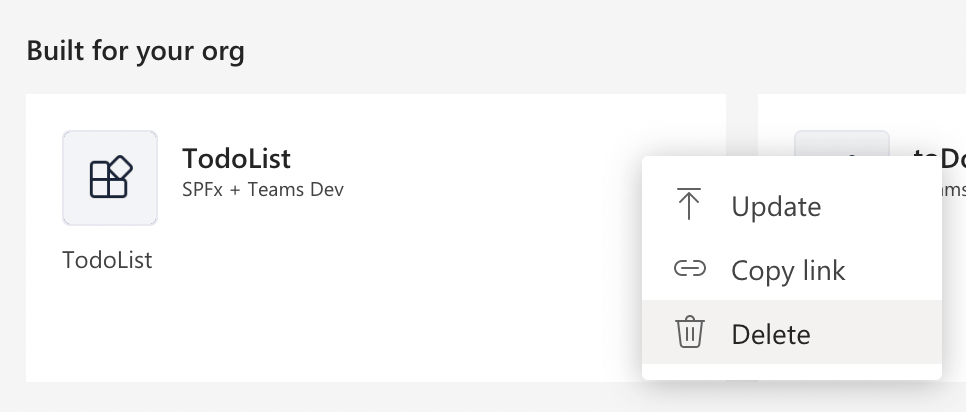

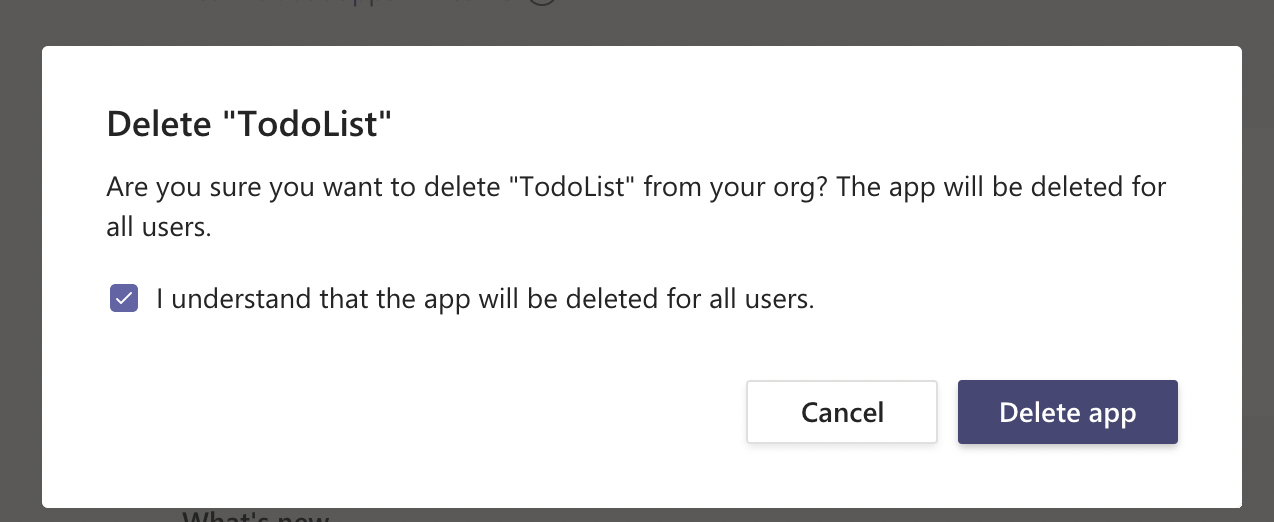

Delete "TodoList" SPFx app

Delete "TodoList" SPFx app

Notice that the SPFx app is gone

Notice that the SPFx app is gone

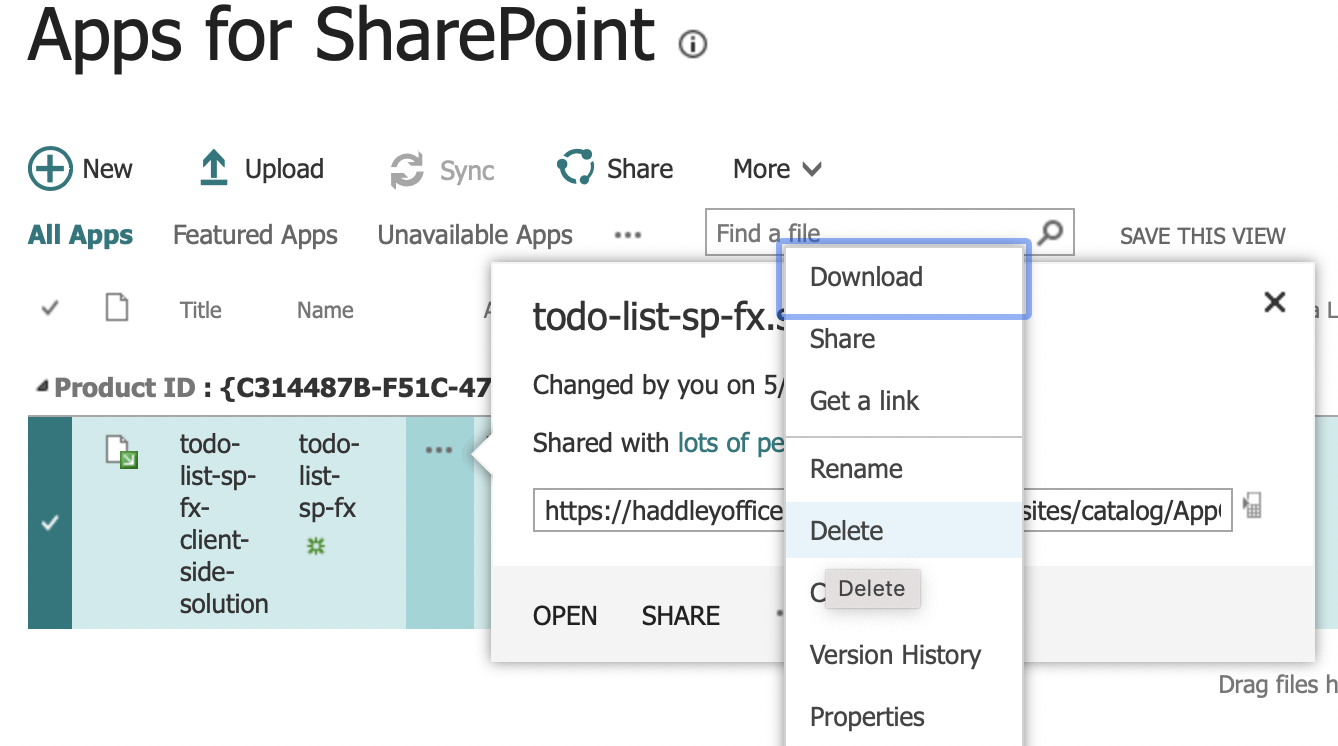

Delete the app from SharePoint App Catalog

Delete the app from SharePoint App Catalog

After deleting the App from Teams and the SharePoint App Catalog... upload the new version

After deleting the App from Teams and the SharePoint App Catalog... upload the new version

Again "Add a document"

Again "Add a document"

Again select the "Make this solution available to all sites" checkbox

Again select the "Make this solution available to all sites" checkbox

Again click the "Sync to Teams" button

Again click the "Sync to Teams" button

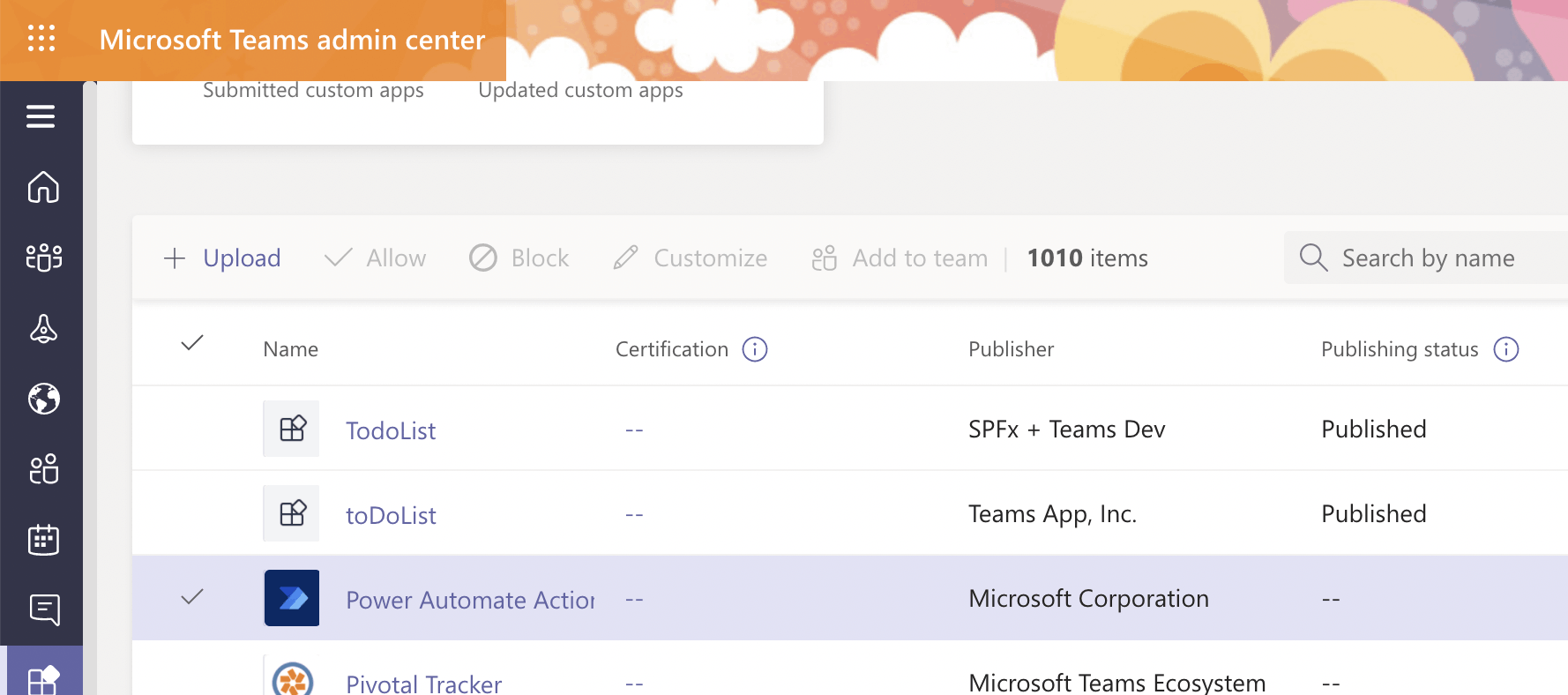

New version of SPFx app is now published to Teams.

New version of SPFx app is now published to Teams.

New version of SPFx app is available in the Teams client app

New version of SPFx app is available in the Teams client app

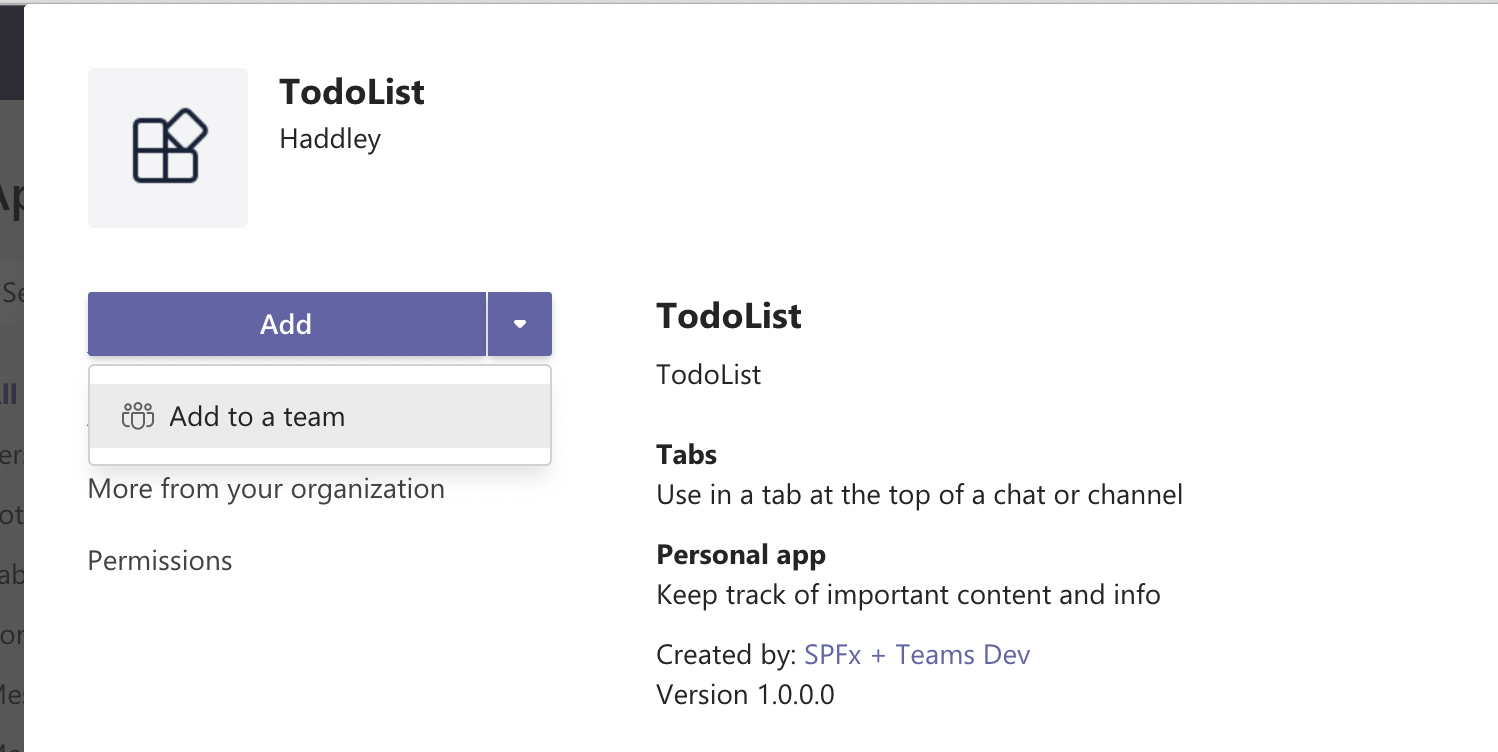

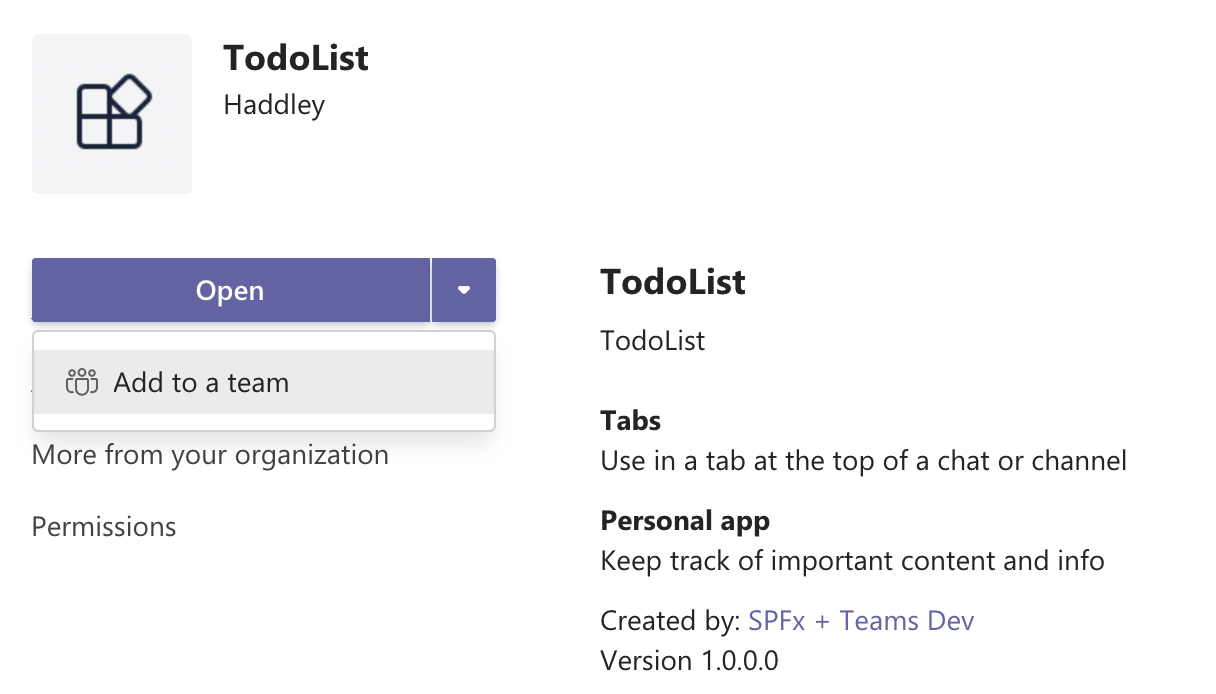

New version of SPFx app can be used as a "Personal app" or "Used in a tab"

New version of SPFx app can be used as a "Personal app" or "Used in a tab"

Add as a tab in a Teams Channel

Add as a tab in a Teams Channel

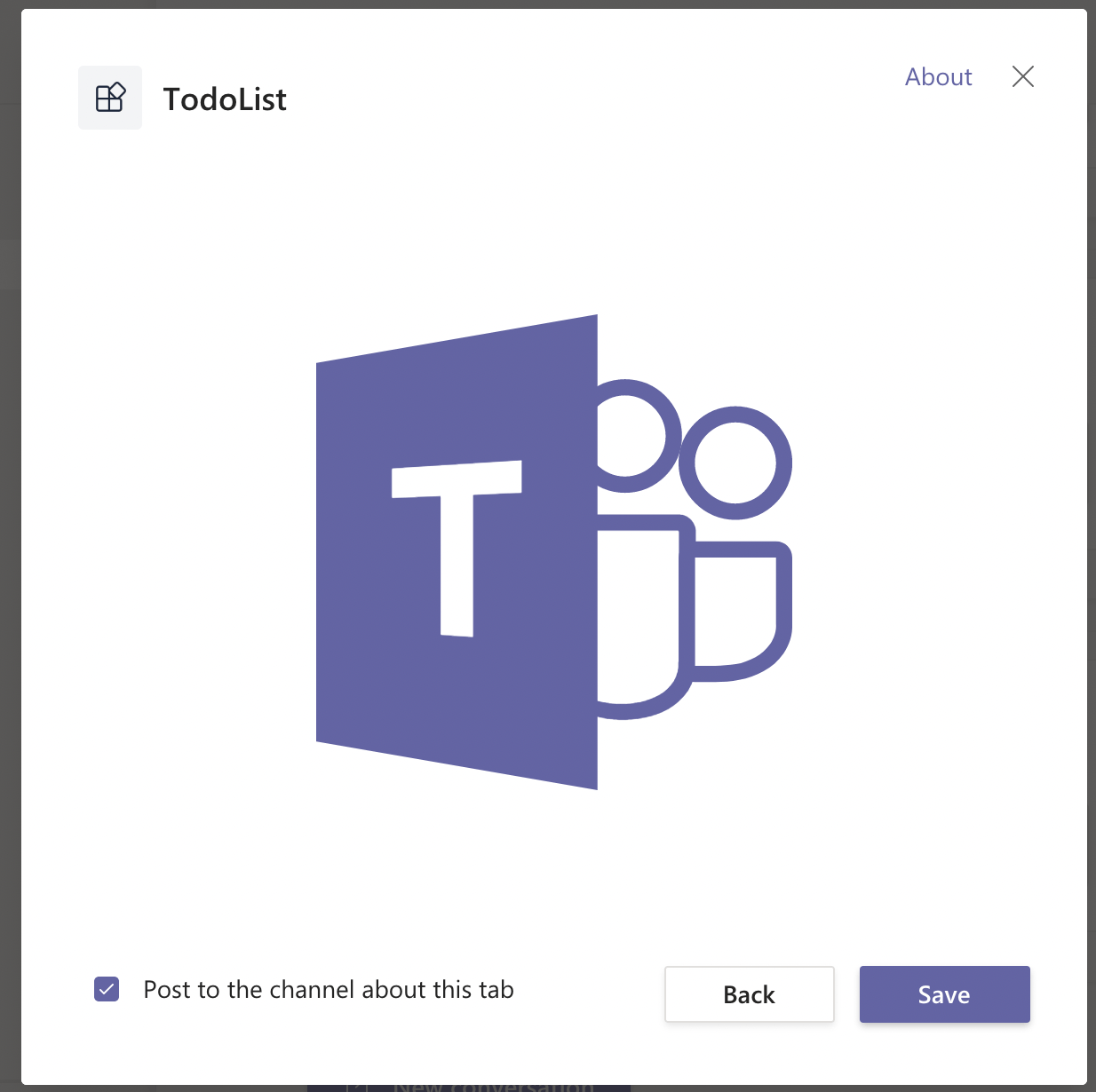

Looks good

Looks good

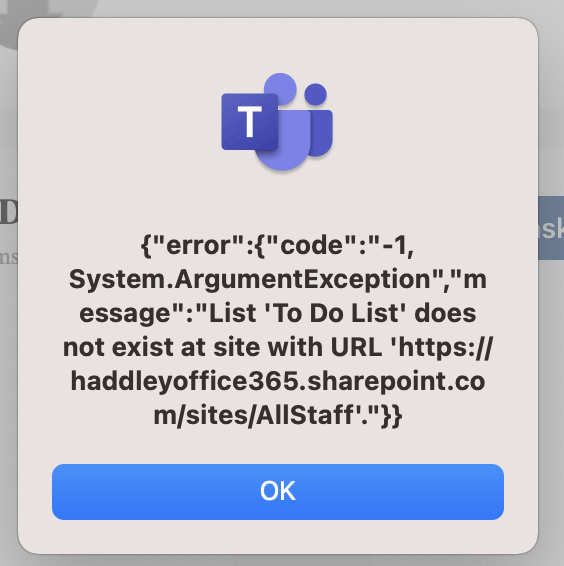

Error. The app assumes that a "To Do List" has been added to the Teams SharePoint Site.

Error. The app assumes that a "To Do List" has been added to the Teams SharePoint Site.

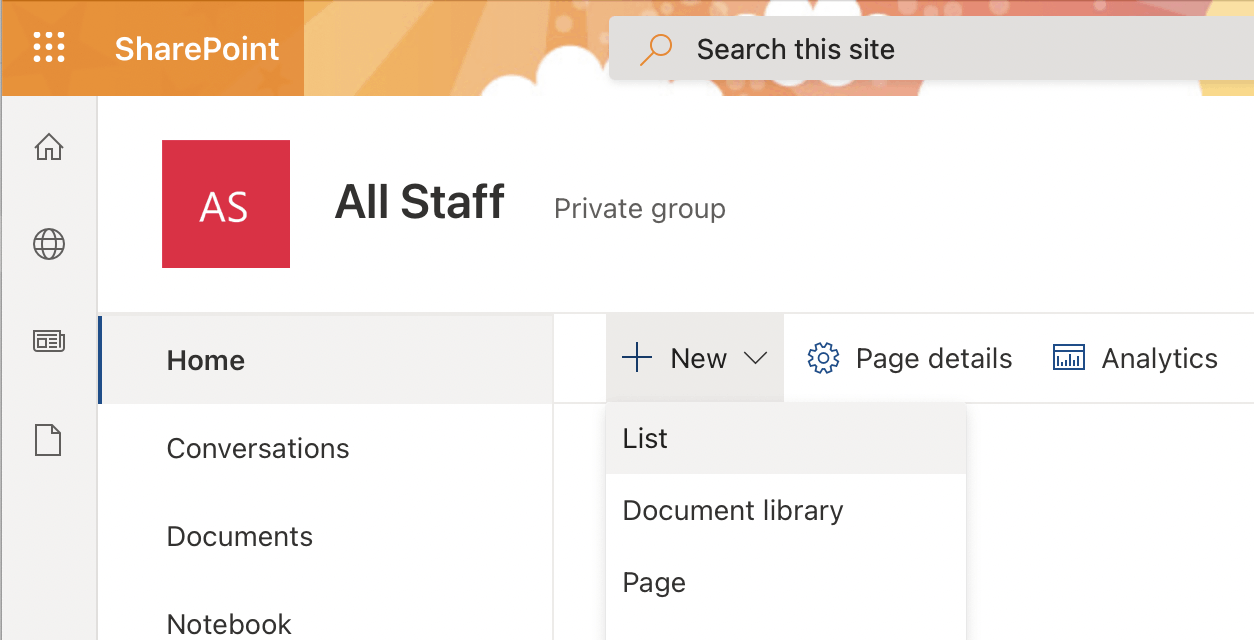

Navigate to the Team SharePoint Site and create a new list.

Navigate to the Team SharePoint Site and create a new list.

Create a blank list

Create a blank list

Name the list "To Do List"

Name the list "To Do List"

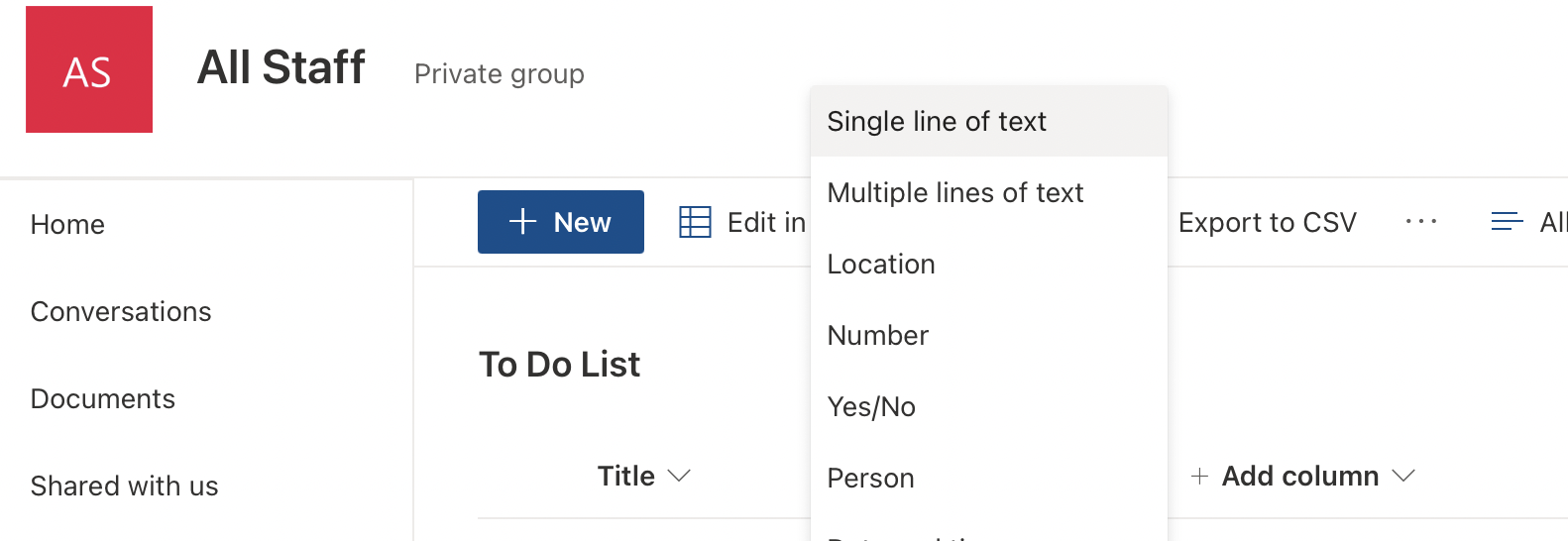

Add a "Single line of text" column

Add a "Single line of text" column

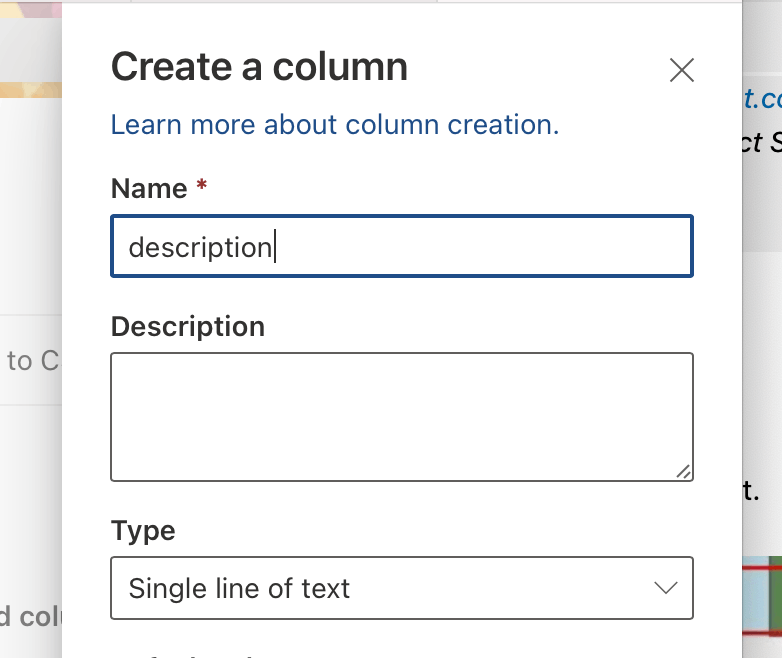

Name the column "description"

Name the column "description"

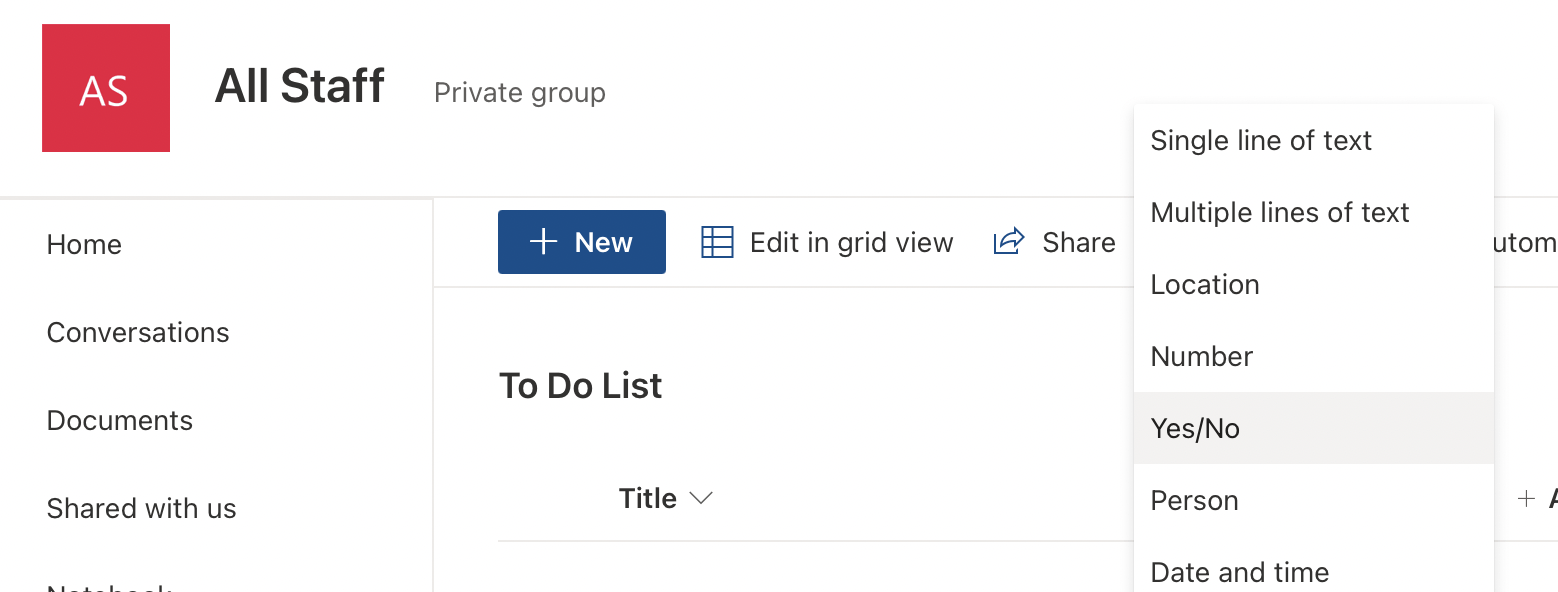

Add a "Yes/No" column

Add a "Yes/No" column

Name the column "isComplete"

Name the column "isComplete"

Try adding the app as a tab again

Try adding the app as a tab again

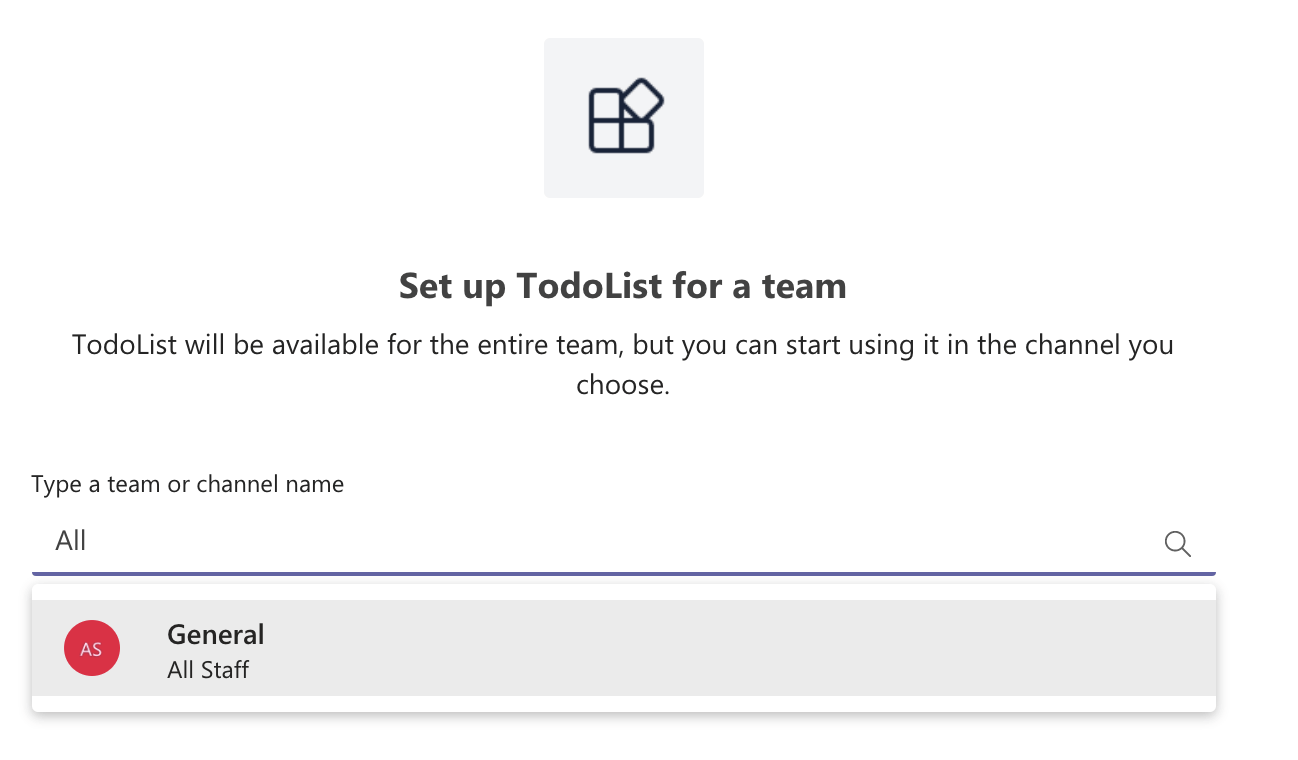

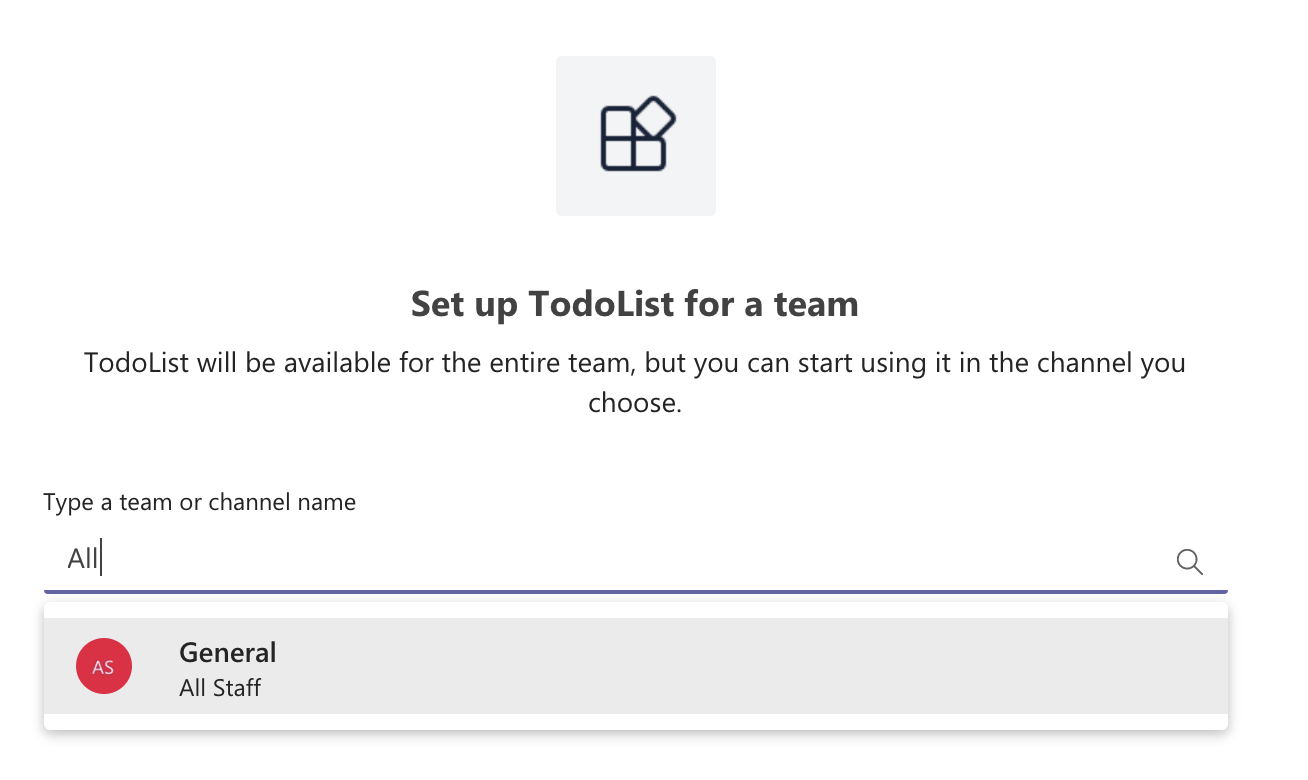

Select the Team and Channel

Select the Team and Channel

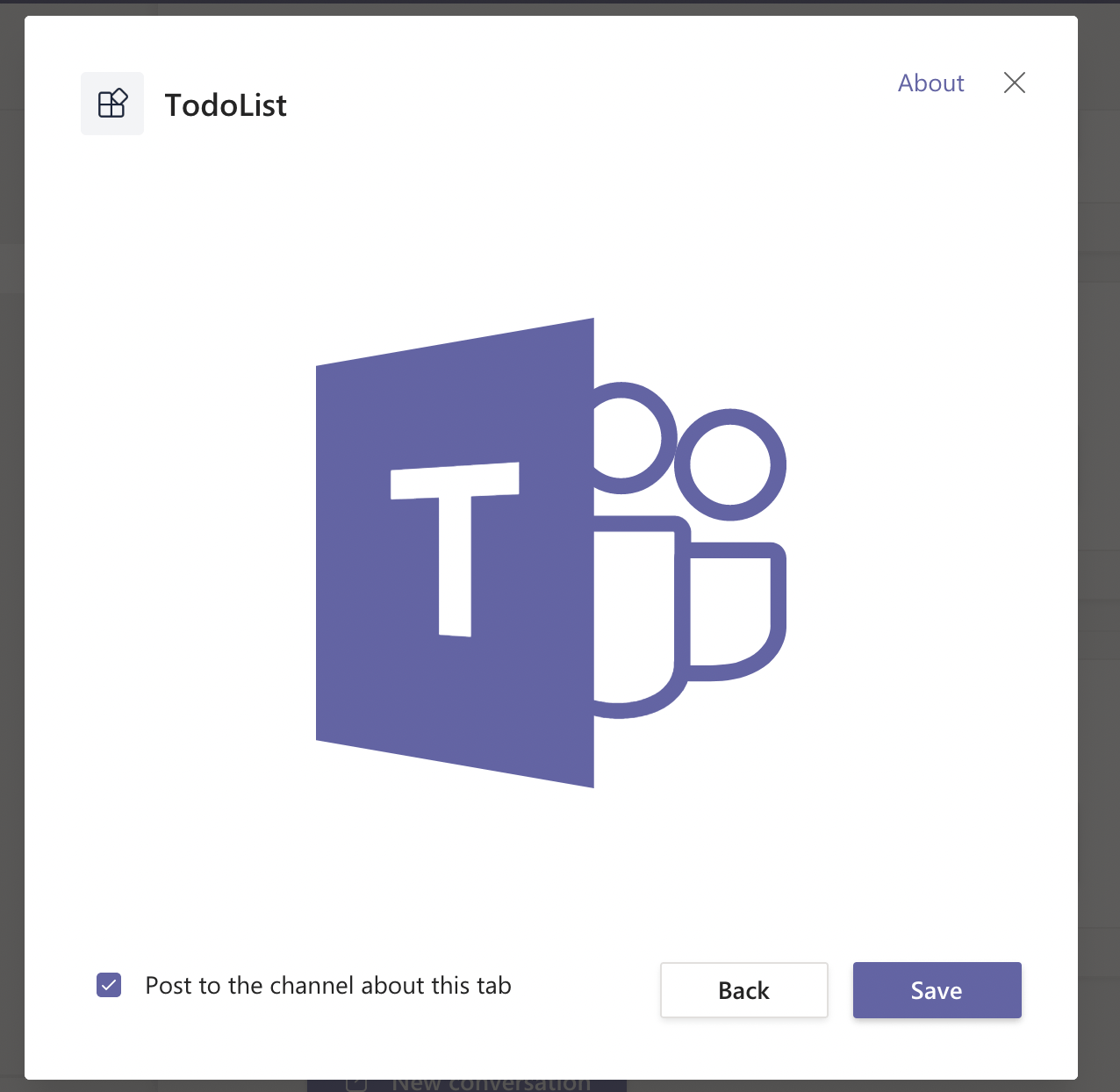

Looks good

Looks good

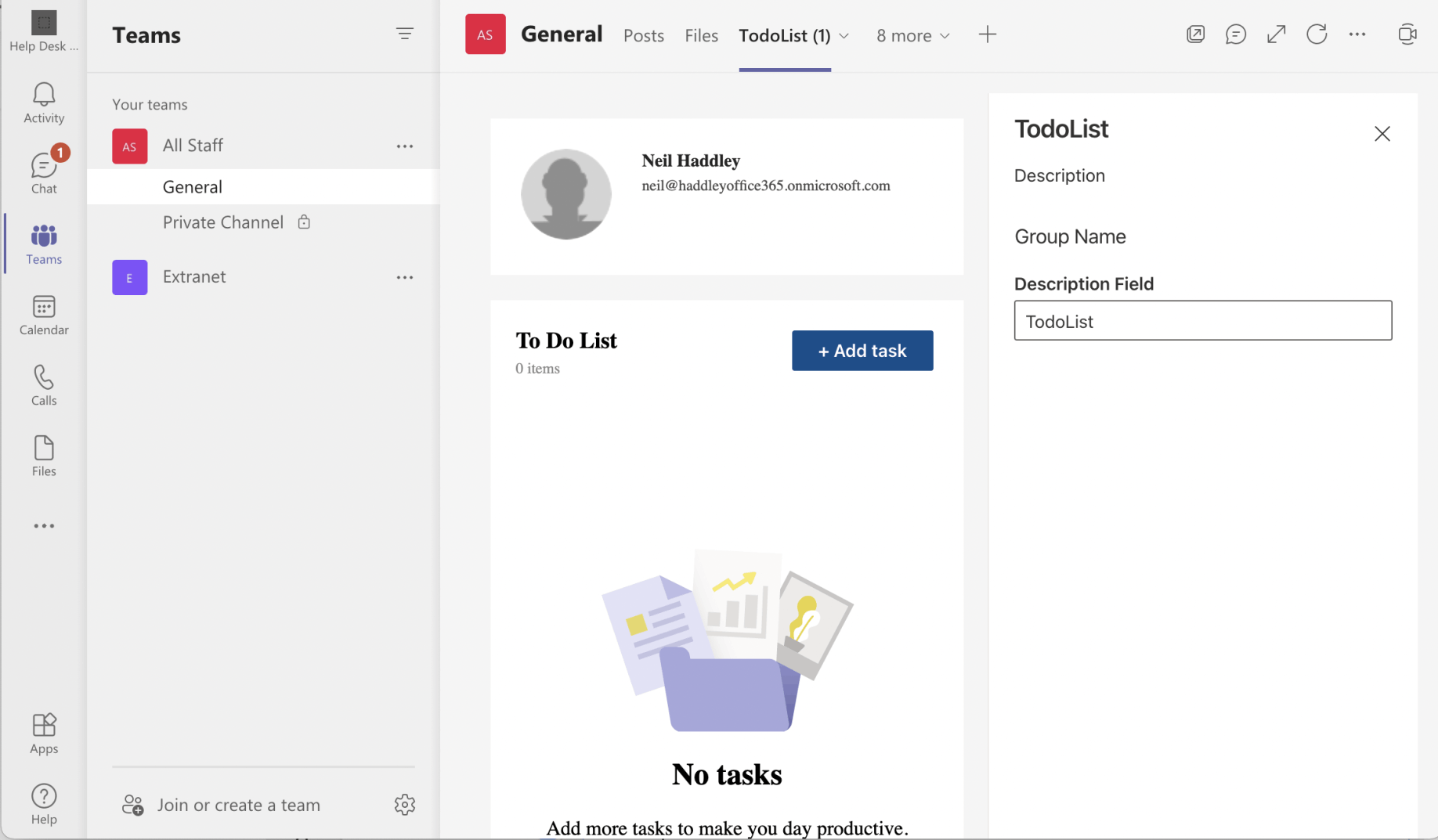

The new tab has been added

The new tab has been added

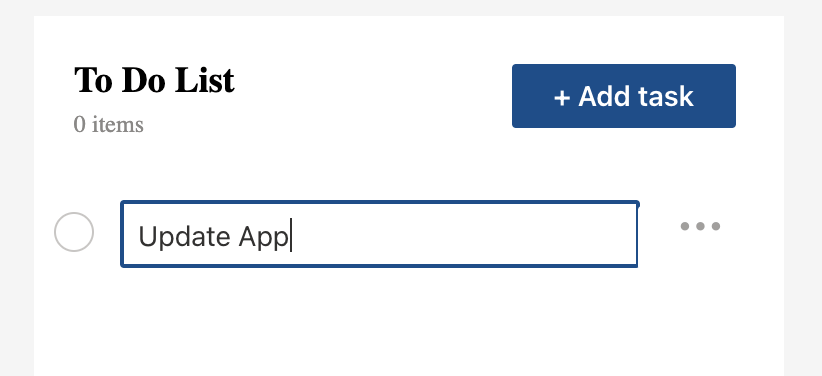

Add a To Do List item

Add a To Do List item

To Do List item added

To Do List item added

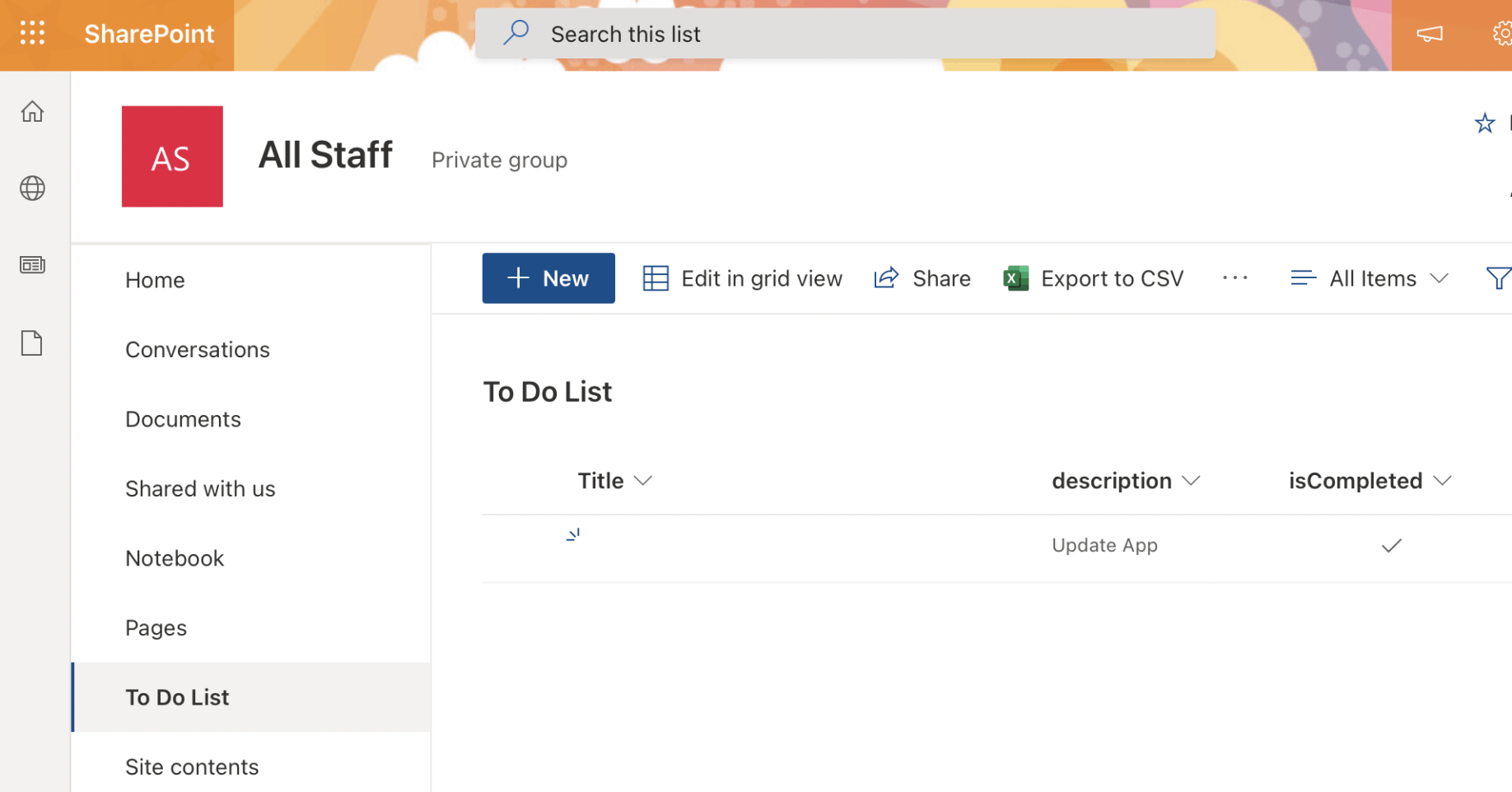

New SharePoint List Item has been created

New SharePoint List Item has been created

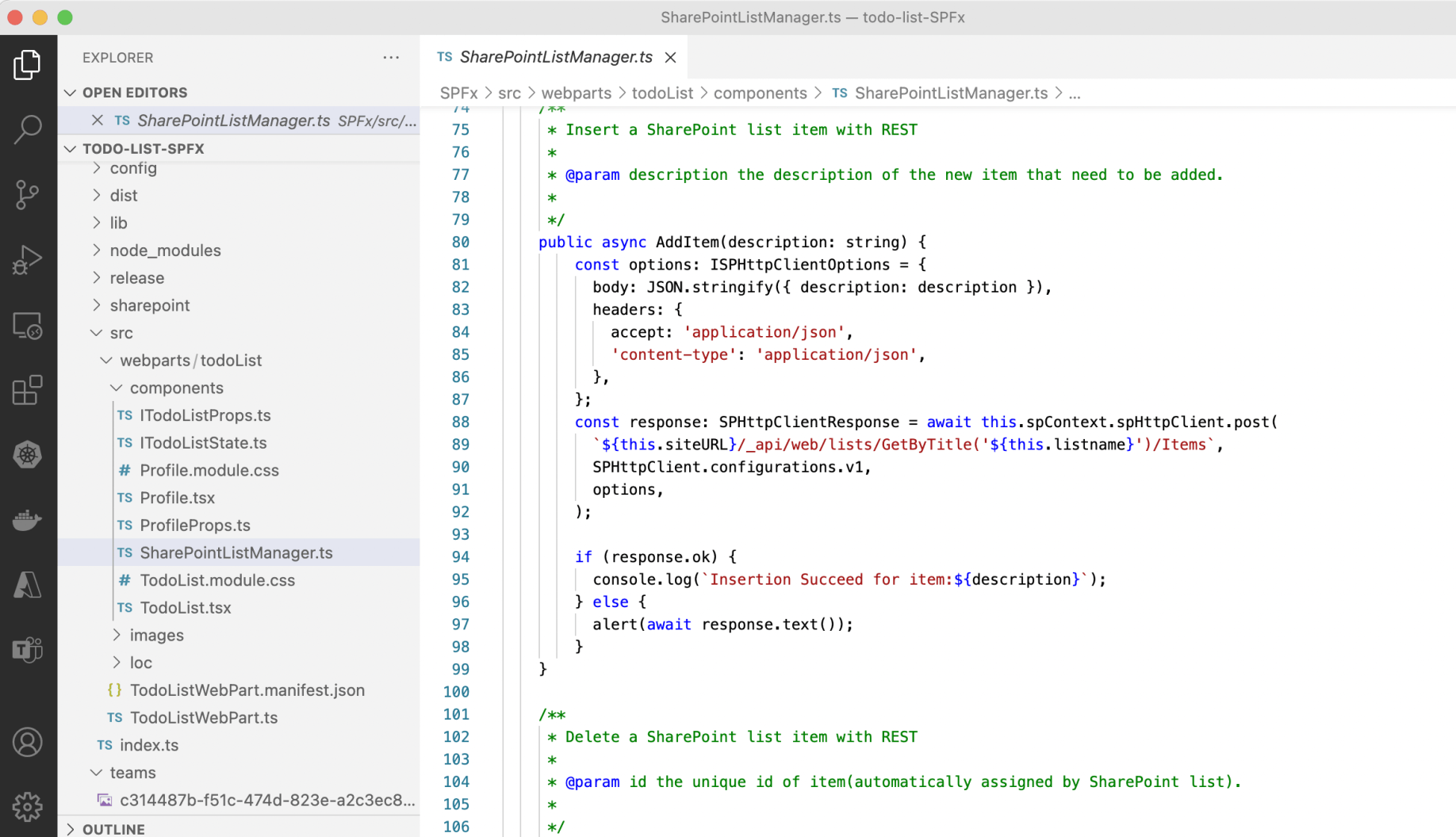

Code in SharePointListManager.ts communicates with SharePoint using well known REST methods

Code in SharePointListManager.ts communicates with SharePoint using well known REST methods
