3D Printing (Part 2)

Neil Haddley • July 19, 2023

A mount that holds a Raspberry Pi 4 and a mini breadboard side by side, adapted from an existing Tinkercad design and printed on a resin printer

3D printingraspberry-pibreadboardtinkercadchituboxresin-printing

In Part 1 I printed a name plate. This time I printed something useful: a plate that holds a Raspberry Pi 4 and a mini breadboard together, so that the wires between them stay put.

Tinkercad

I updated an existing Tinkercad design to create a part to securely hold a Raspberry Pi 4 and small breadboard.

Original design

https://www.tinkercad.com/things/8k21OQvUnlh

Updated design

https://www.tinkercad.com/things/fQPX9bFkoC3-raspberry-pi-4-and-mini-breadboard-mount

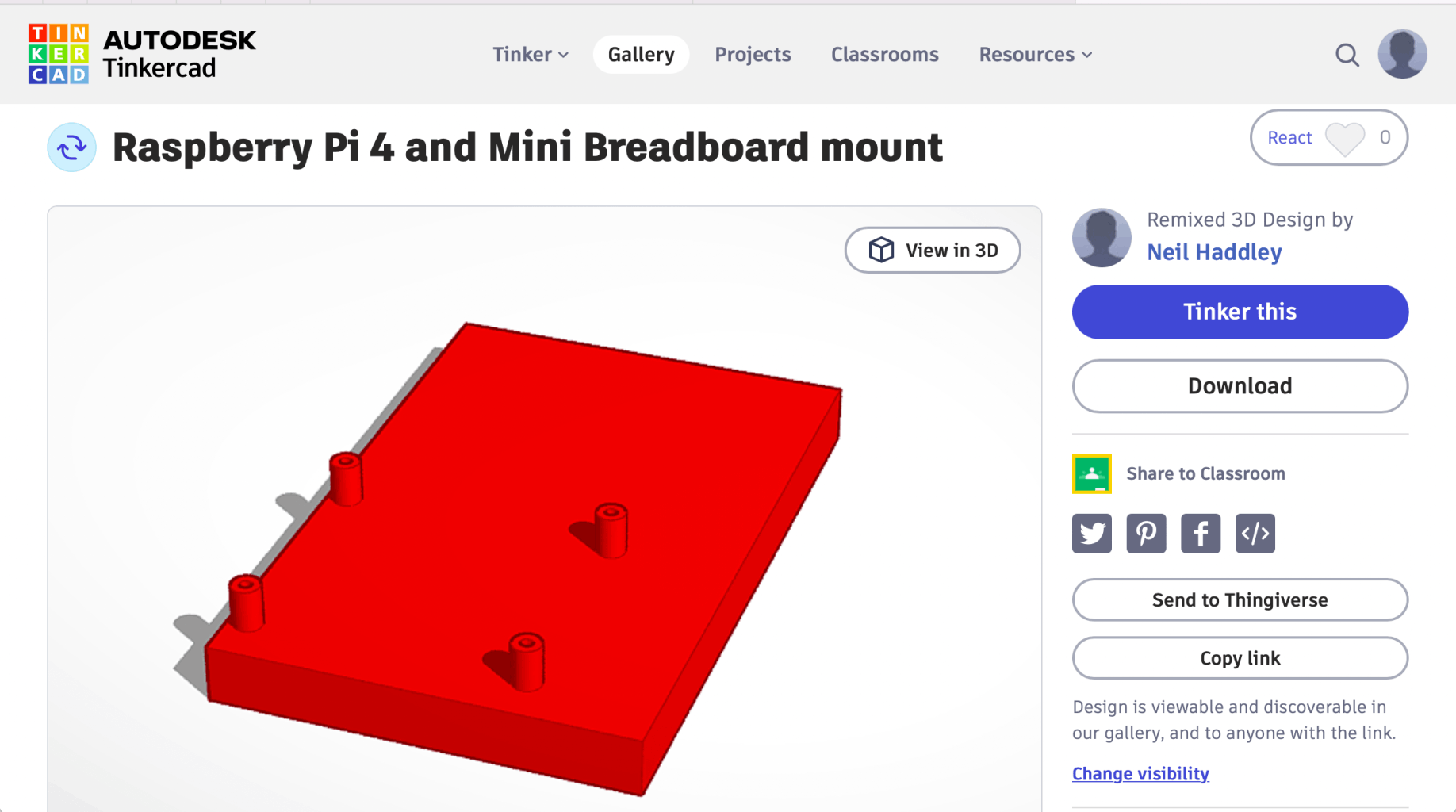

I updated the design in Tinkercad

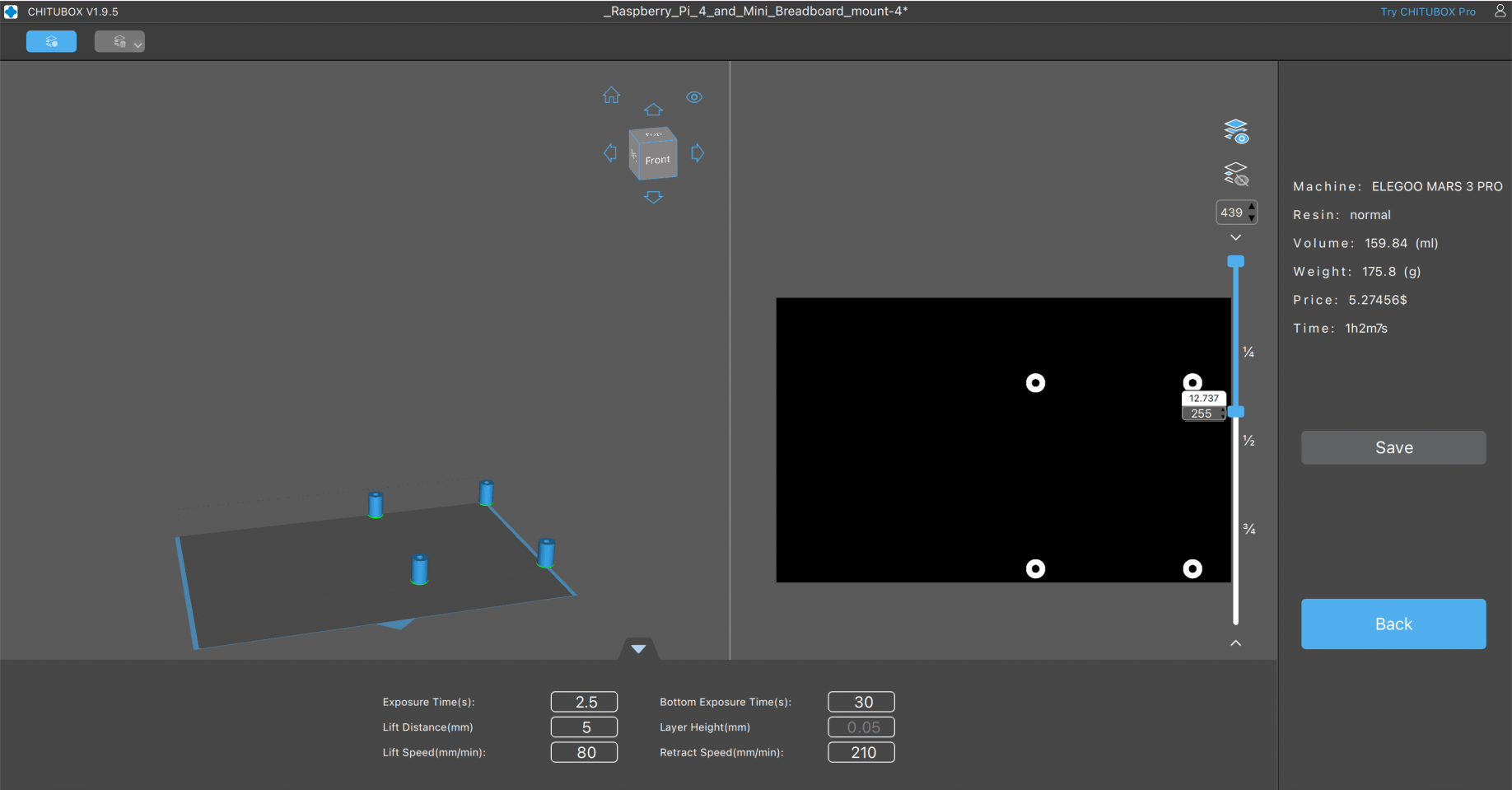

I sliced the part

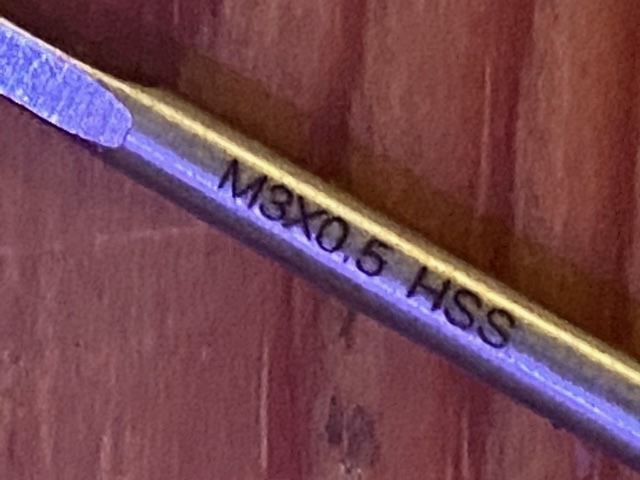

I used an M3 tap drill

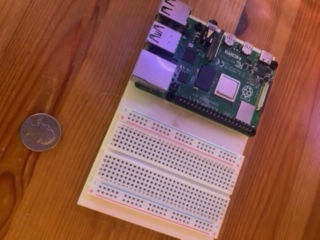

I assembled the finished part

Part of the 3D Printing series
