Business Central (Part 5)

Neil Haddley • December 22, 2024

Integration Tables

Microsoft DynamicsBusiness CentralPower Platformintegration-tablespower-platformbusiness-centralal-language

In Dynamics 365 Business Central, an Integration Table is a specialized table used to facilitate the exchange of data between Business Central and external systems or services. These tables are often used in integration scenarios, such as connecting with Dynamics 365 Sales (CRM), Power Platform, or other third-party applications.

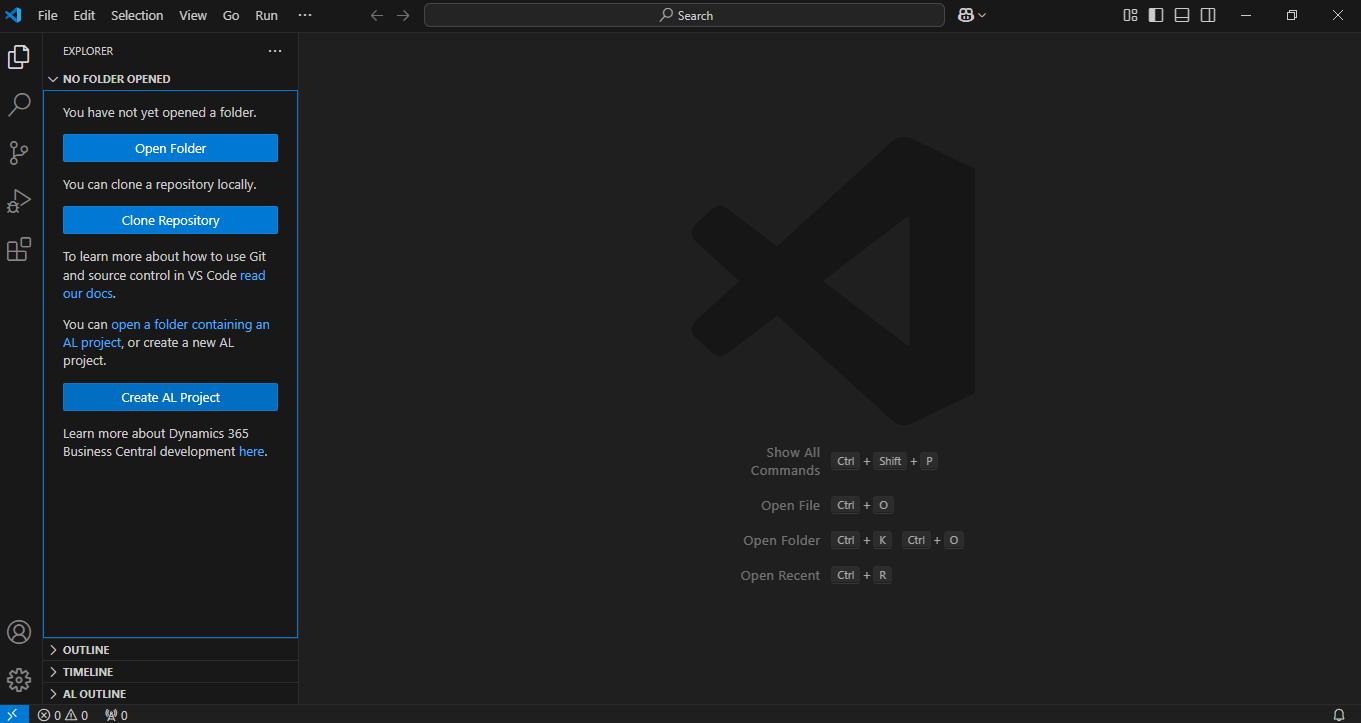

I clicked the Create AL Project buttonTap the image to open it full size

I clicked the Create AL Project button

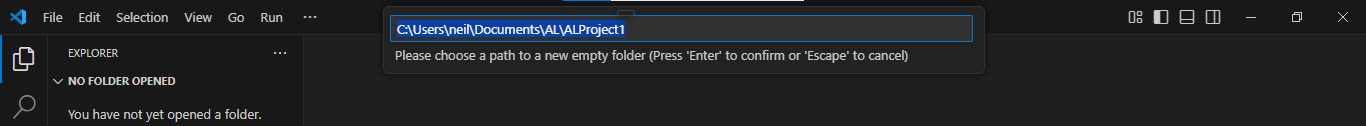

I updated the project nameTap the image to open it full size

I updated the project name

I entered DataverseIntegrationTap the image to open it full size

I entered DataverseIntegration

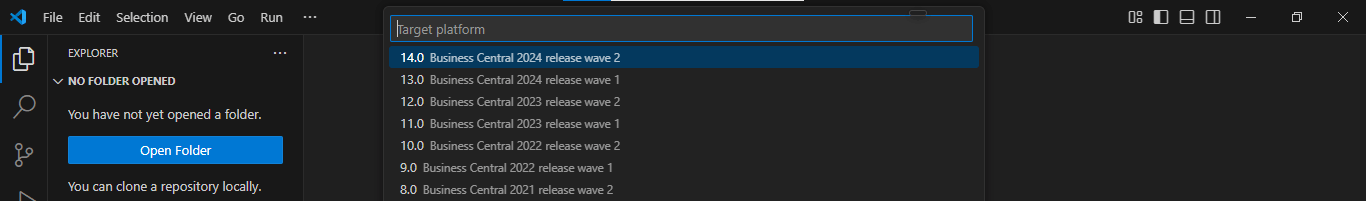

I selected the most recent platformTap the image to open it full size

I selected the most recent platform

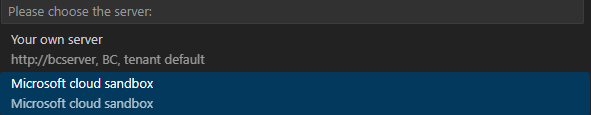

I selected the Microsoft cloud sandbox optionTap the image to open it full size

I selected the Microsoft cloud sandbox option

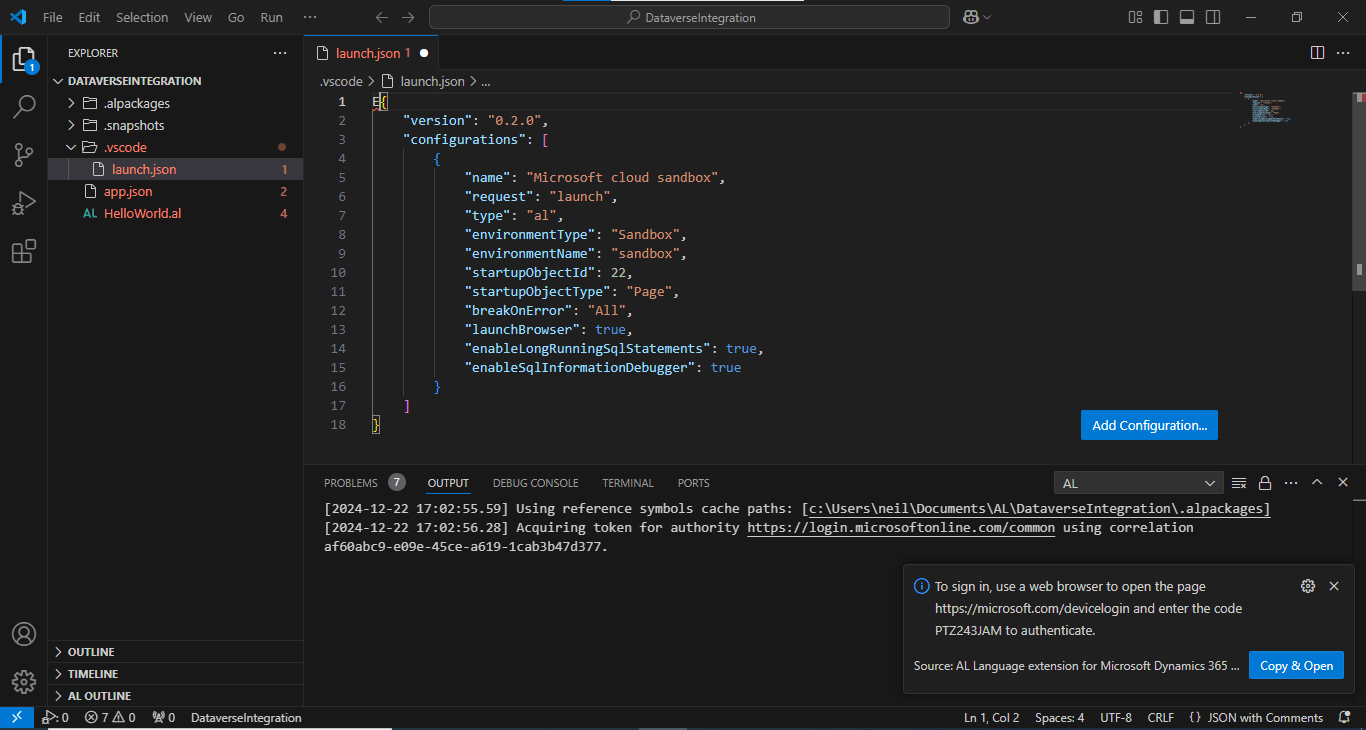

I clicked the Copy & Open buttonTap the image to open it full size

I clicked the Copy & Open button

I pasted the codeTap the image to open it full size

I pasted the code

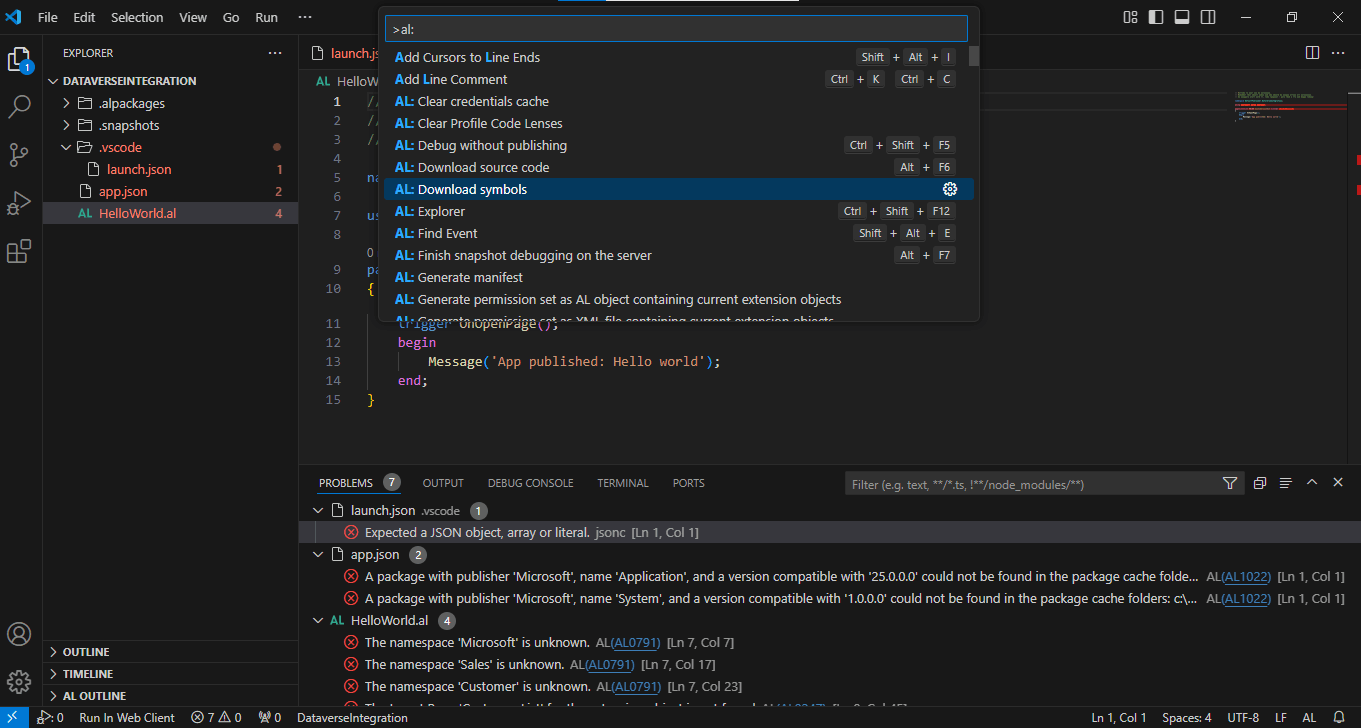

I selected Al: Download symbolsTap the image to open it full size

I selected Al: Download symbols

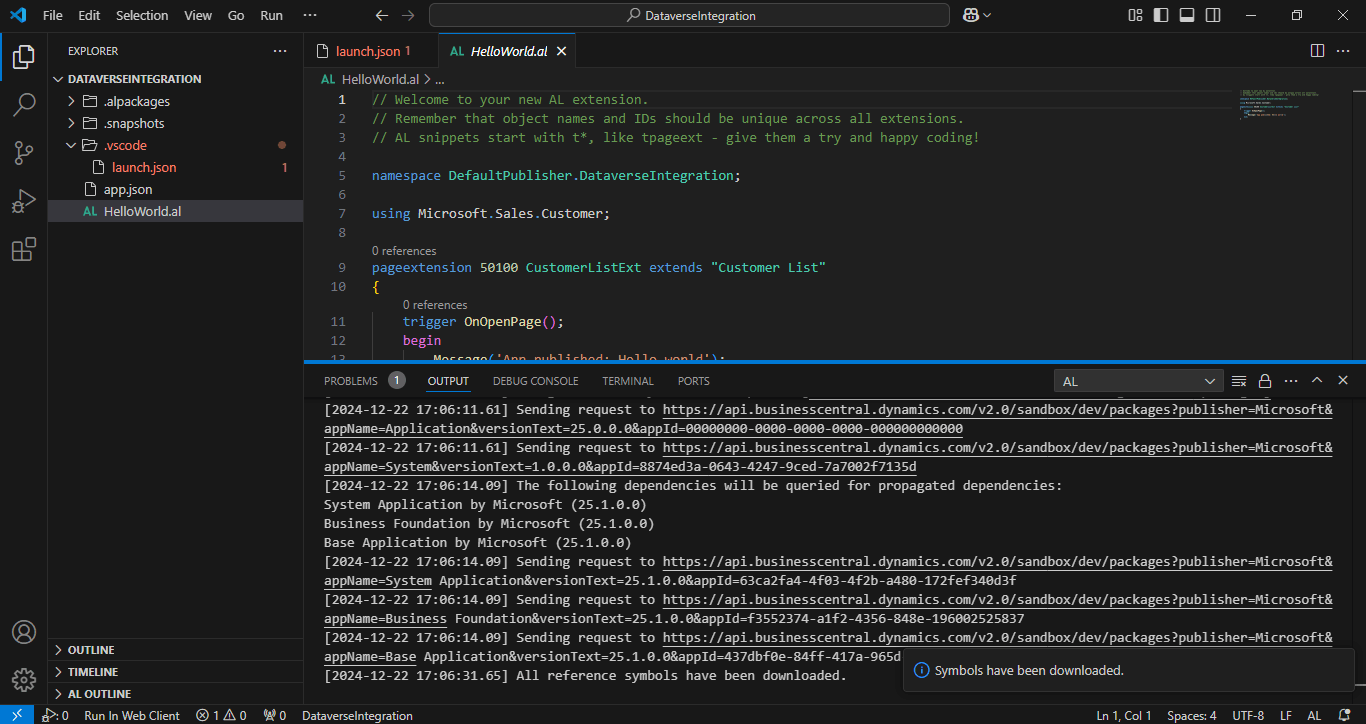

Symbols were downloadedTap the image to open it full size

Symbols were downloaded

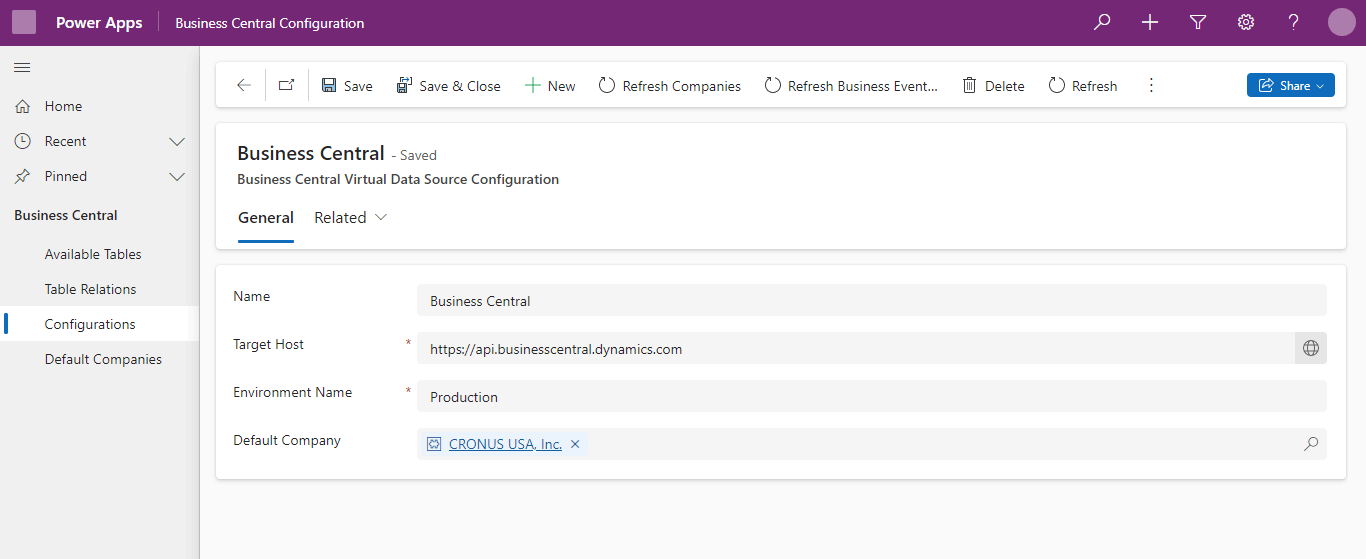

Initially the Develop Power Platform Environment was configured to access the Production Business Central EnvironmentTap the image to open it full size

Initially the Develop Power Platform Environment was configured to access the Production Business Central Environment

The Business Central AL project was configured to deploy to the Sandbox environmentTap the image to open it full size

The Business Central AL project was configured to deploy to the Sandbox environment

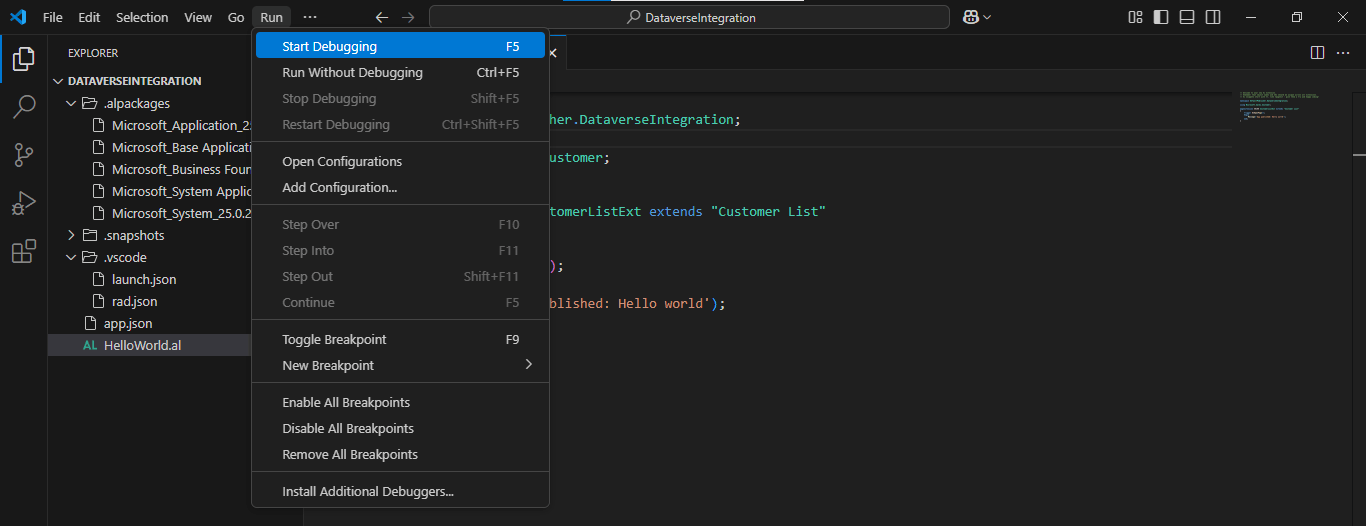

I clicked the Start Debugging menu optionTap the image to open it full size

I clicked the Start Debugging menu option

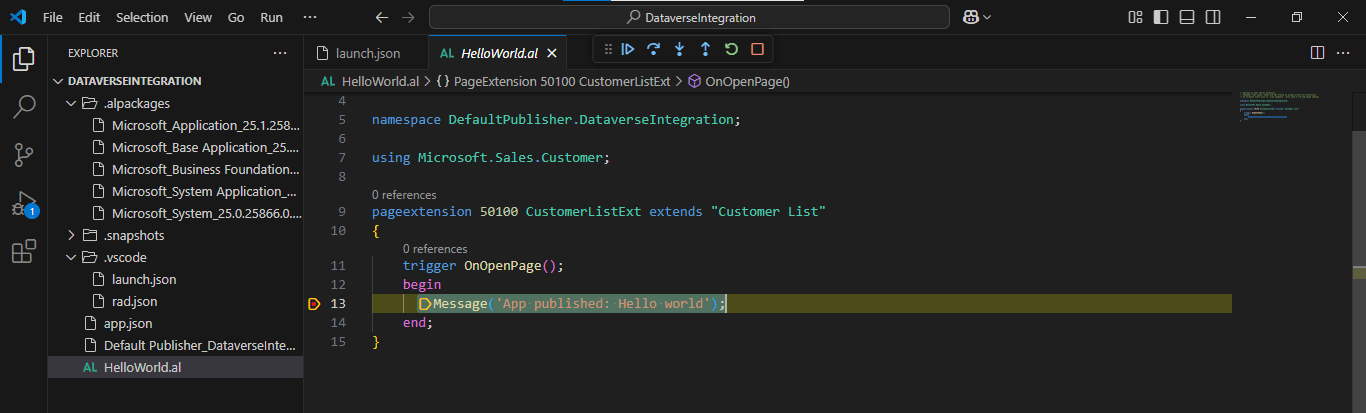

The AL code paused when the line 13 breakpoint was hitTap the image to open it full size

The AL code paused when the line 13 breakpoint was hit

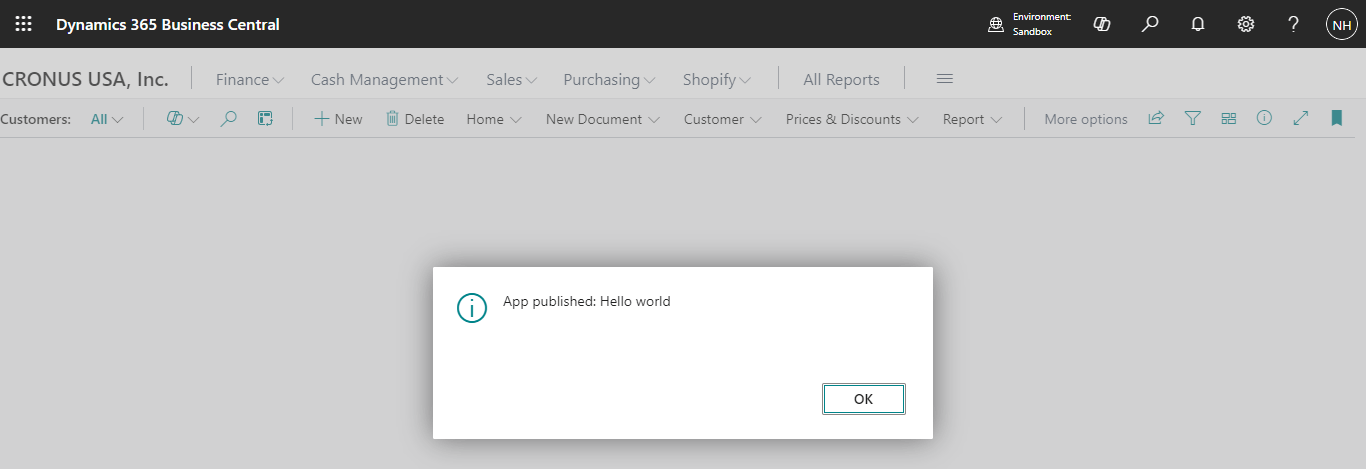

I clicked continue and the message was displayedTap the image to open it full size

I clicked continue and the message was displayed

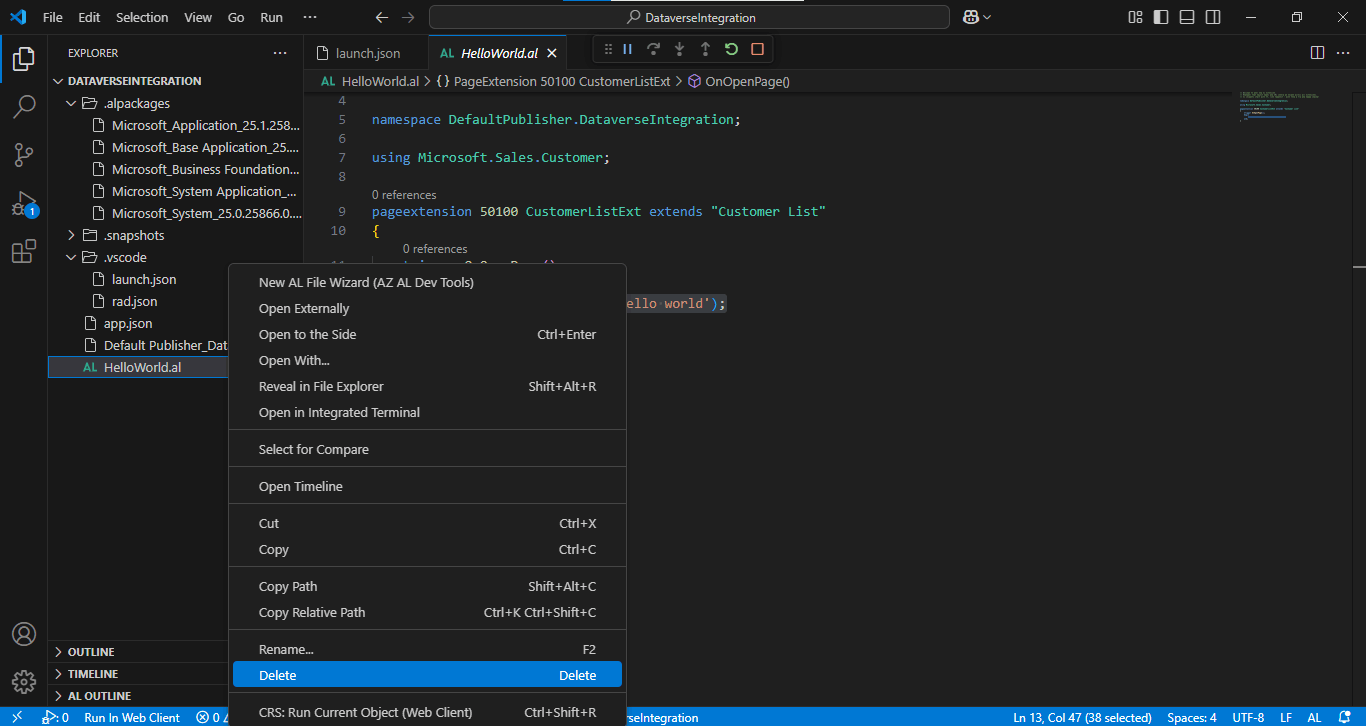

I deleted the HelloWorld.al fileTap the image to open it full size

I deleted the HelloWorld.al file

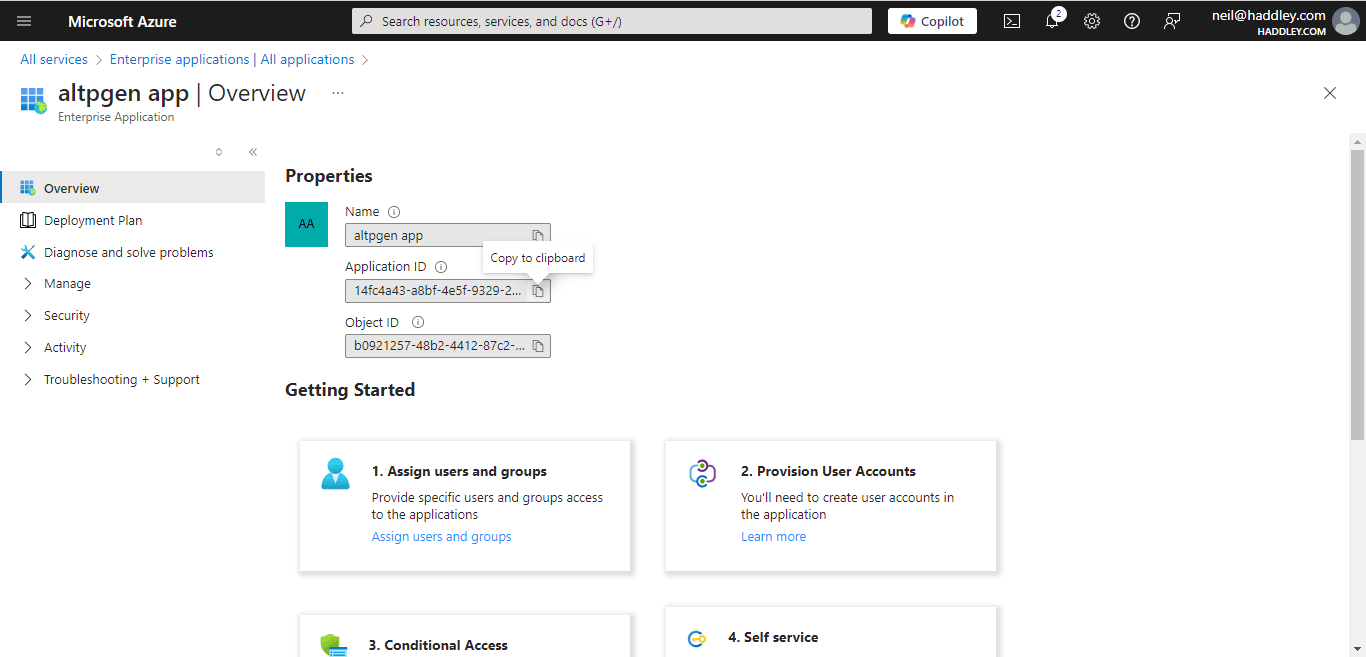

I navigated to the Azure portal to copy the Application (Client) IdTap the image to open it full size

I navigated to the Azure portal to copy the Application (Client) Id

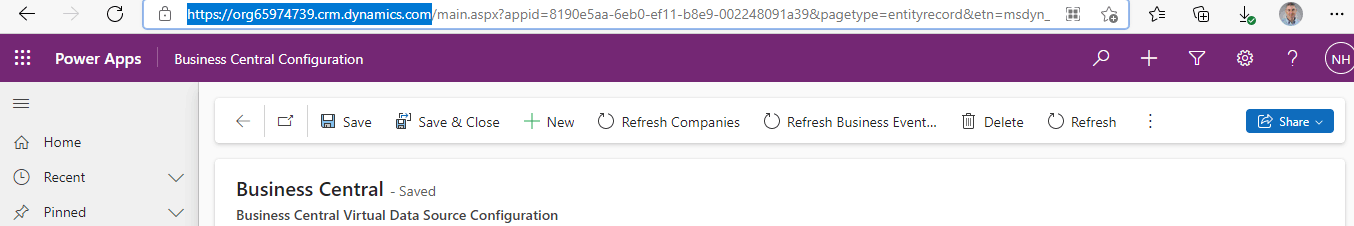

I navigated to an app running the Power Platform to copy the https://XXX.crm.dynamics.com urlTap the image to open it full size

I navigated to an app running the Power Platform to copy the https://XXX.crm.dynamics.com url

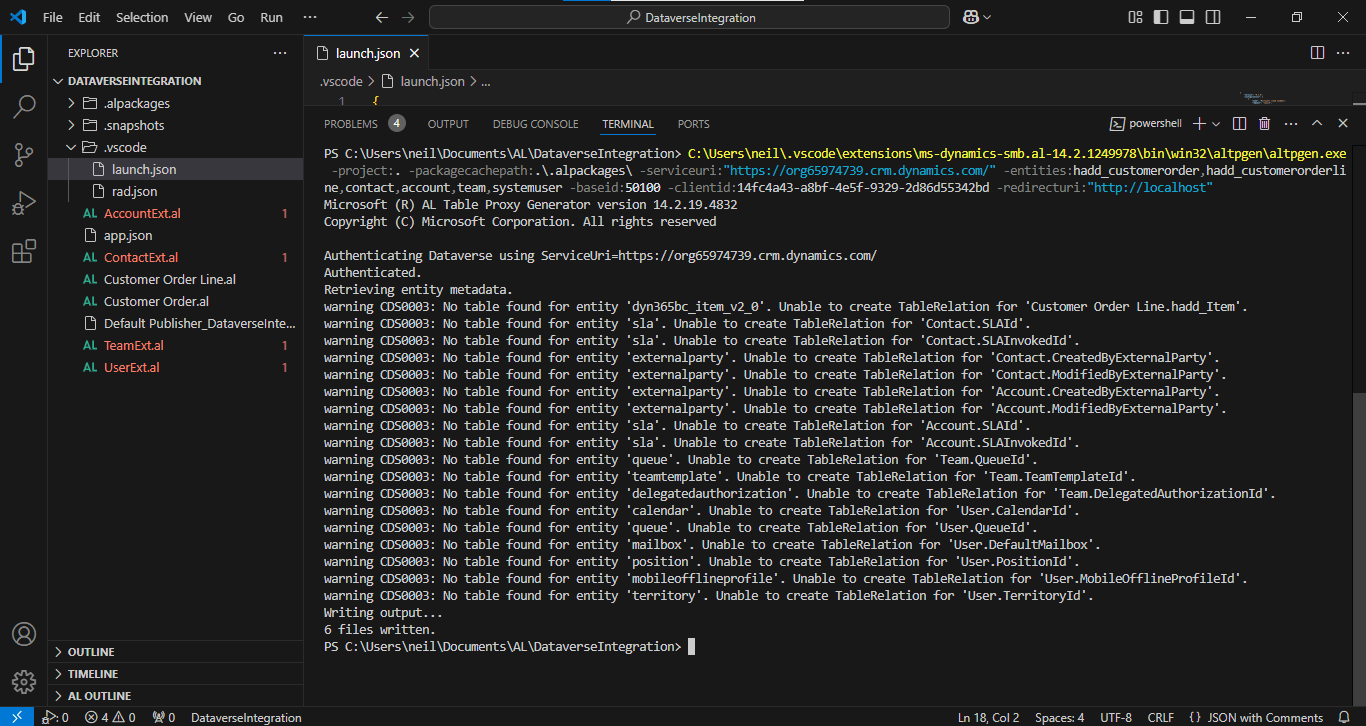

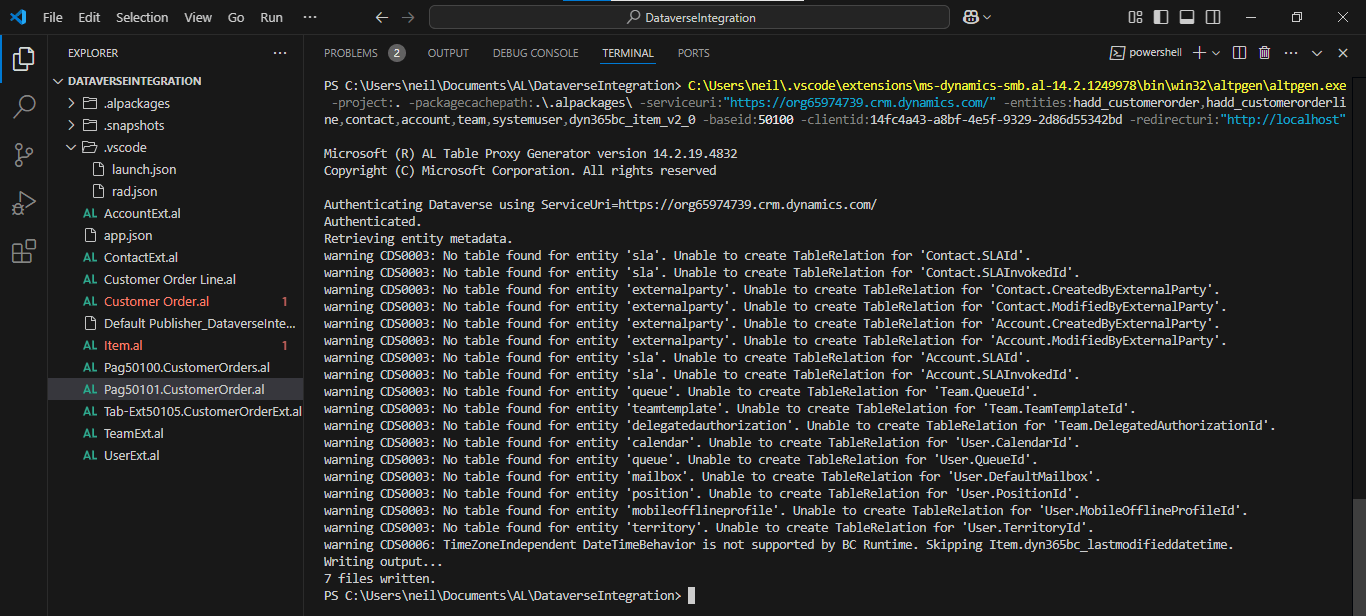

I ran the The AL Table Proxy Generator tool (altpgen.exe) to generate 6 files. AccountExt.al, ContactExt.al, Customer Order Line.al, Customer Order.al, TeamExt.al and UserExt.alI updated the object number in the generated AccountExt.al, Customer Order.al, TeamExt.al and UserExt.al filesTap the image to open it full size

I ran the The AL Table Proxy Generator tool (altpgen.exe) to generate 6 files. AccountExt.al, ContactExt.al, Customer Order Line.al, Customer Order.al, TeamExt.al and UserExt.alI updated the object number in the generated AccountExt.al, Customer Order.al, TeamExt.al and UserExt.al files

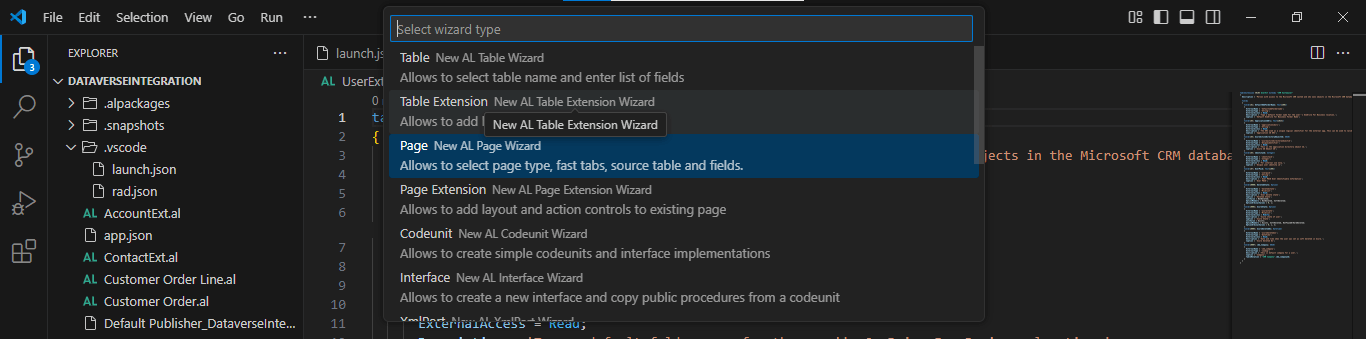

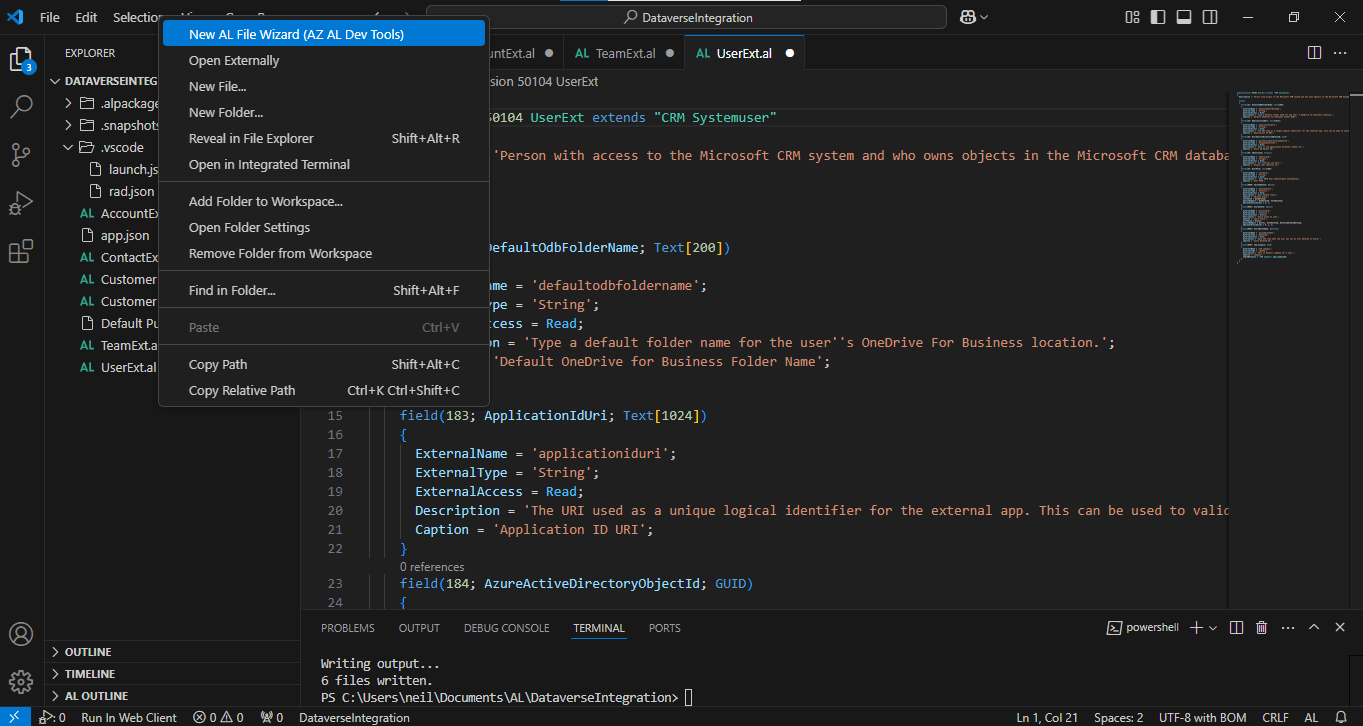

I ran the New AL File WizardTap the image to open it full size

I ran the New AL File Wizard

I selected the Page optionTap the image to open it full size

I selected the Page option

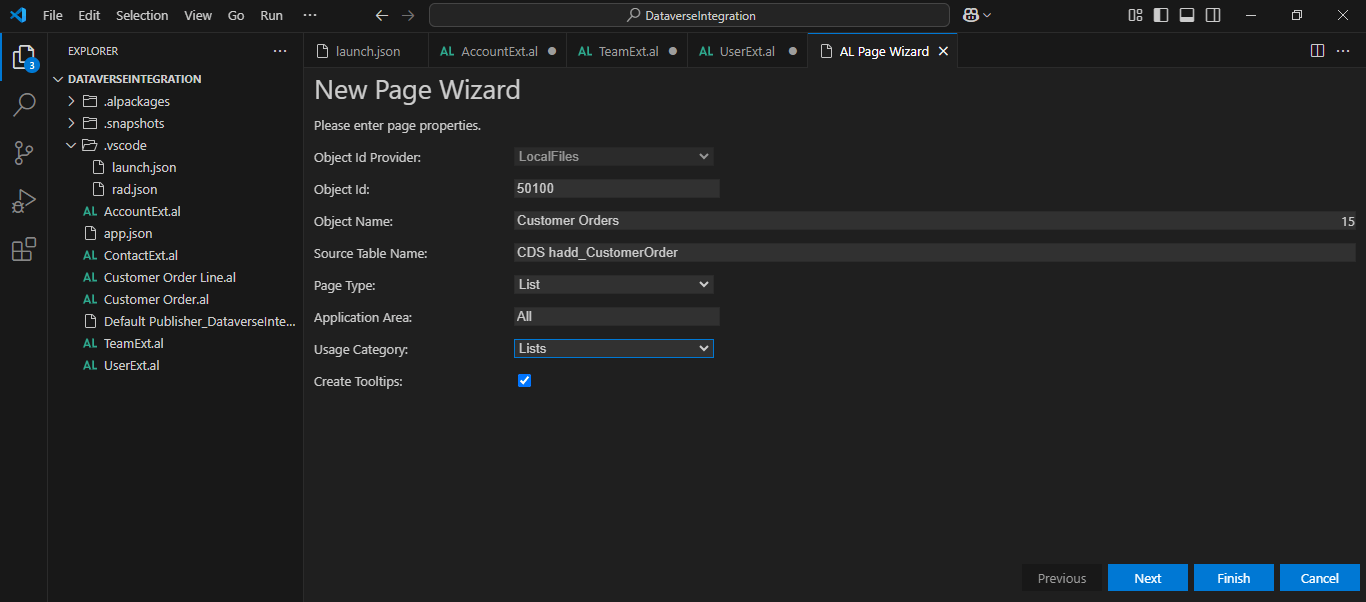

I entered list page details. I clicked the Next buttonTap the image to open it full size

I entered list page details. I clicked the Next button

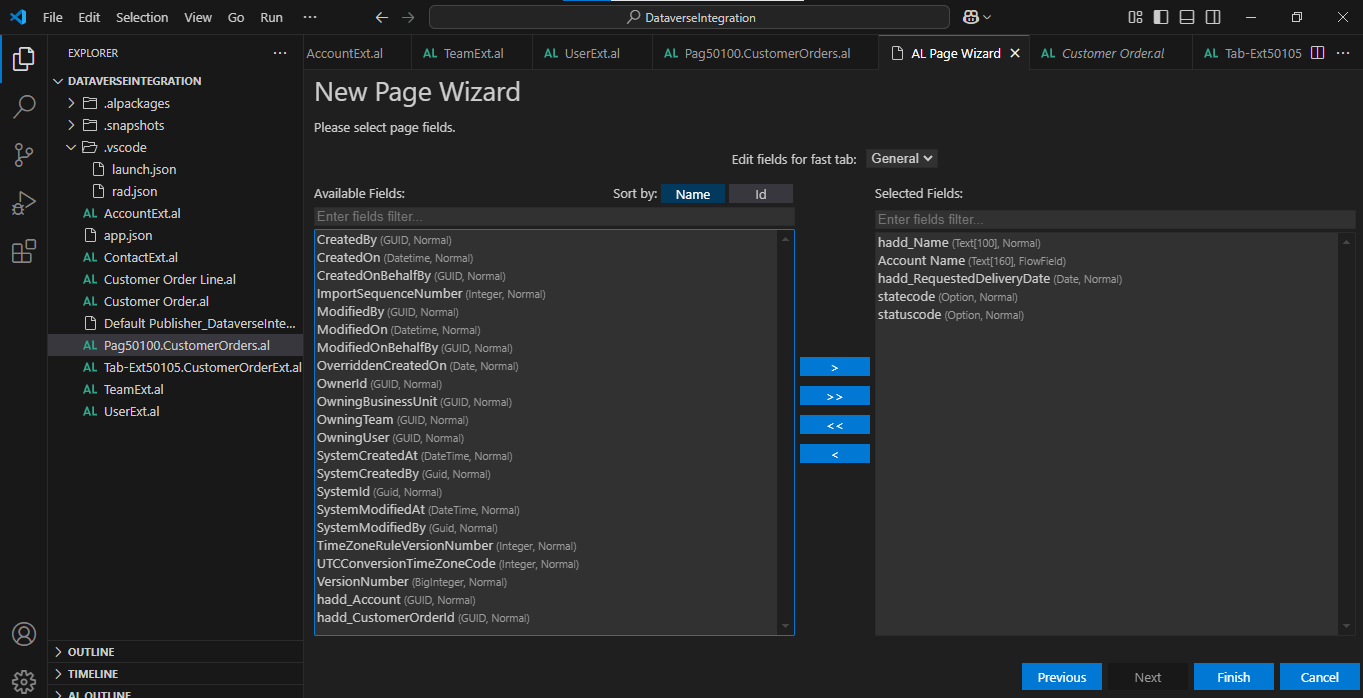

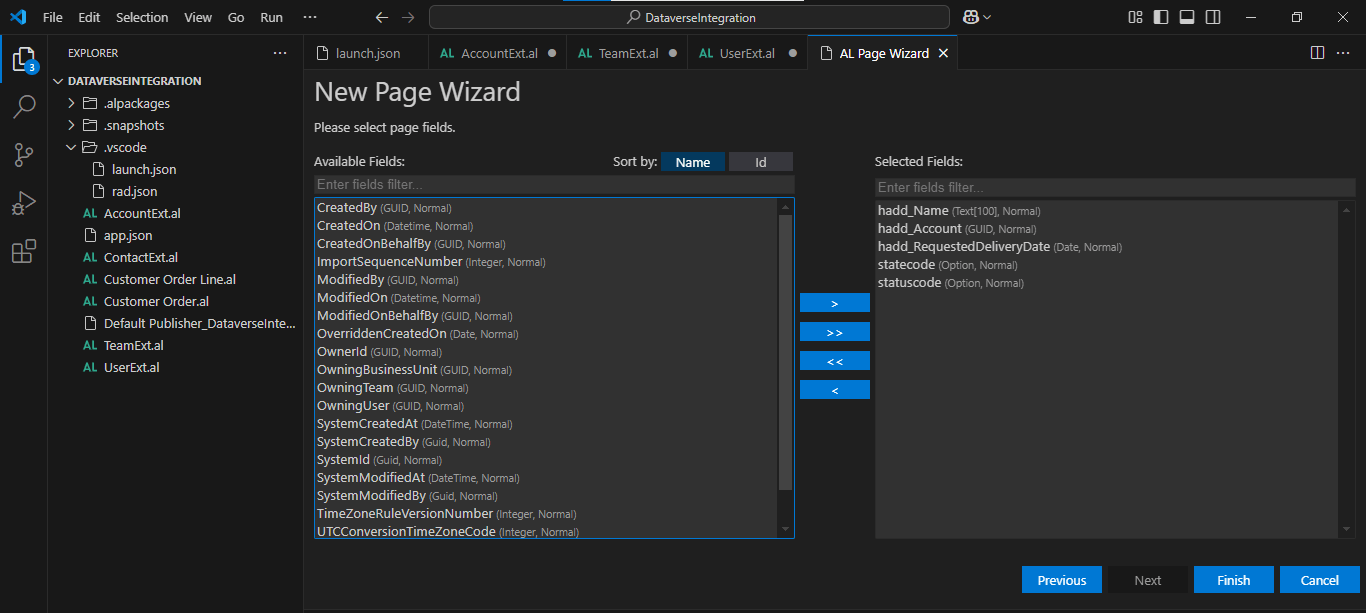

I selected 5 fieldsTap the image to open it full size

I selected 5 fields

I deployed the AL codeTap the image to open it full size

I deployed the AL code

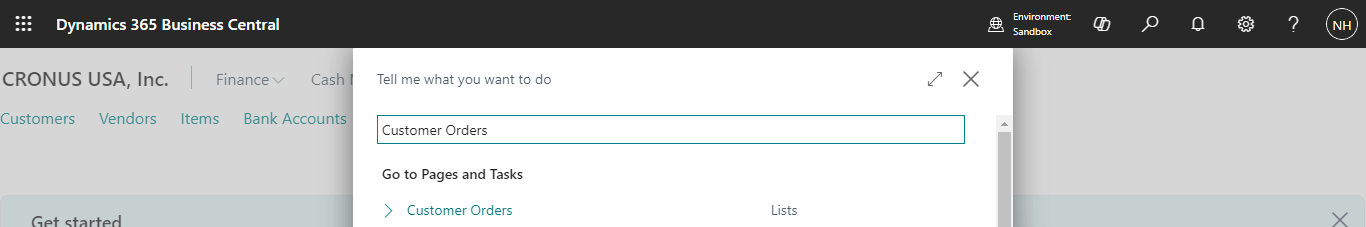

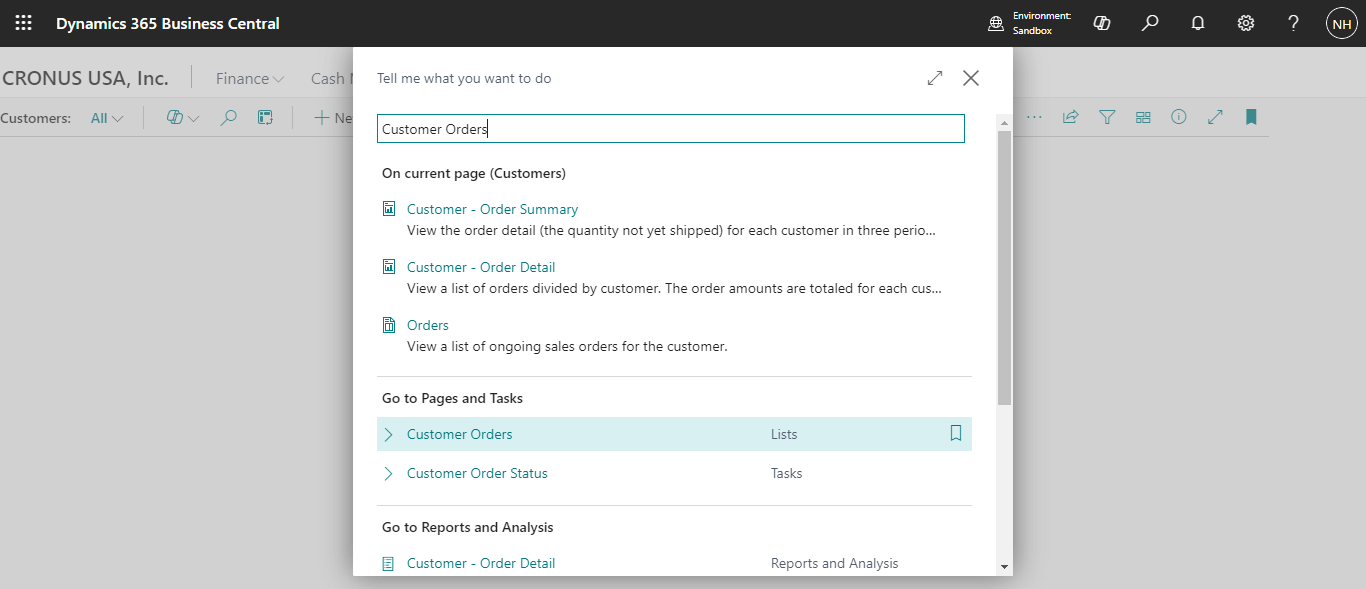

I clicked the magnifying glass menu item and entered Customer OrdersTap the image to open it full size

I clicked the magnifying glass menu item and entered Customer Orders

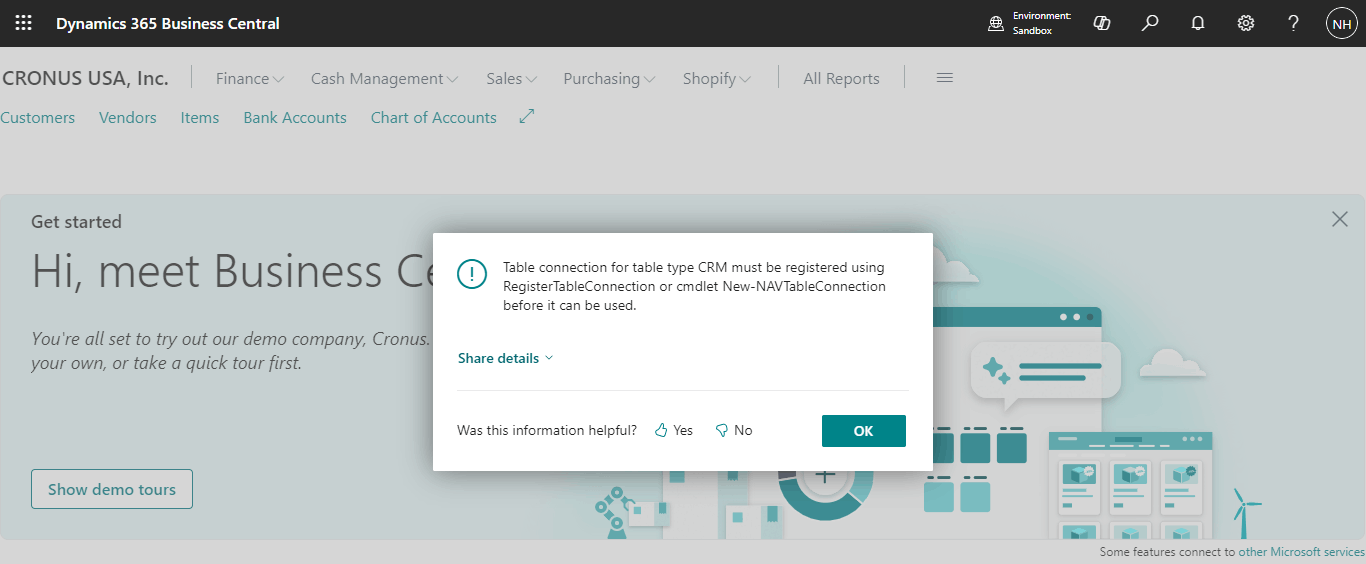

An error was generatedTable connection for table type CRM must be registered using RegisterTableConnection or cmdlet New-NAVTableConnection before it can be used.Tap the image to open it full size

An error was generatedTable connection for table type CRM must be registered using RegisterTableConnection or cmdlet New-NAVTableConnection before it can be used.

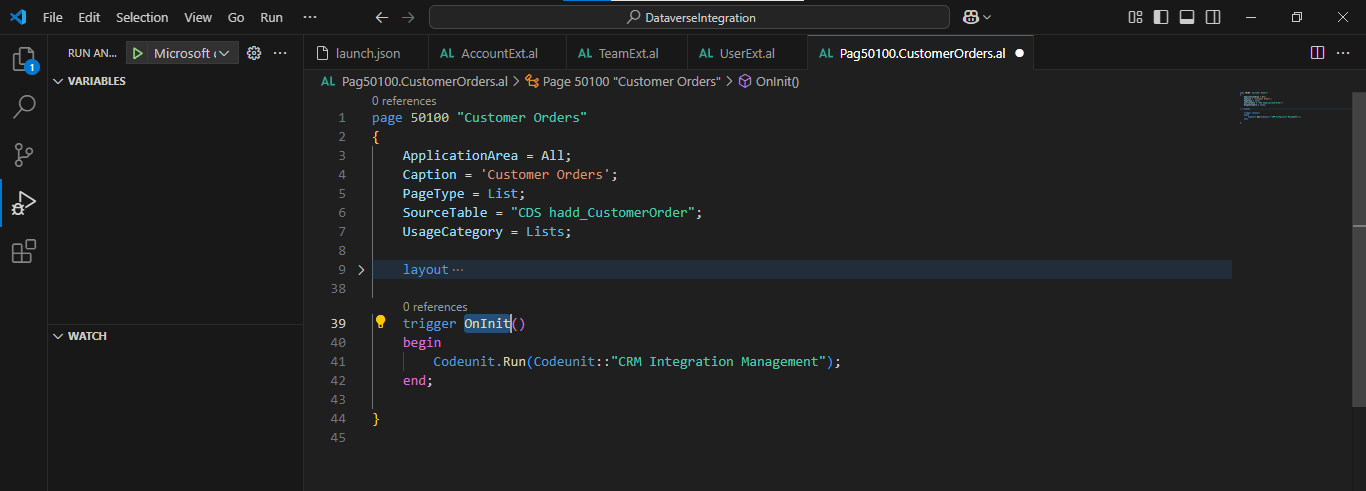

I added an OnInit() triggerTap the image to open it full size

I added an OnInit() trigger

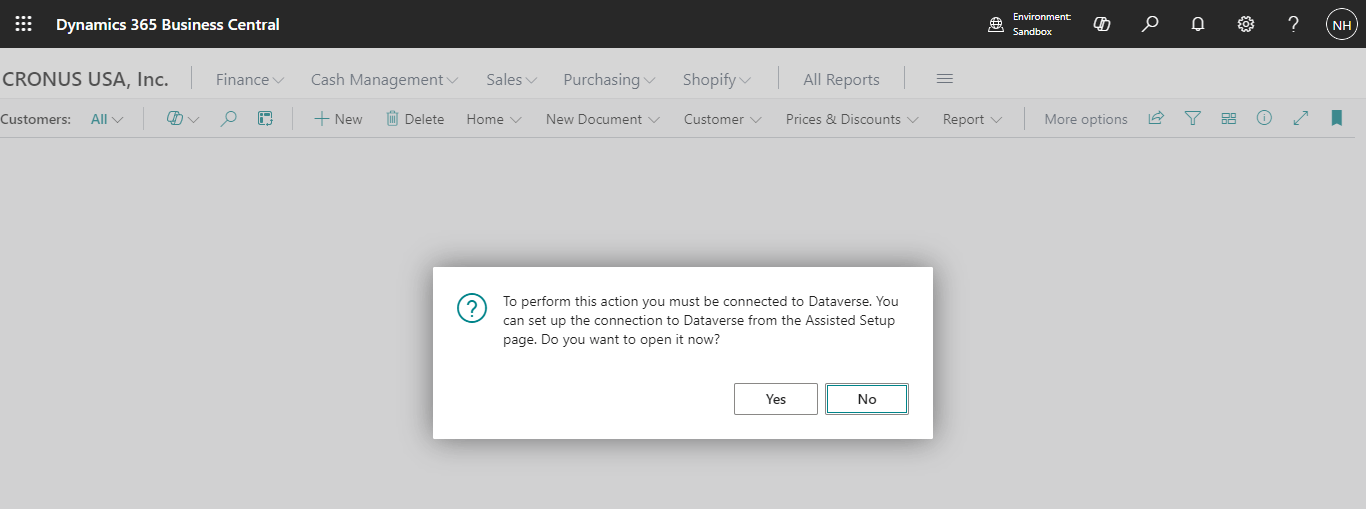

I navigated to the Customer Orders page again and received an errorTap the image to open it full size

I navigated to the Customer Orders page again and received an error

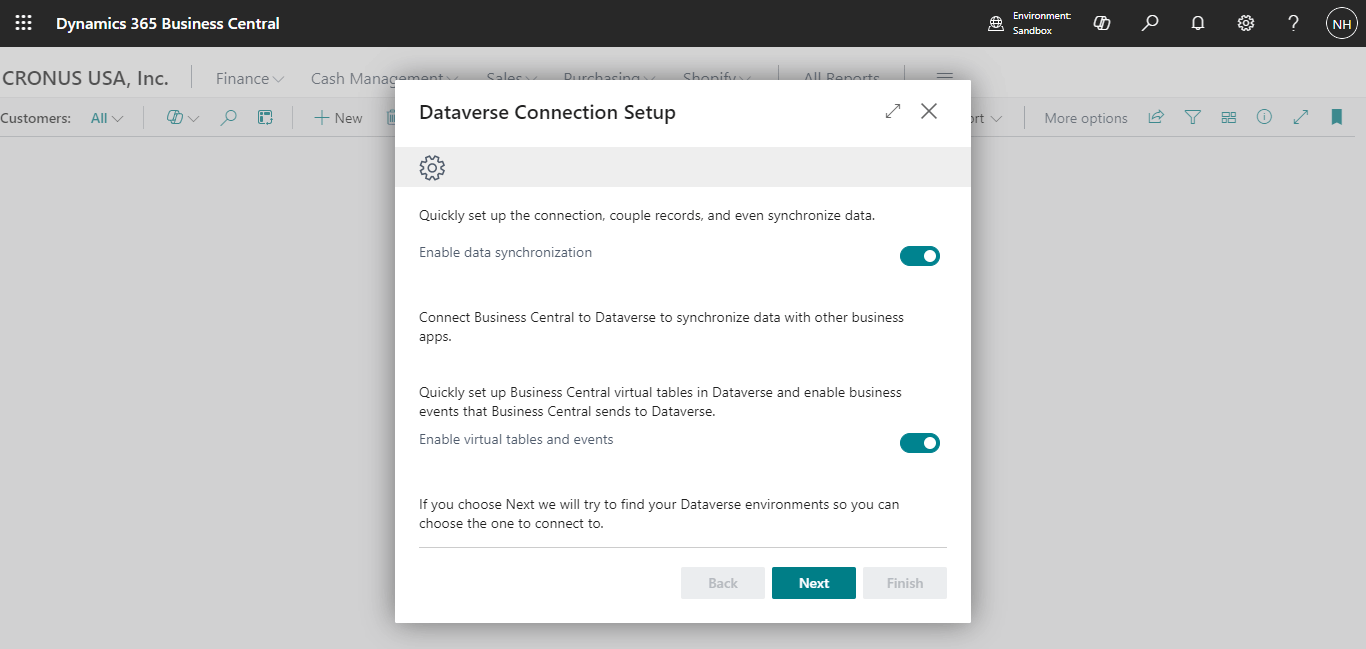

I ran the Dataverse Connection Setup wizardTap the image to open it full size

I ran the Dataverse Connection Setup wizard

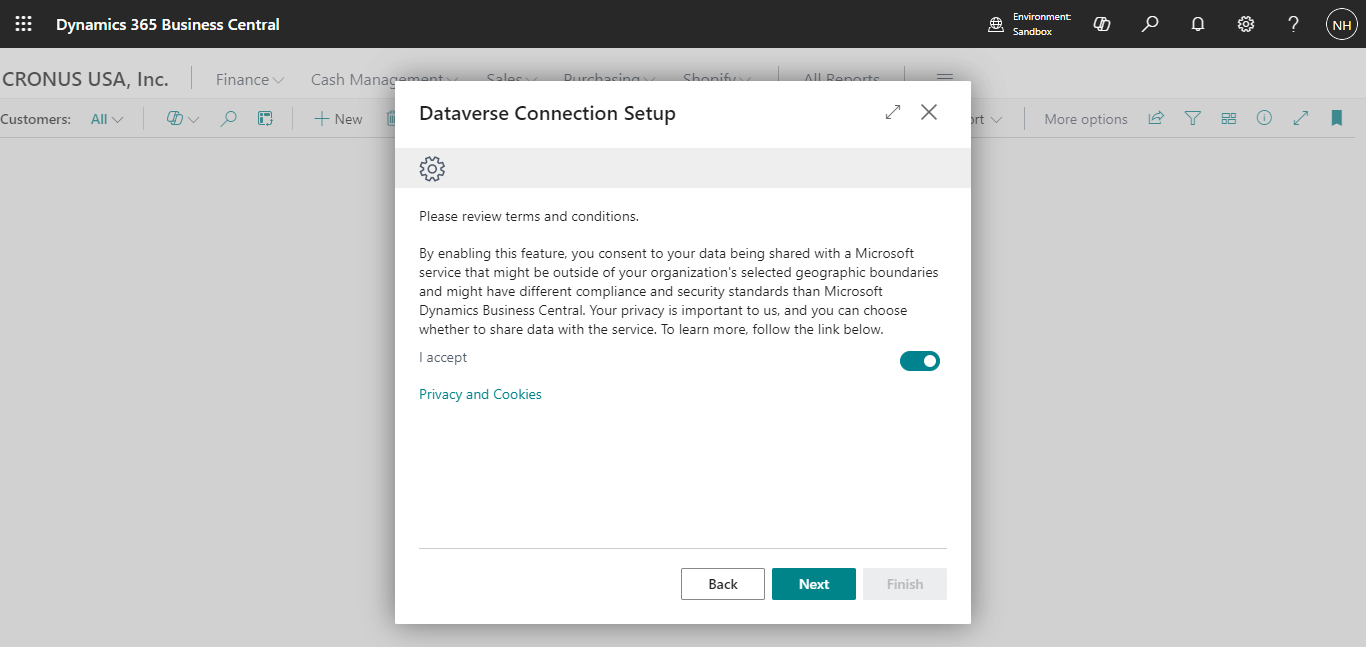

I accepted the conditions and clicked the Next buttonTap the image to open it full size

I accepted the conditions and clicked the Next button

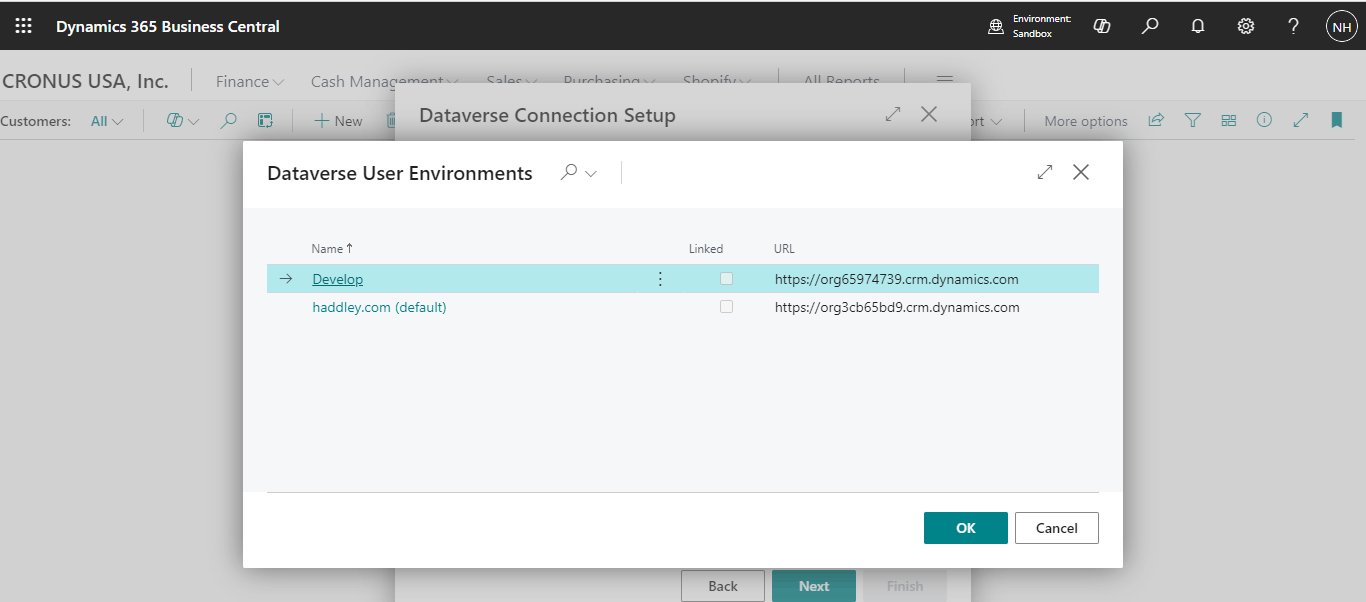

I selected the Develop Power Platform EnvironmentTap the image to open it full size

I selected the Develop Power Platform Environment

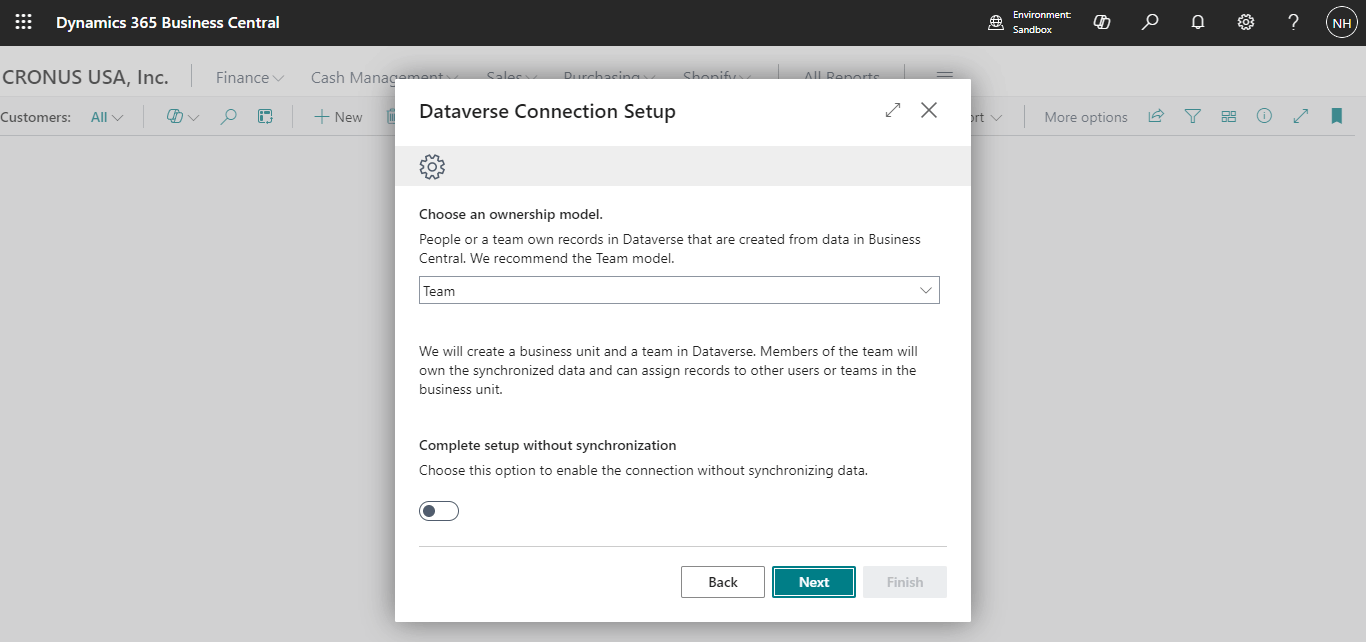

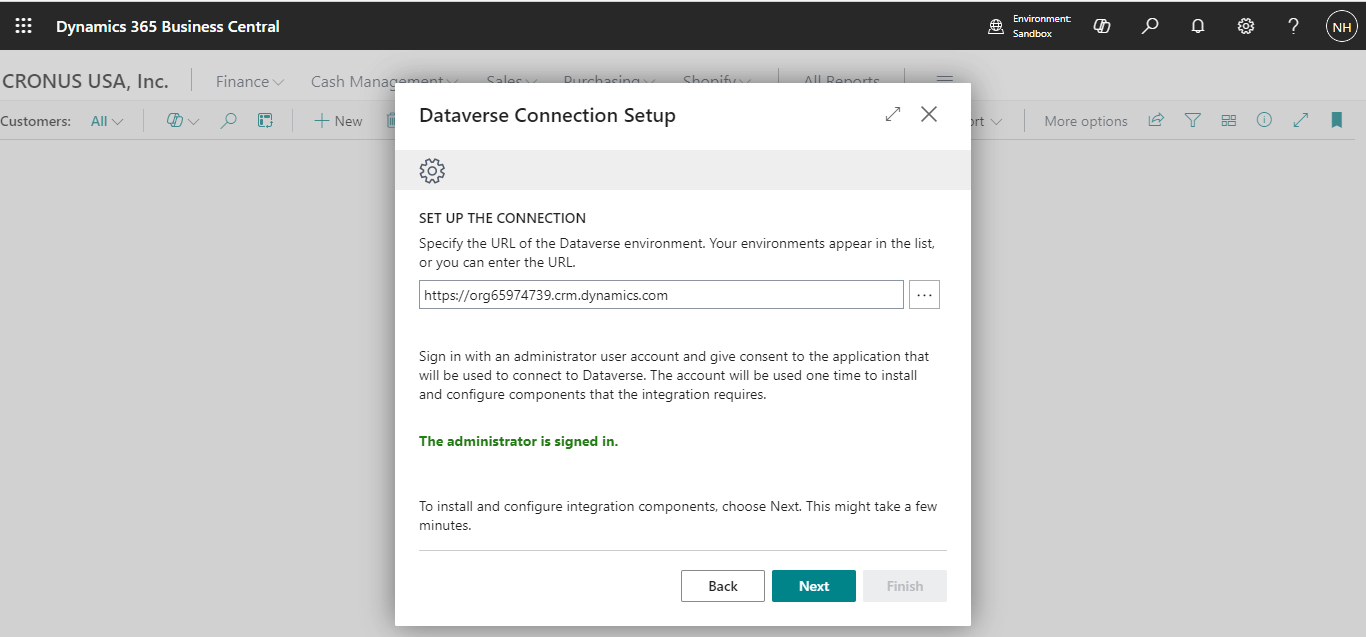

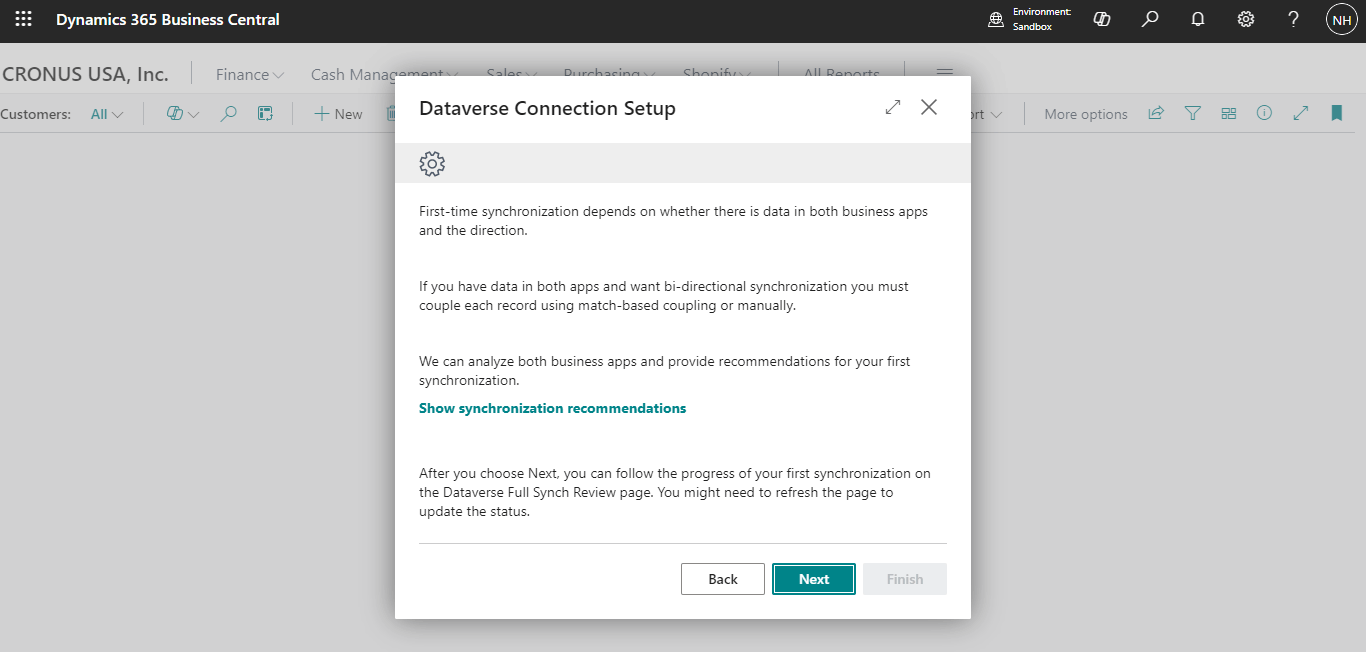

I clicked the Next buttonTap the image to open it full size

I clicked the Next button

I clicked the Next buttonTap the image to open it full size

I clicked the Next button

I clicked the Next buttonTap the image to open it full size

I clicked the Next button

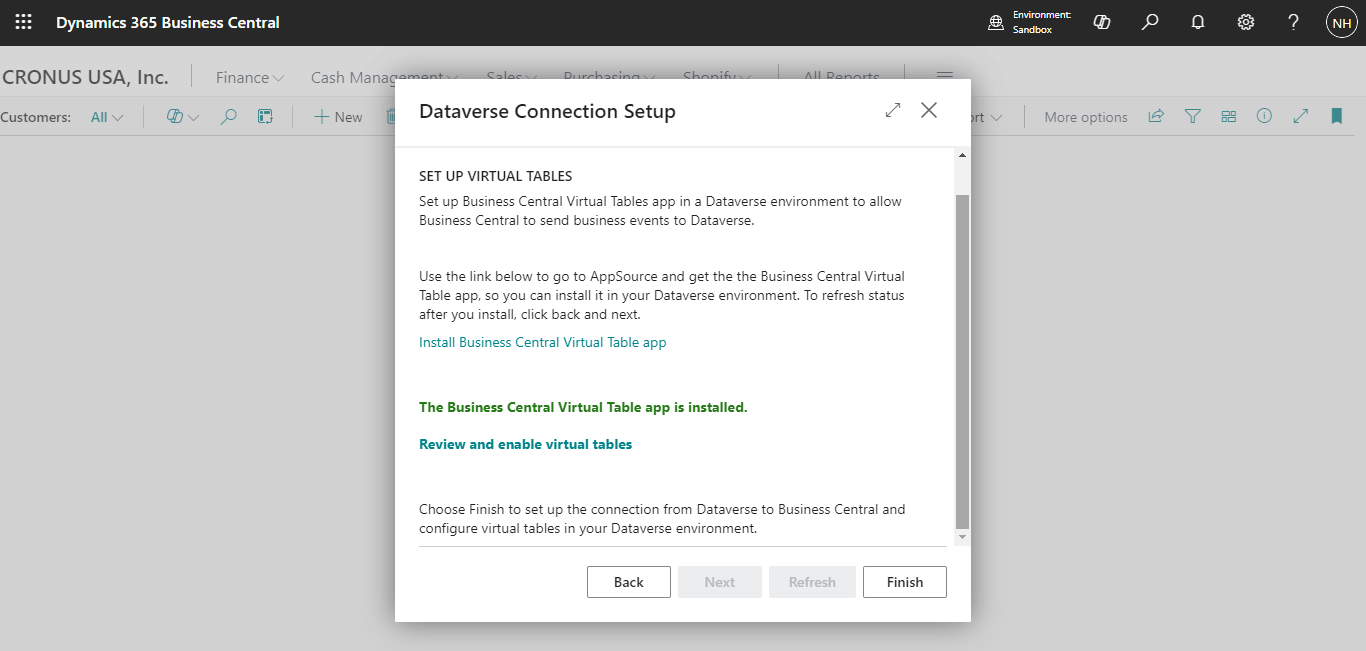

I clicked the Finish buttonTap the image to open it full size

I clicked the Finish button

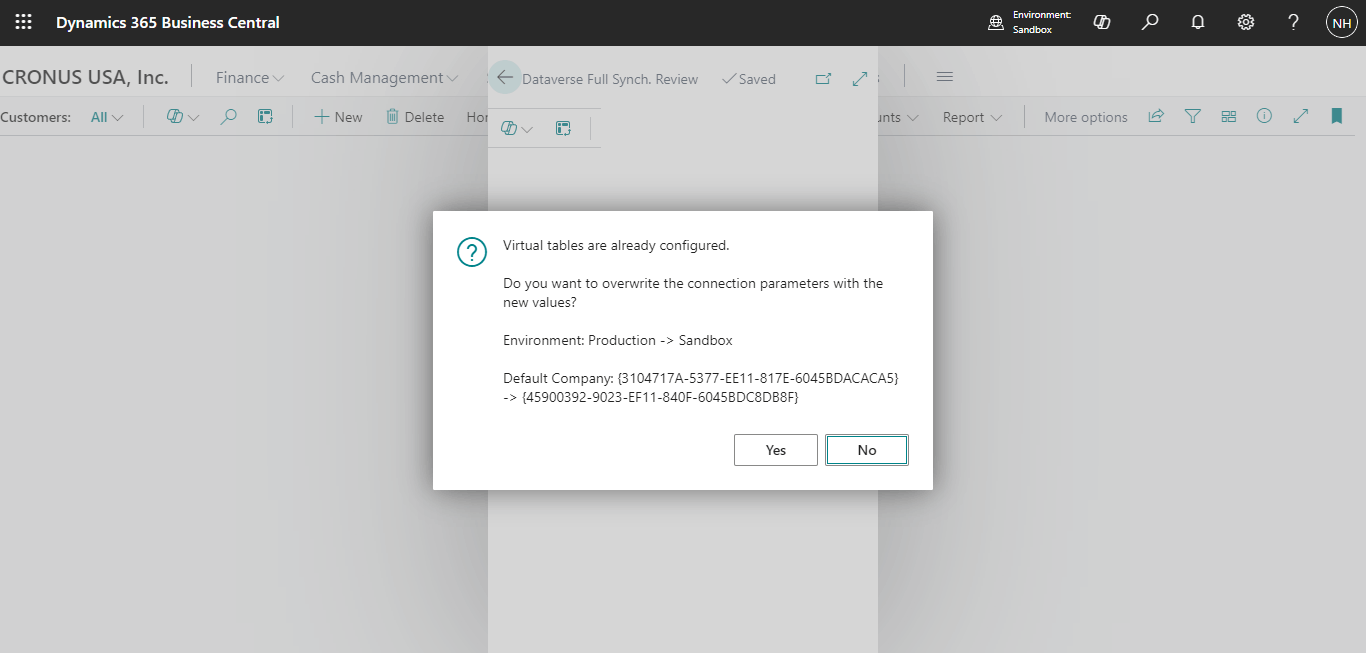

I clicked the Yes buttonTap the image to open it full size

I clicked the Yes button

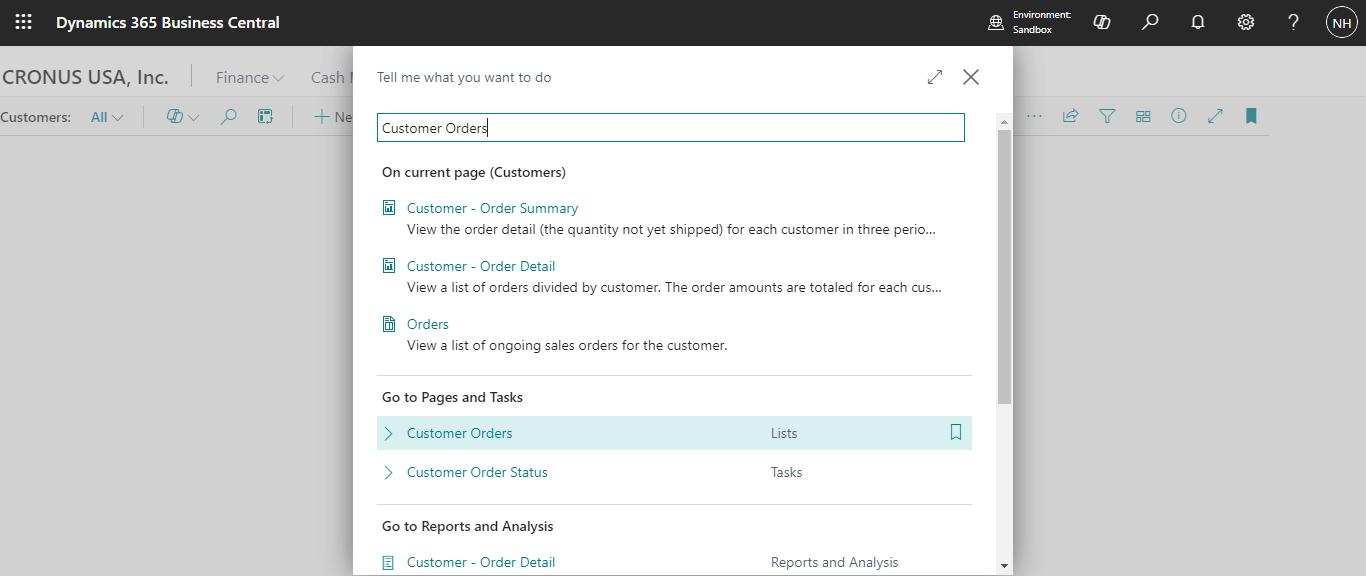

I clicked the magnifying glass menu item and entered Customer OrdersTap the image to open it full size

I clicked the magnifying glass menu item and entered Customer Orders

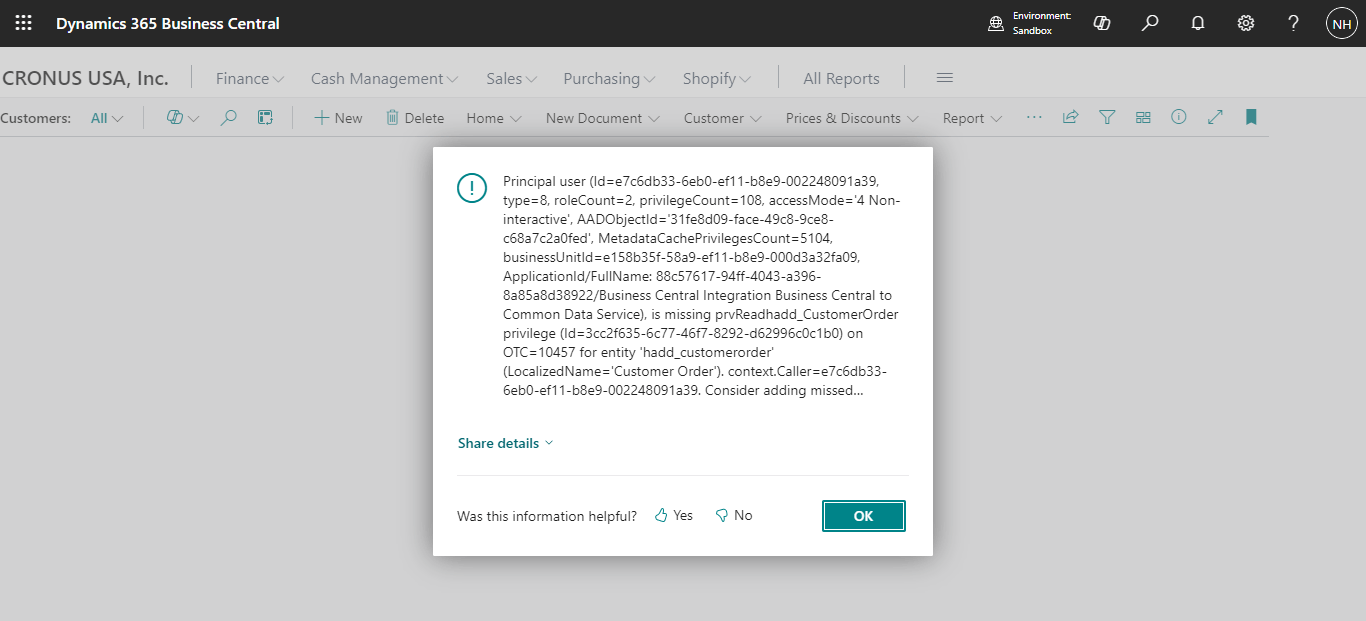

I received an error message. Business Central was unable to access the Dataverse Customer Orders tableTap the image to open it full size

I received an error message. Business Central was unable to access the Dataverse Customer Orders table

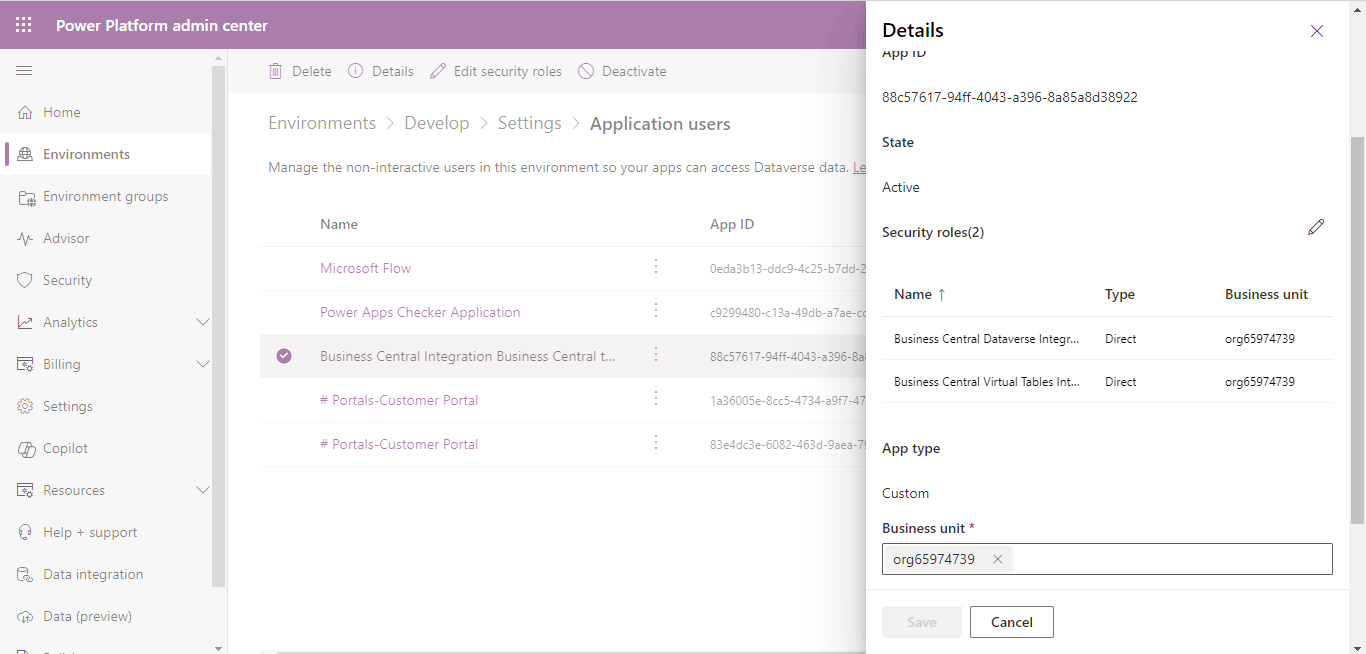

I reviewed the roles that the Business Central Integration Business Central t... application user had been assigned toTap the image to open it full size

I reviewed the roles that the Business Central Integration Business Central t... application user had been assigned to

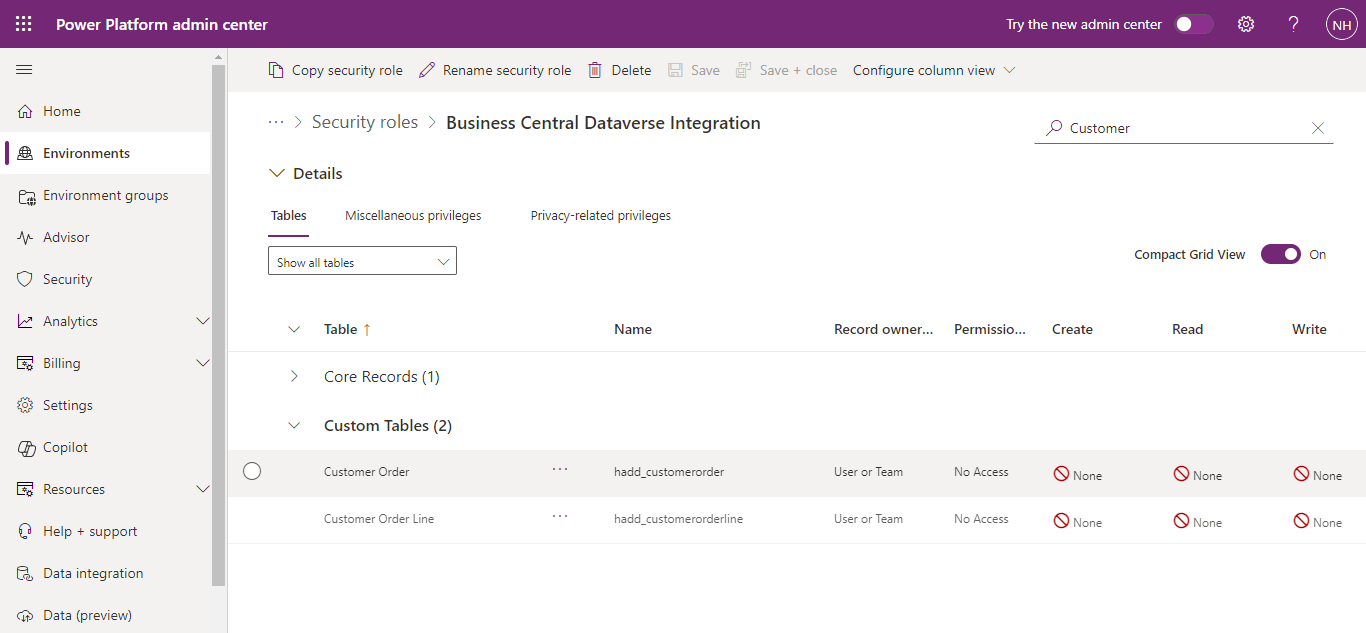

I updated the Business Central Dataverse Integration roleTap the image to open it full size

I updated the Business Central Dataverse Integration role

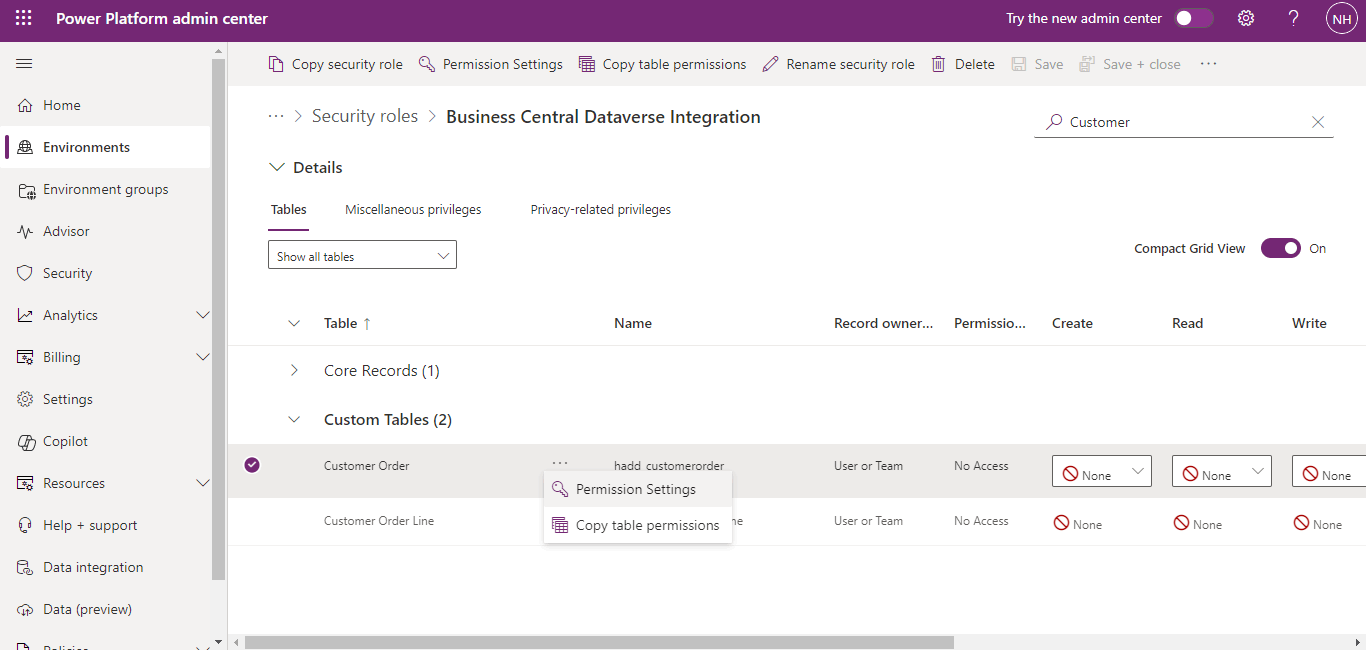

I selected the Customer Order tableTap the image to open it full size

I selected the Customer Order table

I clicked the Permission Settings optionTap the image to open it full size

I clicked the Permission Settings option

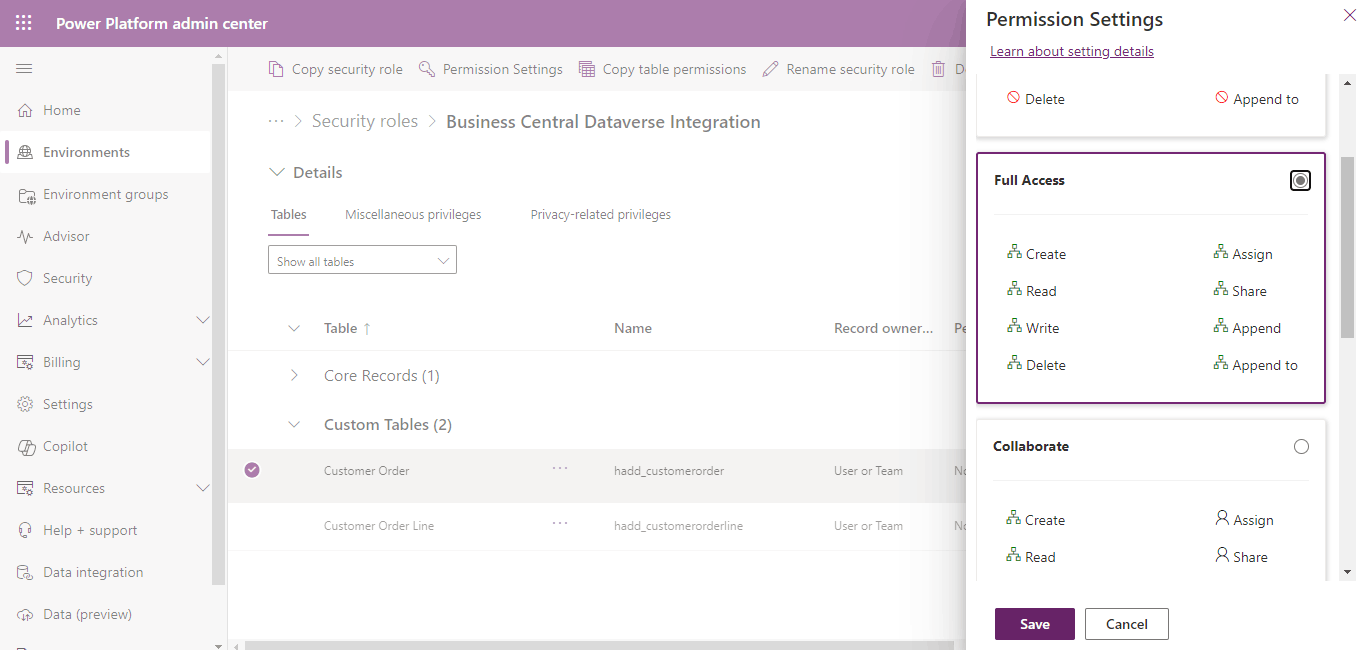

I selected Full Access and clicked the Save buttonTap the image to open it full size

I selected Full Access and clicked the Save button

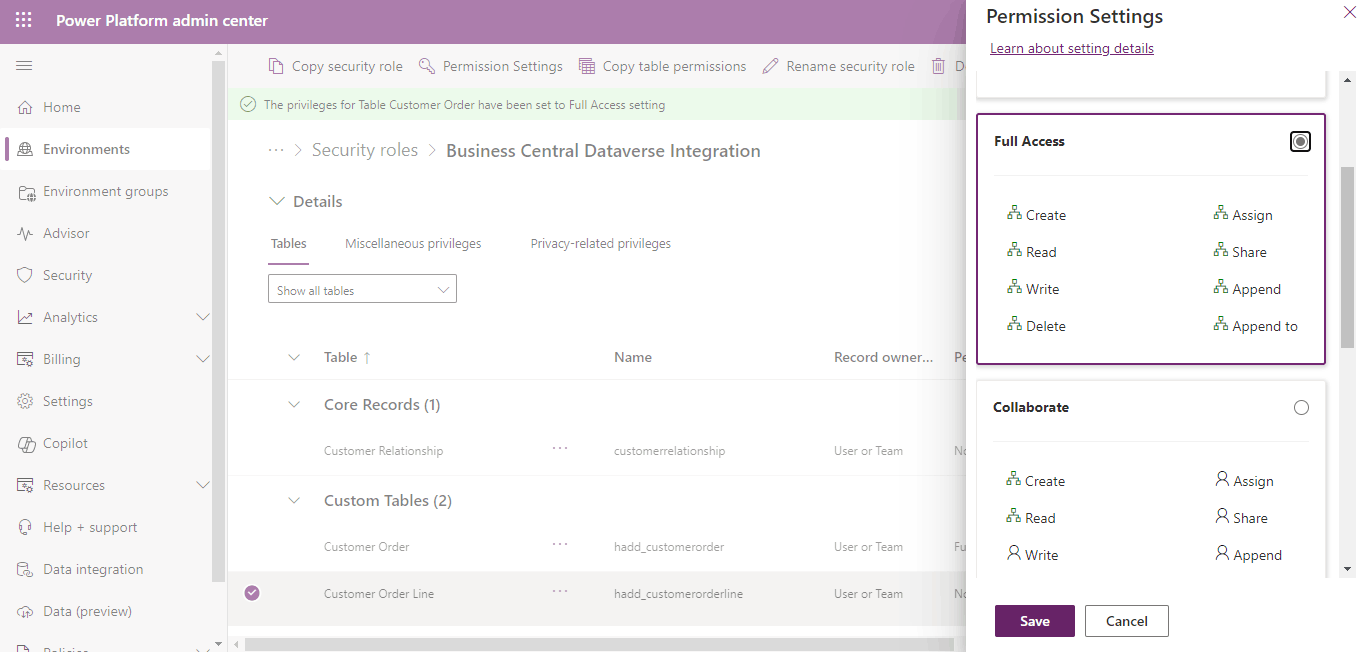

I selected the Customer Order Line table and clicked the Permission Settings optionTap the image to open it full size

I selected the Customer Order Line table and clicked the Permission Settings option

I selected Full Access and clicked the Save buttonTap the image to open it full size

I selected Full Access and clicked the Save button

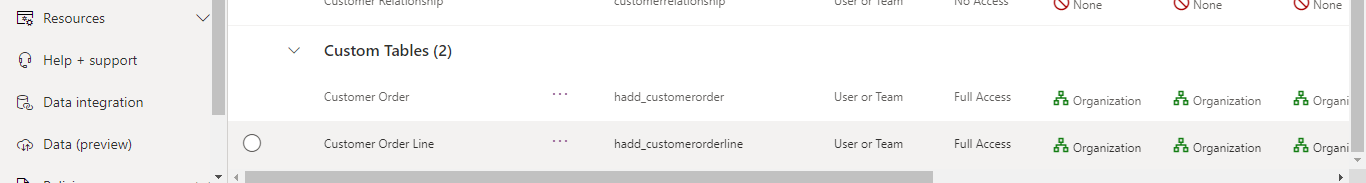

Any member of this role will now be able to access the Customer Order and Customer Order Line tablesTap the image to open it full size

Any member of this role will now be able to access the Customer Order and Customer Order Line tables

I selected the Customer Orders pageTap the image to open it full size

I selected the Customer Orders page

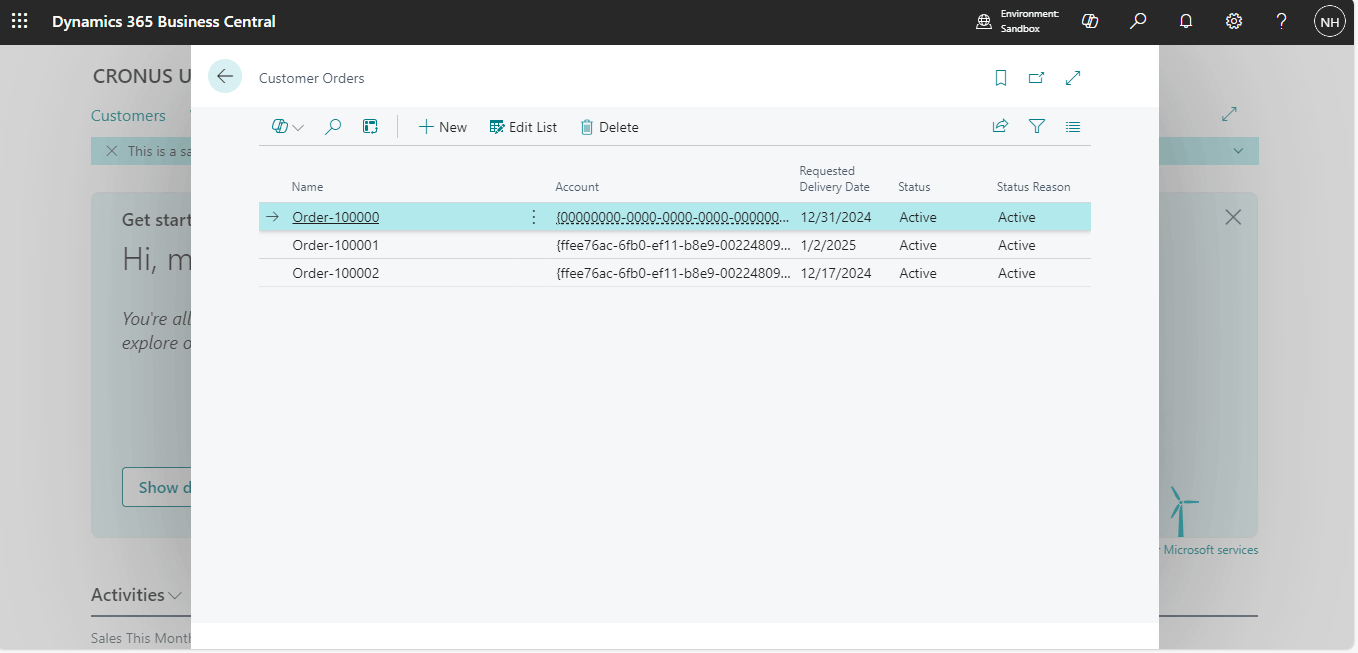

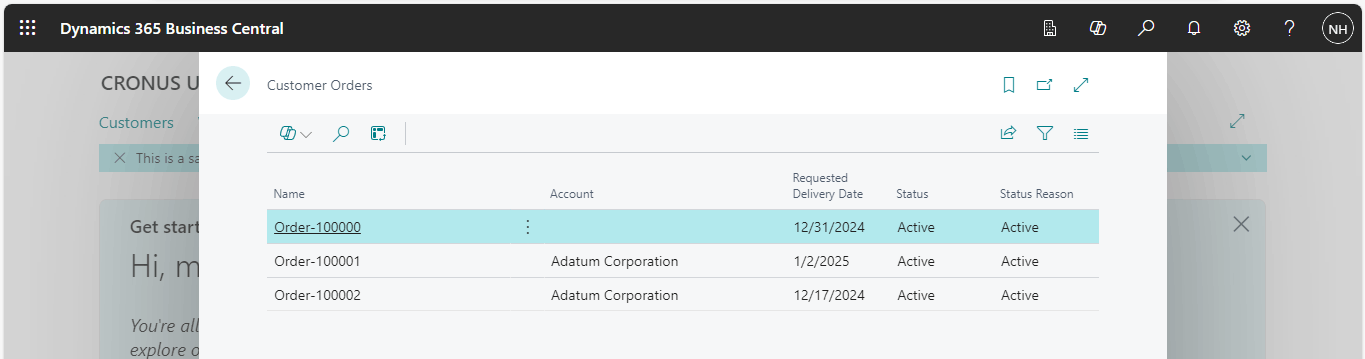

The Dataverse Customer Orders were displayedTap the image to open it full size

The Dataverse Customer Orders were displayed

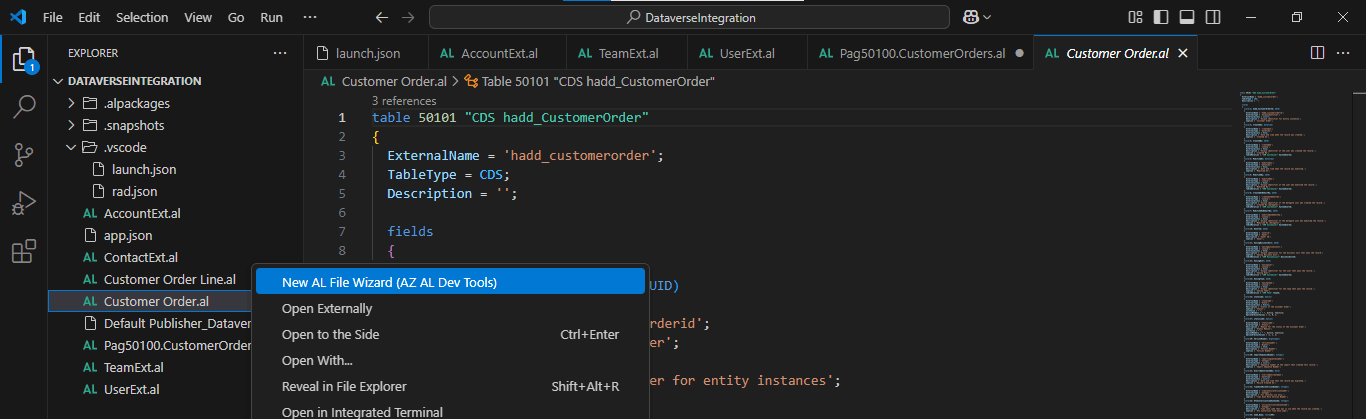

I ran the New AL File Wizard againTap the image to open it full size

I ran the New AL File Wizard again

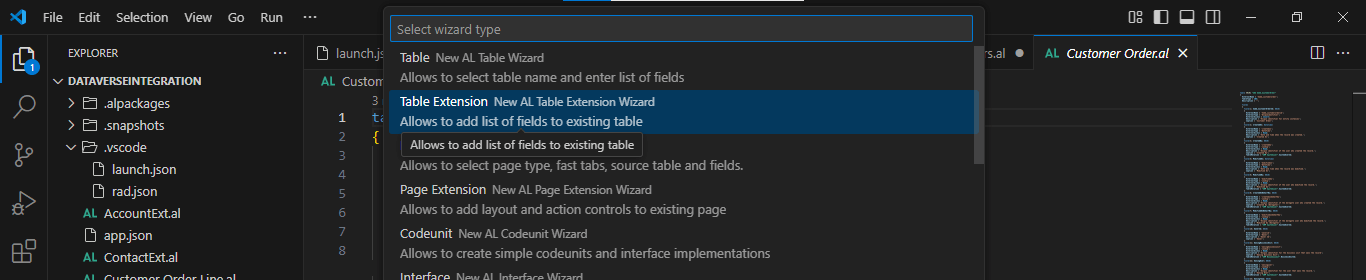

I selected the Table Extension optionTap the image to open it full size

I selected the Table Extension option

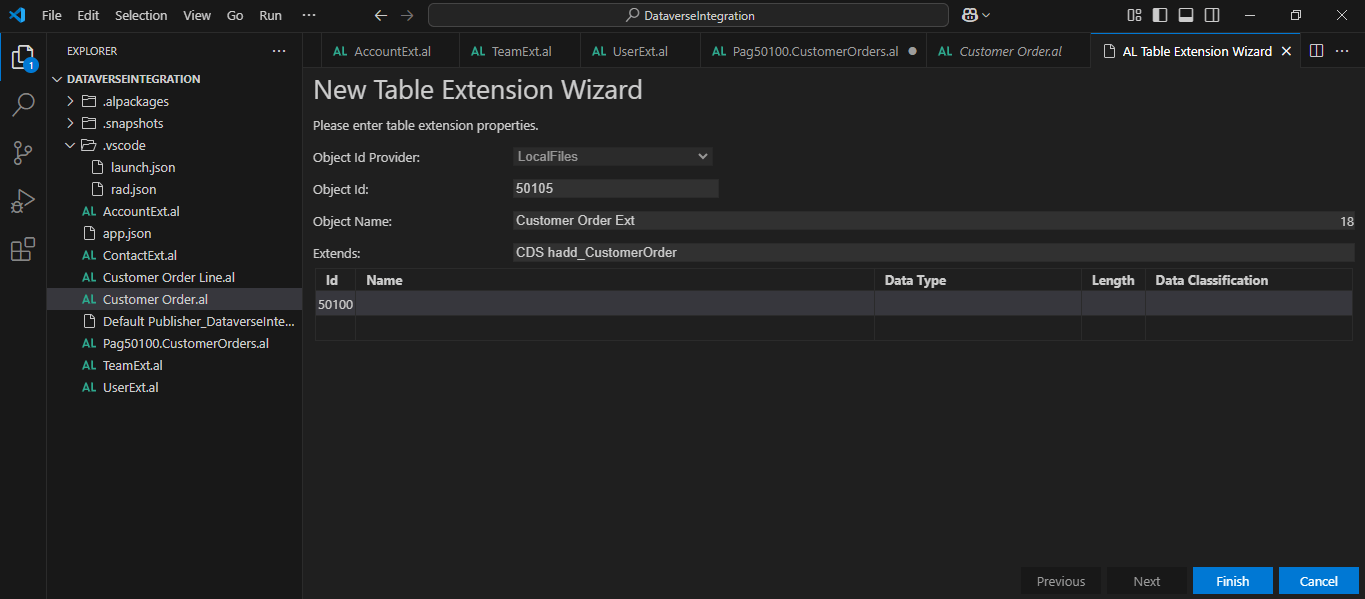

I wanted to create a Customer Order ExtensionTap the image to open it full size

I wanted to create a Customer Order Extension

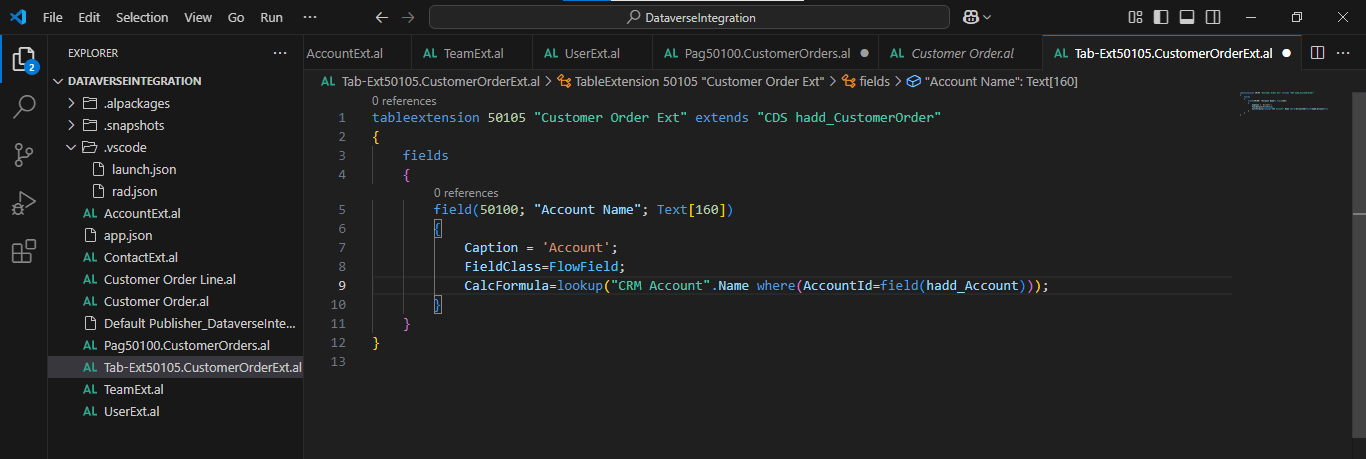

I added a flow field to the generated Customer Order Integration table using the Customer Order Extension fileTap the image to open it full size

I added a flow field to the generated Customer Order Integration table using the Customer Order Extension file

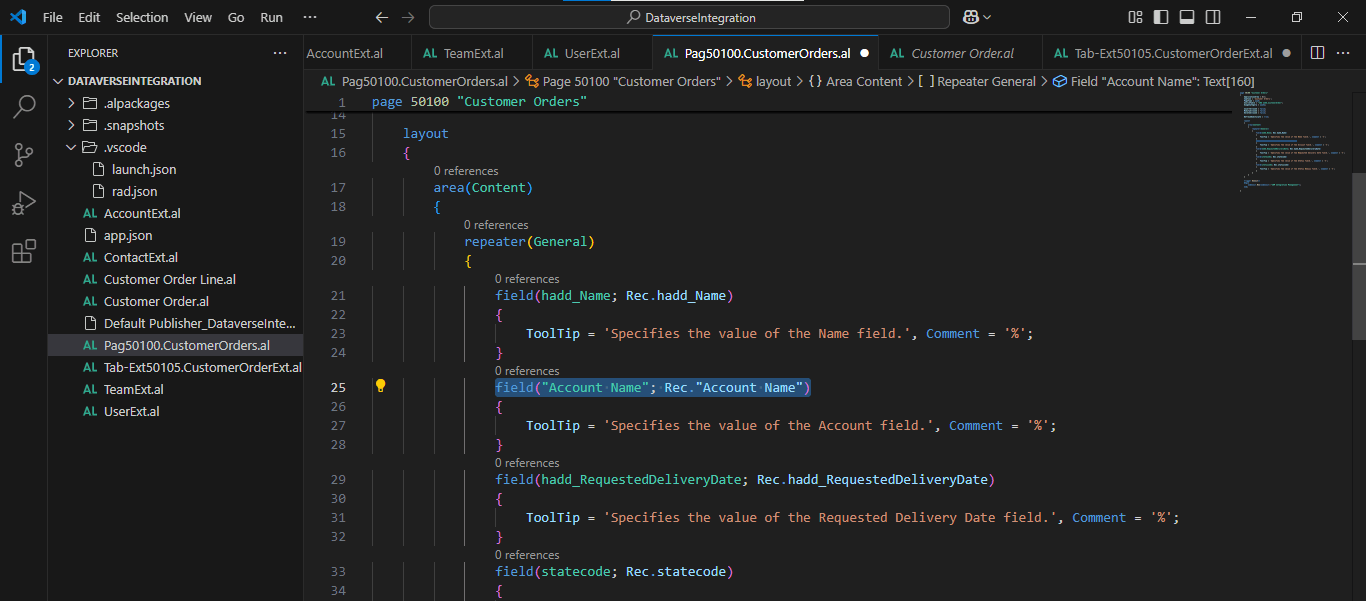

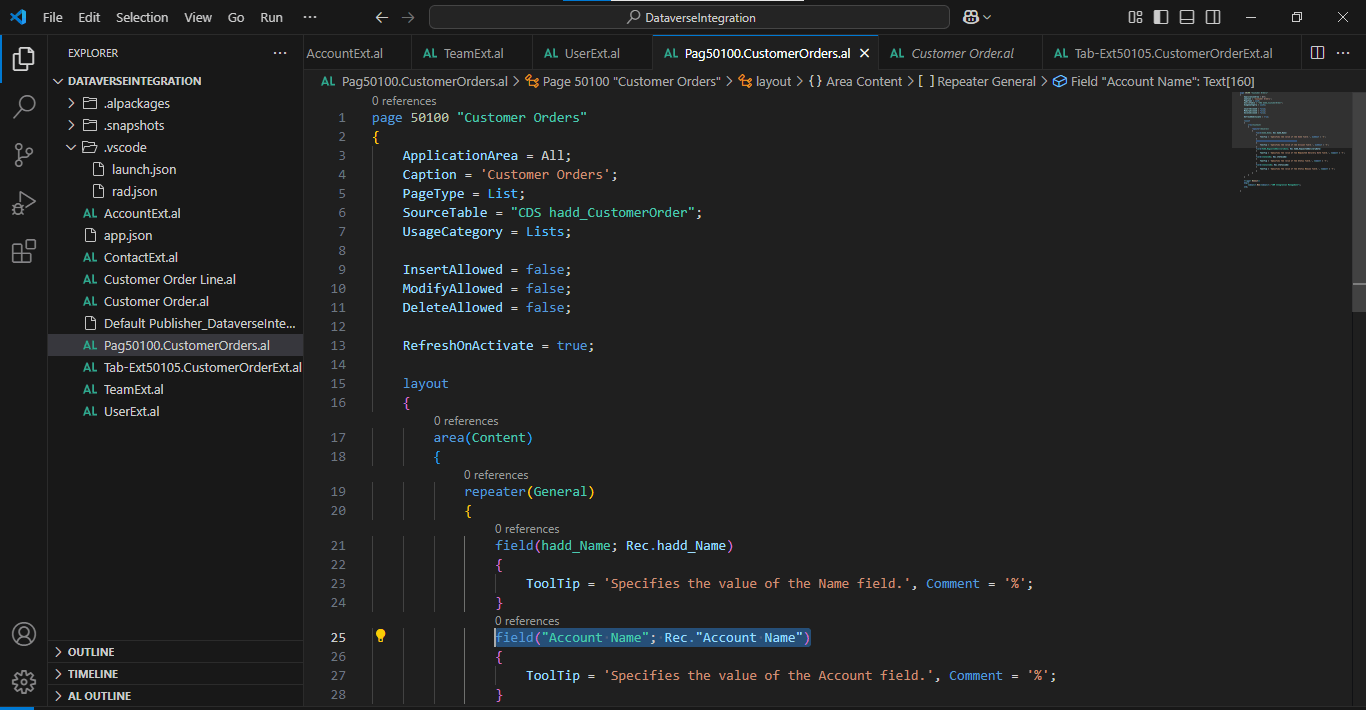

I updated the Customer Orders page to display the Account Name flow field rather than the GUID valueTap the image to open it full size

I updated the Customer Orders page to display the Account Name flow field rather than the GUID value

The Account column displayed the Account nameTap the image to open it full size

The Account column displayed the Account name

I updated the Customer Orders page to disable Insert, Modify and Delete and to enable RefreshOnActivateTap the image to open it full size

I updated the Customer Orders page to disable Insert, Modify and Delete and to enable RefreshOnActivate

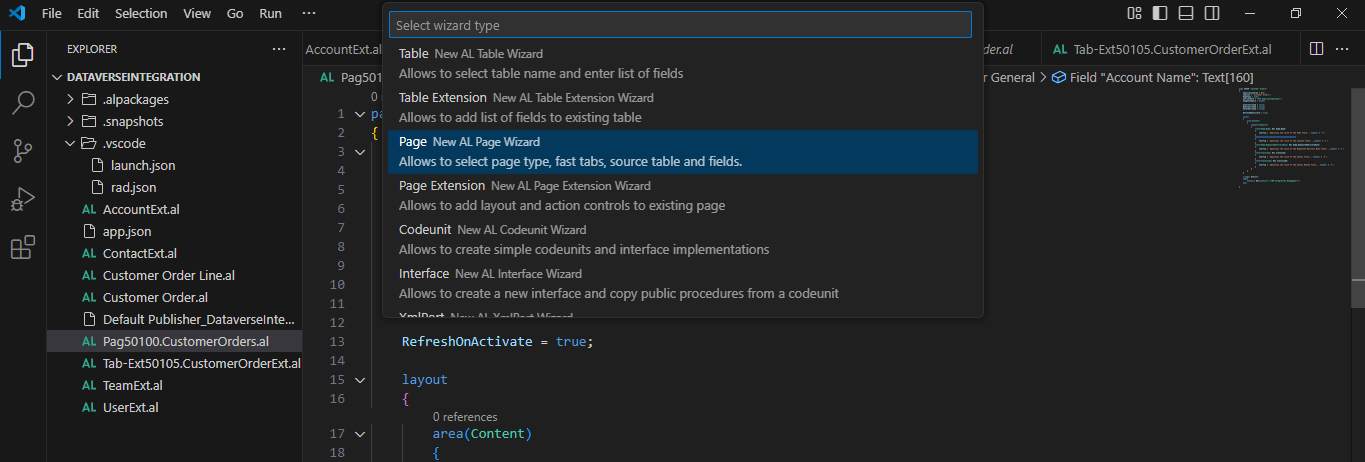

I ran the New AL File WizardTap the image to open it full size

I ran the New AL File Wizard

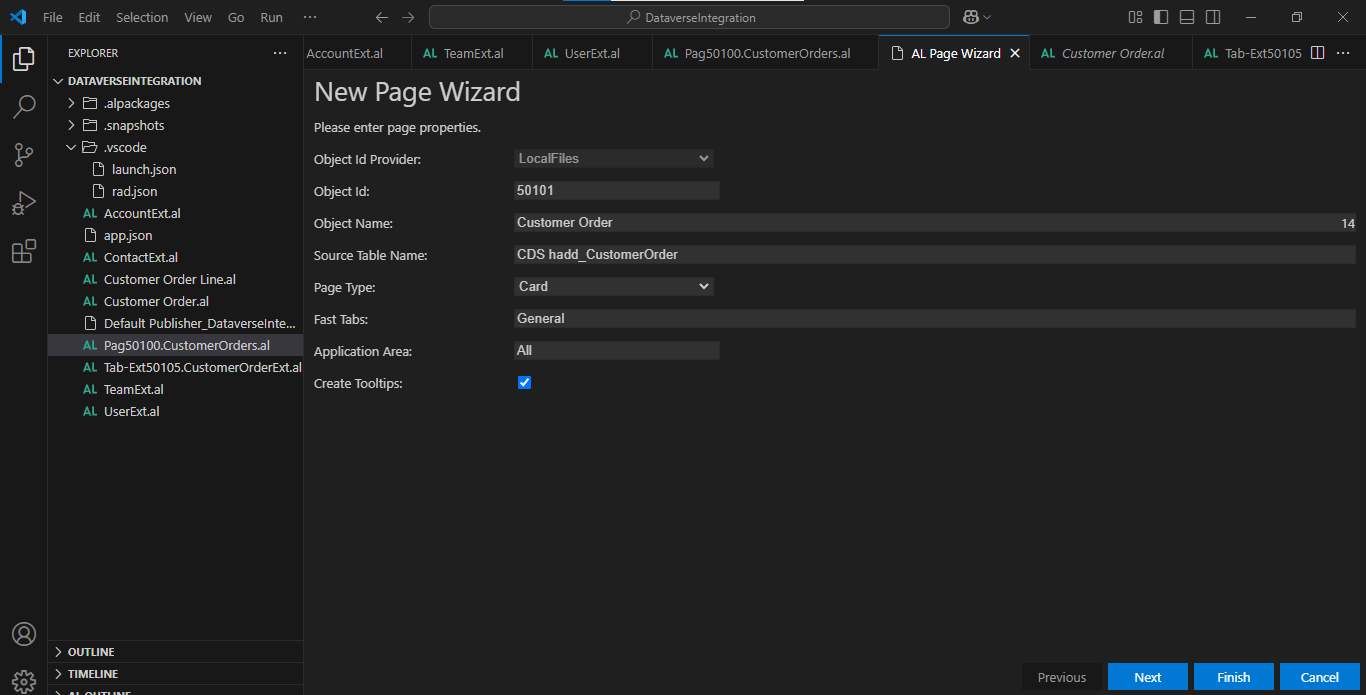

I ran the New AL File Wizard to create a Card pageTap the image to open it full size

I ran the New AL File Wizard to create a Card page

I selected the fields I wanted to displayTap the image to open it full size

I selected the fields I wanted to display

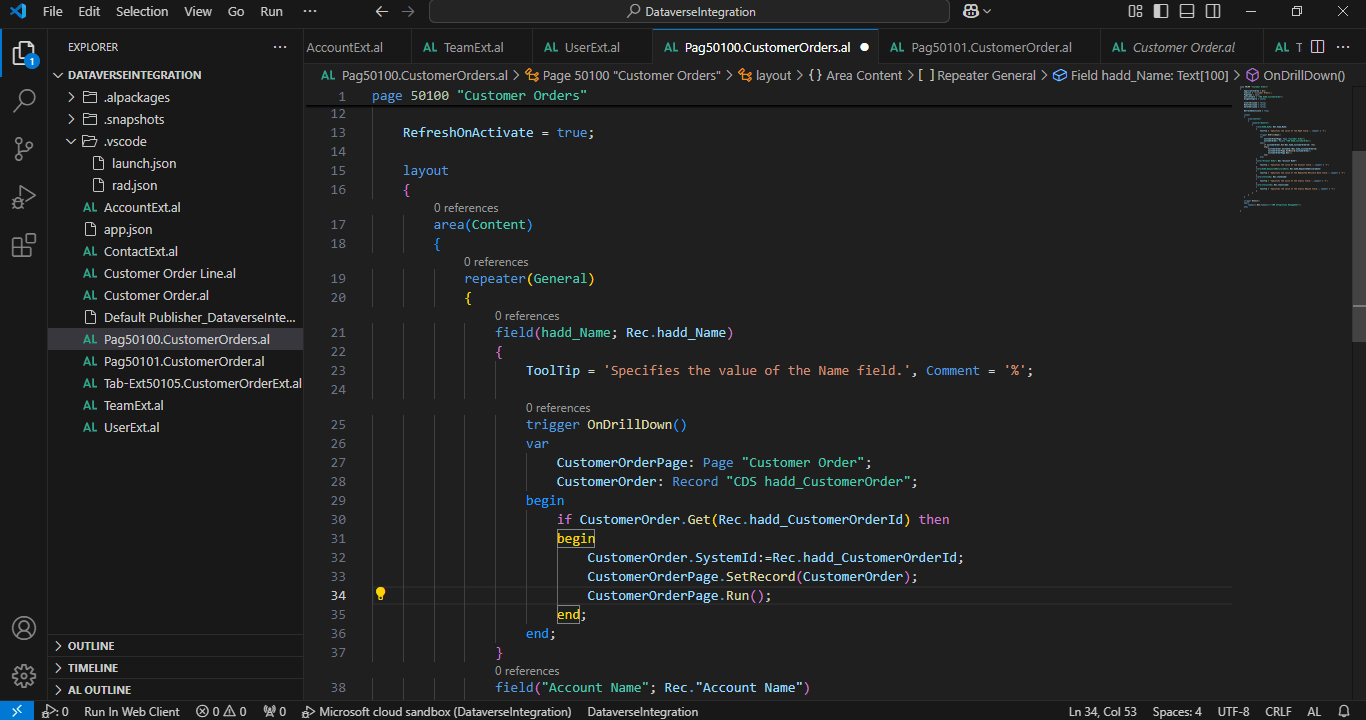

I added an OnDrillDown() trigger to the Customer Order's Name fieldTap the image to open it full size

I added an OnDrillDown() trigger to the Customer Order's Name field

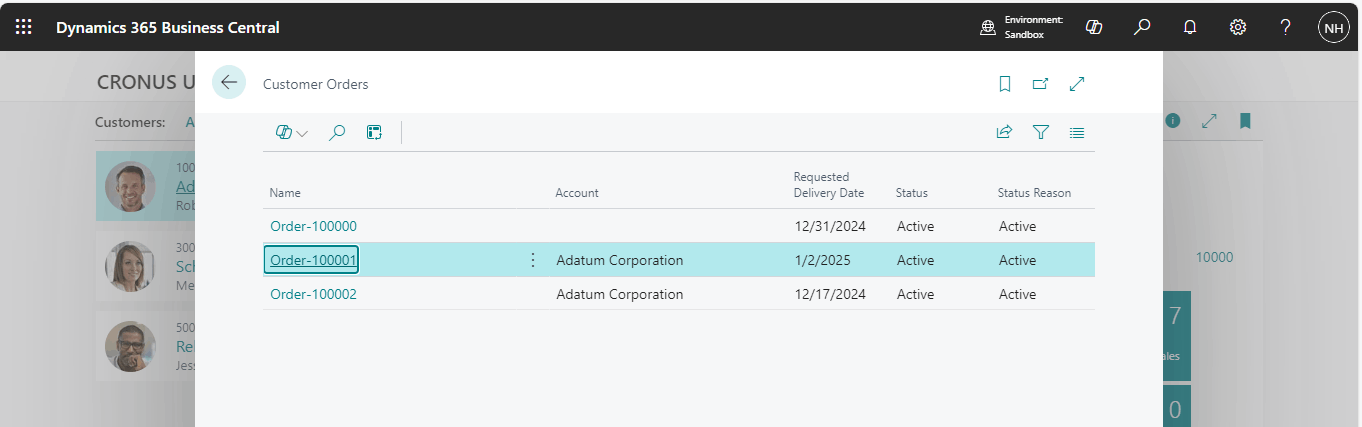

I clicked on a Customer OrderTap the image to open it full size

I clicked on a Customer Order

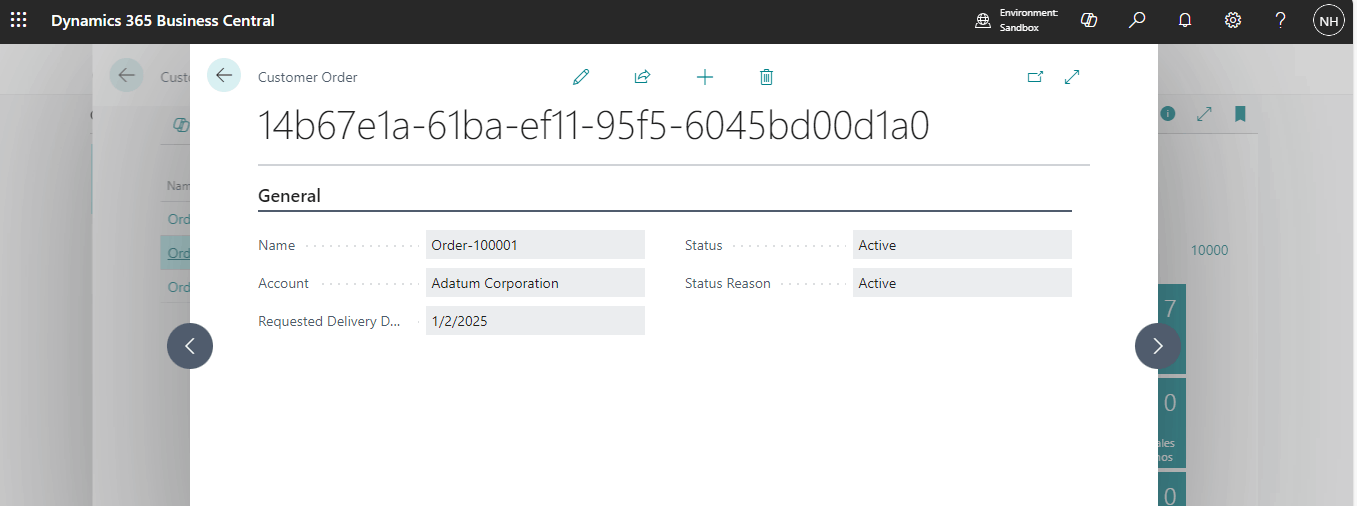

The Customer Order Card was displayedTap the image to open it full size

The Customer Order Card was displayed

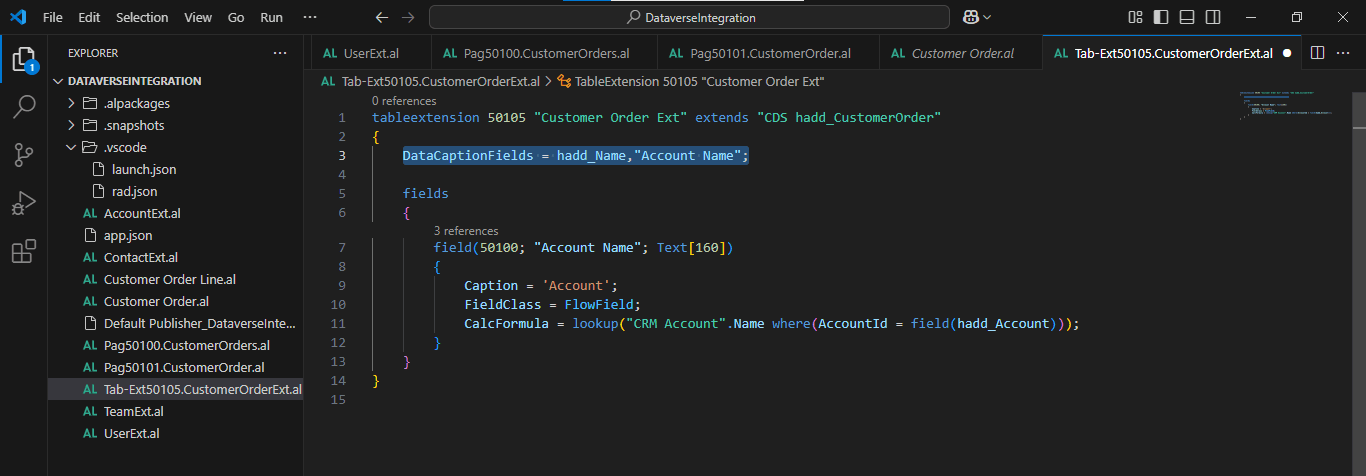

I added a DataCaptionFields value to the Customer Order (Extension)Tap the image to open it full size

I added a DataCaptionFields value to the Customer Order (Extension)

I reviewed the updated Card pageTap the image to open it full size

I reviewed the updated Card page

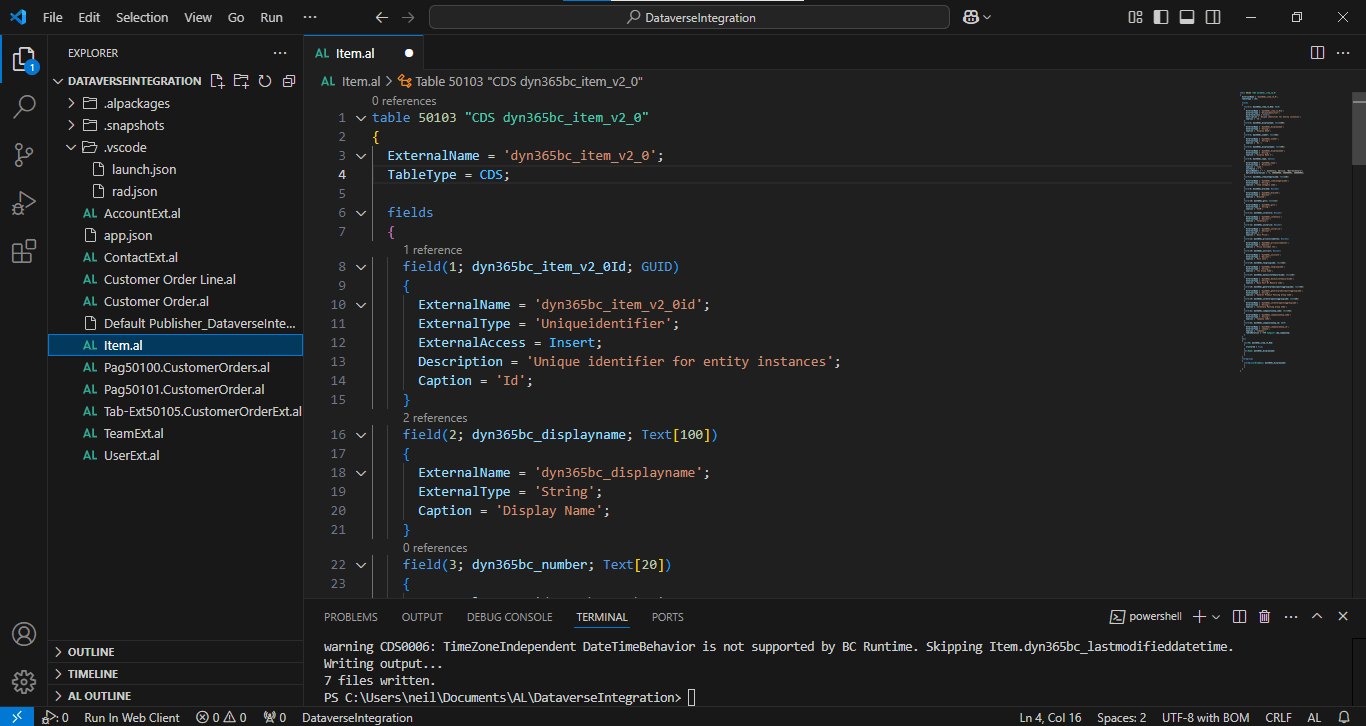

I added entity dyn365bc_Item_v2_0. I need to add this entity to ensure that the hadd_Item field is added to the generated Customer Order Lines Integration table.Tap the image to open it full size

I added entity dyn365bc_Item_v2_0. I need to add this entity to ensure that the hadd_Item field is added to the generated Customer Order Lines Integration table.

I updated the object numberTap the image to open it full size

I updated the object number

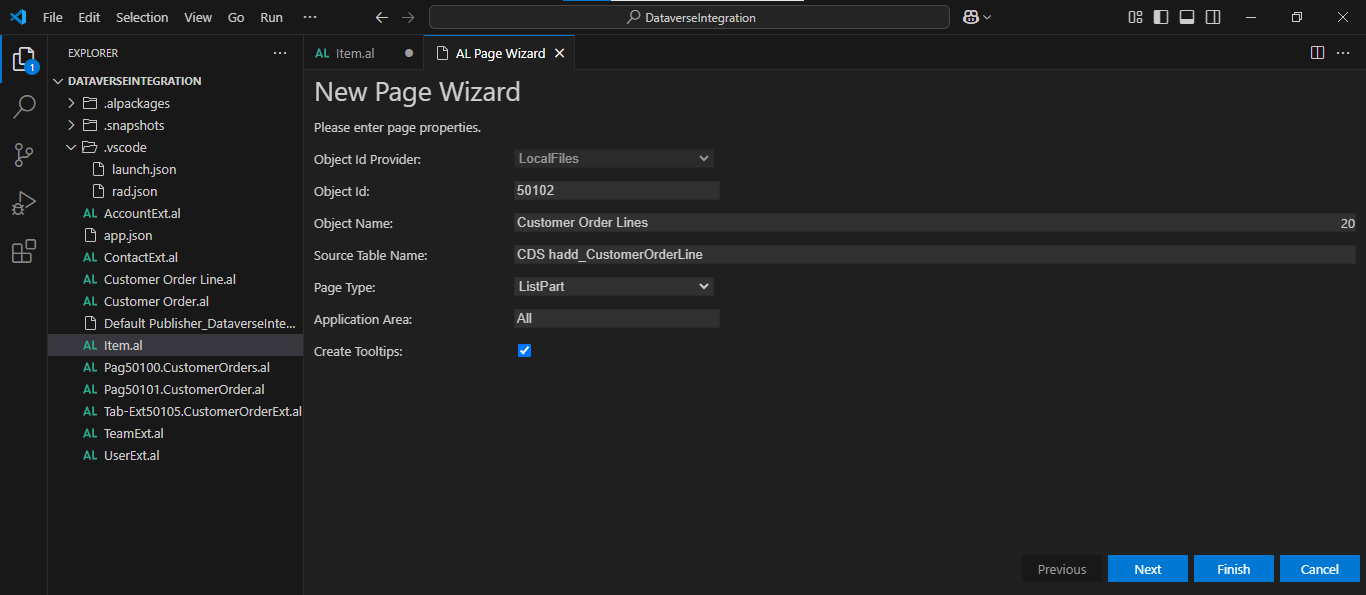

I added a Customer Order Lines ListPartTap the image to open it full size

I added a Customer Order Lines ListPart

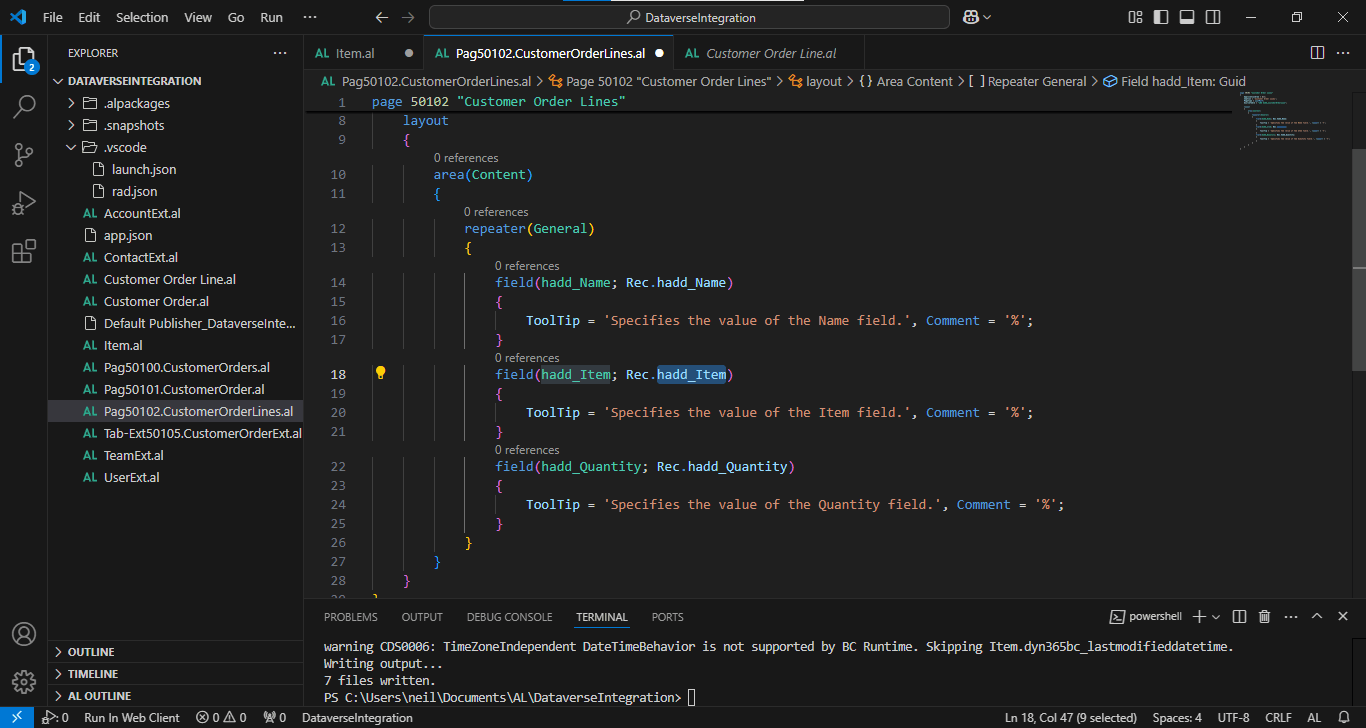

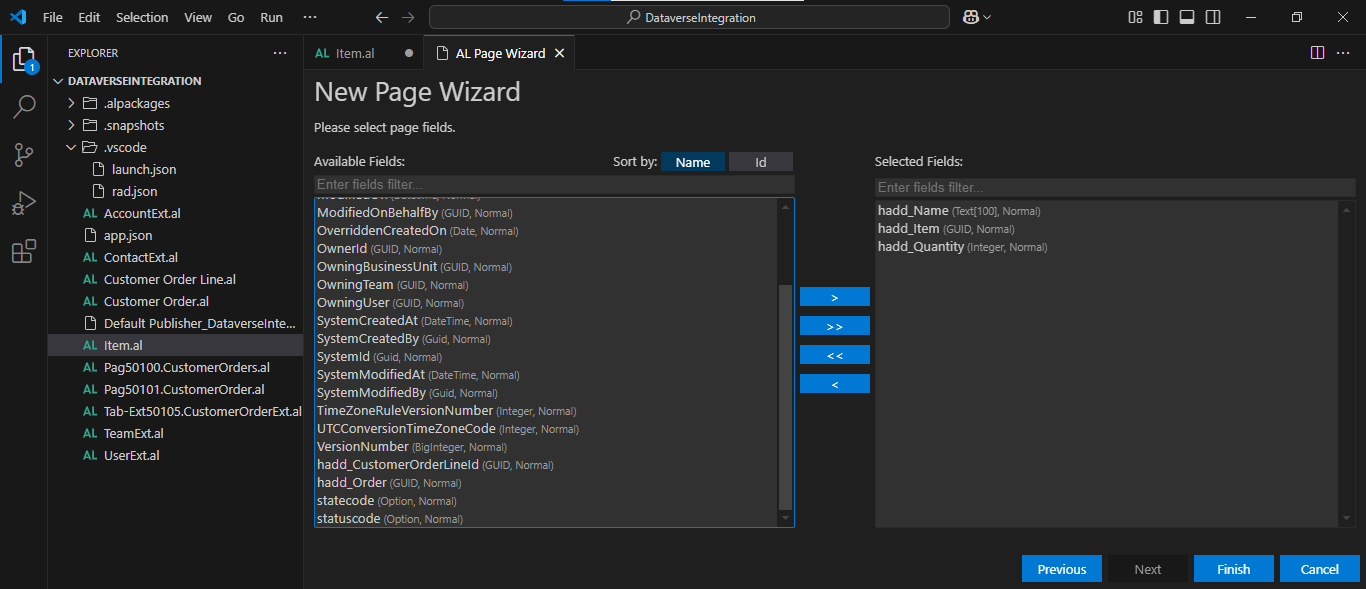

I added Name, Item (GUID) and Quantity fields to the ListPartTap the image to open it full size

I added Name, Item (GUID) and Quantity fields to the ListPart

I noticed that hadd_Item is a GUIDTap the image to open it full size

I noticed that hadd_Item is a GUID

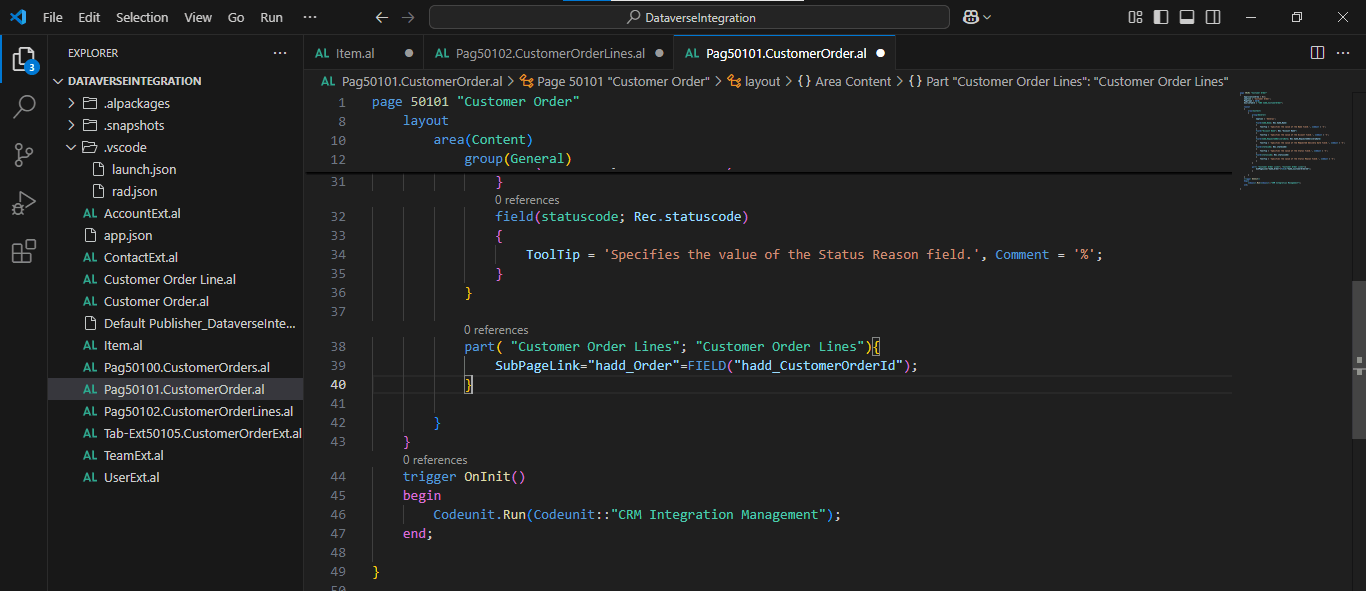

I added the ListPart to the Customer Order CardTap the image to open it full size

I added the ListPart to the Customer Order Card

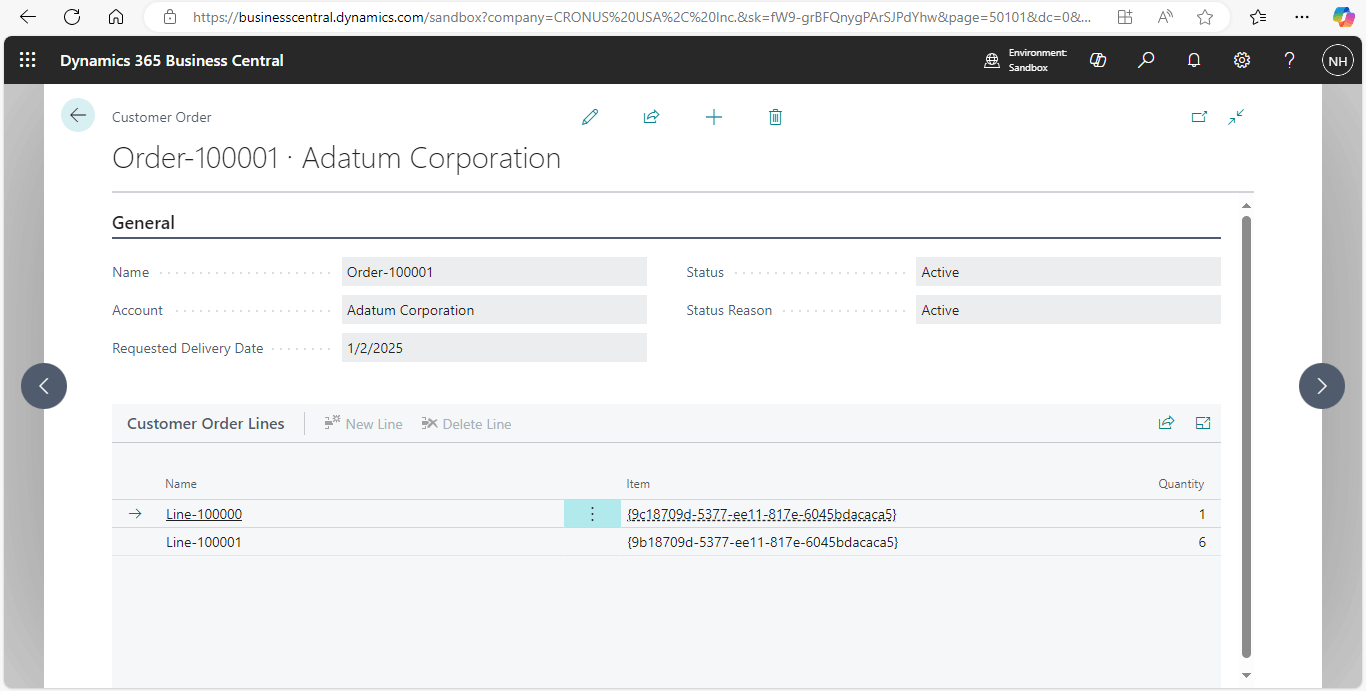

The Customer Order Line details are displayedTap the image to open it full size

The Customer Order Line details are displayed

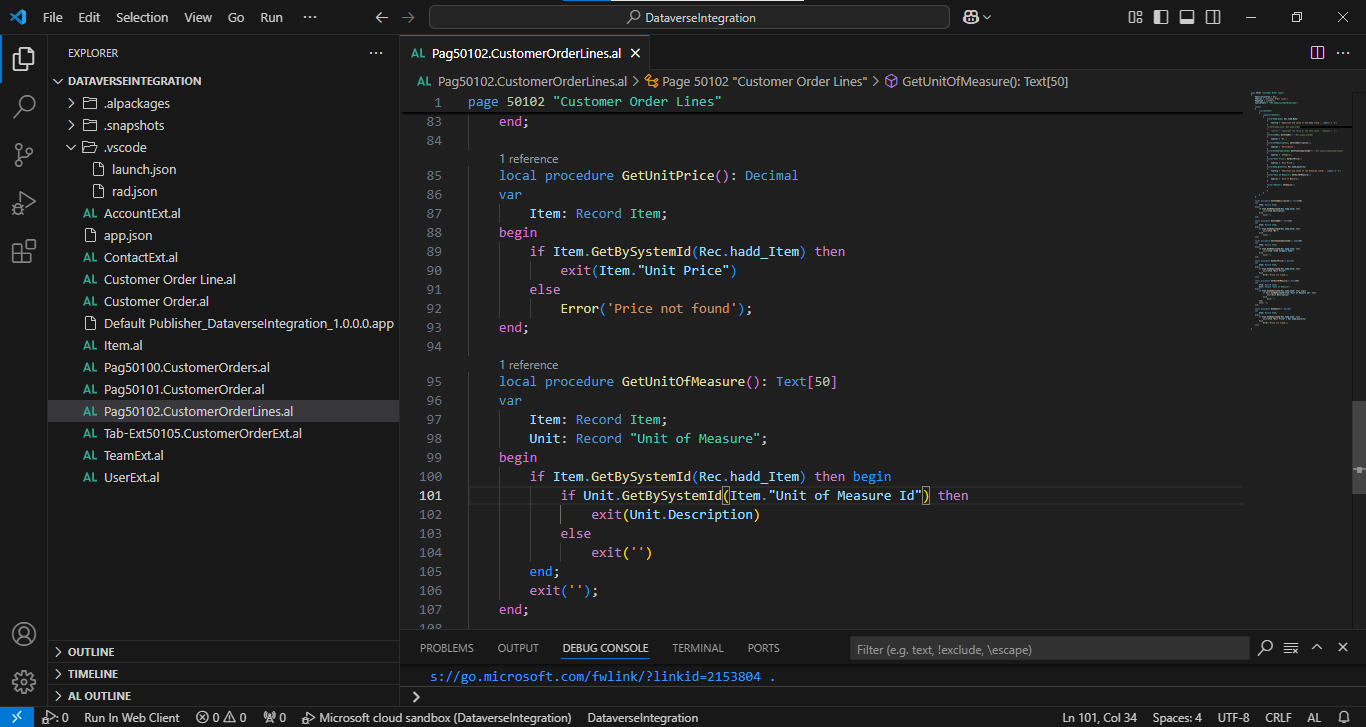

I updated the Customer Order Lines ListPart to lookup Item details. I was able to use the hadd_Item GUID to lookup records in the Business Central Item table.Tap the image to open it full size

I updated the Customer Order Lines ListPart to lookup Item details. I was able to use the hadd_Item GUID to lookup records in the Business Central Item table.

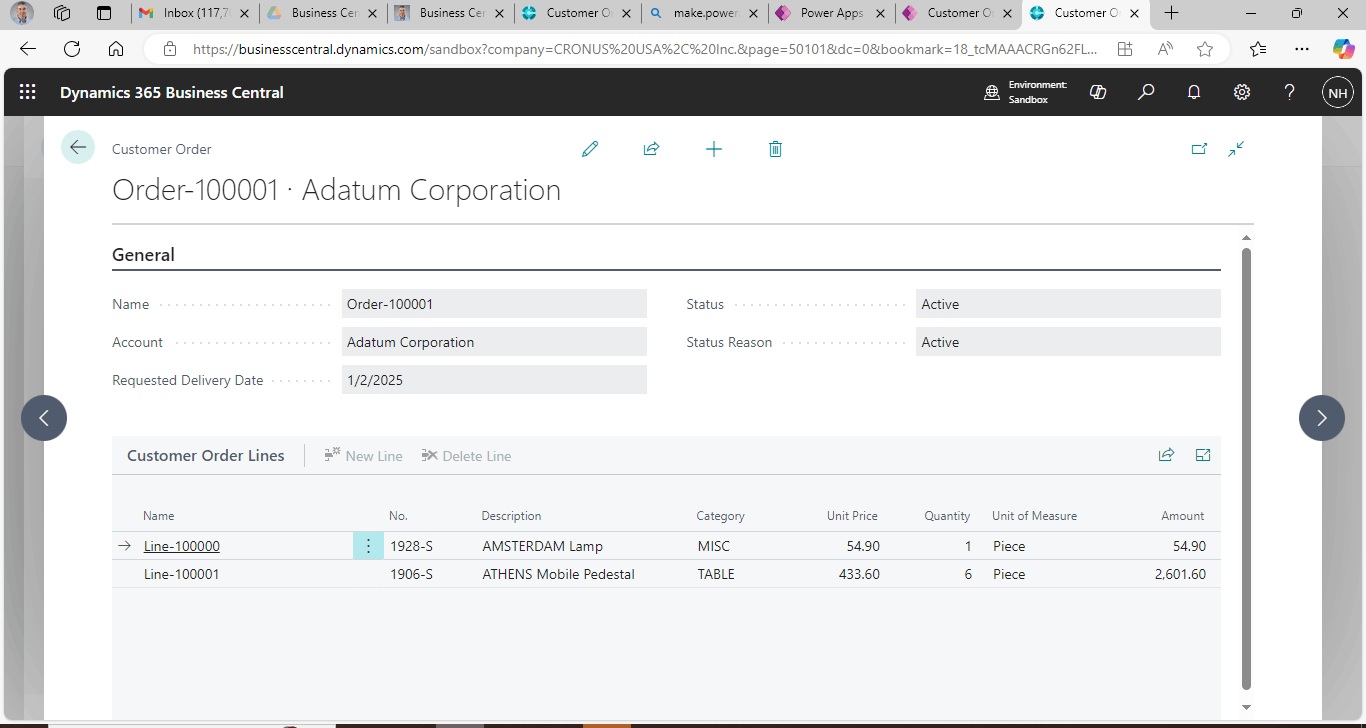

Item details and a calculated Amount value are displayedTap the image to open it full size

Item details and a calculated Amount value are displayed

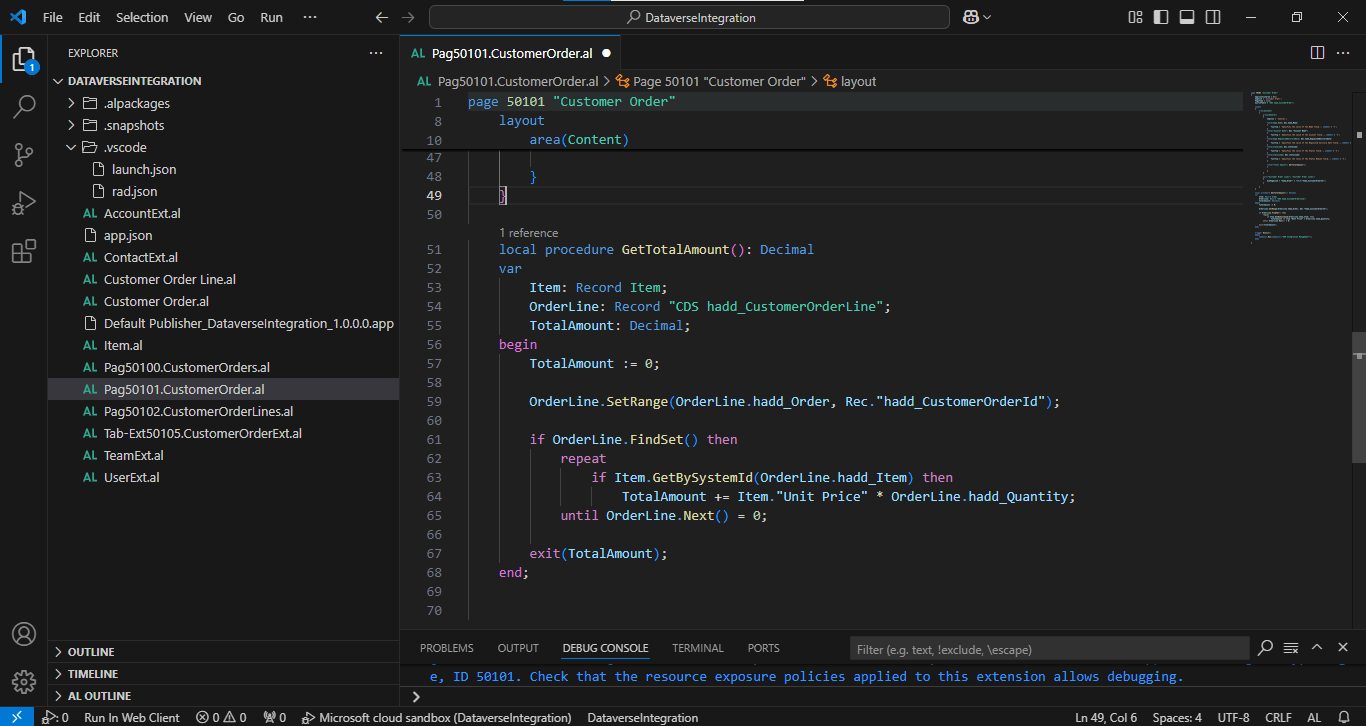

I added a GetTotalAmount() procedureTap the image to open it full size

I added a GetTotalAmount() procedure

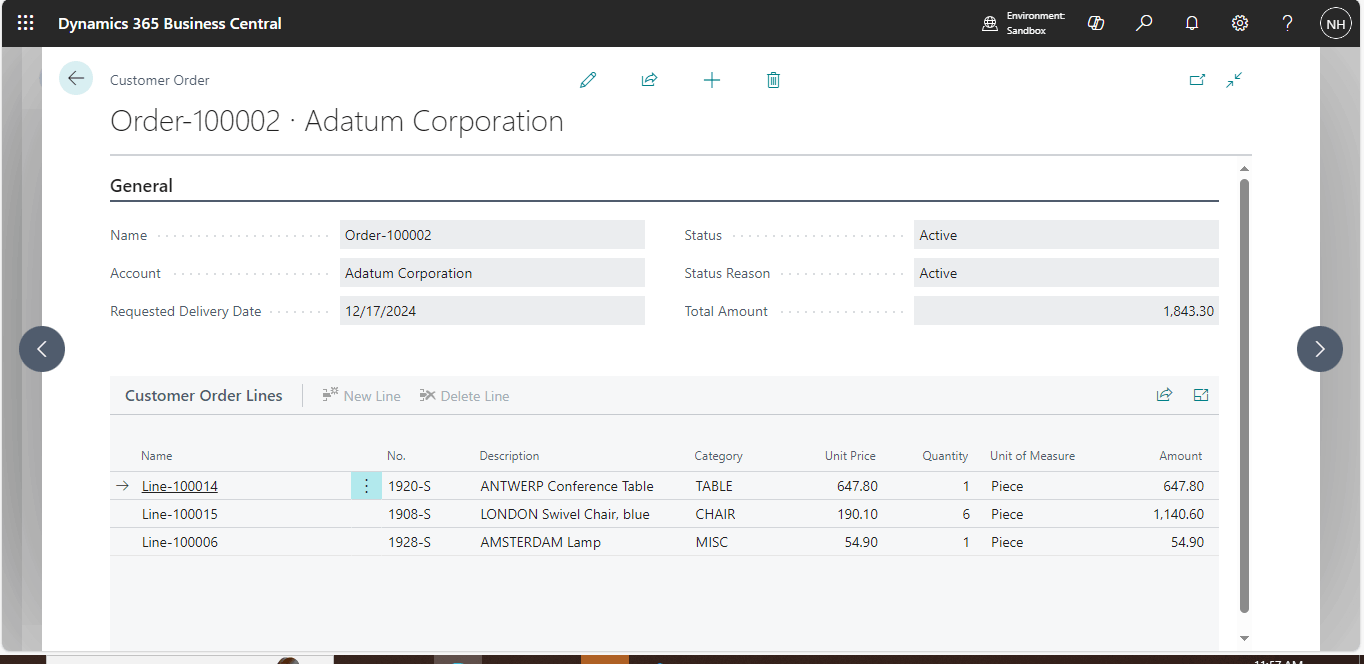

The Total Amount field was displayed on the Customer Order CardTap the image to open it full size

The Total Amount field was displayed on the Customer Order Card

AL
1page 50100 "Customer Orders"
2{
3    ApplicationArea = All;
4    Caption = 'Customer Orders';
5    PageType = List;
6    SourceTable = "CDS hadd_CustomerOrder";
7    UsageCategory = Lists;
8
9    InsertAllowed = false;
10    ModifyAllowed = false;
11    DeleteAllowed = false;
12
13    RefreshOnActivate = true;
14
15    layout
16    {
17        area(Content)
18        {
19            repeater(General)
20            {
21                field(hadd_Name; Rec.hadd_Name)
22                {
23                    ToolTip = 'Specifies the value of the Name field.', Comment = '%';
24
25                    trigger OnDrillDown()
26                    var
27                        CustomerOrderPage: Page "Customer Order";
28                        CustomerOrder: Record "CDS hadd_CustomerOrder";
29                    begin
30                        if CustomerOrder.Get(Rec.hadd_CustomerOrderId) then begin
31                            CustomerOrder.SystemId := Rec.hadd_CustomerOrderId;
32                            CustomerOrderPage.SetRecord(CustomerOrder);
33                            CustomerOrderPage.Run();
34                        end;
35                    end;
36                }
37                field("Account Name"; Rec."Account Name")
38                {
39                    ToolTip = 'Specifies the value of the Account field.', Comment = '%';
40                }
41                field(hadd_RequestedDeliveryDate; Rec.hadd_RequestedDeliveryDate)
42                {
43                    ToolTip = 'Specifies the value of the Requested Delivery Date field.', Comment = '%';
44                }
45                field(statecode; Rec.statecode)
46                {
47                    ToolTip = 'Specifies the value of the Status field.', Comment = '%';
48                }
49                field(statuscode; Rec.statuscode)
50                {
51                    ToolTip = 'Specifies the value of the Status Reason field.', Comment = '%';
52                }
53            }
54        }
55    }
56
57    trigger OnInit()
58    begin
59        Codeunit.Run(Codeunit::"CRM Integration Management");
60    end;
61
62}

Tab-Ext50105.CustomerOrderExt.al

AL
1tableextension 50105 "Customer Order Ext" extends "CDS hadd_CustomerOrder"
2{
3    DataCaptionFields = hadd_Name, "Account Name";
4
5    fields
6    {
7        field(50100; "Account Name"; Text[160])
8        {
9            Caption = 'Account';
10            FieldClass = FlowField;
11            CalcFormula = lookup("CRM Account".Name where(AccountId = field(hadd_Account)));
12        }
13    }
14}

Pag50102.CustomerOrderLines.al

AL
1page 50102 "Customer Order Lines"
2{
3    ApplicationArea = All;
4    Caption = 'Customer Order Lines';
5    PageType = ListPart;
6    SourceTable = "CDS hadd_CustomerOrderLine";
7
8    layout
9    {
10        area(Content)
11        {
12            repeater(General)
13            {
14                field(hadd_Name; Rec.hadd_Name)
15                {
16                    ToolTip = 'Specifies the value of the Name field.', Comment = '%';
17                }
18                /*field(hadd_Item; Rec.hadd_Item)
19                {
20                    ToolTip = 'Specifies the value of the Item field.', Comment = '%';
21                }*/
22                field(ItemNo; GetItemNo()) //Rec.wiise_ItemNo)
23                {
24                    Caption = 'No.';
25                }
26                field(ItemDescription; GetItemDescription())
27                {
28                    Caption = 'Description';
29                }
30                field(ItemCategoryCode; GetItemCategoryCode()) //Rec.wiise_ItemCategoryCode)
31                {
32                    Caption = 'Category';
33                }
34                field("Unit Price"; GetUnitPrice())
35                {
36                    Caption = 'Unit Price';
37                }
38                field(hadd_Quantity; Rec.hadd_Quantity)
39                {
40                    ToolTip = 'Specifies the value of the Quantity field.', Comment = '%';
41                }
42                field("Unit of Measure"; GetUnitOfMeasure())
43                {
44                    Caption = 'Unit of Measure';
45                }
46
47                field("Amount"; GetAmount())
48                {
49
50                }
51            }
52        }
53    }
54
55    local procedure GetItemDescription(): Text[100]
56    var
57        Item: Record Item;
58    begin
59        if Item.GetBySystemId(Rec.hadd_Item) then
60            exit(Item.Description)
61        else
62            exit('')
63    end;
64
65    local procedure GetItemNo(): Text[20]
66    var
67        Item: Record Item;
68    begin
69        if Item.GetBySystemId(Rec.hadd_Item) then
70            exit(Item."No.")
71        else
72            exit('')
73    end;
74
75    local procedure GetItemCategoryCode(): Code[20]
76    var
77        Item: Record Item;
78    begin
79        if Item.GetBySystemId(Rec.hadd_Item) then
80            exit(Item."Item Category Code")
81        else
82            exit('')
83    end;
84
85    local procedure GetUnitPrice(): Decimal
86    var
87        Item: Record Item;
88    begin
89        if Item.GetBySystemId(Rec.hadd_Item) then
90            exit(Item."Unit Price")
91        else
92            Error('Price not found');
93    end;
94
95    local procedure GetUnitOfMeasure(): Text[50]
96    var
97        Item: Record Item;
98        Unit: Record "Unit of Measure";
99    begin
100        if Item.GetBySystemId(Rec.hadd_Item) then begin
101            if Unit.GetBySystemId(Item."Unit of Measure Id") then
102                exit(Unit.Description)
103            else
104                exit('')
105        end;
106        exit('');
107    end;
108
109    local procedure GetAmount(): Decimal
110    var
111        Item: Record Item;
112    begin
113        if Item.GetBySystemId(Rec.hadd_Item) then
114            exit(Item."Unit Price" * Rec.hadd_Quantity)
115        else
116            Error('Price not found');
117    end;
118
119}

Pag50101.CustomerOrder.al

AL
1page 50101 "Customer Order"
2{
3    ApplicationArea = All;
4    Caption = 'Customer Order';
5    PageType = Card;
6    SourceTable = "CDS hadd_CustomerOrder";
7
8    layout
9    {
10        area(Content)
11        {
12            group(General)
13            {
14                Caption = 'General';
15
16                field(hadd_Name; Rec.hadd_Name)
17                {
18                    ToolTip = 'Specifies the value of the Name field.', Comment = '%';
19                }
20                field("Account Name"; Rec."Account Name")
21                {
22                    ToolTip = 'Specifies the value of the Account field.', Comment = '%';
23                }
24                field(hadd_RequestedDeliveryDate; Rec.hadd_RequestedDeliveryDate)
25                {
26                    ToolTip = 'Specifies the value of the Requested Delivery Date field.', Comment = '%';
27                }
28                field(statecode; Rec.statecode)
29                {
30                    ToolTip = 'Specifies the value of the Status field.', Comment = '%';
31                }
32                field(statuscode; Rec.statuscode)
33                {
34                    ToolTip = 'Specifies the value of the Status Reason field.', Comment = '%';
35                }
36
37                field("Total Amount"; GetTotalAmount())
38                {
39
40                }
41            }
42
43            part("Customer Order Lines"; "Customer Order Lines")
44            {
45                SubPageLink = "hadd_Order" = FIELD("hadd_CustomerOrderId");
46            }
47
48        }
49    }
50
51
52    local procedure GetTotalAmount(): Decimal
53    var
54        Item: Record Item;
55        OrderLine: Record "CDS hadd_CustomerOrderLine";
56        TotalAmount: Decimal;
57    begin
58        TotalAmount := 0;
59
60        OrderLine.SetRange(OrderLine.hadd_Order, Rec."hadd_CustomerOrderId");
61
62        if OrderLine.FindSet() then
63            repeat
64                if Item.GetBySystemId(OrderLine.hadd_Item) then
65                    TotalAmount += Item."Unit Price" * OrderLine.hadd_Quantity;
66            until OrderLine.Next() = 0;
67
68        exit(TotalAmount);
69    end;
70
71
72    trigger OnInit()
73    begin
74        Codeunit.Run(Codeunit::"CRM Integration Management");
75    end;
76
77}
