Component Framework

Neil HaddleyAugust 14, 2022

Component Framework

Create code components for model-driven and canvas apps.

Developers can use Power Apps component framework to create, import, and add code components to model-driven and canvas apps. Certain APIs are not available.

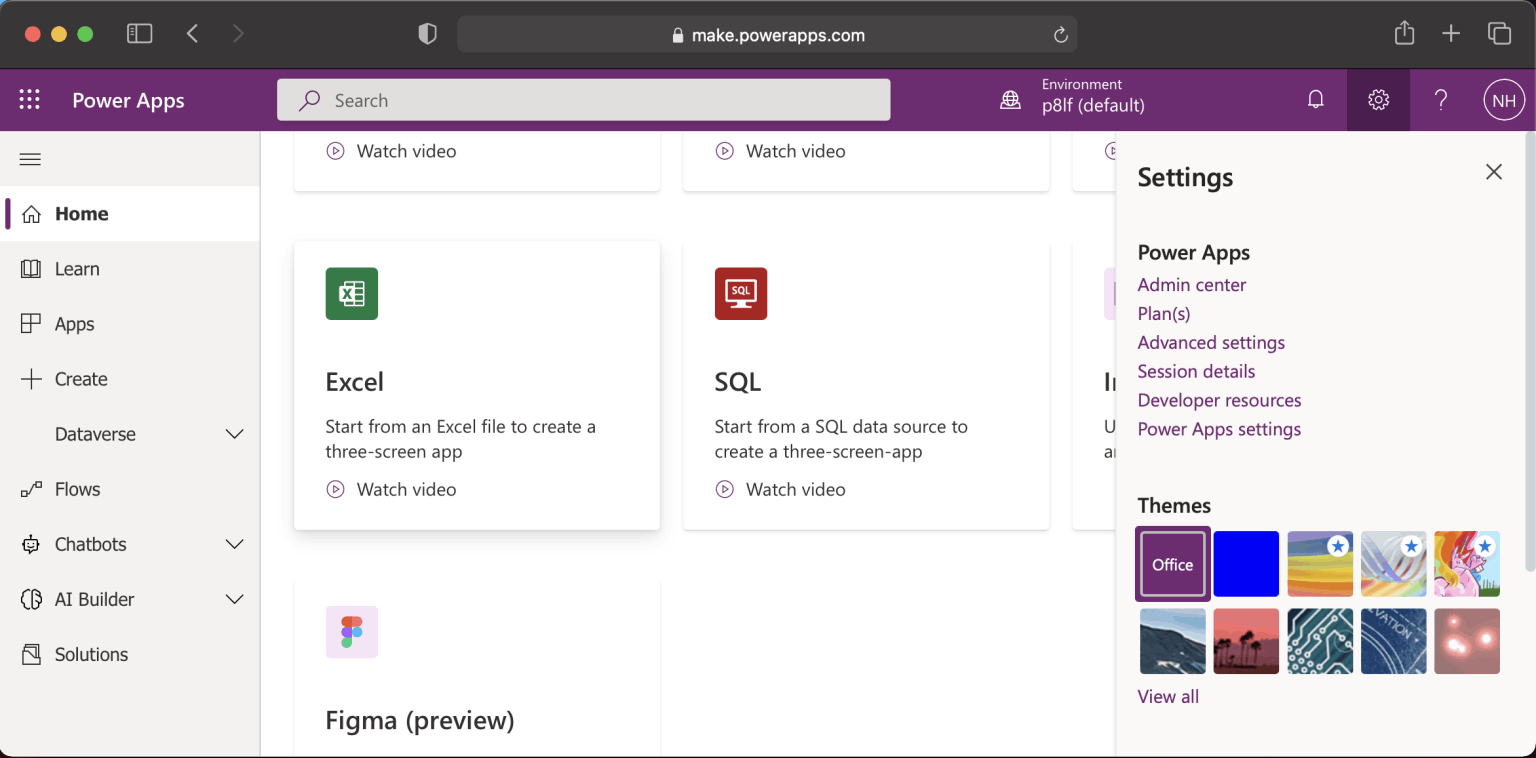

Admin center

Admin center

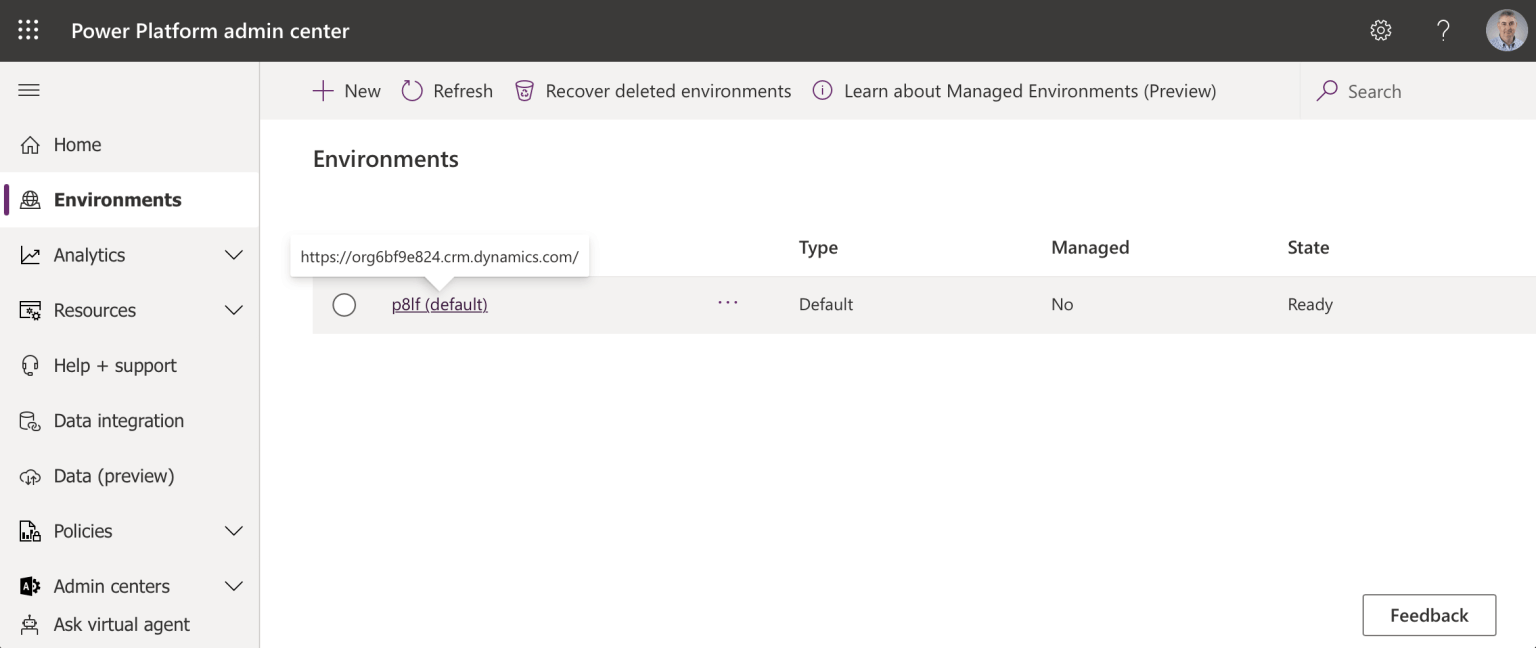

p8lf environment

p8lf environment

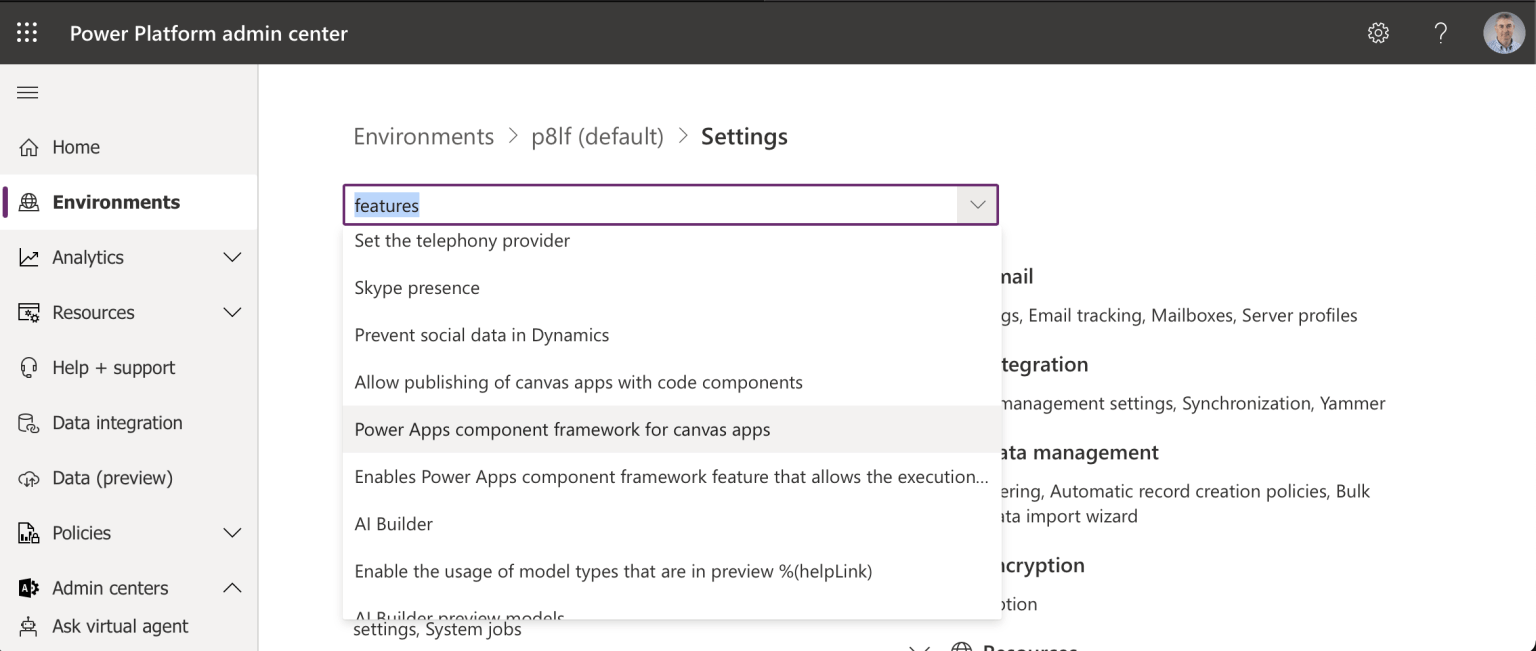

Search

Search

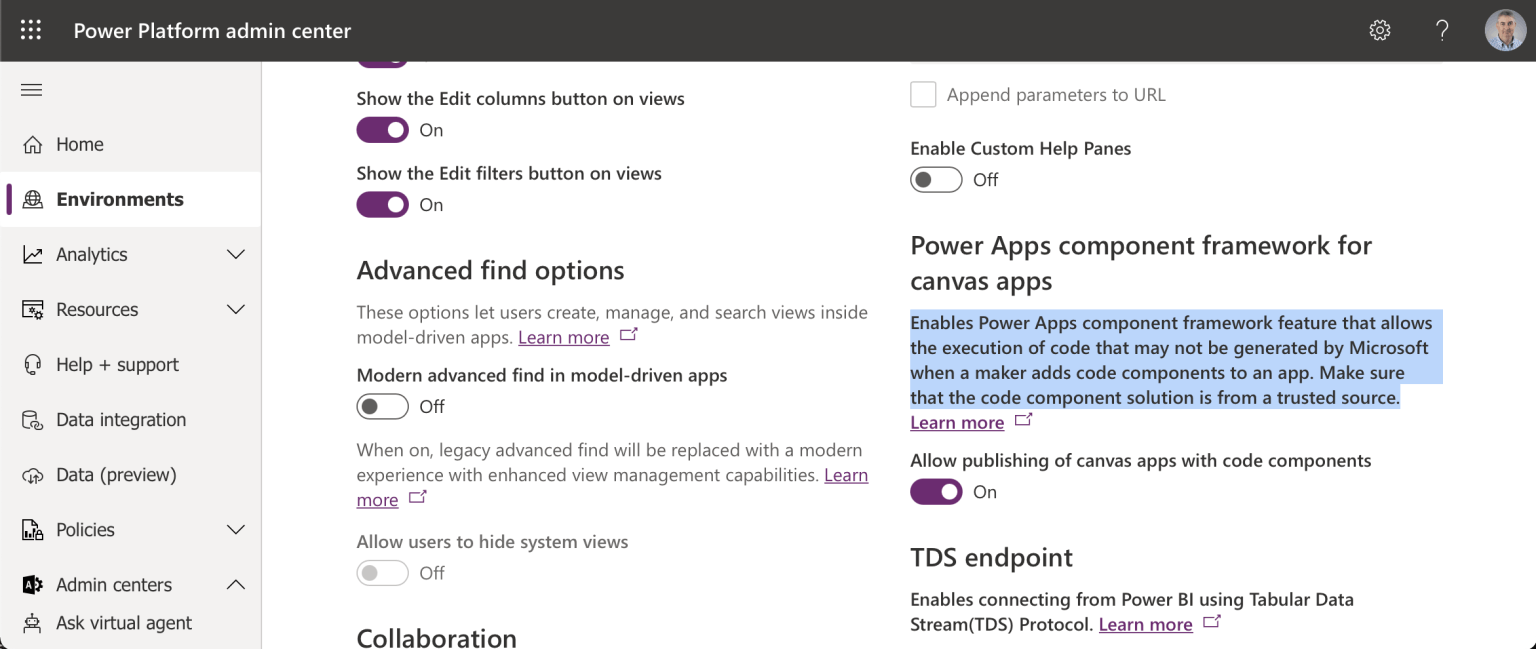

Turn on Power Apps component framework

Turn on Power Apps component framework

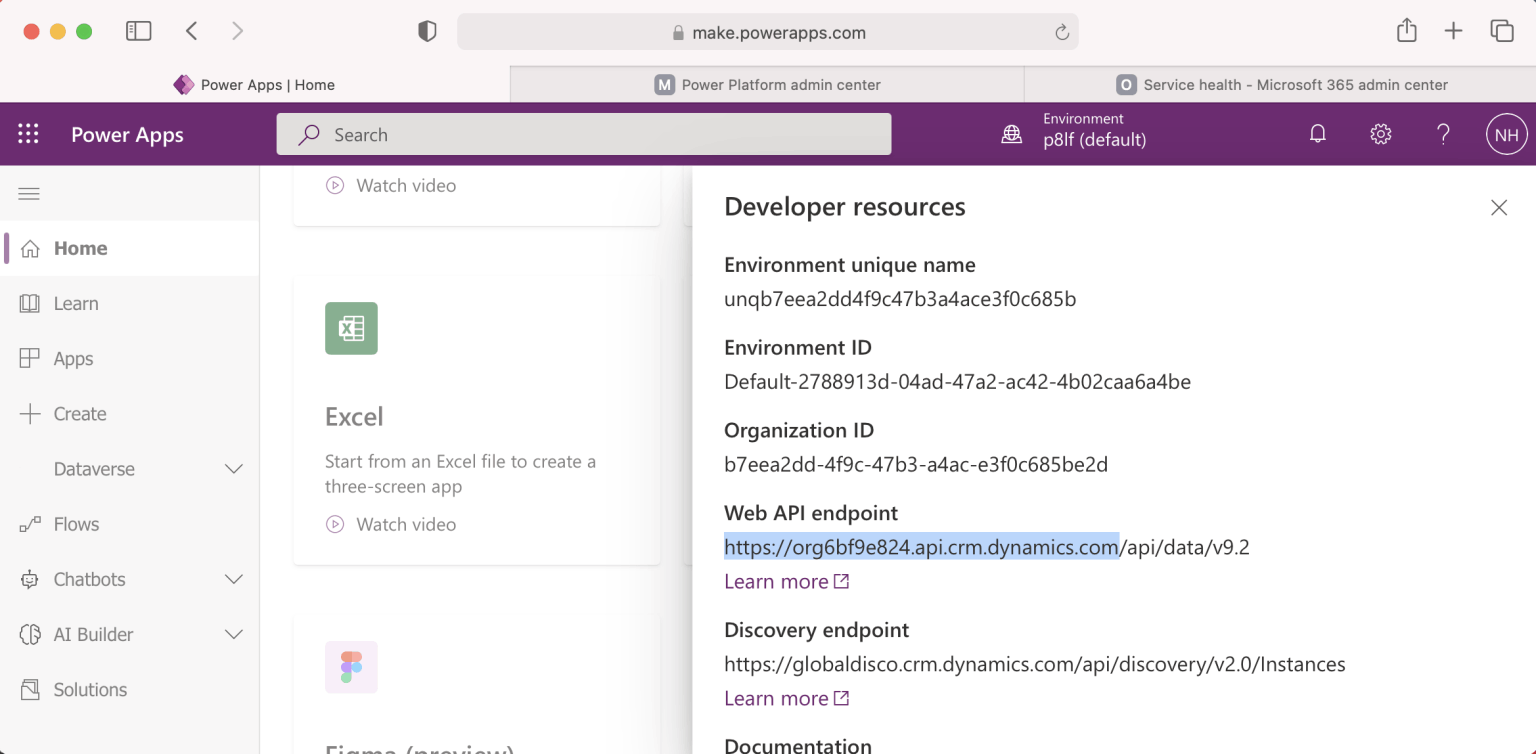

Web API endpoint (use this URL below)

Web API endpoint (use this URL below)

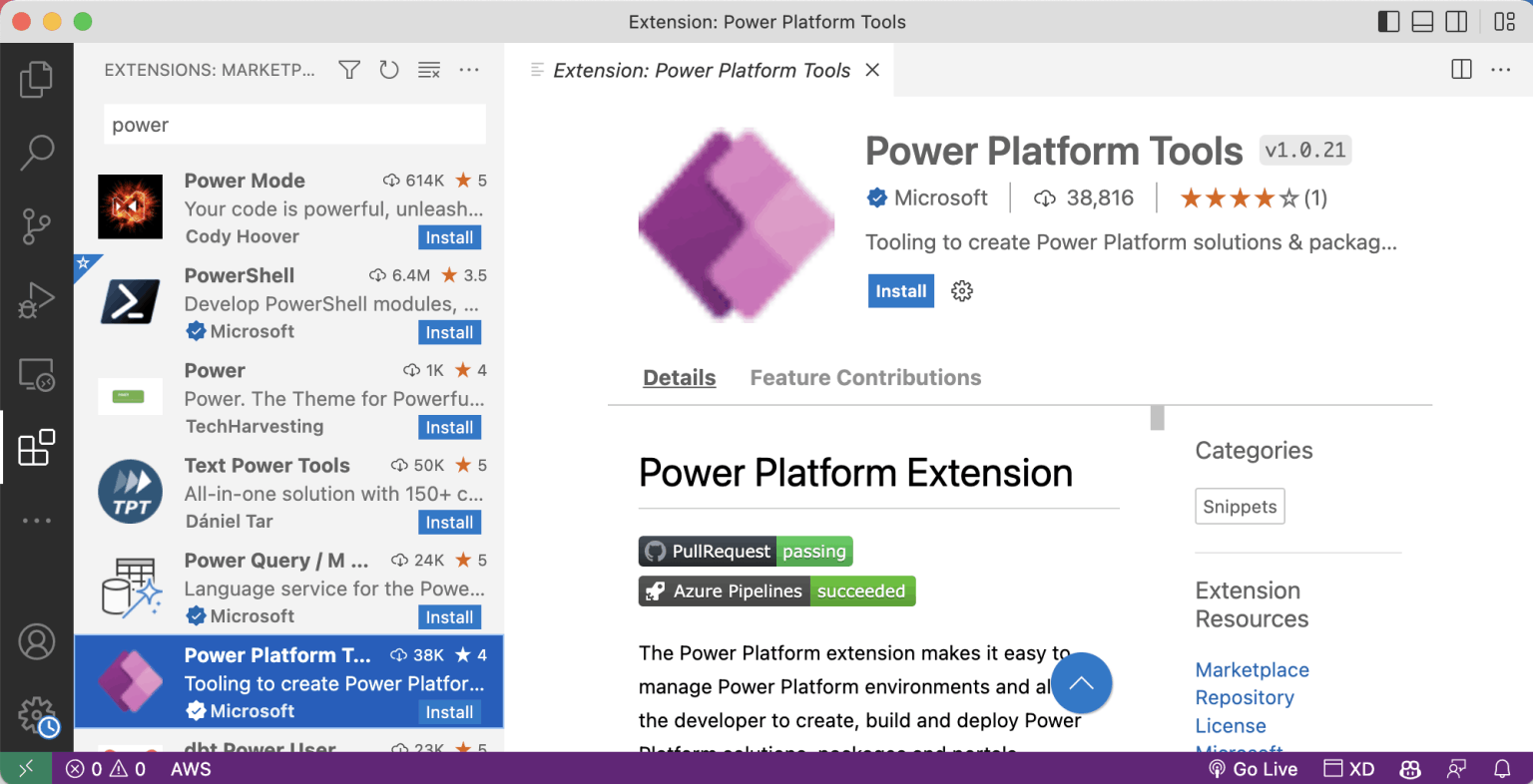

Install Power Platform Tools Visual Studio Extension

Install Power Platform Tools Visual Studio Extension

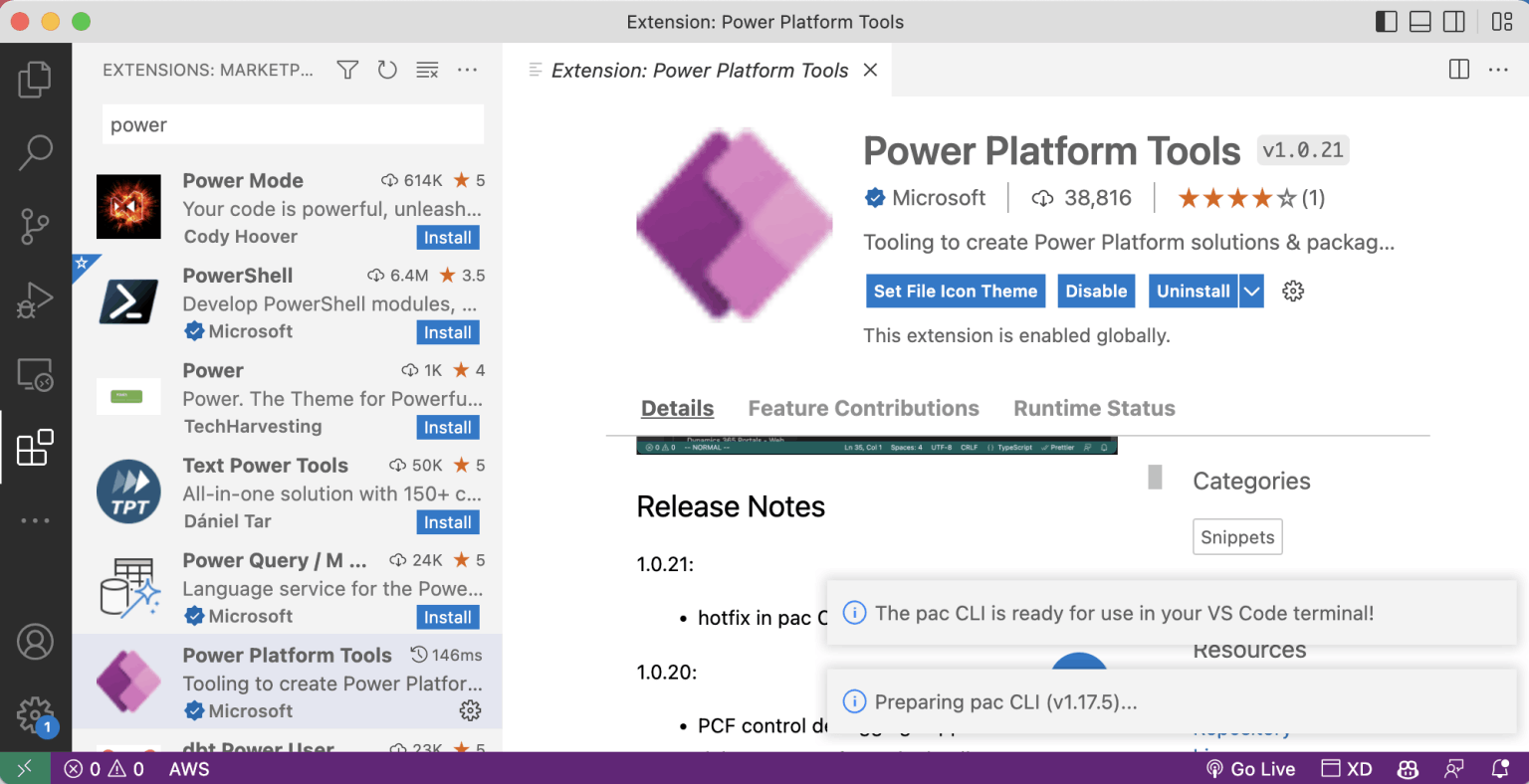

Power Platform Tools installed

Power Platform Tools installed

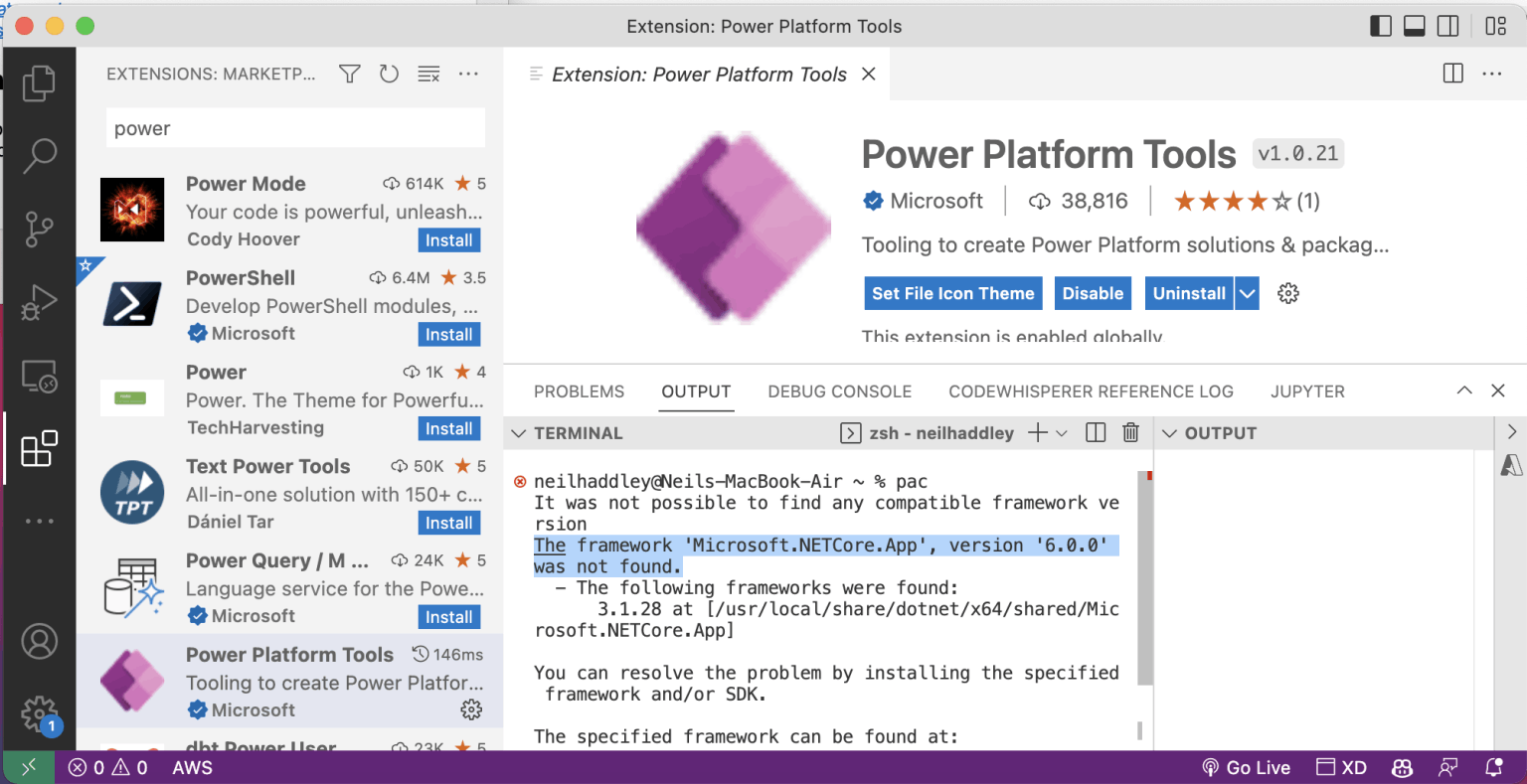

The framework was not found

The framework was not found

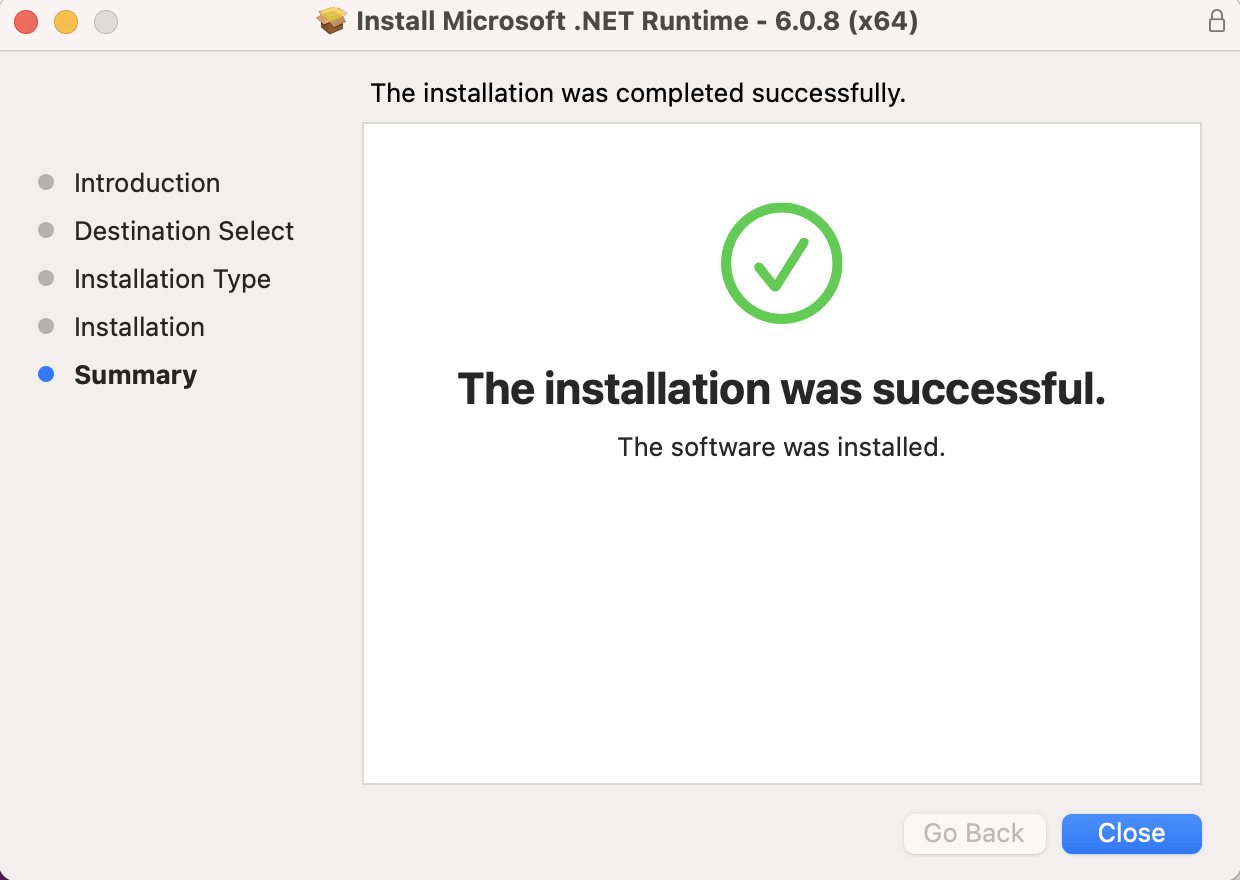

Install x64 version of the framework

Install x64 version of the framework

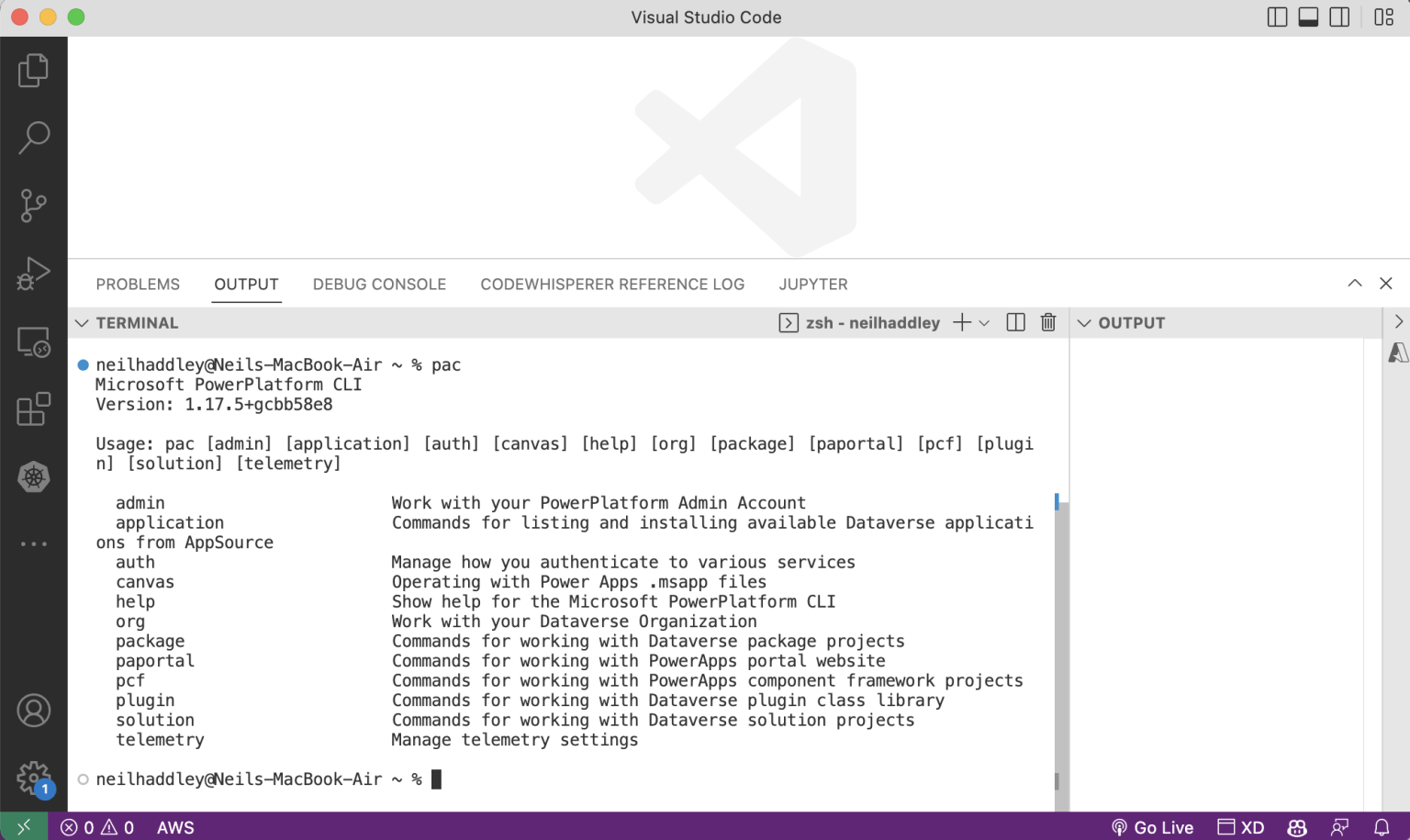

pac (help)

pac (help)

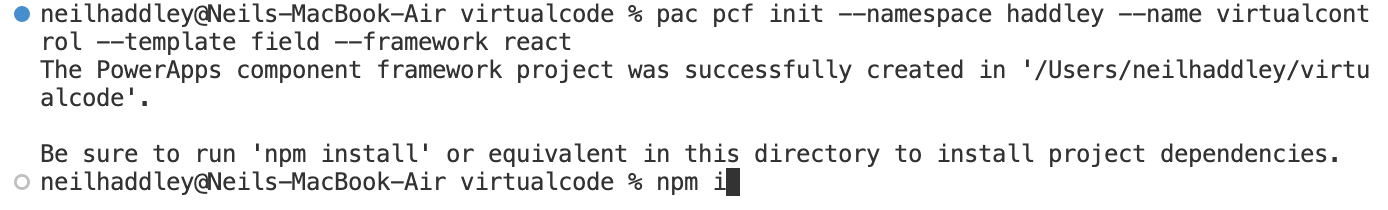

pac pcf init --namespace haddley --name virtualcontrol --template field --framework react

pac pcf init --namespace haddley --name virtualcontrol --template field --framework react

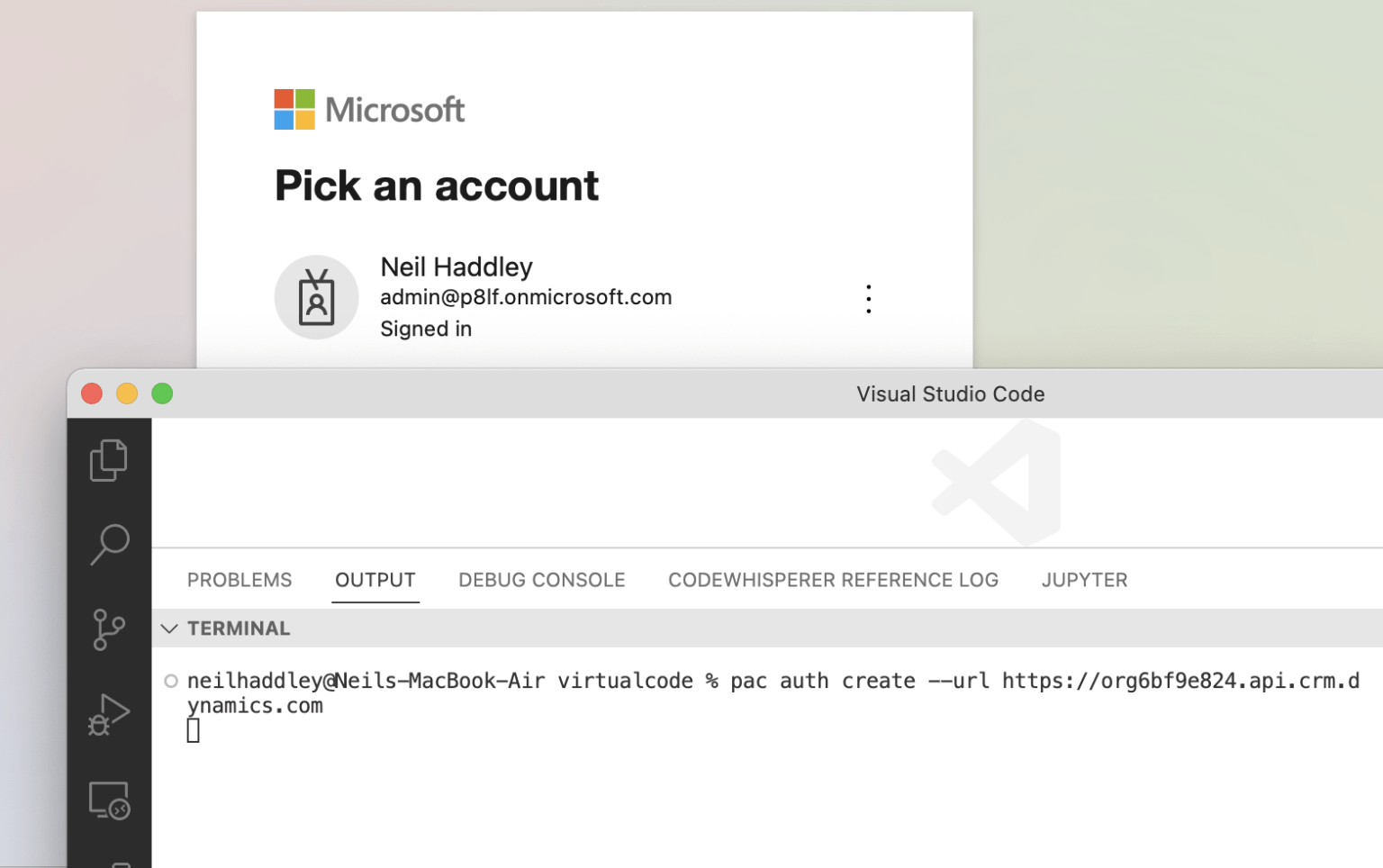

pac auth create –-url https://org6bf9e824.api.crm.dynamics.com(url value from Web API endpoint see above)

pac auth create –-url https://org6bf9e824.api.crm.dynamics.com(url value from Web API endpoint see above)

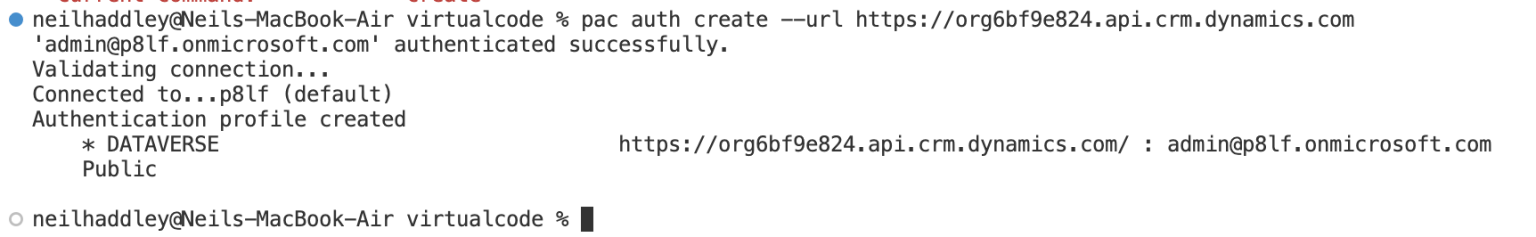

Authentication successful

Authentication successful

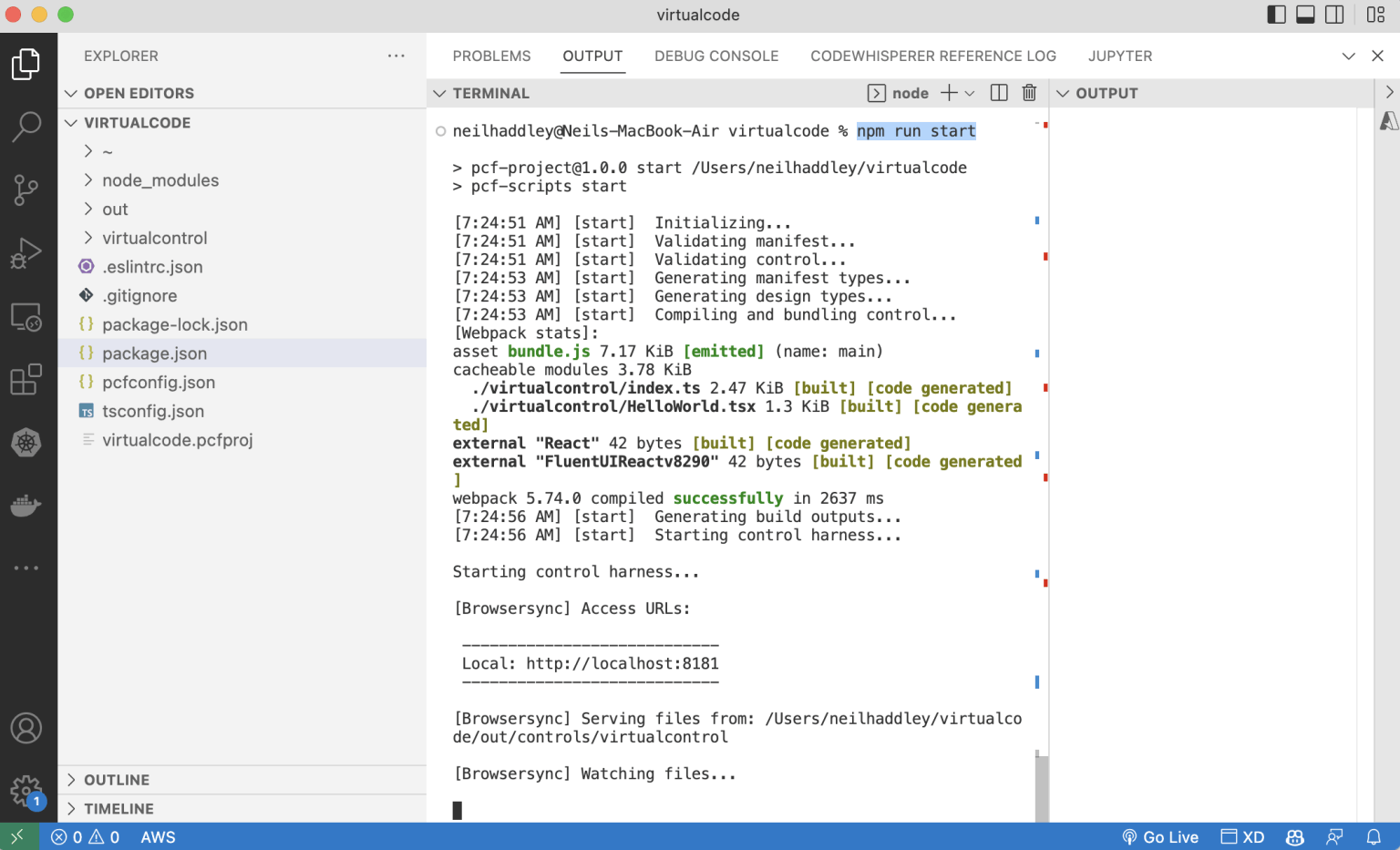

npm run start(I had to run npm i -g webpack and npm link webpack first)

npm run start(I had to run npm i -g webpack and npm link webpack first)

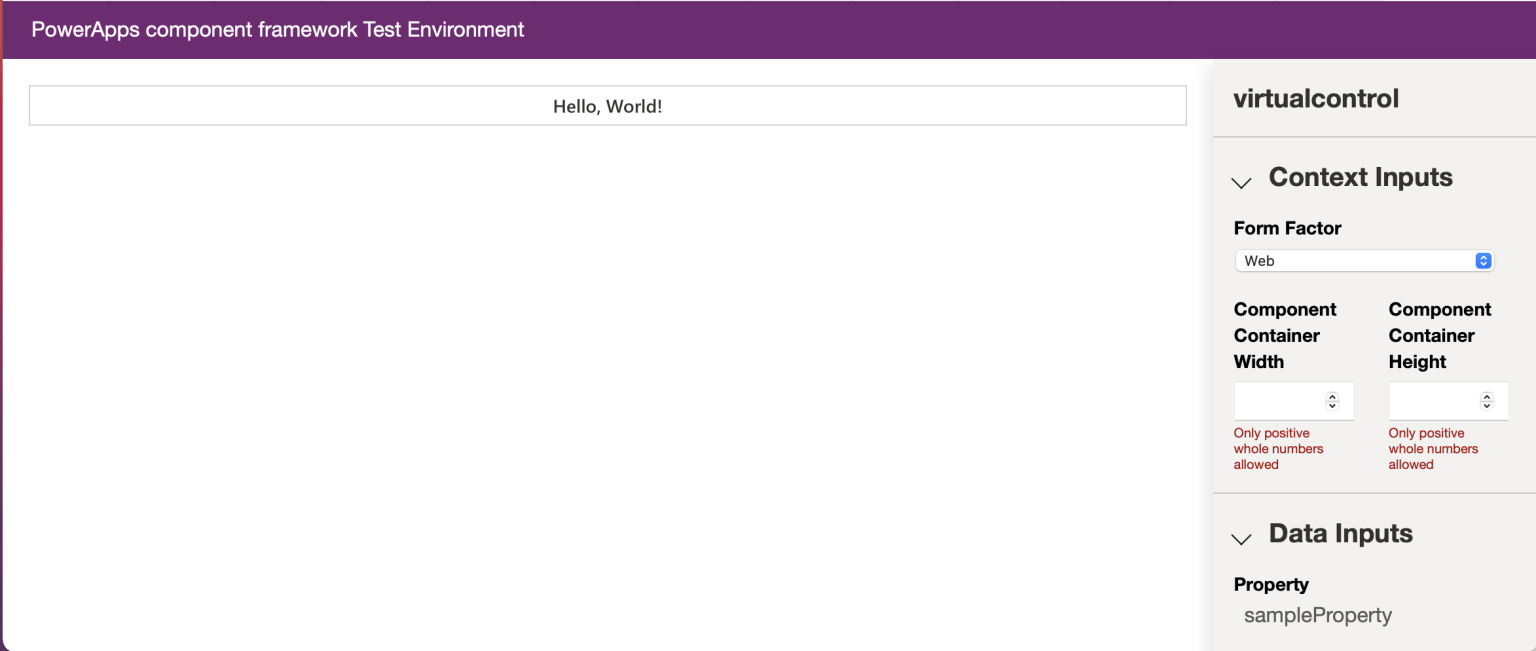

Component running in test environment

Component running in test environment

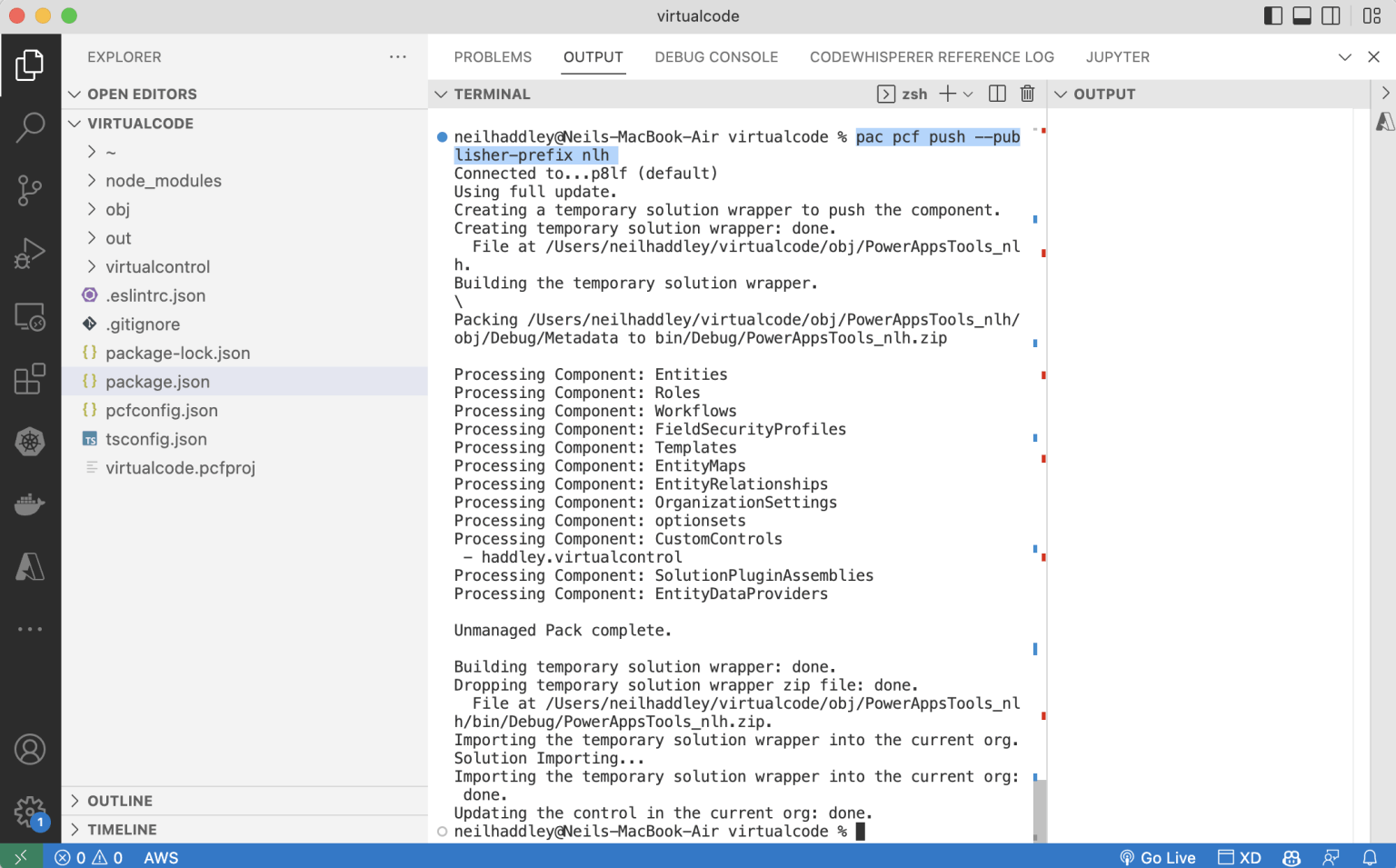

pac pcf push --publisher-prefix nlh

pac pcf push --publisher-prefix nlh

Component has been pushed to Power Apps environment

Component has been pushed to Power Apps environment

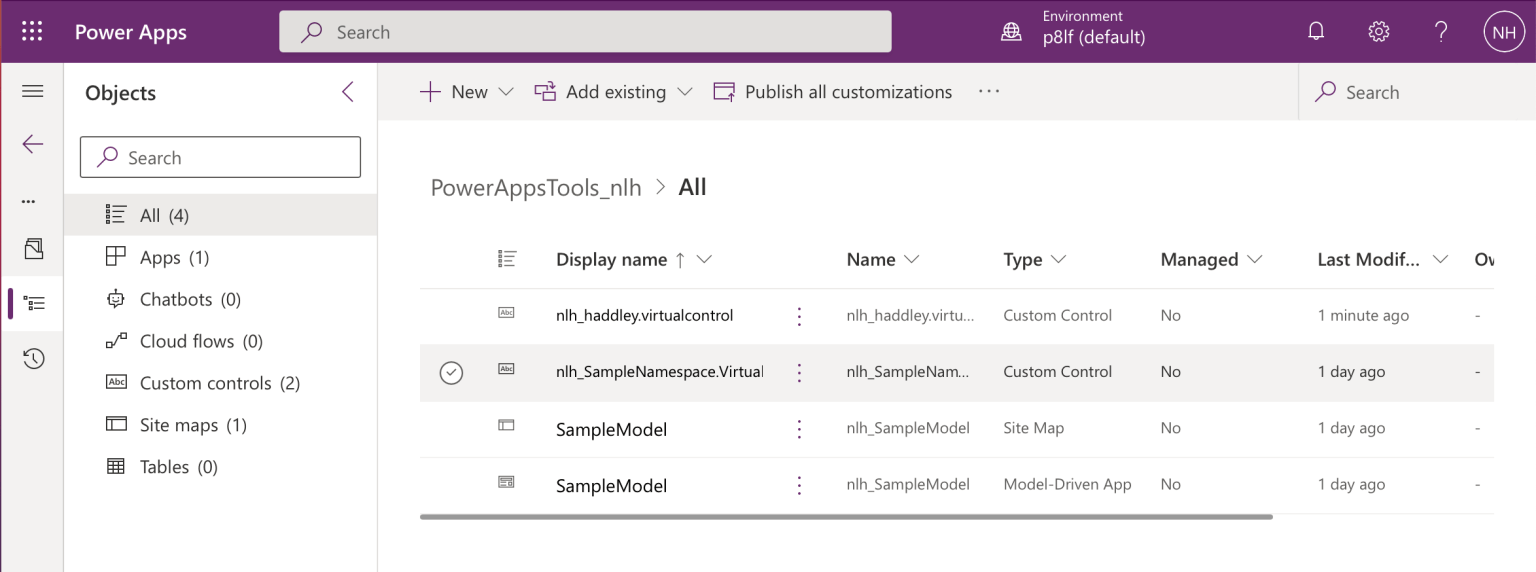

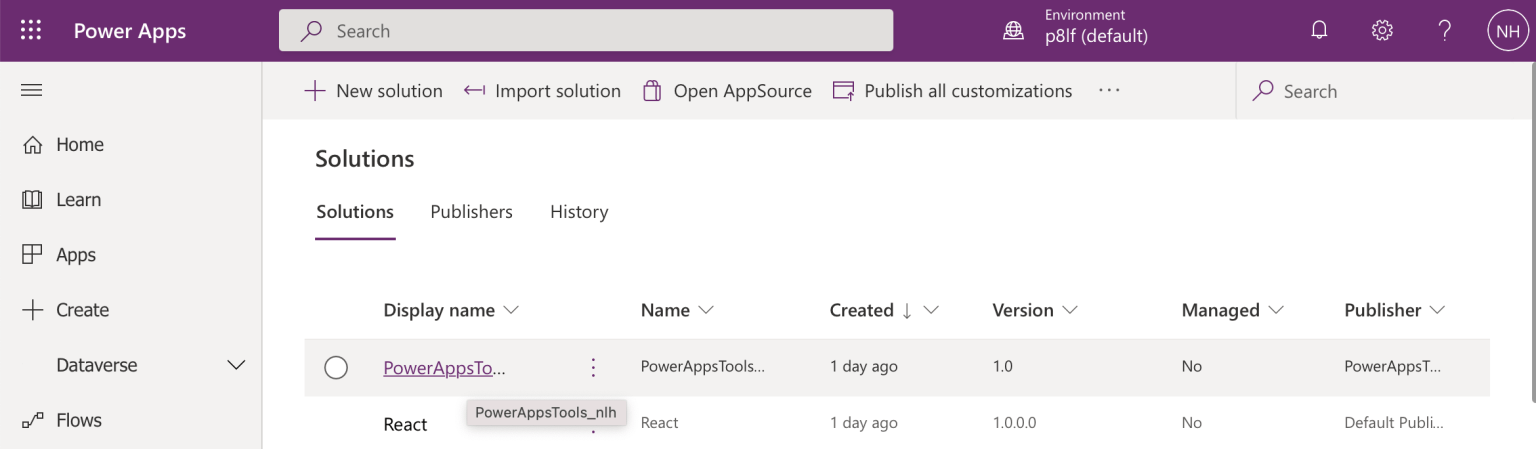

Contents of solution

Contents of solution

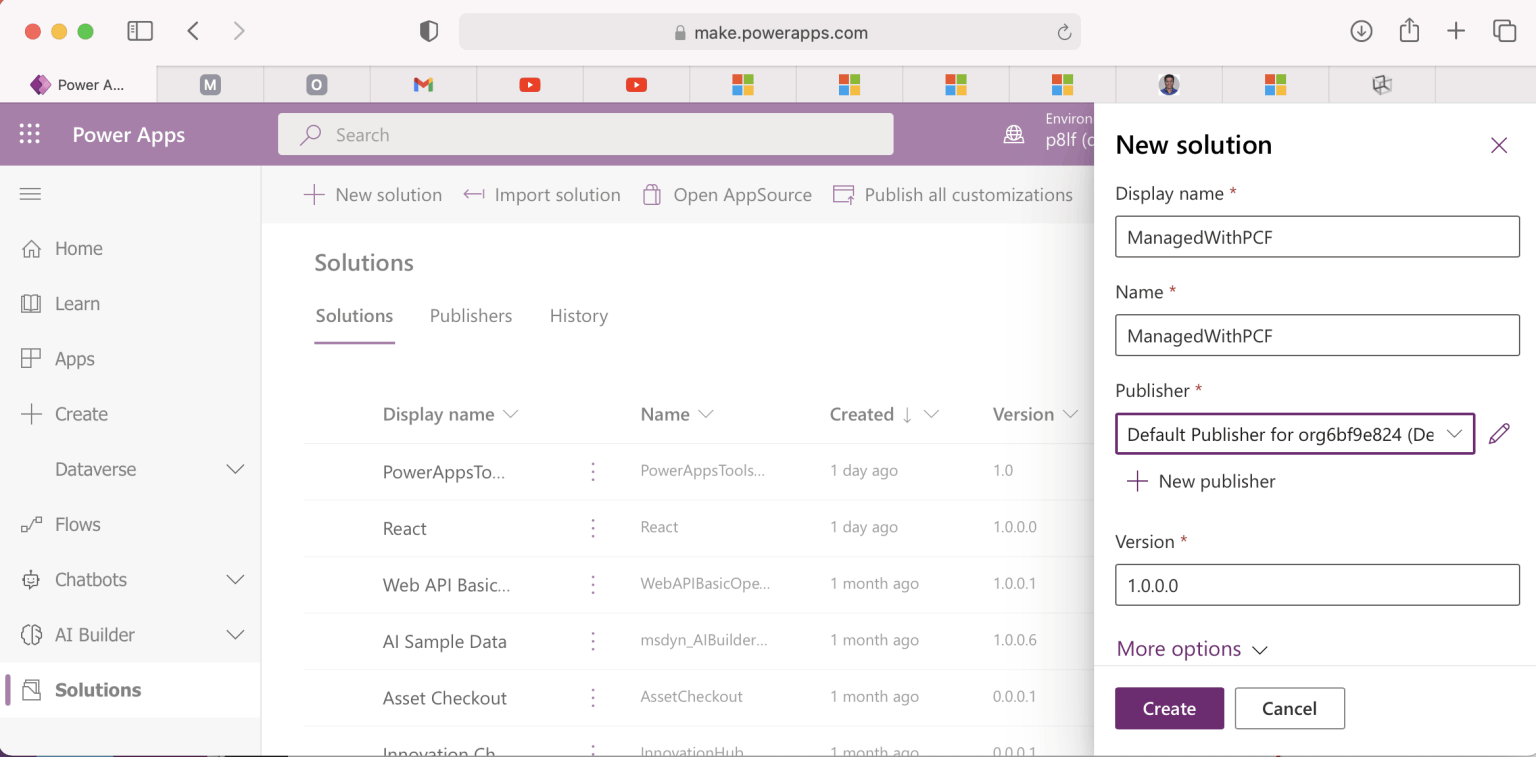

Create a test solution

Create a test solution

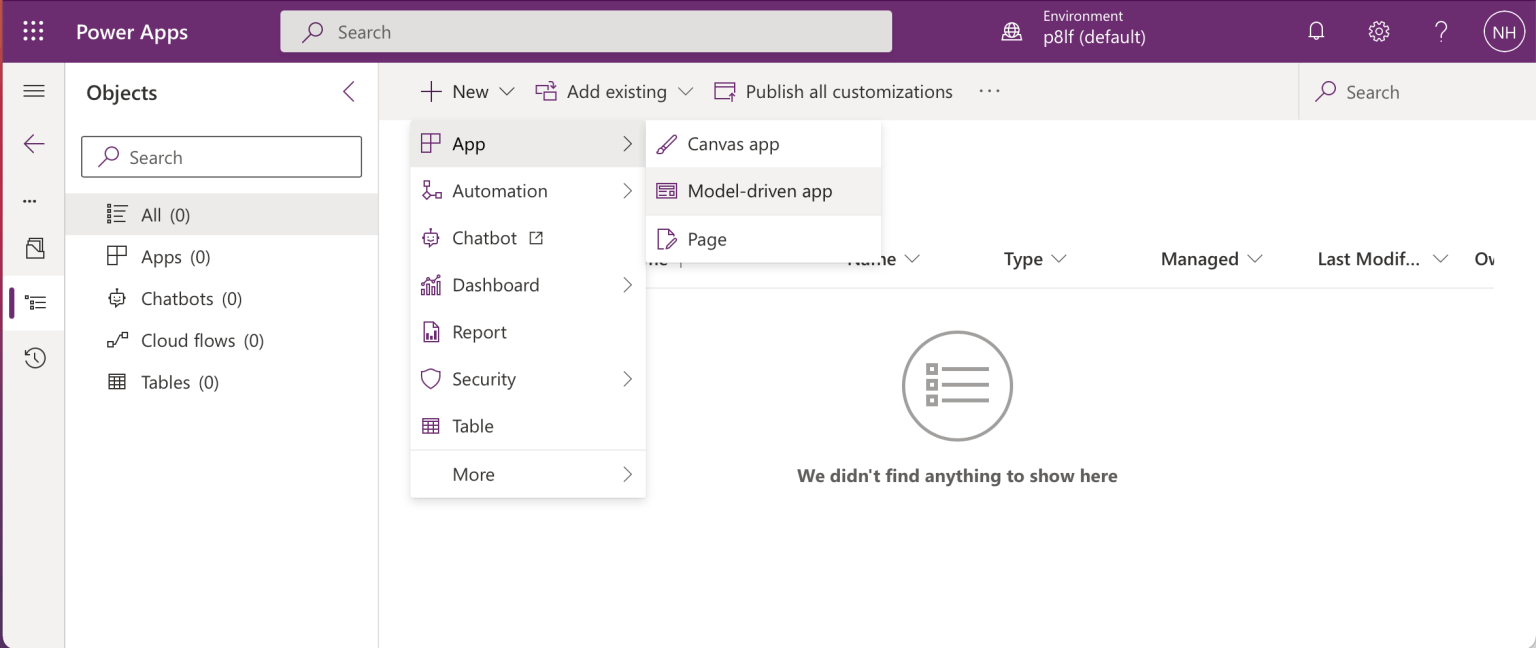

New model-drive app

New model-drive app

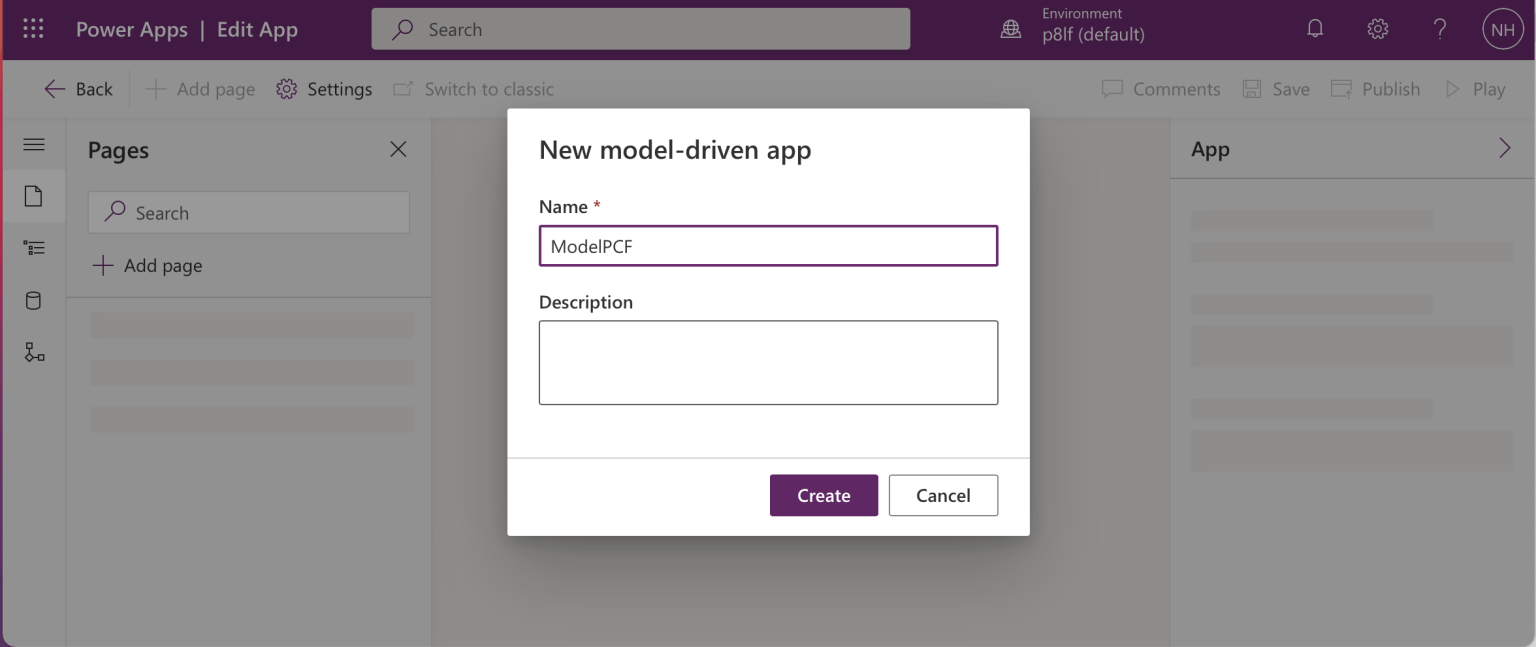

Name model driven app

Name model driven app

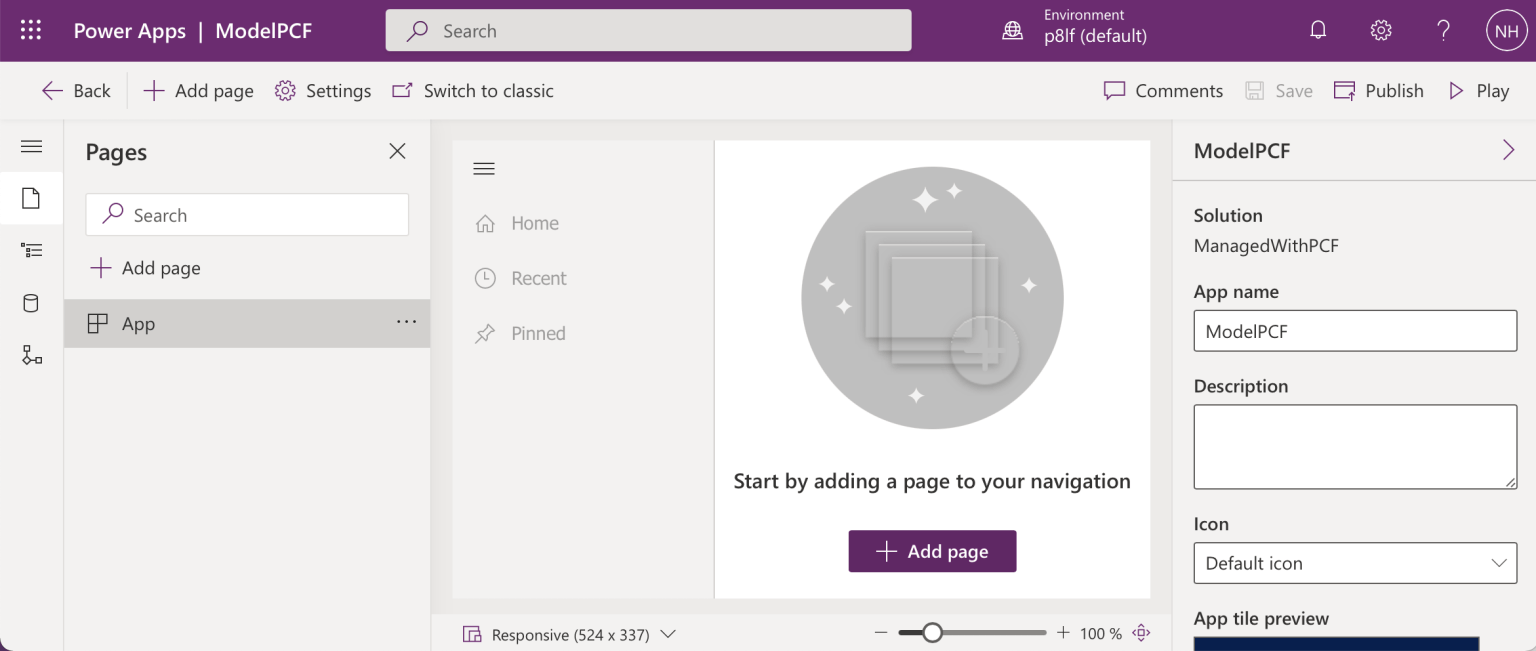

Add page

Add page

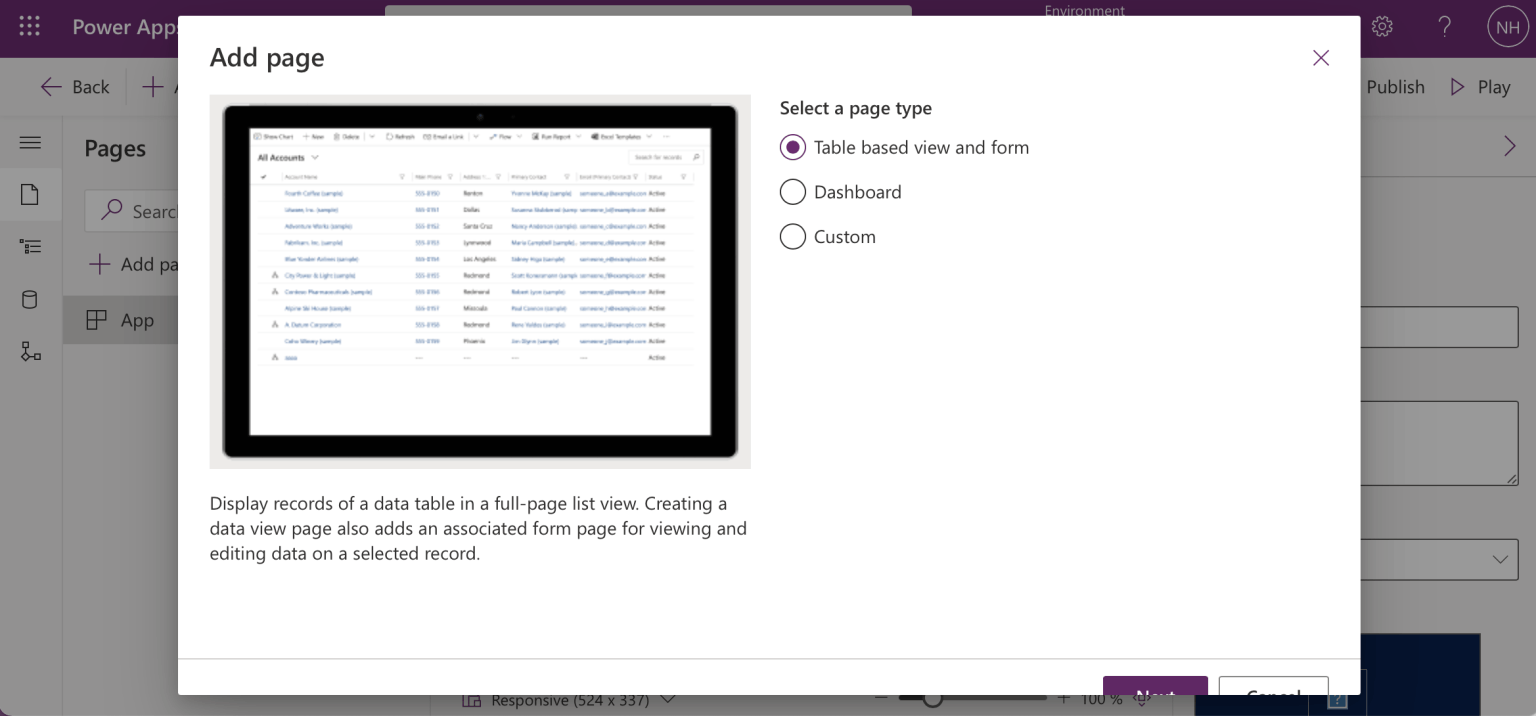

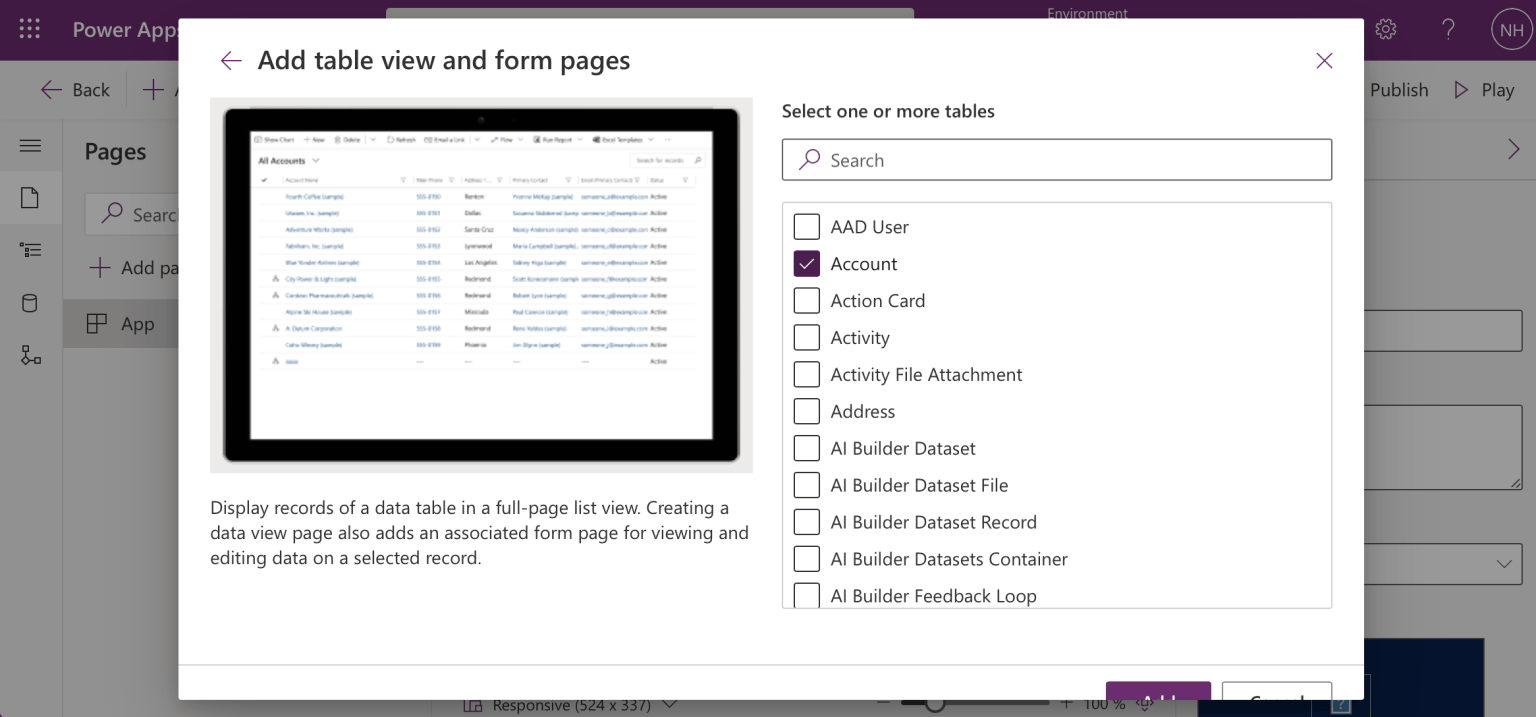

Select Table based view and form

Select Table based view and form

Select "Account" entity/table

Select "Account" entity/table

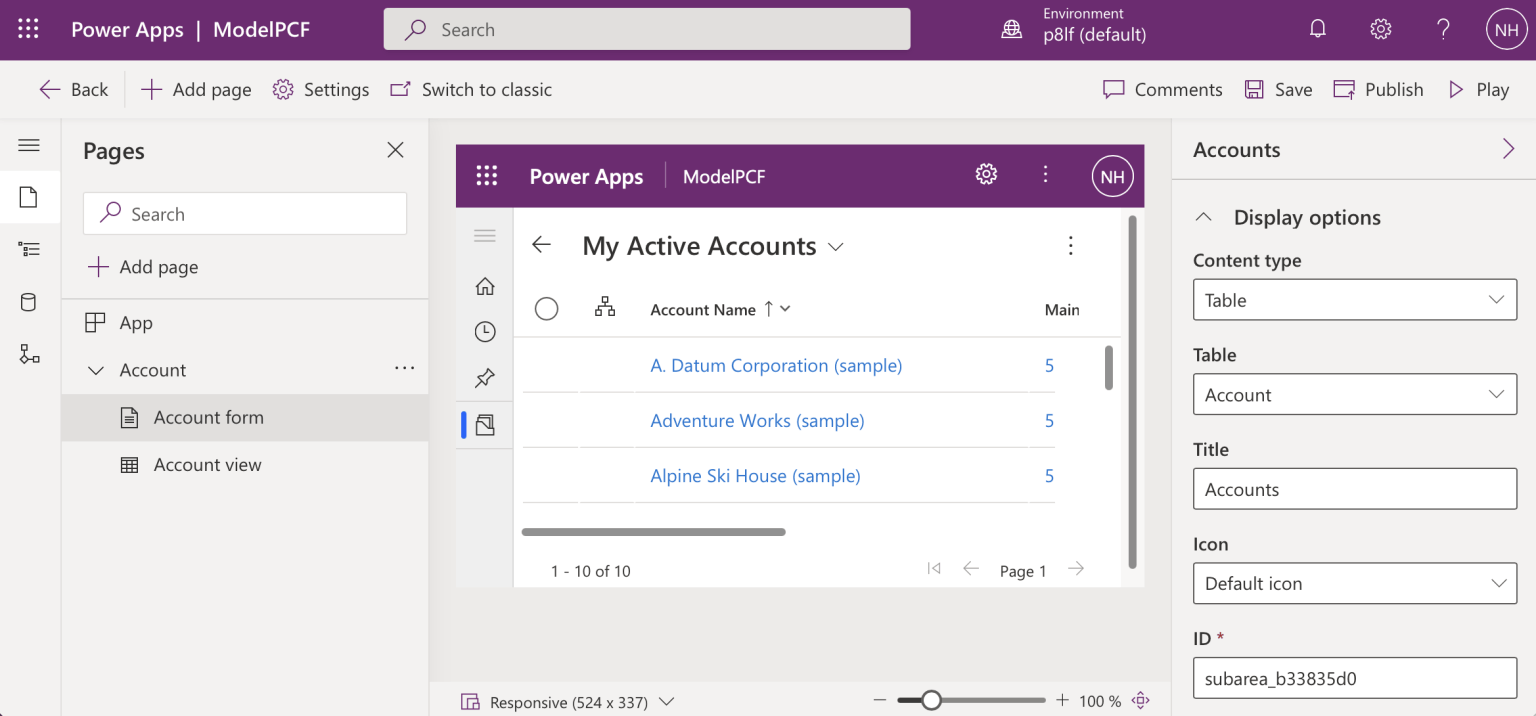

Switch to classic

Switch to classic

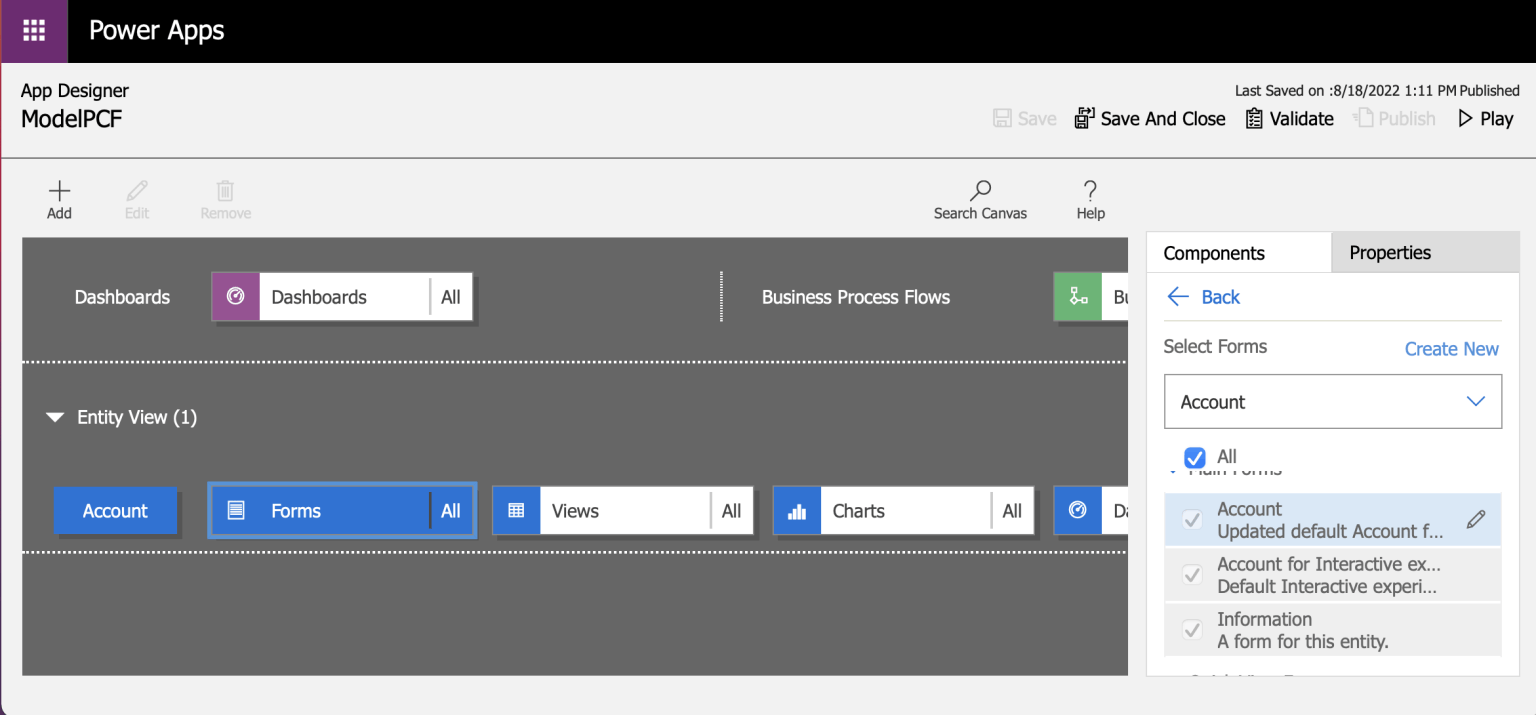

Edit Information A form for this entity

Edit Information A form for this entity

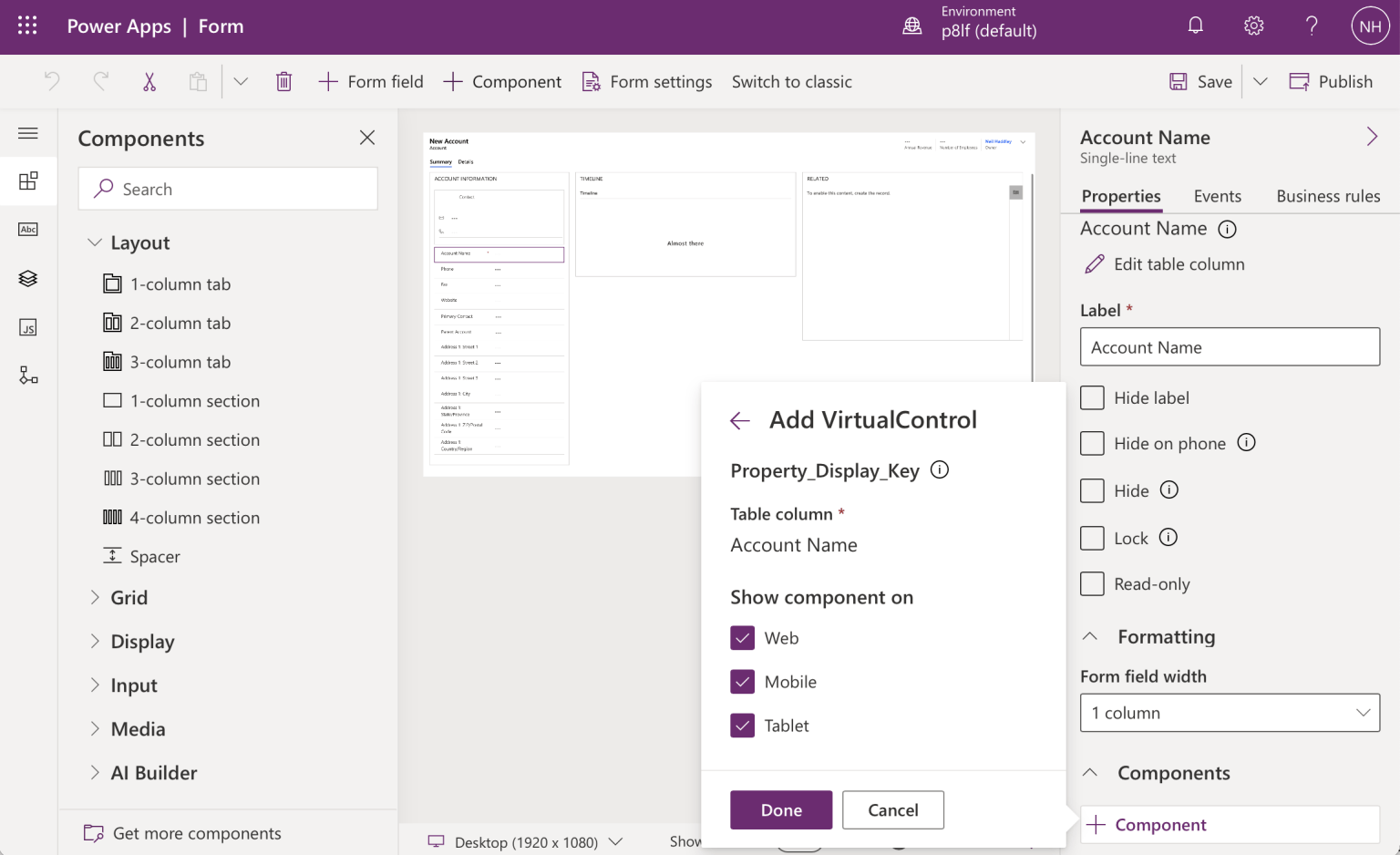

Add code component (use for Web, Mobile and Tablet displays)

Add code component (use for Web, Mobile and Tablet displays)

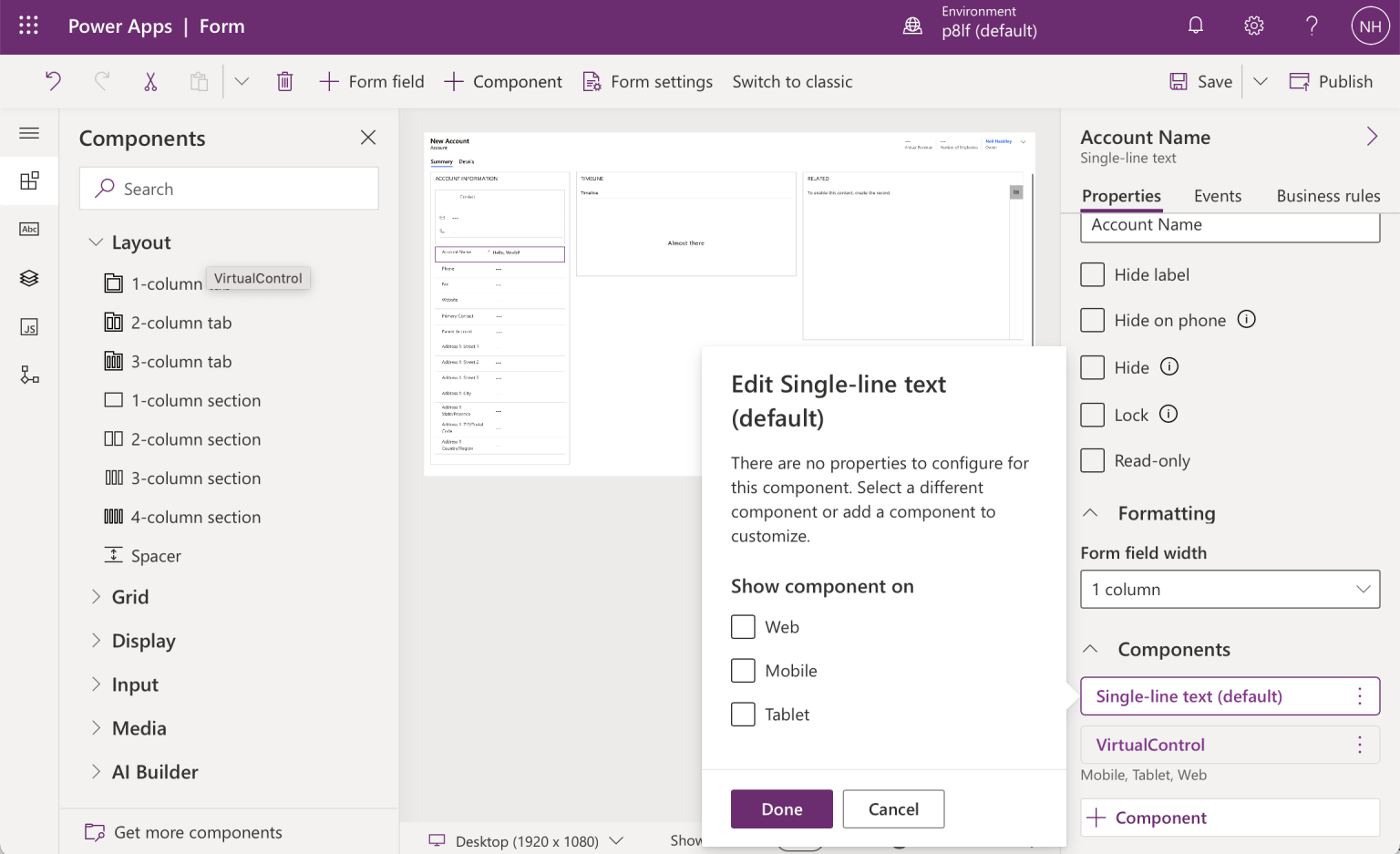

Default Single-line text control will never be used

Default Single-line text control will never be used

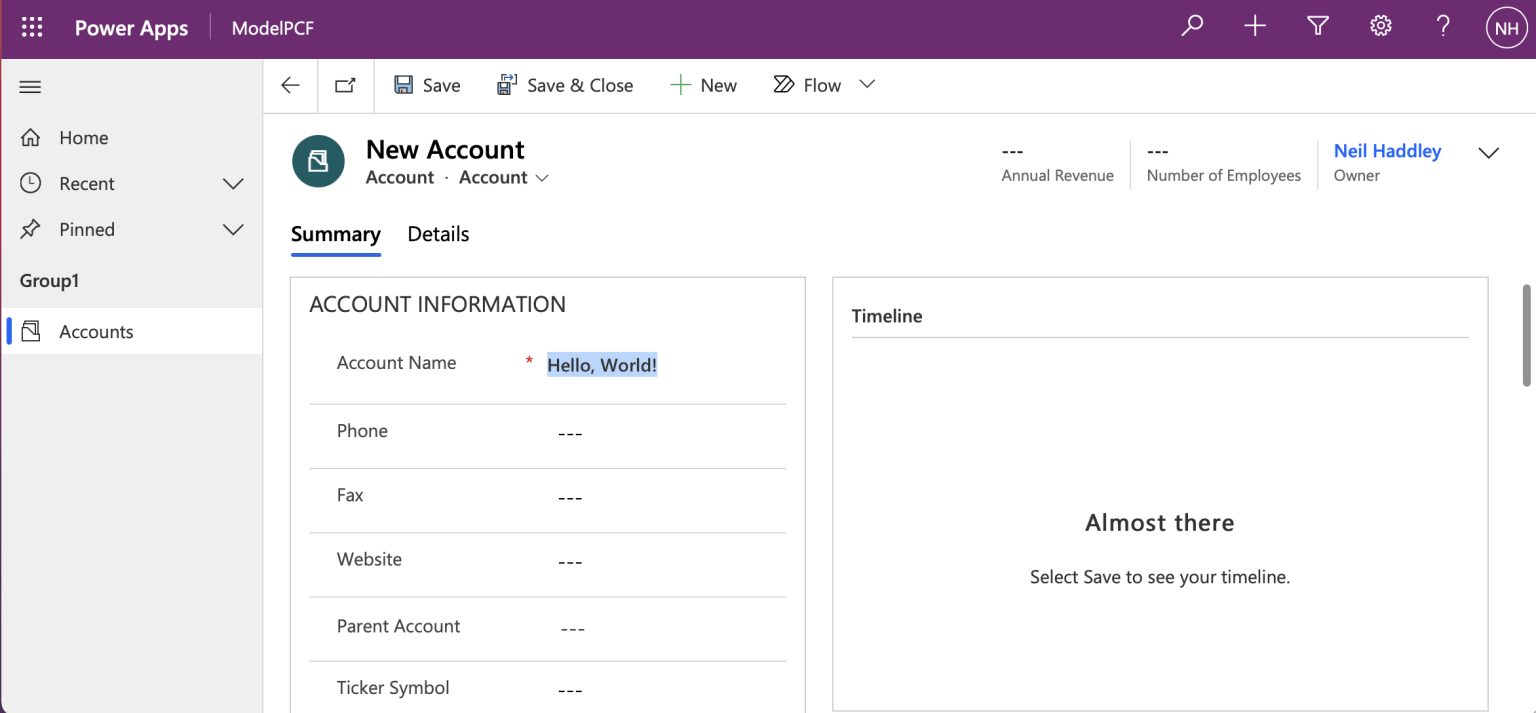

New Account form using code control

New Account form using code control
