Java Spring Boot (Part 2)

Neil Haddley • October 26, 2023

Generating a Spring Boot project with start.spring.io, running it locally, and deploying it to Azure App Service with GitHub Actions

Java Azure Spring Bootspring-bootspring-data-jpajpa

I used https://start.spring.io, Visual Studio Code, GitHub and Microsoft Azure to generate an Spring application, to run the Spring application on my laptop and to deploy the Spring application to Microsoft Azure

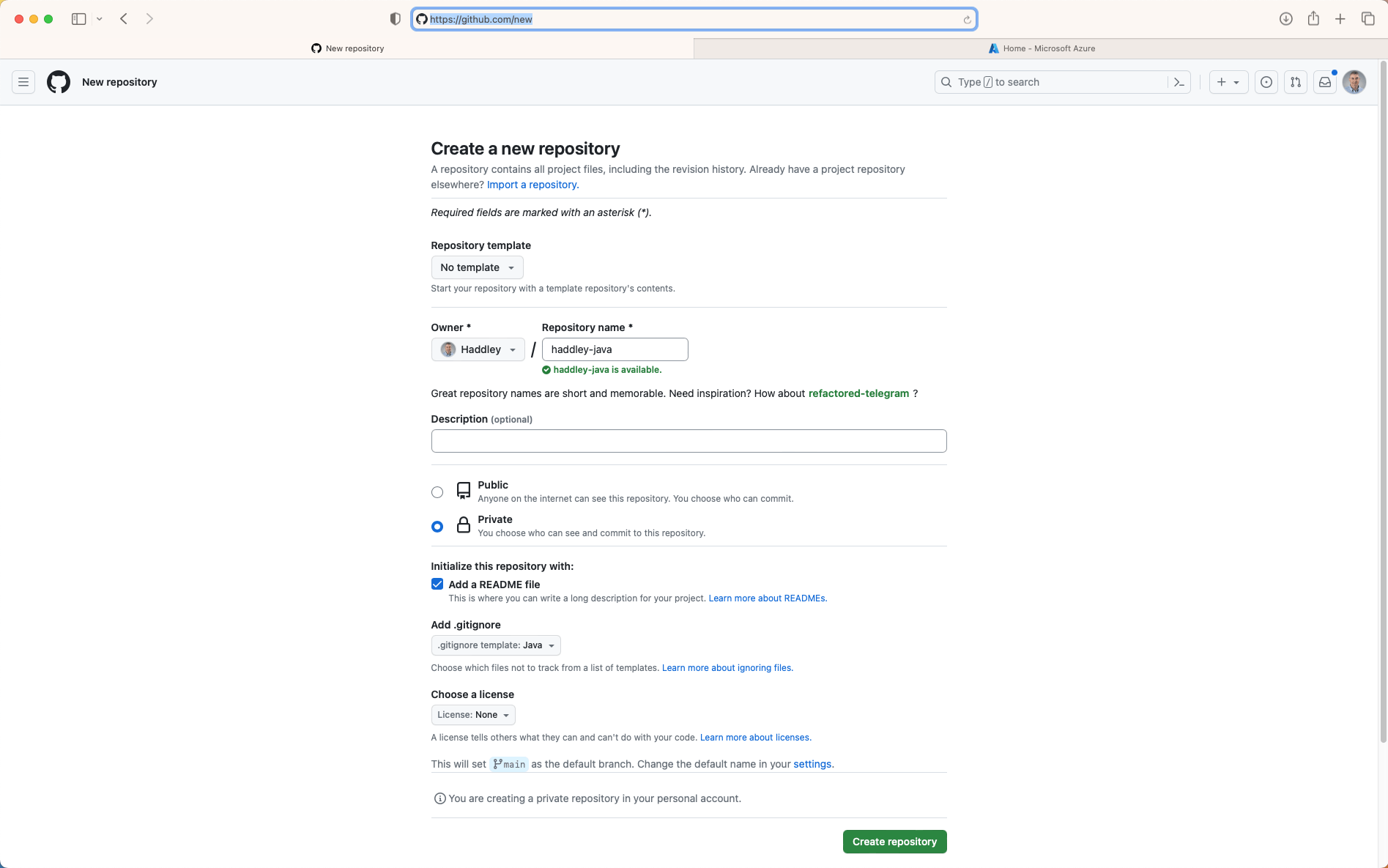

I created a new GitHub repository (haddley-java)

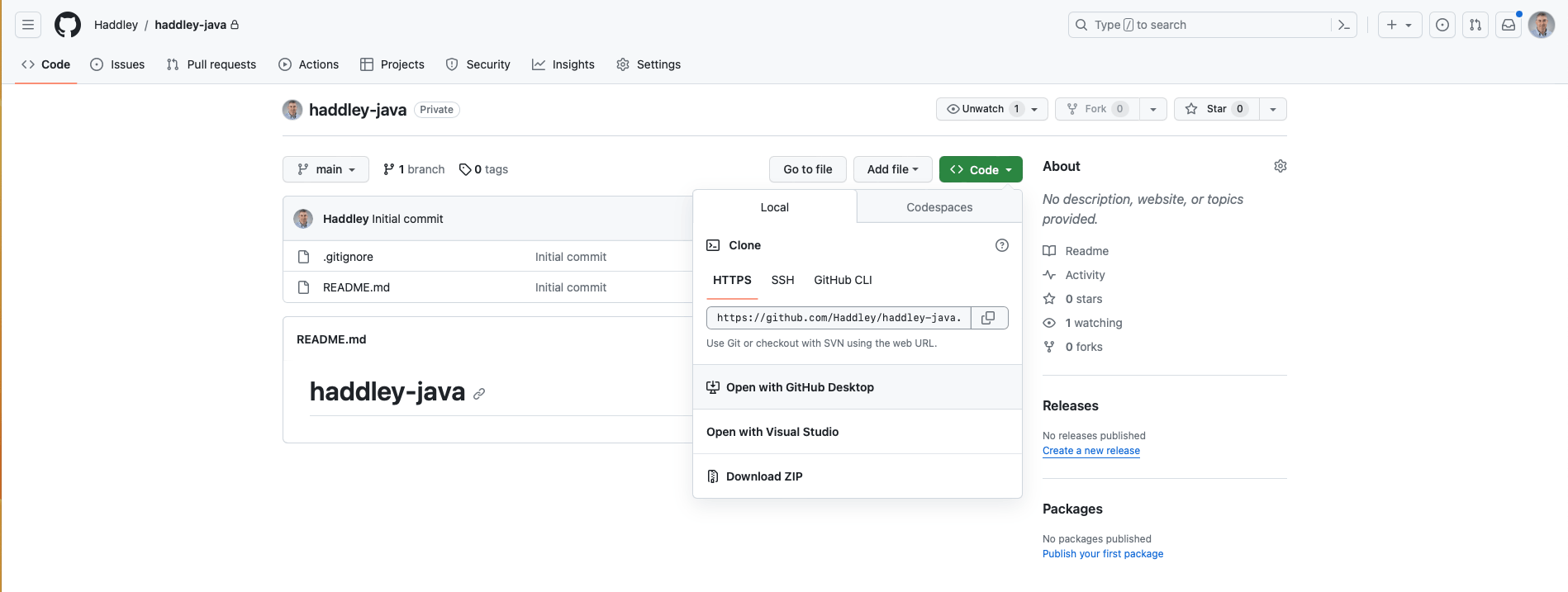

I clicked the Open with GitHub Desktop menu item

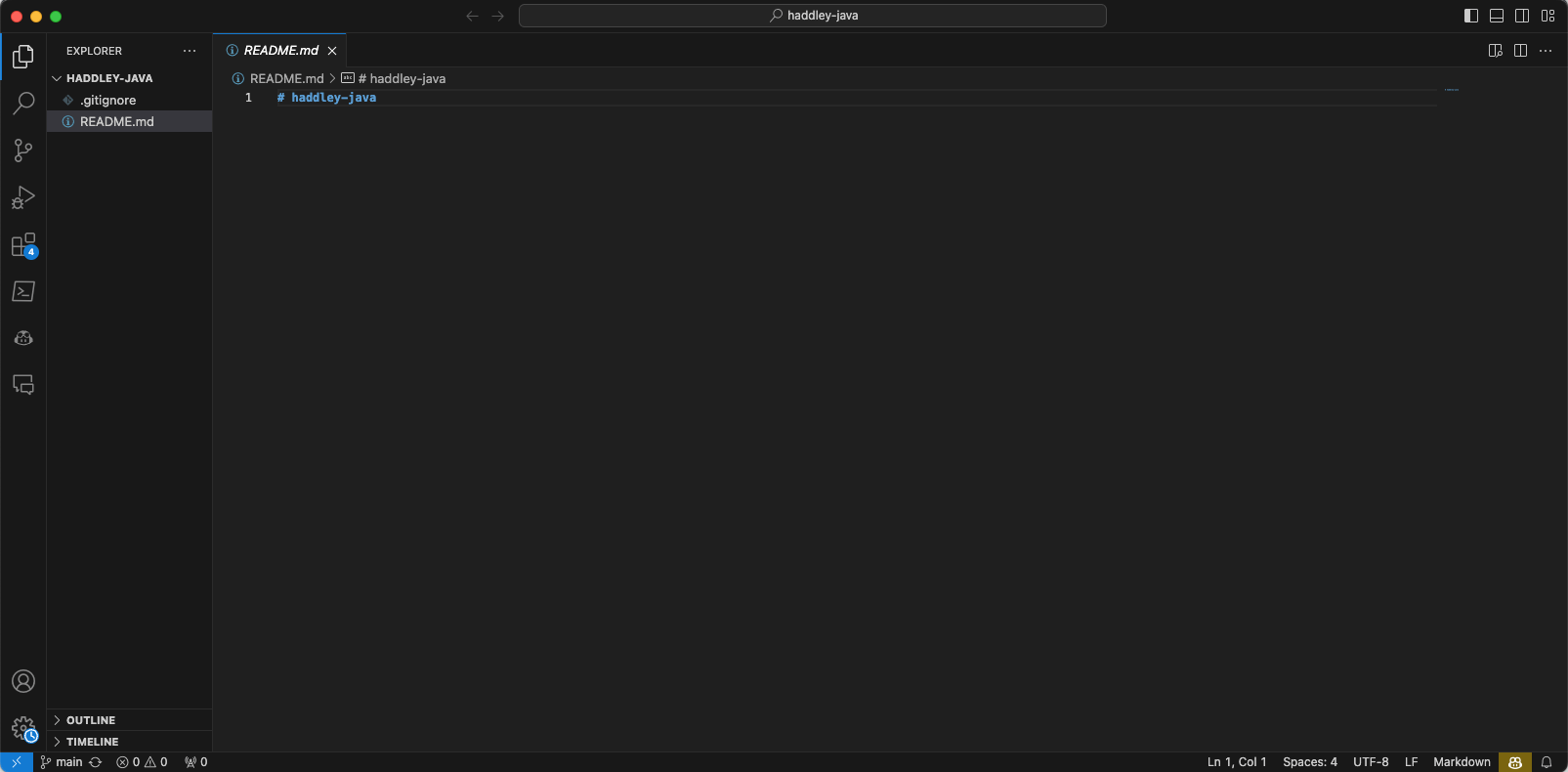

I used the Open in Visual Studio Code (Insiders) button to open the repository in Visual Studio Code

I needed some sample code

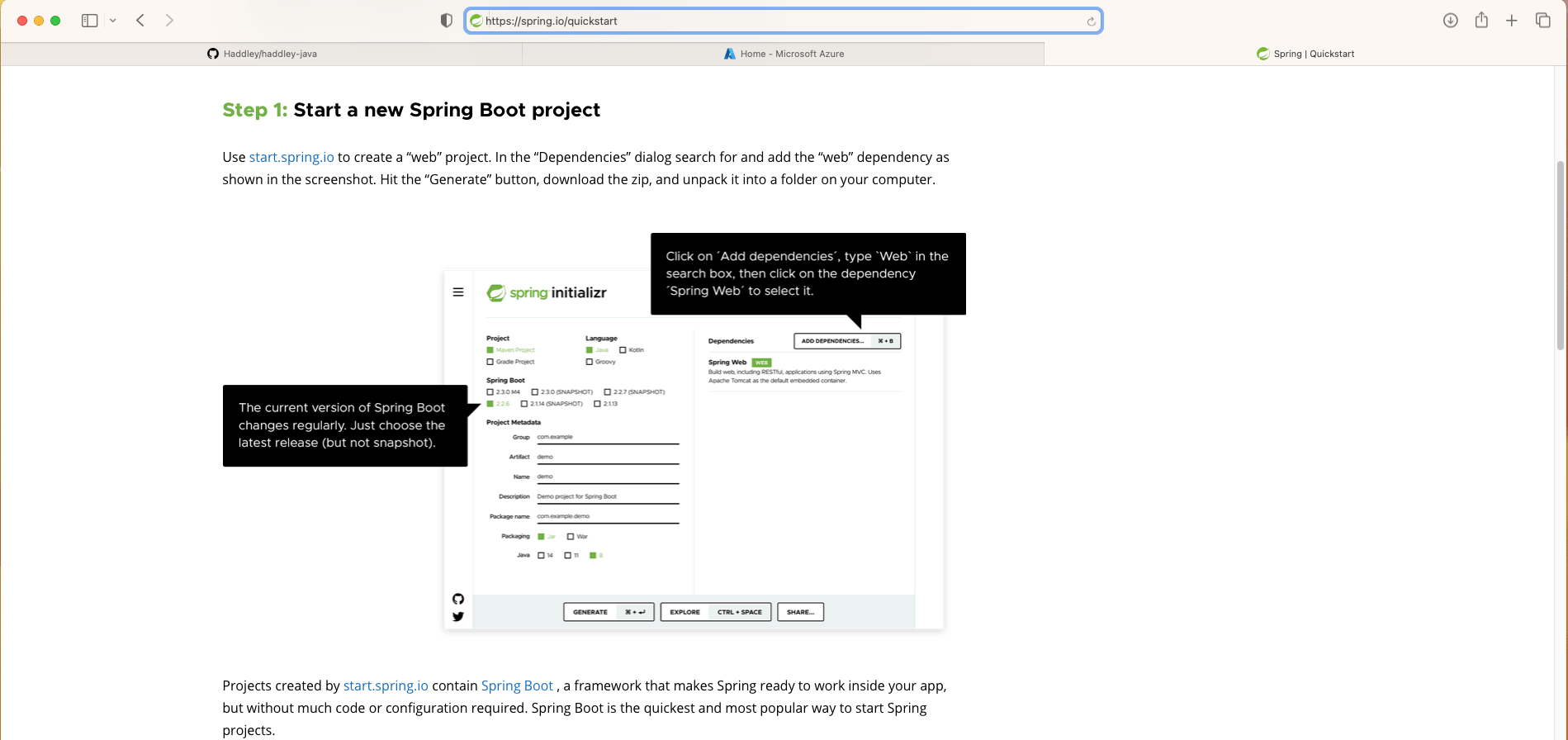

https://spring.io/quickstart explains how to create a sample project

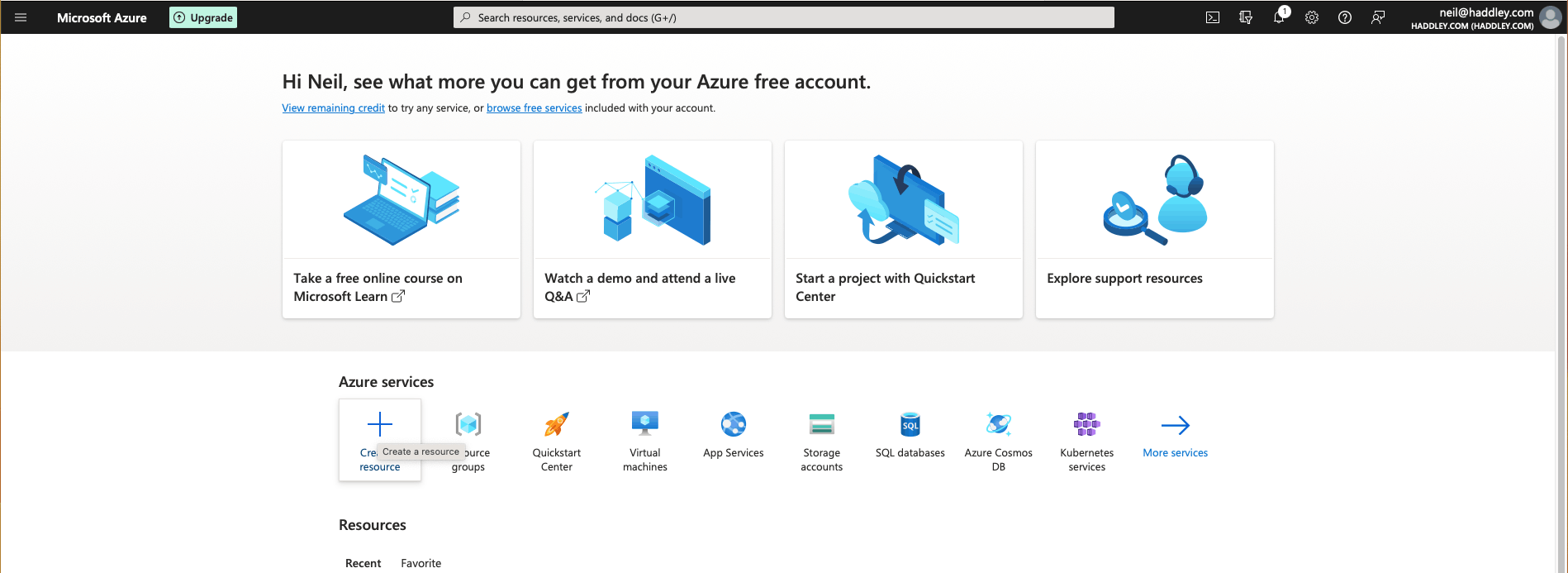

I logged into the Azure Portal to see what versions of Java were supported

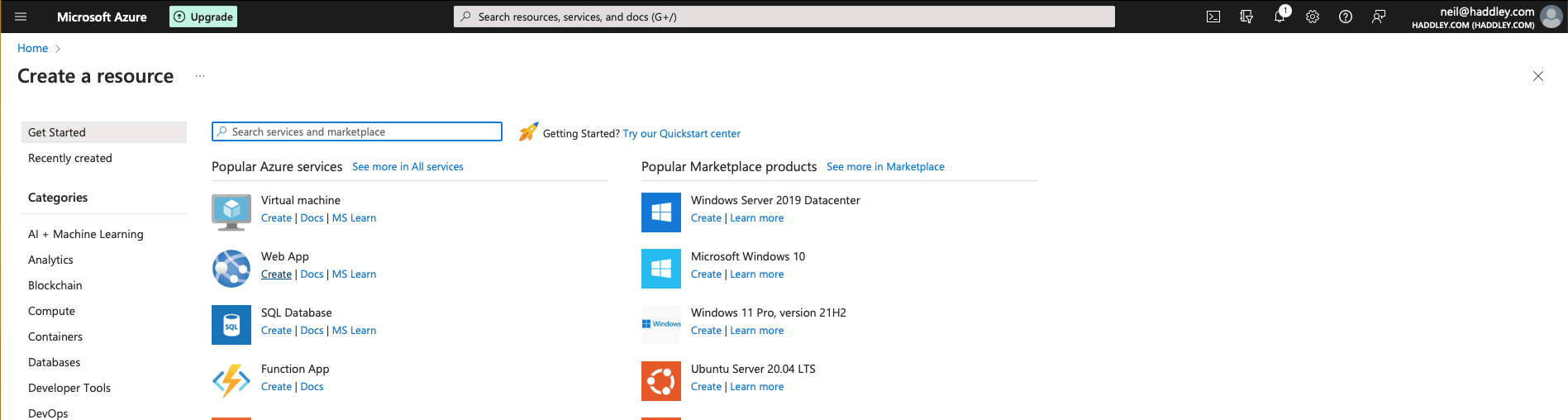

I clicked the Web App Create link

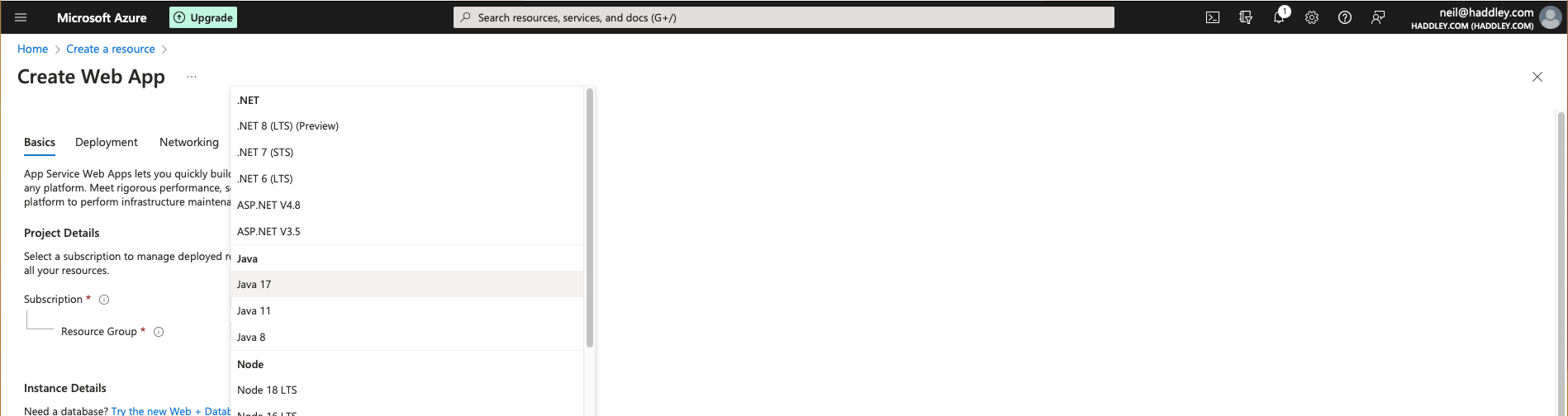

The latest version of Java supported was 17

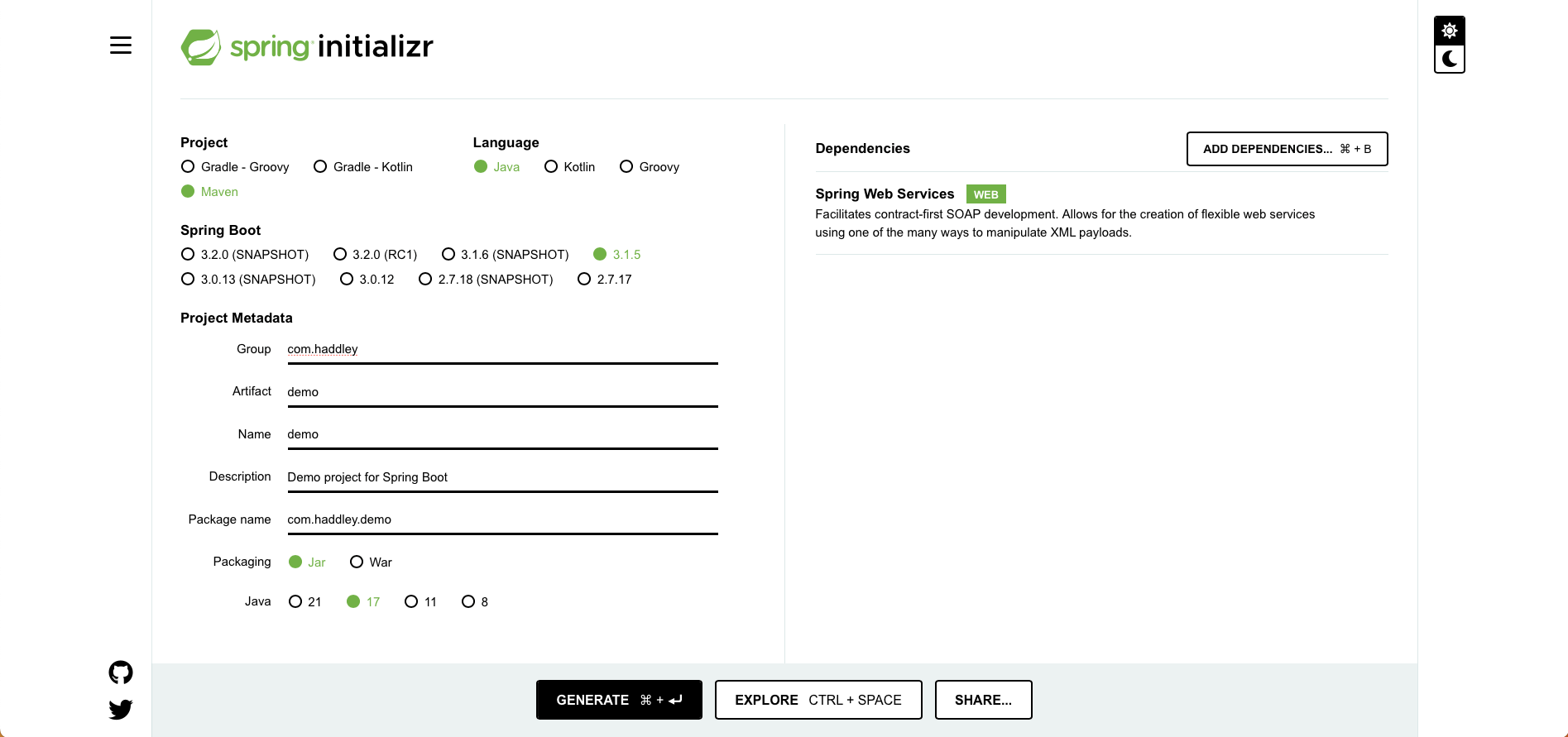

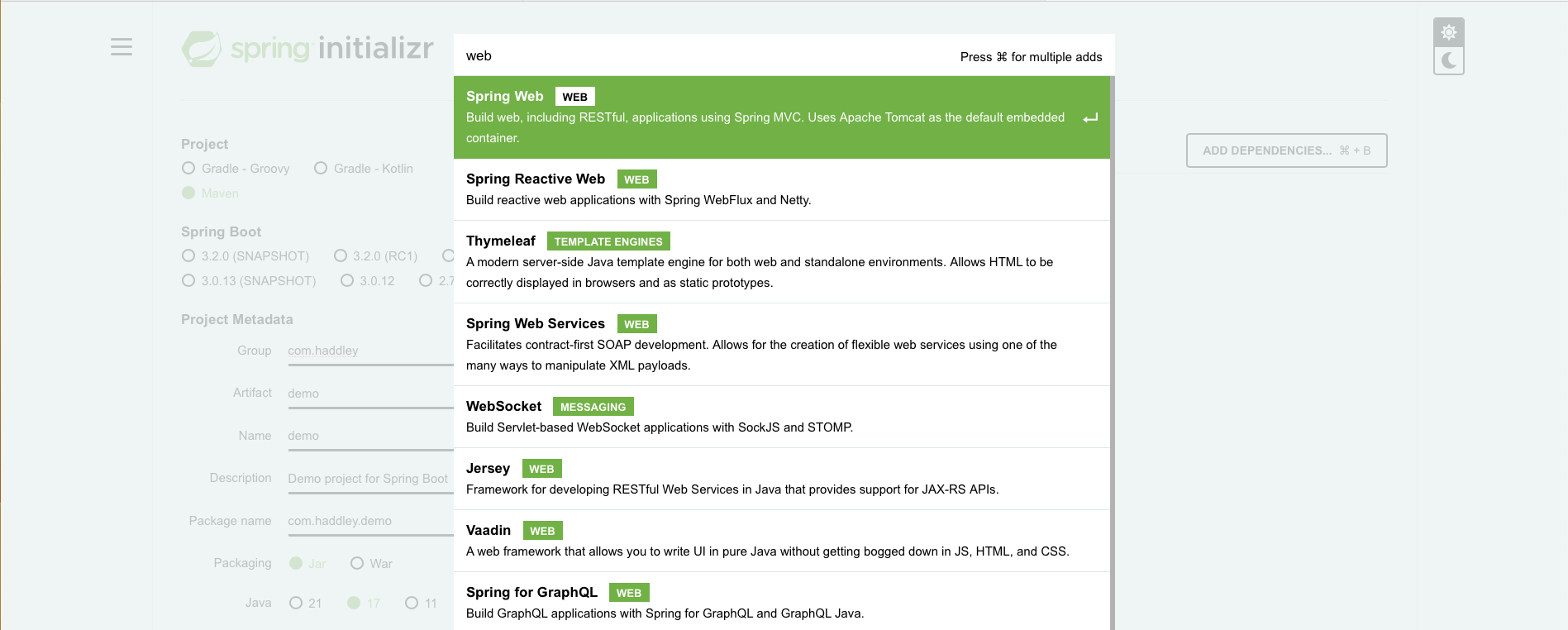

I navigated to https://start.spring.io/ and updated Group to "com.haddley" and added the Spring Web dependency

I clicked the GENERATE button

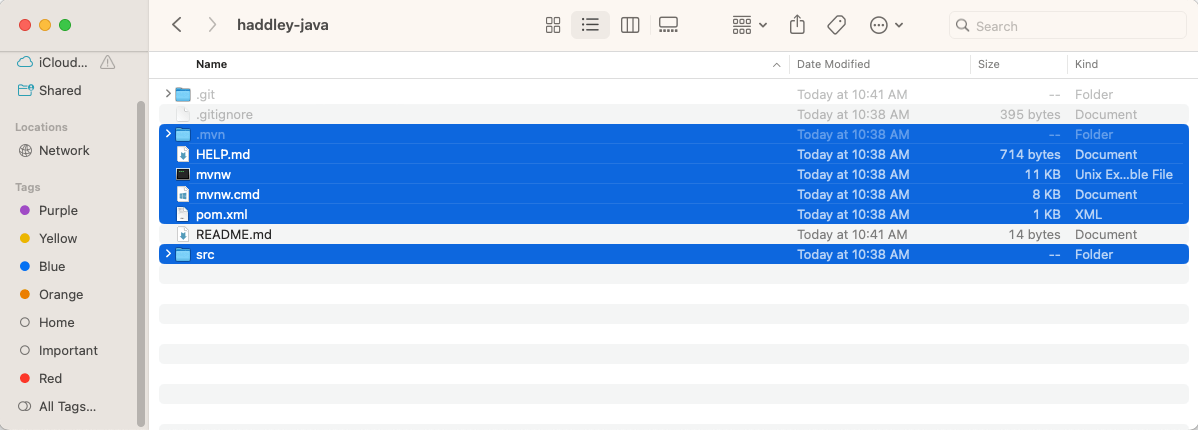

I copied the generated file to my local copy of the haddley-java repository

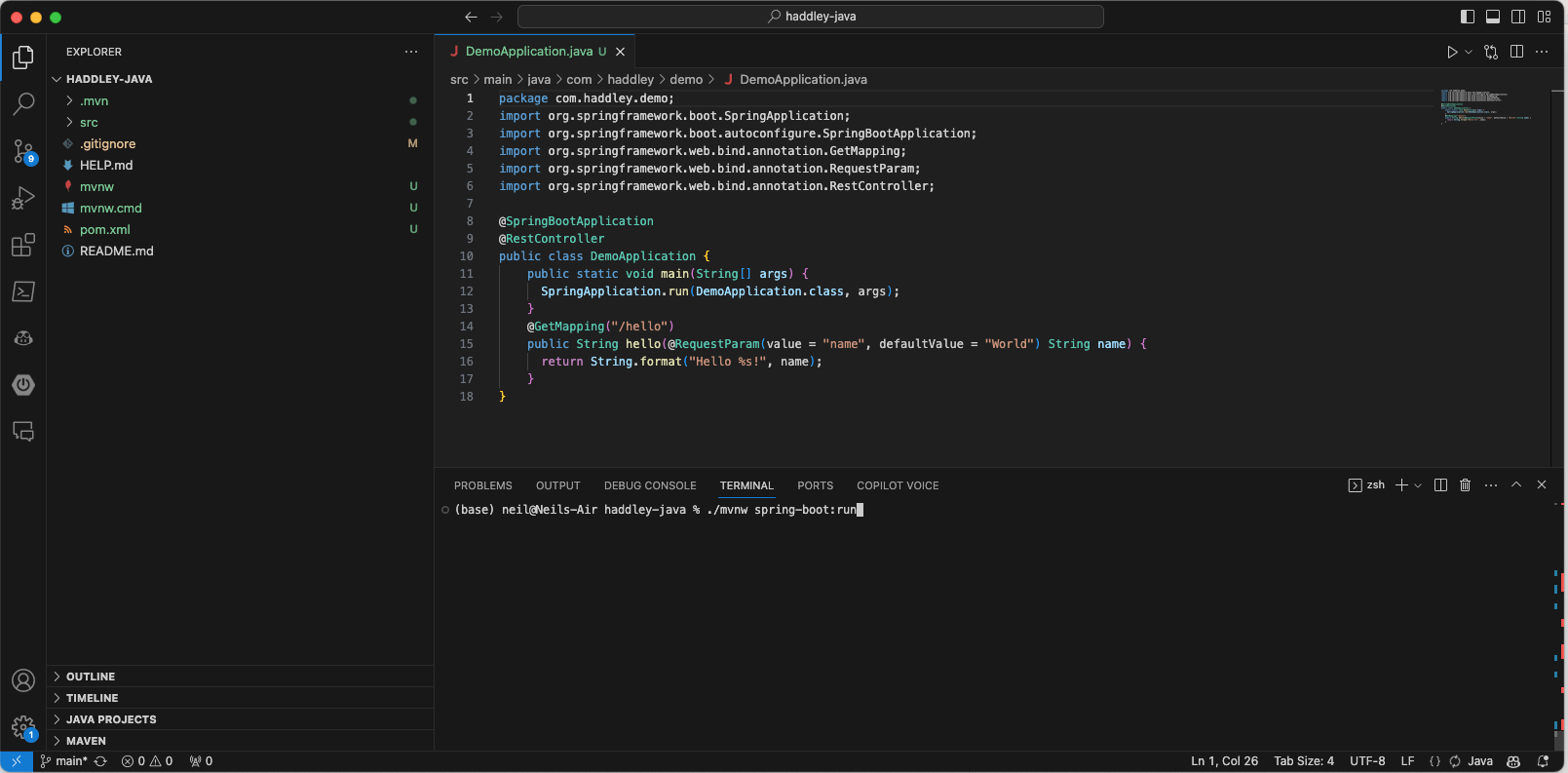

I updated the code to include support for the /hello path and ran using ./mvnw spring-boot:run

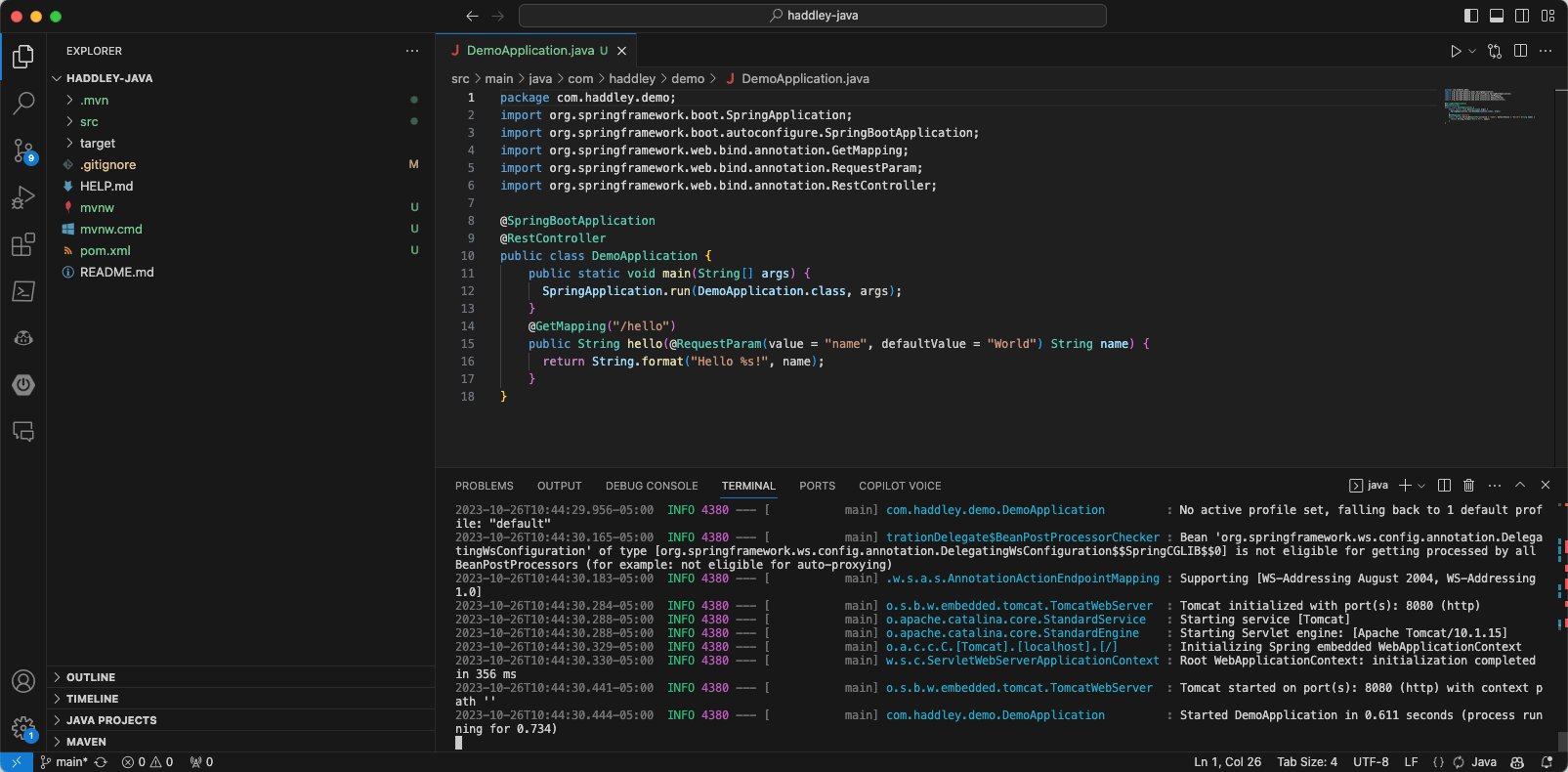

Tomcat initialized with port 8080

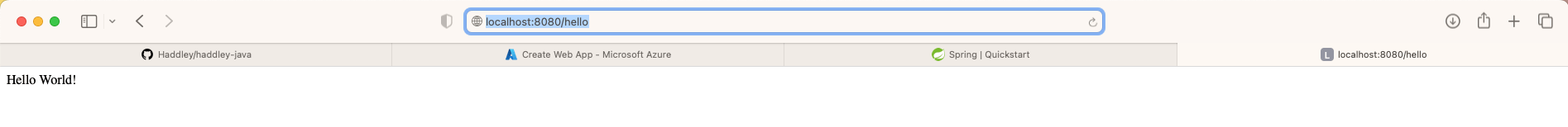

I navigated to http://localhost:8080/hello

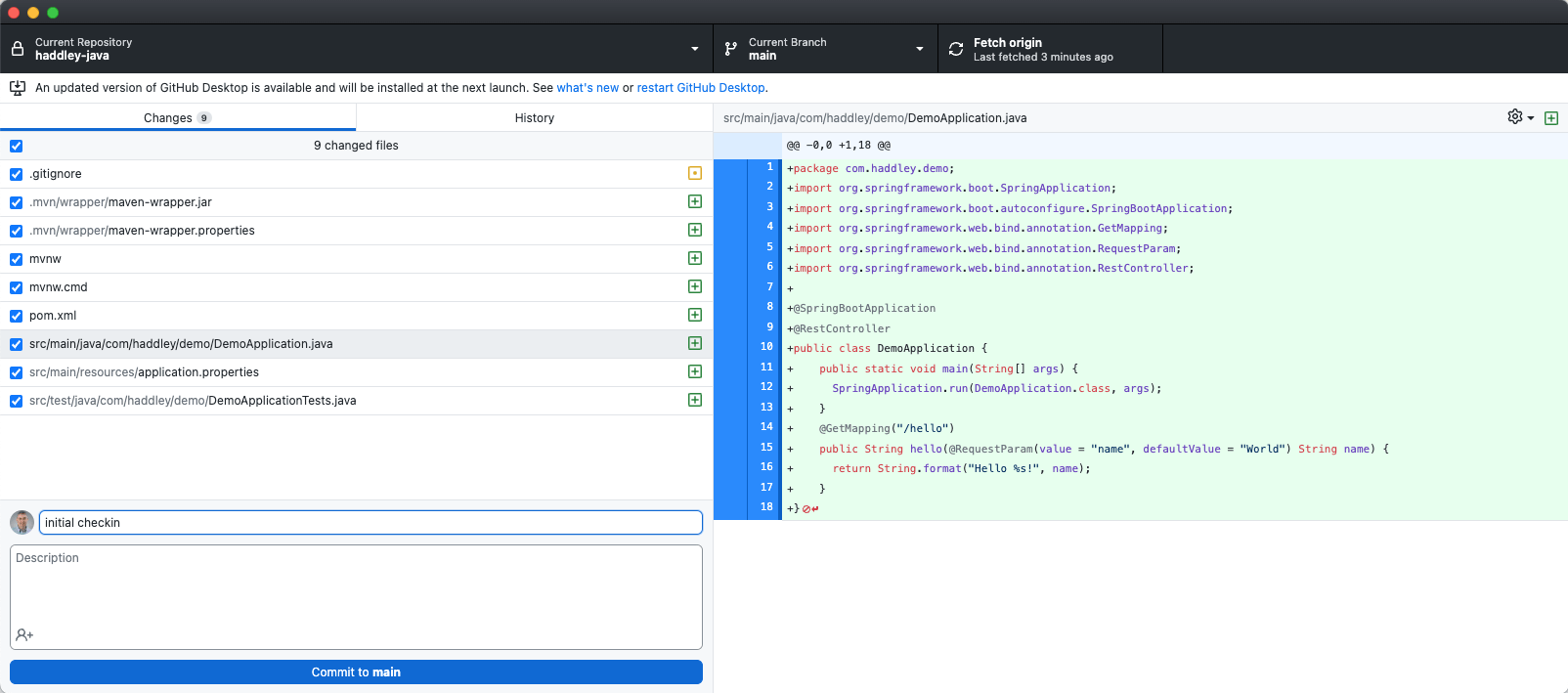

I checked my changes

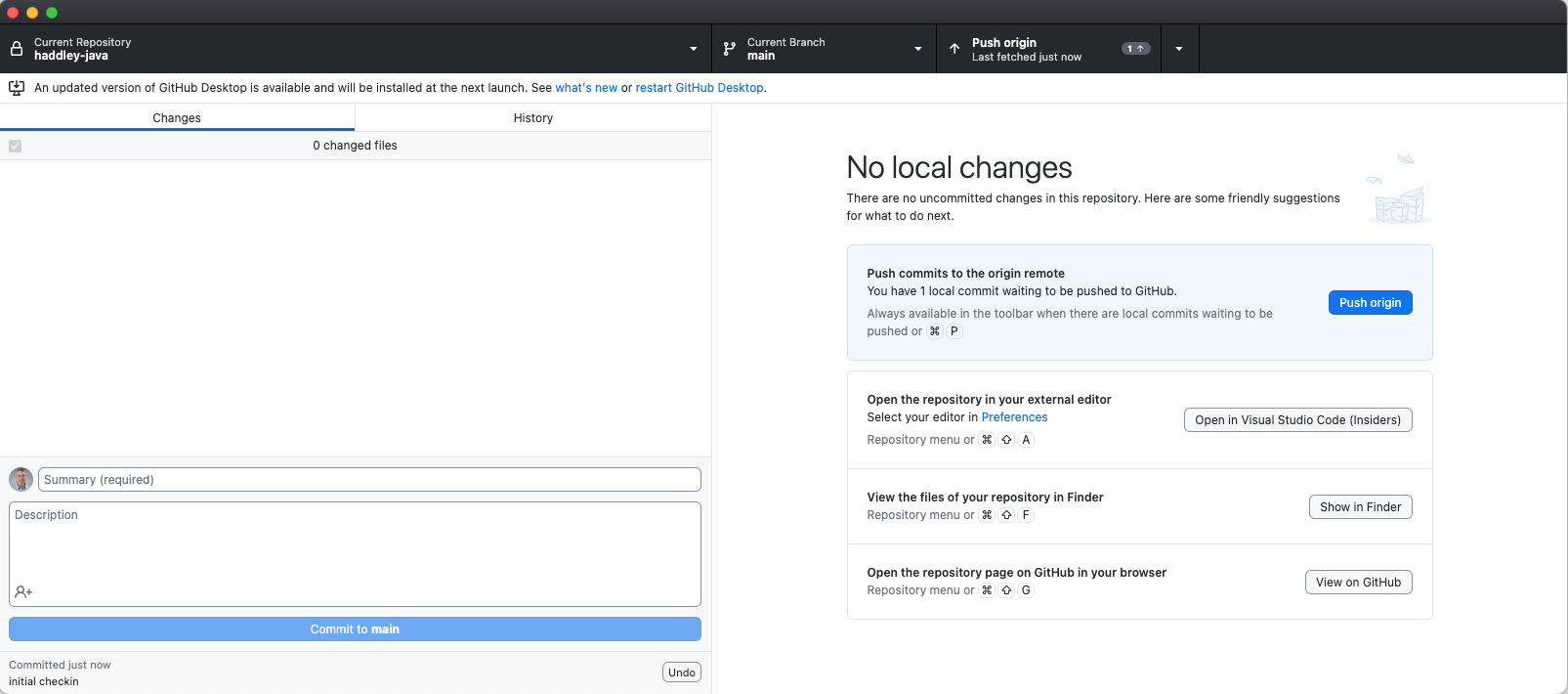

I clicked Push origin to upload my changes to GitHub

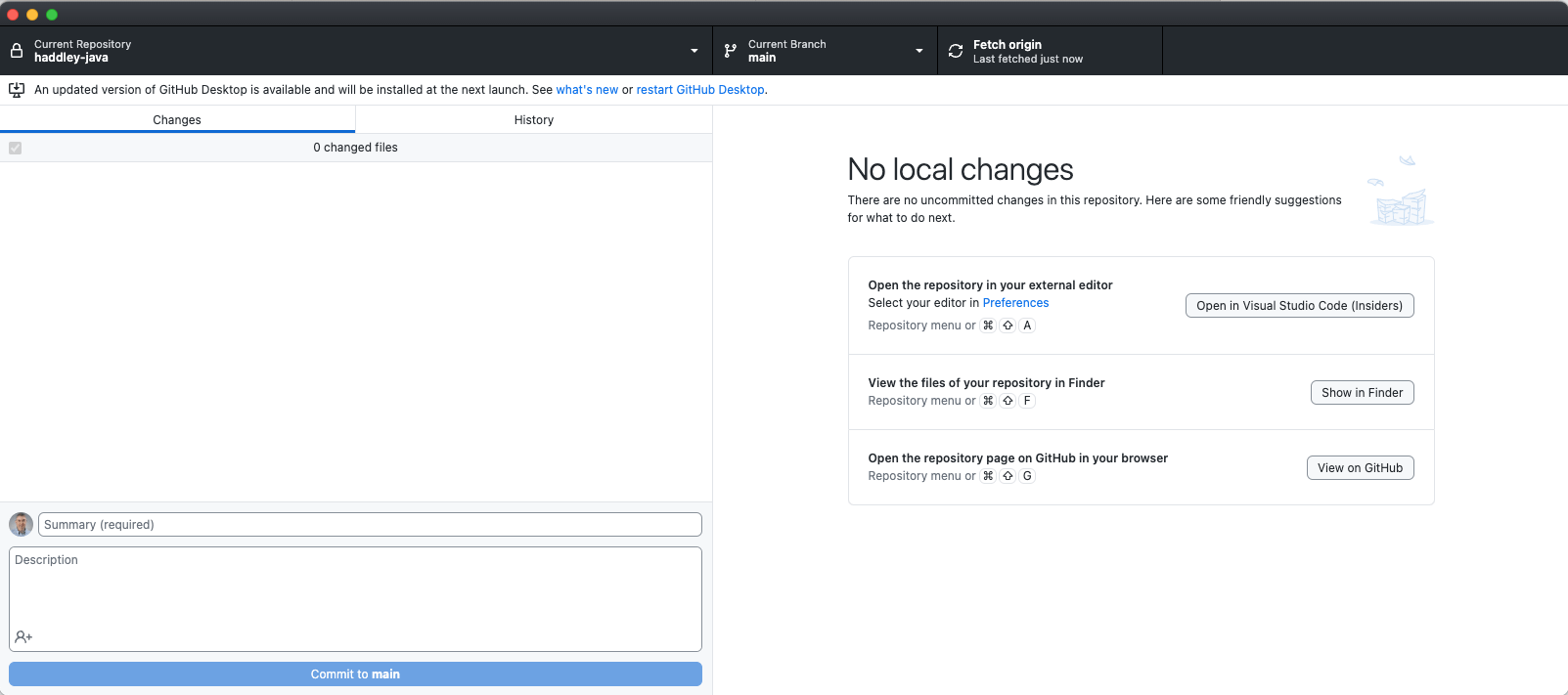

The changes were uploaded

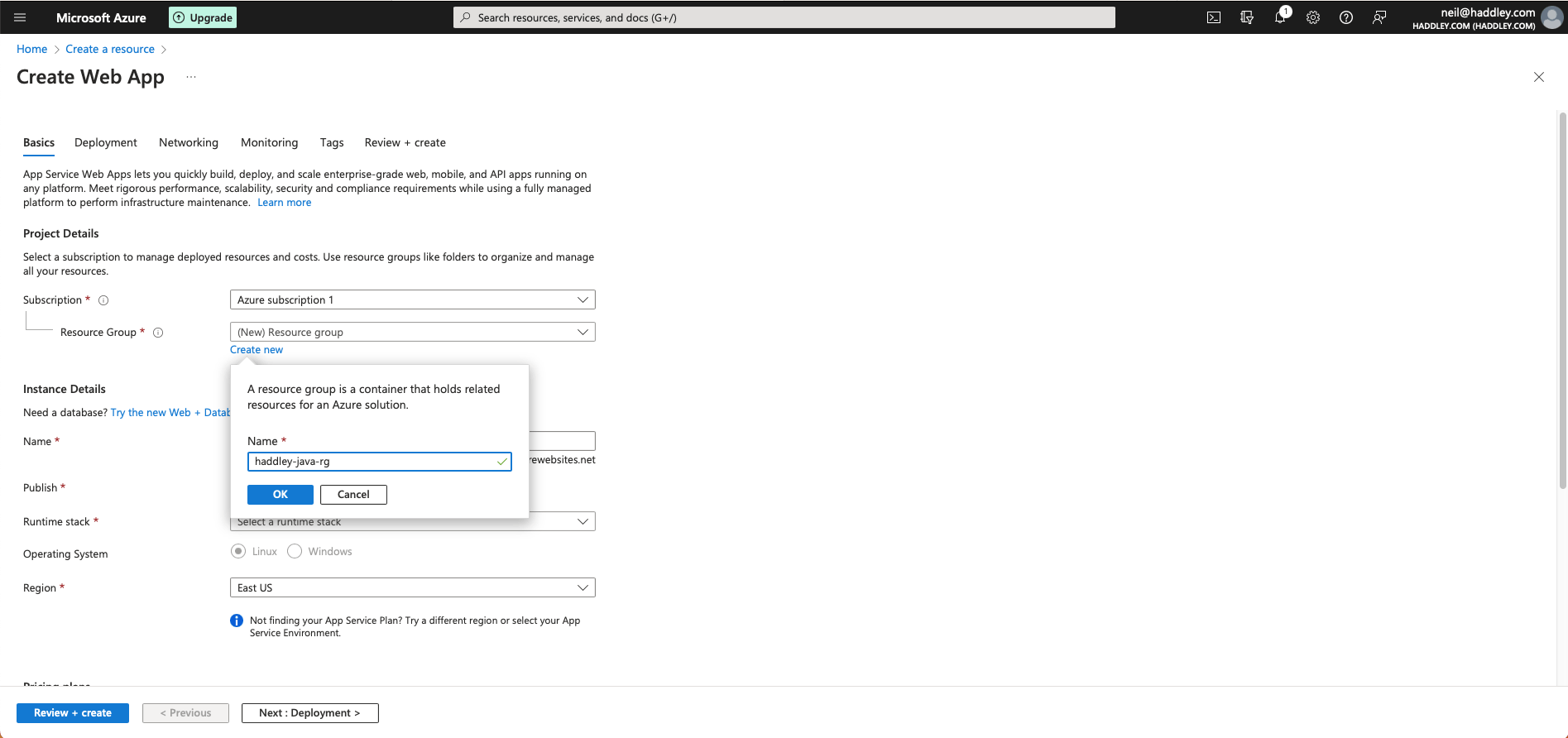

I added an Azure Resource Group (haddley-java-rg)

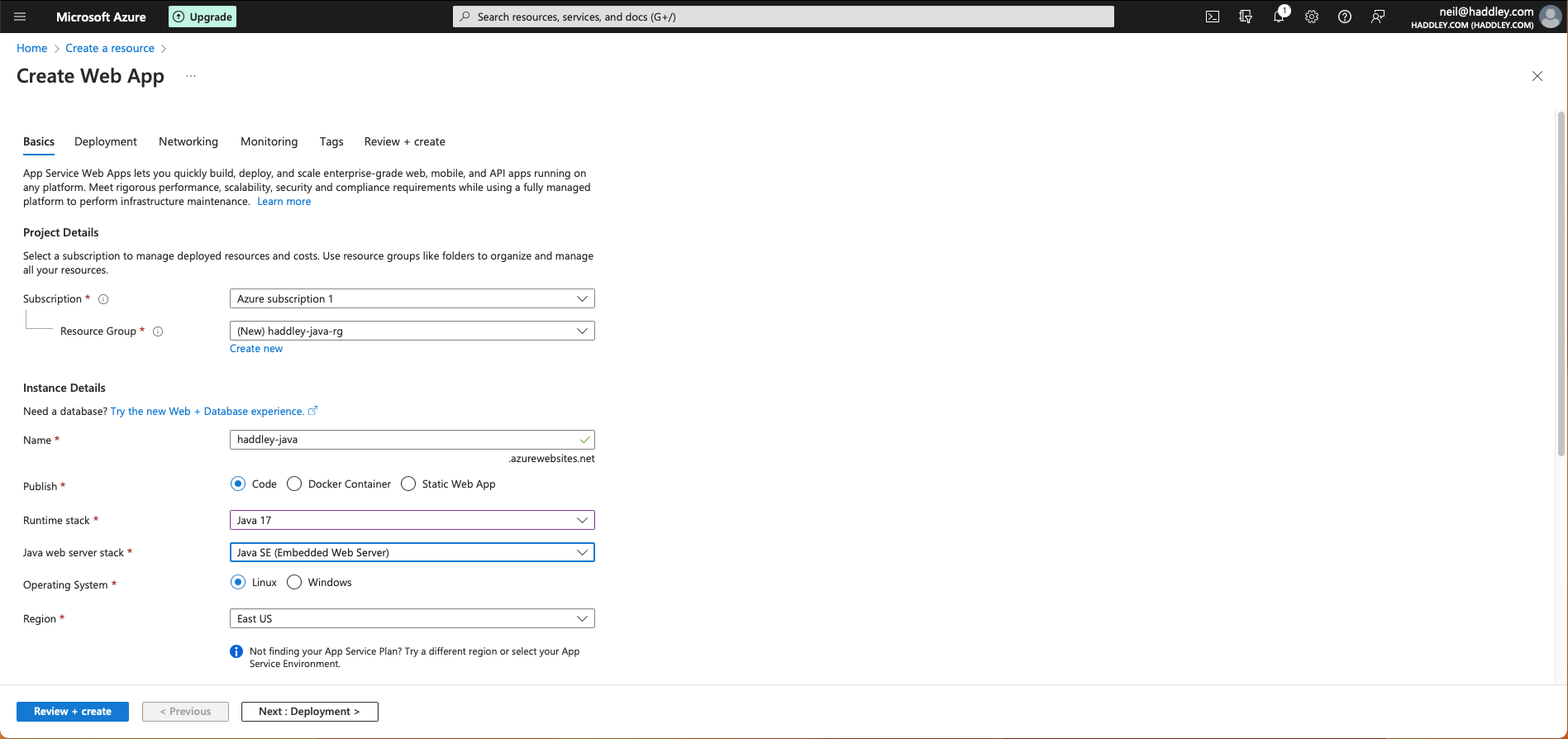

I selected the Java 17 runtime

I changed the Pricing plan to "Free" and clicked the Next: Deployment button

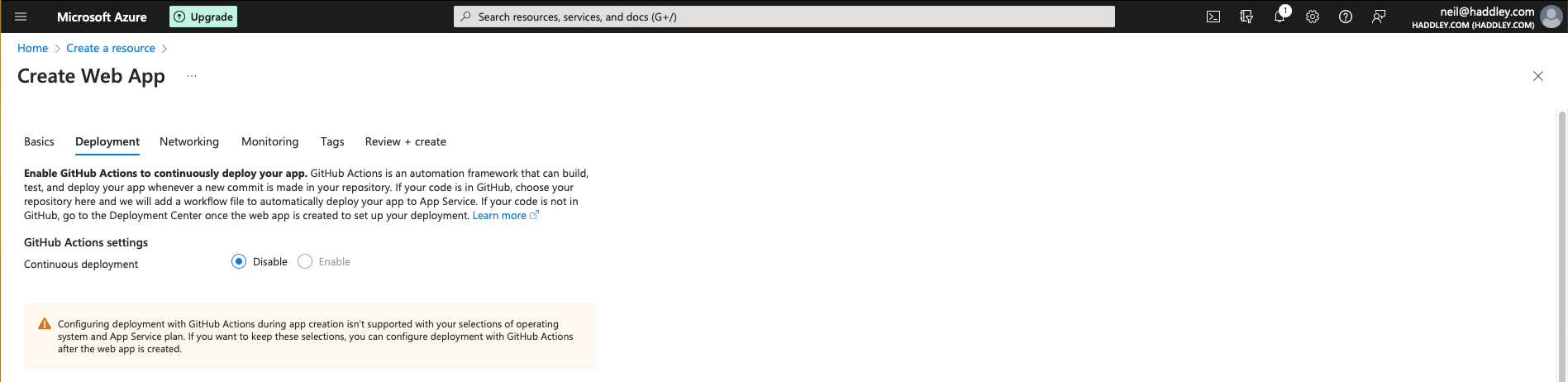

The Continuous deployment option was disabled so I clicked the Previous button

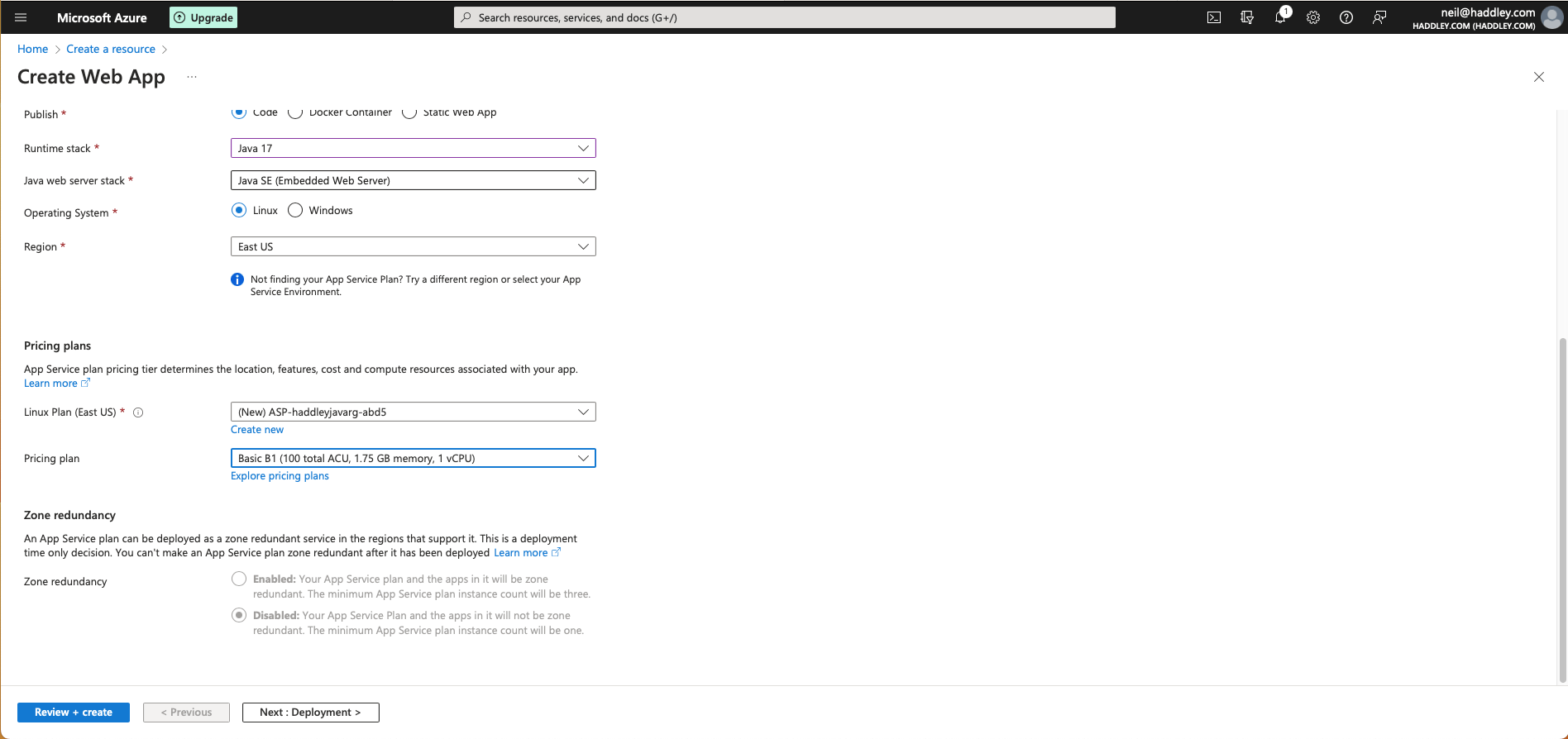

I selected the Basic B1 pricing plan

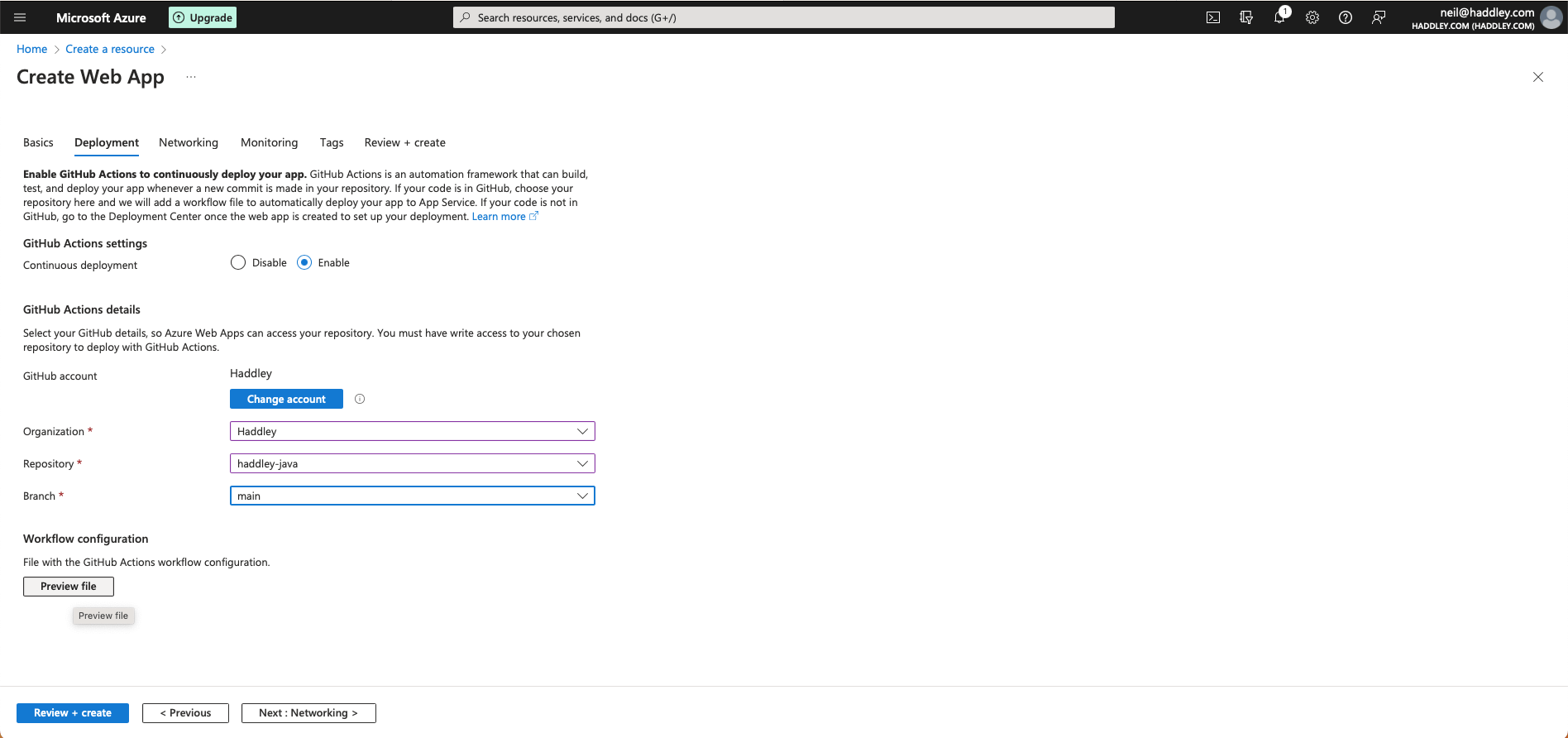

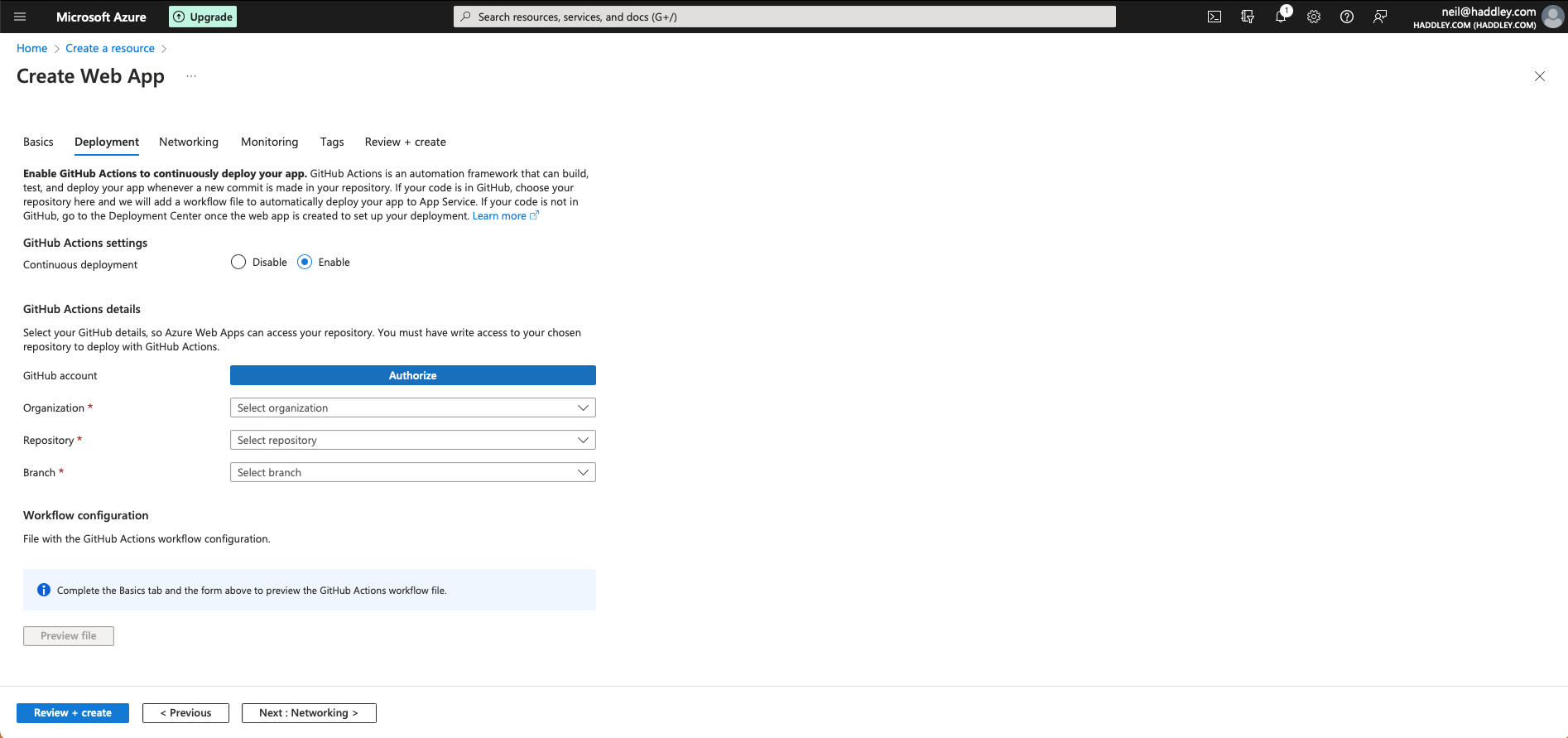

I enabled Continuous deployment and clicked the Authorize button

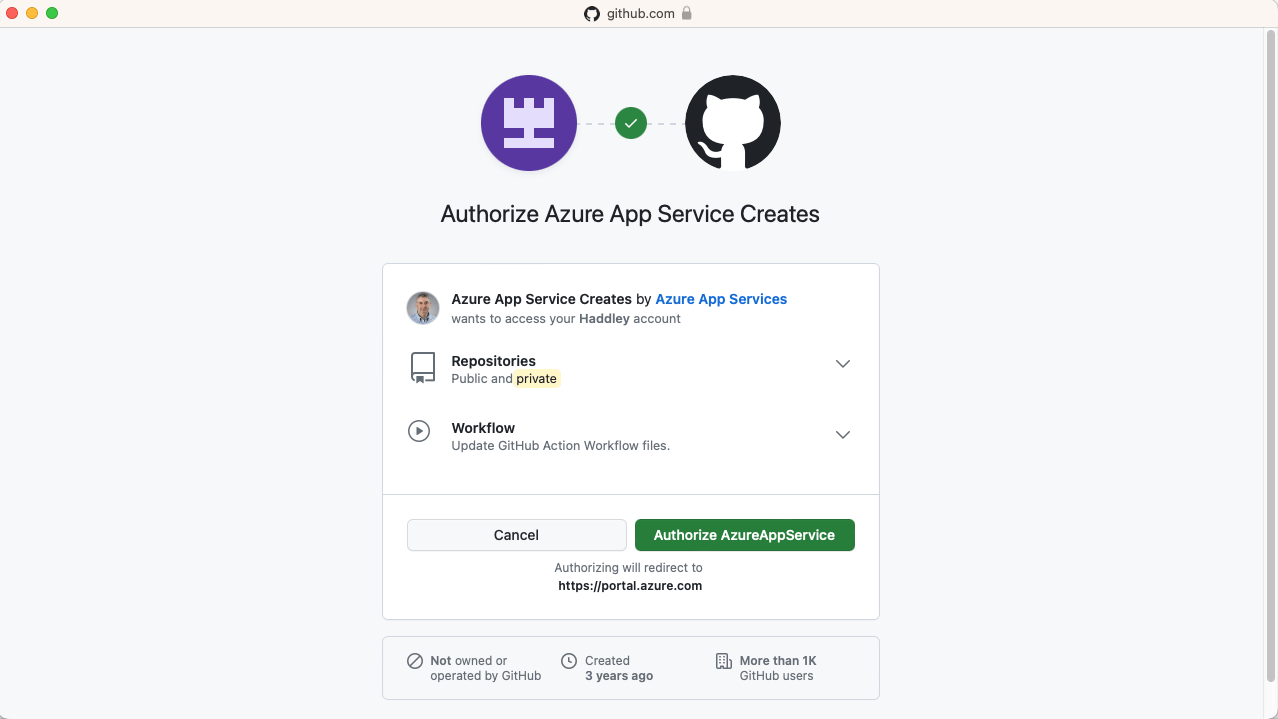

I clicked the Authorize AzureAppService button

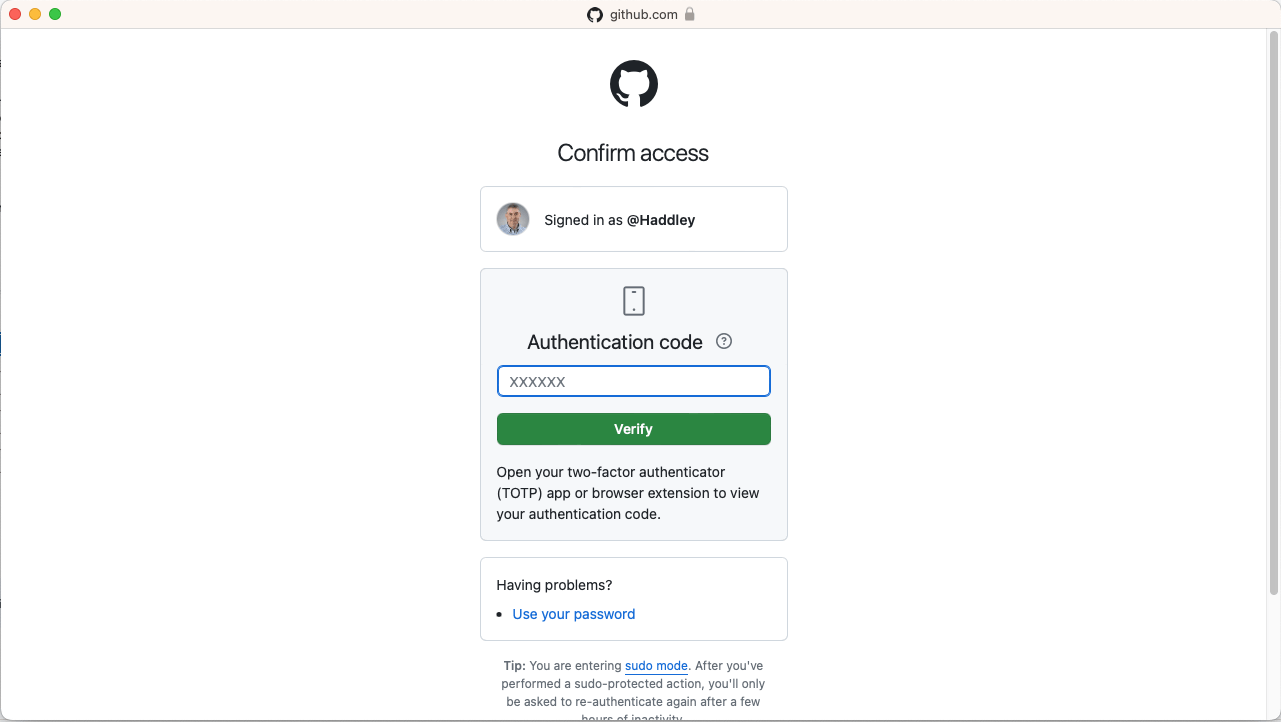

I entered an Authorization code

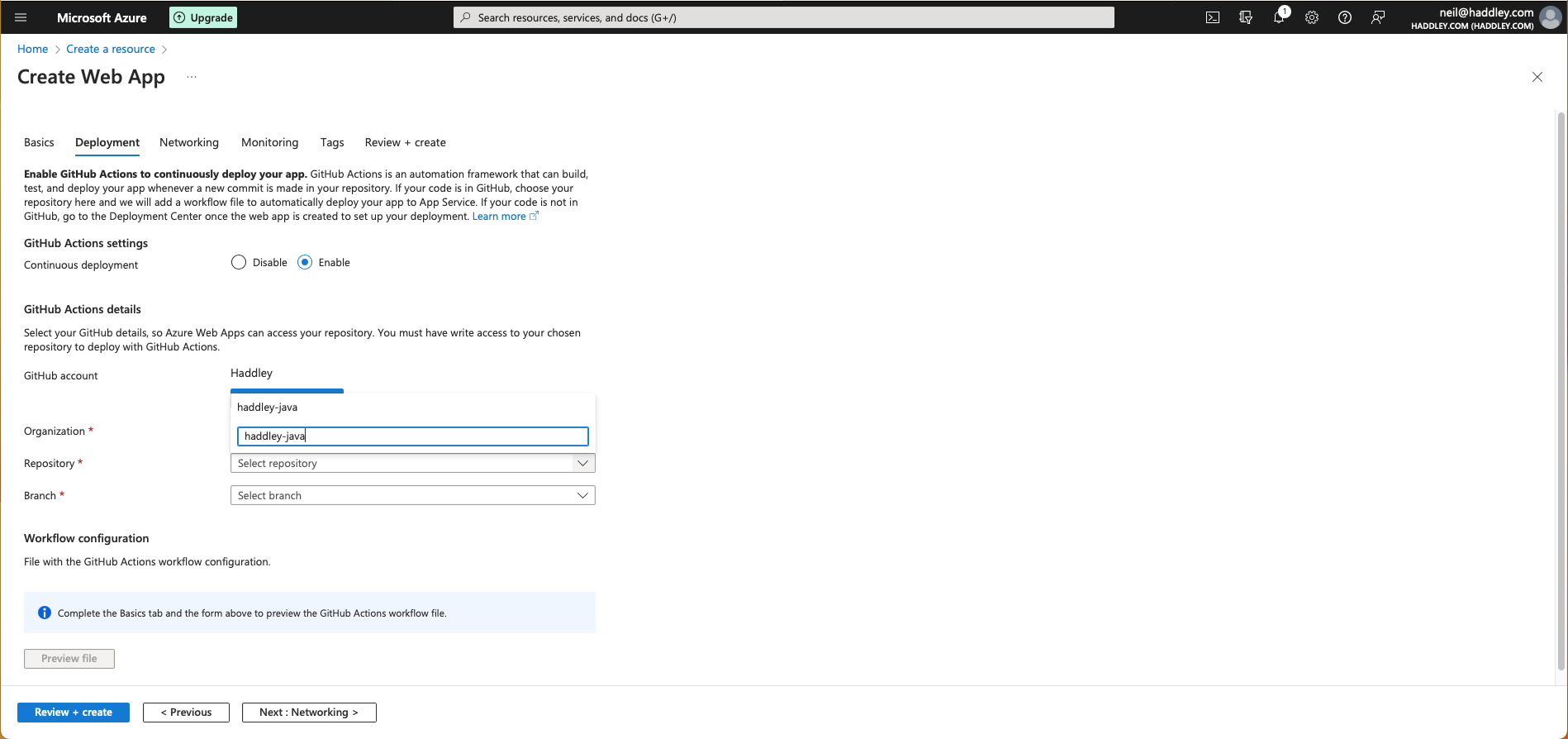

I selected organization Haddley. I selected the haddley-java repository

I selected the main branch

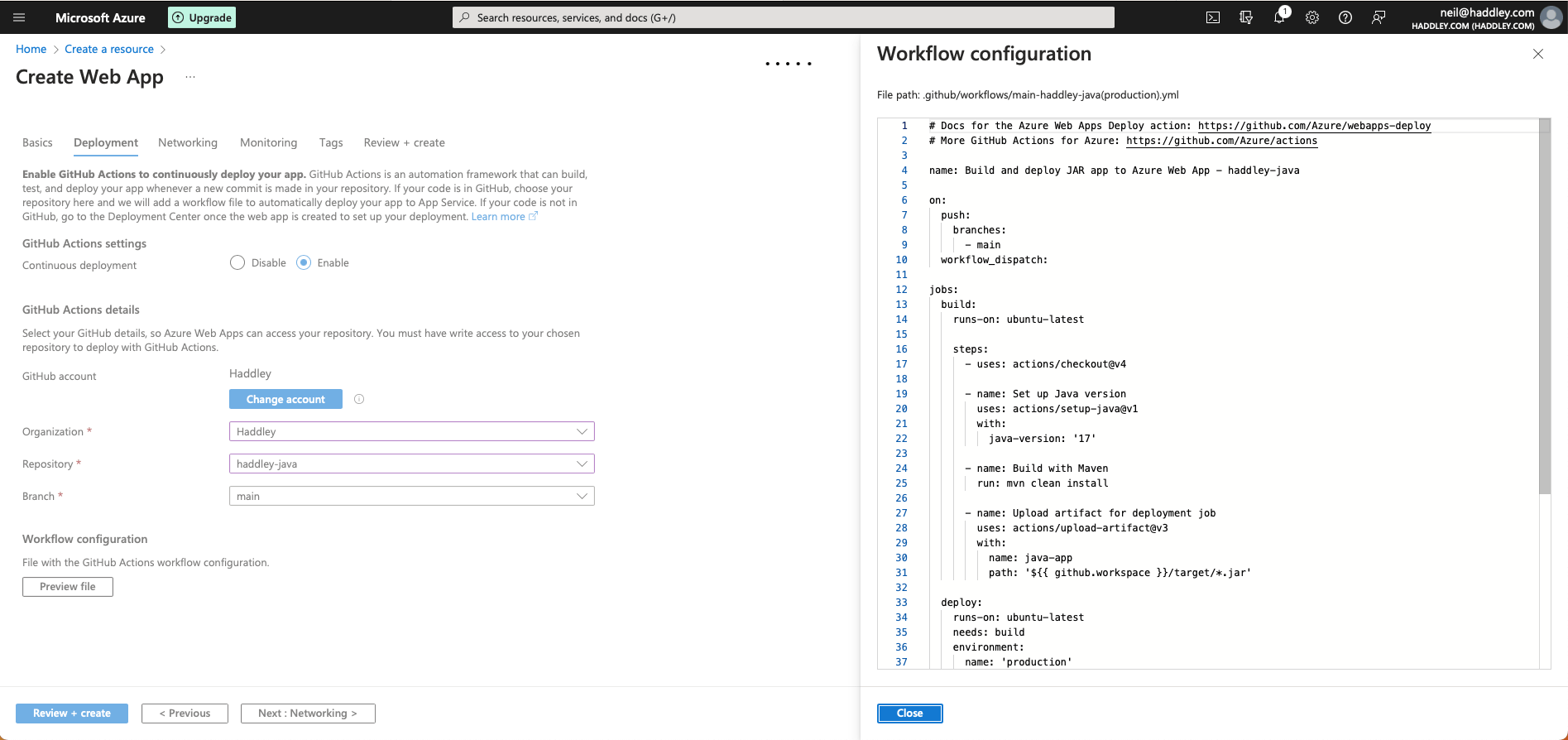

I reviewed the GitHub Actions configuration

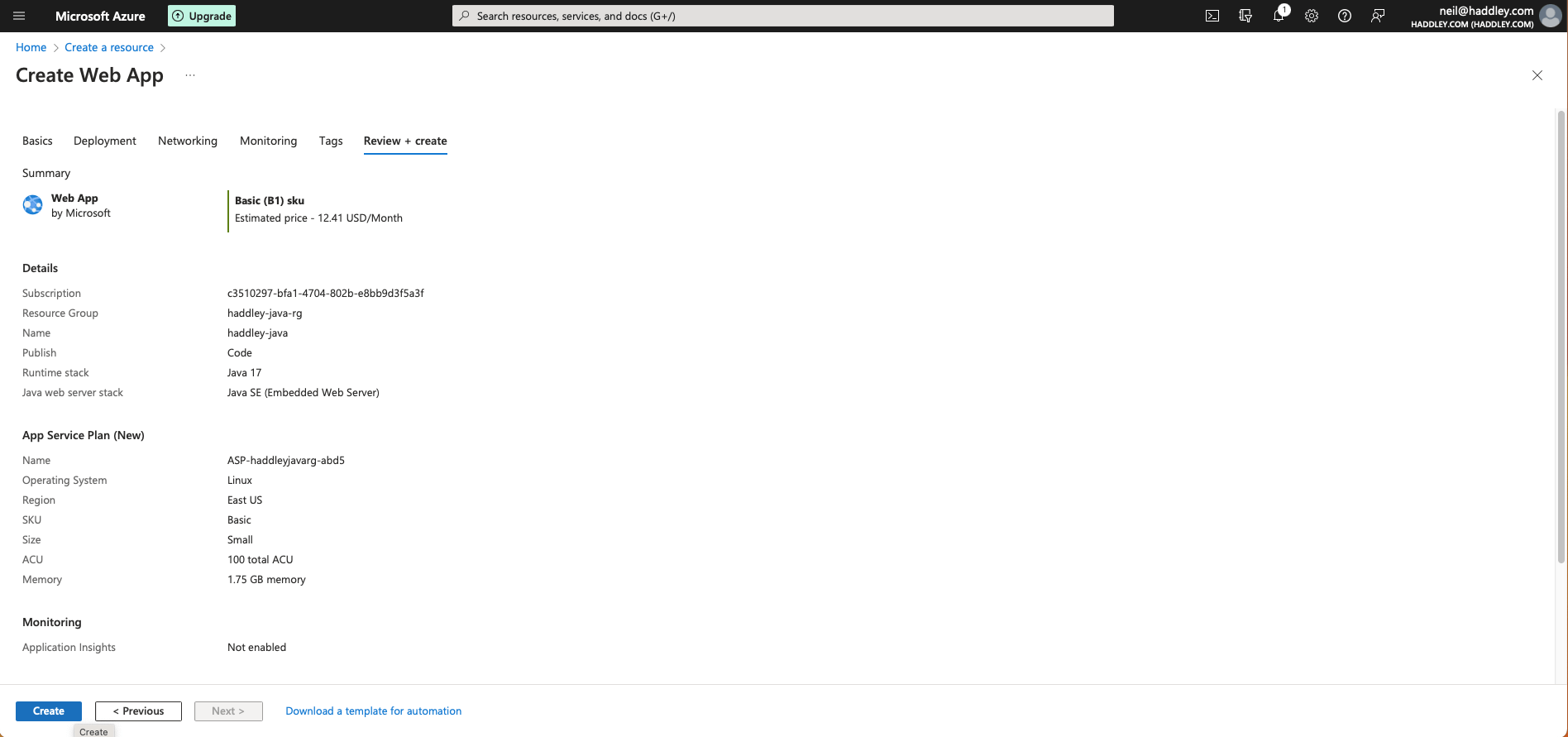

I clicked the Create button

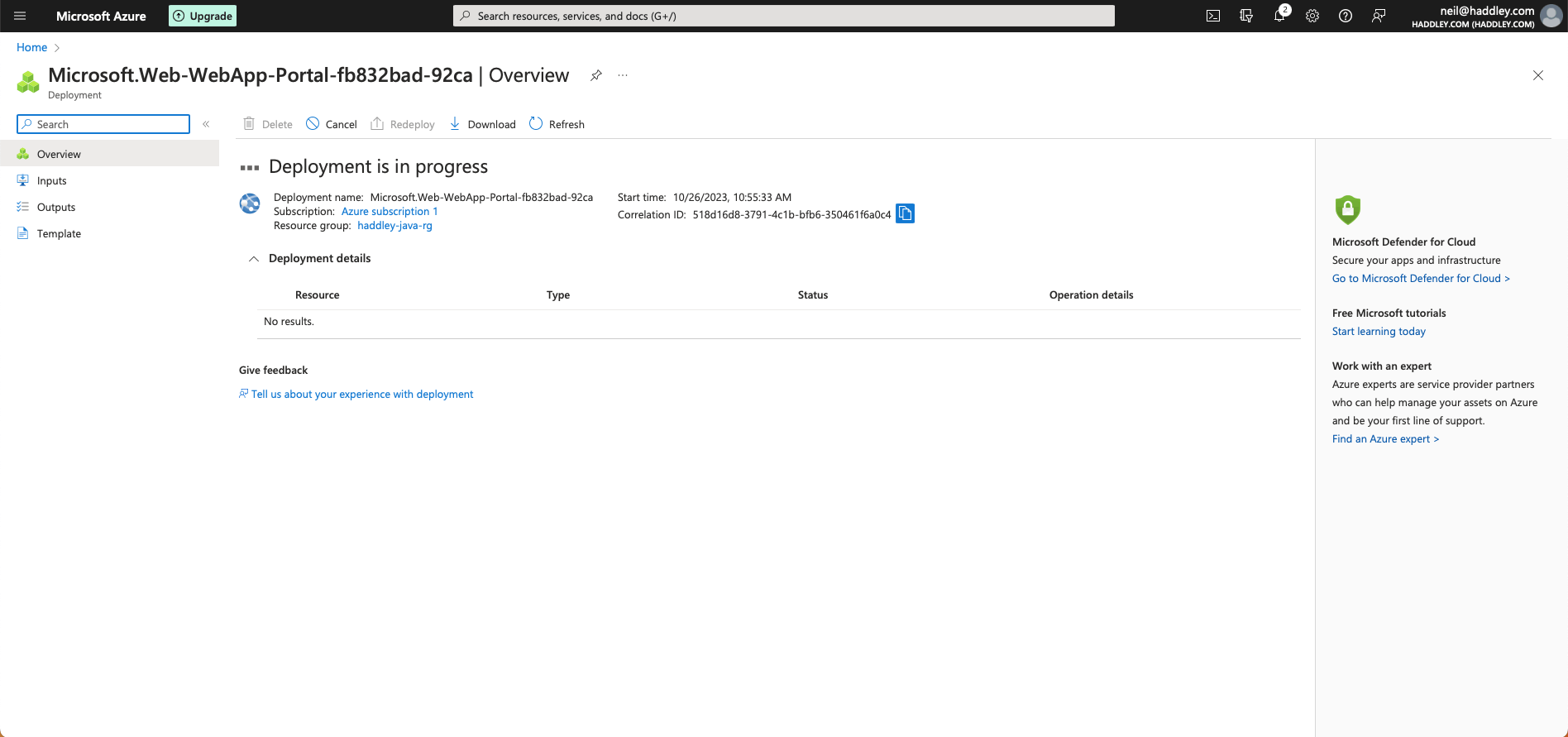

I waited

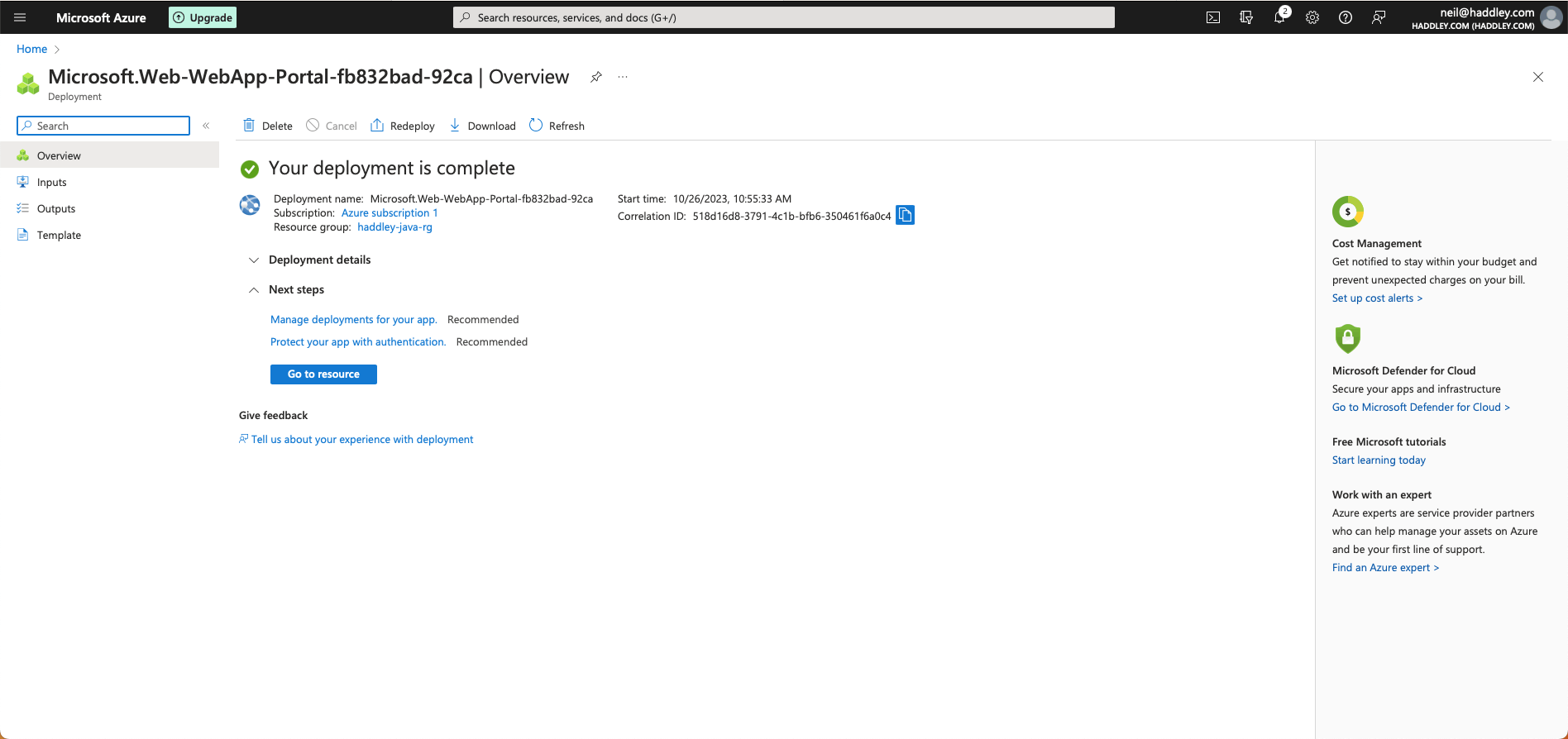

When deployment was complete I clicked the Go to resource button

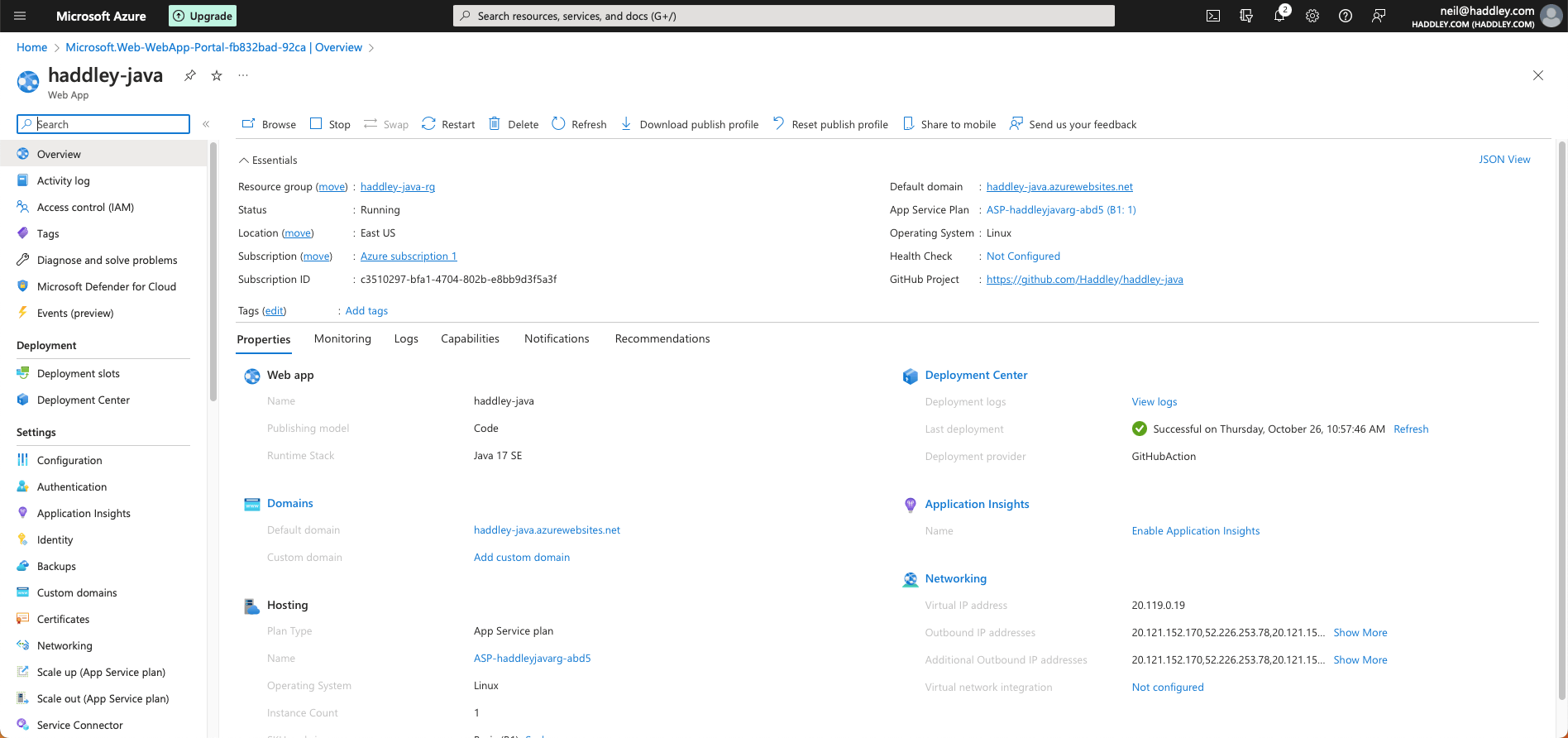

I reviewed the Web App overview and clicked on the https://haddley-java.azurewebsites.net link

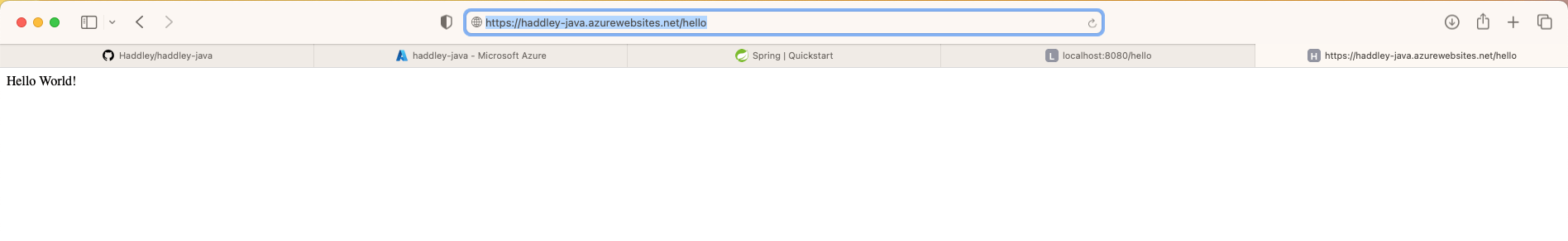

I reviewed the Azure deployed application

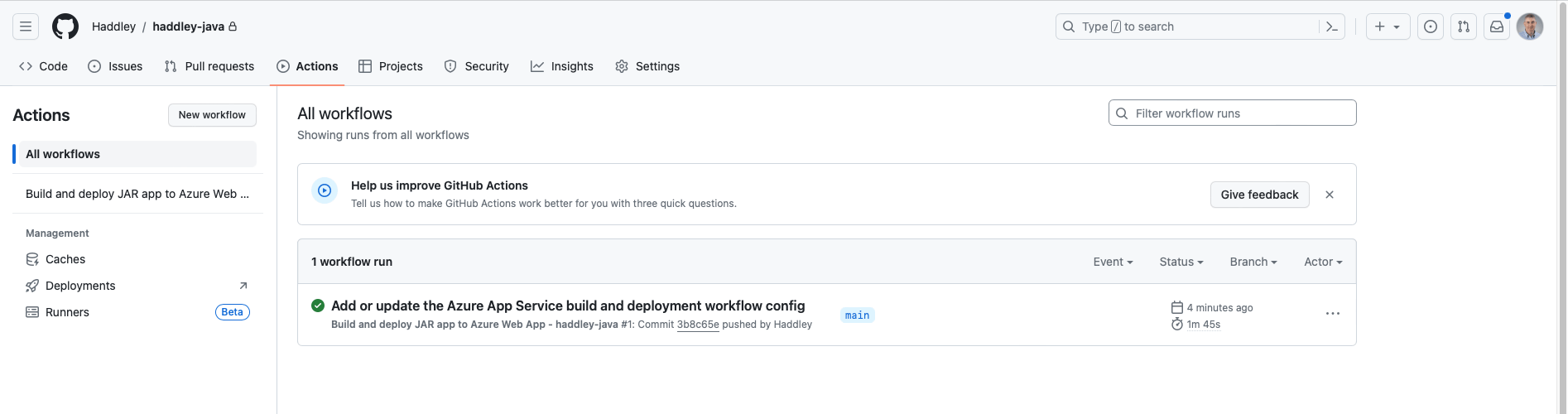

I returned to the GitHub repository and reviewed the GitHub Actions workflow history

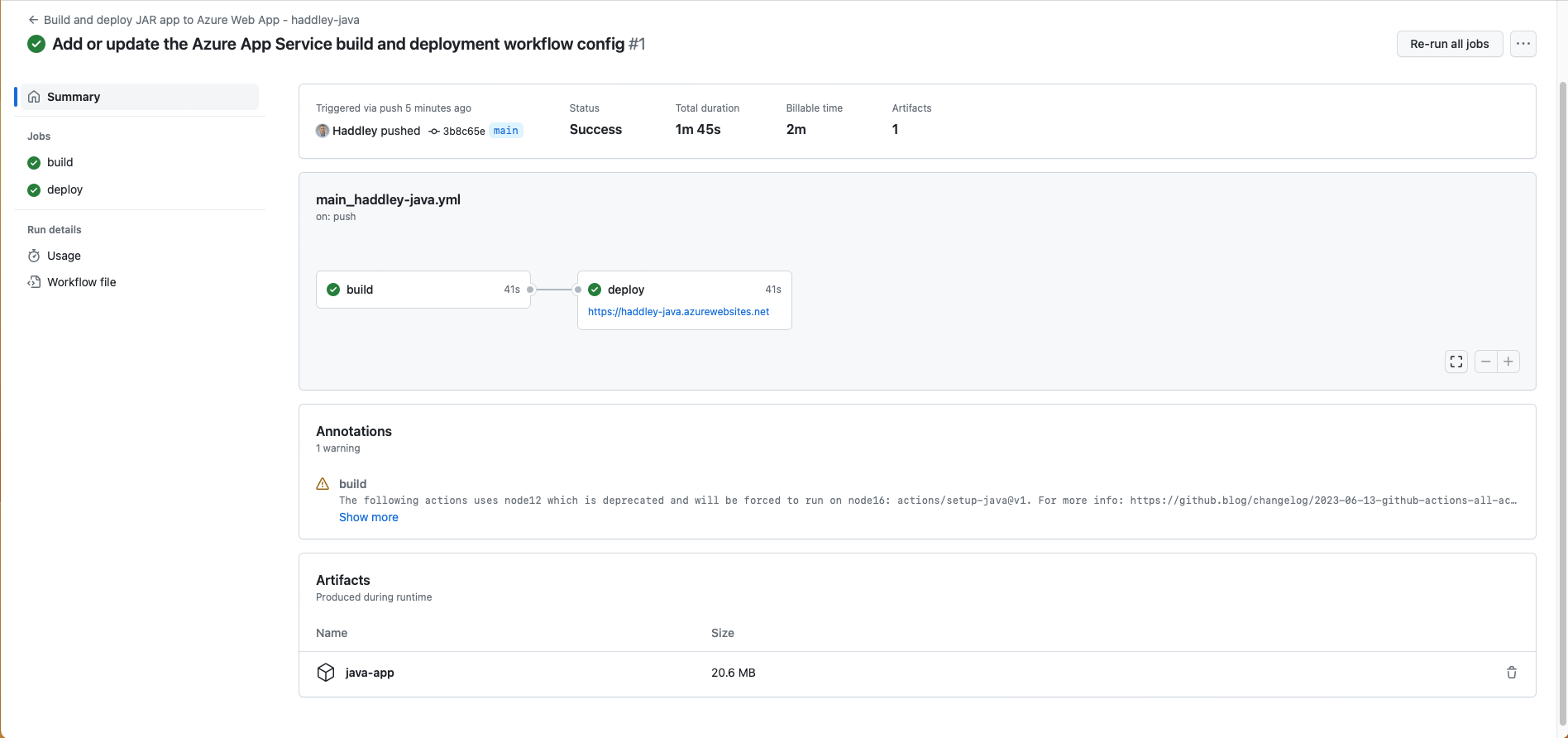

I reviewed the workflow summary

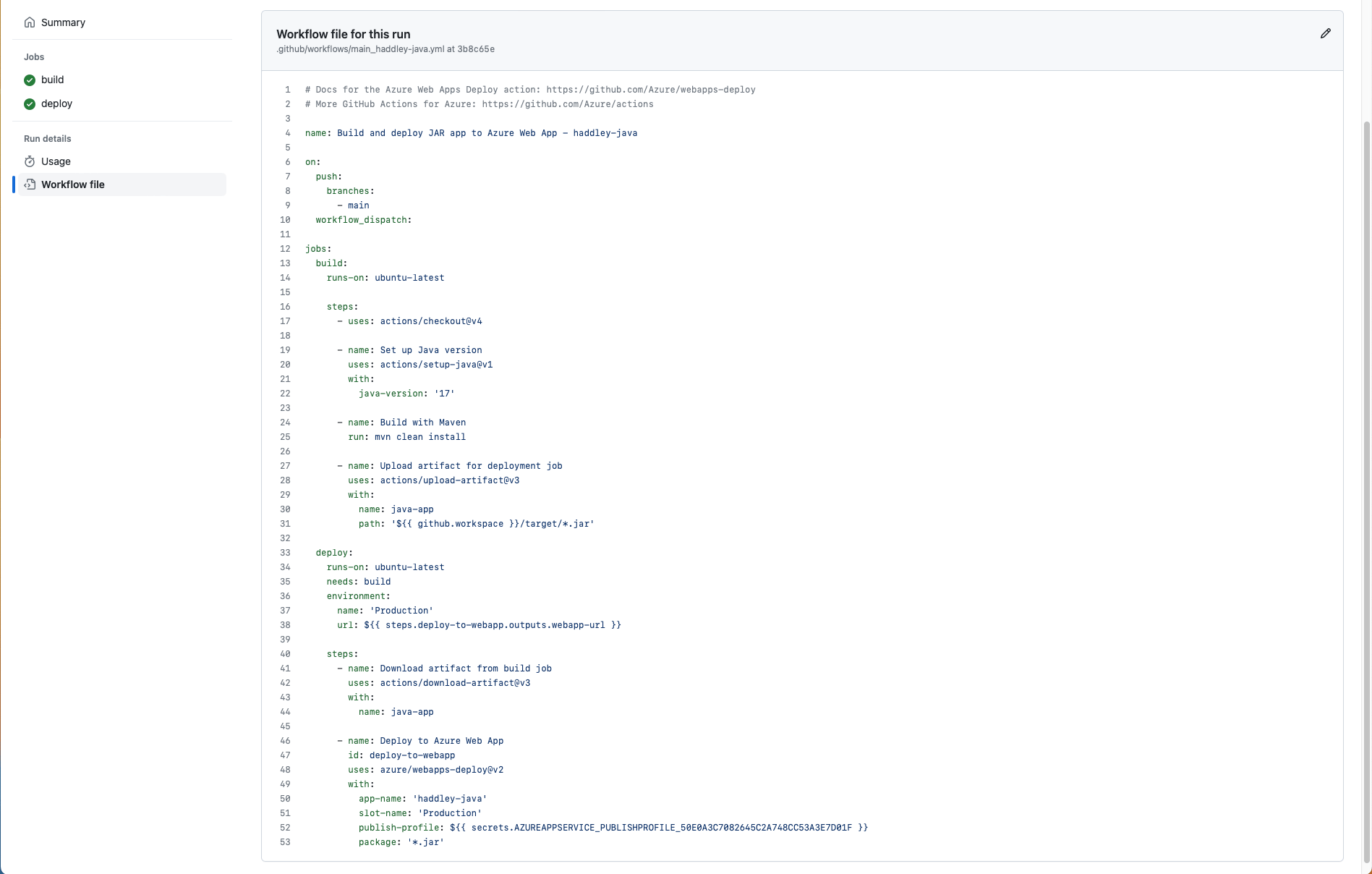

I reviewed the workflow file

Under the hood: What the workflow file does

Azure added a GitHub Actions workflow file to my repository, and the screenshot shows it. It runs when I push to the main branch, and it can also be started by hand. A build job checks out the code, sets up Java 17, runs mvn clean install, and uploads the JAR file. A deploy job waits for the build job, downloads the JAR file, and sends it to the haddley-java Web App using a publish profile that GitHub keeps as a secret. That is why pushing a commit later in this post redeployed the site.

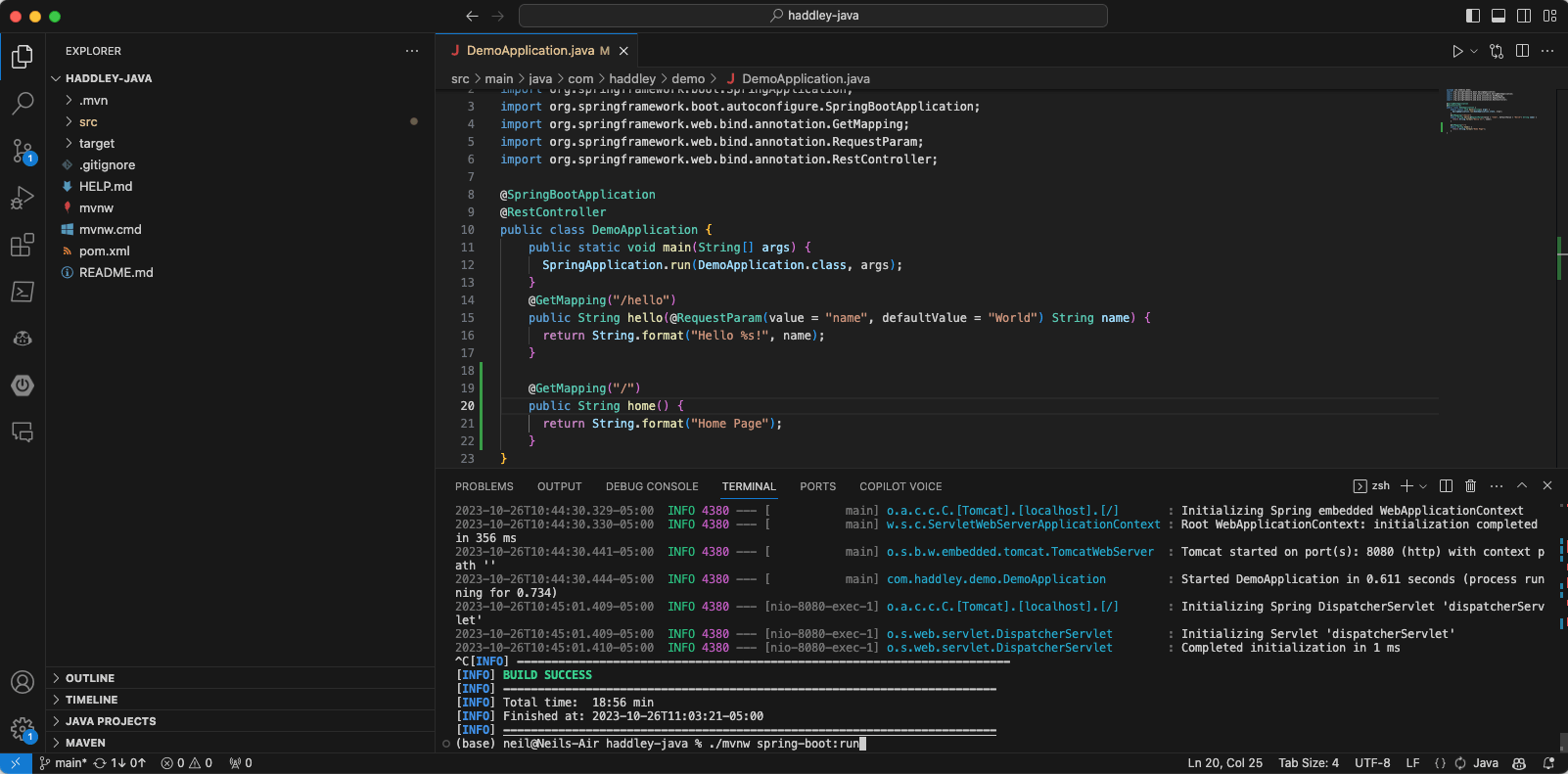

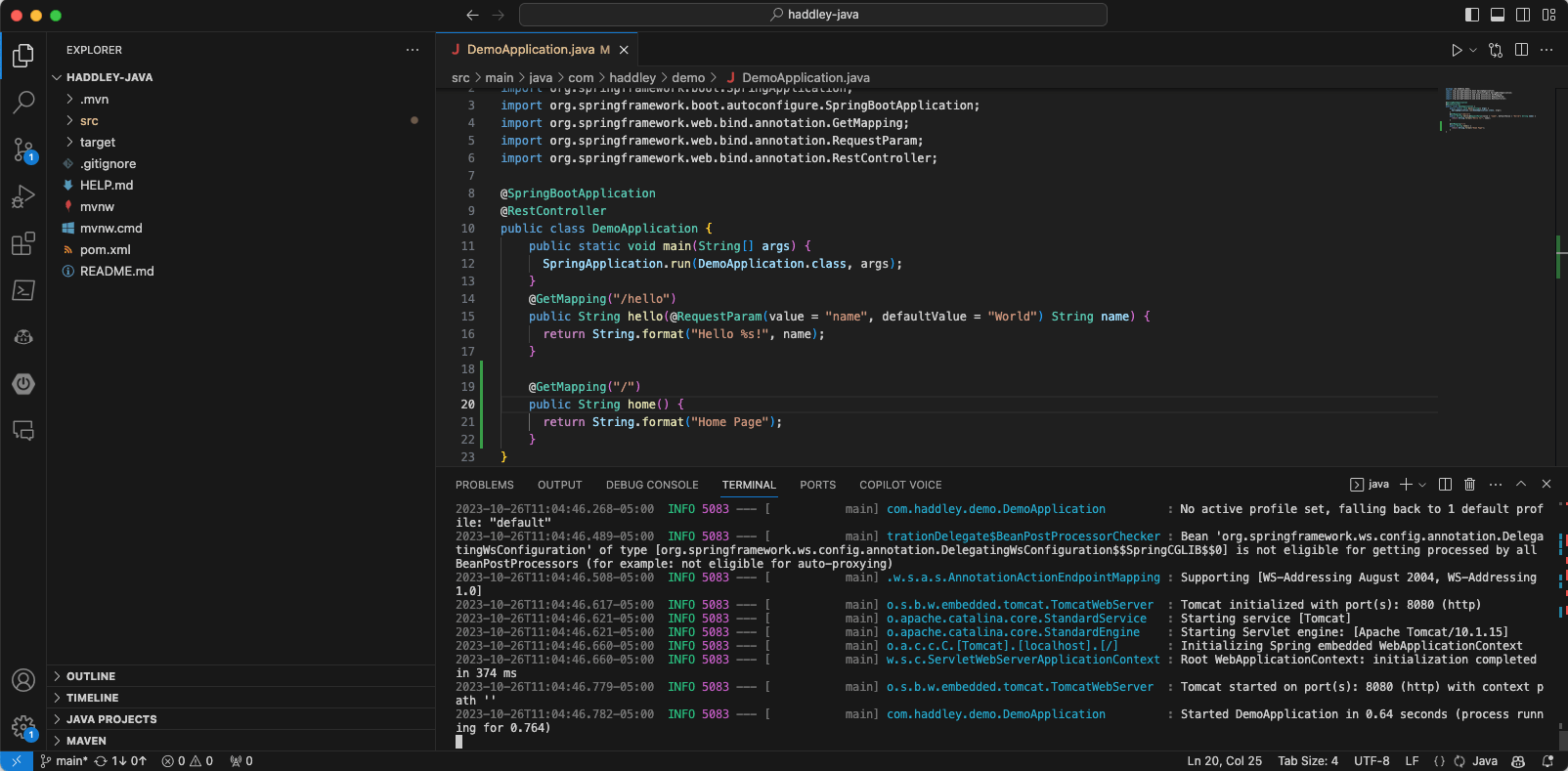

I updated the source code adding a home page

I ran the updated code locally

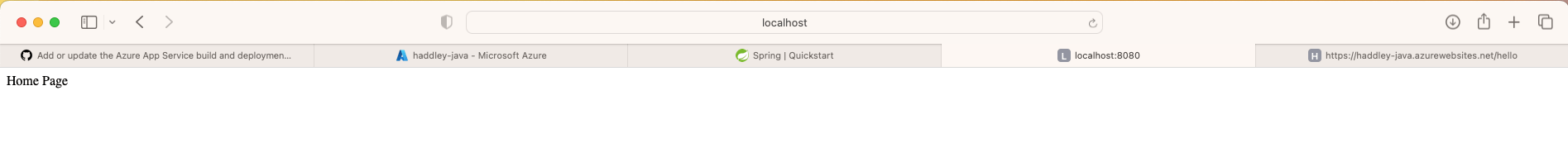

I accessed the home page at http://localhost:8080

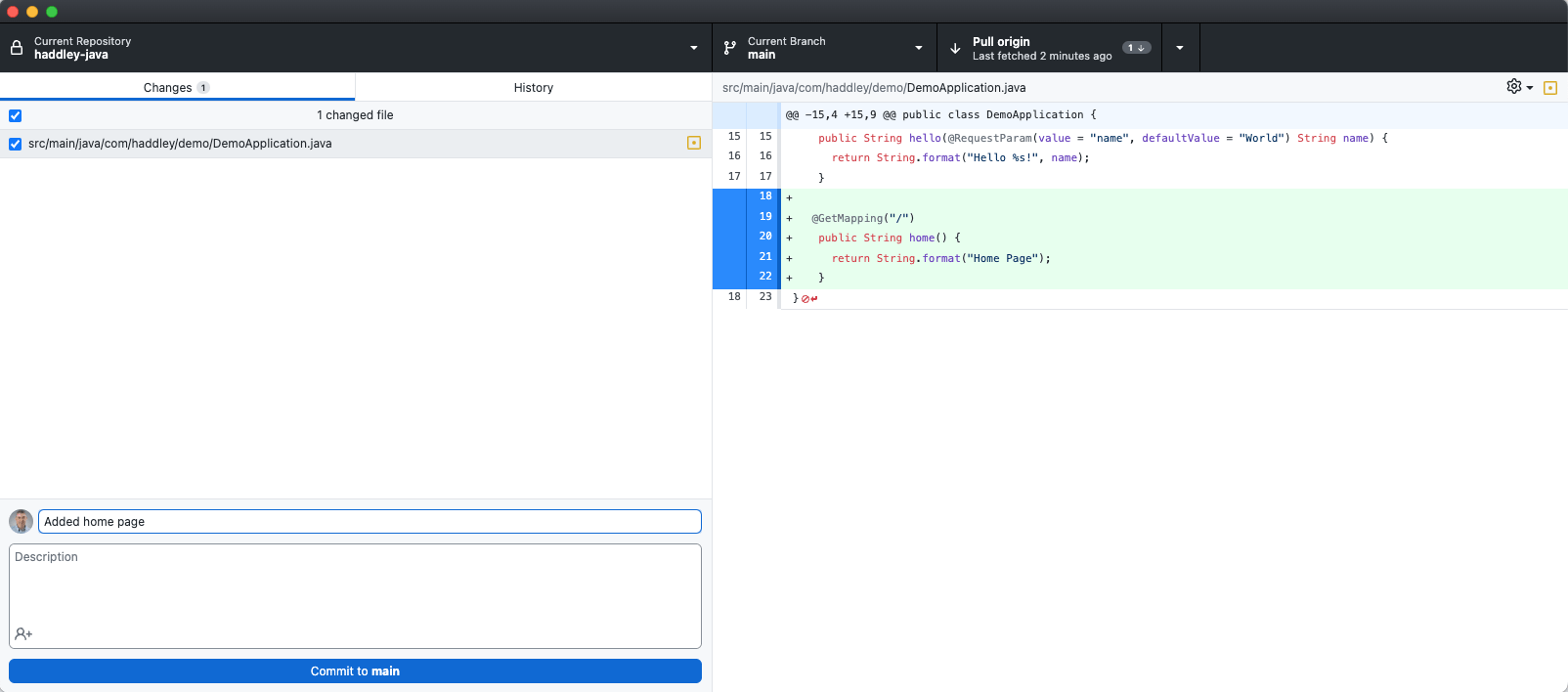

I commited the update (to the main branch)

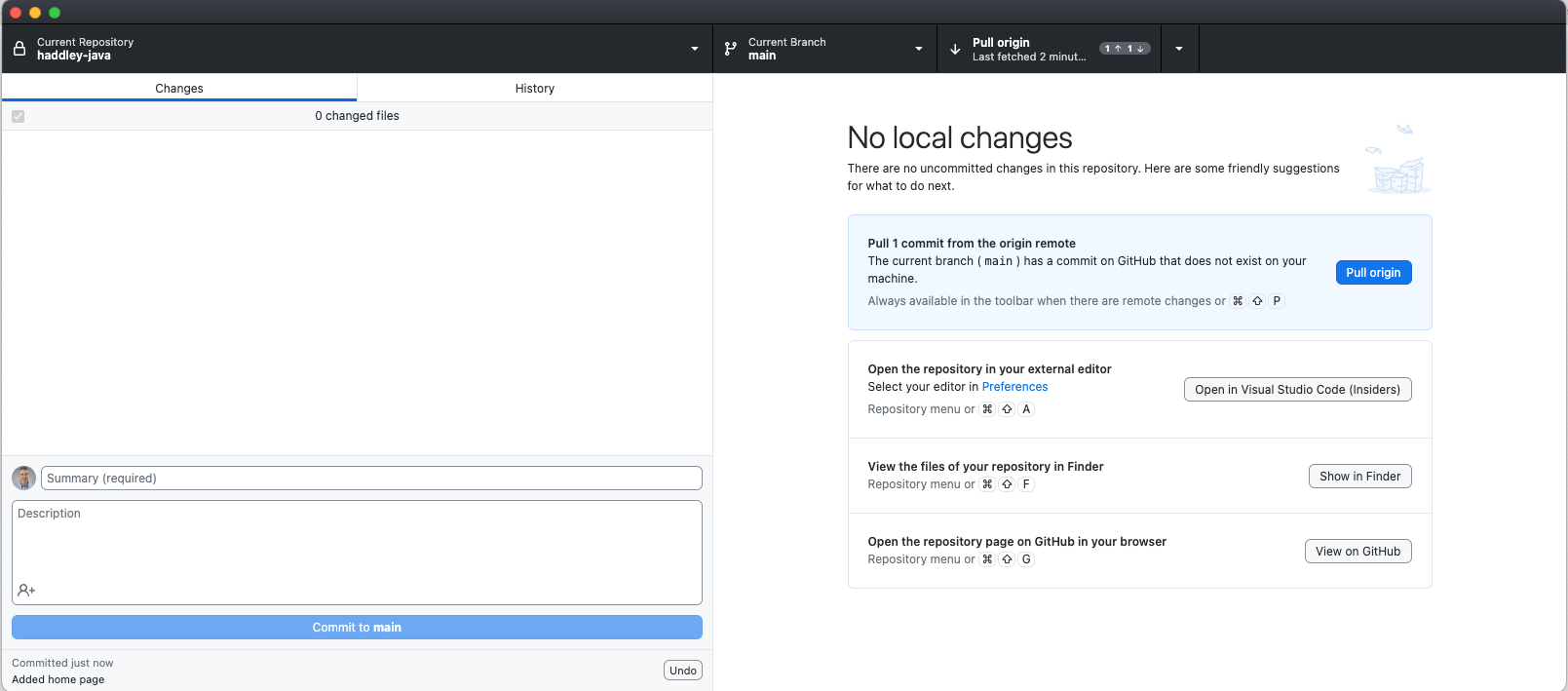

I pulled changes from the GitHub repository

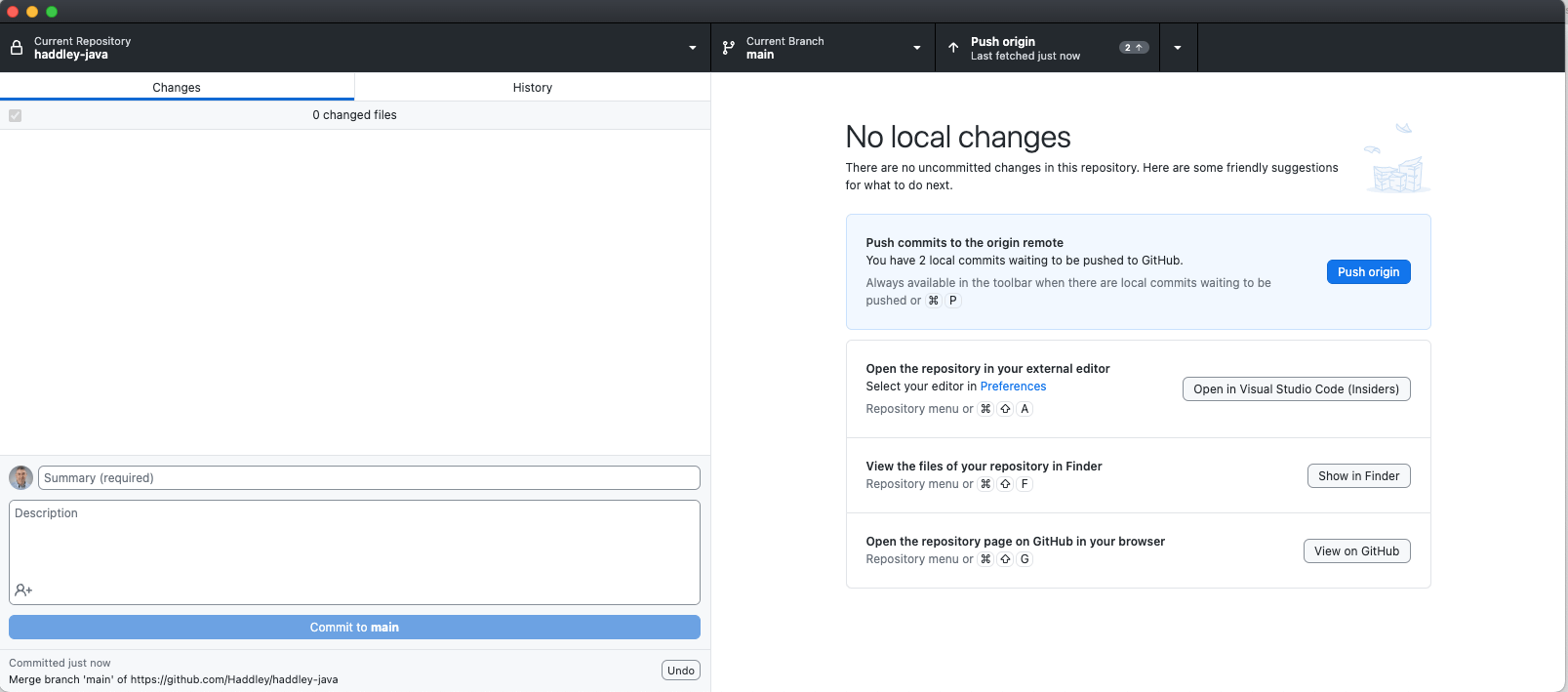

I pushed my change to GitHub

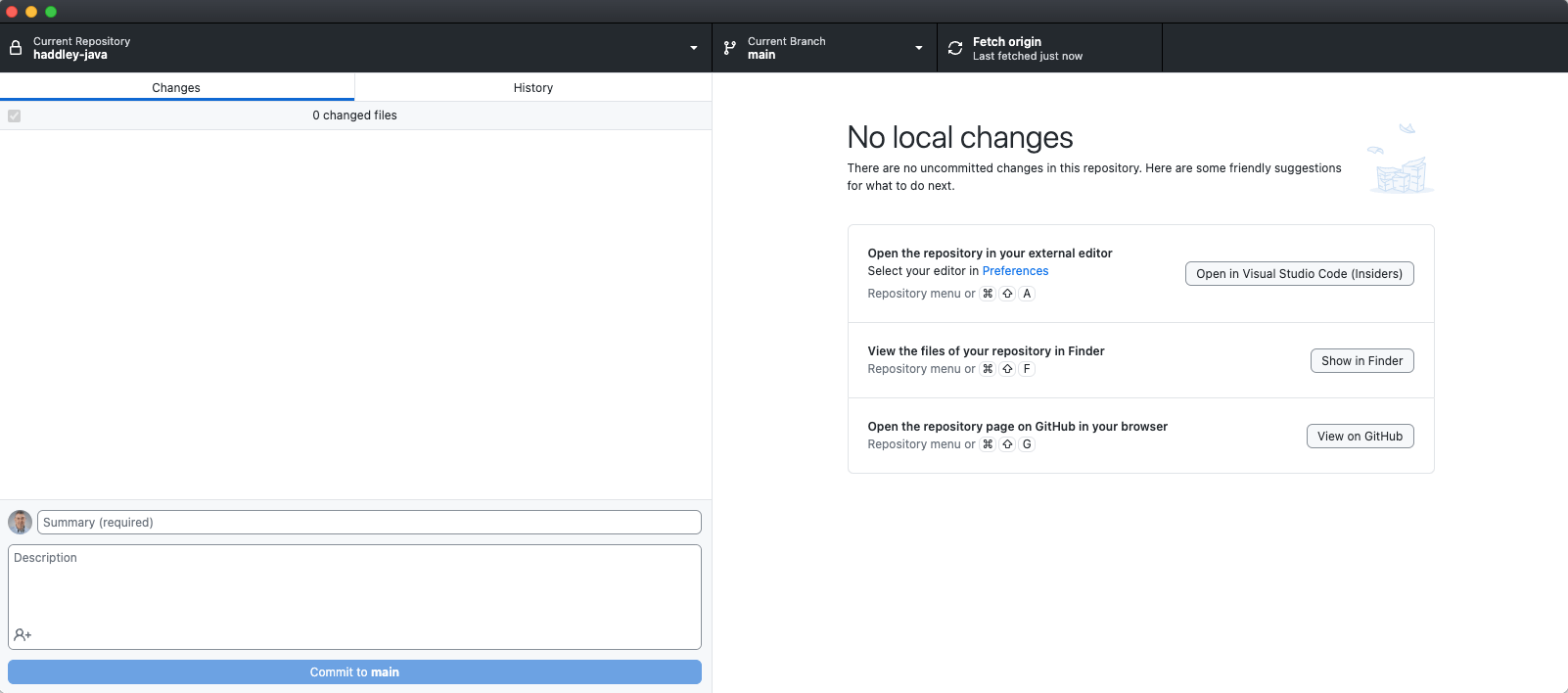

There were no conflicts/issues

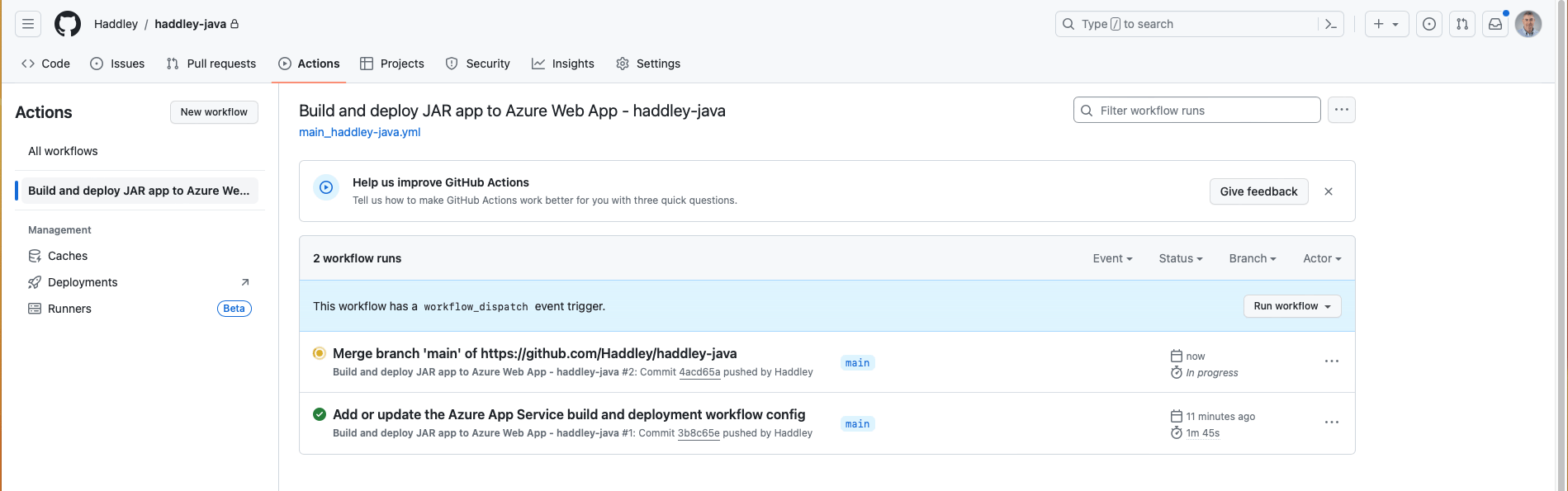

I returned to GitHub and saw that the Merge branch workflow had started

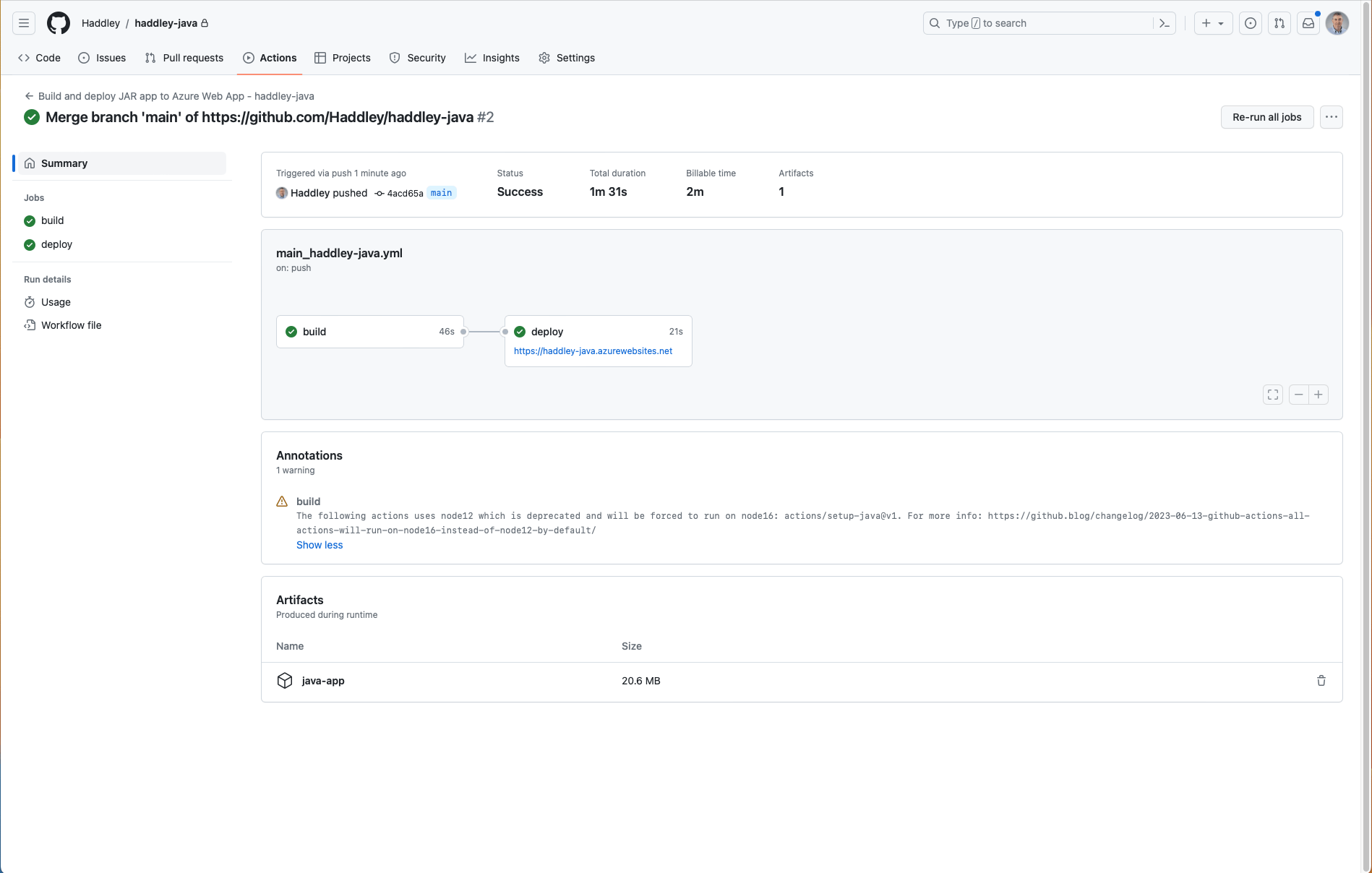

The Merge branch workflow completed with no errors

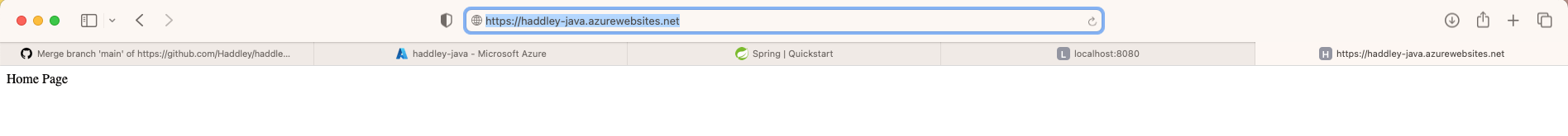

I navigated to https://haddley-java.azurewebsites.net to view the new home page

References

How to deploy your Spring Boot app to Azure App Service with GitHub Actions
